USER MANUAL 302670 Bearware

Red stylized graphic of a bear and a pig (no text or symbols)

BEARWARE

DATE MONTH 8/12 DAY FRE

1 Scope of supply 14
2 Technical data....14
3 Additional instructions for this device....15
4 Product details....16
5 Initial use 16
6 DCF signal 17
7 Connecting with the outdoor sensor ....17
8 Display 18
9 Basic settings 19
9.1 Alarm setting 20
10 Backlight 21
11 Troubleshooting 22
12 Safety instructions and disclaimer....22
13 Disposal instructions 22
14 Instructions for battery disposal 23

Thank you for choosing a BEARWARE product. Please read the following user manual carefully so that you can enjoy your purchased product for a long time.

1 Scope of supply

• Weather station
• External sensor
• User manual

2 Technical data

Power supply	Weather station: Two 1.5V AAA batteriesOutdoor sensor: Two 1.5V AAA batteries
Inner temperature range	0°C to 50°C
Outdoor temperature range	-40°C to 60°C
Number of buttons 6
Features	Day display in 7 different languages2 alarm times12/24 hour formatSnooze functionDCF signalWireless outdoor sensorBacklight (can be switched on via motion sensor at the top of the device)Temperature display in °C and °FDate display

3 Additional information about this device

• Do not use this device if it is damaged. Do not expose the base station to moisture or direct sunlight.
• Before using the product, ensure that the available supply voltage corresponds to the operating voltage indicated on the specification plate.
• Before using the product, ensure that the cables are not damaged.
• This product is suitable only for use with 1.5V AAA batteries.
• It is intended only for private use and not for medical purposes or for public information.

CAUTION!

Keep the batteries and the device out of the reach of children. Batteries contain harmful acids. Weak batteries should be replaced as soon as possible to prevent leakage! Never use new and old batteries or batteries of different types together. Never throw batteries into the fire and do not short-circuit them. Do not recharge the batteries or take them apart. There is a risk of explosion!

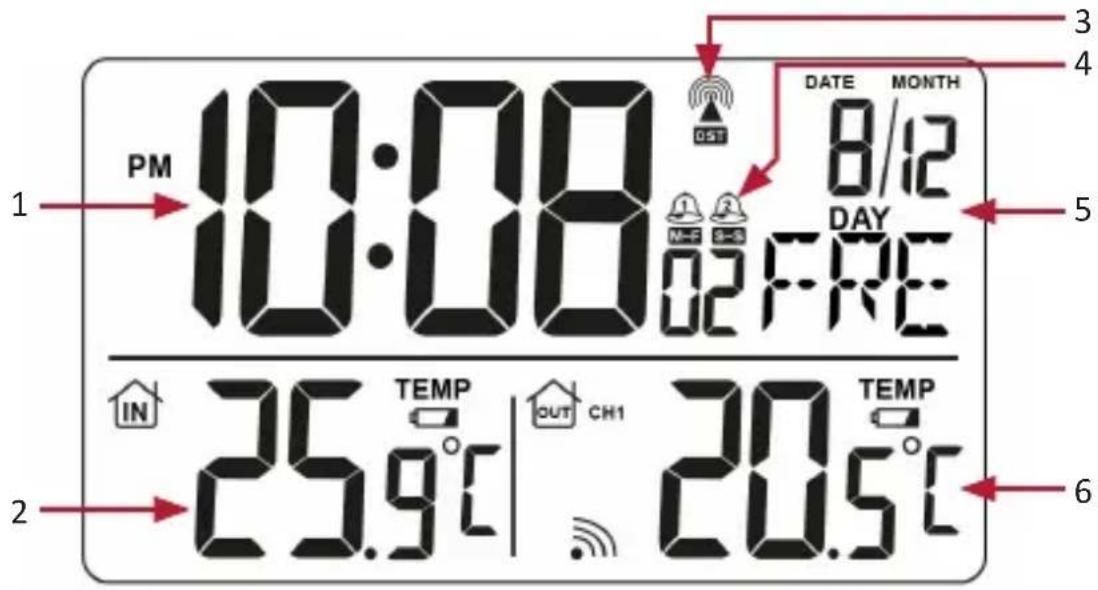

4 Product details

10:08 PM 1 2 3 4 DATE MONTH 8/12 DAY 25.9°C OUT CH1 TEMP 20.5°C 6

1 Time
2 Indoor temperature
3 DST symbol
4 Alarm symbol
5 Day and date display
6 Outdoor temperature

5 Initial use

Take the product out of the package and remove all the packaging material. Open the battery compartment of the outdoor sensor and insert two 1.5V AAA batteries. Configure the desired channel of the outdoor sensor using the switch in the battery compartment. Then close the battery compartment. Then open the battery compartment on the back of the main unit and insert two 1.5V AAA batteries.

Now the weather station starts to connect with the outdoor sensor and automatically searches for the DCF signal.

Note: The backlight is not constantly on. The display lighting is switched on when the motion sensor detects a movement at the top of the device.

6 DCF signal

The DCF signal is a time signal, which is sent out by one of the most accurate clocks in the world. It is located near Frankfurt am Main. Under ideal conditions, your weather station can receive this signal from a distance of up to 1500 km.

If the weather station has detected the signal, then it displays Central European Time, the date, and the day of the week. The DCF symbol "W" is then shown in the display.

If the attempt to receive a signal fails, then the weather station stops searching after about 7 minutes. The DCF symbol disappears from the display.

Re-activate the search by pressing the "Down" button for about 3 seconds until the DCF symbol is shown once again in the display. You can cancel the manual search by pressing the "DOWN" button again for about 3 seconds during the search.

Alternatively, you have the option of manually setting the time. Further information on this topic can be found in the "Basic settings" section.

7 Connecting with the outdoor sensor

Make sure that both the devices are within each other's range. The connection symbol "●" flashes in the "Outdoor temperature display" of the main unit. If the main unit cannot establish a connection with the outdoor sensor within 3 minutes, then it stops searching. The connection icon stops flashing and the temperature display shows "--." °C" in the display. Ensure that the switch in the battery compartment of the outdoor sensor is set to the desired channel.

In most cases, the connection cannot be established due to specific factors such as reinforced walls or a too great distance between the sensor and the main unit. In this case, position the sensor and the main unit closer to each other.

To restart scanning, press and hold the "CH" button on the back of the main unit for 3 seconds until the connection symbol in the display starts flashing.

The weather station will now automatically search for the outdoor sensor in the configured channel (CH1, CH2 or CH3) again.

8 Display

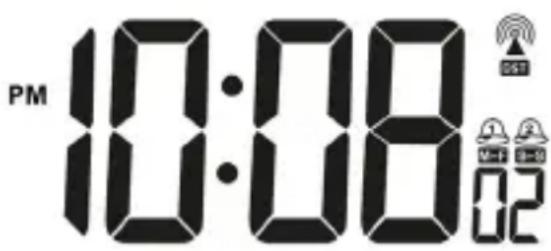

Time display:

PM 10:08 02

The time can be displayed in a 12-hour or 24-hour format. This can be configured in the time settings.

Date and day:

DATE MONTH 8/12 DAY FRE

The weather station has a date and day display. The date is displayed in the lower section and the day in the upper section. The pre-configured language is German. If you want to change the language, please refer to the section "Basic settings" for more information.

DCF symbol: The radio tower symbol indicates that the DCF signal has been successfully received. The weather station synchronises the time every night. The symbol begins flashing during synchronisation. If the time has been successfully received, then the symbol glows constantly until the next synchronisation.

Indoor temperature display:

The indoor temperature is measured by the base station and is shown with an accuracy of one tenth of a degree. The configured temperature unit is displayed to the right of the measured value. The temperature unit can be changed between °

C and ° F. This can be changed by pressing the "DOWN" button.

The measured value should not be below the minimum value ( 0^ ) or above the maximum value ( 50^ C).

Outdoor temperature display:

The outdoor temperature is measured by the outdoor sensor and shown with an accuracy of one tenth of a degree. The configured temperature unit is displayed to the right of the measured value. The temperature unit can be changed between °C and °F. This can be changed by pressing the "DOWN" button.

The measured value should not be below the minimum value (-40°) or above the maximum value (60°C).

9 Basic settings

Note: Any movement above the motion sensor on the top of the housing will switch on the backlight. Please note that the base station does not respond to 2 buttons at the same time. It is therefore advisable to press only one button.

Press and hold the "SET" button in time mode for about 3 seconds to configure the basic settings. With the "UP" and "DOWN" buttons you can change the values accordingly.

By briefly pressing the "SET" button in the time settings, you can confirm entry and proceed to the next option. In this way, you can change and customise the following settings in the sequence mentioned below:

• 12/24 hour display
- Time zone- Note: If you set the time zone, for example, to +01 and the weather station is actuated using the DCF-signal, then the clock displays one hour later than the DCF-signal.
- Hours
- Minutes
- Language setting- To set the day in the display. The following codes can be configured and selected using the "UP" and "DOWN" buttons: GER (German), DAN (Danish), ESP (Spanish), NET (Dutch), FRE (French), ITA (Italian), ENG (English)

• Year
- Month
- Day

9.1 Alarm setting

The weather station can store up to 2 alarm settings, which can be turned on and off separately. By pressing the "SET" button you can view the configured alarm times. You can turn the alarm times on and off using the "ALM" button.

Setting the alarm

Press the "SET" button to view the alarm times. Press and then hold the "SET" button to change the corresponding alarm time. You can make the desired settings using the "UP" and "DOWN" buttons. Confirm the settings respectively using the "SET" button. You can configure these settings using Alarm 1 (A1) and Alarm 2 (A2). The alarm times of alarm 1 refer only to weekdays (Mon-Fri). The alarm times of alarm 2 refer only to weekends (Sat-Sun).

Turning the alarm on and off

After successfully setting the alarm, the respective alarm times can be turned on or off using the "ALM" button on the back of the device. The corresponding alarm is turned on as soon as the corresponding symbol (alarm 1 or/and alarm 2) is shown in the display.

Muting the alarm

When the alarm is activated at the configured time, the backlight also turns on automatically. The alarm is active for 2 minutes before it turns off automatically. If the alarm does not turn off within these 2 minutes, then it repeats automatically after 24 hours.

If the "Snooze/Light" motion sensor detects a movement, then the alarm stops for 5 minutes before going off again. If the corresponding alarm symbol starts to flash this means that the snooze function is activated and the alarm will go off again in 5 minutes.

To turn off the alarm, press the "ALM" button repeatedly, until the alarm symbol in the display disappears.

10 Backlight

The backlight can be switched on for about for 5 seconds by making a movement over the "SNOOZE/LIGHT" motion sensor.

11 Troubleshooting

Error description Corrective action
No connection with the outdoor sensor	• Position the two devices closer to each other• Make sure that no obstacles are blocking the signal• Check the batteries in the outdoor sensor and replace them if necessary
Display is weak	Check the batteries in the weather station and replace them if necessary
Channel of the outdoor sensor is wrong	Change the switch position of the channel selector switch in the battery compartment of the outdoor sensor to the desired channel

Please note!

12 Safety instructions and liability disclaimer

Never try to open the device to carry out repairs or conversions. Avoid contact with mains voltages. Do not short-circuit the product. The device is not certified for use in the open air; only use it in dry conditions. Protect it from high humidity, water and snow. Keep it away from high temperatures. Do not subject the device to sudden changes in temperature or heavy vibration as this might damage electronic components. Examine the device for damage before using it. The unit should not be used if it has received an impact or has been damaged in any other way. Please observe national regulations and restrictions. Do not use the device for purposes other than those described in the instructions. This product is not a toy. Keep it out of the reach of children or mentally impaired persons. Any repair or alteration to the device not carried out by the original supplier, will invalidate the warranty or guarantee. The product may only be used by persons who have read and understood these instructions. The device specifications may change without any separate prior notice to this effect.

13 Disposal instructions

Electrical and electronic devices may only be disposed of in accordance with the European WEEE Directive and not with household rubbish. Components must be disposed of or recycled separately as dangerous, toxic elements can inflict sustained damage on the environment if they are disposed of incorrectly. As a consumer, you are bound by the Electrical and Electronic Devices Act (ElektroG) to return electrical and electronic goods free of charge at the end of their useful life to the manufacturer, the place of purchase or to specially set up, public collection points. The details in each case are governed by national law. The symbol on the product, the operating instructions and/or the packaging refers to these regulations. By separating materials in this way, recycling and disposing of old devices, you are making an important contribution towards protecting our environment.

14 Instructions on the disposal of batteries

With regard to the sale of batteries or the supply of devices containing batteries, the supplier is obliged to draw the customer's attention to the following:

As the end user, the customer has a statutory obligation to return used batteries. He can return old batteries stocked or previously stocked by the supplier in the form of new batteries to the supplier's despatch warehouse (despatch address) free of charge. The symbols shown on the batteries have the following meanings: Pb = battery contains more than 0.004 percent by mass of lead, Cd = battery contains more than 0.002 percent by mass of cadmium, Hg = battery contains more than 0.0005 percent by mass of quicksilver.

The symbol of the rubbish bin with a cross through it indicates that the battery may not be put in household waste.

WEEE guideline: 2012/19/EU WEEE register number: DE 67896761

WD Plus GmbH, herewith declares that this product 302670/20170706FZ007 conforms to the principle requirements and other relevant stipulations Directive 2014/53/EU. The complete Declaration of Conformity can be obtained from: WD Plus GmbH, Wohlenbergstraße 16, 30179 Hanover
