Thank you for choosing a BEARWARE product. Please read the following user manual carefully so as to get the most from the product you have purchased. Before using the product, first check that the delivered item is complete, accurate and undamaged.

1. Scope of delivery

• Weather station
  • USB to DC coaxial power cable
• User manual

2. Technical data

Power supply	Main unit: Three 1.5V AAA batteries or alternatively via the USB to coaxial cable and a 5V power adapter (e.g, the charger of a smartphone)Sensor: Two 1.5V AAA batteries
Temperature range	Main unit: 0°C to 50°CSensor: -50°C to +70°C
External sensor protection class	IPX4
Frequency range 433MHz
Max. transmission power	-0.13 dBm
Features	DCF signalDate displayAlarm function (alarm)Indoor and outdoor temperatureOutdoor sensorTemperature displayFrost alarmHumidity displayWeather forecast pictogramSnooze function12/24-hours displayWeather trend display

3. Additional information about this device

Do not use this device if it is damaged. Do not expose the base station to moisture and even direct sunlight.

Before using the product, ensure that the available supply voltage corresponds to the operating voltage indicated on the specification plate.

Before using for the first time, make sure that the cables are not damaged.

The device has to be connected to an easily accessible socket so that it can be disconnected in case of an emergency.

This product is suitable for use only with a 4.5V DC mains adapter. Please refer to the technical data under point 2 for the polarity and connector size.

This device is intended only for private use and not for medical purposes or for public information.

Caution!

Keep the batteries and the device out of the reach of children. Batteries contain harmful acids. Weak batteries should be replaced as soon as possible to prevent leakage! Never use new and old batteries or batteries of different types together. Never throw batteries into the fire and do not short-circuit them. Do not recharge the batteries and do not take them apart. There is a risk of explosion!

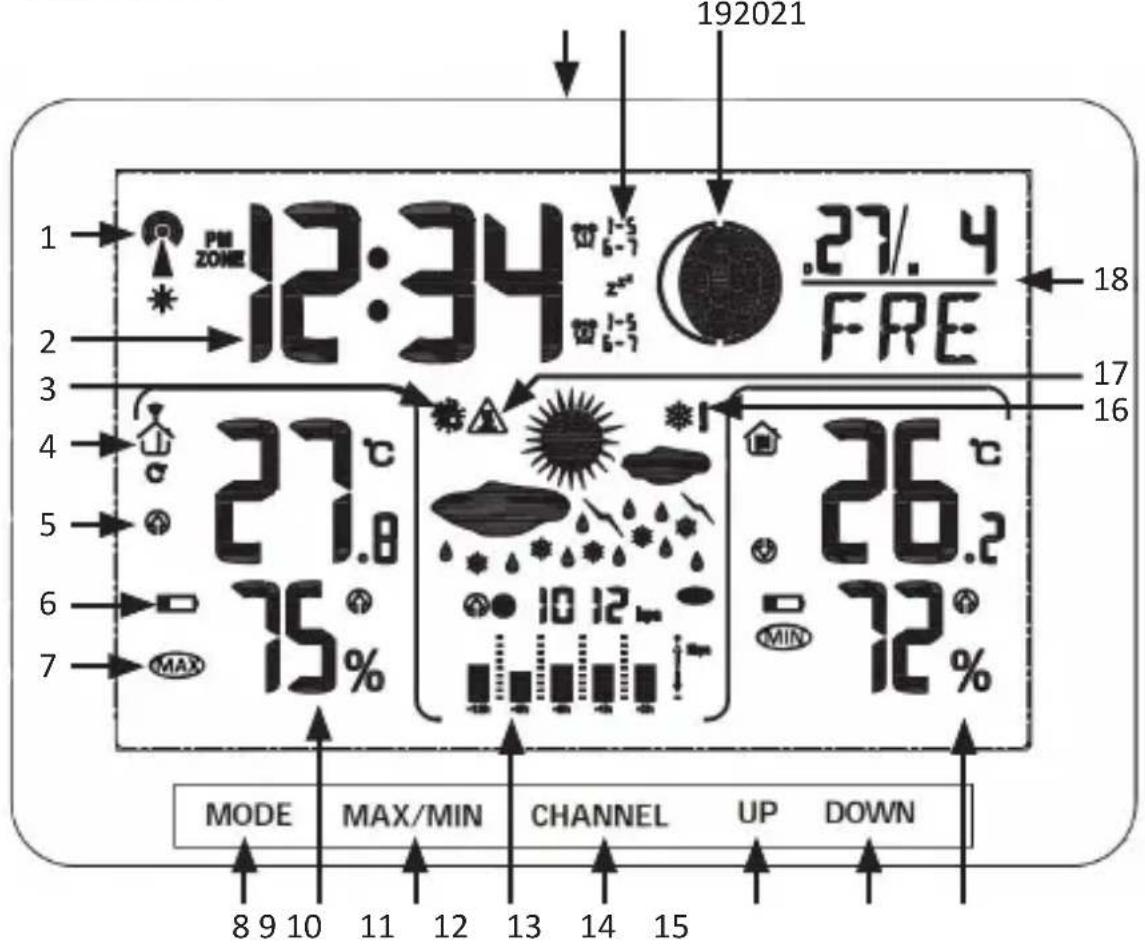

1. Product details


192021 12:34 27.4 FRE 18 27.8 26.2 75% MAX MODE MAX/MIN CHANNEL UP DOWN 8 9 10 11 12 13 14 15

22 22.6°C -50%

23 -24 C/1 3/21 OH + - WV W + - +

No. Button
1 DCF symbol
2 Time display
3 "Moist" display
4 Outdoor sensor channel display
5 Temperature and humidity trends
6 Low battery indicator (outdoor sensor)
7 "MIN" / "MAX" display
8 "MODE" button
9	Outdoor temperature and humidity
10 "MAX/MIN" button
11 Barometer display
12 "CHANNEL" button
13 "UP" button
14 "DOWN" button
15 Indoor temperature and humidity
16 Frost alarm
17 "Hot" indicator
18 Date display
19 Moon phases display
20 Alarm times display
21 SNOOZE/SLEEP button (touch sensor)

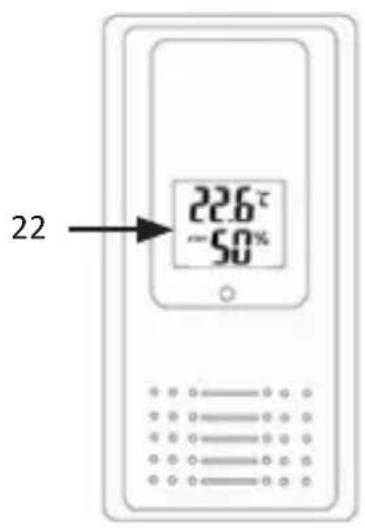

22 Display (outdoor sensor)

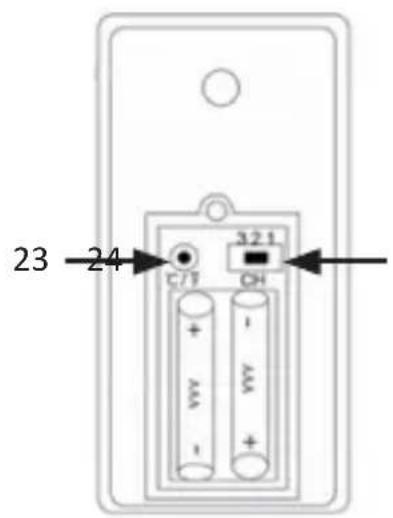

23 "C/F" button
24 "Channel change" switch

5. Initial use

Take the product out of the package and remove all the packaging material. Open the battery compartment of the outdoor sensor and insert two 1.5V AAA batteries. Then open the battery compartment on the back of the main unit and insert three 1.5V AAA batteries. Alterna vely, you can use a 5V power adapter with a USB output (e.g., the power adapter of a smartphone) and connect it with the USB to DC coaxial power cable included with the supply. Technical details about the polarity and the connector type when using a separate power adapter is given in the table on page 2. For this purpose, plug the mains adapter into a properly installed socket and then connect it to the coaxial connector at the rear of the main unit.

Note: If you want to use the device with batteries, then the backlight is not permanently switched on. The backlight is permanently switched on when operating with a power adapter.

The weather sta on then a empts to establish connec on with the outdoor sen-sor. Make sure that both the devices are with each other's range. The connec on symbol " ashes in the "Outdoor temperature display" of the main unit. If the main unit cannot establish a connec on with the outdoor sensor within 3-4 minu-tes, then it stops scanning.

If a connec on cannot be established, then this could be, for example, due to thick walls, or to a long distance of the sensor from the main unit. In this case, posi on the sensor and the main unit closer to each other.

6. DCF signal

The DCF signal is a me signal which is sent out by one of the most accurate clocks in the world. It is located near Frankfurt am Main. Under ideal conditions, your weather station can receive the signal from a distance of up to 1500 km.

If the weather sta on has detected the signal, then it shows the current Central European Time, the date, and the day of the week depending on the basic se ngs. The DCF symbol 🔔 is now shown on the display.

Once the a empt to receive a signal fails, the weather sta on stops scanning a er about 5 minutes. The DCF symbol disappears from the display.

Re-activate the search by pressing the "DOWN" button for about 3 seconds until the DCF symbol is shown in the display. Alternatively, you can set the time manually. For more information in this regard, see the "Basic Settings" section.

Note: You can not press any other buttons while scanning for the DCF signal. Press the "DOWN" button to cancel the DCF signal scan.

7. Display

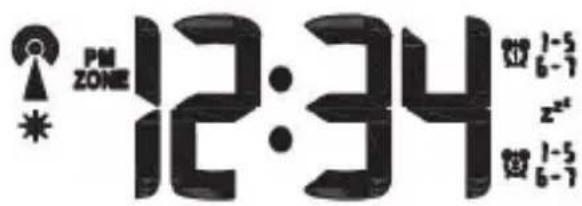

Time display:

PM ZONE 12:34 警 1-5 6-7 z²⁰ 警 1-5 6-7

The time can be displayed either in 12 or 24-hour format by selecting the desired settings in the basic settings.

Date and day:

.27/. 4 FRE

The weather station has a date and day display. The date is displayed in the top section and the day in the bottom section. If you wish to change the language, please refer to the section on "Basic settings" for more details.

DCF symbol:

Abstract black-and-white icon of a radio receiver with concentric arcs and a triangular base (no text or symbols)

The radio tower symbol indicates that the DCF signal has been successfully received. The weather station synchronises the time every night. The symbol begins flashing during synchronisation. If the time has been successfully received, then the symbol glows continuously until the next synchronisation.

Weather pictograms:

Illustration of weather symbols including sun, cloud, raindrops, and snow (no text or labels)

The currently determined weather conditions are shown in the display of the weather station.

Trend display:

The trend display increases or decreases if the humidity changes by ± 1^ or ± 3% .

27.0°C 1.0

Indoor temperature display:

The indoor temperature is measured by the base station and is shown to an accuracy of one tenth of a degree. The configured temperature unit is displayed to the right of the measured value. The temperature unit can be changed between °C and °F. To do this, press the "MAX/MIN" button on the front of the weather station.

Humidity:

75%

This display shows the current air humidity experienced by the weather station.

Low battery:

Simple line drawing of a battery with a black discharge symbol (no text or numbers)

If the battery symbol appears, then the inserted batteries are discharged and should be replaced with new batteries as soon as possible. This applies for the outdoor sensor as well as the base station.

Outdoor temperature display:

27.8

The outdoor temperature is measured by the outdoor sensor and shown to an accuracy of one tenth of a degree. The configured temperature unit is shown to the right of the measured value. The temperature unit can be changed between °C and °F. To do this, press the "MAX/MIN" button on the front of the weather station. The temperature on the display of the outdoor sensor can be toggled using the °C / °F button in the battery compartment of the sensor.

Channel display

The weather station receives the signal of the outdoor sensor automatically after all settings have been configured. You can switch between the different channels using the "CHANNEL" button. The channels of the outdoor sensor can be selected on the device directly using a toggle switch.

Frost alarm

Using the temperature alarm, the base station will emit an alarm if the sensor reading is outside this temperature range. The status of the indoor and outdoor alarms is shown using these icons.

8. Basic settings

Note: Pressing the "SNOOZE/LIGHT" button at the top of the housing switches the backlight on. Please note that the base station does not respond to 2 buttons at the same time. Therefore, it is advisable to press only one button.

When supplying power from the mains, pressing the "SNOOZE/LIGHT" button repeatedly changes the brightness levels of the backlight in steps.

Press and hold the "MODE" button in the default screen for about 5 seconds to configure the basic settings. With the "UP" and "DOWN" buttons, you can change the values accordingly.

By briefly pressing the "MODE" button in the time settings, you can confirm the entry and proceed to the next option. In this way, you can change and customise the settings in the following sequence:

• Year
- Date format
- Month
• Day
• Hour
- Minute
• 12/24 hour format
- Time zone - Note: If you set the time zone, for example, to +01 and the weather station is actuated using the DCF-signal, then the clock displays one hour later than the DCF-signal. Enable the time zone by briefly pressing the "DOWN" button in the default screen. "ZONE" is displayed next to the time.
- Language setting - To set the day on the display. The following codes can be configured and selected using the "UP" and "DOWN" buttons: GER (German), DAN (Danish), SPA (Spanish), NLD (Dutch), FRA (French), ITA (Italian), ENG (English)
- Current weather - Displayed as a pictogram
- Unit of air pressure - Select between "inHg" and "hpa"
- Air pressure reading - You can obtain the current air pressure for your location from the weather information on the Internet.

8.1 Frost alarm

This weather station has a frost alarm. If the outdoor temperature varies between -^3C and +1^ , the frost alarm symbol flashes on the display of the weather station. Once the outdoor temperature drops below -3^ , the frost alarm symbol is displayed continuously.

8.2 Alarm setting

12:34 壹 1-5 6-7 z²⁴ 壹 1-5 6-7

The weather station can store up to 2 alarm settings, which can be turned on and off separately. The alarm can be set between day 1-5 (Mon-Fri) and day 6-7 (Sat-Sun) or day 1-5 and day 6-7 (Mon - Sun).

Setting the alarm

Press the "MODE" button briefly in the default screen to access the alarm settings. The alarm time 1 is now displayed instead of the time. Pressing the "MODE" button shows alarm time 2. Press and then hold the "MODE" button for the desired alarm time till the corresponding alarm time starts flashing. You can make the desired settings using the "UP" and "DOWN" buttons. Then press the "MODE" button again to confirm the settings or to save the configured alarm. You can then repeat the process with the second alarm time.

To set the days on which the alarm has to sound, press the "UP" button when the alarm time is being displayed. The display now shows the days on which the alarm will sound (1-5, 6-7 or 1-5 + 6-7):

• 1-5 : Monday, Tuesday, Wednesday, Thursday, Friday
• 6-7: Saturday, Sunday
• 1-5 + 6-7: The whole week

Enabling the alarm

Press the "UP" button in the default screen. An alarm icon is subsequently displayed next to the time. This means that the alarm is enabled. To disable alarm 1 and to enable alarm 2, press the "ALARM" button again. Pressing the "ALARM" button again enables alarm 1 and alarm 2. Both alarm symbols are shown in the display.

Both are disabled by pressing the "ALARM" button again. The symbols disappear from the display.

Caution! Make sure that you have previously selected the desired days (1-5 and / or 6-7) in alarm mode.

Switching off the alarm

When the alarm is activated at the configured time, the backlight also turns on automatically. The alarm is active for 2 minutes before it turns off automatically.

Press the "SNOOZE/LIGHT" button to cancel the alarm. A snooze icon is shown in the display. This means that the snooze function is activated and the alarm will go off again in 5 minutes.

Press any button to switch off the alarm.

9. Stored data

Maximum and minimum temperatures

Press the "MAX/MIN" button to view the maximum indoor and outdoor temperature, the maximum humidity, the maximum and minimum air pressure. "max" appears on the display. Press the "MAX/MIN" button again to view the minimum measured values. "MIN" or "MAX" is shown in the display. After about 6-7 seconds, the current reading is displayed again.

Note: The min/max temperatures are measured from the total operating time of the weather station. Press and hold the "MAX/MIN" button for about 3 seconds to delete the stored maximum/minimum outdoor temperature readings.

Atmospheric pressure

The atmospheric pressure is automatically measured every hour and shown in the display. The table shows the approximate trend of the atmospheric pressure.

10. Additional settings

DCF signal

The base station synchronises the internal clock every night with the DCF signal. To receive the DCF signal manually, press and hold the "DOWN" button for 3 seconds, until the following symbol appears in the display and flashes: "

When the signal is received successfully, the symbol will glow continuously. If the signal is not received, the symbol disappears again.

Receiving the outdoor sensor signal

The outdoor sensor sends a signal twice a minute, which is automatically received by the base station. You can also manually enable the signal reception. To do this, press and hold the "CHANNEL" button for about 3 seconds until the channel symbol ("") starts flashing. Once the signal has been successfully received, the animation of the symbol disappears and the received temperature and humidity is shown on the display of the weather station.

Switching the keypad tones on and off

Press the "UP" button in the default screen for about 3 seconds to turn the keypad tones off. The entry is confirmed with a beep.

Caution!

11. Safety instructions and disclaimer

Never try to open the device to repair or make modifications. Avoid contact with the mains voltage. Do not short-circuit the product. The device is not waterproof, hence please use it only in dry surroundings. Protect it from high humidity, water and snow. Keep the device away from high temperatures.

Do not expose the device to sudden changes in temperature or strong vibrations, as this could damage the electronic components. Check the device for any damage before using it. The device should not be used if it was subject to impact or has been damaged in some other manner. Please comply with the local regulations and restrictions. Do not use the device for purposes other than those described in the user manual. This product is not a toy. Keep it out of the reach of children or mentally disabled persons. Any repair or modifications to the device, which is not carried out by the original supplier will void any warranty and guarantee claims. The device should only be used by those who have read and understood this user manual. The specifications of the device may be changed without prior notice.

12. Disposal instructions

In line with the European WEEE directive, electrical and electronic devices should not be disposed of along with domestic waste. Their components have to be separately sent for recycling or disposal, because improper disposal of toxic and dangerous components may permanently damage the environment. According to the Electrical and Electronic Equipment Act (ElektroG), you are obliged (as a consumer) to return (free of charge) all electrical and electronic devices to the manufacturer, the point of sale, or public collection points at the end of their service life. The relevant local laws regulate the details in this regard. The symbol displayed on the product, in the user manual or/and on the packaging refers to these regulations. With this manner of sorting, recycling and disposal of used devices, you make an important contribution towards protecting our environment.

13. Instructions for battery disposal

In conjunction with the sale of batteries along with the supply of devices that include batteries, the supplier is obliged to point out the following to the customer: The customer is legally obliged to return used batteries. He can return used batteries which the supplier offers or has offered as new batteries in his assortment free of charge to the supplier's dispatch warehouse (shipping address). The symbols shown on the batteries indicate the following: Pb = battery contains more than 0.004 percent lead by weight, Cd = battery contains more than 0.002 percent cadmium by weight, Hg = battery contains more than 0.0005 percent mercury by weight.

The symbol of the crossed-out dustbin means that the battery may not be disposed of in household waste.

WEEE directive 2012/19/EU WEEE Register no.: DE 67896761

The company WD Plus GmbH hereby certifies that the device 303586/20190116DG054 complies with the fundamental requirements and all other relevant stipulations. A complete conformity statement can be obtained from: WD Plus GmbH, Wohlenbergstraße 16, 30179 Hanover
