USER MANUAL 302547 Bearware
Simple line drawing of a person emitting signal waves (no text or symbols)natural_image
Abstract geometric symbol with concentric circles and a vertical line, no text or labels presentnatural_image
Simple line drawing of a neutral face with two dots for eyes and a straight line for mouth (no text or symbols)DRY
888 E 888.88.1 Temperaturealarm
38 D M 38 M D 38 N N N N N N Nnatural_image
Simple line drawing of a person emitting signal waves (no text or symbols)natural_image
Abstract geometric symbol with concentric circles and a vertical line, no text or symbols present.other
| Input | Output | |---|---| | +0.24 | 8 | | +0.18 | 8 | | +0.12 | 8 | | +0.08 | 8 | | 0 | 8 | | -0.06 | 8 | | -0.12 | 8 | | -0.18 | 8 | | -0.24 | 8 | | < -12 | -8 | | -6 | -8 | | -3 | -8 | | -2 | -8 | | -1 | -8 | | 0 | -8 | InHg / InHg / mb / hPanatural_image
Simple line drawing of a neutral face with two dots for eyes and a straight line for mouth (no text or symbols)DRY
888 E 888text_image
1 2 3 4 5 6 7 8 SET HISTORY DOWN ALAR SET I/O LEFT MIN T/F| N. Tasto | |
| 1 SET/HISTORY | |
| 2 UP | |
| 3 DOWN/Allarme | |
| 4 ALARM/SET | |
| 5 CH | |
| 6 ALERT | |
| 7 MEM | |
| 8 °C / °F |
38 D M 38 M D 38 N N Nnatural_image
Simple line drawing of a person emitting signal waves (no text or symbols)natural_image
Abstract geometric symbol with concentric circles and a vertical line, no text or labels presentheatmap
| | -12 | -6 | -3 | -2 | -1 | 0 | > | |---|---|---|---|---|---|---|---| | +0.24 | □ | □ | □ | □ | □ | □ | > | | +0.18 | □ | □ | □ | □ | □ | □ | +6 | | +0.12 | □ | □ | □ | □ | □ | □ | +4 | | +0.06 | □ | □ | □ | □ | □ | □ | +2 | | 0 | □ | □ | □ | □ | □ | □ | 0 | | -0.06 | □ | □ | □ | □ | □ | □ | -2 | | -0.12 | □ | □ | □ | □ | □ | □ | -4 | | -0.18 | □ | □ | □ | □ | □ | □ | -6 | | -0.24 | □ | □ | □ | □ | □ | □ | -8 | InHg/Lbnatural_image
Simple line drawing of a neutral face with two dots for eyes and a straight line for mouth (no text or symbols)DRY
888.8E 888.8text_image
1 2 3 4 5 6 7 8 SET HISTORY DOWN ALAR SET I/O LEFT M/U T/F| prog. Botón | |
| 1 SET/HISTORY | |
| 2 UP | |
| 3 DOWN/Alarma | |
| 4 ALARM/SET | |
| 5 CH | |
| 6 ALERT | |
| 7 MEM | |
| 8 °C / °F |
28 D M 28 M D 28 M Dnatural_image
Simple line drawing of a tower emitting signal waves (no text or symbols)natural_image
Abstract geometric symbol with concentric circles and a vertical line, no text or symbols presentheatmap
| | +0.24 | +0.18 | +0.12 | +0.06 | 0 | -0.06 | -0.12 | -0.18 | < | |---|---|---|---|---|---|---|---|---|---| | > | □ | □ | □ | □ | □ | □ | □ | □ | □ | | +8 | □ | □ | □ | □ | □ | □ | □ | □ | □ | | +6 | □ | □ | □ | □ | □ | □ | □ | □ | □ | | +4 | □ | □ | □ | □ | □ | □ | □ | □ | □ | | +2 | □ | □ | □ | □ | □ | □ | □ | □ | □ | | 0 | □ | □ | □ | □ | □ | □ | □ | □ | □ | | -2 | □ | □ | □ | □ | □ | □ | □ | □ | □ | | -4 | □ | □ | □ | □ | □ | □ | □ | □ | □ | | -6 | □ | □ | □ | □ | □ | □ | □ | □ | □ | | -8 | □ | □ | □ | □ | □ | □ | □ | □ | □ | | < I###/I###, -12, -6, -3, -2, -1, 0, #A##/I###, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0text_image
888.8 E 8natural_image
Simple line drawing of a neutral face with two dots for eyes and a straight line for mouth (no text or symbols)DRY
1. Scope of delivery
- Weather station
- Power adapter
- User manual
2. Technical data
| Power supply | Main unit: Two 1.5V AA batteries or alternatively one AC 5 V, 150 mA power adapter with coaxial connector (3.5 mm / 1.25 mm) / Polarity: - ---(o--- + Sensor: Two 1.5 AA battery |
| Temperature range | Main unit: 0°C to 50°CSensor: -20°C to +50°C |
| Tolerance range +-1°C | |
| Transmission power -3.4dBm | |
| Frequency range 434MHz | |
| Protection class of outdoor sensor | IPX4 |
| Features | DCF signalDate displayAlarm function (alarm)Indoor and outdoor temperatureOutdoor sensorTemperature displayHumidity displayAir pressure displayWeather forecast pictogramSnooze function12/24-hours displayMoon phases display |
3. Additional information about this device
Check if the product and the components are intact and if the device is working properly when using it for the first time Do not use this device if it is damaged. Do not expose the base station to moisture or direct sunlight.
Before using the product, ensure that the available supply voltage corresponds to the operating voltage indicated on the specification plate.
Before using the product, ensure that the cables are not damaged.
The device must be connected to an easily accessible socket so that it can be disconnected in case of an emergency.
This product is suitable only for use with the supplied mains adapter (model: HX0180500150A2E).
It is intended only for private use and not for medical purposes or for public information.
Caution!
Keep the batteries and the device out of reach of children. Batteries contain harmful acids. Weak batteries should be replaced as soon as possible to prevent leakage! Never use new and old batteries or batteries of different types together. Never throw batteries into a fire and do not short-circuit them. Do not recharge the batteries or take them apart. There is a risk of explosion!

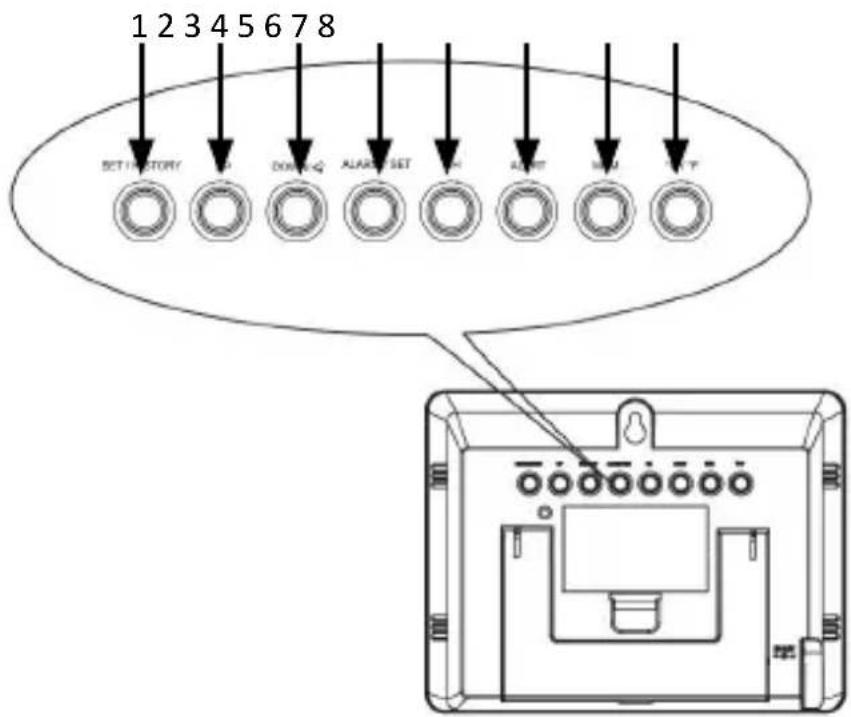

4. Product details
| 1 SET/HISTORY | |
| 2 UP | |
| 3 DOWN/Alarm | |
| 4 ALARM/SET | |
| 5 CH | |
| 6 ALERT | |
| 7 MEM | |
| 8 °C / °F |

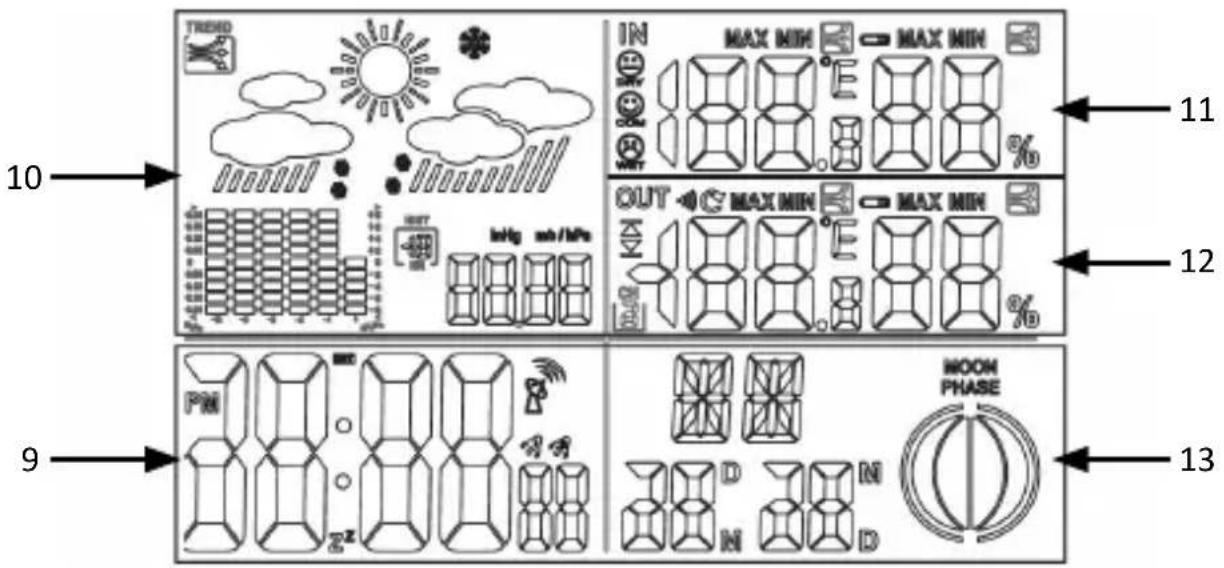

| 9 Time / alarm | |
| 10 Barometer / weather | forecast pictogram |
| 11 Indoor temperature | |
| 12 Outdoor temperature | |
| 13 Date display / Moon | phase display |


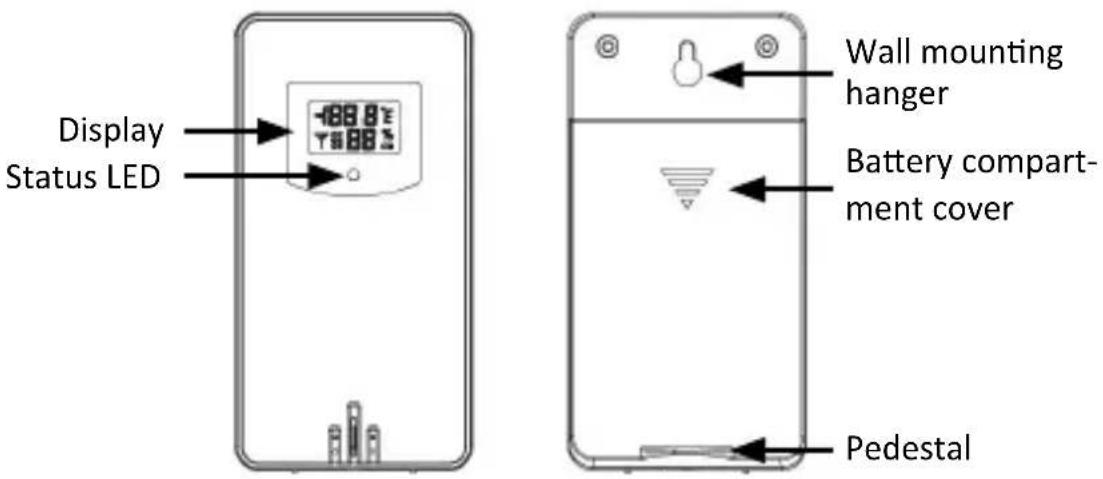

Display Status LED Wall mounting hanger Battery compart- ment cover Pedestal5. Commissioning
Take the product out of the package and remove all the packaging material. Open the battery compartment of the outdoor sensor and insert two 1.5V AA batteries. Then open the battery compartment on the back of the main unit and insert two 1.5V AA batteries. Alternatively, you can use the supplied 5V/150mA coaxial power adapter for operation. For this purpose, plug the mains adapter into a properly installed socket and then connect it to the coaxial connector of the main unit.
Note: If you want to use the device with batteries, then the backlight is not permanently switched on. The backlight of the display is continuously switched on only when operated with the enclosed power adapter.
The weather station then attempts to establish connection with the outdoor sensor. Make sure that both devices are within each other's range. The connection symbol "flashes in the "Outdoor temperature display" of the main unit. If the main unit cannot establish a connection with the outdoor sensor within 3 minutes, then it stops searching. The connection icon stops flashing and the temperature display shows "-._°C" and "-._%" on the display.
In most cases, the connection cannot be established due to specific factors such as reinforced walls or a too great distance between the sensor and the main unit. In this case, position the sensor and the main unit closer to each other. To restart scanning, press and hold the "CH" button on the back of the main unit for 3 seconds until the connection symbol in the display starts flashing.
6. DCF signal
The DCF signal is a time signal which is sent out by one of the most accurate clocks in the world. It is located near Frankfurt am Main. Under ideal conditions, your weather station can receive this signal from a distance of up to 1500 km.
If the weather station has detected the signal, then it displays Central European Time, the date, and the day of the week. The DCF symbol "F" is then shown in the display.
If the attempt to receive a signal fails, the weather station stops scanning after about 7 minutes. The DCF symbol disappears from the display.
Re-activate the scanning by pressing the "DOWN" button for about 3 seconds until the DCF symbol is shown again in the display. Alternatively, you have the option of manually setting the time. More information in this regard is given in the "Basic Settings" section.
7. Display


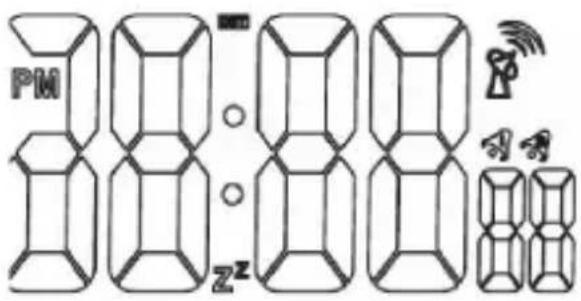

PM 80 20 80 80 80 80 80Time display:
The time can be displayed in a 12-hour or 24-hour format. When the daylight saving time is enabled, the display shows the "DST symbol". This function is available only if the weather station receives a DCF signal.

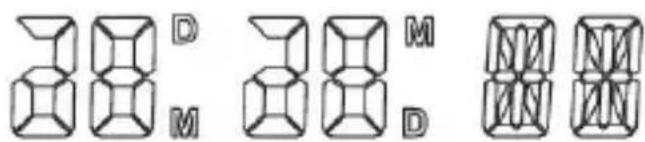

Date and day:
German. If you want to change the language, please refer to the section "Basic settings" for more information.
DCF symbol:
Phases of the moon:
MOON PHASE


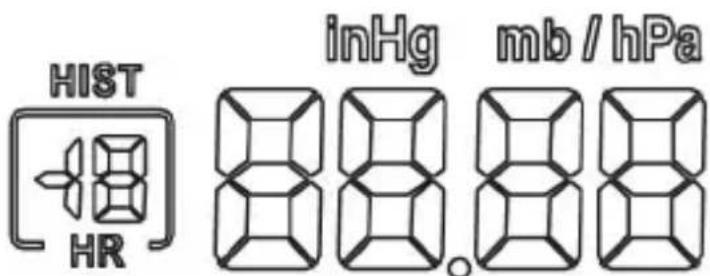

Barometric pressure display
heatmap
| | +0.24 | +0.18 | +0.12 | +0.06 | 0 | -0.06 | -0.12 | -0.18 | < | |---|---|---|---|---|---|---|---|---|---| | > | □ | □ | □ | □ | □ | □ | □ | □ | □ | | +8 | □ | □ | □ | □ | □ | □ | □ | □ | □ | | +6 | □ | □ | □ | □ | □ | □ | □ | □ | □ | | +4 | □ | □ | □ | □ | □ | □ | □ | □ | □ | | +2 | □ | □ | □ | □ | □ | □ | □ | □ | □ | | 0 | □ | □ | □ | □ | □ | □ | □ | □ | □ | | -2 | □ | □ | □ | □ | □ | □ | □ | □ | □ | | -4 | □ | □ | □ | □ | □ | □ | □ | □ | □ | | -6 | □ | □ | □ | □ | □ | □ | □ | □ | □ | | -8 | □ | □ | □ | □ | □ | □ | □ | □ | □ | | < I###/I###, -12, -6, -3, -2, -1, 0, #A##P#The table shows a graph of barometric pressure over the past 12 hours (0, -1, -2, -3, -6 and 12).
Trend display:
The trend display changes every hour, increasing or decreasing if the air pressure changes by at least 2 hPa (= 0.06 inHg) in the measurement duration.

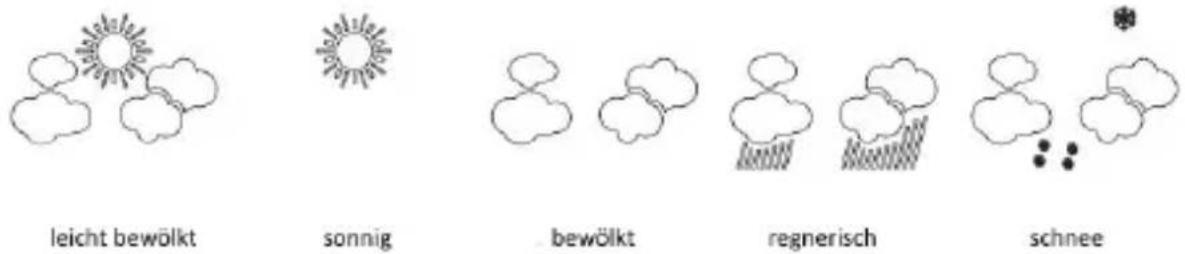

Weather forecast:
The weather station calculates a weather forecast for about 12 hours, which is based on the air pressure trend. Naturally, this forecast cannot be compared with satellites or high-performance computers. The forecast shows only an approximation of the current trend.

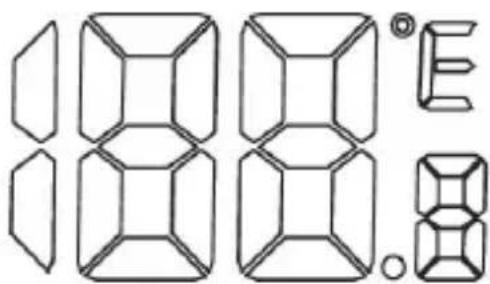

Indoor temperature display:
If the reading is below the minimum value (0°C / 32°F), the display shows "LL.L". If the value is more than the maximum value are (50°C / 122°F), the display shows "HH.H".

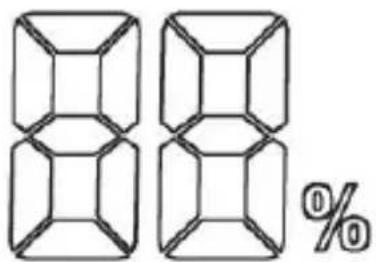

Humidity:
Temperature or humidity trend:
The trend display changes every hour, increases or decreases, if the temperature or the humidity changes in the measurement period by at least 2^ C ( =3.6^ F).

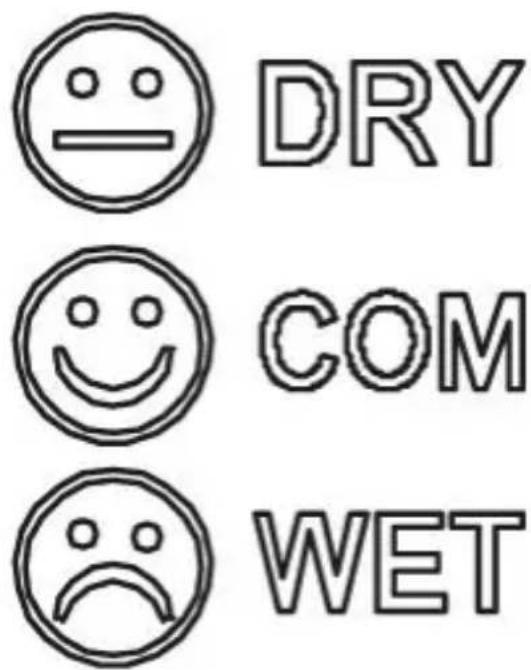

Indoor climate assessment:
The indoor climate is assessed based on the humidity and the temperature.
COMFORT Humidity is between 40% and 70%. The temperature is between 20°C and 28°C (68°F and 82.4°F).
WET Humidity more than 70%
The indoor climate is not assessed if the temperature is outside the range of 20^ C to 28^ C.
Low battery:
If the battery symbol appears, then the inserted batteries are empty and should be replaced with new batteries as soon as possible. This applies to the outdoor sensor as well as to the base station.


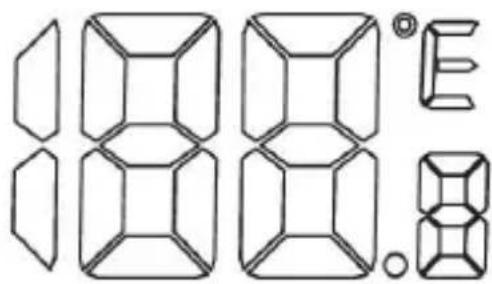

The outdoor temperature is measured by the outdoor sensor and shown to an accuracy of one tenth of a degree. The configured temperature unit is displayed to the right of the reading. The temperature unit can be changed between ^ C and °F. To do this, press the °C / °F button on the back of the weather station.
The weather station receives the signal of the outdoor sensor automatically after all settings have been configured. You can switch between the different channels using the "CH" button. The channels of the outdoor sensor can be selected on the device directly using a toggle switch.
1, 2, 3: Outdoor sensor channel
C : Automatic channel change
8. Basic settings:
Note: Firmly touching the top of the housing will switch on the backlight.
After the "SNOOZE/SLEEP" button is released, it switches off again after 5 seconds. Please note that the base station does not respond to 2 buttons at the same time. It is therefore advisable to press only one button.
Press and hold the "SET/HISTORY" button for about 3 seconds to configure the basic settings. With the "UP" and "DOWN" buttons, you can change the values accordingly.
By briefly pressing the "SET/HISTORY" button in the time settings, you can confirm entry and proceed to the next option. In this way, you can change and customise the following settings in the sequence mentioned below:
- Year
- Month
- Day
- Language setting - To set the day on the display. The following codes can be configured and selected using the "UP" and "DOWN" buttons: GE (German), DA (Danish), ES (Spanish), NE (Dutch), FR (French), IT (Italian), EN (English)
• 12 or 24 hour display
• Hour - Minute
- Time zone - Note: If you set the time zone, for example, to +01 and the weather station is actuated using the DCF-signal, then the clock displays one hour later than the DCF-signal.
- Weather forecast - The weather station calculates a weather forecast based on changes in the air pressure. Since data regarding changes in air pressure is not available when the device is switched on for the first time, the weather forecast at this time is incidental. The weather station will be able to calculate a forecast only after a couple of days. To do this, select a forecast using the "UP" and "DOWN" buttons. It is best to select a forecast from the current weather report.
- Atmospheric pressure - The atmospheric pressure is displayed in "mb" or "hPa" depending on the setting. You can now set the display to the barometric air pressure of your location. Use the atmospheric pressure data of your location from the Internet or
from the local weather report. Please note that the data has to be entered into the weather station.
- Atmospheric pressure unit - The default setting in Europe is the unit "hPa". Alternatively, you can set the unit "inHg".
8.1 Temperature alarm
You have the option to define a temperature range for the outdoor sensor. With the temperature alarm, the base station will emit an alarm sound if the outdoor sensor measures anything outside this temperature range.
Press and hold the "ALERT" button at the back of the base station for about 3 seconds. The temperature display starts flashing. The following symbol starts flashing " "
Then press the "UP" or the "DOWN" button to select the maximum temperature of the desired range. Confirm the value by pressing the "ALERT" button. The "▼" symbol starts flashing in the temperature display. By pressing the "UP" and "DOWN" buttons, you can now select the minimum value of the desired temperature range. Confirm again by pressing the "ALERT" button. The temperature alarm is now ready for use.
Press the "ALERT" button now to enable or disable the temperature alarm. If the temperature alarm is enabled, the symbol "appears in the display."
If the outdoor sensor measures a temperature outside the previously configured range, an alarm is emitted for about one minute from the base station. This alarm can be muted by pressing a corresponding button on the weather station. The temperature which triggered the alarm will start flashing in the display. Press the "ALERT" button to switch the alarm off.
8.2 Alarm setting
The weather station can store up to 2 alarm settings, which can be turned on and off separately.
Setting the alarm
Press and hold the "ALARM/SET" button for about 3 seconds to access the alarm settings. The alarm time is now displayed instead of the time. You can make the desired settings using the "UP" and "DOWN" buttons. Then press the "ALARM/SET" button again to save the alarm setting. You can configure these settings using Alarm 1 (A1) and Alarm 2 (A2).
Enabling the alarm
Press the "DOWN" button in time mode. An alarm icon is subsequently displayed next to the time. This means that the alarm is enabled. To disable alarm 1 and to enable alarm 2, press the "DOWN" button again. Pressing the "DOWN" button again enables alarm 1 and alarm 2. Both alarm symbols are shown in the display.
Both are disabled by pressing the "DOWN" button again. The symbols then disappear from the display.
Switching off the alarm
When the alarm is activated at the configured time, the backlight also turns on automatically. The alarm is active for 2 minutes before it turns off automatically.
Press the "SNOOZE/LIGHT" button to cancel the alarm. If a snooze symbol is shown on the display, this means that the snooze function is activated and the alarm will go off again in 5 minutes.
Press any button to switch off the alarm.
9. Stored data
Maximum and minimum temperatures
Press the "MEM" button to view the maximum indoor and outdoor temperatures as well as the maximum humidity. The respective maximum readings are now shown on the display. Press the "MEM" button again to view the minimum measured values. After 5 seconds, the current reading is displayed.
Note: The min/max temperatures are measured from the total operating time of the weather station. Press and hold the "MEM" button for about 3 seconds to delete the stored maximum/minimum values.
Atmospheric pressure
By pressing the "SET/HISTORY" button briefly and repeatedly, you can view the atmospheric pressure of the last 12 hours. The number in the "HIST" display indicates the hour.
10. Additional settings
DCF signal
The base station synchronises the internal clock every night with the DCF signal. To receive the DCF signal manually, press and hold the "DOWN" button for 3 seconds, until the following symbol appears in the display and flashes: "B". When the signal is received successfully, the symbol will glow continuously. If the signal is not received, the symbol disappears.
Receiving the signal external sensor
The outdoor sensor sends a signal twice a minute, which is automatically received by the base station. You can also manually enable the signal reception. To do this, press and hold the "CH" button for about 3 seconds until the channel symbol ("CN") starts flashing. Once the signal has been successfully received, the animation of the symbol disappears and the received temperature and humidity is shown on the display of the weather station.
Caution!
11. Safety instructions and disclaimer
Never try to open the device to repair or make modifications. Avoid contact with the mains voltage. Do not short-circuit the product. The appliance is not water-proof, therefore please use it only in dry surroundings. Protect it from high humidity, water and snow. Do not expose the device to high temperatures. Do not expose the device to sudden changes in temperature or strong vibrations, as this could damage the electronic components. Check the device for any damage before using it. The device should not be used if it was subject to impact or has been damaged in some other manner. Please comply with the local regulations and restrictions.
Do not use the appliance for purposes other than those described in the user manual. This product is not a toy. Keep it out of the reach of children or mentally disabled persons. Any repair or modifications to the appliance, which is not carried out by the original supplier, will void any warranty and guarantee claims. The appliance should be used only by persons who have read and understood this user manual. The specifications of the device may be changed without prior notification.
12. Disposal instructions
In line with the European WEEE directive, electrical and electronic devices should not be disposed of along with domestic waste. Their components have to be separately sent for recycling or disposal, because improper disposal of toxic and dangerous components may permanently damage the environment. According to the electrical and electronic equipment act (ElektroG), you are obliged (as a consumer) to return (free of charge) all electrical and electronic devices to the manufacturer, the point of sale, or public collection points at the end of their service life. The relevant local laws regulate the details in this regard. The symbol displayed on the product, in the user manual or/and on the packaging refers to these regulations. With this manner of sorting, recycling and disposal of used devices, you make an important contribution towards protecting our environment. For information on authorised collection points in your area, please contact your local city or municipal administration.
13. Instructions for battery disposal
In conjunction with the sale of batteries along with the supply of devices that include batteries, the supplier is obliged to point out the following to the customer: The customer is legally obliged to return used batteries. He can return used batteries which the supplier offers or has offered as new batteries in his assortment free of charge to the supplier's dispatch warehouse (shipping address). The symbols shown on the batteries mean the following: Pb = battery contains more than 0.004 percent lead by weight, Cd = battery contains more than 0.002 percent cadmium by weight, Hg = battery contains more than 0.0005 percent mercury by weight.
The symbol of the crossed-out dustbin means that the battery must not be disposed of in household waste.
WEEE directive 2012/19/EU WEEE Register no.: DE 67896761
The company WD Plus GmbH hereby certifies that the device 302547 complies with the fundamental requirements and all other relevant stipulations of the guideline 2014/53/EC. A complete conformity statement can be obtained from: WD Plus GmbH, Wohlenbergstraße 16, 30179 Hanover, https://model.ganzeinfach.de/302547.
