WINECOOLER XL - Wine cellar Create - Free user manual and instructions

Product type	Single-zone wine cellar
Brand	Create
Model	WINECOOLER XL
Capacity	Up to 42 bottles of 0.75 L (Bordeaux format)
Temperature range	5 °C to 22 °C (40 °F to 72 °F)
Refrigeration type	Compressor, flammable refrigerant (R600a)
Installation	Freestanding (not built-in)
Ventilation	Requires 5 cm of space at the rear and sides
Power supply	220-240 V, 50 Hz, grounded plug
Climate class	Ambient temperature 5 °C to 32 °C
Control panel	Digital with LED display, temperature adjustment and lighting
Interior lighting	LED, switchable via button
Shelves	5 adjustable wooden shelves with safety stop
Door	Full door with stainless steel handle, visible hinge
Adjustable feet	Yes, for leveling
Special features	Display in °C or °F, 5-minute delay before restart
Maintenance and cleaning	Clean interior with baking soda, exterior with mild detergent
Safety	Child lock possible (key not supplied), automatic shutdown in case of overheating
Weight	Approximately 40 kg
Dimensions (H x W x D)	Approximately 84 x 59 x 53 cm

Frequently Asked Questions - WINECOOLER XL Create

How to set the temperature of my Create WINECOOLER XL wine cellar?

Use the UP (increase) and DOWN (decrease) keys to adjust the temperature between 5 °C and 22 °C. To display in Fahrenheit, hold the LIGHT key for 5 seconds.

Why does the door of my wine cellar not close properly?

Check that the appliance is level (adjust the feet) and that the shelves are not overloaded. Ensure bottles are not blocking the door closure.

What to do in case of condensation inside the wine cellar?

Condensation is normal if the door is opened frequently or in high humidity. Reduce door openings and check that the door seal is clean and properly sealed.

How long should I wait before plugging in the wine cellar after delivery?

Leave the appliance upright for 4 hours to allow the refrigerant gas to stabilize before plugging it in.

Can I store food in the wine cellar?

No, this appliance is designed exclusively for wine storage. Do not store food.

How to clean the interior of the wine cellar?

Unplug the appliance, remove the bottles, then clean with a damp cloth soaked in warm water and baking soda (2 tablespoons per liter of water). Dry thoroughly.

Why does my wine cellar make noise?

Compressor noise is normal. If excessive, check that the appliance is level and not in contact with furniture. A slight gurgling is due to the refrigerant.

What is the ideal temperature for red and white wine?

For red wine: between 12 °C and 18 °C. For white wine: between 5 °C and 12 °C. Sparkling wines should be stored between 4 °C and 8 °C.

What to do if the temperature display flashes or seems incorrect?

During first use or after a long pause, the temperature may vary a few degrees while the appliance stabilizes. Wait a few hours; if the problem persists, contact customer service.

How to save energy with my wine cellar?

Place the appliance in a cool location, away from sunlight and heat sources. Ensure the door is tightly closed and do not open it too often.

USER MANUAL WINECOOLER XL Create

Line drawing of a multi-level cabinet or storage unit with no text, numbers, or symbols present.

WINE COOLER VINOTECA

USER MANUAL

CREATE CREATE CREATE ATE CREATE CREATE CRE CREATE CREATE CREATE ATE CREATE CREATE CRE CREATE CREATE CREATE ATE CREATE CREATE CRE CREATE CREATE CREATE CREATE CREATE CREATE CREATE CREATE CREATE CREATE CREATE CREATE CREATE CREATE CREATE CREATE CREATE CREATE CREATE CREATE CREATE CREATE CREATE CREATE CREATE CREATE CREATE CREATE CREATE CREATE CREATE CREATE CREATE CREATE CREATE CREATE CREATE CREATE CREATE CREATE CREATE CREATE CREATE CREATE CREATE CREATE CREATE CREATE CREATE CREATE CREATE CREATE CREATE CREATE CREATE CREATE CREATE CREATE CREATE CREATE CREATE CREATE CRE

CREATE CREATE CREATE ATE CREATE CREATE CRE CREATE CREATE CREATE ATE CREATE CREATE CRE CREATE CREATE CREATE ATE CREATE CREATE CRE CREATE CREATE CREATE ATE CREATE CREATE CRE CREATE CREATE CREATE ATE CREATE CREATE CRE CREATE CREATE CREATE ATE CREATE CREATE CRE CREATE CREATE CREATE ATE CREATE CREATE CRE CREATE CREATE CREATE ATE CREATE CREATE CRE CREATE CREATE CREATE ATE CREATE CREATE CRE CREATE CREATE CREATE ATE CREATE CREATE CRE CREATE CREATE CRE CREATE CREATE CRE ATE CREATE CRE CREATE CREATE CRE CREATE CREATE CRE ATE CREATE CRE CREATE CREATE CRE

INDEX

ENGLISH

Security instructions 6

Product features 7

Parts list 7

Installation 8

Electric connection 8

Operating your appliance 9

Control panel 9

How to use your wine cooler 10

Cleaning and maintenance 11

Troubleshooting 12

PORTUGUÊS

Thank you for choosing our wine cooler. Before using the appliance, and to ensure the best use, carefully read these instructions.

The safety precautions enclosed herein reduce the risk of death, injury and electrical shock when correctly adhered to. Keep the manual in a safe place for future reference, along with the completed warranty card, purchase receipt and package. If applicable, pass these instructions on to the next owner of the appliance. Always follow basic safety precautions and accident-prevention measures when using an electrical appliance. We assume no liability for customer failing to comply with these requirements.

SECURITY INSTRUCTIONS

When using any electrical appliance, basic safety precautions should always be observed.

Warning: Risk of child entrapment. To avoid the possibility of child entrapment, please take the following precautions before throwing out the wine cooler.

• Remove all doors from the unit.
• Leave the shelves in place so that children may not easily climb inside.
• Never allow children to operate, play with, or crawl inside the wine cooler.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Do not use the appliance if the plug, the mains cord or the appliance itself is damaged. If the mains cord is damaged, you must have it replaced by the manufacturer, or an authorized service centre or similarly qualified persons in order to avoid a hazard.
• Refrigerants: All refrigeration products contain refrigerants, which under the guidelines of law must be removed before disposal of product. It is the consumer's responsibility to comply with local regulations when disposing of this product. Never clean wine cooler parts with flammable fluids. The fumes can create a fire hazard or explosion.
• This appliance is intended for indoor household use and similar applications such as: staff kitchen areas in shops, offices and other working environments; farm houses and by clients in hotels, motels and other residential type environments; bed and breakfast type environments; catering and similar non-retail applications.
• This unit is intended to be used exclusively for the storage of wine. Do not store food in this unit.
• Keep the appliance and its mains cable out of the reach of children.
• If the mains cable is damaged, it must be replaced by the manufacturer, its service agent or a qualified technician in order to avoid a hazard.
• Choose a location for your unit away from heat sources such as radiators or fires as refrigerant and vesicant are burnable.

• The unit must be manoeuvred by a minimum of 2 persons.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

• Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances.
• Children should be supervised to ensure that they do not play with the unit.
• If your unit is fitted with a lock to prevent children being trapped inside, keep the key out of reach and not in the vicinity of the unit.
• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

PRODUCT FEATURES

Control panel

- The control panel is located at the interior of the appliance, it is very easy to set the temperature of the appliance and see what temperature the appliance is set to.

Interior light

- The wine cooler has an interior light. The light can be switched on and off by using the light control button.

Shelves

• The shelves are fully adjustable to suit various wine bottle shapes and sizes.
• To prevent damaging the door gasket, make sure the door is fully open when pulling shelves out of the rail compartment.
• For easy access to the bottles stored, pull the shelves out approximately 1/3. The shelves are designed with an emergency stop to prevent them being removed too far when loaded.

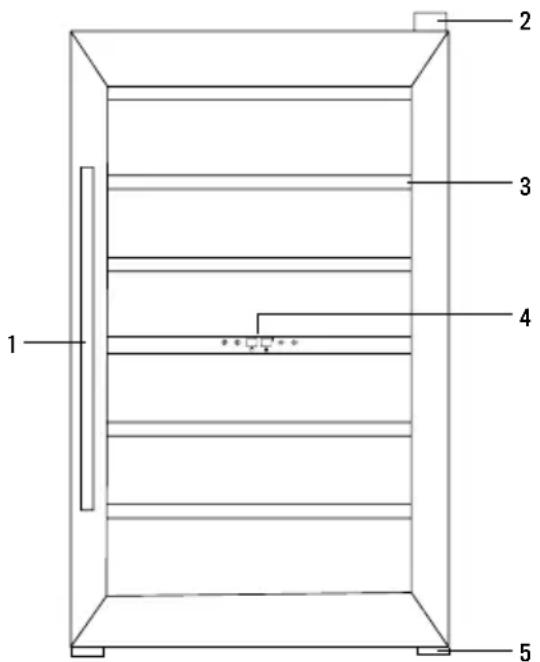

PARTS LIST

1. Stainless curved handle
2. Hinge cover
3. Wood shelf
4. Electronic control panel
5. Adjustable foot

Before using your wine cooler:

• Remove the exterior and interior packing.
• Before connecting the wine cooler to the power source, let it stand upright for approximately 4 hours. This will reduce the possibility of a malfunction in the cooling system from improper handling during transportation. Clean the interior surface with lukewarm water using a soft cloth.

Installing your wine cooler

- This wine cooler is designed to be free standing only, and should not be recessed or built-in.

- Allow 5 inches of space between the back and sides of the wine cooler, which allows the proper air ventilation. Adjust the feet to keep the wine cooler level. Locate the wine cooler away from direct sunlight and sources of heat (stove, heater, radiator, etc.). Direct sunlight may affect the acrylic coating and heat sources may increase electrical consumption. Ambient temperature below 5^ or above 32^ will hinder the performance of this appliance.

WARNING: This unit is not designed for use in a garage or any other outside installation.

- Avoid locating the wine cooler in moist areas.

- Plug the wine cooler into dedicated, properly installed-grounded wall outlet. Do not under any circumstances cut or remove the third (ground) prong from the power cord. Any questions concerning power and/or grounding should be directed toward a certified electrician or an authorized service center.

WARNING: This unit is not designed to be installed in an RV or used with an inverter.

- After plugging the wine cooler into a wall outlet, turn the unit on and allow the unit to cool down for 3 \~ 4 hours under before placing wine bottles or beverages in the appliance.

WARNING: Keep ventilation openings in the appliance enclosure clear of obstruction.

ELECTRIC CONNECTION

WARNING: Improper use of the grounded plug can result in the risk of electrical shock. If the power cord is damaged, have it replaced by an authorized service center.

- Keep ventilation openings in the unit enclosure or in the built-in structure clear of obstructions.

- Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

- Do not damage the refrigerant circuit (The refrigerant is a very environmental-friendly gas but is also combustible. Take care when transporting or moving the unit to ensure that the refrigeration circuit is not damaged. In the event of damage avoid naked flames or ignition sources and ventilate the room in which the unit is placed for a few minutes.)

- When positioning the appliance, ensure the supply cord is not trapped or damaged.

- Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.

- Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

- Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

WARNING: Risk of fire/flammable materials.

CONTROL PANEL

POWER ⏻

To turn the appliance on or off.

TEMPERATURE SETTINGS

Set or view the internal temperature setting for each zone.

LIGHT

To turn on/off the inner light.

UP^

Used to raise (warm) the set temperature by 1^ C or 1^ F.

DOWN ▼

Used to lower (cool) the set temperature by 1^ C or 1^ F.

°F / °C SELECTOR

Select the temperature display setting in Fahrenheit or Celsius degree. To change the temperature from Fahrenheit to Celsius or from Celsius to Fahrenheit, touch and hold the light button for 5 seconds.

SELECT THE TEMPERATURE

Your wine cooler has one single compartment. The temperature can be chosen between 5 °C to 22 °C (40 °F to 72 °F). It is recommended to set the temperature in the range of 12 °C to 18 °C (55 °F to 64 °F) range which is ideal for storing red wines and to adjust between 5 °C and 12 °C (40-55 °F) range suitable for champagnes and white wines.

For optimum performance, the difference between the two zones should be maximum of 6 ^ C to avoid damage related to condensation.

Before switching on:

• Make sure that it has been installed by a suitably qualified person, as per the information contained in the installation instructions.
• After delivery, wait for four hours before connecting the appliance to your mains supply. This will allow any refrigerant gasses that may have been disturbed during the transportation process to settle.
• The outside of the appliance and the removable accessories contained within it, should be cleaned with a solution of liquid detergent and water.
• The interior of the appliance should be cleaned with a solution of sodium bicarbonate dissolved in lukewarm water.
• The interior and accessories should be thoroughly dried, after the cleaning process has been completed.
• There can be an odour when you first switch on the appliance. It will lessen as the appliance starts to cool.

During first use:

IMPORTANT: When you use the wine cooler for the first time or restart the appliance after it has been turned off for a long time, there could be a few degrees variance between the temperature you select and the one indicated on the LED display. This is normal and it is due to the length of activation time. Once the wine cooler has been running for a few hours everything will be back to normal.

• When you first switch on the appliance, the compressor will run continuously until the wine cooler reaches a cool enough temperature.
• During this period of time, you should try not to open the door frequently or place bottles inside of the appliance.
• If the unit is switched off or unplugged, you must allow at least 5 minutes before restarting the appliance or
• reconnecting it to your mains supply.

Loading the wine cooler:

IMPORTANT: Your appliance is ideally suited to store 0.75 litre Bordeaux style wine bottles. Whilst it can store larger bottles, you must make sure that they do not prevent the door from shutting properly.

• Always check that you can close the door without it fouling on a wine bottle, before shutting it.
- When loading several bottles of wine at once, it will take longer for the appliance to cool the individual bottles
- As many bottles may differ in size and dimensions, the actual number of bottles you are able to store may vary
- The maximum storage number is based on standard 0.75 litre Bordeaux style wine bottles.

Storing your wine:

- The chart below indicates the ideal storage temperatures for different types of wine:

Type of wine Temperature (Celsius) Temperature (Fahrenheit)
Red wine 12 - 18 °C 58 - 64 °F
White wine 5 - 12 °C 48 - 79 °F
Sparkling wines/champagne 4 - 8 °C 39 - 47 °F

• Temperature stability is the most important factor when it comes to storing wine.
• Exposure to light, vibrations or fluctuations in temperature and humidity can all cause wine to spoil. When properly stored, wines not only maintain their quality but many will actually improve in aroma, flavour and complexity as they mature.

• Wines kept at a higher temperature will age faster. Wine that is exposed to temperatures that are greater than 18^ (64 °F) will suffer from poorer flavour and aroma.

• If wine is kept at too low a temperature, this can result in the development of harmful deposits. A humidity of 60%\~70% is ideal for keeping corks from shrinking.

• After a bottle of wine has been opened, the wine comes into contact with air. So it is best to store the remainder of the bottle upright, to minimize the surface area of the wine that is coming into contact with the air.
• Once opened, wine will remain in a drinkable condition for two days for delicate whites or three days for rich reds, as long as the bottle as been resealed. You should make sure that the seal is firm by checking the stopper.
• Special stoppers that keep wine sparkling and Champagne bubbling for one or two days after opening, can be bought at most good wine shops.
• When stored correctly, white wines can keep well for up to two years. Full bodied reds will age well for ten years and dessert wines will age well for up to twenty years.
• When you buy a bottle of wine, you should transfer it to a suitable storage location immediately (if you are not going to store it in your wine cooler).
• Cheaper bottles of wine will not age as well as more expensive ones.
• To make the most of the bouquet and taste of your wine, never fill more than half a glass at a time. It will also help if the shape of your wine glass is appropriate for your wine. The size and shape of your wine glass's bowl will determine the intensity and complexity of the bouquet. The stem should be long enough to allow you to avoid hand contact with the bowl of the glass and should be tulip-shaped or tapered at the top.

CLEANING AND MAINTENANCE

• Upon installation of your new appliance, it is recommended that it be cleaned thoroughly.
• Turn off the wine cooler first and then unplug the unit from the wall outlet.
• Remove all contents.
• Wash the inside with a damp warm cloth soaked in lukewarm water and baking soda solution.
• The solution should be about 2 tablespoons of baking soda to a quart of water.
• Be sure to keep the door gasket (seal) clean to keep the unit running efficiently.
• The outside of the wine cooler should be cleaned with mild detergent and warm water.
• Dry the interior and exterior with a soft cloth.
• Dust or anything else blocking the vent may hinder the cooling efficiency of the appliance. Vacuum the vent if necessary.
• Turn off the wine cooler first and then unplug the unit from the wall outlet when it is not going to be used for a long period of time.
• Remove all the contents.
• Clean the appliance.
• Leave the lid open slightly to avoid possible formation of condensation, mold, or odors.
• Short vacations: Leave the wine cooler operating during vacations of less than three weeks.
• Long vacations: If the wine cooler will not be used for several months, remove all content and unplug the power cord. Clean and dry the interior thoroughly. To prevent odor and mold growth, leave the door open slightly: blocking it open if necessary.
• Moving Your Appliance: Turn off the wine cooler first and then unplug the unit from the wall outlet.
• Remove all the contents.
• Securely tape down all loose items inside your appliance.
• Tape the doors shut.
  • Energy Saving Tips:
• The wine cooler should be located in the coolest area of the room, away from heat producing appliances or heating ducts, and out of the direct sunlight.
• Ensure that door is properly closed when the wine cooler is turned on.

PROBLEM POSSIBLE CAUSE AND SOLUTIONS

The wine cooler does not work.	Not connected.The circuit-breaker is tripped or the fuse is damaged.
Temperature inside the wine cooler is too warm.	Temperature control is set too warm. Turn the control to a cooler setting and allow several hours for the temperature to stabilize.Door is kept open too long or is opened too frequently. Warm air enters the wine cooler every time the door is opened. Open the door less often.The door is not closed completely.The door gasket does not seal properly.The wine cooler has recently been disconnected for a period of time.4 hours are required for the wine cooler to cool down completely.
Temperature inside the wine cooler is too cold.	Temperature control is set too cold. Turn the control to a warmer setting and allow several hours for the temperature to stabilize.
Moisture forms on inside wine cooler walls.	Door is slightly open.Door is kept open too long, or is opened too frequently. Open the door less often.The door is not sealed properly.
Moisture forms on outside of appliance.	Check to make sure the wine cooler is level.
The wine cooler seems to be making too much noise.	Door is slightly open, causing cold air from inside the wine cooler to meet warm moist air from outside.
The door does not close properly.	The wine cooler is not on a level surface. The gasket is dirty.

In compliance with Directives: 2012/19/EU and 2015/863/EU on the restriction of the use of dangerous substances in electric and electronic equipment as well as their waste disposal. The symbol with the crossed dustbin shown on the package indicates that the product at the end of its service life shall be collected as separate waste. Therefore, any products that have reached the end of their useful life must be given to waste disposal centres specialising in separate collection of waste electrical and electronic equipment, or given back to the retailer at the time of purchasing new similar equipment, on a one for one basis. The adequate separate collection for the subsequent start-up of the equipment sent to be recycled, treated and disposed of in an environmentally compatible way contributes to preventing possible negative effects on the environment and health and optimises the recycling and reuse of components making up the apparatus. Abusive disposal of the product by the user involves application of the administrative sanctions according to the laws.
