USER MANUAL WINECOOLER XXL Create

Line drawing of a multi-level cabinet or storage unit with vertical slats and a door, no text or symbols present.

WINE COOLER VINOTECA

USER MANUAL

CREATE CREATE CREATE ATE CREATE CREATE CRE CREATE CREATE CREATE ATE CREATE CREATE CRE CREATE CREATE CREATE ATE CREATE CREATE CRE CREATE CREATE CREATE ATE CREATE CREATE CRE CREATE CREATE CREATE ATE CREATE CREATE CRE CREATE CREATE CREATE ATE CREATE CREATE CRE CREATE CREATE CREATE ATE CREATE CREATE CRE CREATE CREATE CREATE ATE CREATE CREATE CRE CREATE CREATE CREATE ATE CREATE CREATE CRE CREATE CREATE CREATE ATE CREATE CREATE CRE CREATE CREATE CREATE ATE CREATE CREATE CRE CREATE CREATE CRE CREATE CREATE CRE CREATE CREATE CRE CREATE CREATE CRE

CREATE CREATE CREATE ATE CREATE CREATE CRE CREATE CREATE CREATE ATE CREATE CREATE CRE CREATE CREATE CREATE ATE CREATE CREATE CRE CREATE CREATE CREATE ATE CREATE CREATE CRE CREATE CREATE CREATE ATE CREATE CREATE CRE CREATE CREATE CREATE ATE CREATE CREATE CRE CREATE CREATE CREATE ATE CREATE CREATE CRE CREATE CREATE CREATE ATE CREATE CREATE CRE CREATE CREATE CREATE ATE CREATE CREATE CRE CREATE CREATE CREATE ATE CREATE CREATE CRE CREATE CREATE CREATE ATE CREATE CREATE CRE CREATE CREATE CRE CREATE CREATE CRE ATE CREATE CRE CREATE CREATE CRE

INDEX

ENGLISH

Security instructions 6

Parts list 7

Installation instructions 7

Operating your appliance 8

Control panel 8

How to use your wine cooler 9

Reversing the door swing 11

Cleaning and maintenance 11

Troubleshooting 12

PORTUGUÊS

Thank you for choosing our wine cooler. Before using the appliance, and to ensure the best use, carefully read these instructions.

The safety precautions enclosed herein reduce the risk of death, injury and electrical shock when correctly adhered to. Keep the manual in a safe place for future reference, along with the completed warranty card, purchase receipt and package. If applicable, pass these instructions on to the next owner of the appliance. Always follow basic safety precautions and accident-prevention measures when using an electrical appliance. We assume no liability for customer failing to comply with these requirements.

SECURITY INSTRUCTIONS

When using any electrical appliance, basic safety precautions should always be observed.

Warning: Risk of child entrapment. To avoid the possibility of child entrapment, please take the following precautions before throwing out the wine cooler.

• Remove all doors from the unit.
• Leave the shelves in place so that children may not easily climb inside.
• Never allow children to operate, play with, or crawl inside the wine cooler.
• Children should be supervised to ensure that they do not play with the appliance. Keep the mains cord out of the reach of children. Do not let the mains cord hang over the edge of the table or worktop on which the appliance stands.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Do not use the appliance if the plug, the mains cord or the appliance itself is damaged. If the mains cord is damaged, you must have it replaced by the manufacturer, or an authorized service centre or similarly qualified persons in order to avoid a hazard.
• Refrigerants: All refrigeration products contain refrigerants, which under the guidelines of federal law must be removed before disposal of product. It is the consumer's responsibility to comply with federal and local regulations when disposing of this product. Never clean wine cooler parts with flammable fluids. The fumes can create a fire hazard or explosion.
• Do not store or use gasoline or any other flammable vapors and liquids in the vicinity of this or any other appliance. The fumes can create a fire hazard or an explosion.
• Improper use of the grounded plug can result in the risk of electrical shock. If the power cord is damaged, have it replaced by an authorized service center.

• This wine cooler should be properly grounded for your safety. The power cord of this wine cooler is equipped with a three-prong plug which mates with standard three prong wall outlets to minimize the possibility of electrical shock.

• Do not, under any circumstances, cut or remove the third ground prong from the power cord supplied. This wine cooler requires a standard 220\~240 Volt. AC /50Hz electrical outlet with three-prong ground.
  • This wine cooler is not designed to be used with an inverter.

• The cord should be secured behind the wine cooler and not left exposed or dangling to prevent accidental injury.
• Never unplug the wine cooler by pulling the power cord. Always grip the plug firmly and pull straight out from the receptacle.
• Do not use an extension cord with this appliance. If the power cord is too short, have a qualified electrician or service technician install an outlet near the appliance. Use of an extension cord can negatively affect the performance of the unit.
• If any problems with the wine cooler persist, please contact our Customer Service Dept. to consult with a representative.

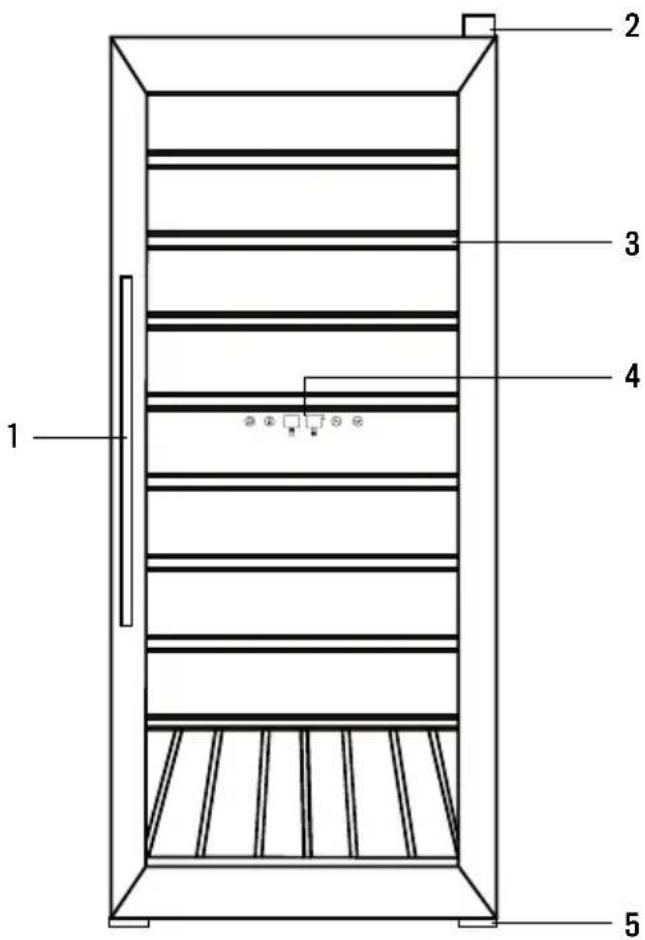

PARTS LIST

1. Stainless steel handle
2. Hinge cover
3. Wood shelf
4. Electronic control panel
5. Foot

1 2 3 4 5

BEFORE USING YOUR WINE COOLER

• Remove the exterior and interior packing.
• Before connecting the wine cooler to the power source, let it stand upright for approximately 4 hours. This will reduce the possibility of a malfunction in the cooling system from improper handling during transportation. Clean the interior surface with lukewarm water using a soft cloth.

INSTALLING YOUR WINE COOLER

• This wine cooler is designed to be free standing only, and should not be recessed or built-in.
• Allow 5 inches of space between the back and sides of the wine cooler, which allows the proper air ventilation. Adjust the feet to keep the wine cooler level. Locate the wine cooler away from direct sunlight and sources of heat (stove, heater, radiator, etc.). Direct sunlight may affect the acrylic coating and heat sources may increase electrical consumption. Ambient temperature below 5^ or above 32^ will hinder the performance of this appliance.
• Depending on the location of the appliance, the direction of the door opens can be changed.
• This unit is not designed for use in a garage or any other outside installation.
• Avoid locating the wine cooler in moist areas.
• Plug the wine cooler into dedicated, properly installed-grounded wall outlet. Do not under any circumstances cut or remove the third (ground) prong from the power cord. Any questions concerning power and/or grounding should be directed toward a certified electrician or an authorized service center.
• This unit is not designed to be installed in an RV or used with an inverter.
• After plugging the wine cooler into a wall outlet, turn the unit on and allow the unit to cool down for 3 \~ 4 hours under before placing wine bottles or beverages in the appliance.

OPERATING YOUR APPLIANCE

CONTROL PANEL

SELECT THE TEMPERATURE

- The unit has two temperature zones. For each zone, the temperature range can be set between 5^ and 18^ (40°F and 65°F).

IMPORTANT:

- The temperature selected for the lower compartment must always be higher than the top compartment. For optimum performance, the difference between the two zones should be maximum of 6^ to avoid damage related to condensation.

• The shelves are fully adjustable to suit various wine bottle shapes and sizes.
• To prevent damaging the door gasket, make sure the door is fully open when pulling shelves out of the rail compartment.
• For easy access to the bottles stored, pull the shelves out approximately 1/3. The shelves are designed with an emergency stop to prevent them being removed too far when loaded.

BEFORE SWITCHING ON

• Make sure that it has been installed by a suitably qualified person, as per the information contained in the installation instructions.
• After delivery, wait for four hours before connecting the appliance to your mains supply. This will allow any refrigerant gasses that may have been disturbed during the transportation process to settle.
• The outside of the appliance and the removable accessories contained within it, should be cleaned with a solution of liquid detergent and water.
• The interior of the appliance should be cleaned with a solution of sodium bicarbonate dissolved in lukewarm water.
• The interior and accessories should be thoroughly dried, after the cleaning process has been completed.
• There can be an odour when you first switch on the appliance. It will lessen as the appliance starts to cool.

DURING FIRST USE

Important: When you use the wine cooler for the first time or restart the appliance after it has been turned off for a long time, there could be a few degrees variance between the temperature you select and the one indicated on the LED display. This is normal and it is due to the length of activation time. Once the wine cooler has been running for a few hours everything will be back to normal.

• When you first switch on the appliance, the compressor will run continuously until the wine cooler reaches a cool enough temperature.
• During this period of time, you should try not to open the door frequently or place bottles inside of the appliance.
• If the unit is switched off or unplugged, you must allow at least 5 minutes before restarting the appliance or reconnecting it to your mains supply.

SWITCHING ON THE APPLIANCE AND SETTING THE TEMPERATURE

• Switching between Celsius and Fahrenheit: To alter what the temperature displays are showing, press the light button for 5 seconds.
• Switch on/turn off: To switch on the wine cooler, press the light and temperature buttons and hold 5 seconds. To turn off the appliance, press and hold the light and temperature buttons and hold 5 seconds.
• Temperature Setting: Press the temperature button to set the internal temperature of each zone. Temperatures in degrees will appear on every screen corresponding to distinct area for the top and the lower compartment.
• Note: When the temperature button is pressed for the first time, the LED displays indicates the factory preset temperature, 10^ / 50^ for the upper and 16^ / 60^ for the lower compartment.
• Press the temperature button once. The display for the upper compartment will flash. Press up and down buttons to increase/decrease the temperature.
• If you press again the temperature button, the display for the lower compartment will flash. Press up and down buttons to increase/decrease the temperature.
• When working with both upper and lower zone, setting temperature of upper zone must be lower than the lower zone as factory default setting.

INTERIOR LIGHT

- The cooler has an interior light. The light can be switched on and off by using the light button.

Note: To see the temperature of each zone at any time. Touch the up and down buttons, set temperature temporarily flash on the display for about 5 seconds. Use the "SET" to see the selected temperature zone or the other.

Important: When the temperature is changed, the compressor works harder to reach the required temperature. During this time, the side panels of the wine cooler can reach up to 45^ C however they will cool down when the set temperature is reached.

LOADING THE WINE COOLER

IMPORTANT: Your appliance is ideally suited to store 0.75 litre Bordeaux style wine bottles. Whilst it can store larger bottles, you must make sure that they do not prevent the door from shutting properly.

• Always check that you can close the door without it fouling on a wine bottle, before shutting it.
- When loading several bottles of wine at once, it will take longer for the appliance to cool the individual bottles
- As many bottles may differ in size and dimensions, the actual number of bottles you are able to store may vary
- The maximum storage number is based on standard 0.75 litre Bordeaux style wine bottles.

STORING YOUR WINE

The chart below indicates the ideal storage temperatures for different types of wine:

Type of wine Temperature (Celsius)	Temperature (Fahrenheit)
Red wine 12 - 18 °C 58 - 64 °F
White wine 5 - 12 °C 48 - 79 °F
Sparkling wines/champagne 4 - 8 °C	39 - 47 °F
Rose wine 9.5 - 10.5 °C 49.1 - 50.9 °F
Vintage wine 13 °C 55 °F

• Temperature stability is the most important factor when it comes to storing wine.
• Exposure to light, vibrations or fluctuations in temperature and humidity can all cause wine to spoil. When properly stored, wines not only maintain their quality but many will actually improve in aroma, flavour and complexity as they mature.
• Wines kept at a higher temperature will age faster. Wine that is exposed to temperatures that are greater than 18^ (64 °F) will suffer from poorer flavour and aroma.
• If wine is kept at too low a temperature, this can result in the development of harmful deposits. A humidity of 60%\~70% is ideal for keeping corks from shrinking.
• After a bottle of wine has been opened, the wine comes into contact with air. So it is best to store the remainder of the bottle upright, to minimize the surface area of the wine that is coming into contact with the air.
• Once opened, wine will remain in a drinkable condition for two days for delicate whites or three days for rich reds, as long as the bottle as been resealed. You should make sure that the seal is firm by checking the stopper.
• Special stoppers that keep wine sparkling and Champagne bubbling for one or two days after opening, can be bought at most good wine shops.
• When stored correctly, white wines can keep well for up to two years. Full bodied reds will age well for ten years and dessert wines will age well for up to twenty years.
• When you buy a bottle of wine, you should transfer it to a suitable storage location immediately (if you are not going to store it in your wine cooler).
• Cheaper bottles of wine will not age as well as more expensive ones.
• To make the most of the bouquet and taste of your wine, never fill more than half a glass at a time. It will also help if the shape of your wine glass is appropriate for your wine. The size and shape of your wine glass's bowl will determine the intensity and complexity of the bouquet. The stem should be long enough to allow you to avoid hand contact with the bowl of the glass and should be tulip-shaped or tapered at the top.

REVERSING THE DOOR SWING

This unit has the capability of either opening the door from the left or right side. The unit is delivered to you with the door opening from the left side. Should you desire to reserve the opening direction, please follow these instructions:

Note: Before reversing the door, the power must be shut off. All parts removed must be saved to the reinstallation of the door. This unit has been built with the door hinges on the right. If you wish to change the opening direction, follow the instructions below:

1. Remove the upper hinge cover first.
2. Remove the three screws that hold the upper hinge (right side) to the frame. Take away the upper hinge (right side).
3. Lift the door and place it on a padded surface to prevent scratching it.
4. Remove the three screws that hold the lower hinge and make sure to remove the hinge.
5. Remove the left front leg and transfer it to the right side.
6. Remove the hole cover plate to the right side.
7. Before placing this lower hinge, remove the bolt in it and reverse the direction of the lower hinge. Then install the lower hinge onto the left side of the lower frame with two screws.
8. Insert the bolt into the lower hinge.
9. Set the door to its place making sure the door seats on the lower hinge.
10. While holing the door in the closed position secure the upper hinge in the top frame of left side with three screws. Please remember to not tighten the three screws until the top of the door is leveled with the counter top.
11. Install the upper hinge cover.

CLEANING AND MAINTENANCE

• Upon installation of your new appliance, it is recommended that it be cleaned thoroughly.
• Turn off the wine cooler first and then unplug the unit from the wall outlet.
• Remove all contents.
• Wash the inside with a damp warm cloth soaked in lukewarm water and baking soda solution.
• The solution should be about 2 tablespoons of baking soda to a quart of water.
• Be sure to keep the door gasket (seal) clean to keep the unit running efficiently.
• The outside of the wine cooler should be cleaned with mild detergent and warm water.
• Dry the interior and exterior with a soft cloth.
• Dust or anything else blocking the vent may hinder the cooling efficiency of the appliance. Vacuum the vent if necessary.
• Turn off the wine cooler first and then unplug the unit from the wall outlet when it is not going to be used for a long period of time.
• Remove all the contents.
• Clean the appliance.
• Leave the lid open slightly to avoid possible formation of condensation, mold, or odors.
• Short vacations: Leave the wine cooler operating during vacations of less than three weeks.

• Long vacations: If the wine cooler will not be used for several months, remove all content and unplug the power cord. Clean and dry the interior thoroughly. To prevent odor and mold growth, leave the door open slightly: blocking it open if necessary.

• Moving Your Appliance: Turn off the wine cooler first and then unplug the unit from the wall outlet.

• Remove all the contents.
• Securely tape down all loose items inside your appliance.
• Tape the doors shut.

Energy Saving Tips

• The wine cooler should be located in the coolest area of the room, away from heat producing appliances or heating ducts, and out of the direct sunlight.
• Ensure that door is properly closed when the wine cooler is turned on.

TROUBLESHOOTING

PROBLEM POSSIBLE CAUSE AND SOLUTIONS

The wine cooler does not work.	Not connected.The circuit-breaker is tripped or the fuse is damaged.
Temperature inside the wine cooler is too warm.	Temperature control is set too warm. Turn the control to a cooler setting and allow several hours for the temperature to stabilize.Door is kept open too long or is opened too frequently. Warm air enters the wine cooler every time the door is opened. Open the door less often.The door is not closed completely.The door gasket does not seal properly.The wine cooler has recently been disconnected for a period of time.4 hours are required for the wine cooler to cool down completely.
Temperature inside the wine cooler is too cold.	Temperature control is set too cold. Turn the control to a warmer setting and allow several hours for the temperature to stabilize.
Moisture forms on inside wine cooler walls.	Door is slightly open.Door is kept open too long, or is opened too frequently. Open the door less often.The door is not sealed properly.
Moisture forms on outside of appliance.	Check to make sure the wine cooler is level.
The wine cooler seems to be making too much noise.	Door is slightly open, causing cold air from inside the wine cooler to meet warm moist air from outside.
The door does not close properly.	The wine cooler is not on a level surface. The gasket is dirty.

In compliance with Directives: 2012/19/EU and 2015/863/EU on the restriction of the use of dangerous substances in electric and electronic equipment as well as their waste disposal. The symbol with the crossed dustbin shown on the package indicates that the product at the end of its service life shall be collected as separate waste. Therefore, any products that have reached the end of their useful life must be given to waste disposal centres specialising in separate collection of waste electrical and electronic equipment, or given back to the retailer at the time of purchasing new similar equipment, on a one for one basis. The adequate separate collection for the subsequent start-up of the equipment sent to be recycled, treated and disposed of in an environmentally compatible way contributes to preventing possible negative effects on the environment and health and optimises the recycling and reuse of components making up the apparatus. Abusive disposal of the product by the user involves application of the administrative sanctions according to the laws.
