AAF7SB - Deep fryer AEG - Free user manual and instructions

Product type	Hot air fryer
Brand	AEG
Model	AAF7SB
Voltage	220-240 V
Power	1700 W
Frequency	50-60 Hz
Drawer capacity	6.9 L
Temperature range	40-200 °C
Cooking functions	Air Fry, Air Fry + Steam, Steam, Dehydration
Cleaning function	Integrated steam cleaning
Air Fry timer	0-99 minutes
Dehydration timer	0.5-5 hours
Recommended water type	Purified or distilled water
Basket coating	Non-stick
Basket and drawer cleaning	Dishwasher
Safety	Automatic shut-off, hot surfaces, safety lock
Included accessories	Basket, grid, water tank
Use	Domestic use only
Repairability	Authorized service center (do not repair yourself)
Max capacity frozen fries	800 g

Frequently Asked Questions - AAF7SB AEG

How to start Air Fry cooking?

Place the appliance on a flat surface. Remove the drawer, insert the grid, put the food (max indicator). Replace the drawer, plug in, press On/Off, select Air Fry, set temperature and time, then press Start/Pause.

How to use the steam function?

Fill the removable water tank with purified/distilled water (not tap water to avoid scale). Replace it, then select the Steam function on the control panel. Adjust the time (default 10 min at 100°C) and start.

Why does white smoke come out of the appliance?

This may be due to too greasy food or residues in the drawer. Check that the drawer and grid are clean. If the food is greasy, drain them before cooking. A first use may also produce slight smoke until manufacturing residues burn off.

What to do if the display shows E1 or E2?

Codes E1 and E2 indicate a thermostat problem. Unplug the appliance and contact an authorized service center. Do not attempt to repair yourself.

How to clean the appliance?

Unplug and let cool. Clean the drawer and grid with warm water and dish soap or in the dishwasher. Wipe the exterior with a soft cloth. For the heating element, use a cleaning brush after cooling. Use the Steam Cleaning function periodically: fill the water tank and run the cycle, then repeat with vinegar and finally with clear water.

Can I use tap water?

It is strongly recommended to use purified or distilled water to avoid scale buildup, especially in hard water areas. Tap water can damage the appliance in the long run.

What is the maximum filling capacity?

Do not exceed the MAX line indicated in the drawer. For frozen fries, the maximum capacity is 800 g. For other foods, consult the cooking guide.

How to dehydrate food?

Place the food in a single layer (do not overlap). Select the Dehydrate function, set the temperature (e.g., 80°C) and time (0.5 to 5 hours). Turn the food every 30 to 60 minutes. Use the preset Vegetables mode or set manually.

What does the shake reminder mean?

The shake reminder is a blinking icon and a beep to remind you to shake or turn the food halfway through cooking (active on some preset modes like Frozen Fries). This reminder is optional: cooking continues even if you do not do it.

How to replace the water tank?

Lift the water tank located on top of the fryer. Unscrew the cap, fill with purified/distilled water, screw tightly, then replace the tank by snapping it in correctly. Make sure the water collector at the bottom is not too full.

USER MANUAL AAF7SB AEG

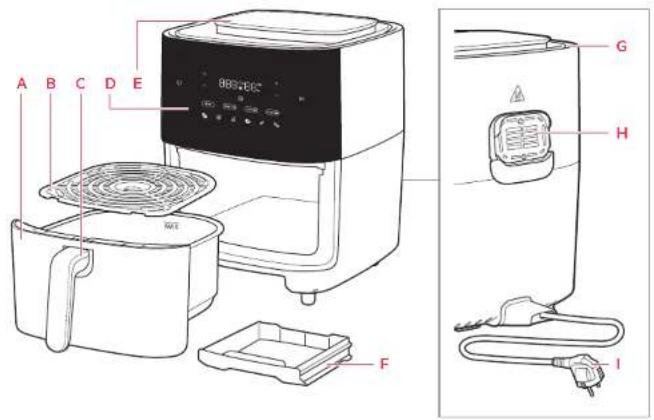

General Overview

A Pan B Grid C Basket handle D Control panel E Water tank F Water Tray Collector G Air inlet H Air outlet Main cord

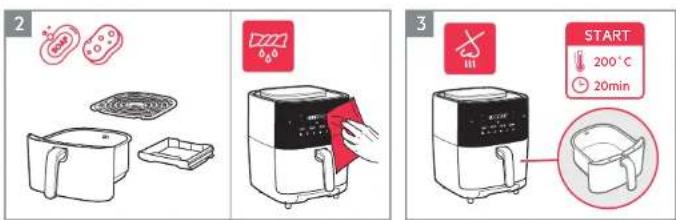

Before first use

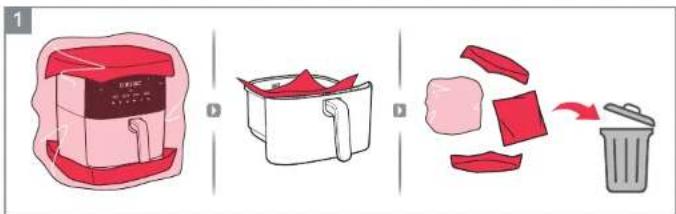

1. Remove all the packaging and protective material.

1. Clean the pan and grid with warm water and dish soap. Wipe inside and outside of the appliance with a soft cloth.
2. It is normal for a new unit to emit odors the first few times it is operated. Run the empty air fryer at 200°C for 20 minutes before first use to avoid that.

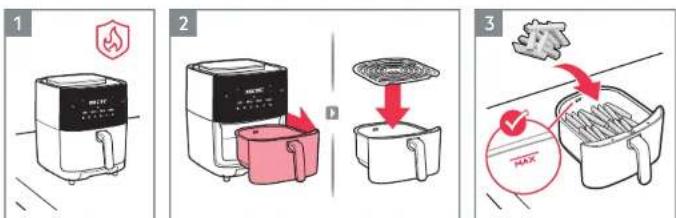

How to use - AirFry function

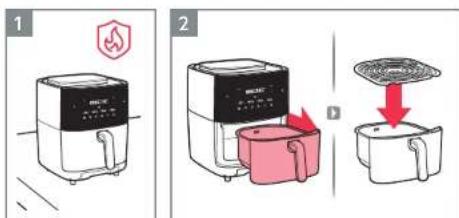

1. Place the appliance on a flat, stable and heat-resistant surface.

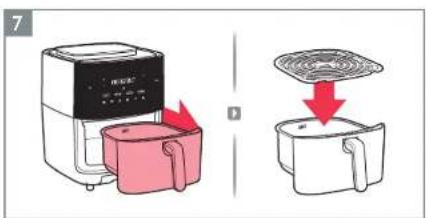

2. Pull out the pan and place it on a stable surface. Insert the grid into the basket.
3. Put the food in the pan, observing the "MAX." capacity indication.

1. Push the pan with food completely back into the appliance.
2. Plug in the appliance.

1. Press the On/Off button.
2. Select the desired cooking method. For example, Air Fry function.
3. Adjust the time and temperature to your taste or select one of the pre-set recipes. For example, French fries.
4. Press the Play/Pause button.

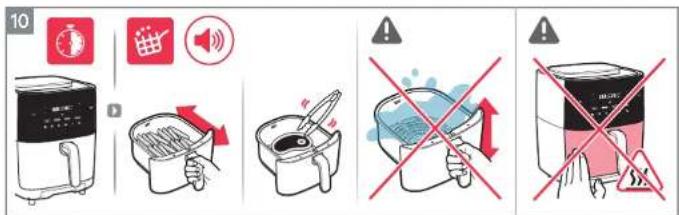

1. Depending on the type of ingredient, flip the food mid-cooking or every 7 minutes by using a heat-resistant tool or by just carefully shaking the food inside the basket. (see Cooking Guide). CAUTION: Be careful with hot surfaces when the appliance is in use.

1. At the end of the cooking time, the appliance will issue a beep signal.
2. Carefully remove the pan and place it on a heat-resistant surface. CAUTION: Hot steam can come out of the basket when it is opened mid or at the end of cooking. Make sure your face, arms and hands are away from the steam when opening it.

1. Unplug the appliance after using it.

Shake Reminder

The "Shake Reminder" is activated during the pre-sets of some recipes, such as French Fries/Frozen Snacks, Vegetables and Chicken.

When it is time to shake or flip your food, the "Shake Reminder" icon will light up and blink for one minute, while a beep sound will repeat for three times.

The "Shake Reminder" is not mandatory, hence the cooking will continue as usual even if the food is not flipped or shaken.

How to use - Steam function

1. Place the appliance on a flat, stable and heat-resistant surface.
2. Remove the water tank by lifting it from the air fryer.
3. Unscrew the water tank cap.

1. Fill up the water tank with purified/distilled water. CAUTION: In order to minimize scale buildup and maintain correct operating function, especially in areas with hard water, do not use water directly from the tap.
2. Fasten the water tank cap.

1. Place the water tank back on the air fryer.
2. Pull out the pan and place it on a stable surface. Insert the grid into the basket.

1. Put the food in the basket, observing the "MAX." capacity indication.
2. Push the pan with food completely back into the appliance.

1. Plug in the appliance.
2. Press the On/Off button.
3. Select the Steam function.
4. Press the Play/Pause button.

1. At the end of the cooking time, the appliance will issue a beep signal.
2. Carefully remove the pan and place it on a heat-resistant surface. CAUTION: Hot steam can come out of the basket when it is opened mid or at the end of cooking. Make sure your face, arms and hands are away from the steam when opening it.

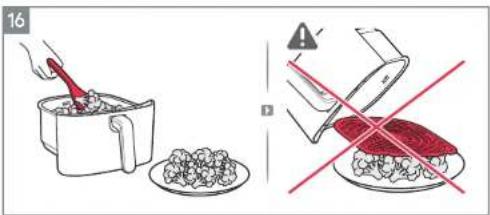

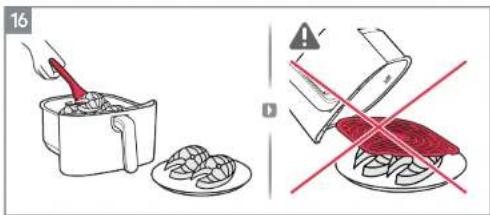

16. Serve the food by using tongs or a similar kitchen utensil. CAUTION: Do not serve food by flipping the pan directly onto the plate, as the hot grid or liquids may fall into the plate. 17. Unplug the appliance after using it.

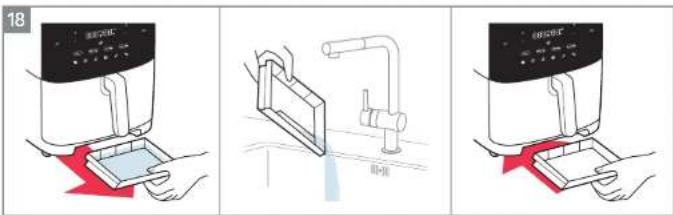

1. Check the Water Tray Collector for any water build up. Dispose the excess water and place it back into the appliance.

How to use - Air Fry + Steam function

1. Place the appliance on a flat, stable and heat-resistant surface.
2. Remove the water tank by lifting it from the air fryer.
3. Unscrew the water tank cap.

1. Fill up the water tank with purified/distilled water. CAUTION: In order to minimize scale buildup and maintain correct operating function, especially in areas with hard water, do not use water directly from the tap.
2. Fasten the water tank cap.

1. Place the water tank back on the air fryer.
2. Pull out the pan and place it on a stable surface. Insert the grid into the basket.

1. Put the food in the basket, observing the "MAX." capacity indication.
2. Push the pan with food completely back into the appliance.

1. Plug in the appliance.
2. Press the On/Off button.
3. Select the Air Fry + Steam function.
4. Press the Play/Pause button.

1. At the end of the cooking time, the appliance will issue a beep signal.
2. Carefully remove the pan and place it on a heat-resistant surface. CAUTION: Hot steam can come out of the basket when it is opened mid or at the end of cooking. Make sure your face, arms and hands are away from the steam when opening it.

16. Serve the food by using tongs or a similar kitchen utensil. CAUTION: Do not serve food by flipping the pan directly onto the plate, as the hot grid or liquids may fall into the plate. 17. Unplug the appliance after using it.

1. Check the Water Tray Collector for any water build up. Dispose the excess water and place it back into the appliance.

How to use - Dehydrate function

1. Place the appliance on a flat, stable and heat-resistant surface.
2. Pull out the pan and place it on a stable surface. Insert the grid into the basket.
3. For the best dehydrating results, do not place ingredients on top of each other.

1. Push the pan with food completely back into the appliance.
2. Plug in the appliance.

1. Press the On/Off button.
2. Select the Dehydrate function
3. Adjust the time and temperature to your taste or select one of the pre-set recipes. For example, Vegetables.
4. Press the Play/Pause button.

10

!

!

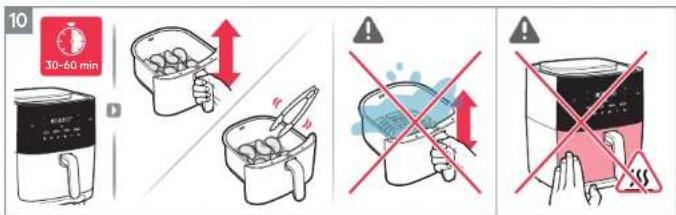

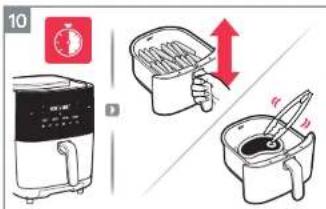

1. Flip the food mid-cooking or every 30-60 minutes by using a heat-resistant tool (see Cooking Guide). CAUTION: Be careful with hot surfaces when the appliance is in use.

11

12

1. At the end of the cooking time, the appliance will issue a beep signal.
2. Carefully remove the pan and place it on a heat-resistant surface.

CAUTION: Hot steam can come out of the basket when it is opened mid or at the end of cooking. Make sure your face, arms and hands are away from the steam when opening it.

13

1. Unplug the appliance after using it.

Cooking Guide

							Oil
AirFry	7mm/10mm	300~800g	15~30min	180°C
AirFry		300~800g	20~30min	180°C
AirFry		100~500g	10~20min	170°C
Steam		100~500g	10min	100°C
AirFry +		600g	5min Stream5min AirFry	100°C Steam170°C AirFry
AirFry		100~400g	10min	200°C
AirFry		100~200g	10min	200°C
AirFry		100~500g	10~30min	180°C
AirFry		100~500g	13~20min	180°C
AirFry	Max 1.2kg	800~1200g	45~60min	180°C

							Oil
AirFry +		1000g	10min Steam25min AirFry	100°C Steam180°C AirFry		√
AirFry		100~500g	10~15min	140 °C		√
AirFry		100~500g	10min	180 °C		√
Steam		500g 15min	100 °C			√
AirFry +		400g	5min Steam5min AirFry	100°C Steam140°C AirFry		√
AirFry		25~50g each	10min 170 °C
Dehydrate		300g 5 hours	80 °C			√
Dehydrate	Meat	300g 5 hours	80 °C			√

Cleaning

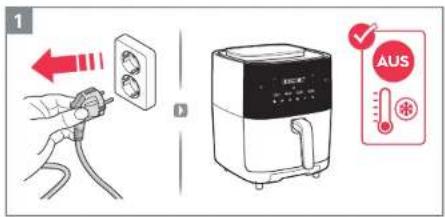

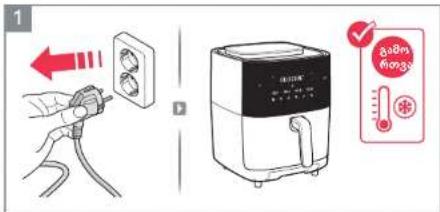

1. Always unplug the appliance and wait until it cools down before cleaning it.
2. Wipe the outside of the appliance with a soft cloth.

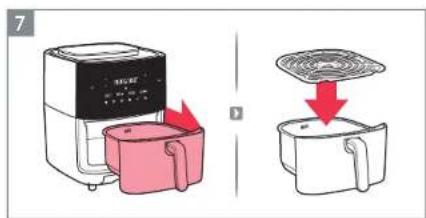

1. Clean the pan and grid with warm water and dish soap, or place them in the dishwasher. NOTE: Avoid using abrasive cleaning products or metal tools in order to protect the non-stick coating. CAUTION: Never submerge the product, its cord or plug in water or any other liquid.

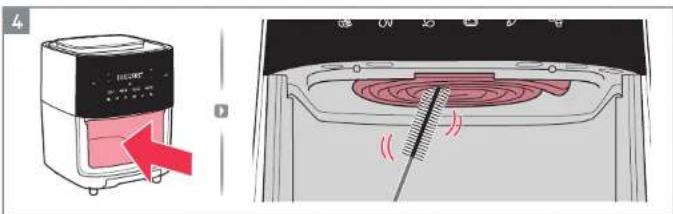

1. Clean the heating element with a cleaning brush.

NOTE: Ensure the appliance is completely cooled down before cleaning the heating element.

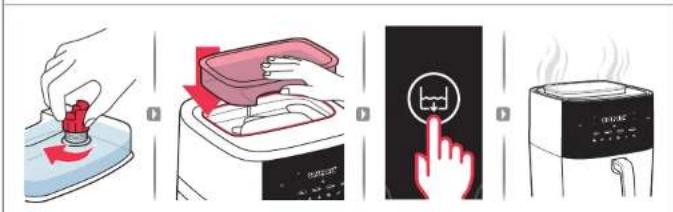

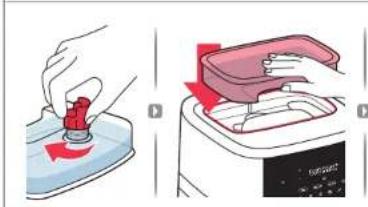

Cleaning - Steam function

1. Run a cleaning cycle with the "Cleaning function" when the icon lights up on the display or whenever cleaning is needed.

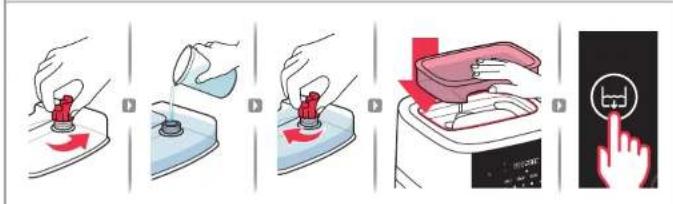

2. Remove the water tank by lifting it from the air fryer.
3. Unscrew the water tank cap.

1. Fill up the water tank with purified/distilled water.

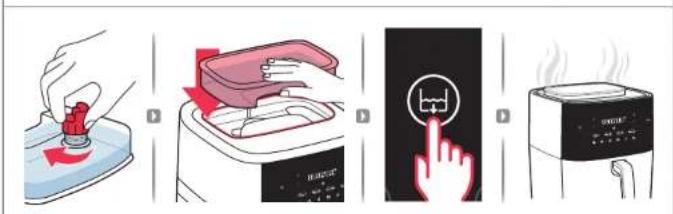

2. Fasten the water tank cap.
3. Place the water tank back on the air fryer.

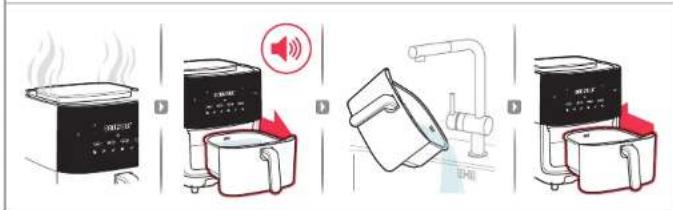

1. Press the "Cleaning function" button.

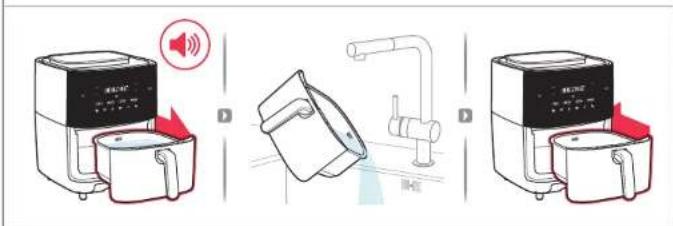

2. Wait until the steaming cycle is done.

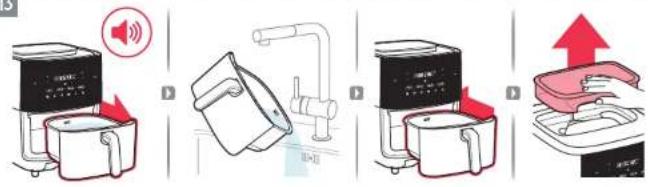

3. At the end of the steaming cycle, the appliance will issue a beep signal. Carefully remove the pan.

1. Discard the excess water from the pan.
2. Push the pan completely back into the appliance.

12

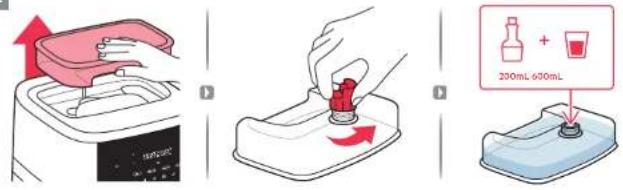

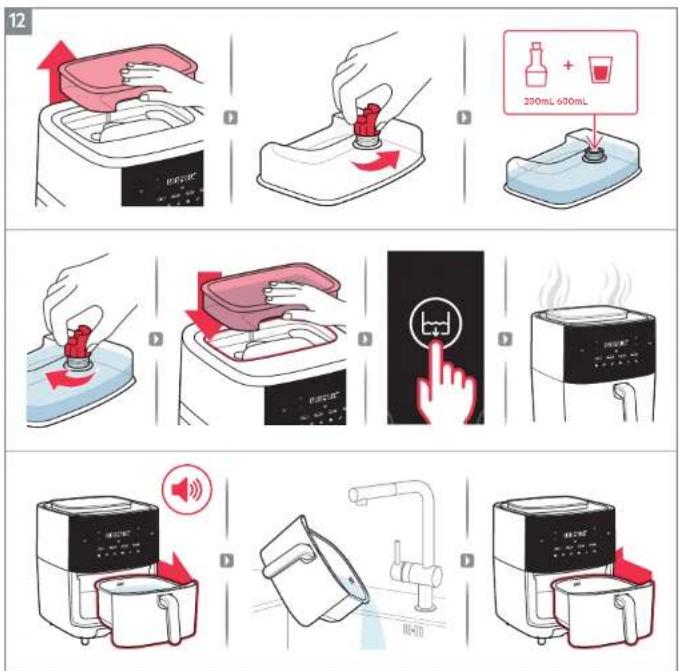

1. Repeat the same previous steps (2-11), this time using a mixture of 600ml purified water and 200ml vinegar.

13

1. Finally, repeat the same previous steps (2-11), again using purified water only.

14

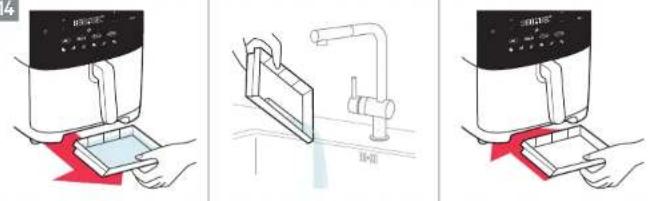

1. Check the Water Tray Collector for any water build up. Dispose the excess water and place it back into the appliance.

What to do if...

Problem	Check if...
You cannot activate or operate the appliance.	The appliance is correctly connected to an electrical supply.The basket and pan are in the correct position.Ensure they are completely pushed into the appliance to enable the electrical supply.The cooking time is set.
You cannot slide the pan into the appliance.	The basket is filled over its maximum capacity.The basket is placed correctly. It has to click when you place it in the pan.There's an object under the pan that is an obstacle to close it properly.
White smoke comes out of the appliance.	The food you prepare is too greasy.The pan, grid and heating element are clean.
The display shows E1• The temperature sensor is cutting out or disconnecting.
The display shows E2	The temperature sensor has short-circuited.

* In case the display shows E1 or E2 error, the appliance must be repaired by a Service Center.

Technical Data

Product	Air Fryer
Model	AAF7SB
Voltage (V~)	220 V ~ 240 V
Power (W)	1700 W
Frequency (Hz)	50 - 60 Hz
Capacity	69 L

AEG

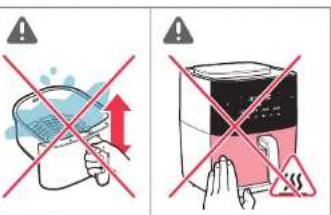

Safety advice

AAF7SB

Air Fryer

EN USER MANUAL

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they are supervised or have received instruction concerning how to safely use the appliance and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be performed by children without supervision.

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved by a person responsible for their safety.

Children should be supervised to ensure that they don't not play with the appliance.

Please keep the air fryer and the power cord out of the reach of children less than 8 years.

This appliance is intended for normal household use only.

If the power cord is damaged or broken, it must be replaced by a service agent or similarly qualified persons to avoid safety hazards.

The accessible surfaces may become hot during use.

Do not cover the air inlet and the air outlet openings while the appliance is operating.

Always return the appliance to an authorized service center for examination or repair.

Do not attempt to repair the appliance yourself.

Do not place the appliance on or near a hot gas stove, any kind of electric stove, electric cooking plates or in a heated oven.

Always make sure that the plug is inserted into the socket properly.

Keep the mains cord away from hot surfaces or sharp objects to avoid damage.

Never put anything flammable, explosive or corrosive in the basket.

Do not excessively pinch, bend, twist or place heavy objects on the power cord to prevent from exposing or breaking its core.

Do not use the appliance if the plug, the main cord or the appliance itself is damaged.

Never start cooking without the basket being in place.

Do not fill up the basket above the "MAX" line in order to prevent food contact with the heating element.

Do not touch the basket directly with your hands during or right after use to avoid getting scalded.

Do not use any plastic utensils or normal paper wrapping materials to wrap food for cooking.

Do not insert pins, wires or other objects into any of the openings of the air fryer to avoid an electrical shock or injury.

Please be sure to unplug the air fryer before cleaning or repairing it.

Do not move or shake the air fryer during use.

Do not insert any foreign objects into the safety switch to avoid any danger.

Not suitable for contact with high acidic and/or high salty ingredients.

Avoid using metal tools when manipulating the food in the basket.

Use purified/distilled water only.

CAUTION: Hot surfaces.

DISPOSAL

This symbol on the product or on its packaging indicates that the product may not be treated as household waste. To recycle your product, please take it to an official collection point or to an Electrolux service center that can remove and recycle the battery and electric parts in a safe and professional way. Follow your country's rules for the separate collection of electrical products and rechargeable batteries.

Electrolux reserves the right to change products, information and specifications without notice.

FOR PERFECT RESULTS

Thank you for choosing this AEG product. We have created it to give you impeccable performance for many years, with innovative technologies that help make life simpler features you might not find on ordinary appliances. Please spend a few minutes reading to get the very best from it.

Visit our website to:

Get usage advice, brochures, trouble shooter, service information: www.aeg.com/webselfservice

Register your product for better service: www.registeraeg.com

Buy accessories and consumables for your appliance: www.aeg.com/shop

AEG

Instruction book

AAF7SB

General overview

3

General summary

A Tub

B Grid

C Basket handle

D Control panel

E Water tank

1. Insert the tub fully back into the appliance with the food.
2. Drain the appliance.

1. Remove the excess water from the tub.
2. Push the tub back fully into the appliance.

12

|

FOR PERFECT RESULTS

		[IMAGE]	[IMAGE]	[IMAGE]	[IMAGE]	[IMAGE]	[IMAGE]
AirFry + ⚙		1000g	10Min. Steam25Min. AirFry	100°C Steam180°C AirFry		[IMAGE]
AirFry	[IMAGE]	100~500g	10~15Min.	140 °C		[IMAGE]
AirFry		100~500g	10Min.	180 °C		[IMAGE]
Steam ⚙		500g	15Min.	100 °C		[IMAGE]
AirFry + ⚙		400g	5Min. Steam5 Min. AirFry	100°C Steam140°C AirFry		[IMAGE]
AirFry		Jeweils25~50 g	10Min. 170 °C
Dehydrate		300g	5 hours	80 °C		[IMAGE]
Dehydrate	Meat	300g	5 hours	80 °C		[IMAGE]

Cleaning

General overview

www.aeg.com/webselfservice

General overview

A Drawer

B Grid

C Basket handle

D Control panel

commands

PTPT INSTRUCTION MANUAL INSTRUCTION MANUAL

DISPOSAL

General overview

A Pan

B Grid

C Basket handle

D Control panel

E Water reservoir

F Water collector

G Air inlet

H Air outlet

Main cord

!

!

A B C. Jayamishu Labgugnghin

Therefore m = 3/11

D adiengzulu adiengzulu E hyenlu agba

F ยูนวิ ยูนวิ Program G θυδυσειο δυμαν ξερατα

H gānāngāng Sajmadi 1

30630750 354my650850

6m3m6 3s4m30y96mm - AirFry 375820s

1. 600s, 6m3gngng luygdaos dmaaglugdymn, ufrgmsgo hugon a mhymdnmmadaan.
2. 0032380600 0032380600 0032380600 0032380600

1. ροσχήσεγον καδιοχού/καδεφορού φαμας μι.
2. సంక్రణాపినికుక్రణాపినికుక్రణాపినికుక్రణాపినికుక్రణాపినికుక్రణాపినికుక్రణాణాణాణాణాణాణాణాణాణాణాణాణాణాణాణాణాణాణాణ
3. დაუენუთ დროს და ტიმვერაცურის სასურველი პარამეტრები ან ათრსით ერი-ერთი წინასწორ დაუენებული რეგეშტი. მაცალითად., აქრტოლითი ფრი.
4. ΜΟΥΣΙΝΗΣΟΥ ΣΑΔΣΟΥΛΙΚΟΣΑΣΥΒΟΥΛΟ ΜΟΥΣΙΝΑ

EN BG CA FR DE GR IT NL GE ES PT

1. January 1, 2018

AirFry	788/1088	300~800g/s	15~30g/m	180°C
AirFry	788	300~800g/s	20~30g/m	180°C
AirFry		100~500g/s	10~20g/m	170°C
Steam		100~500g/s	10g/m	100°C
AirFry + 2		600g/s	5g/m Steam5g/m AirFry	100°C Steam170°C AirFry
AirFry		100~400g/s	10g/m	200°C
AirFry		100~200g/s	10g/m	200°C
AirFry		100~500g/s	10~30g/m	180°C
AirFry		100~500g/s	13~20g/m	180°C
AirFry	Max 1,2 kg	800~1200g/s	45~60g/m	180°C

				Irradi	Irradi	Irradi	Irradi
		1,000g6	10 1/2 cmSteam25 1/2 cmAirFry	100°C Steam180°C AirFry
		100~500g6	10~15 1/2 cm	140°C
		100~500g6	10 1/2 cm	180°C
		500g6	15 1/2 cm	100°C
		400g6	5 1/2 cmSteam5 1/2 cmAirFry	100°C Steam140°C AirFry
		25~50g6 cm000m	10 1/2 cm	170°C
		300g6	5 hours 80°C
		300g6	5 hours 80°C

630605

12

PT PT MANUAL DE INSTRUÇÕES MANUAL DE INSTRUÇÕES

General Description

3

PT PT MANUAL DE INSTRUÇÕES MANUAL DE INSTRUÇÕES
