USER MANUAL AAF7B AEG

Line drawing of a modern air fryer with digital display and control buttons (no text or symbols on the device itself)

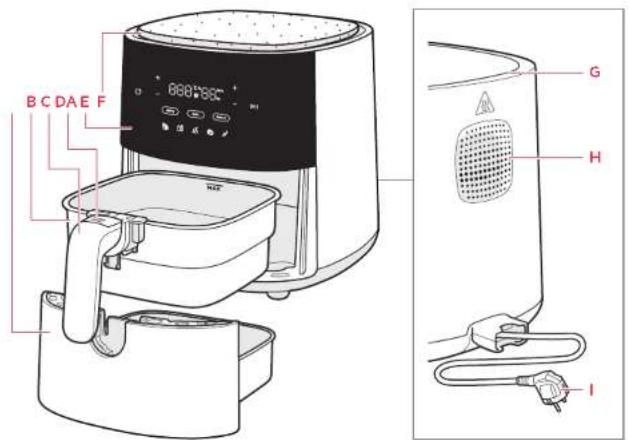

General Overview Before first use

BCDAE F G H I

A Pan B Basket C Basket handle D Basket release button E Control panel F MultiCoaster G Air inlet H Air outlet I Main cord

Accessories may very from model to model

3 + - 8:00 8:00 min hr 9 10 7 11 Air Fry Bake Reheat 12 13 14 15 16

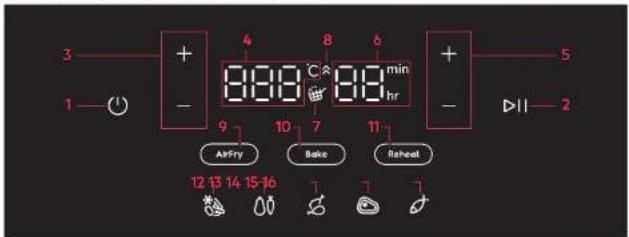

1 On/Off
2 Play/Pause
3 Temperature
control
4 Temperature indicator(60-200°C)
5 Time control
6 Time indicator
(0-99 min.)
7 Shake Reminder
8 Heating-up indicator
9 Air Fry function
10 Bake function
11 Reheat function
12. French Eries/
Frozen snacks
13 Vegetables
14 Chicken
15 Steak
16 Fish
(1) 本说明仅供参考。

Illustration showing a hand washing a bag with a 400ml air fryer, accompanied by step-by-step instructions for cleaning and holding the bag.

1. Remove all the packaging and protective material.

2 3 START 200°C 20min

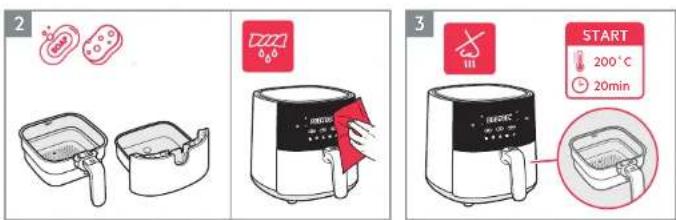

1. Clean the basket and pan with warm water and dish soap. Wipe inside and outside of the appliance with a soft cloth.
2. It is normal for a new unit to emit odors the first few times it is operated. Run the empty air fryer at 200°C for 20 minutes before first use to avoid that.

How to use

1 2 3

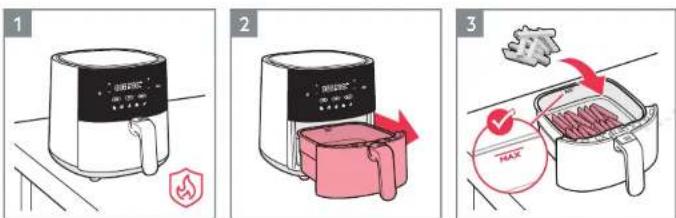

1. Place the appliance on a flat, stable and "heat-resistant" surface.
2. Pull out the pan and place it on a stable surface.
3. Put the food in the basket, observing the "MAX". capacity indication.

4

Illustration showing two types of air fryers with warning signs and red prohibition symbols, indicating a safety or hazard.

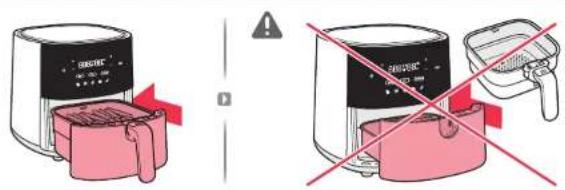

1. Push the pan with food completely back into the appliance.
   CAUTION: Do not use the appliance without the basket.

6 7 888*88* + 0.11 + 0.11

8 9

1. Plug in the appliance.
2. Press the On/Off button.
3. Select the desired cooking method. For example, Air Fry function.
4. Adjust the time and temperature to your taste or select one of the pre-set recipes. For example, French Fries.
5. Press the Play/Pause button.

10 EASTIC NO. 25 8 No. 1

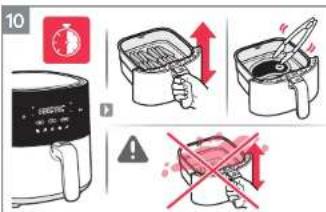

10. Depending on the type of ingredient, flip the food mid-cooking or every 7 minutes by using a heat-resistant tool or by just carefully shaking the food inside the basket. (see Cooking Guide).
CAUTION: Be careful not to press the "Basket Release Button" when shaking the food.
CAUTION: Be careful with hot surfaces when the appliance is in use.

11. At the end of the cooking time, the appliance will issue a beep signal.
12. Carefully remove the pan and place it on a heat-resistant surface.
13. To remove the basket from the pan, follow these instructions:

- Slide the transparent button cover

- Press the "Basket Release Button"

- Lift the basket from the pan

CAUTION: Hot steam can come out of the basket when it is opened mid or at the end of cooking. Make sure your face, arms and hands are away from the steam when opening it.

14

15

Illustration of three different kitchen appliances: a red oven, a black heater, and a white stove (no text or symbols present)

1. Unplug the appliance after using it.
2. The versatile MultiCoaster fits on top of the air fryer as a space-saving hotplate for the cooking basket or resting place for tools and spices when cooking. It's also removable to use at the table when serving food from the hot basket.*
   * Accessories may very from model to model.
   NOTE: Be careful with oil to avoid stains on the cork material.

Heating-up indicator 18:0 18:0 min hr

Shake Reminder 188 C 18 m 188 hr

Heating-up indicator

The "Heating-up indicator" is activated when the "Bake function" is selected, and it works as a pre-hear function so that the air fryer has the ideal temperature before cooking your favorite baked recipes.

The timer only starts to count down once the pre-heating has finished. If wished, you can skip the pre-heating step by tapping the 'Play/Pause' button. The display will then show the target temperature, while the "Heating up indicator" icon will turn off and the timer will start to count down.

Shake Reminder

The "Shake Reminder" is activated during the pre-sets of some recipes, such as French Fries/Frozen Snacks, Vegetables and Chicken. When it is time to shake or flip your food, the "Shake Reminder" icon will light up and blink for one minute, while a beep sound will repeat for three times.

The "Shake Reminder" is not mandatory, hence the cooking will continue as usual even if the food is not flipped or shaken.

Cooking Guide Cleaning

	300~800g 15~30min 180°C
	300~800g	20~30min 180°C
	100~500g 10~20min 170°C
	100~400g 10min 200°C
	100~200g 10min 200°C
	100~500g 10~30min 180°C
	100~500g	13~20 min 180°C
	800~1200g 45~60min 180°C
	100~500g 10~15min 140°C
	100~500g 10 min 180°C
	25~50g each	10min 170°C

Diagram showing a hand inserting air conditioner into an outlet, next to an air fryer with a temperature indicator.

1. Always unplug the appliance and wait until it cools down before cleaning it.
2. Wipe the outside of the appliance with a soft cloth.

1. Clean the basket and pan with warm water and dish soap, or place them in the dishwasher.
   NOTE: Avoid using abrasive cleaning products or metal tools in order to protect the non-stick coating.
   CAUTION: Never submerge the product, its cord or plug in water or any other liquid.

Diagram of a medical procedure showing a needle inserted into a tissue sample (no text or labels)

1. Clean the heating element with a cleaning brush.
   NOTE: Ensure the appliance is completely cooled down before cleaning the heating element.

What to do if...

Problem	Check if...
You cannot activate or operate the appliance.	The appliance is correctly connected to an electrical supply.The basket and pan are in the correct position.Ensure they are completely pushed into the appliance to enable the electrical supply.The cooking time is set.
You cannot slide the pan into the appliance.	The basket is filled over its maximum capacity.The basket is placed correctly. It has to click when you place it in the pan.There's an object under the pan that is an obstacle to close it properly.
White smoke comes out of the appliance.	The food you prepare is too greasy.The pan and the basket are clean.
The display shows E1• The temperature sensor is cutting out or disconnecting.
The display shows E2	The temperature sensor has short-circuited.

* In case the display shows E1 or E2 error, the appliance must be repaired by a Service Center.

Technical Data

Product	Air Fryer
Model	AAF3B	AAF5B	AAF7B
Voltage (V~)	220 V - 240 V	220 V - 240 V	220 V - 240 V
Power (W)	1350 W	1500 W	1800 W
Frequency (Hz)	50-60 Hz	50-60 Hz	50-60 Hz
Capacity	3.3 L	5 L	6.8 L

AEG

Safety advice

AAF3B, AAF5B, AAF7B

Air Fryer

EN USER MANUAL

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they are supervised or have received instruction concerning how to safely use the appliance and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be performed by children without supervision.

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved by a person responsible for their safety. Children should be supervised to ensure that they don't play with the appliance.

Please keep the air fryer and the power cord out of the reach of children less than 8 years.

This appliance is intended for normal household use only.

If the power cord is damaged or broken, it must be replaced by a service agent or similarly qualified persons to avoid safety hazards.

The accessible surfaces may become hot during use.

Do not cover the air inlet and the air outlet openings while the appliance is operating.

Always return the appliance to an authorized service center for examination or repair. Do not attempt to repair the appliance yourself.

Do not place the appliance on or near a hot gas stove, any kind of electric stove, electric cooking plates or in a heated oven.

Always make sure that the plug is inserted into the socket properly.

Keep the mains cord away from hot surfaces or sharp objects to avoid damage.

Never put anything flammable, explosive or corrosive in the basket.

Do not excessively pinch, bend, twist or place heavy objects on the power cord to prevent from exposing or breaking its core.

Do not use the appliance if the plug, the main cord or the appliance itself is damaged.

Never start cooking without the basket being in place.

Do not fill up the basket above the "MAX" line in order to prevent food contact with the heating element.

Do not touch the basket directly with your hands during or right after use to avoid getting scalded.

Do not use any plastic utensils or normal paper wrapping materials to wrap food for cooking.

Do not insert pins, wires or other objects into any of the openings of the air fryer to avoid an electrical shock or injury.

Please be sure to unplug the air fryer before cleaning or repairing it.

Do not move or shake the air fryer during use.

Do not insert any foreign objects into the safety switch to avoid any danger.

CAUTION: Hot surfaces

DISPOSAL

This symbol on the product or on its packaging indicates that the product may not be treated as household waste. To recycle your product, please take it to an of fiscal collection point or to an Electrolux service center that can remove and recycle the battery and electric parts in a safe and professional way. Follow your country's rules for the separate collection of electrical products and rechargeable batteries.

Electrolux reserves the right to change products, information and specifications without notice.

FOR PERFECT RESULTS

Thank you for choosing this AEG product. We have created it to give you impeccable performance for many years, with innovative technologies that help make life simpler features you might not find on ordinary appliances. Please spend a few minutes reading to get the very best from it.

Visit our website to:

Get usage advice, brochures, trouble shooter, service information: www.aeg.com/webselfservice

Register your product for better service: www.registeraeg.com

Buy accessories and consumables for your appliance: www.aeg.com/shop

CUSTOMER CARE AND SERVICE

When contacting Service, ensure that you have the following data available:

AEG

Книжка с инструкции

AAF3B, AAF5B, AAF7B

Line drawing of a modern air fryer with digital display and control buttons (no text or symbols)

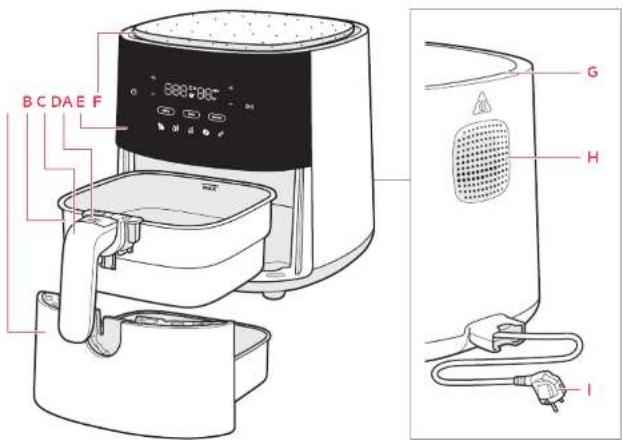

Общ преглед
