CONGRATULATIONS!
THANK YOU FOR CHOOSING A PRODUCT FROM BE COOL.

BE COOL

Current operating instructions and other languages

Download the latest operating instructions in various languages via the link www.becool.at/downloads or scan the QR code shown. Follow the instructions on the website.

PLEASE READ THE OPERATING INSTRUCTIONS
CAREFULLY BEFORE STARTING INSTALLATION,
OPERATION OR MAINTENANCE. PROTECT YOURSELF
AND OTHERS BY FOLLOWING THE SAFETY
INSTRUCTIONS. FAILURE TO FOLLOW INSTRUCTIONS
COULD RESULT IN PERSONAL INJURY AND/OR
PROPERTY DAMAGE AND/OR LOSS OF WARRANTY
COVERAGE!

IMPORTANT INFORMATION ON SAFETY, LOCATION AND ELECTRICAL CONNECTION

1. This appliance is intended solely for cooling domestic living spaces and must not be used for any other purpose.

2. The unit is not suitable for continuous or precision

BE COOL

operation and should not be used for cooling electrical systems (e.g.: in server rooms).

1. Remove the packaging and make sure that the unit is not damaged. If in doubt, do not use the unit and contact the service centre or your dealer.
2. If the unit has a defect, switch it off and contact your dealer or the customer hotline.
3. If the power supply cable is damaged, it must be replaced by the manufacturer or an authorised service centre to avoid all possible risks.
4. Always and only contact customer service centres authorised by the manufacturer for any repairs. You can find the customer service centres online at www.becool.at.
5. Before connecting the appliance to the mains, check that the type of current and mains voltage correspond to the specifications on the appliance type plate.
6. The electrical socket in which you connect the unit must not be defective or loose and must be suitable for the required current load and, above all, reliably earthed. If in doubt, have your electrical installation checked by a qualified electrician.
7. Avoid using an extension cord as it could overheat and cause a fire.
8. It is forbidden to adapt or modify the characteristics of this appliance in any way and use only spare parts and accessories recommended by the manufacturer (failure to do so will invalidate the guarantee and warranty).
9. Children must not play with the appliance.
10. Do not let children play with the packaging - THERE IS A DANGER OF CHICKENING IF SMALL PARTS ARE SPILLED!

BE COOL

1. Children under the age of 8 and persons with reduced physical, mental, sensory or spiritual capabilities or lack of experience and knowledge should not use this appliance unless they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
2. Do not operate the unit unattended. If you leave the room, always switch off the unit.
3. Do not twist or bend the mains cable.
4. Do not use the appliance with wet hands.
5. Do not use the unit outdoors.
6. Never cover the unit.
7. Never operate the unit in rooms where gas, oil or sulphur are present.
8. Do not use the unit near water or high humidity, e.g. in damp basements, next to swimming pools, bathtubs or showers. Make sure that no water enters the unit.
9. Do not place the unit near heat sources (e.g.: next to heating systems) and avoid direct sunlight.
10. Keep a minimum distance of at least 50 cm from flammable substances (e.g. alcohol) or pressurised containers (e.g. spray containers).
11. Do not place heavy or hot objects on the appliance.
12. Place the unit on a stable and level surface.
13. Never insert fingers, pens or other objects into the unit and make sure that the air inlet and outlet are never blocked.
14. Change the water regularly.
15. Always fill the water tank above the minimum and never above the maximum.
16. Do not move the appliance quickly when there is water in the water tank to avoid water leakage or splashing.

BE COOL

1. Do not use the unit in "COOL" mode for a long time in an enclosed area without ventilation to avoid high humidity.
2. The cooling batteries are not toys - keep children and animals away from them.
3. Never try to open the cooling batteries. The liquid inside can be harmful to your health.
4. Unplug the appliance and empty the water tank when you are not using it.
5. Always switch off the appliance before unplugging it from the mains.
6. Do not pull on the mains cable to disconnect the appliance from the mains power. Always pull on the plug to unplug the mains cable.
7. Do not touch the plug with wet hands to avoid electric shock. Store the appliance vertically in a safe, dry place out of reach of children when not in use and do not cover the appliance with plastic packaging.
8. Keep the unit in good condition by maintaining and cleaning the unit. If you have any questions about maintenance, you can contact the customer hotline/service centre authorised by the manufacturer.

BE COOL

Recycling, disposal, declaration of conformity

RECYCLING The packaging materials can be recycled. Therefore, it is recommended to dispose of them in sorted waste.

DISPOSAL The symbol "crossed-out dustbin" requires the separate disposal of waste electrical and electronic equipment (WEEE). Electrical and electronic equipment may contain hazardous and environmentally dangerous substances. Therefore, do not dispose of this in unsorted residual waste, but at a designated collection point for waste electrical and electronic equipment. By doing so, you will contribute to the protection of resources and the environment. For more information, please contact your dealer or the local authorities. Directive 2012/19/EU

BATTERY DISPOSAL In accordance with Legislative Decree 188 of 20 November 2008 transposing Directive 2006/66/EC on batteries, accumulators and related waste, the crossed-out wheeled bin symbol on the battery indicates that it is prohibited to dispose of waste batteries in household waste. Batteries and accumulators contain highly polluting substances. The user is obliged to dispose of used batteries at the collection points in the municipality or in the appropriate containers. The service is free of charge. In this way, the legal requirements are met and the environment is protected. You will find these signs on batteries: Li = Battery contains lithium Al = Battery contains alkali Mn = battery contains manganese CR 2025 (Li); AA (Al, Mn); AAA (Al, Mn)

DECLARATION OF CONFORMITY We hereby confirm that this article complies with the basic requirements, regulations and directives of the EU. You can view the detailed declaration of conformity at any time under the following link: https://www.schuss-home.at/downloads

Errors and technical modifications excepted.

BE COOL

SCOPE OF DELIVERY

In the scope of delivery of the BE COOL cooler you will receive:

1x air cooler
- 1x remote control
1x instruction manual

DESCRIPTION OF THE DEVICE

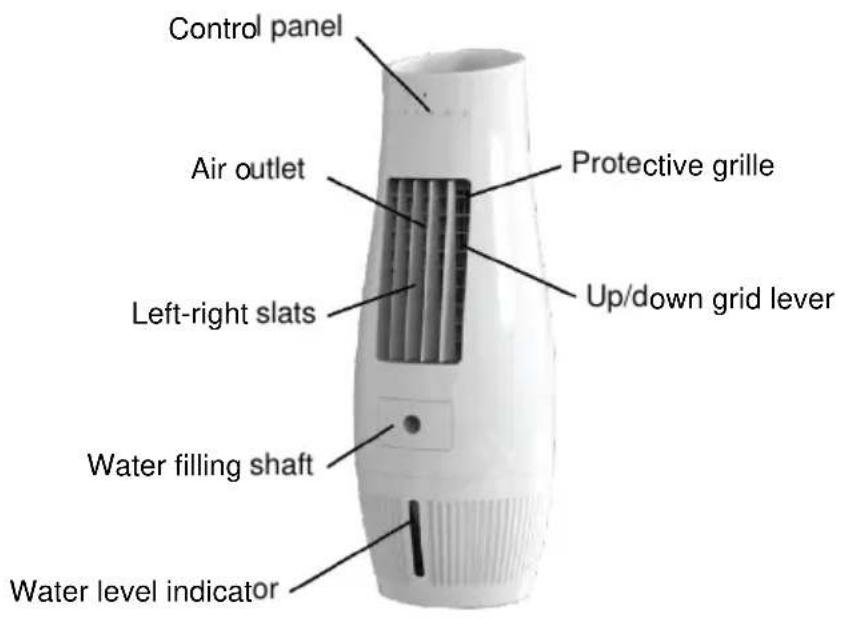

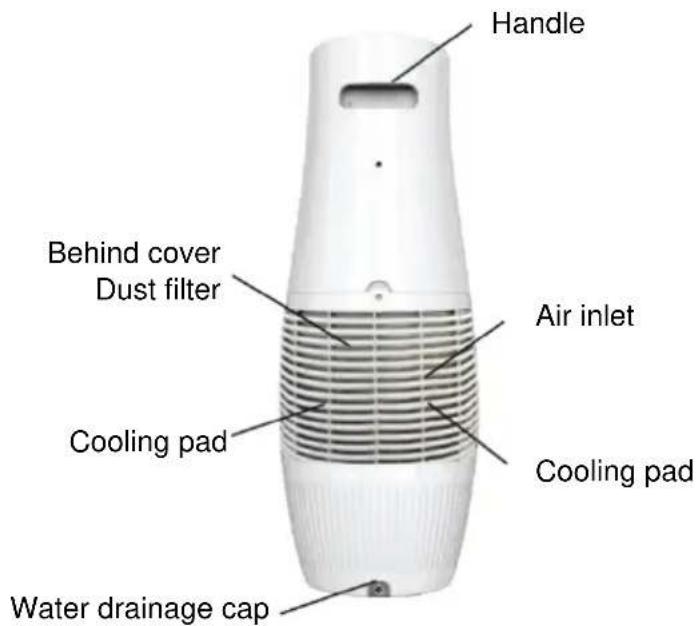

Designation of the individual parts

BE COOL

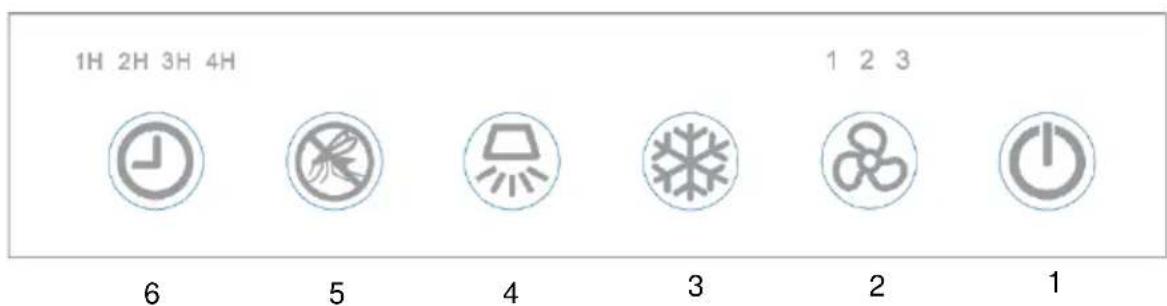

Indicators and controls

1. ON/OFF (POWER)

2. SWING

3. SPEED (1-Low/2-middle/3-High)

5 MOSQUITO

1. COOL

2. TIMER

COMMISSIONING

BEFORE THE FIRST COMMISSIONING

Unpack the unit

• Open the box and remove the unit.
• Remove the packaging completely from the unit.
• Unwind the mains cable completely, taking care not to damage it.

BE COOL

INSTALLATION

Please note the following points during installation.

• Place the appliance on a level and firm surface so that the appliance has a firm footing.
• The distance to walls or other objects must be at least 50~cm .
• Before using the unit, make sure that both the air inlet and the air outlet are free of obstacles and not blocked.
• Connect the unit to an earthed socket.

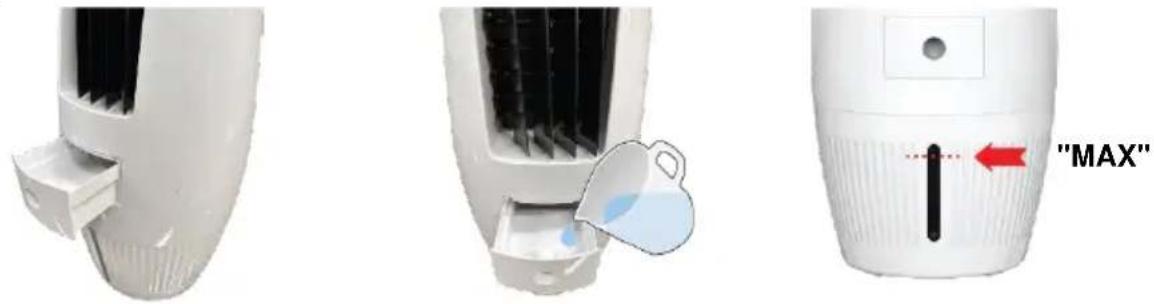

FILLING THE WATER TANK

Pull out the water refill container on the front of the air cooler and carefully fill the water tank with clean water up to the "MAX" mark on the water level scale. You can use a watering can or similar vessel for this.

Make sure that the outside of the unit is not damp or wet and wipe it down if necessary.

ATTENTION!

Do not fill the water beyond the "MAX" mark to avoid water leaking during operation.

BE COOL

REMOTE CONTROL

PREPARE REMOTE CONTROL - INSERT OR REPLACE BATTERIES

Please follow the instructions below:

Initial operation:

To operate the remote control for the first time, please pull out the plastic protector from the battery compartment on the back of the remote control.

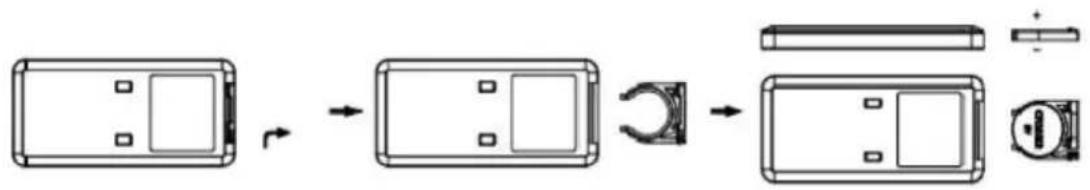

Change battery:

• Pull out the battery holder on the back of the remote control and remove the old battery from the holder:

• Now insert a new CR2025 battery, always paying attention to the polarity markings (+/-) on the battery and the battery holder.
• Then push the battery holder fully back into the remote control.

NOTE

The buttons on the remote control are marked as shown in the illustration below.

All functions of the remote control work identically to the manual operation on the unit.

BE COOL

CORRECT USE OF THE REMOTE CONTROL

Point the remote control directly at the front of the unit, making sure that there are no obstacles between the remote control and the unit

ON/OFF button	Cooling mode
Fan Level	Swing mode
Insects distributor	Timer

SET FUNCTIONS

The control panel of the unit has the same buttons as on the remote control, so you can set all functions directly on the unit as well as using the remote control.

SWITCH ON THE UNIT

• Press the " " button to switch on the unit. The respective indicator lights up.
• As soon as you switch on the unit, it runs in "fan speed "1".
• If you want to put the unit into standby mode - press the , , "button again.

NOTE

Never switch off the air cooler by pulling the plug directly from the mains. Always press the ON/OFF button to switch off and wait a few minutes before disconnecting the unit from the mains. This allows the unit to run through a cycle of checks to verify its functionality.

BE COOL

SET SPEED

• Use the " " button to adjust the speed of the fan.

The respective indicator on the display lights up:

1x Press Average speed "2" indicator lights up

2x Press High speed "3" indicator lights up

Press 3x Low speed "1" indicator lights up

COOLING MODE

• Use the "COOL" button to start the COOL MODE function the respective indicator lights up.
• The unit now starts pumping water out of the water tank to create cold air, which is then blown out of the unit. The colder the water in the tank, the colder the air that flows out of the unit.

SWING

• Use the "SWING" key to activate the swing function of the unit the respective indicator lights up.
• Press the button again to deactivate the function.

NOTE

This function distributes the discharged air to the left and right. This way you achieve a horizontal air distribution in the room.

TIMER

Press the symbol on the control panel or remote control to set the timer. Each time the symbol is pressed, it changes from 1H to 2H, 4H, 8H, 10H and from 10H to non-setting mode. (The timer can be set from 1 - 10 hours).

BE COOL

INSECT REPELLENT FUNCTION

• Use the "MOSQUITO" key to start the function the respective indicator lights up.
• The device emits ultrasonic waves that repel mosquitoes and other flying insects.
• Press the "MOSQUITO" key again to deactivate the function.

TIPS FOR CORRECT APPLICATION

Find here some hints to achieve the optimal performance of the air cooler:

Protect the room from direct sunlight with curtains, blinds or shutters. This will save you energy.	Vorhängervorziehen
Do not place any objects on the appliance and do not cover the air outlet.
Make sure that no heat sources are operating in the room.
Never use the appliance in very humid rooms (e.g. laundry rooms).
Do not use the appliance outdoors.

MAINTENANCE AND CLEANING

ATTENTION!

Before cleaning, switch off the appliance, wait a few minutes and then unplug the appliance to disconnect it from the mains.

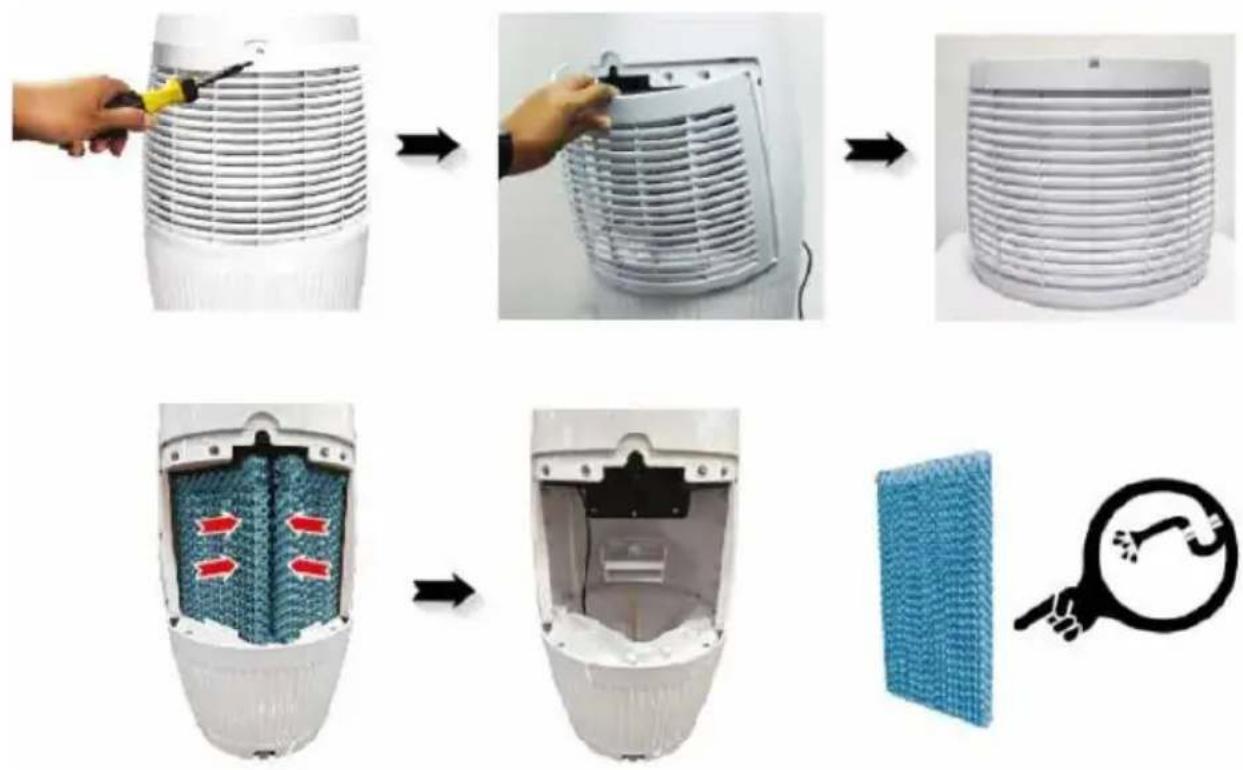

Clean dust filter & cooling pad

To ensure efficient operation of the air cooler, clean the dust filter and water filter after each week of operation.

• Unscrew the screws fixed to the ventilation grilles using a Phillips screwdriver to loosen it.
• Now remove the cover grilles, the dust filters and the water filters underneath.

BE COOL

(1) CLEANING DUST FILTER:

• To remove the dust accumulated in the filter, use a hoover.
• If the filter is very dirty, immerse it in warm water and rinse it several times - however, the water temperature should not exceed 40^ C.

(2) CLEANING COOLING PAD

• Clean the filters with lukewarm water and a soft brush.
• After washing, let the filters dry out well and then reinsert them.

BE COOL

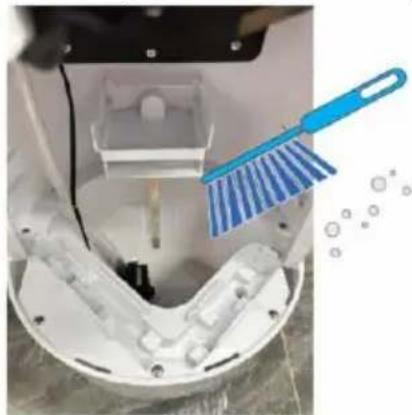

CLEAN WATER TANK

It is recommended to clean the water tank every 2-3 weeks during use.

• Remove the silicone seal at the bottom of the water tank to drain the water and clean the water tank with a soft brush.

CLEANING OF THE HOUSING

• Clean the unit with a moderately damp cloth and then wipe it with a dry cloth.
• Never use petrol, alcohol or solvents to clean the appliance - these could be dangerous.
• Do not spray insecticides or similar agents on the air cooler.

ACTIVITIES AT THE BEGINNING/END OF THE SEASON

END OF SEASON ACTIVITIES

• Switch off the unit and disconnect the mains plug.
• Empty and carefully clean the water tank.
• Clean the filter and replace it after drying (see section "Cleaning the dust filter").
• Pack the unit and store it in a cool, dry place.

BE COOL

CONTROLS AT THE BEGINNING OF THE SEASON

• Check that the power supply cable is OK and that the earthing is functional.
• Follow the installation and safety instructions carefully.

TROUBLESHOOTING

PROBLEM	POSSIBLE CAUSE	SOLUTION
The air cooler does not switch on.	You are using the wrong button	You can switch the unit on and off with the ON/OFF button either on the button. Remote control or directly on the Switch on the unit
	Power failure	Wait for the power supply to be restored
	The unit is not connected to the power supply	Connect/plug in the unit to the power supply Wait 30 minutes!
	The battery in the remote control is empty	Please change the battery.
No air flows out of the unit while the machine is in operation.	Damaged engine	Repair / Replace the motor With another of the same model
	Incorrect motor connection or unstable motor connection	Determine whether the motor is OK with connections or not

BE COOL

	Overheating protection inside the motor	Leave the unit switched off until the fan motor is cool enough to be used as usual
The pump works, but it is not cool enough	The dust filters are clogged or dirty	Clean or replace dust filter
	The cooling pads are clogged	Clean or replace the cooling pads
	The cooling pads are dry or contain too little water while the evaporative air cooler is working.	Check the upper water distribution tray to see if there is a blockage. Determine if the pump is working properly.
	Relative humidity too high	When the evaporative cooler is used for a long period of time, the room humidity is very high, so the evaporative cooler cannot lower the temperature as much as when the humidity in the room is lower. Turn the cooling mode off

BE COOL

The pump does not work and does not deliver Cooling	Damaged pump	Repair or replace the pump with a pump of the same model
	Loose pump motor connection	Tighten connection
The pump works, but does not circulate water, or the cooling pads contain too little water	Clogged upper water distribution tray	Clean the upper water distribution system
	Loose or poor pump motor connection	Clean the water hose Or remove the particles Clogged at the pump strainer
Water spits out of the appliance	Cooling pads remain out of position	Place the cooling pad in the correct position
	Clogged upper water distribution tray	Clean the water tank And the cooling pads
Unwanted odour	The unit is located in a Area in which undesirable Odours are present or algae are present in the water tank	Clean the water tank and the cooling pad
White sediments in the water tank	Water has a high salt content	Empty the tank and clean the cooling pads more frequently

BE COOL

TECHNICAL DATA

Technical information
Rated voltage	220 V- 240 V
Frequency 50/60 Hz
Rated input power 50 W
Water tank capacity 7 L
Speed levels 3
Air circulation 480 m /hour	2
Product dimensions 300 x 300 x 80	7 mm
Net weight 4,15 kg
Contact addresses for further information and service line:	Schuss Horne Electronic GmbH Scheringgasse 3, A-1140 Vienna Tel: [phone] - 0 www.becool.at FB-No: 23697 4 t / FB-Court: Vienna

BE COOL

GUARANTEE

With this quality product from BE COOL, you have made a decision for innovation, durability and reliability.

For this BECOOL appliance we grant a guarantee period of 2 years from the date of purchase, valid in Austria! If, contrary to expectations, service work should nevertheless be necessary on your appliance during this period, we hereby guarantee to repair it free of charge (spare parts and labour) or (at the discretion of Schuss) to exchange the product. Should neither repair nor exchange be possible for economic reasons, we reserve the right to issue a current value credit note.

In the case of air conditioners, please contact the customer hotline as a first step (see sticker on the unit or cover page of the operating instructions), in the case of fans, please contact your specialist dealer or us directly. We would like to point out that repair work that has not been carried out by the authorised contract workshop in Austria will immediately terminate the validity of this warranty.

This warranty does not cover:

We do not accept any liability for consequential damage in the event of improper use.
Repair or replacement of parts due to normal wear and tear
- Damage due to non-observation of the operating instructions
Devices that are used - even only partially - for commercial purposes
equipment mechanically damaged by external influence (fall, impact, breakage, improper use, etc.) as well as wear and tear of an aesthetic nature.
Equipment that has been improperly handled
- Units that have not been opened by our authorised service workshop.
- Damage caused as a result of improperly closed condensation drain valves of air conditioners or improperly inserted water tank.
- Consumer expectations not met.
- Damage caused by force majeure, water, lightning, overvoltage.
- Units where the type designation and/or serial number on the unit has been changed, deleted, made illegible or removed.
Services outside our authorised workshops, the transport costs to an authorised workshop or to us and back, and the associated risks.

We expressly point out that within the warranty period, a lump sum of € 60,- (indexed basis CPI 2010, June 2015) will be charged in case of operating errors or if no error was detected.

The provision of warranty service (repair or replacement of the appliance) does not extend the absolute warranty period of 2 years from the date of purchase.

The 2-year warranty is only valid on presentation of the purchase receipt (must contain the name and address of the dealer as well as the complete designation of the unit) and the corresponding warranty certificate, on which the type of unit as well as the serial number (visible on the box and on the back or bottom of the unit) must be noted! Without the warranty certificate, only the legal warranty applies!

We expressly point out that the statutory warranty rights are not affected by this guarantee and continue undiminished. Schuss Home Electronic GmbH and its vicarious agents shall only be liable for damages in the event of gross negligence or intent. Liability for loss of profit, expected but not realised savings, consequential damage and damage from third party claims is excluded in any case. Damages to or for recorded data are always excluded from the liability for damages.

Congratulations on your choice. We hope you enjoy your BE COOL appliance!

ADDRESS

Schuss Home Electronic

A-1140 Vienna, Scheringgasse 3

Tel.: [phone]

Type designation:

Serial number:

In the event of a warranty claim, this warranty certificate must be handed over to the authorised service centre together with the unit.

BE COOL

INSTRUKCJA OBSŁUGI

FUNKCJA ODSTRASZANIA OWADów

Schuss Home Electronic

A-1140 Wieden, Scheringgasse 3

Schuss Home Electronic

A-1140 Dunaj, Scheringgasse 3

Tel.: [phone]

Oznaka tipa:

Serijska stevilka:
