USER MANUAL Intimidator Spot Duo 155 Chauvet

INTIMIDATOR SPOT DUO 155

Quick Reference Guide

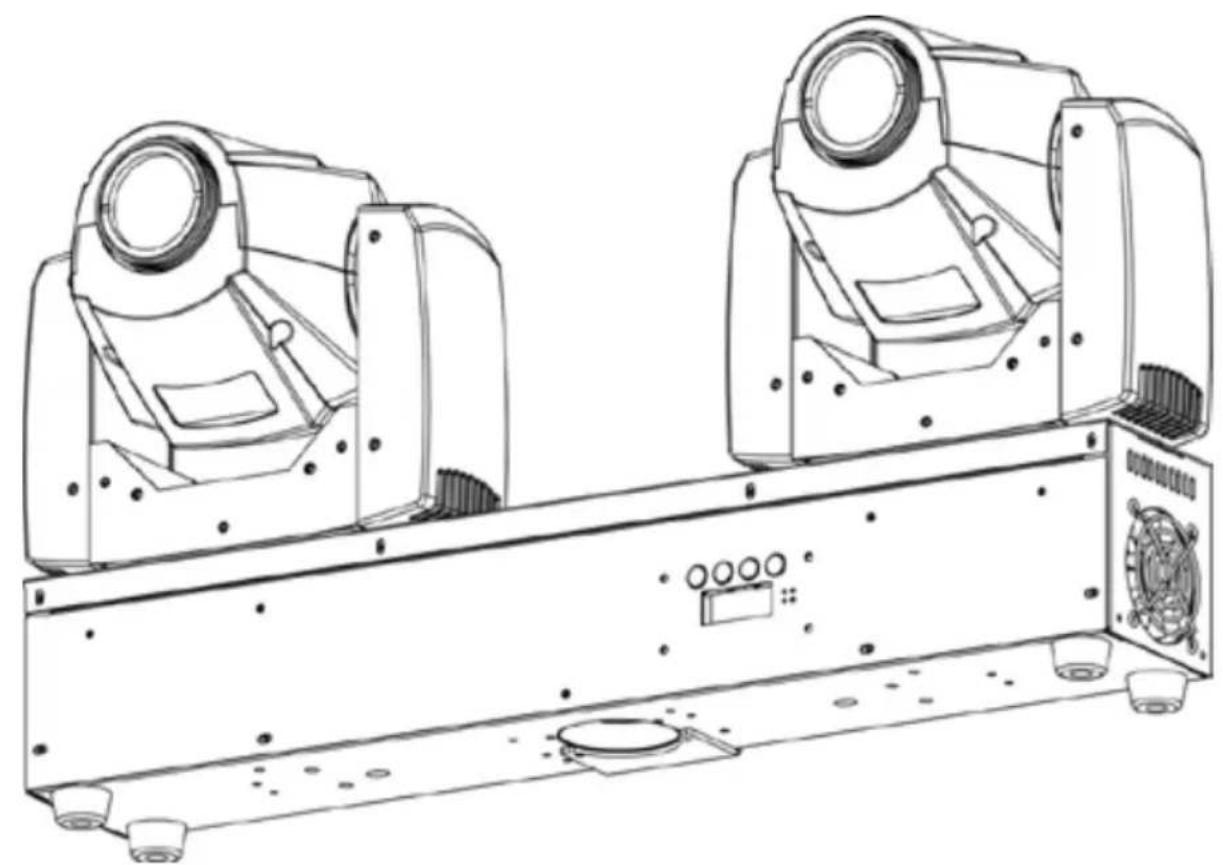

Technical line drawing of two industrial lighting equipment units mounted on a base plate (no text or symbols visible)

About This Guide	The Intimidator Spot Duo 155 Quick Reference Guide (QRG) has basic product information such as mounting, menu options, and DMX values. Download the User Manual fromwww.chauvetlighting.comfor more details.
Disclaimer	The information and specifications contained in this QRG are subject to change without notice.
Safety Notes	These Safety Notes include important safety information about installation, use, and maintenance.
	This product is not intended for permanent installation.ONLY connect this product to a grounded and protected circuit.Always disconnect from power before cleaning or replacing the fuse.DO NOT look at the light source when the product is on.Make sure the power cord is not crimped or damaged.Never disconnect this product from power by pulling on the cord.When mounting this product overhead, use a safety cable.DO NOT allow flammable materials close to the unit while operating.DO NOT touch this product when it is operating because it may be hot.
	The voltage of the outlet to which you are connecting this product must be within the range stated on the decal or rear panel of the product.This product is for indoor use only! (IP20) To prevent risk of fire or shock, do not expose this product to rain or moisture.Always mount this product in a location with adequate ventilation, at least 20 in (50 cm) from adjacent surfaces.Be sure that no ventilation slots on the unit's housing are blocked.Never connect this product to a dimmer or rheostat.Replace the fuse with one of the same type and rating.ONLY use the hanging/mounting bracket or base to carry this product.The maximum ambient temperature is 104 °F (40 °C). Do not operate this product at higher temperatures.In the event of a serious operating problem, stop using immediately.DO NOT open this product. It contains no user-serviceable parts.To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely disconnect the product from power via breaker or by unplugging it.
Contact	From outside the U.S., UK, Ireland, Mexico, or Benelux, contact the distributor of record to request support or return a product.From inside the U.S., UK, Ireland, Mexico, or Benelux, use the information inContact Usat the end of this QRG.

Contact

What Is Included

To Begin

Description

• Intimidator Spot Duo 155

• Hanging Bracket with Mounting Hardware

- Power Cord

- Warranty Card

• Quick Reference Guide

Unpack your Intimidator Spot Duo 155 and make sure you have received all parts in good condition. If the box or contents appear damaged, notify the carrier immediately, not Chauvet.

The Intimidator Spot Duo 155 has two Intimidator Spot 155 moving heads pre-mounted on a single bar. Control options include automated programs, Sound-Active modes, and DMX. Pan and tilt functions are available for each moving head. Lighting options include separate color and gobo wheels, as well as multiple built-in Master/Slave programs.

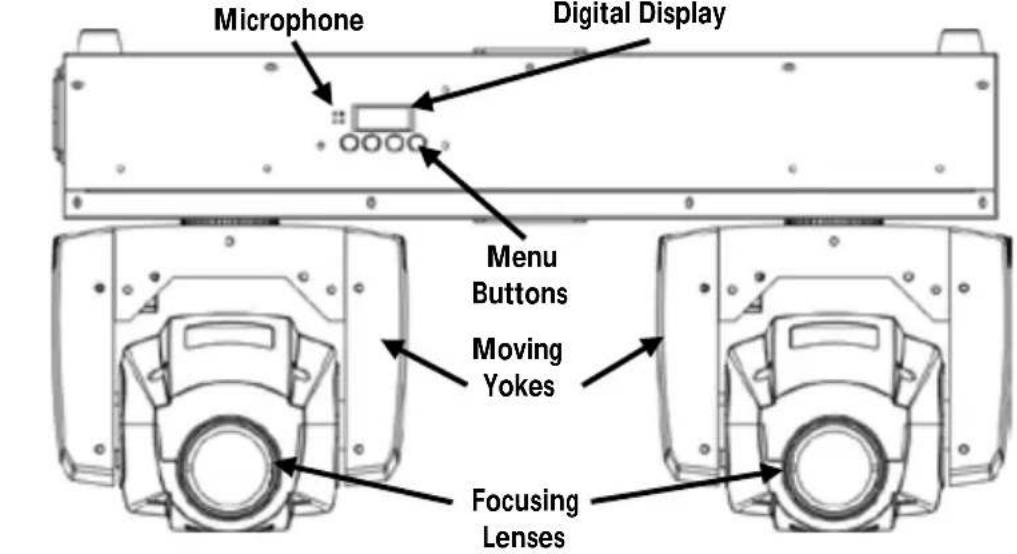

Front Panel View

Overview

Microphone Digital Display Menu Buttons Moving Yokes Focusing Lenses

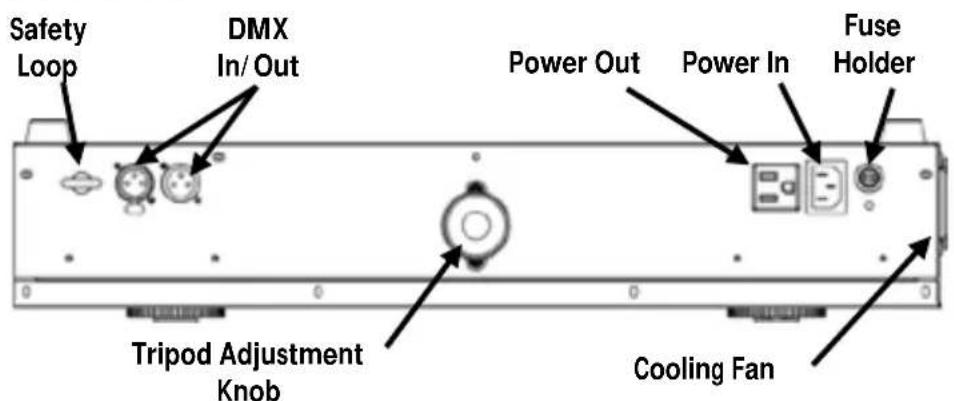

Back Panel View

Safety Loop DMX In/ Out Power Out Power In Fuse Holder Tripod Adjustment Knob Cooling Fan

AC Power

This product has an auto-ranging power supply that can work with an input voltage range of 100 to 240 VAC, 50/60 Hz.

Power Linking

To eliminate wear and improve its lifespan, during periods of non-use completely disconnect from power via breaker or by unplugging it.

For the maximum number of Intimidator Spot Duo 155 that can be power linked at 120 V or at 240 V, see the User Manual or the label on the product.

Fuse Replacement

1. Disconnect the product from power.
2. Wedge the tip of a flat-head screwdriver, loosen the fuse holder and pull straight out.
3. Remove the blown fuse from the safety cap and replace with a fuse of the exact same type and rating.
4. Re-insert the fuse holder.
5. Reconnect the product to power.

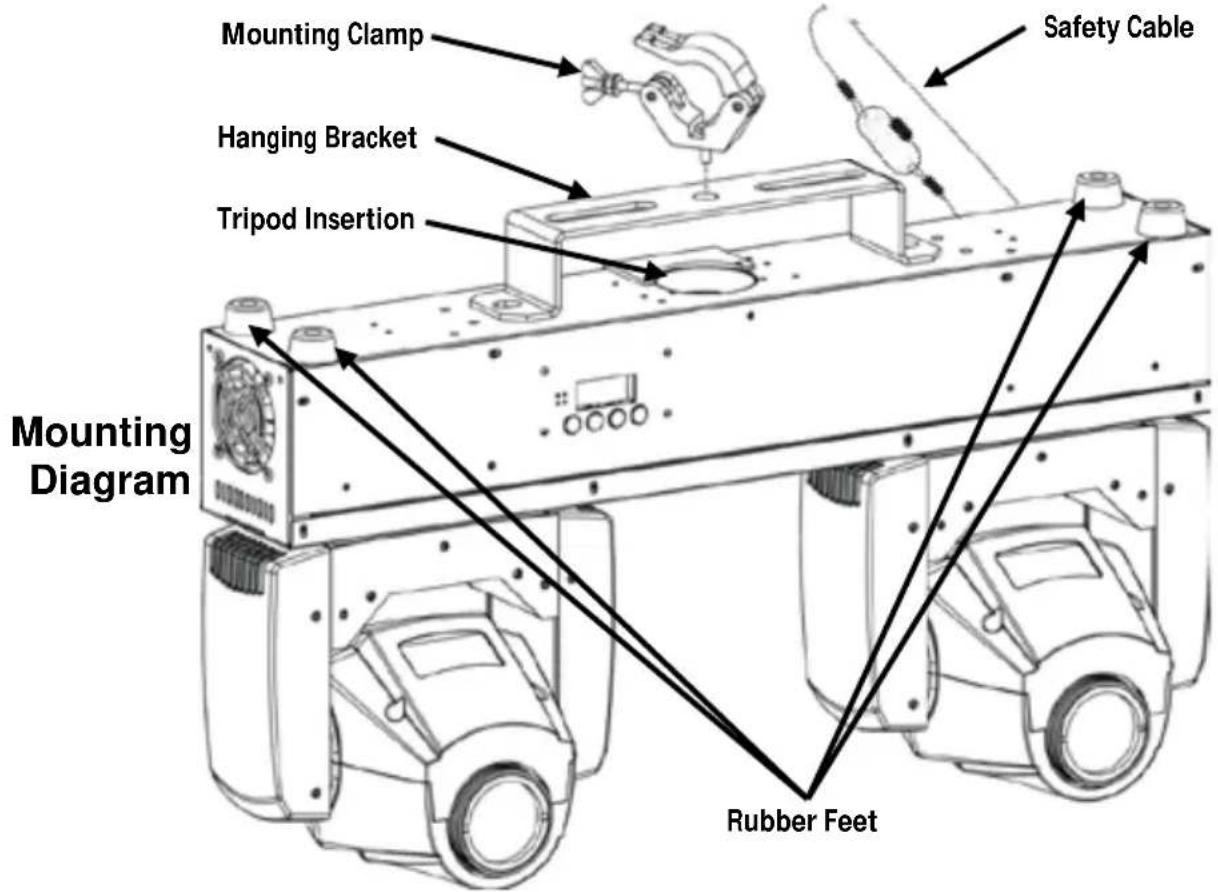

Mounting

Before mounting this product, read the Safety Notes.

Mounting Clamp Hanging Bracket Tripod Insertion Safety Cable Mounting Diagram Rubber Feet

When using only one mounting clamp with this fixture, you must use a clamp with a captive bolt to prevent accidental loosening.

Control Panel Description

Button	Function
	Exits from the current menu or function
	Navigates upwards through the menu list and increases the numeric value when in a function
	Navigates downwards through the menu list and decreases the numeric value when in a function
	Enables the currently displayed menu or sets the currently selected value into the selected function

Menu Options

Mode	Programming Levels		Description
DMX Address	d__	d001-d512	Sets the DMX starting address
Automatic	A-_	A-01-A-16	Automatic mode
Sound-Active	Srun		Sound-Active mode
Slave Son_		Son1	Slave operating mode 2
		Son2	Slave operating mode 1
Sound Sensitivity	S-_	S-01-S-99	Sound sensitivity control
Master Auto M--		M--2	Master built-in 4-head program
		M--4	Master built-in 2-head program
Pan 1 _PA1		PA1	Normal pan operation for head 1
		rPA1	Reverse pan operation for head 1
Pan 2 _PA2		PA2	Normal pan operation for head 2
		rPA2	Reverse pan operation for head 2
Tilt 1 _til		til	Normal tilt operation for head 1
		rtil	Reverse tilt operation for head 1
Tilt 2 _ti2		ti2	Normal tilt operation for head 2
		rti2	Reverse tilt operation for head 2
Display _dis		dis	Normal display
		rdis	Inverted display
Channel Mode _CH		20CH	20-channel DMX personality
		17CH	17-channel DMX personality
		10CH	10-channel DMX personality
Pan Range	PA__	PA36	360° pan range
		PA18	180° pan range
Tilt Range	ti__	ti27	270° tilt range
		ti18	180° tilt range
		ti 9	90° tilt range
Head 1 Temperature	t--1	1t__	Displays current head 1 temperature
Head 2 Temperature	t--2	2t__	Displays current head 2 temperature
Reset	rESt		Resets product
Load	LoAd		Loads factory defaults

DMX Linking

The Intimidator Spot Duo 155 can work with a DMX controller when linked by DMX serial connections. Instructions for connecting and configuring this product for DMX operation are in the User Manual. If you are not familiar with DMX, download the DMX Primer from www.chauvetlighting.com.

Starting

To ensure full access to all channels in each DMX mode, the highest recommended DMX address is 493.

Address

Master/Slave

Connection

The Intimidator Spot Duo 155 uses the DMX data connection for it Master/Slave mode. Instructions for connecting and configuring this product for Master/Slave operation are in the User Manual.

Master Auto Programs

The Master Auto built-in programs control the actions of two Intimidator Spot Duo 155 units linked together by DMX data connection. A single Intimidator Spot Duo 155 (the master) controls the actions of another Intimidator Spot Duo 155 (the slave). Configure the Master Auto programs in conjunction with the Slave modes as follows:

Master Auto 4-Head Program

The Master Auto 4-Head program allows all 4 heads of two linked Intimidator Spot Duo 155 units to operate in unison. The master unit will be set to operate in Auto mode with the M--4 setting, while the slave unit will be set to operate in either Son1 or Son2 mode.

Configure the units as indicated below.

Master unit:

1. Press repeatedly until M--2 or M--4 shows on the display.
2. Press or to select M--4.
3. Press .
4. Set the master to run in Auto mode, A-01-A-16.

Slave unit:

1. Press repeatedly until Son1 or Son2 shows on the display.
2. Press or to select Son1 or Son2.

• Select Son1 for 100% synchronized actions.
- Select Son2 for a delayed show with all 4 heads in the same direction.

1. Press .

Master Auto 2-Head Program

The Master Auto 2-Head program allows a single Intimidator Spot Duo 155 to control the actions of another Intimidator Spot Duo 155. The master unit will be set to operate in Auto mode with the M--2 setting, while the slave unit will be set to operate in either Son1 or Son2 mode.

Configure the units as indicated below.

Master unit:

1. Press repeatedly until M--2 or M--4 shows on the display.
2. Press or to select M--2.
3. Press .
4. Set the master to run in Auto mode, A-01-A-16.

Slave unit:

1. Press repeatedly until Son1 or Son2 shows on the display.
2. Press or to select Son1 or Son2.

• Select Son1 for 100% synchronized actions.
- Select Son2 for the same show with both units, but the actions of the slave are in the opposite direction of the actions of the master.

1. Press .

DMX Values

20CH	Channel	Function	Value	Percent/Setting
	1	Pan 1	000 Ü 255	Pan 0–360° for head 1
	2	Fine Pan 1	000 Ü 255	Fine panning control for head 1
	3	Tilt 1	000 Ü 255	Tilt 0–270° for head 1
	4	Fine Tilt 1	000 Ü 255	Fine tilting control for head 1
	5	Pan 2	000 Ü 255	Pan 0–360° for head 2
	6	Fine Pan 2	000 Ü 255	Fine panning control for head 2
	7	Tilt 2	000 Ü 255	Tilt 0–270° for head 2
	8	Fine Tilt 2	000 Ü 255	Fine tilting control for head 2
	9	Speed	000 Ü 255	Pan/Tilt speed (fast to slow)
	10	Color Wheel 1(Head 1)	000 Ü 005	White
			006 Ü 011	Yellow
			012 Ü 017	Magenta
			018 Ü 023	Green
			024 Ü 029	Red
			030 Ü 035	Cyan
			036 Ü 041	Orange
			042 Ü 047	Blue
			048 Ü 053	Light Green
			054 Ü 063	Amber
			064 Ü 069	White + Yellow
			070 Ü 075	Yellow + Magenta
			076 Ü 081	Magenta + Green
			082 Ü 087	Green + Red
			088 Ü 093	Red + Cyan
			094 Ü 099	Cyan + Orange
			100 Ü 105	Orange + Blue
			106 Ü 111	Blue + Light Green
			112 Ü 117	Light Green + Amber
			118 Ü 127	Amber + White
			128 Ü 191	Rainbow effect with increasing speed
			192 Ü 255	Reverse rainbow effect with increasing speed
20CH (cont.)	Channel	Function	Value	Percent/Setting
	11	Color Wheel 2 (Head 2)	000 Û 005	White
			006 Û 011	Yellow
			012 Û 017	Magenta
			018 Û 023	Green
			024 Û 029	Red
			030 Û 035	Cyan
			036 Û 041	Orange
			042 Û 047	Blue
			048 Û 053	Light Green
			054 Û 063	Amber
			064 Û 069	White + Yellow
			070 Û 075	Yellow + Magenta
			076 Û 081	Magenta + Green
			082 Û 087	Green + Red
			088 Û 093	Red + Cyan
			094 Û 099	Cyan + Orange
			100 Û 105	Orange + Blue
			106 Û 111	Blue + Light Green
			112 Û 117	Light Green + Amber
			118 Û 127	Amber + White
			128 Û 191	Rainbow effect with increasing speed
			192 Û 255	Reverse rainbow effect with increasing speed
	12	Gobo Wheel 1 (Head 1)
			064 Û 073	Gobo 9 shake with increasing speed
			074 Û 079	Gobo 8 shake with increasing speed
			080 Û 085	Gobo 7 shake with increasing speed
			086 Û 091	Gobo 6 shake with increasing speed
			092 Û 097	Gobo 5 shake with increasing speed
			098 Û 103	Gobo 4 shake with increasing speed
			104 Û 109	Gobo 3 shake with increasing speed
			110 Û 115	Gobo 2 shake with increasing speed
			116 Û 121	Gobo 1 shake with increasing speed
			122 Û 127	Open
			128 Û 191	Cycle effect with increasing speed
			192 Û 255	Reverse cycle effect with increasing speed
20CH (cont.)	Channel	Function	Value	Percent/Setting
	13	Gobo Wheel 2 (Head 2)
			000-005	006-011	012-017	018-023	024-029
			030-035	036-041	042-047	048-053	054-063
			064 Ü 073	Gobo 9 shake with increasing speed
			074 Ü 079	Gobo 8 shake with increasing speed
			080 Ü 085	Gobo 7 shake with increasing speed
			086 Ü 091	Gobo 6 shake with increasing speed
			092 Ü 097	Gobo 5 shake with increasing speed
			098 Ü 103	Gobo 4 shake with increasing speed
			104 Ü 109	Gobo 3 shake with increasing speed
			110 Ü 115	Gobo 2 shake with increasing speed
			116 Ü 121	Gobo 1 shake with increasing speed
			122 Ü 127	Open
			128 Ü 191	Cycle effect with increasing speed
			192 Ü 255	Reverse cycle effect with increasing speed
	14	Dimmer 1	000 Ü 255	Dimmer for head 1 (0-100%)
	15	Dimmer 2	000 Ü 255	Dimmer for head 2 (0-100%)
	16	Shutter 1 (Head 1)	000 Ü 003	Light off
			004 Ü 007	Light on
			008 Ü 076	Shutter with increasing speed
			077 Ü 145	Pulse strobe with increasing speed
			146 Ü 215	Random strobe with increasing speed
			216 Ü 255	Light on
	17	Shutter 2 (Head 2)	000 Ü 003	Light off
			004 Ü 007	Light on
			008 Ü 076	Shutter with increasing speed
			077 Ü 145	Pulse strobe with increasing speed
			146 Ü 215	Redon strobe with increasing speed
			216 Ü 255	Light on
20CH (cont.)	Channel	Function	Value	Percent/Setting
	18 Control Functions		000 Û 009	No function
			010 Û 014	Pan/Tilt blackout
			015 Û 019	Color blackout
			020 Û 024	Gobo blackout
			025 Û 029	Pan/Tilt/Color blackout
			030 Û 034	Pan/Tilt/Gobo blackout
			035 Û 039	Color/Gobo blackout
			040 Û 044	Pan/Tilt/Color/Gobo blackout
			045 Û 049	No function
			050 Û 054	First two heads setting
			055 Û 059	Latter two heads setting
			060 Û 064	Cancel four heads
			065 Û 069	No function
			070 Û 074	Reset
			075 Û 079	No function
			080 Û 084	Reverse pan/tilt for both heads
			085 Û 089	Reverse pan for head 1
			090 Û 094	Reverse pan for head 2
			095 Û 099	Reverse tilt for head 1
			100 Û 104	Reverse tilt for head 2
			105 Û 109	Cancel reverse pan for head 1
			110 Û 114	Cancel reverse pan for head 2
			115 Û 119	Cancel reverse tilt for head 1
			120 Û 124	Cancel reverse tilt for head 2
			125 Û 129	Cancel reverse pan/tilt for both heads
			130 Û 135	No function
			136 Û 175	Strobe pattern 1 with increasing speed	When Channel 19 is active
			176 Û 215	Strobe pattern 2 with increasing speed
			216 Û 255	Strobe pattern 3 with increasing speed
20CH (cont.)	Channel	Function	Value	Percent/Setting
	19 Movement Macros		000 Û 007	No function
			008 Û 022	Movement macro 1
			023 Û 037	Movement macro 2
			038 Û 052	Movement macro 3
			053 Û 067	Movement macro 4
			068 Û 082	Movement macro 5
			083 Û 097	Movement macro 6
			098 Û 112	Movement macro 7
			113 Û 127	Movement macro 8
			128 Û 142	Movement macro 9
			143 Û 157	Movement macro 10
			158 Û 172	Movement macro 11
			173 Û 187	Movement macro 12
			188 Û 202	Movement macro 13
			203 Û 217	Movement macro 14
			218 Û 232	Movement macro 15
			233 Û 247	All movement macros 1–15
			248 Û 255	Sound-Active Mode
	20	Movement Macro Speed	000 Û 255	Fast to slow
17CH Channel	Function	Value	Percent/Setting
1	Pan 1	000 Ü 255	Pan 0–360° for head 1
2	Fine Pan 1	000 Ü 255	Fine panning control for head 1
3	Tilt 1	000 Ü 255	Tilt 0–270° for head 1
4	Fine Tilt 1	000 Ü 255	Fine tilting control for head 1
5	Pan 2	000 Ü 255	Pan 0–360° for head 2
6	Fine Pan 2	000 Ü 255	Fine panning control for head 2
7	Tilt 2	000 Ü 255	Tilt 0–270° for head 2
8	Fine Tilt 2	000 Ü 255	Fine tilting control for head 2
9	Speed	000 Ü 255	Pan/Tilt speed (fast to slow)
10	Color Wheel(Both Heads)	000 Ü 005	White
		006 Ü 011	Yellow
		012 Ü 017	Magenta
		018 Ü 023	Green
		024 Ü 029	Red
		030 Ü 035	Cyan
		036 Ü 041	Orange
		042 Ü 047	Blue
		048 Ü 053	Light Green
		054 Ü 063	Amber
		064 Ü 069	White + Yellow
		070 Ü 075	Yellow + Magenta
		076 Ü 081	Magenta + Green
		082 Ü 087	Green + Red
		088 Ü 093	Red + Cyan
		094 Ü 099	Cyan + Orange
		100 Ü 105	Orange + Blue
		106 Ü 111	Blue + Light Green
		112 Ü 117	Light Green + Amber
		118 Ü 127	Amber + White
		128 Ü 191	Rainbow effect with increasing speed
		192 Ü 255	Reverse rainbow effect with increasing speed

17CH (cont.)	Channel	Function	Value	Percent/Setting
	11	Gobo Wheel (Both Heads)
			000-005	006-011	012-017	018-023	024-029
			030-035	036-041	042-047	048-053	054-063
			064 Ü 073	Gobo 9 shake with increasing speed
			074 Ü 079	Gobo 8 shake with increasing speed
			080 Ü 085	Gobo 7 shake with increasing speed
			086 Ü 091	Gobo 6 shake with increasing speed
			092 Ü 097	Gobo 5 shake with increasing speed
			098 Ü 103	Gobo 4 shake with increasing speed
			104 Ü 109	Gobo 3 shake with increasing speed
			110 Ü 115	Gobo 2 shake with increasing speed
			116 Ü 121	Gobo 1 shake with increasing speed
			122 Ü 127	Open
			128 Ü 191	Cycle effect with increasing speed
			192 Ü 255	Reverse cycle effect with increasing speed
	12	Dimmer 1	000 Ü 255	Dimmer for head 1 (0-100%)
	13	Dimmer 2	000 Ü 255	Dimmer for head 2 (0-100%)
	14	Shutter (Both Heads)	000 Ü 003	Light off
			004 Ü 007	Light on
			008 Ü 076	Shutter with increasing speed
			077 Ü 145	Pulse strobe with increasing speed
			146 Ü 215	Random strobe with increasing speed
			216 Ü 255	Light on
	15	Control Functions	000 Ü 009	No function
			010 Ü 014	Pan/Tilt blackout
			015 Ü 019	Color blackout
			020 Ü 024	Gobo blackout
			025 Ü 029	Pan/Tilt/Color blackout
			030 Ü 034	Pan/Tilt/Gobo blackout
			035 Ü 039	Color/Gobo blackout
			040 Ü 044	Pan/Tilt/Color/Gobo blackout
			045 Ü 049	No function
			050 Ü 054	First two heads setting
			055 Ü 059	Latter two heads setting
			060 Ü 064	Cancel four heads
			065 Ü 069	No function
			070 Ü 074	Reset
			075 Ü 079	No function
			080 Ü 084	Reverse pan/tilt for both heads
17CH (cont.)	Channel	Function	Value	Percent/Setting
	15 (cont.)	Control Functions (cont.)	085 Û 089	Reverse pan for head 1
			090 Û 094	Reverse pan for head 2
			095 Û 099	Reverse tilt for head 1
			100 Û 104	Reverse tilt for head 2
			105 Û 109	Cancel reverse pan for head 1
			110 Û 114	Cancel reverse pan for head 2
			115 Û 119	Cancel reverse tilt for head 1
			120 Û 124	Cancel reverse tilt for head 2
			125 Û 129	Cancel reverse pan/tilt for both heads
			130 Û 135	No function
			136 Û 175	Strobe pattern 1 with increasing speed	When Channel 16 is active
			176 Û 215	Strobe pattern 2 with increasing speed
			216 Û 255	Strobe pattern 3 with increasing speed
	16	Movement Macros	000 Û 007	No function
			008 Û 022	Movement macro 1
			023 Û 037	Movement macro 2
			038 Û 052	Movement macro 3
			053 Û 067	Movement macro 4
			068 Û 082	Movement macro 5
			083 Û 097	Movement macro 6
			098 Û 112	Movement macro 7
			113 Û 127	Movement macro 8
			128 Û 142	Movement macro 9
			143 Û 157	Movement macro 10
			158 Û 172	Movement macro 11
			173 Û 187	Movement macro 12
			188 Û 202	Movement macro 13
			203 Û 217	Movement macro 14
			218 Û 232	Movement macro 15
			233 Û 247	All movement macros 1-15
			248 Û 255	Sound-Active Mode
	17	Movement Macro Speed	000 Û 255	Fast to slow

10CH Channel	Function	Value	Percent/Setting
1	Pan	000 Ù 255	Pan 0–360° for both heads
2	Tilt	000 Ù 255	Tilt 0–270° for both heads
3	Color Wheel(Both Heads)	000 Ù 005	White
		006 Ù 011	Yellow
		012 Ù 017	Magenta
		018 Ù 023	Green
		024 Ù 029	Red
		030 Ù 035	Cyan
		036 Ù 041	Orange
		042 Ù 047	Blue
		048 Ù 053	Light Green
		054 Ù 063	Amber
		064 Ù 069	White + Yellow
		070 Ù 075	Yellow + Magenta
		076 Ù 081	Magenta + Green
		082 Ù 087	Green + Red
		088 Ù 093	Red + Cyan
		094 Ù 099	Cyan + Orange
		100 Ù 105	Orange + Blue
		106 Ù 111	Blue + Light Green
		112 Ù 117	Light Green + Amber
		118 Ù 127	Amber + White
		128 Ù 191	Rainbow effect with increasing speed
		192 Ù 255	Reverse rainbow effect with increasing speed
4	Gobo Wheel(Both Heads)
		000 -005	006 - 011	012 - 017	018 - 023	024 - 029
		030 - 035	036 - 041	042 - 047	048 - 053	054 - 063
		064 Ù 073	Gobo 9 shake with increasing speed
		074 Ù 079	Gobo 8 shake with increasing speed
		080 Ù 085	Gobo 7 shake with increasing speed
		086 Ù 091	Gobo 6 shake with increasing speed
		092 Ù 097	Gobo 5 shake with increasing speed
		098 Ù 103	Gobo 4 shake with increasing speed
		104 Ù 109	Gobo 3 shake with increasing speed
		110 Ù 115	Gobo 2 shake with increasing speed
		116 Ù 121	Gobo 1 shake with increasing speed
		122 Ù 127	Open
		128 Ù 191	Cycle effect with increasing speed
		192 Ù 255	Reverse cycle effect with increasing speed

10CH (cont.)	Channel	Function	Value	Percent/Setting
	5	Dimmer 1	000 Û 255	Dimmer for head 1 (0-100%)
	6	Dimmer 2	000 Û 255	Dimmer for head 2 (0-100%)
	7	Shutter (Both Heads)	000 Û 003	Light off
			004 Û 007	Light on
			008 Û 076	Shutter with increasing speed
			077 Û 145	Pulse strobe with increasing speed
			146 Û 215	Random strobe with increasing speed
			216 Û 255	Light on
	8 Control Functions		000 Û 009	No function
			010 Û 014	Pan/Tilt blackout
			015 Û 019	Color blackout
			020 Û 024	Gobo blackout
			025 Û 029	Pan/Tilt/Color blackout
			030 Û 034	Pan/Tilt/Gobo blackout
			035 Û 039	Color/Gobo blackout
			040 Û 044	Pan/Tilt/Color/Gobo blackout
			045 Û 049	No function
			050 Û 054	First two heads setting
			055 Û 059	Latter two heads setting
			060 Û 064	Cancel four heads
			065 Û 069	No function
			070 Û 074	Reset
			075 Û 079	No function
			080 Û 084	Reverse pan/tilt for both heads
			085 Û 089	Reverse pan for head 1
			090 Û 094	Reverse pan for head 2
			095 Û 099	Reverse tilt for head 1
			100 Û 104	Reverse tilt for head 2
			105 Û 109	Cancel reverse pan for head 1
			110 Û 114	Cancel reverse pan for head 2
			115 Û 119	Cancel reverse tilt for head 1
			120 Û 124	Cancel reverse tilt for head 2
			125 Û 129	Cancel reverse pan/tilt for both heads
			130 Û 135	No function
			136 Û 175	Strobe pattern 1 with increasing speed	When Channel 9 is active
			176 Û 215	Strobe pattern 2 with increasing speed
			216 Û 255	Strobe pattern 3 with increasing speed
10CH (cont.)	Channel	Function	Value	Percent/Setting
	9 Movement Macros		000 007	No function
			008 022	Movement macro 1
			023 037	Movement macro 2
			038 052	Movement macro 3
			053 067	Movement macro 4
			068 082	Movement macro 5
			083 097	Movement macro 6
			098 112	Movement macro 7
			113 127	Movement macro 8
			128 142	Movement macro 9
			143 157	Movement macro 10
			158 172	Movement macro 11
			173 187	Movement macro 12
			188 202	Movement macro 13
			203 217	Movement macro 14
			218 232	Movement macro 15
			233 247	All movement macros 1–15
			248 255	Sound-Active Mode
	10	Movement Macro Speed	000 255	Fast to slow

Master Auto Programma's

Address:5200 NW 108th Avenue

Sunrise, FL 33351

Voice: [phone]

Fax: [phone]

Toll free:[phone]

Technical Support

Voice: [phone] (Press 4)

Fax: [phone]

Email: [e-mail]

World Wide Web

www.chauvetlighting.com

EUROPE.

General Information

Brookhill Road Industrial Estate

Pinxton, Nottingham, UK

NG16 6NT

Voice: [phone]

Fax: [phone]

Technical Support

Email: [e-mail]

World Wide Web

www.chauvetlighting.eu

Technical Support

Email: [e-mail]

World Wide Web

www.chauvetlighting.co.uk

MEXICO

General Information

Address:Av. Santa Ana 30

Parque Industrial Lerma

Lerma, Mexico C.P. 52000

Voice: [phone]

Technical Support

Email: [e-mail]

World Wide Web www.chauvet.com.mx

Outside the U.S., United Kingdom, Ireland, Mexico, or Benelux, contact the dealer of record. Follow their instructions to request support or to return a product. Visit our website for contact details.

Intimidator Spot Duo 155 QRG Rev. 1 ML9

© Copyright 2015 Chauvet

All rights reserved.

Printed in the P. R. C.

RoHS CE
