Product Type	DMX Recording and Playback Controller
Brand	Chauvet
Model	DMX-RT4
Dimensions	122 x 81 x 38 mm (4.8 x 3.2 x 1.5 in)
Weight	Approximately 0.5 kg
Power Supply	Universal input 100-240 VAC, 50/60 Hz (external adapter included)
Power Consumption	Not specified; DC output 12 V, 100 mA for triggers
Main Features	DMX show recording and playback, event triggering, audio playback, micro SD card storage, user interface with OLED display and buttons
DMX Input	1 x 5-pin XLR (input)
DMX Output	1 x 5-pin XLR (output)
Audio Input	USB port (for audio files)
Audio Output	3.5 mm jack
Trigger Connectors	4 x 3-pin Phoenix (12 V DC, 100 mA output)
Storage	micro SD card (not included)
Display	OLED with navigation menu
Status Indicators	Green, blue, red, yellow (see manual for meaning)
Safety	Indoor use only (IP20), max ambient temperature 40°C, safety cable mandatory when mounting overhead, do not open the device
Maintenance and Cleaning	Disconnect before cleaning; use a dry cloth; do not use solvents
Spare Parts and Repairability	No user-serviceable parts; contact Chauvet support
General Information	Limited warranty (see Chauvet website); reference manual included; firmware update via USB port

Frequently Asked Questions - DMX-RT4 Chauvet

How to record a DMX show on the DMX-RT4?

Go to the Record Show menu, name the file (11 characters max), choose the recording mode (Manual, Auto, or Semi-Auto), then press Start Record. Once finished, press Stop Record. The show is saved on the micro SD card.

How to play a recorded show?

In the Play Show menu, select the desired show file, choose One Play (single play) or Loop Play (loop), then press Start Play. To stop, press Stop Play.

How to connect external triggers?

Use the 3-pin Phoenix connectors (12 V DC, 100 mA output). Configure each trigger in the Trigger Event menu: enable it, rename it, associate one or more show/audio files, choose the mode (NO_TR, AUTO_TR, etc.), and set the delay and priorities.

What do the status indicators mean?

- Solid green: playback in progress. Flashing green: recording in progress. - Solid blue: trigger activated. Flashing blue: DMX input detected. - Solid red: device powered on. - Solid or flashing yellow: SD card activity.

How to format the SD card?

Go to Enter MassStorage then Format SD Card. Confirm with Continue. Warning: all data will be erased. To exit without formatting, choose Return.

How to lock the device with a PIN code?

In Lock Device, go to PIN to set a code (000-999). Then in Lock, choose Timeout (lock after 30s) or Manual lock. To unlock, enter the PIN code in Unlock.

How to update the firmware of the DMX-RT4?

Make sure you have the latest firmware file on your computer. In Enter MassStorage -> Connect to PC, connect the device via USB, copy the file to the SD card, then restart. Follow the instructions on the Chauvet website.

How to delete a show file?

Go to Delete Show -> Show, select the file to delete, then confirm with Continue. You can also use MassStorage mode to delete via a computer.

Can I use the DMX-RT4 outdoors?

No, the device is designed for indoor use only (IP20 rating). Avoid exposure to rain, humidity, and extreme temperatures.

What to do if the device does not power on?

Check that the power adapter is properly connected and that the input voltage matches (100-240 VAC). Also check the power cable. If the problem persists, contact Chauvet support.

USER MANUAL DMX-RT4 Chauvet

Technical line drawing of an open electrical enclosure with mounting holes and internal components (no text or symbols)

Abstract geometric pattern with black and white dots forming a triangular shape (no text or symbols)

CHAUVET3

About This Guide

The DMX-RT4 Quick Reference Guide (QRG) has basic product information such as mounting, menu options, and DMX values. Download the User Manual from www.chauvetdj.com for more details.

Disclaimer

The information and specifications contained in this QRG are subject to change without notice.

LIMITED WARRANTY

FOR WARRANTY REGISTRATION AND COMPLETE TERMS AND CONDITIONS PLEASE VISIT OUR WEBSITE.

For Customers in the United States and Mexico: www.chauvetlighting.com/warranty-registration.

For Customers in the United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, and Germany: www.chauvetlighting.eu/warranty-registration.

Chauvet warrants that this product shall be free from defects in material and workmanship under normal use, for the period specified in, and subject to the exclusions and limitations set forth in the full limited warranty on our website. This warranty extends only to the original purchaser of the product and is not transferable. To exercise rights under this warranty, you must provide proof of purchase in the form of an original sales receipt from an authorized dealer that shows the product name and date of purchase. THERE ARE NO OTHER EXPRESS OR IMPLIED WARRANTIES. This warranty gives you specific legal rights. You may also have other rights that vary from state to state and country to country. This warranty is valid only in the United States, United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, Germany and Mexico. For warranty terms in other countries, please consult your local distributor.

Safety Notes

These Safety Notes include important information about installation, use, and maintenance.

• Make sure the power cord is not crimped or damaged.
• Never disconnect this product from power by pulling on the cord.
• When mounting this product overhead, ALWAYS use a safety cable.
• DO NOT allow flammable materials close to the product when it is operating.
• The voltage of the outlet to which you are connecting this product must be within the range stated on the decal or rear panel of the product.
• This product is for indoor use only! (IP20) To prevent risk of fire or shock, do not expose this product to rain or moisture.
• Always mount this product in a location with adequate ventilation, at least 20 in (50 cm) from adjacent surfaces.

- Never connect this product to a dimmer or rheostat.

- Never carry the product by the power cord. Use only the hanging bracket or handle to carry this product.

• The maximum ambient temperature is 104 °F (40 °C). Do not operate this product at higher temperatures.

- In the event of a serious operating problem, stop using immediately.

- DO NOT open this product. It contains no user-serviceable parts.

- To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely disconnect the product from power via breaker or by unplugging it.

Contact

Outside the U.S., U.K., Ireland, Benelux, France, Germany, or Mexico, contact your distributor to request support or return a product. Refer to Contact Us at the end of this QRG for contact information.

What is Included

• DMX-RT4
• External power supply

- Quick Reference Guide

To Begin

Unpack the DMX-RT4 and make sure all parts have been received in good condition. If the box or contents appear damaged, notify the carrier immediately, not Chauvet.

AC Power

This product has an auto-ranging power supply that works with an input voltage range of 100 to 240 VAC, 50/60 Hz.

To eliminate wear and improve its lifespan, during periods of non-use completely disconnect the product from power via breaker or by unplugging it.

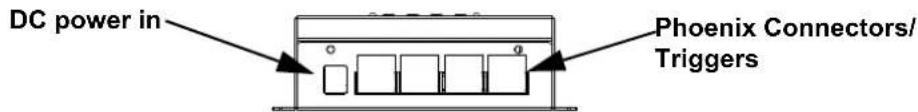

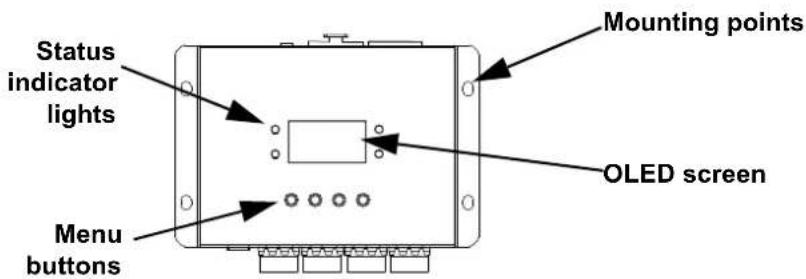

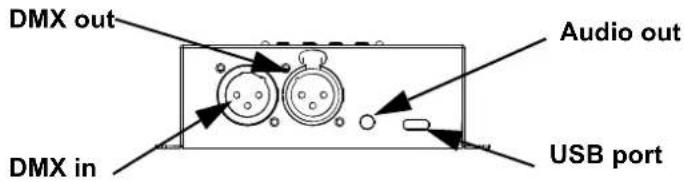

Product Description

The DMX-RT4 is a rugged and compact DMX recording device with trigger-able playback. The device connects to external audio systems and can copy, backup, and transfer show files. The DMX-RT4 also includes a DC power out for sensors that require DC power to operate.

Status Indicator Lights

Color Status Function
Green	Steady	File is playing
	Blinking	Show is recording
Blue	Steady	Trigger has been activated
	Blinking	DMX input detected
Red	Steady	Power ON
	Blinking	N/A
Yellow	Steady	SD activity in progress
	Blinking	SD activity in progress

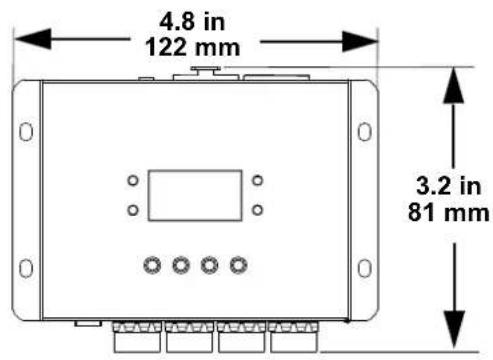

Dimensions

Connection

The DMX-RT4 has 4 3-pin Phoenix connectors which connect the device to triggers, which may require additional power. See below for demonstrative purposes:

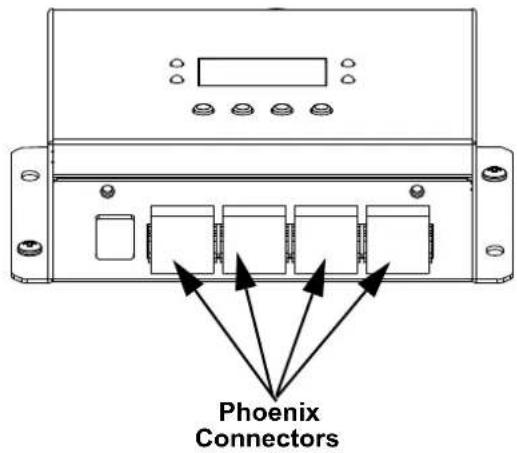

Connection Diagram

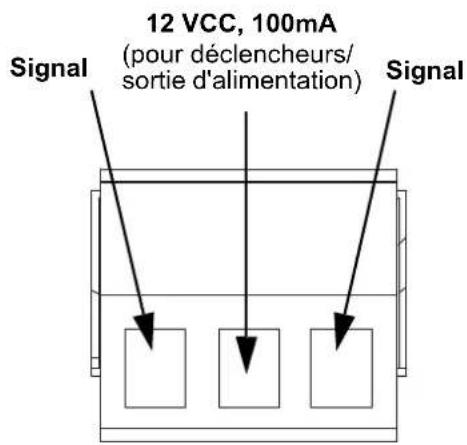

Phoenix Connector

Control Panel Description

Button Function
	Exits from the current menu or function
	Navigates upwards through the menu list and increases the numeric value when in a function
	Navigates downwards through the menu list and decreases the numeric value when in a function
	Enables the currently displayed menu or sets the currently selected value into the selected function

Menu Map

Refer to the DMX-RT4 product page on www.chauvetdj.com for the latest menu map.

Main Level Programming Levels Description
1. Play Audio	Audio	-		Selects audio file (12 character max)
	Mode	One Play		Sets audio to play once or loop
		Loop Play
	Start Play	Stop Play(If audio file selected)		Enables/ disables audio
		Return(If audio file not selected)
2. Delete Audio	- Delete Audio	Audio	Continue	Delete audio file or return to previous menu
			Return
3. Play Show	Show - Selects saved show file to play
	Mode	One Play		Sets show to play once or on repeat
		Loop Play
	Start Play	Stop Play(When show is selected)		Starts and stops selected show
		Return(When show is not selected)
4. Record Show	Name	- - - - - - -		Customize name for file to be recorded(11 character max)
		Cancel
		Enter
	Mode	Manual Records via manual command
		Auto Records upon recognizing DMX signal
		Semi_Auto Records via manual command/ stops automatically
	Start Record	Manual Start(When Start Record is selected in Manual Mode or Semi_Auto Mode)		Starts recording show
		Stop Record(When Start Record is selected in Auto Mode or Manual Record is selected in Manual or Semi_Auto Mode)
5. Delete Show	- Delete Show		Continue	Deletes selected show/Return to Main Menu
			Return
Main Level	Programming Levels			Description
6. Trigger Event	1. Trigger 12. Trigger 23. Trigger 34. Trigger 4(The higher the trigger, the higher the priority)	1. Status	Enable	Enables/ disables trigger
			Disable
		2. Rename	- - - - - -	Renames the trigger
			- -
			Cancel
			Enter
		3. Show List	All Show File	Select show file(s) for trigger
		4. DMX	Once	Play once or on repeat
			Loop
		5. Audio - Select audio file(s) for trigger
		6. MP3	Once	Set trigger audio to play once or on repeat
			Loop
		7. Mode	NO_TR Does not trigger until circuit is closed
			AUTO_TR Automatically triggers
			TOGGLE_TR Sets each trigger to on/off
			NC_TR Does not trigger until circuit is open
		8. Delay 000-120 Sets trigger delay
		9. Interrupt	Self Can be interrupted only by same trigger
			Priority Only higher numbered triggers can interrupt
			On Any other trigger can interrupt
			Off Cannot be interrupted
			Self+Prio	Can be interrupted by Self or higher priority
		10. Save		Save parameters for trigger
		11. Cancel		Cancel parameters for trigger
7. Stop TR Event	1. Trigger 1	Stop(when trigger 1 is playing)		Manually stops trigger 1
	2. Trigger 2	Stop(When trigger 2 is playing)		Manually stops trigger 2
	3. Trigger 3	Stop(When trigger 3 is playing)		Manually stops trigger 3
	4. Trigger 4	Stop(When trigger 4 is playing)		Manually stops trigger 4
8. Enter MassStorage	1. Connect to PC	-		Allows user to transfer audio/ update firmware
		Return
	2. Format SD Card	Continue		Format SD card/ return
		Return
9. Lock Device	1. PIN	000-999		Sets PIN code to unlock device
	2. Lock	Disable		Disables lock/ sets lock to 30 sec timer
		Timeout
	3. Manual lock	PIN	000-999	Select PIN code to unlock device
		Unlock		Unlocks device w/ preset PIN
Main Level Programming Levels Description
10. Device Settings	1. Device Label	--------		Sets device label on timeout screen Cancel
		Enter
	2. DMX Trigger Option	1. Trigger	ENABLE	Allows DMX signal to trigger 4 scenes
			DISABLE
		2. DMX Address	001-512 Sets	address for DMX Trigger
	3. Display Option	1. Mode	Normal	Enables/disables inverted display
			Inverse
		2. Backlight	On	Enables/disables timer for display blackout
			0-60
	4. Version CPU1:___.V_._ Displays software version
11. Save Configuration	Name	--------		Sets name for the current configurationCancel
		Enter
	Backup Data	Return (upon successful backup)		Saves current configuration
12. Load Configuration	-	Restore		Selects configuration to be loaded
		Del
13. Default Setting	Yes			Restores ALL settings to default
	No

Acerca de esta guía

Diagram of an electronic device rear panel with ports and connectors, showing directional arrows pointing to internal components (no text or labels)

Connecteurs Phoenix

Connecteurs Phoenix

Diagram of an electronic device rear panel with ports and connectors, showing directional arrows pointing to internal components (no text or labels)

General Information Technical Support

World Headquarters

Address: 5200 NW 108th Ave. Voice: [phone]

Sunrise, FL 33351 Fax: [phone]

Voice: [phone] Email: [e-mail]

Fax: [phone]

Toll Free: [phone] Website: www.chauvetdj.com

U.K.

Address: Unit 1C Email: [e-mail]

Brookhill Road Industrial Estate

Pinxton, Nottingham, UK Website: www.chauvetdj.eu

NG16 6NT

Voice: [phone]

Fax: [phone]

Benelux

Address: Stokstraat 18 Email: [e-mail]

9770 Kruishoutem

Belgium Website: www.chauvetdj.eu

Voice: [phone]

France

Address: 3, Rue Ampère

91380 Chilly-Mazarin

Email: [e-mail]

France Website: www.chauvetdj.eu

Voice: [phone]

Germany

(Entrance by Calle 2)

Zona Industrial Lerma Website: www.chauvetdj.mx

Visit the applicable website above to verify our contact information and instructions to request support. Outside the U.S., U.K., Ireland, Mexico, France, Germany, or Benelux, contact the dealer of record.
