Thank you for purchasing a Brandon product. Please read the following quick guide carefully to ensure that you enjoy using the appliance you have purchased.y

1. Scope of delivery

• Irrigation control
• WiFi connection socket

• Operating instructions

• Technical data & product details

Water protection class	IP54
Ambient temperature 3°C - 50°C (37°F - 122°F)
Working pressure 0.5 - 8bar (7.25-116PSI)
Frequency range 433.05 - 434.79 MHz
Max. transmission power (EIRP) 3.09 dBm
Battery type	4x AA 1.5V batteries
Suitable for	3/4" standard tap connections

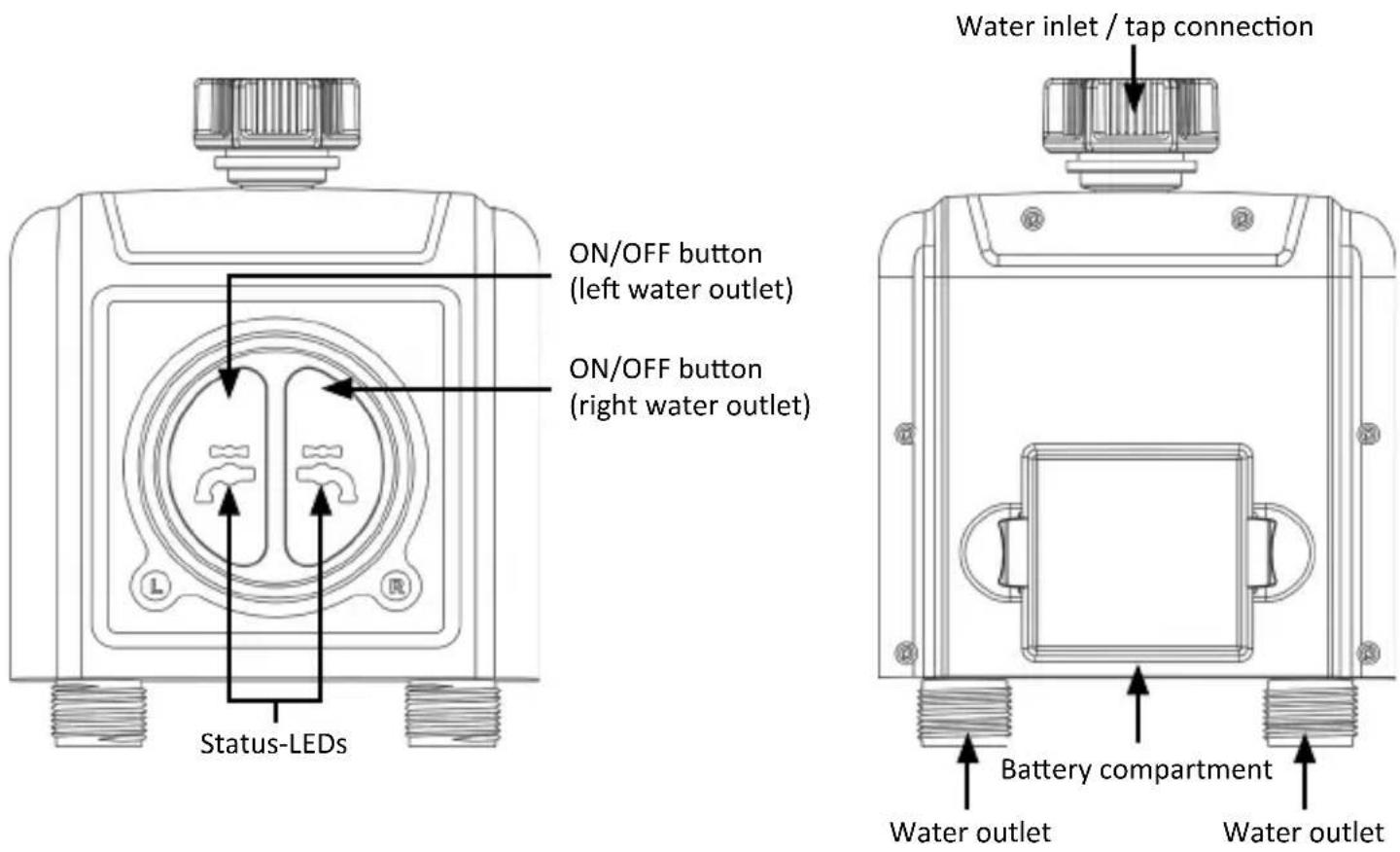

ON/OFF button (left water outlet) ON/OFF button (right water outlet) Status-LEDs Water inlet / tap connection Battery compartment Water outlet Water outlet

Ambient temperature 3°C - 40°C (37°F - 104°F)
input voltage 100-240V AC 50Hz
max. load 10(1)A / 2300W μ
Frequency range 433,92 MHz; 2412-2472 MHz
Max. transmission power (EIRP) 18,05dBm

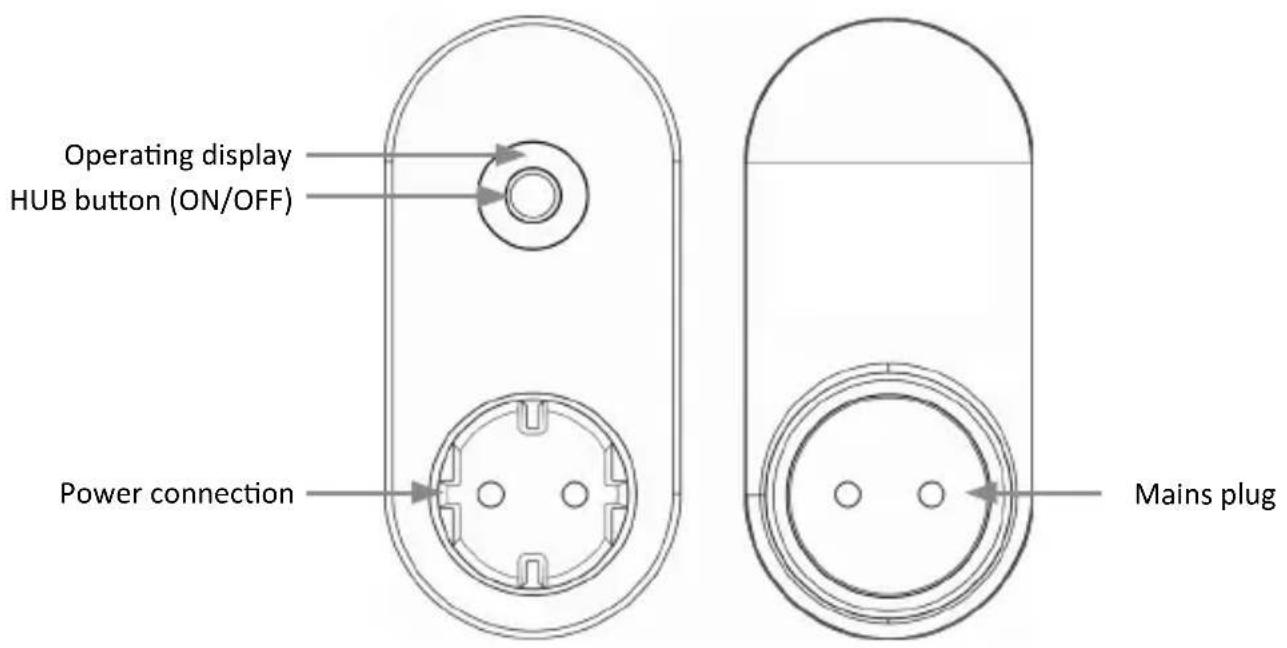

Operating display HUB button (ON/OFF) Power connection Mains plug

The socket is intended for indoor use only.

Only usable with 2.4Ghz WiFi. If your router is a dual-band router, please enable the 2.4Ghz WiFi band and name it differently from the 5Ghz WiFi band

1. Important safety instructions for this device

Attention! Updating the software may change the functionality and application of the device!

Attention!

- Do not place the device in an underground valve box or in a location where your WIFI signal will be obstructed.

1. Additional information for this device

2. If temperatures below freezing are expected, the timer should be removed from the tap and stored indoors to avoid possible frost damage.

3. Do not mix alkaline, standard (carbon-zinc) or rechargeable (nickel-cadmium) batteries. Used or dead batteries must be removed from the appliance and disposed of properly.

4. Start up

Remove the device from the packaging and remove all packaging material. Remove the battery compartment from the irrigation controller and insert 4 AA batteries. Ensure that the polarity of the contacts is correct. Then insert the battery compartment firmly back into the Water Computer. Connect the connection socket to a properly connected socket.

7. Setup via the app

Open the app store of your mobile device (e.g. smartphone or tablet PC) with which you want to control the device. Search for the „Smart Life“ app in the app store and install it.

Alternatively, you can find the app using the following QR code:

QR code with a central icon depicting a house and signal waves, likely linking to a smart home or app.

Log in to the app or register if necessary.

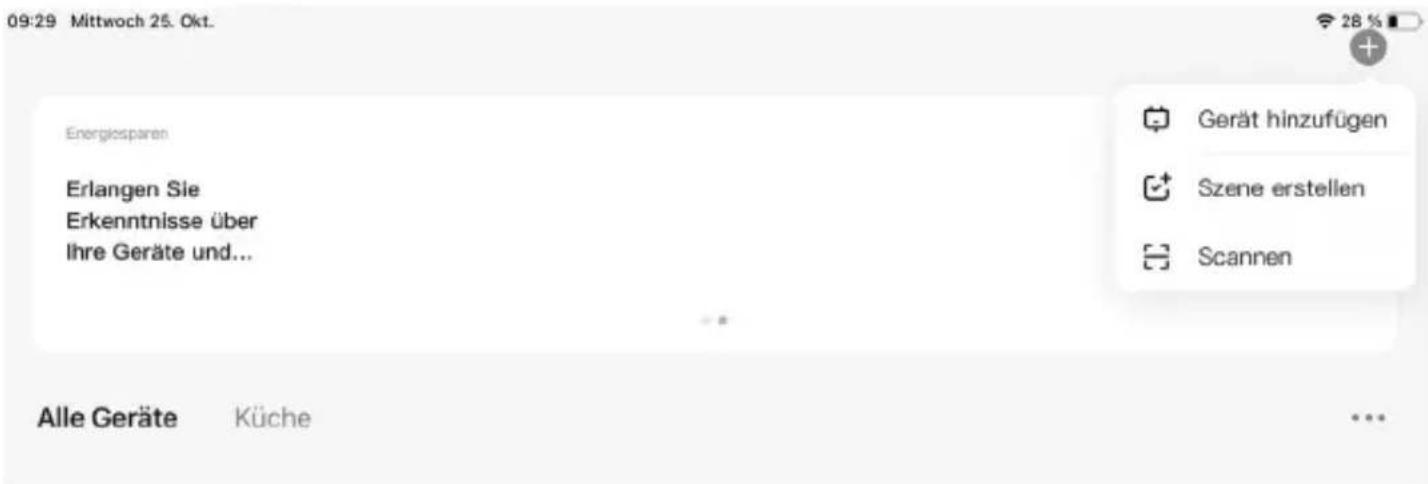

You can now add a new device in the main menu using the „+“ symbol.

Set the socket to pairing mode. Press the HUB button (ON/OFF) on the socket for 6 seconds until the blue light flashes slowly.

Now enter your Wi-Fi data in the app. You must then connect to the hotspot on the socket.

Connect your mobile phone to the device's hotspot

Connect your phone to the hotspot shown below:

WJN

√ SmartLife-XXXX
√ SL-XXXX

Go back and add devices.

Go to Connect

The app then connects to the socket. Once the process is complete, the app indicates that the device has been successfully added.

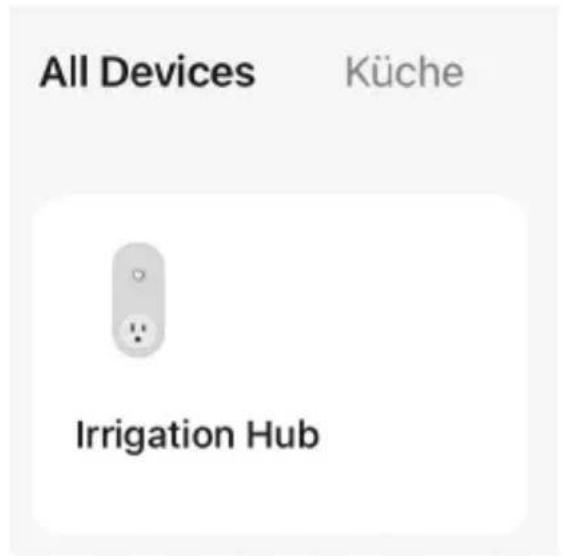

To connect the irrigation controller to the app, select the socket in the app and click on „Manage added devices“ in the following window.

All Devices Küche Irrigation Hub

A menu will then open where you can connect the water valve controller.

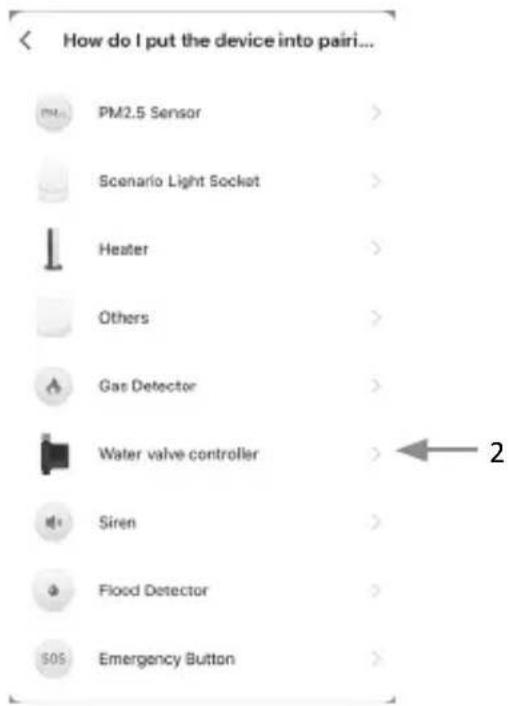

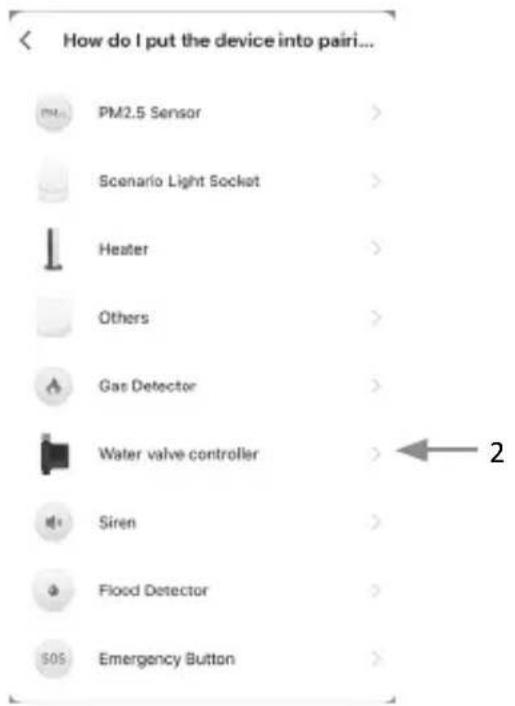

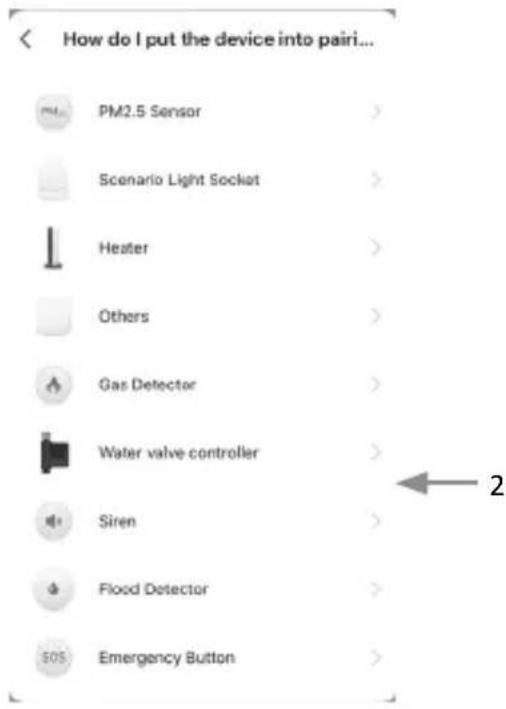

Tap on „Add more devices“ and add the irrigation controller („Water valve controller“).

Irrigation Hub Added devices. wifi Socket + Add more devices ← 1

How do I put the device into pairi... PM2.5 Sensor Scenario Light Socket Heater Others Gas Detector Water valve controller Siren Flood Detector $05 Emergency Button

Activate the pairing of the watering control by pressing the left and right ON/OFF button on the device for approx. 6 seconds until the status LEDs start to flash quickly. The irrigation controller then connects to the Wifi connection socket.

Note: If you are using both a 2.4 GHz and a 5 GHz network (or other guest networks), please deactivate all networks except the 2.4 GHz network in the meantime. Make this visible, as the IP socket is addressed and connected via the network.

Test device

Leave the tap turned off.

1. Press the ON/OFF button on the watering control. The valve inside the timer for manual watering opens with a "click" sound. After a few seconds, press the button again, the "click" sounds again and the valve closes.
2. Turn the tap on a little, press the ON/OFF button on the irrigation controller to check whether the water flows out as expected or switches off. If so, the appliance is working properly. If you are not sure, please repeat the above steps several times.
3. The test is complete, please leave the tap fully open!

8. Advanced settings of the app

To use the advanced functions of the appliance, such as the schedule or cycle function, it is necessary to press the symbol of the connected water valve control in the menu. You can set both zones separately by tapping on the desired zone in the corresponding menu. „Zone 1“ is the left water outlet and „Zone 2“ is the right water outlet.

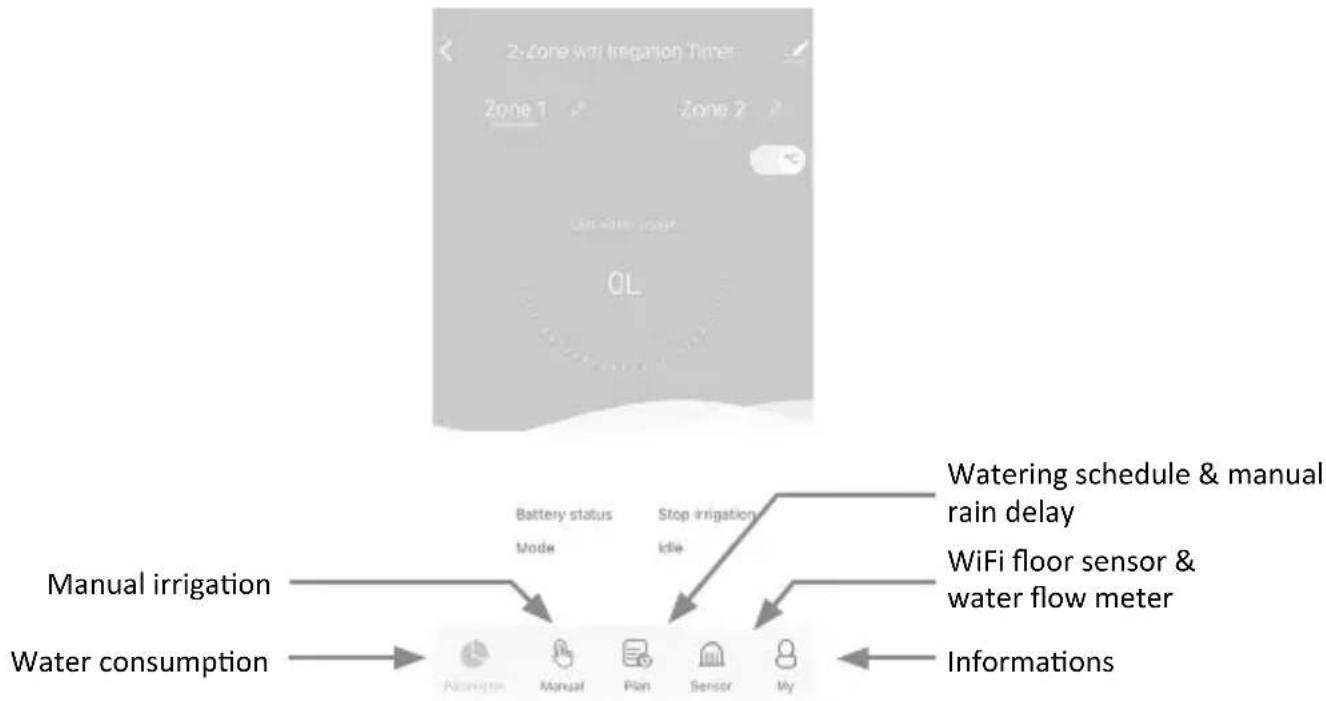

An extended settings menu appears:

Manual irrigation:

Manual mode Zone 1 Zone 2 60 0 min 45 15 30 II Parameter Medium Plan Sensor My

Duration of manual watering

Move the hollow green circle on the dial to set the desired manual watering time (0\~60min).

Manual irrigation Duration

Tap to start/stop watering

Watering schedule & manual rain delay:

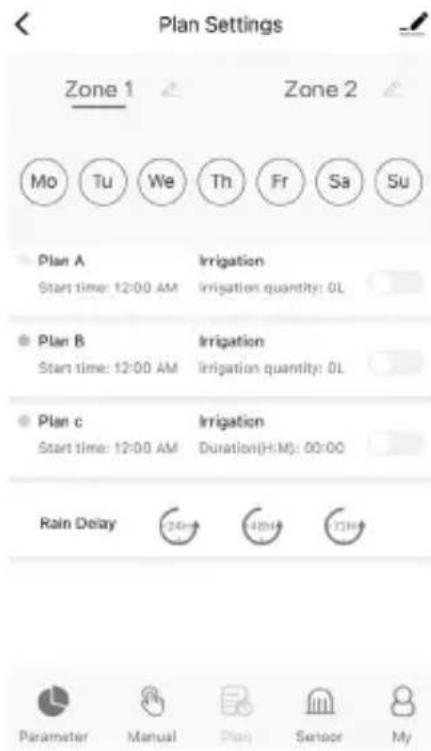

Plan Settings Zone 1 Zone 2 Mo Tu We Th Fr Sa Su Plan A Irrigation Start time: 12:00 AM Irrigation quantity: 0L Plan B Irrigation Start time: 12:00 AM Irrigation quantity: 0L Plan c Irrigation Start time: 12:00 AM Duration(H:M): 00:00 Rain Delay Parameter Manual Plan Sensor My

Watering day of the week

Each schedule has a specific colour dotting. The dotting in a specific colour on the day of the week indicates that there is a corresponding watering schedule for that day.

Plan A / Plan B / Plan C

The WiFi timer can set 3 different watering schedules per day. Each watering schedule can be set with a different start time, duration and watering day (frequency). Press the switch of the watering schedule to switch it on or off.

Manual rain delay

The rain delay applies to rainy days or other weather conditions that cause high soil moisture. During the rain delay, the timer interrupts watering. At the end of the rain delay, the timer will run according to the next watering schedule. The timer can set a rain delay of 24/48/72 hours.

Set watering schedule

1. Tap on Plan A/Plan B/Plan C
2. Each irrigation schedule has two irrigation modes: Irrigation (irrigation mode) and Mist (mist mode).

These two modes do not refer to the difference in the water output of the timer, but to the different settings of the watering frequency and duration.

Irrigation (watering mode): Watering at longer intervals

Mist (mist mode): Irrigation at shorter intervals

Water flow meter

Sensor Zone 1 Zone 2 Soil Water flow 1 Unit : L 4.5 6.7 4.9 6.8 6.2 0 03/11 04/11 06/11 08/11 07/11 Soil sensor

Watering day of the week

The irrigation starter has an in-built water flow meter. It shows you the daily water consumption of the last few days and helps you to quantify your daily water consumption and save water.

9. Installation on the water connection

Connect the Water Computer to a water tap. If necessary, use PTFE sealing tape around the thread of the tap. You can now operate devices of your choice on the hose connection.

10. WiFi socket

Switch current output on/off manually

wifi Socket wifi Socket ON Power On Power Time

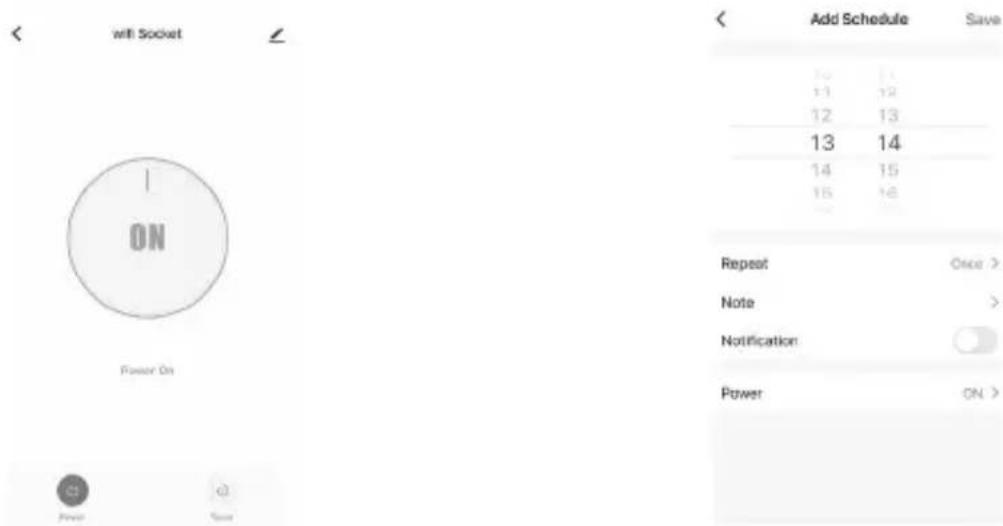

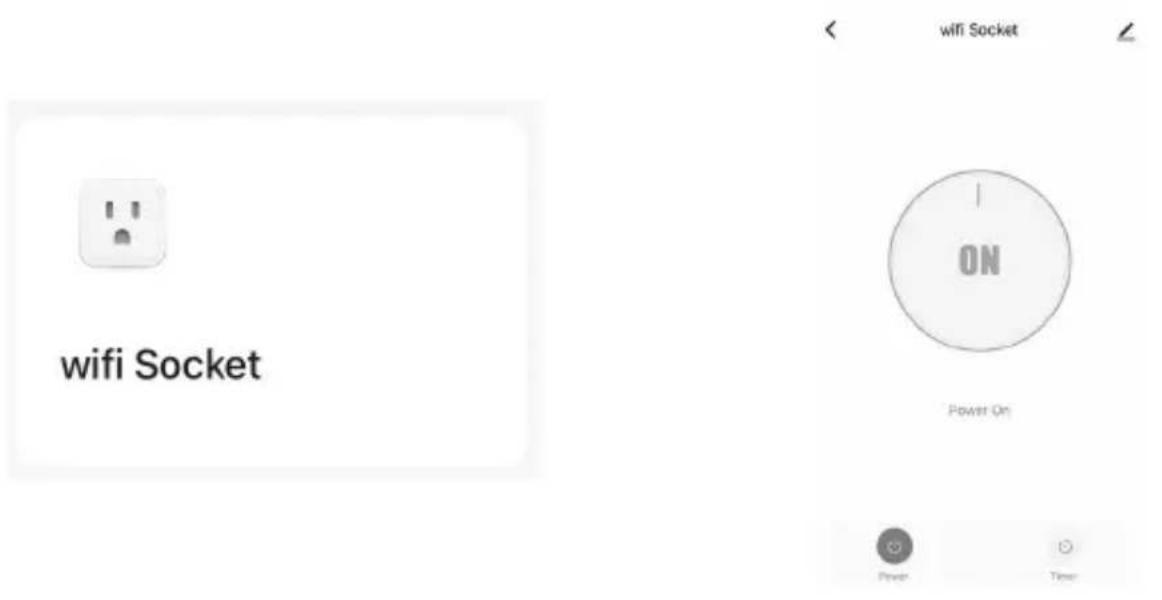

1. Tap the "WiFi Socket" button in the list of all devices on the APP home screen
2. Tap Power to switch the WiFi socket on or off.

Note: The WiFi socket can only be added to the app if the irrigation controller is successfully paired with the WiFi socket.

Switch on/switch off according to schedule

Will Socket ON Power On Add Schedule Save 10 11 11 12 12 13 13 14 14 15 15 16 Repeat Once > Note > Notification Power ON >

1. Open the menu for the timer function of the WiFi socket.
2. Tap on "Add Shedule" to set up a schedule for the WiFi socket.
3. Set the desired switching time.
4. Tap Repeat to select the days of the week on which the socket should be switched.
5. Tap on Notification to add a customised description to your schedule.
6. Toggle the Notification switch to receive notifications when the schedule is triggered.
7. Tap Save to set your schedule or exit without saving.
8. The schedule for the WiFi outlet will be displayed on the previous Add Schedule screen.

11. Reset devices

To reset the devices, please proceed as follows:

WiFi socket

• Press and hold the HUB button (ON/OFF). Please do not release the button until the end.
• Plug in the hub and wait until the BLUE light comes on (continue to hold the button).
• Continue to hold the button down. Wait until the BLUE LED lights up for a few seconds and then flashes quickly, then the device is back in pairing mode.

Irrigation control

• Remove all batteries from the battery compartment.
  • After 10 seconds, insert 4 fresh AA 1.5V batteries into the battery compartment of the watering control.
• When inserting the batteries, press and hold the ON/OFF button on the watering control without releasing the button until the LED display flashes quickly (2 times per second).

12. Troubleshooting

Error Possible cause Possible solution
The valve cannot be switched on/off	Weak batteryContamination in the water inletUnstable mains or delayed reaction	Replace fresh batteriesClean the filter connection regularly to remove impurities in order to avoid malfunctions during operationWait a while and try again
Inaccurate water flow meter	Inaccurate statistics due to the inclined mounting angle.Low or irregular water pressure from the tap	The Water Timer must be installed perpendicular to the ground and it is recommended that it is not installed at an angle so as not to interfere with water meteringNormal error values for water metering ±5%
Schedule not executed correctly	Contamination in the water inlet filter.Parameters for precipitation delay are set.In the low power state, the timer switches to a low power protection state and does not execute the schedule.Watering duration/period is not set with parameters	Impurities in the inlet must be removed regularly so that they do not clog and disrupt the watering programmeCheck whether the rain delay parameter is setReplace fresh batteriesCheck whether the watering duration/period is not set with parameters (note 12H/24H)

13. Safety instructions and disclaimer

At temperatures below freezing, the water flow meter should be removed from the tap and stored indoors to prevent possible freezing damage.

Never attempt to open the appliance to carry out repairs or modifications. Avoid contact with mains voltages. Do not short-circuit the product. The appliance is not approved for outdoor use, only use it in dry conditions. Protect it from high humidity, water and snow. Keep the device away from high temperatures.

Do not expose the device to sudden temperature changes or strong vibrations, as this could damage the electronic components.

Check the device for damage before use. The appliance should not be used if it has been knocked or damaged in any other way.

Please observe the national regulations and restrictions. Do not use the device for purposes other than those described in the instructions. This product is not a toy. Keep it out of the reach of children or mentally impaired persons. Any repair or modification to the device that is not carried out by the original supplier will invalidate the warranty and guarantee claims. The device may only be used by persons who have read and understood these instructions. The device specifications may change without prior notice.

14. Disposal instructions

According to the European WEEE Directive, electrical and electronic devices may not be disposed of with household waste. Their components must be separated for recycling or disposal, as toxic and hazardous components can cause lasting damage to the environment if disposed of incorrectly. As a consumer, you are obliged under the Electrical and Electronic Equipment Act (ElektroG) to return electrical and electronic equipment free of charge at the end of its life to the manufacturer, the point of sale or to public collection centres set up for this purpose. Details are regulated by the respective state law. The symbol on the product, the operating instructions and/or the packaging refers to these regulations. By separating, recycling and disposing of old appliances in this way, you are making an important contribution to protecting our environment. For information on authorised collection points in your area, please contact your local city or municipal administration.

15. Notes on battery disposal

In connection with the sale of batteries or the delivery of devices containing batteries, the supplier is obliged to inform the customer of the following:

The customer is legally obliged to return used batteries as the end user. The customer can return used batteries that the supplier carries or has carried as new batteries free of charge to the supplier's dispatch warehouse (dispatch address). The symbols shown on the batteries have the following meaning: Pb = battery contains more than 0.004 per cent lead by mass, Cd = battery contains more than 0.002 per cent cadmium by mass, Hg = battery contains more than 0.0005 per cent mercury by mass.

The crossed-out dustbin symbol means that the battery must not be disposed of with household waste.

WEEE Directive: 2012/19/EU WEEE Register No.: DE 67896761

Hereby, WD Plus GmbH declares that the device 306615 is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU. You can obtain a complete declaration of conformity from WD Plus GmbH, Wohlenbergstraße 16, 30179 Hannover, Germany, or at the following Internet address: https://model.ganzeinfach.de/306615
