| Product type | WiFi connected watering timer |
| Brand | Brandson |
| Model | 306614 |
| Power supply | 4 AA 1.5 V batteries + mains plug 100-240 V AC, 50 Hz |
| Connectivity | WiFi 2.4 GHz (band 2412-2472 MHz) and 433.92 MHz radio link |
| Protection rating | IP54 |
| Operating pressure | 0.5 – 8 bar (7.25 – 116 PSI) |
| Operating temperature | 3 °C to 50 °C (37 °F to 122 °F) |
| Connection type | Standard 3/4" tap connection |
| Mobile app | Smart Life (iOS and Android) |
| Programming | Up to 3 watering schedules (A, B, C) per day |
| Watering modes | Irrigation (watering) and Mist (fog) |
| Rain delay function | 24 / 48 / 72 hours |
| Integrated flow meter | Yes, daily water consumption tracking |
| Manual watering | Adjustable duration from 0 to 60 minutes |
| Max transmission power (EIRP) | 3.09 dBm (controller) / 18.05 dBm (WiFi plug) |
| Reset | ON/OFF button held for 6 s for pairing; remove batteries + hold button for reset |
| Frost protection | Remove and store indoors in case of frost |
| Package contents | Watering controller, WiFi plug, user manual |
| Weight and dimensions | Not provided (estimated: approx. 300 g, 12 x 8 x 8 cm) |
| Maintenance and cleaning | Clean the water inlet filter regularly; do not use aggressive cleaning agents |
| Safety | Indoor use only for the plug; do not open the device; observe temperature guidelines |
| Spare parts and repairability | No spare parts available; repair exclusively by the manufacturer |
| General information | Warranty void in case of modification; declaration of conformity available online |
Frequently Asked Questions - 306614 Brandson
User questions about 306614 Brandson
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Irrigation timer in PDF format for free! Find your manual 306614 - Brandson and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. 306614 by Brandson.
USER MANUAL 306614 Brandson
ENG: Current drivers, user manuals and other relevant documents for this product can be found on our homepage.
Connect your mobile phone to the device's hotspot
Connect your phone to the hotspot shown below:
Thank you for purchasing a Brandon product. Please read the following quick guide carefully to ensure that you enjoy using the appliance you have purchased.y
1. Scope of delivery
- Irrigation control
WiFi connection socket - Operating instructions

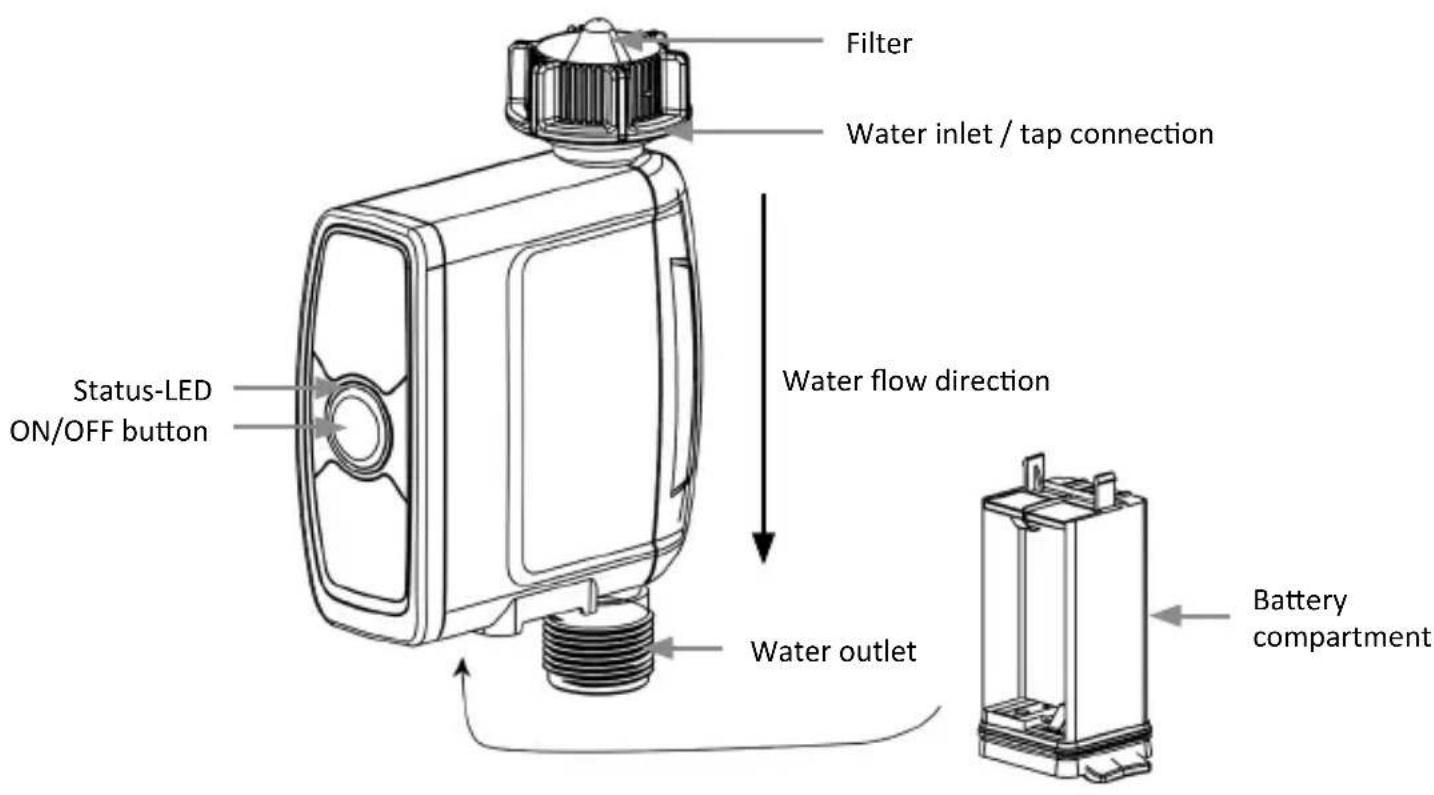

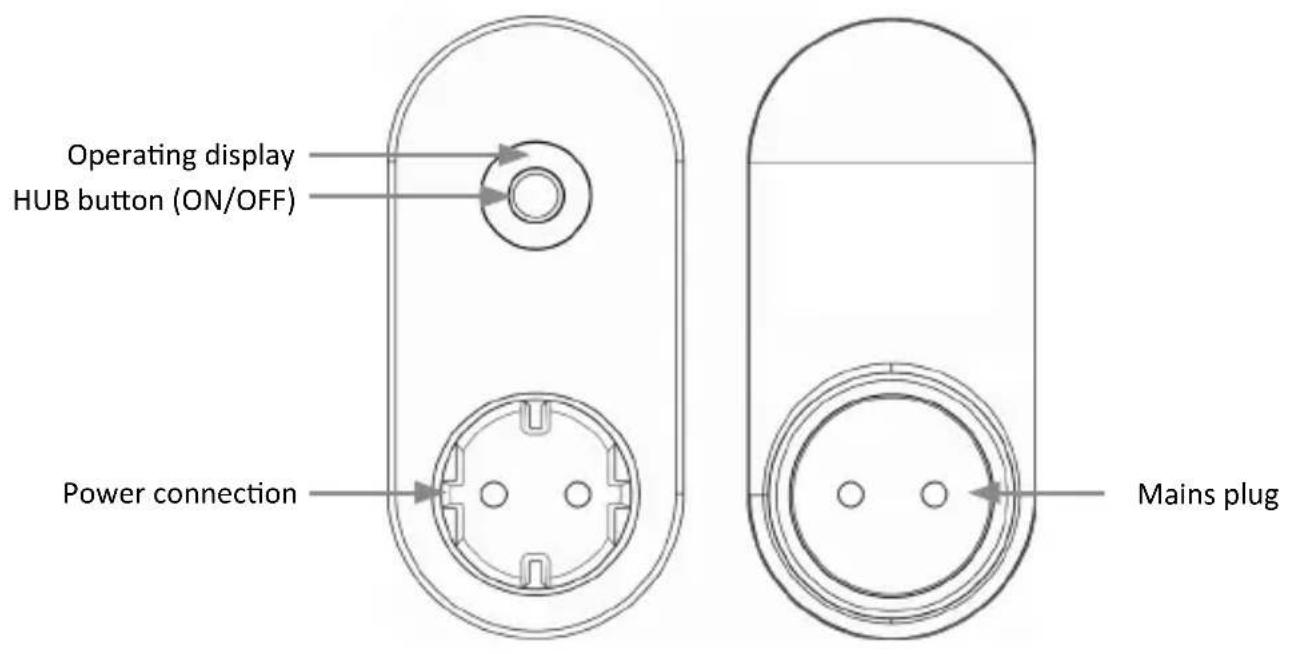

2. Technical data & product details
| Water protection class | IP54 |
| Ambient temperature 3°C - 50°C (37°F - 122°F) | 2°F |
| Working pressure 0.5 - 8bar (7.25-116PSI) | |
| Frequency range 433.05 - 434.79 MHz | |
| Max. transmission power (EIRP) 3.09 dBm | |
| Battery type | 4x AA 1.5V batteries |
| Suitable for | 3/4" standard tap connections |
| Ambient temperature 3°C - 40°C (37°F - 104°F) | |
| input voltage 100-240V AC 50Hz | |
| max. load 10(1)A / 2300W μ | |
| Frequency range 433,92 MHz; 2412-2472 MHz | |
| Max. transmission power (EIRP) 18,05dBm | |
The socket is intended for indoor use only.
Only usable with 2.4Ghz WiFi. If your router is a dual-band router, please enable the 2.4Ghz WiFi band and name it differently from the 5Ghz WiFi band
- Important safety instructions for this device
Attention! Updating the software may change the functionality and application of the device!
Attention!
-
Do not place the device in an underground valve box or in a location where your WIFI signal will be obstructed.
-
Additional information for this device
-
If temperatures below freezing are expected, the timer should be removed from the tap and stored indoors to avoid possible frost damage.
- Do not mix alkaline, standard (carbon-zinc) or rechargeable (nickel-cadmium) batteries. Used or dead batteries must be removed from the appliance and disposed of properly.
6.Start up
Remove the device from the packaging and remove all packaging material. Remove the battery compartment from the irrigation controller and insert 4 AA batteries. Ensure that the polarity of the contacts is correct. Then insert the battery compartment firmly back into the Water Computer. Connect the connection socket to a properly connected socket.
7. Setup via the app
Open the app store of your mobile device (e.g. smartphone or tablet PC) with which you want to control the device. Search for the „Smart Life“ app in the app store and install it.
Alternatively, you can find the app using the following QR code:
Log in to the app or register if necessary.

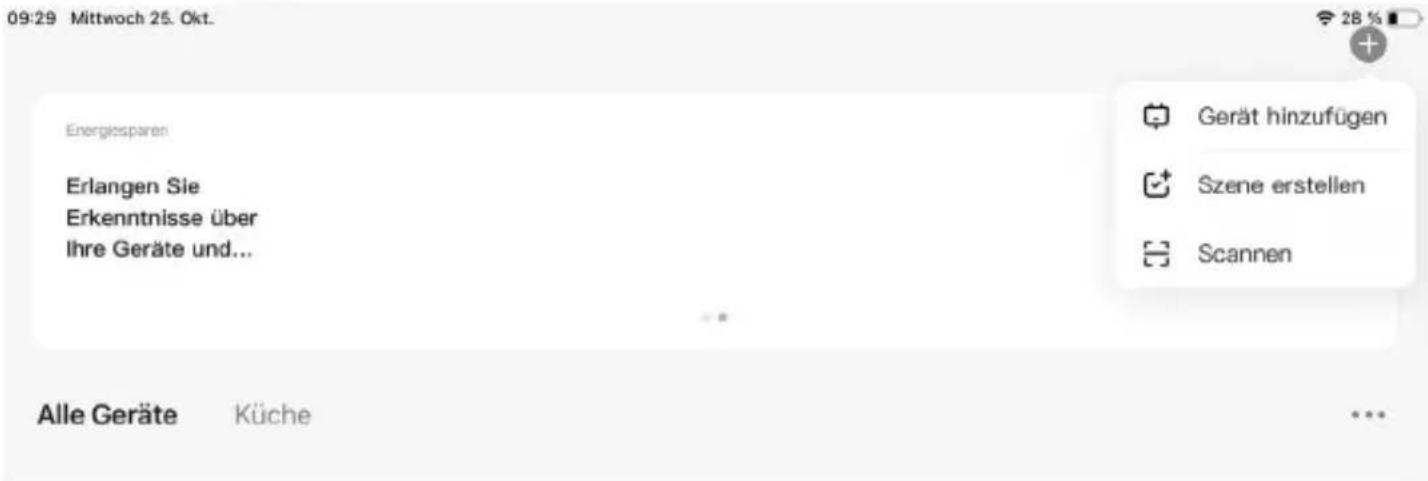

You can now add a new device in the main menu using the ^ + ^ symbol.

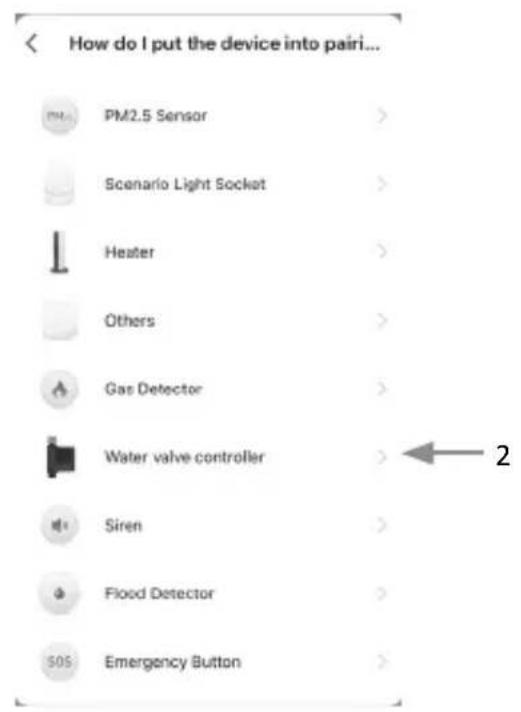

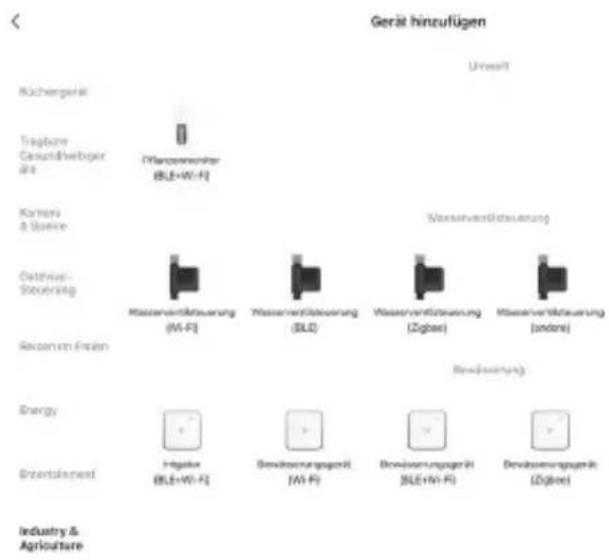

Then select the correct category (Wi-Fi water valve control).

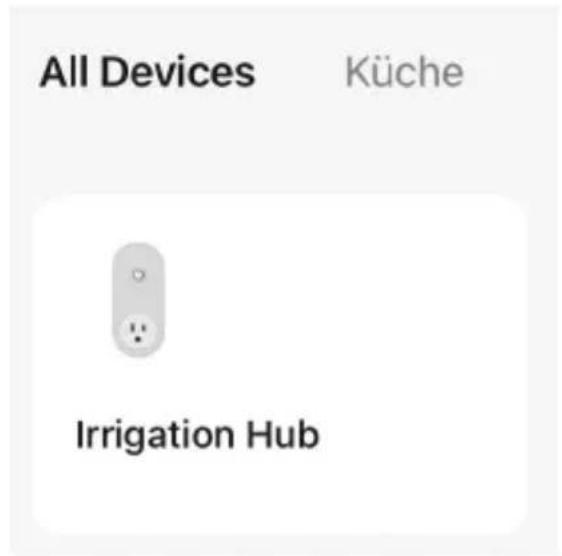

Set the socket to pairing mode. Press the HUB button (ON/OFF) on the socket for 6 seconds until the blue light flashes slowly.
Now enter your Wi-Fi data in the app. You must then connect to the hotspot on the socket.
Connect your mobile phone to the device's hotspot
Connect your phone to the hotspot shown below:
WUN
SmartLife-XXXXX
SL-XXXXX
Go back and add devices.
Go to Connect
The app then connects to the socket. Once the process is complete, the app indicates that the device has been successfully added.
To connect the irrigation controller to the app, select the socket in the app and click on „Manage added devices" in the following window.
A menu will then open where you can connect the water valve controller.
Tap on „Add more devices“ and add the irrigation controller („Water valve controller“).
Activate the pairing of the irrigation controller by pressing the ON/OFF button on the device for approx. 6 seconds until the status LED starts to flash quickly. The irrigation controller then connects to the Wifi connection socket.
Note: If you are using both a 2.4 GHz and a 5 GHz network (or other guest networks), please deactivate all networks except the 2.4 GHz network in the meantime. Make this visible, as the IP socket is addressed and connected via the network.
Test device
Leave the tap turned off.
- Press the ON/OFF button on the watering control. The valve inside the timer for manual watering opens with a "click" sound. After a few seconds, press the button again, the "click" sounds again and the valve closes.
- Turn the tap on a little, press the ON/OFF button on the irrigation controller to check whether the water flows out as expected or switches off. If so, the appliance is working properly. If you are not sure, please repeat the above steps several times.
- The test is complete, please leave the tap fully open!
8. Advanced settings of the app

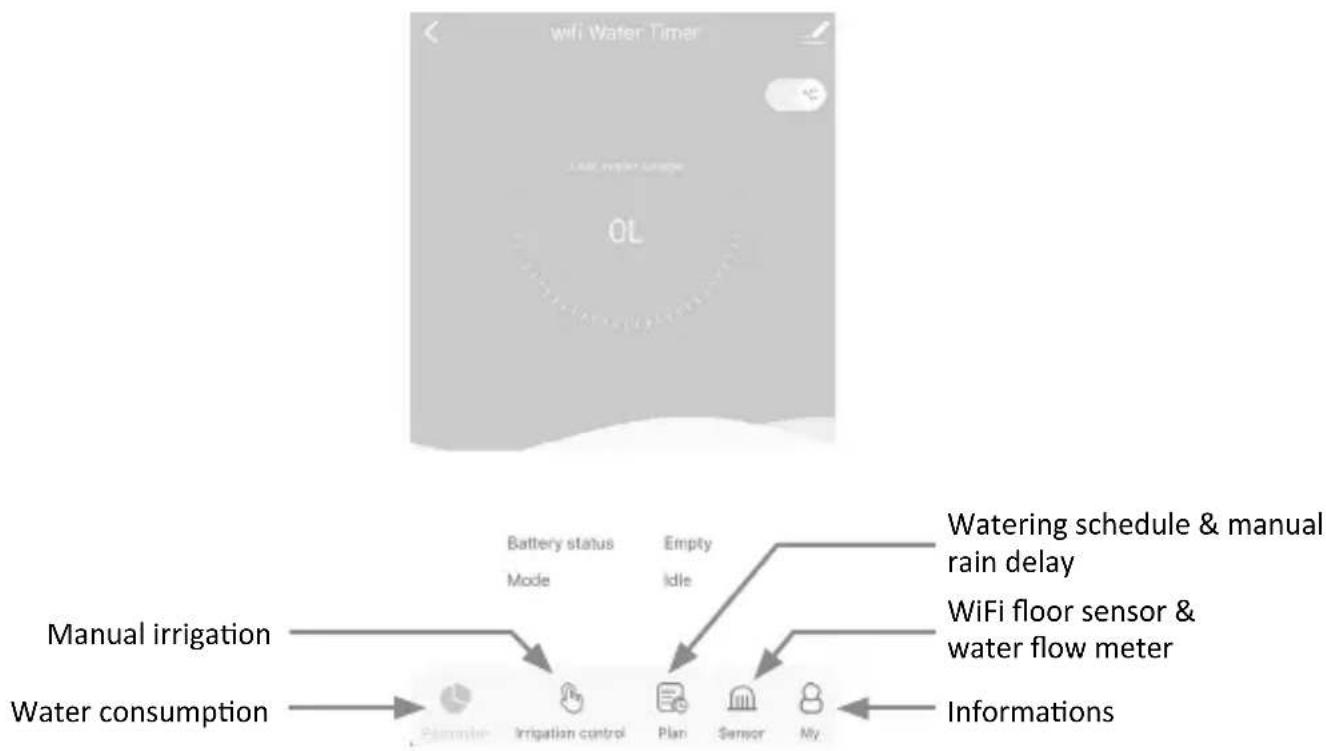

To use the advanced functions of the appliance, such as the schedule or cycle function, it is necessary to press the symbol of the connected water valve control in the menu.
An extended settings menu appears:
Manual irrigation:
Duration of manual watering
Move the hollow green circle on the dial to set the desired manual watering time (0~60min).
Manual irrigation Duration
Tap to start/stop watering
Watering schedule & manual rain delay:
Watering day of the week

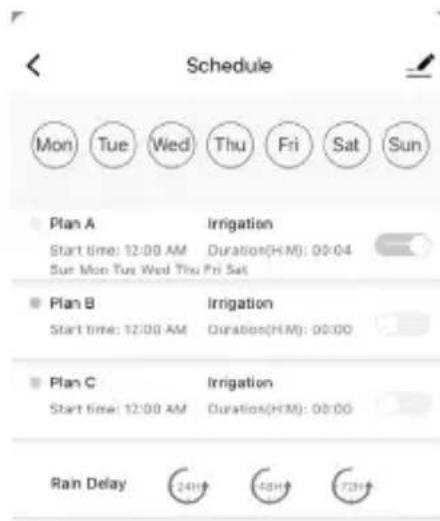

Each schedule has a specific colour dotting. The dotting in a specific colour on the day of the week indicates that there is a corresponding watering schedule for that day.
Plan A/ Plan B/ Plan C
The WiFi timer can set 3 different watering schedules per day. Each watering schedule can be set with a different start time, duration and watering day (frequency). Press the switch of the watering schedule to switch it on or off.
Manual rain delay
The rain delay applies to rainy days or other weather conditions that cause high soil moisture. During the rain delay, the timer interrupts watering. At the end of the rain delay, the timer will run according to the next watering schedule. The timer can set a rain delay of 24/48/72 hours.
Set watering schedule
- Tap on Plan A/Plan B/Plan C
- Each irrigation schedule has two irrigation modes: Irrigation (irrigation mode) and Mist (mist mode).
These two modes do not refer to the difference in the water output of the timer, but to the different settings of the watering frequency and duration.
Irrigation (watering mode): Watering at longer intervals
Mist (mist mode): Irrigation at shorter intervals
Water flow meter
Watering day of the week
The irrigation starter has an in-built water flow meter. It shows you the daily water consumption of the last few days and helps you to quantify your daily water consumption and save water.
9. Installation on the water connection
Connect the Water Computer to a water tap. If necessary, use PTFE sealing tape around the thread of the tap. You can now operate devices of your choice on the hose connection.
10. WiFi socket
Switch current output on/off manually
- Tap the "WiFi Socket" button in the list of all devices on the APP home screen
- Tap Power to switch the WiFi socket on or off.
Note: The WiFi socket can only be added to the app if the irrigation controller is successfully paired with the WiFi socket.
Switch on/switch off according to schedule
- Open the menu for the timer function of the WiFi socket.
- Tap on "Add Shedule" to set up a schedule for the WiFi socket.
- Set the desired switching time.
- Tap Repeat to select the days of the week on which the socket should be switched.
- Tap on Notification to add a customised description to your schedule.
- Toggle the Notification switch to receive notifications when the schedule is triggered.
- Tap Save to set your schedule or exit without saving.
- The schedule for the WiFi outlet will be displayed on the previous Add Schedule screen.
11. Reset devices
To reset the devices, please proceed as follows:
WiFi socket
- Press and hold the HUB button (ON/OFF). Please do not release the button until the end.
- Plug in the hub and wait until the BLUE light comes on (continue to hold the button).
- Continue to hold the button down. Wait until the BLUE LED lights up for a few seconds and then flashes quickly, then the device is back in pairing mode.
Irrigation control
- Remove all batteries from the battery compartment.
After 10 seconds, insert 4 fresh AA 1.5V batteries into the battery compartment of the watering control. - When inserting the batteries, press and hold the ON/OFF button on the watering control without releasing the button until the LED display flashes quickly (2 times per second).
12. Troubleshooting
| Error Possible cause Possible solution | ||
| The valve cannot be switched on/off | ·Weak battery ·Contamination in the water inlet ·Unstable mains or delayed reaction | ·Replace fresh batteries ·Clean the filter connection regularly to remove impurities in order to avoid malfunctions during operation ·Wait a while and try again |
| Inaccurate water flow meter | ·Inaccurate statistics due to the inclined mounting angle. ·Low or irregular water pressure from the tap | ·The Water Timer must be installed perpendicular to the ground and it is recommended that it is not installed at an angle so as not to interfere with water metering ·Normal error values for water metering ±5% |
| Schedule not executed correctly | ·Contamination in the water inlet filter. ·Parameters for precipitation delay are set. ·In the low power state, the timer switches to a low power protection state and does not execute the schedule. ·Watering duration/period is not set with parameters | ·Impurities in the inlet must be removed regularly so that they do not clog and disrupt the watering programme ·Check whether the rain delay parameter is set ·Replace fresh batteries ·Check whether the watering duration/ period is not set with parameters (note 12H/24H) |
13. Safety instructions and disclaimer
At temperatures below freezing, the water flow meter should be removed from the tap and stored indoors to prevent possible freezing damage.
Never attempt to open the appliance to carry out repairs or modifications. Avoid contact with mains voltages. Do not short-circuit the product. The appliance is not approved for outdoor use, only use it in dry conditions. Protect it from high humidity, water and snow. Keep the device away from high temperatures.
Do not expose the device to sudden temperature changes or strong vibrations, as this could damage the electronic components.
Check the device for damage before use. The appliance should not be used if it has been knocked or damaged in any other way.
Please observe the national regulations and restrictions. Do not use the device for purposes other than those described in the instructions. This product is not a toy. Keep it out of the reach of children or mentally impaired persons. Any repair or modification to the device that is not carried out by the original supplier will invalidate the warranty and guarantee claims. The device may only be used by persons who have read and understood these instructions. The device specifications may change without prior notice.
14. Disposal instructions
According to the European WEEE Directive, electrical and electronic devices may not be disposed of with household waste. Their components must be separated for recycling or disposal, as toxic and hazardous components can cause lasting damage to the environment if disposed of incorrectly. As a consumer, you are obliged under the Electrical and Electronic Equipment Act (ElektroG) to return electrical and electronic equipment free of charge at the end of its life to the manufacturer, the point of sale or to public collection centres set up for this purpose. Details are regulated by the respective state law. The symbol on the product, the operating instructions and/or the packaging refers to these regulations. By separating, recycling and disposing of old appliances in this way, you are making an important contribution to protecting our environment. For information on authorised collection points in your area, please contact your local city or municipal administration.
15. Notes on battery disposal
In connection with the sale of batteries or the delivery of devices containing batteries, the supplier is obliged to inform the customer of the following:
The customer is legally obliged to return used batteries as the end user. The customer can return used batteries that the supplier carries or has carried as new batteries free of charge to the supplier's dispatch warehouse (dispatch address). The symbols shown on the batteries have the following meaning: Pb = battery contains more than 0.004 per cent lead by mass, Cd = battery contains more than 0.002 per cent cadmium by mass, Hg = battery contains more than 0.0005 per cent mercury by mass.
The crossed-out dustbin symbol means that the battery must not be disposed of with household waste.
WEEE Directive: 2012/19/EU
WEEE Register No.: DE 67896761
Hereby, WD Plus GmbH declares that the device 306614 is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU. You can obtain a complete declaration of conformity from WD Plus GmbH, Wohlenbergstraße 16, 30179 Hannover, Germany, or at the following Internet address: https://model.ganziinfach.de/306614
