Thank you for choosing a Brandon product. Please read the following user manual carefully so that you can enjoy the purchased product for a long time. Before using the product, first check that the delivered item is complete, accurate and undamaged.

1. Scope of delivery

• Watering control system
• 1/2" plug for hose connector
• 1/2" connection adapter
- User manual

2. Technical data

Operating voltage 3 V
Battery type Two 1.5V AAA	batteries
Connections	• Water connection 3/4" (inlet / without adapter)• Water discharge 3/4" (outlet / without adapter)
Dimensions (H x W x D) 150	mm x 70 mm x 95 mm
Features • Manual operation	• Adjustable watering program

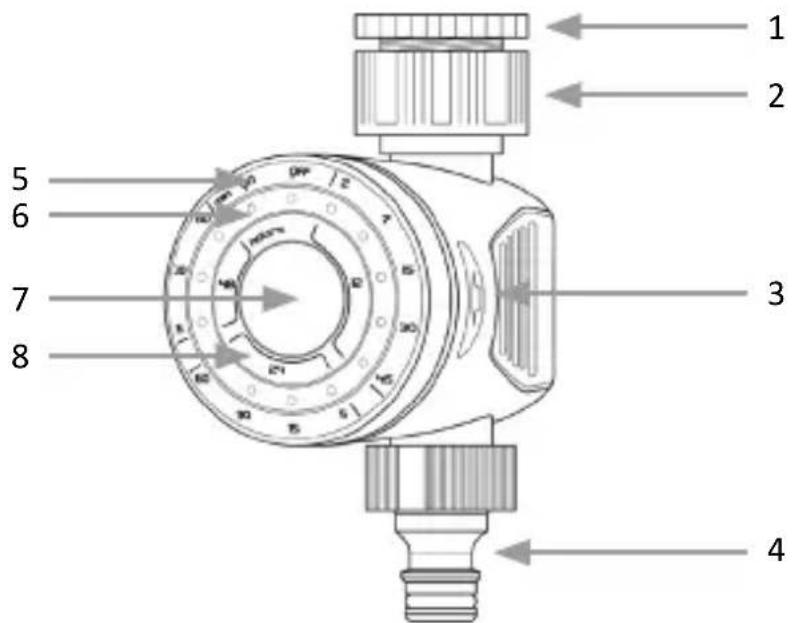

3. Product details

1 2 3 4 5 6 7 8

1 3/4" connection adapter

2 1" connection adapter (remove adapter to use 3/4")

3 Battery compartment buttons

4 Plug for hose connection

5 Duration of watering between 2-60 minutes

6 LED lamps indicate which mode is selected. The LEDs are switched off in default mode to reduce the load on the battery.Battery low: All 14 LEDs flash with a 0.5 second interval. Please replace the batteries.

7 Confirmation button

8 Frequency of watering interval, every 12, 24 or 48 hours.

4. Replacing the battery

Open the battery compartment cover by pressing the two buttons at the side of the device and remove the battery compartment. Open the cap and insert two (LR03 / AAA) 1.5V batteries. Pay attention to the correct polarity of the contacts. Then close the battery compartment cover.

Caution! Use only new batteries. Do NOT use rechargeable batteries. Test the device by pressing the centre button of the device until the LED glows in the "ON" position. You should hear the sound of the motor within 10-15 seconds. Check if the batteries have been inserted properly if you do not hear any sound.

Set the duration knob to . "OFF" position before connecting by pressing the centre button repeatedly till the LED switches "Off".

5. Configuring the program

1. Determine how you want to water. Please refer to the table below for the possible cycle combinations.
2. Press the centre button repeatedly till you reach the desired watering cycle option. The settings are saved after 7 seconds.

NOTE: The first watering cycle starts as soon as the setting is configured. The start time is the current time.

Frequency (hours) Duration (minutes)
12 2, 7, 15, 30, 45
24 5, 15, 30, 60
48 15, 30, 60

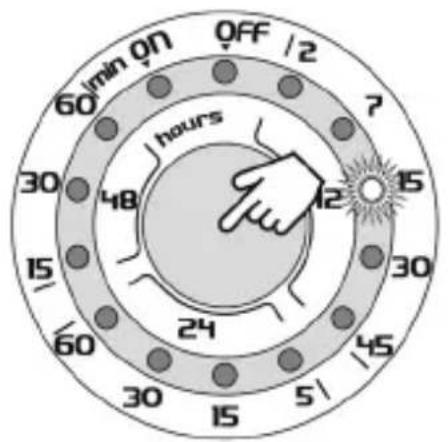

Example 1:

To water twice a day for 15 minutes, press the centre button till the LED glows at the option of frequency: 12 hrs / Duration: 15 mins. The first watering cycle starts after 7 seconds.

60 min on OFF 12 7 hours 30 48 15 15 60 24 45 30 15 51

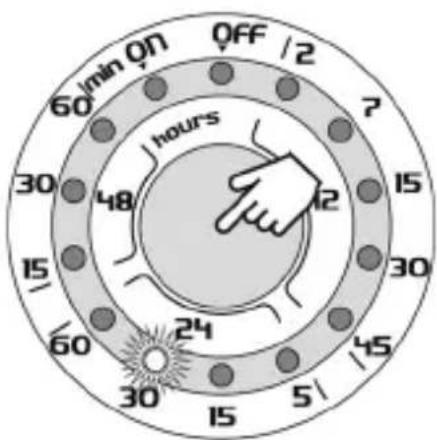

Example 2:

To water once a day for 30 minutes, press the centre button till the LED glows at the option of frequency: 24 hrs / Duration: 30 mins. The first watering cycle starts after 7 seconds.

60 min ON OFF /2 7 hours 30 48 12 15 15 30 60 24 45 30 15 5

To make changes after the original settings:

• Settings are saved after 7 seconds if the centre button is not pressed again. The LED light goes out within 60 seconds.
• The start time changes if the watering time is changed (different position of the status LED). This means that the next watering cycle start time is recalculated.

Delay function:

You can delay the cycle start time using the delay function. To do this, press the centre button for about 3 seconds until all the LEDs glow continuously.

By pressing the middle button again, the start time can be delayed by 1 hr each time the button is pressed.

The start time can be delayed by a maximum of 23 hours.

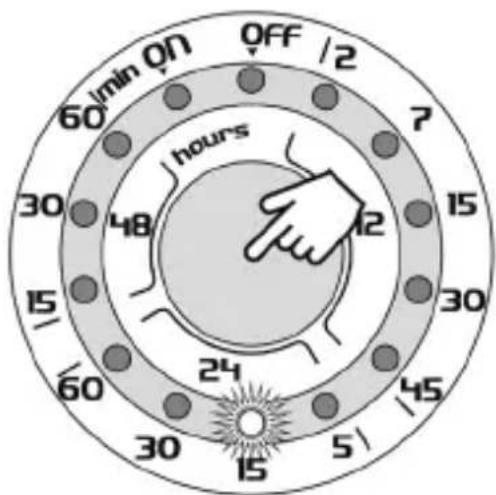

Example 3:

The current time is 8:00 a.m, your setting is Frequency = 24 and Duration = 15. This means that watering is activated every 24 hours for 15 minutes. That is, watering is activated every day at 8:00 a.m in the morning.

But if you want to activate the timer at 10:00 a.m every day, then the start time has to be delayed by 2 hours. Now press the centre button for about 3 seconds until all the LEDs glow continuously.

Then press the button again twice to delay the timer by 2 hours. The device then starts the watering cycle with a delay of 2 hours at 10:00 a.m every 24 hours.

60 min ON OFF 12 7 hours 30 48 15 15 30 60 24 45 30 5 15

6. Manual operation

1. To start manual watering, set the duration to ON.
2. To stop manual watering, set the duration to OFF.

After finishing the manual mode, set the duration back to the desired settings.

7. Additional safety instructions

• The timer is water resistant, NOT water proof. The timer has to be installed above ground and vertically to the tap. Do not immerse the device in water!
• DO NOT pull the hose when it is connected to the watering control system to avoid damage to the timer.
• This timer is intended for outdoor use, to control watering systems.
• The device should not be used for industrial purposes
• The water pressure is between 0.5 bar and 8 bar (0 psi to 116 psi).

Use it only with clean water and fresh water, the water temperature has to be above 1^ C and below 60^ C.

• Protect the timer during winter season or from frost. Disassemble the device from the tap and drain all the water from it. Remove the batteries and keep the device and the batteries safe.
• Always keep the cover closed to prevent water from entering.
• Do not use the device if it has fallen down or has been subject to impact.
• Ensure that you clean the filter regularly if it is dirty.

8. Cleaning

Clean the filter in the water tap connection regularly to prevent your watering system computer from clogging.

9. Safety instructions and disclaimer

Never attempt to open the appliance to carry out repairs or modifications. Avoid contact with the mains voltage. Do not short-circuit the product. The appliance is not frost-proof. Store the appliance away from water and frost in winter. Keep the appliance away from high temperatures. Do not expose the device to sudden changes in temperature or strong vibrations, as this could damage the electronic components. Check the device for any damage before using it.

The device should not be used if it was subject to impact or has been damaged in some other manner. Please comply with the local regulations and restrictions. Do not use the device for purposes other than those described in the user manual.

This product is not a toy. Keep it out of the reach of children or mentally disabled persons. Any repair or modification to the device, which is not carried out by the original supplier, will void any warranty and guarantee claims. The product should be used only by persons who have read and understood this user manual. The

specifications of the device may be changed without any special prior notice.

10. Disposal instructions

In line with the European WEEE directive, electrical and electronic devices should not be disposed of along with domestic waste. Their components have to be separately sent for recycling or disposal, because improper disposal of toxic and dangerous components may permanently damage the environment. According to the electrical and electronic equipment act (ElektroG), you are obliged (as a consumer) to return (free of charge) all electrical and electronic devices to the manufacturer, the point of sale or public collection points at the end of their service life. The relevant local laws regulate the details in this regard. The symbol displayed on the product, in the user manual or/and on the packaging refers to these regulations. With this manner of sorting, recycling and disposal of used devices, you make an important contribution towards protecting our environment.

11. Instructions for battery disposal

In conjunction with the sale of batteries along with the supply of devices that include batteries, the supplier is obliged to point out the following to the customer: The customer is legally obliged to return used batteries. He can return used batteries which the supplier offers or has offered as new batteries in his assortment free of charge to the supplier's dispatch warehouse (shipping address). The symbols shown on the batteries indicate the following: Pb = battery contains more than 0.004 percent lead by weight, Cd = battery contains more than 0.002 percent cadmium by weight, Hg = battery contains more than 0.0005 percent mercury by weight.

The symbol of the crossed-out dustbin means that the battery may not be disposed of in household waste.

CE

WEEE directive: 2012/19/EU

WEEE Register no.: DE 67896761

The company WD Plus GmbH hereby certifies that the device 304260 complies with the fundamental requirements and all other relevant stipulations. A complete conformity statement can be obtained from: WD Plus GmbH, Wohlenbergstraße 16, 30179 Hanover
