HERZLICHEN GLÜCKWUNSCH!

VIELEN DANK, DASS SIE SICH FÜR EIN PRODUKT VON BECOOL

ENTSCHIEDEN HABEN.

Illustration of a water dispenser with a bag pouring liquid into a container (no text or symbols)

HINWEIS

Technical line drawing of a mechanical device with internal components and a directional arrow (no text or symbols)

HINWEIS

Technical line drawing of a mechanical housing or enclosure with directional arrows indicating movement (no text or symbols)

Important Information about Safety, Site Location and Electrical Connections	14 – 15
Recycling, Waste Management, Declaration of Conformity 16
Scope of Supply 17
Description of Appliance 17
Commissioning 18
Setting the functions 19 – 20
Tips for correct application 20
Maintenance and cleaning 21
Activities at the beginning/end of the season 22
Tracking and fixing problems 22
Technical informations 23
Warranty 24

PLEASE READ THE OPERATING MANUAL CAREFULLY BEFORE BEGINNING INSTALLATION, MONITORING, OPERATING, OR MAINTENANCE. PROTECT YOURSELF AND OTHERS BY FOLLOWING THE SAFETY INSTRUCTIONS. FAILURE TO COMPLY WITH INSTRUCTIONS MAY RESULT IN PERSONAL INJURY AND/OR PROPERTY DAMAGE AND/OR LOSS OF WARRANTY CLAIMS!

IMPORTANT INFORMATION ABOUT SAFETY, SITE LOCATION AND ELECTRICAL CONNECTIONS.

Use this appliance exclusively under the guidelines of this operating manual. Any other use not recommended by the manufacturer may cause fire, electrical shock, or personal injury.

1. This appliance is intended exclusively for heating and cooling of living spaces in households and may not be used for any other purpose.
2. The appliance is not suitable for continuous and precision operation and should not be used for cooling electrical systems (e.g. in server rooms).
3. Remove the packing and make sure that the appliance is not damaged. In case of doubt, do not use the appliance, and contact the service centre or your dealer.
4. If the appliance has a defect, also contact either your dealer or the service centre.
5. If the power supply cable is damaged, it must be replaced by the manufacturer or an authorised service centre to avoid all possible risks.

BE COOL

1. For any repairs, always contact the customer service offices authorised by the manufacturer. You can access the customer service centres online at www.becool.at.

2. Before connecting it to the mains power supply, check that the mains voltage and the type of electrical current matches the information provided on the type plate on the appliance.

3. The electrical outlet that the appliance must be connected to, must not be defective or loose and must be suitable for the current load required, and, above all, must be reliably earthed. In case of doubt, have your electrical installation checked by a qualified electrician.

4. Avoid using an extension cable, because this could overheat and cause a fire.

5. It is forbidden to adapt or modify the characteristics of this appliance in any way. Use only replacement parts and accessories recommended by the manufacturer (failure to comply will result in the loss of the guarantee and warranty).

6. Children must not be allowed to play with the appliance.

7. Do not let small children play with the packaging – THERE IS A DANGER OF SUFFOCATION ON SMALL PARTS!

8. Children under 8 years of age and persons with limited physical, psychological, sensory or mental abilities, as well as a lack of experience and knowledge, may only use this appliance under appropriate supervision and if this appliance is used for detailed instructions on both using this appliance in a safe manner and describing any existing hazards.

9. Do not operate the appliance unattended. Should you leave the room, always switch off the appliance.

10. Do not twist, buckle or snap off the power supply cable.

11. Do not use the appliance with wet hands.

12. Do not use the appliance outdoors.

13. Never cover the appliance.

14. Do not operate the appliance in rooms where gas, oil or sulphur are present.

15. Do not use the appliance near water or high humidity, e.g. in damp cellars, or next to swimming pools, bathtubs or showers. Make sure that water does not get into the appliance.

16. Do not place the appliance near heat sources (e.g. next to heating systems) and avoid direct sunlight.

17. Keep a minimum distance of at least 50 cm from combustible substances (e.g. alcohol) or pressurised vessels (e.g. spray containers).

18. Do not place any heavy or hot objects on top of the appliance.

19. Place the appliance on a solid and even support surface.

20. Never insert fingers, pins or other objects into the appliance and make sure that the air entry and outlet are never blocked.

21. Change the water regularly.

22. Always fill the water tank above the minimum level, but never above the maximum level.

23. If you want to move the appliance, always make sure that the locking brakes are loosened.

24. If there is water in the water tank, do not move the appliance quickly to avoid any leakage(s) or splashing any water.

25. To avoid high humidity, do not use the appliance in "COOL" and "HEAT" mode for long periods of time in a closed area without ventilation.

26. The cool packs are not a toy – keep children and animals away from them.

27. Never attempt to open the cool packs for any reason. The liquid contained in it can be harmful to health.

28. Always switch the appliance off, before unplugging it.

29. Do not pull the mains cable to disconnect the appliance from the mains supply. Always pull the plug to pull out the mains cable.

30. To avoid electric shocks, do not handle the plug with wet or damp hands.

31. Remove the plug and empty the water tank, when the appliance is not in use.

32. When not in use, keep the appliance vertical in a safe, dry place that is inaccessible for children, and do not cover the appliance with plastic packaging.

BE COOL

1. Maintain the appliance in good condition by maintaining and cleaning it. If you have any questions about maintenance, contact the customer hotline/service centre authorised by the manufacturer.

RECYCLING

The packaging materials can be recycled. Therefore, it is recommended to dispose of them in sorted waste.

DISPOSAL

The pictogram with the crossed out dustbin points to the requirement for separate disposal of electrical and electronic appliances (WEEE). Electrical and electronic appliances can contain hazardous and environmentally hazardous materials. Therefore, do not dispose of these in the unsorted residual waste, but at a registered collection centre for waste electrical and electronic equipment. By doing so, you will help to conserve resources and protect the environment.

For further details, please consult your dealer or your local authorities.

DECLARATION OF CONFORMITY

We hereby confirm that this article complies with the essential requirements, regulations and guidelines of the EU.

The detailed declaration of conformity can be viewed at any time via following link: www.becool.at/downloads/doc/bcachl2001f.pdf

Specifications are subject to change without prior notice.

www.becool.at

BE COOL

SCOPE OF DELIVERY

The BECOOL cooler comes with:

• Air cooler
• 1x operating manual
• 4x transport wheels
• 1x remote control

DESCRIPTION OF THE APPLIANCE

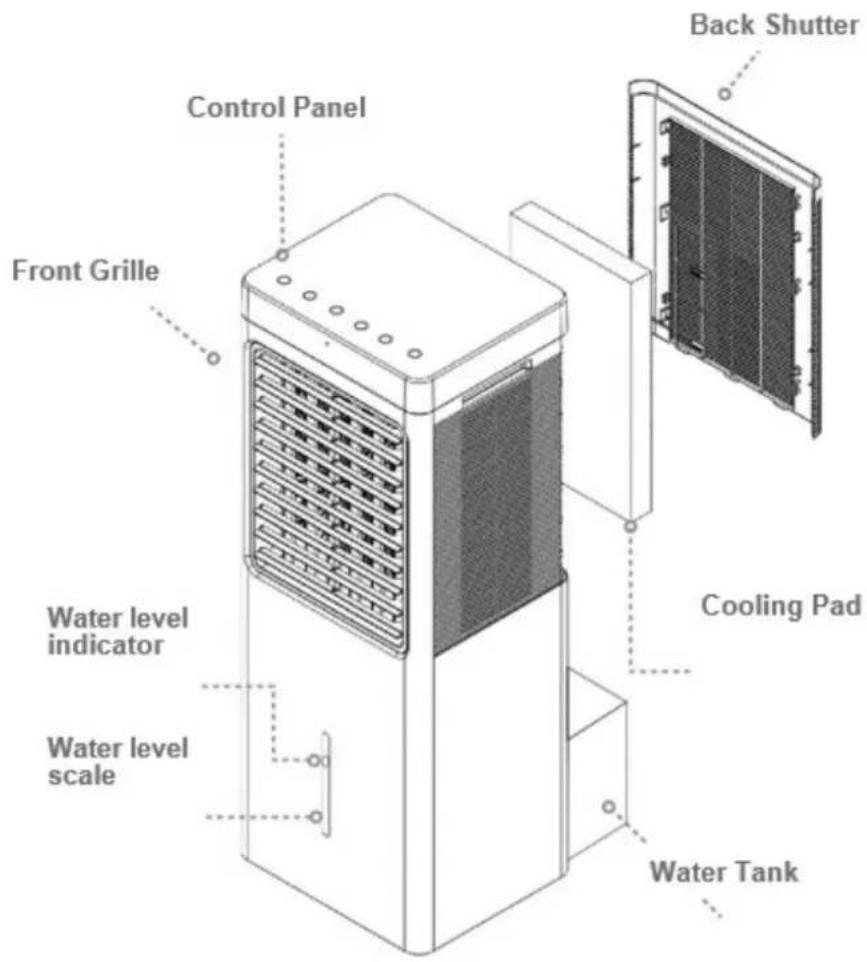

Control Panel Front Grille Back Shutter Water level indicator Water level scale Cooling Pad Water Tank

COMMISSIONING

BEFORE USING THE APPLIANCE FOR THE FIRST TIME

Unpacking the Appliance

1. Open the carton and take out the appliance.
2. Remove all packaging from the appliance.
3. Unwind the mains cable completely and make sure not to damage it.

Transport wheels

For easier transport, the appliance is equipped with transport wheels.

In addition, two rollers are equipped with a locking brake to guarantee that they remain firmly in position.

1. After the appliance has been carefully unpacked, insert the transport rollers into the designated notches on the bottom of the appliance.

INSTALLATION

Please note the following points for installation.

1. Place the appliance on a level and solid surface and adjust the locking brakes so that the appliance stands firmly in position.
2. There must be at least a 50 cm gap to walls or other objects.
3. Before using the appliance, make sure that both the air inlet and the air outlet are free of obstacles and are not blocked.
4. Connect the appliance to an earthed outlet.

FILLING THE WATER TANK

Furthermore, please note the following:

1. Pull out the water tank.
2. Fill it with clean water and pay attention to the level on the front of the water tank until the orange water level indicator reaches water level scale.
3. Make sure, that the outside of the water tank is dry. If necessary wipe the watertank.
4. Then carefully push the tank back into the aircooler.

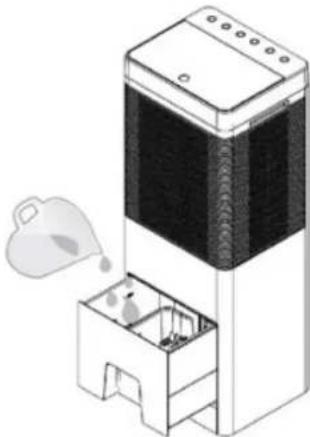

Illustration of a water dispenser with a bag pouring liquid into a lower container (no text or symbols)

NOTE

Never fill the water above the limit of the water level scale, as otherwise water will get inside the device and could damage electronic parts.

BE COOL

SETTING THE FUNCTIONS

CONTROL PANEL AND REMOTE CONTROL

The functions of the air cooler can be set using the remote control or directly on the device on the control panel.

When controlled by remote control, please point it directly at the device so that it functions properly.

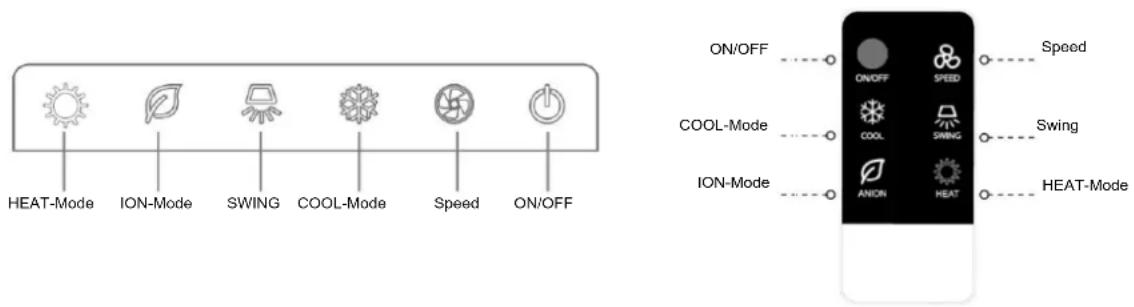

CONTROL PANEL REMOTE CONTROL

HEAT-Mode ION-Mode SWING COOL-Mode Speed ON/OFF ON/OFF COOL-Mode ON-Mode ON/OFF SPEED SPEED SWING SPEED ON/OFF ON/OFF SPEED SPEED SPEED SPEED SPEED SPEED SPEED SPEED SPEED SPEED SPEED SPEED SPEED SPEED SPEED SPEED SPEED SPEED SPEED SPEED SPEED SPEED SPEED SPEED SPEED SPEED SPEED SPEED SPEED SPEED SPEED SPEED SPEED SPEED

ON/OFF

• Push the ON/OFF –button to turn the aircooler ON and OFF.
• As soon as you turn on the device, the respective indicator will light up.

SET THE SPEED

• Use the SPEED-BUTTON to set the fan speed.
• The respective LED will light up:
  Press 1x → Level 1 → Low Speed
  Press 2x → Level 2 → Medium Speed
  Press 3x → Level 3 → High Speed

SWING-MODE

• Use the SWING-Button to switch the oscillation of the device on and off → the respective LED will light up.
• Press the SWING-Button again to switch off the oscillation.

NOTE

With this function, the blown air is distributed to the left and right. This allows you to achieve a horizontal air distribution.

ION-MODE

- The Air Cooler has an ionizer-function. To activate or deactivate it, press the ANION-Button → the respective LED will light up.

NOTE

The resulting atoms and molecules promote the chemical degradation process and can be used to remove odors and disinfect the air.

COOL-MODE

• Use the COOL-Button to start or end the function → the respective LED indicator will light up.
  • Make sure the water level is above the MIN.
• As soon as you press the button, the device starts pumping water against the water filter to generate cold and moist air, which is then blown out of the device.

NOTE

If the AirCooler is in the highest fan level and you activate the COOL-Mode, the device will automatically switch tot he lowest speed level for approx. 30 seconds, before it automatically switches back to the highest speed level.

HEAT-MODE

• Press the HEAT-Button to activate or deactivate the function → the respective LED-indicator lights up.
• During the HEAT-Mode, the blower level will automatically set to the lowest level.
• As soon as you switch off the HEATING-Mode, the fan remains in operation for approx. one minute for the purpose of dissipating heat.

NOTE

If the air in the HEAT-Mode is too dry, you can use the COOL-Button to increase the humidity in the room.

TIPS FOR CORRECT APPLICATION

Below are some tips to get the very best out of the air cooler:

During the COOL-Mode protect the room from direct sunlight with curtains, blinds or shutters. This saves you energy.

Do not place any objects on to the appliance, and do not obscure the air outlet.

Keep the grilles clear.

During the COOL-Mode make sure that no heat sources are operating in the room.

Never use the appliance in very humid rooms (e.g. laundry rooms).

Do not use the appliance outdoors.

Make sure that the appliance is on level flooring and that the locking brakes are applied.

BE COOL

MAINTENANCE AND CLEANING

CLEANING DUST FILTERS

To ensure that the air cooler operates efficiently, you should clean the dust filter after each week of operation. Please follow these steps:

1. Before cleaning the appliance, switch it off, then wait a few minutes, and then unplug it to disconnect the appliance from the mains power supply.
2. Remove the cover grille on the back of the appliance and then remove the underlying dust filter from the appliance.
3. Use a vacuum cleaner to remove the dust accumulated in the filter.
4. If the filter is very dirty, immerse it in warm water and rinse it several times – but the water temperature must not exceed 40°C.
5. Before putting the dust filter back into the cover grille, allow it to dry out well after washing.
6. Reattach the cover grille

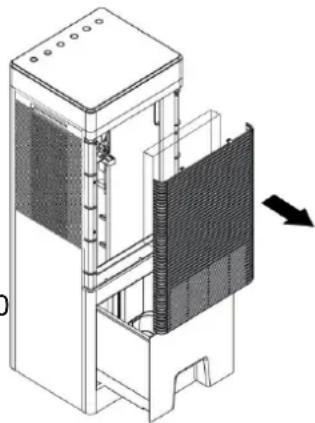

Technical line drawing of a mechanical device with internal components and a directional arrow (no text or symbols)

NOTE

Never use the appliance without a filter.

CLEANING THE HOUSING

Before cleaning the appliance, switch it off, then wait a few minutes, and then unplug it to disconnect the appliance from the mains power supply.

Clean the appliance with a moderately damp cloth, then wipe it with a dry cloth.

• Never use benzene, alcohol or solvents to clean the appliance – this could be dangerous.
• Do not spray insecticides or similar agents on to the air cooler.

CLEANING THE WATER TANK

It is recommended to empty the water tank every 2-3 weeks during use. Please follow these steps:

1. Pull out the water tank completely.
2. Clean the inside and outside of the tank with a soft cloth that you have previously immersed in soapy water.
3. Then rinse the tank with warm, clear water.
4. Let the tank dry completely and put the water pump back into the safety holder before refilling it.

ACTIVITIES AT THE BEGINNING/END OF THE SEASON

ACTIVITIES AT THE END OF THE SEASON

• Switch off the appliance and disconnect the mains plug.
• Carefully empty the water tank.

• Remove any water in the device as follows:

• Pull out the water tank.

• Place a vessel under the AirCooler.
• Then remove the drain valve and allow the water to drain. You can also tilt the device a little to ensure that all the water drains away.
• Finally insert the valve and the water tank again.

- Clean the filter and reinsert it (see section "Cleaning Dust Filters").

- Pack away the appliance and store it in a cool, dry place.

INSPECTIONS AT THE BEGINNING OF THE SEASON

• Verify that the power supply cable is in order and that the earthing is functioning.
• Follow the installation and safety instructions carefully.

TRACKING AND FIXING PROBLEMS

Before contacting our customer hotline/service centre, please check whether the error can be rectified using the instructions below.

PROBLEM	POSSIBLE CAUSE	SOLUTION
The air cooler does not switch on.	You are using the wrong button.	You can switch on the appliance with the button either on the remote control or directly on the appliance.
	Power failure	Wait for the power supply to be restored.
	The appliance is not connected to the power supply.	Connect/plug the appliance to the power supply and wait for a minimum of 30 mins!
	The remote control battery is flat.	Please replace the battery.
The air cooler works only for a short amount of time.	The water tank is empty. Fill the water tank.
	Something is blocking the air outlet.	Check and remove all obstacles that are blocking the air supply.
During operation, an unpleasant odour is emerging from the room.	The air filter or water tank is dirty.	Clean the air filter(s) and/or water tank in accordance with the description.
The appliance is very loud.	The floor that the air cooler is located on is not level.	Place the air cooler in a different location.

Technical information

Nominal voltage	220 V ~ 240 V
Frequency	50 Hz
Rated power input	1100W
Water tank capacity	9.3L
Description	Symbol	Value	Unit
Maximum air velocity	V	6.5	m/s
Air circulation	SV	760	(m3/h) W
Fan sound power level	LWA	60	dB(A)
Max. evaporative capacity	AL	900	ml/h
Consumption in standby mode	PSB	Less than 0.5	W
Dimensions
Product dimensions:	28x25x74cm
Weight:	5.9kg
Contact addresses for more information and Serviceline:	Schuss Home Electronic GmbHScheringgasse 3, A-1140 Vienna, AustriaTel: [phone] – 0Serviceline: [phone] – 502www.becool.atFB no.: 236974 t / FB court: Vienna

WARRANTY

By purchasing this BE COOL quality product means that you have decided to place trust in durability, reliability and innovation.

For this BE COOL appliance, we grant a warranty period of 2 years from the date of purchase valid in Austria!

If, contrary to expectations, service work on your appliance is still necessary during this period, we hereby guarantee either free repairs (spare parts and working time) or (at the discretion of Schuss) that we will replace the product. If it is not possible to either repair or exchange the product for economic reasons, we reserve the right to create a time value credit.

For air conditioners, please contact the customer hotline as a first step (see the labels on the appliance or title page of the operating manual), for fans, contact your specialist dealer or directly contact us. We would like to point out that repair work that has not been performed by the authorised contract workshop in Austria will immediately terminate the validity of this warranty.

This warranty does not cover:

• In case of improper use, we do not assume any consequential damage
  • Repair or replacement of parts due to normal wear and tear
• Damage resulting from failure to follow the operating manual
• Appliances that are used commercially, even in part
• Appliances mechanically damaged due to external influence (any fall(s), impact(s), breakage(s), improper use, etc.) as well as signs of wear and tear of an aesthetic nature
• Appliances that have been improperly treated
• Appliances that have not been opened by our authorised service workshop
• Damage caused by improperly closed condensate drain valves of air conditioners or an incorrectly inserted water tank
  • Unfulfilled consumer expectations
• Damage caused by force majeure, water, lightning and overvoltage
• Appliances that have had their type designation and/or serial number on the appliance changed, deleted, made illegible or removed.
• Services outside our contract workshops, the transport costs to either an authorised workshop or to us and back, and the associated risks

We would like to expressly point out that a fixed amount of € 60 (indexed basis CPI 2010, June 2015) will be charged within the warranty period in the event of operating errors or if no error has been detected.

The provision of a warranty service (repairs or replacement of the appliance) does not extend the absolute warranty period of 2 years from the date of purchase.

The 2-year warranty is only valid upon presentation of the proof of purchase (must include the name and address of the dealer as well as the complete appliance designation) and the corresponding warranty certificate, on which the appliance type and the serial number (on the box and on both the back and underside of the appliance) are to be noted! Without presenting the warranty certificate, only the legal warranty applies!

We would like to expressly point out that the statutory warranty rights are unaffected by this warranty and continue unabated.

A liability for damage on the part of Schuss Home Electronic GmbH and its vicarious agents only exists in the event of gross negligence or intent. In any event, liability for lost profits, expected but not occurred savings, consequential damage and damage arising from claims of third parties is excluded. Damage to or for recorded data are always excluded from the liability for damage.

Congratulations on making your choice. We wish you a lot of pleasure with the BE COOL appliance!

ADDRESS

SHE Vertrieb

Schuss Home Electronic GmbH

A-1140 Vienna (Austria),

Tel.: [phone]

Type designation:

Serial number:

In the event of a warranty claim, this warranty certificate must be handed over with the appliance to the authorised service workshop or the dealer which you purchased the appliance from!

SOMMAIRE

FR

DÉCLARATION DE CONFORMITÉ

Illustration of a portable water dispenser with a bag pouring liquid into a container (no text or symbols)

AVIS

Technical line drawing of a mechanical device with internal components and a directional arrow (no text or symbols)

AVIS

Technical line drawing of a mechanical housing with directional arrows indicating movement (no text or symbols)

CONTRÔLES EN DÉBUT DE SAISON

Illustration of a water dispenser with a bag pouring liquid into a container (no text or symbols)

NOTA

Technical diagram of a mechanical device with internal components and a directional arrow (no text or symbols)

NOTA

Technical line drawing of a mechanical housing or enclosure with directional arrows indicating movement (no text or symbols)

CONTROLES AL INICIO DE LA TEMPORADA

Illustration of a water dispenser with a bag pouring liquid into a container (no text or symbols)

AVVISO

ACCENSIONE DEL DISPOSITIVO

Technical line drawing of a mechanical device with internal components and a directional arrow (no text or symbols)

AVVISO

Technical line drawing of a mechanical housing or enclosure with directional arrows indicating movement (no text or symbols)

Illustration of a water dispenser with a bag pouring liquid into a container (no text or symbols)

UPOZORNĚNÍ

Technical line drawing of a mechanical device with internal components and a directional arrow (no text or symbols)

UPOZORNĚNÍ

Technical line drawing of a mechanical housing or enclosure with directional arrows indicating movement (no text or symbols)

Illustration of a portable water dispenser with a bag pouring liquid into a container (no text or symbols)

MEGJEGYZÉS

Technical line drawing of a mechanical device with internal components and a directional arrow (no text or symbols)

MEGJEGYZÉS

Technical line drawing of a mechanical housing or enclosure with directional arrows indicating movement (no text or symbols)

SZEZON ELEJI ELLENÖRZÉSEK

Illustration of a water purifier with a bag pouring liquid into a container (no text or symbols)

WSKAZÓWKA

Technical line drawing of a mechanical device with internal components and a directional arrow (no text or symbols)

WSKAZÓWKA

Technical line drawing of a mechanical housing or enclosure with directional arrows indicating movement (no text or symbols)

KONTROLE NA POCZĄTKU SEZONU

Illustration of a water dispenser with a bag pouring liquid into a container (no text or symbols)

NAPOMENA

Nikada nemojte puniti spremnik za vodu iznad granične vrijednosti mjerne oznake za razinu napunjenosti vode jer bi u protivnom voda mogla prodrijeti u unutrašnjost uređaja i time oštetiti elektroničke komponente.

NAMJEŠTANJE FUNKCIJA

POLJE ZA RUKOVANJE I DALJINSKI UPRAVLJAČ

Technical line drawing of a mechanical device with internal components and a directional arrow (no text or symbols)

NAPOMENA

Technical line drawing of a mechanical housing with directional arrows indicating movement (no text or symbols)

AKTIVNOSTI PRI POČETKU SEZONE

• Provjerite je li kabel za opskrbu strujom u redu te je li uzemljenje funkcionalno.
• U potpunosti slijedite sve upute za instalaciju i sigurnosne napomene.

UKLANJANJE PROBLEMA

Prije no što se obratite našoj pozivnoj liniji za korisnike / servisnoj lokaciji, provjerite može li se pogreška ukloniti na temelju napomena navedenih u nastavku.

Illustration of a portable water dispenser with a bag pouring liquid into a container (no text or symbols)

NAPOMENA

Rezervoar za vodu ne punite nikada iznad granične vrednosti na skali nivoa vode, jer inače voda može da dospe u unutrašnjost uređaja i tako ošteti elektronske delove.

PODEŠAVANJE FUNKCIJA

KONTROLNA TABLA I DALJINSKI UPRAVLJAČ

Funkcije rashlađivača mogu da se podešavaju putem daljinskog upravljača, kao i preko kontrolne table na uređaju.

Technical line drawing of a mechanical device with internal components and a directional arrow (no text or symbols)

NAPOMENA

Ne koristite nikada uređaj bez filtera.

ČIŠĆENJE KUĆIŠTA

Pre čišćenja isključite uređaj, zatim pričekajte nekoliko minuta, a onda izvucite utikač, da biste isključili uređaj iz mreže.

Technical line drawing of a mechanical housing with directional arrows indicating movement (no text or symbols)

KONTROLE NA POČETKU SEZONE

Illustration of a portable water dispenser with a bag pouring liquid into a lower compartment (no text or symbols)

NOT

Technical line drawing of a mechanical device with internal components and a directional arrow (no text or symbols)

NOT

Technical line drawing of a mechanical housing or enclosure with directional arrows indicating movement (no text or symbols)
