USER MANUAL DM20D DOMETIC

Black square office refrigerator with a silver door and handle (no visible text or symbols)

DM20D, DM20F

Drawer Minibar

Operating manual 11

Schubfach-Minibar

© 2020 Dometic Group. The visual appearance of the contents of this manual is protected by copyright and design law. The underlying technical design and the products contained herein may be protected by design, patent or be patent pending. The trademarks mentioned in this manual belong to Dometic Sweden AB. All rights are reserved.

1 2 3

Technical line drawing of an internal combustion engine unit with coiled tubing and labeled components (no text or symbols beyond labels)

1 2 3 4 SETPE

4 1 2

5

C

≥ 200 cm² ≥ 200 cm² D

6 1 100℃ 2 2

7
A

Technical line drawing of a mechanical assembly with an inset magnified detail showing internal components (no text or symbols)

B

Technical diagram of a device interior with labeled components, showing internal structure and directional arrows.

C

Technical diagram of a device drawer with labeled components and assembly steps, showing internal structure and movement arrows.

8

A 1 68

B 1 2

10

Technical diagram of a mechanical assembly with numbered components and directional arrows indicating assembly steps.

11

12

ENERG SUPPLIER'S NAME MODEL IDENTIFIER A B C D E F G kWh/annumXYZ XYZ L XYZ L XY dB ABCD

Diagram showing a hand holding a smartphone displaying a QR code with an arrow pointing to it, indicating scanning or linking.

eprel.ec.europa.eu

Please read these instructions carefully and follow all instructions, guidelines, and warnings included in this product manual in order to ensure that you install, use, and maintain the product properly at all times. These instructions MUST stay with this product.

By using the product, you hereby confirm that you have read all instructions, guidelines, and warnings carefully and that you understand and agree to abide by the terms and conditions as set forth herein. You agree to use this product only for the intended purpose and application and in accordance with the instructions, guidelines, and warnings as set forth in this product manual as well as in accordance with all applicable laws and regulations. A failure to read and follow the instructions and warnings set forth herein may result in an injury to yourself and others, damage to your product or damage to other property in the vicinity. This product manual, including the instructions, guidelines, and warnings, and related documentation, may be subject to changes and updates. For up-to-date product information, please visit www.dometic.com.

Contents

1 Explanation of symbols....11
2 Safety instructions....12
3 Scope of delivery .....15
4 Intended use....15
5 Technical description ....16
6 Installation....18
7 Operation 20
8 Troubleshooting....21
9 Cleaning and maintenance.... 22
10 Warranty 22
11 Disposal.... 22
12 Technical data 23

1 Explanation of symbols

DANGER!

Safety instruction: Indicates a hazardous situation that, if not avoided, will result in death or serious injury.

WARNING!

Safety instruction: Indicates a hazardous situation that, if not avoided, could result in death or serious injury.

CAUTION!

Safety instruction: Indicates a hazardous situation that, if not avoided, could result in minor or moderate injury.

NOTICE!

Indicates a situation that, if not avoided, can result in property damage.

NOTE

Supplementary information for operating the product.

2 Safety instructions

2.1 General safety

WARNING! Failure to obey these warnings could result in death or serious injury.

Electrocution hazard

• Ensure that the minibar has been installed by a qualified technician in accordance with the Dometic installation manual.
• Do not operate the minibar if it is visibly damaged.
• If this minibar's power cable is damaged, it must be replaced by the manufacturer, service agent or a similarly qualified person in order to prevent safety hazards.
• This minibar may only be repaired by qualified personnel. Inadequate repairs may cause serious hazards.

Fire hazard

- The refrigerant in the refrigerant circuit is highly flammable. In the event of any damage to the refrigerant circuit:

• Switch off the minibar.
• Avoid naked flames and sparks.
• Air the room well.

Explosion hazard

- Do not store any explosive substances, such as spray cans with propellants, in the minibar.

Health hazard

• This minibar can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the minibar in a safe way and understand the hazards involved.
  • Children shall not play with the minibar.
• Cleaning and user maintenance shall not be made by children without supervision.
• Children aged from 3 to 8 years are allowed to load and unload the minibar.

CAUTION! Failure to obey these cautions could result in minor or moderate injury.

Risk of crushing

- Do not put your fingers into the hinge.

Health hazard

- Foodstuff may only be stored in its original packaging or in suitable containers.

NOTICE! Damage hazard

• Check that the voltage specification on the type plate is the same as that of the power supply.
• The minibar is not suitable for storing substances which are caustic or contain solvents.
• The insulation of the cooling device contains flammable cyclopentane and requires special disposal procedures. Deliver the cooling device at the end of its life-cycle to an appropriate recycling center.
• Keep the drainage outlet clean at all times.
• Do not open the refrigerant circuit under any circumstances.
• Only carry the minibar upright.

2.2 Operating the minibar safely

DANGER! Failure to obey these warnings will result in death or serious injury.

Electrocution hazard

- Do not touch exposed cables with your bare hands.

CAUTION! Failure to obey these cautions could result in minor or moderate injury.

Electrocution hazard

- Before starting the minibar, ensure that the power supply line and the plug are dry.

Health hazard

• Make sure that you only put items in the minibar which may be chilled at the selected temperature.
• Food may only be stored in its original packaging or in suitable containers.
• Opening the door for long periods can cause significant increase of the temperature in the compartments of the minibar.
• Clean regularly surfaces that can come in contact with food and accessible drainage systems.

• If the minibar is left empty for long periods:

• Switch off the minibar.

• Defrost the minibar.
• Clean and dry the minibar.
• Leave the door open to prevent mould developing within the minibar.

NOTICE! Damage hazard

• Only store heavy objects such as bottles or cans in the minibar door or on the bottom shelf.
• Do not use electrical devices inside the minibar unless they are recommended by the manufacturer for that purpose.
• Do not place it near naked flames or other heat sources (heaters, direct sunlight, gas ovens etc.).
• Ensure that the ventilation vents are not covered.
• Never immerse the minibar in water.
• Protect the minibar and the cable against heat and moisture.
• Make sure that foodstuffs do not touch the walls of the cooling area.

NOTE

- For ambient temperatures of +15 °C to +25 °C, select the average temperature setting.

3 S c o p e o f d

The following main alternatives are obtainable:

• Minibar DM20D with door panel, without lock
• Minibar DM20D with door panel, with lock
• Minibar DM20F without door panel, without lock
• Minibar DM20F without door panel, with lock

Quantity Description

1 Minibar

1 AC connection cable

2 Screw ∅ 4 x 45 mm (Installation)

2 Screw ∅ 4 x 25 mm (Installation of the front feet)

2 Screw M4 x 45 mm (Handle installation)

2 Plug (Installation)

1 Handle DM20D only

2 Plug (Handle installation) DM20D only

2 Plug (Wooden panel) DM20F wooden version only

1 Lock decor (Wooden panel) DM20F wooden version with lock only

2 Key Lock version only

1 Installation and Operating manual

4 Intended use

The refrigeration appliance (also referred to as minibar) is designed for operation in enclosed buildings, such as:

• In staff kitchens in stores, offices and other work areas
  • In the agricultural sector
  • In hotels, motels and other accommodations
  • In bed and breakfast establishments
  • In catering businesses or similar wholesaler operations

The minibar is not suitable for installation in caravans or mobile homes.

The minibar is intended for installation in a piece of cabinetry or an installation niche.

The minibar is designed exclusively for cooling and storing of beverages and foods in closed containers.

The minibar is not suitable for storing fresh foods and medicine or freezing food-stuffs.

This minibar is only suitable for the intended purpose and application in accordance with these instructions.

This manual provides information that is necessary for proper installation and/or operation of the minibar. Poor installation and/or improper operating or maintenance will result in unsatisfactory performance and a possible failure.

The manufacturer accepts no liability for any injury or damage to the product resulting from:

• Incorrect assembly or connection, including excess voltage
• Incorrect maintenance or use of spare parts other than original spare parts provided by the manufacturer
• Alterations to the product without express permission from the manufacturer
• Use for purposes other than those described in this manual

Dometic reserves the right to change product appearance and product specifications.

5 Technical description

The minibar has a drawer with room for 12 cans (plus snacks bars).

On delivery the provided shelves and compartments are positioned so that the device can be operated in an energy-efficient manner.

The minibar DM20D comes with a anthracite panel and pull handle.

The minibar DM20F is delivered without panel and is prepared for fitting the hotel's own door decor.

Its cooling system is a non-wearing Peltier cooling system.

A lock is optionally available.

5.1 Description of the device

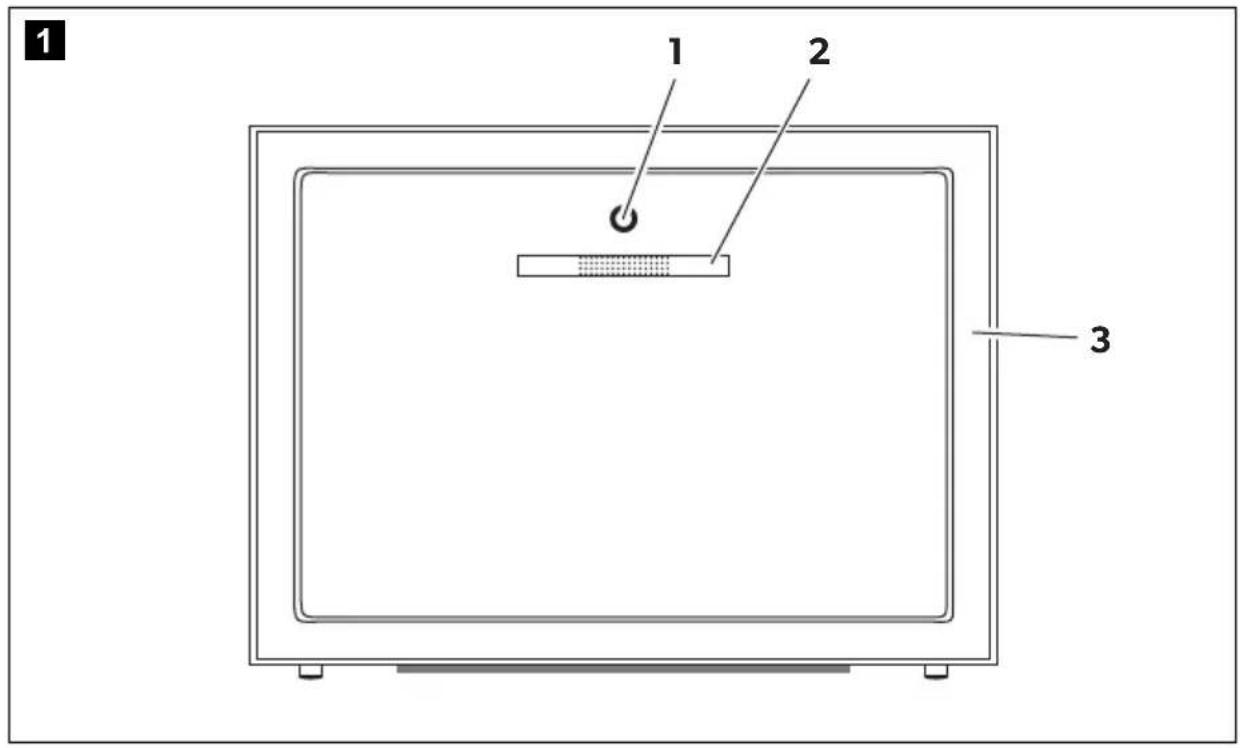

Front side

No. in fig. 1, page 3	Description
1 Lock (optional)
2 Handle (DM20D only)
3 Door panel (DM20D only)

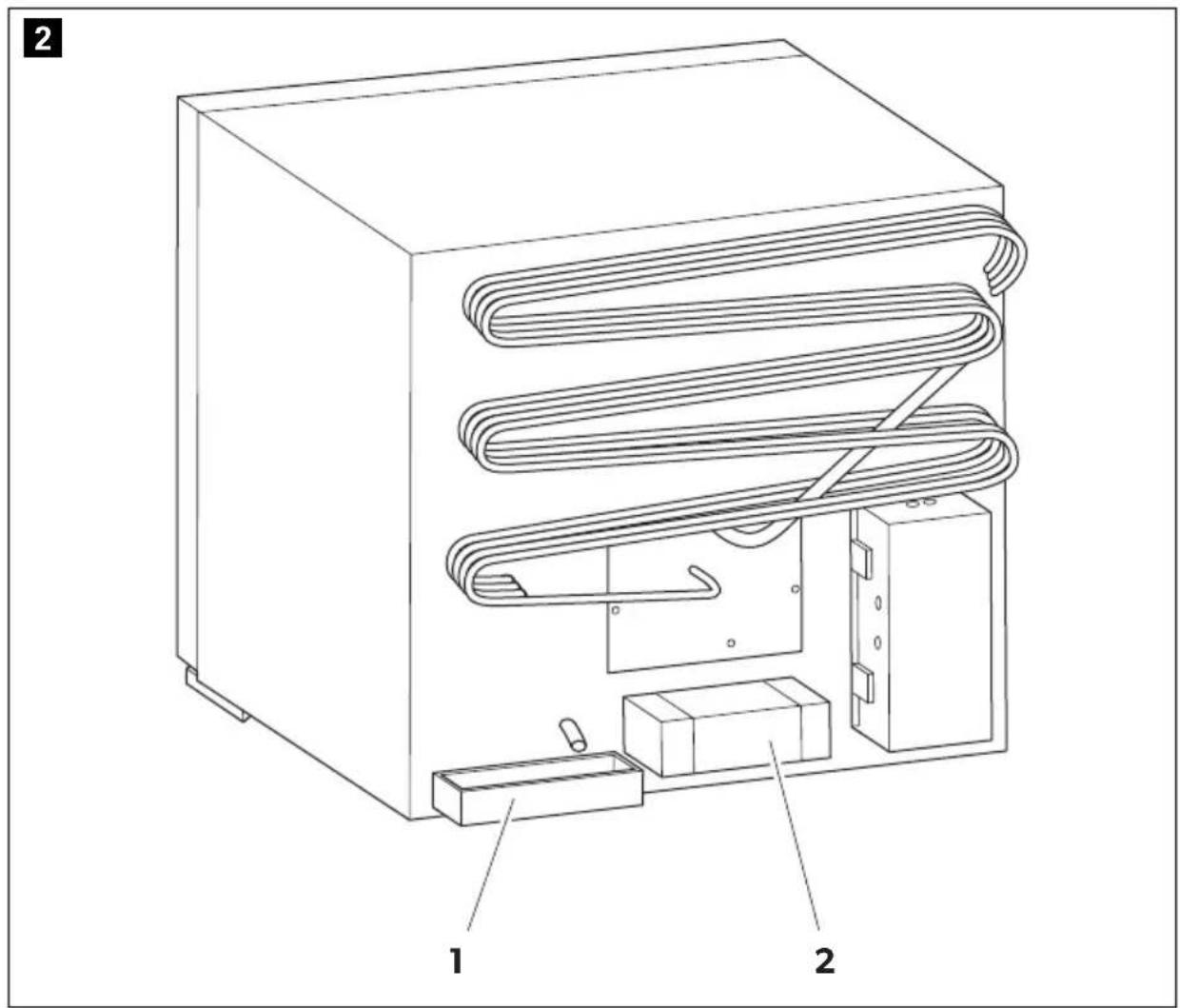

Rear side

No. in fig. 2, page 3	Description
1 Drip tray
2 Mains adapter

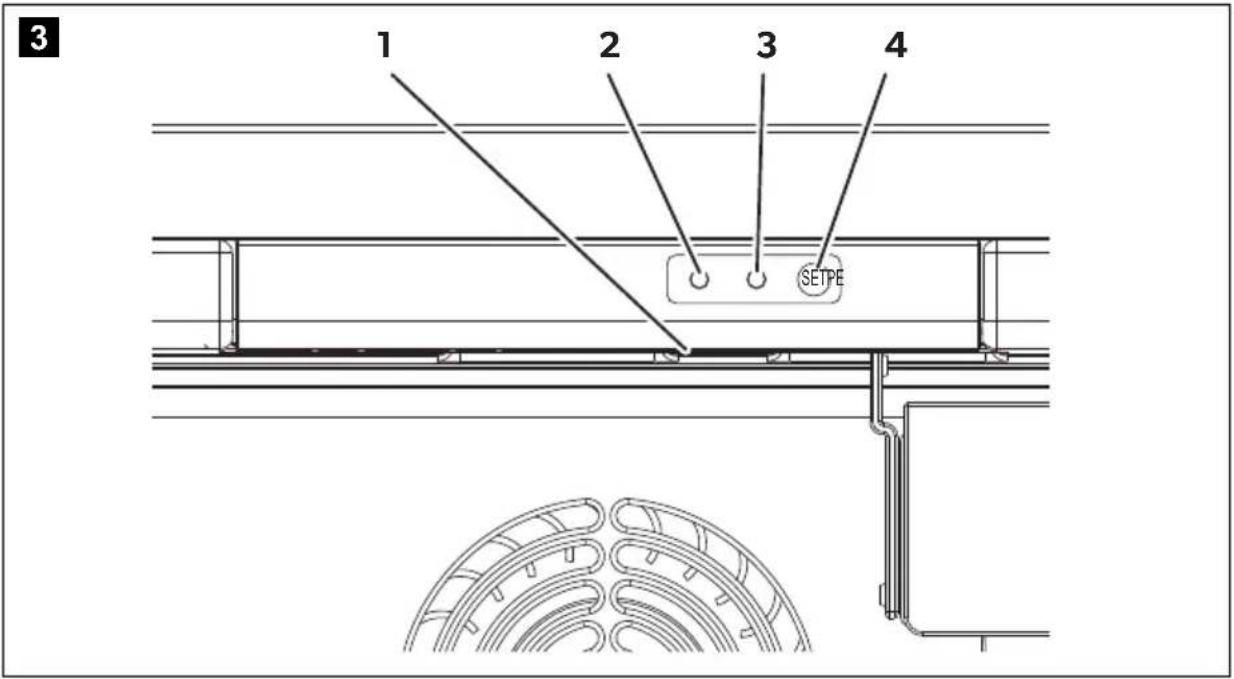

Control panel (inside the device)

No. in fig. 3, page 4	Description
1 Lamp
2 Error LED
3 Status LED
4 Setting button

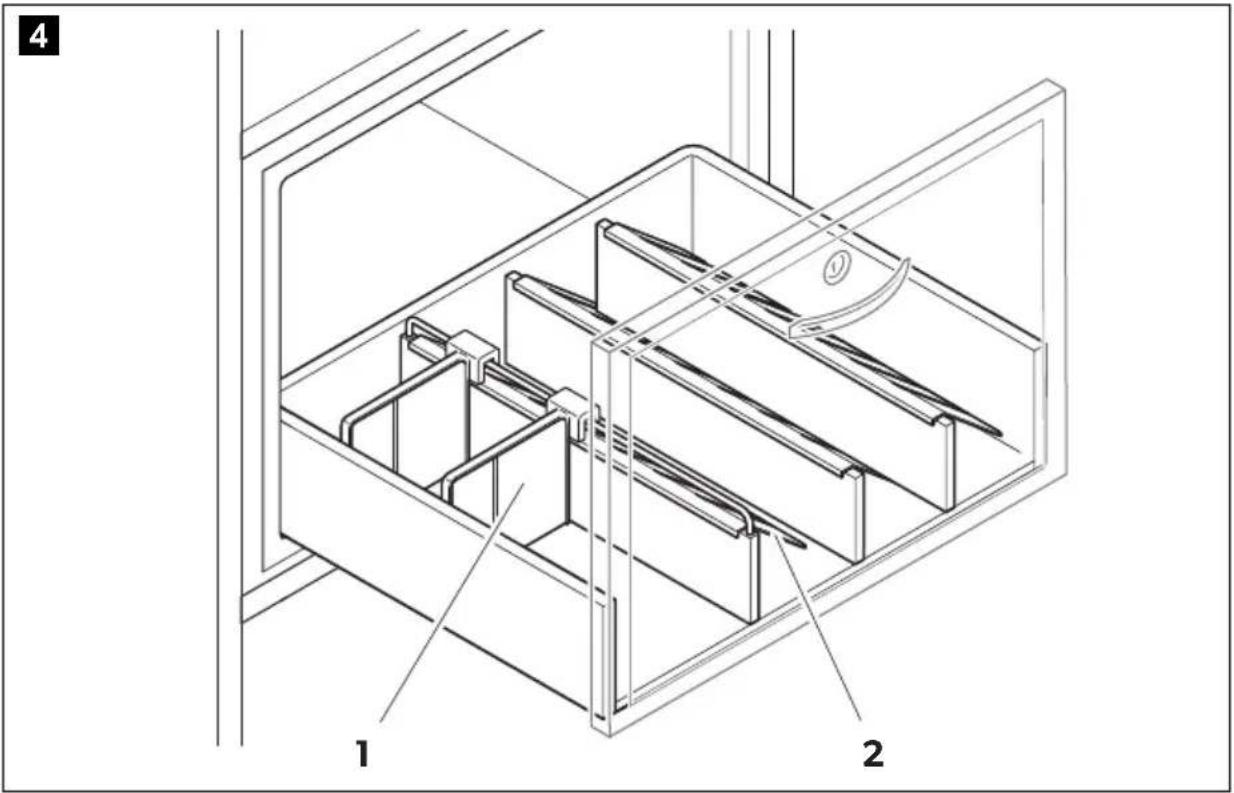

Main drawer

No. in fig. 4, page 4	Description
	1	D	i	v	i	d
	2 Bottle finger

6 Installation

CAUTION! Health hazard

To avoid a hazard due to instability of the device, it must be fixed in accordance with the instructions.

6.1 Notes on mounting into furniture

You can mount the minibar in four ways into furniture. Choose your favoured alternative (fig. 5, page 5).

Observe the following:

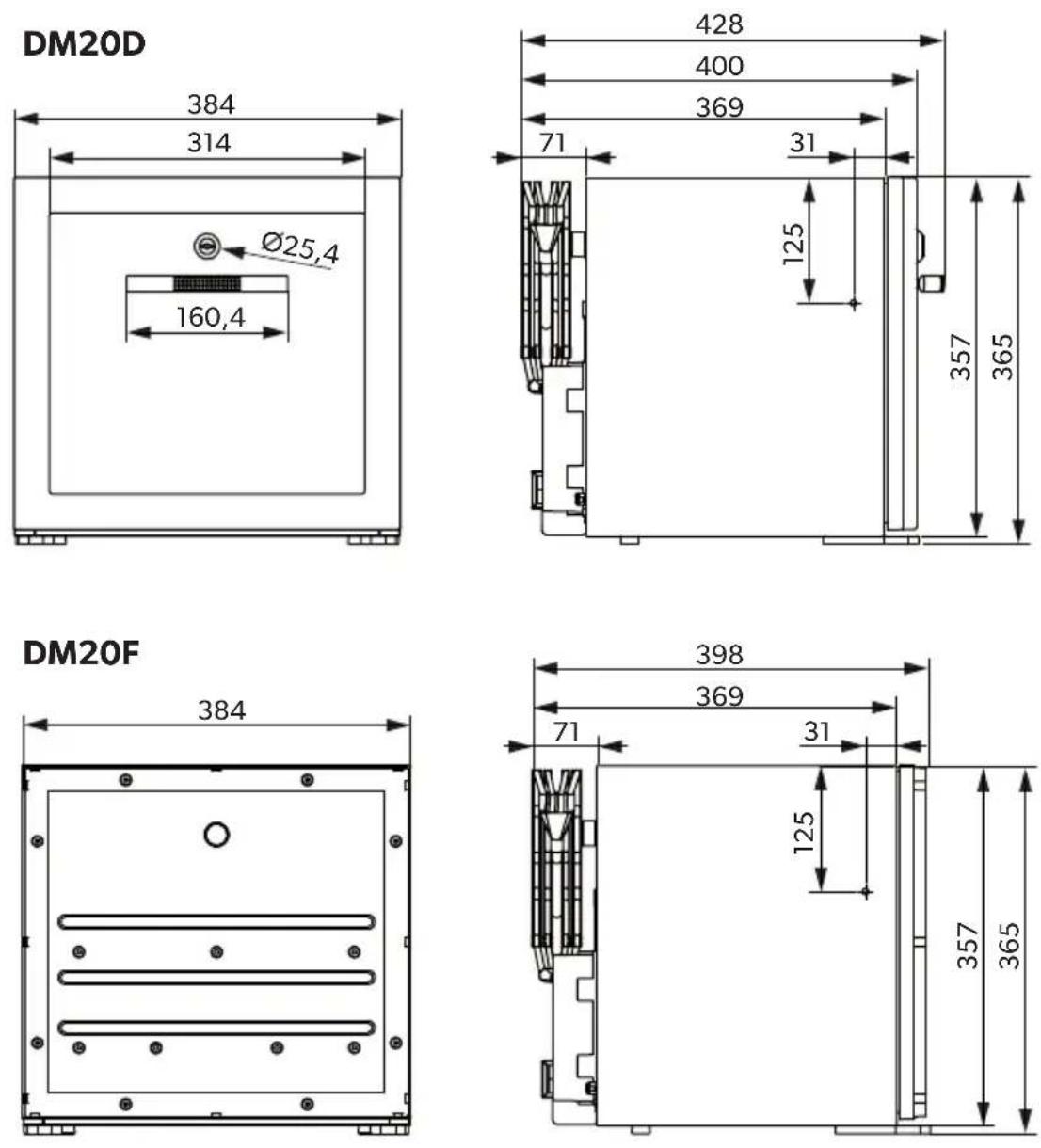

• The cut-out dimensions H x W x D are:

- DM20D: 385 x 404 x 428 mm

- DM20F: 385 x 404 x 426+d mm

d is the thickness of the hotel's own decor

- The clearance between the minibar's back and the furniture wall should be approx. 10 mm.

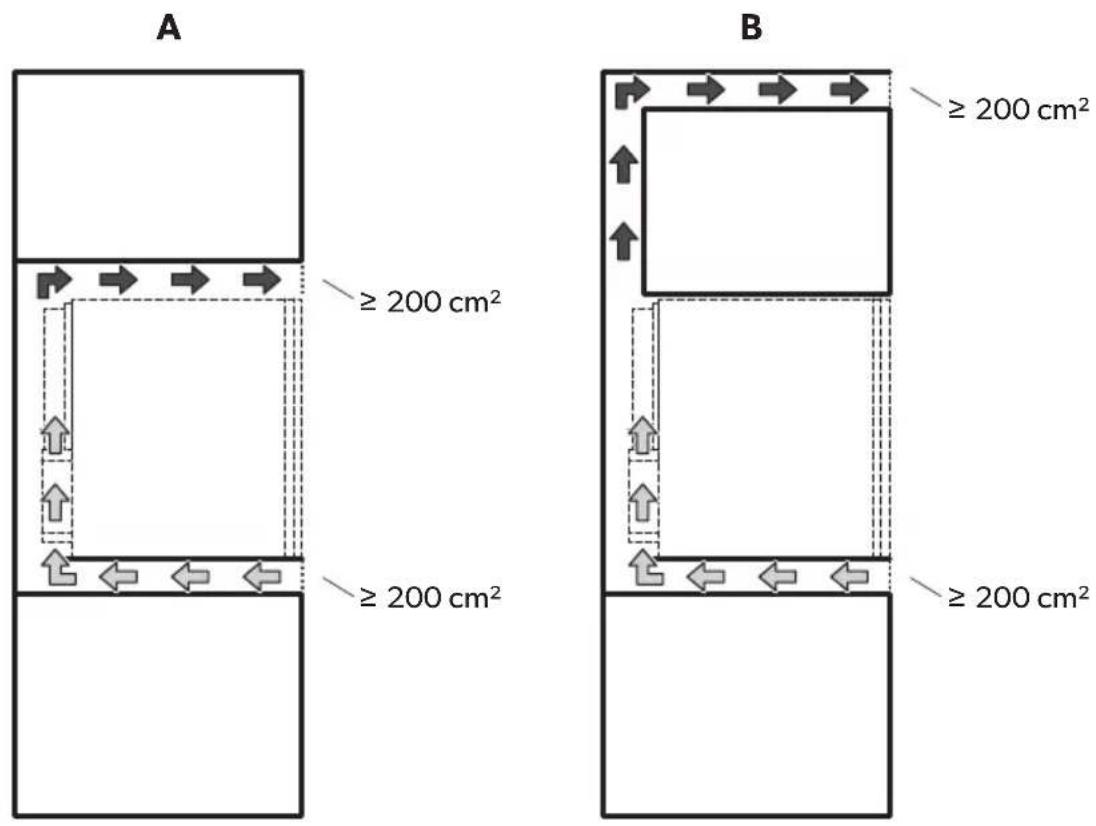

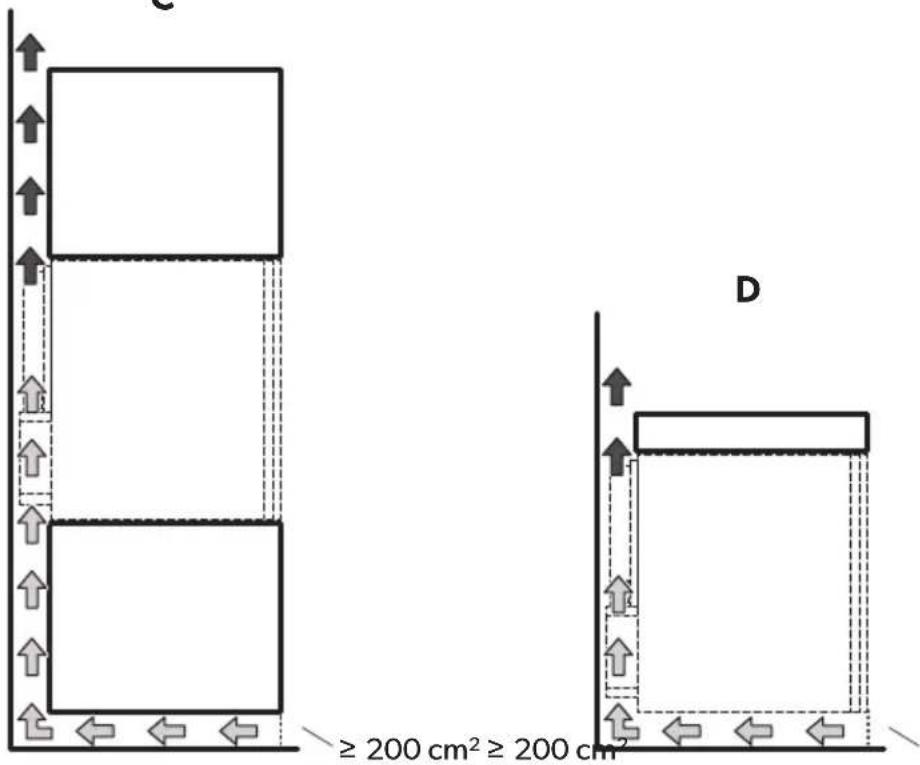

- The ventilation openings for the chosen alternative have to be produced (fig. 5, page 5).

- Air passing through the inlet air duct must not be heated by any heat sources (heaters, direct sunlight, gas ovens etc.).

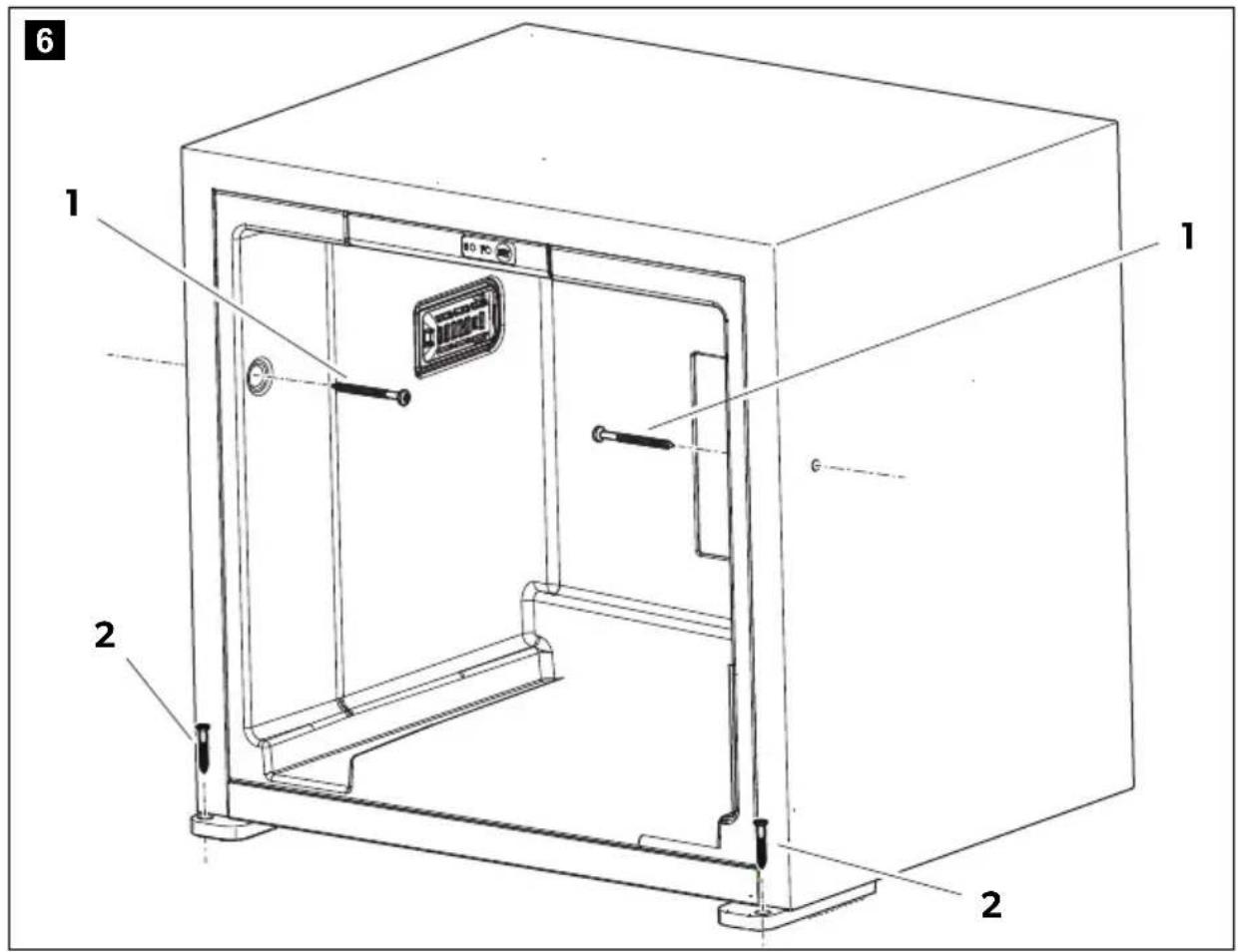

▶ Fix the refrigerator in place using suitable screws (fig. 6 1 and 2, page 6).

6.2 Connecting the minibar electrically

▶Plug the AC connection cable into the AC voltage socket and connect it to the AC mains supply.

√The status LED lights up.

√The minibar starts cooling the interior.

6.3 Mounting hotel's own door decor (DM20F only)

The hotel's own door decor has to comply with the following requirements:

• Maximum weight: 2 kg

• Maximum thickness: 14 mm

▶Fasten the decor with four screws.

6.4 Mounting the lock (lock version only)

▶Drill a hole with a diameter of 35 mm into the decor.
▶Mount the lock together with the lock decor.

6.5 Mounting the lock (no lock version only)

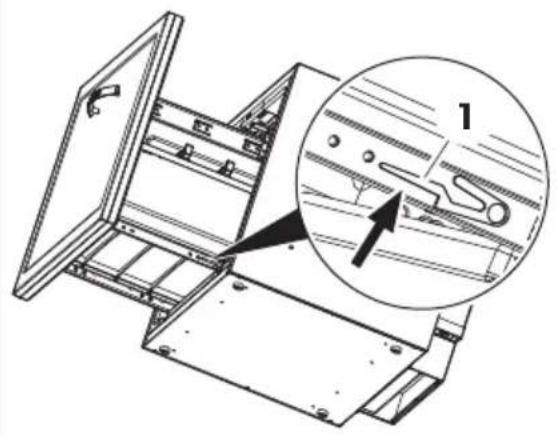

Disassembling the drawer (fig. 7, page 7)

▶Open the drawer completely.
▶Press the rail lock (A 1).
▶Pull the drawer out of the cabinet.

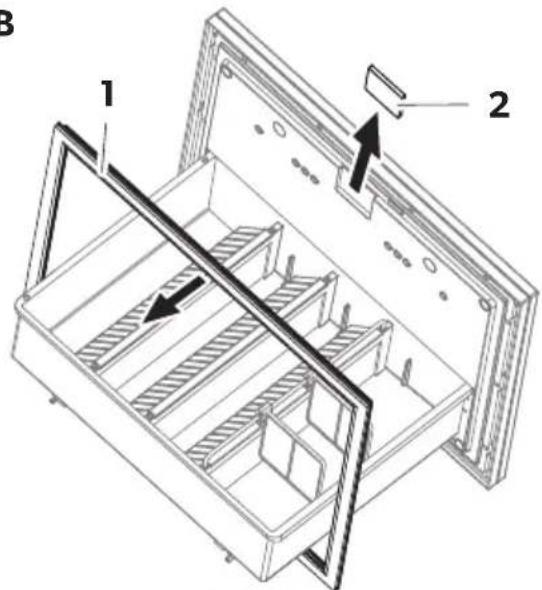

▶Remove the gasket (B 1).
▶ Remove the lock cover (B 2).
▶ Remove the plugs (C 1) from the screws of the door handle (C 3).
▶ Unscrew the screws (C 2) of the door handle (C 3).
▶ Remove the door handle (C 3).

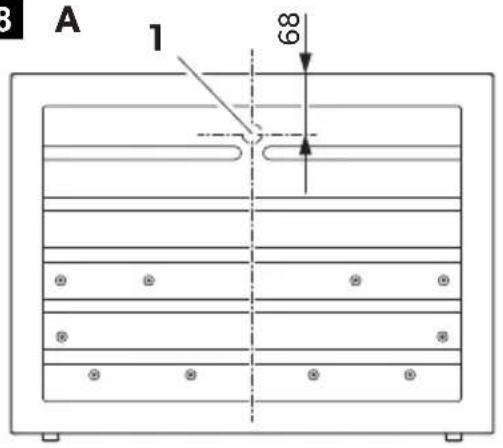

Drilling the holes (fig. 8, page 7)

▶ Drill a hole with a diameter of 25 mm through the decor and the door (A 1).
▶ Unscrew the screws (B 1) of the decor frame (B 2).
▶ Remove the decor frame (B 2).

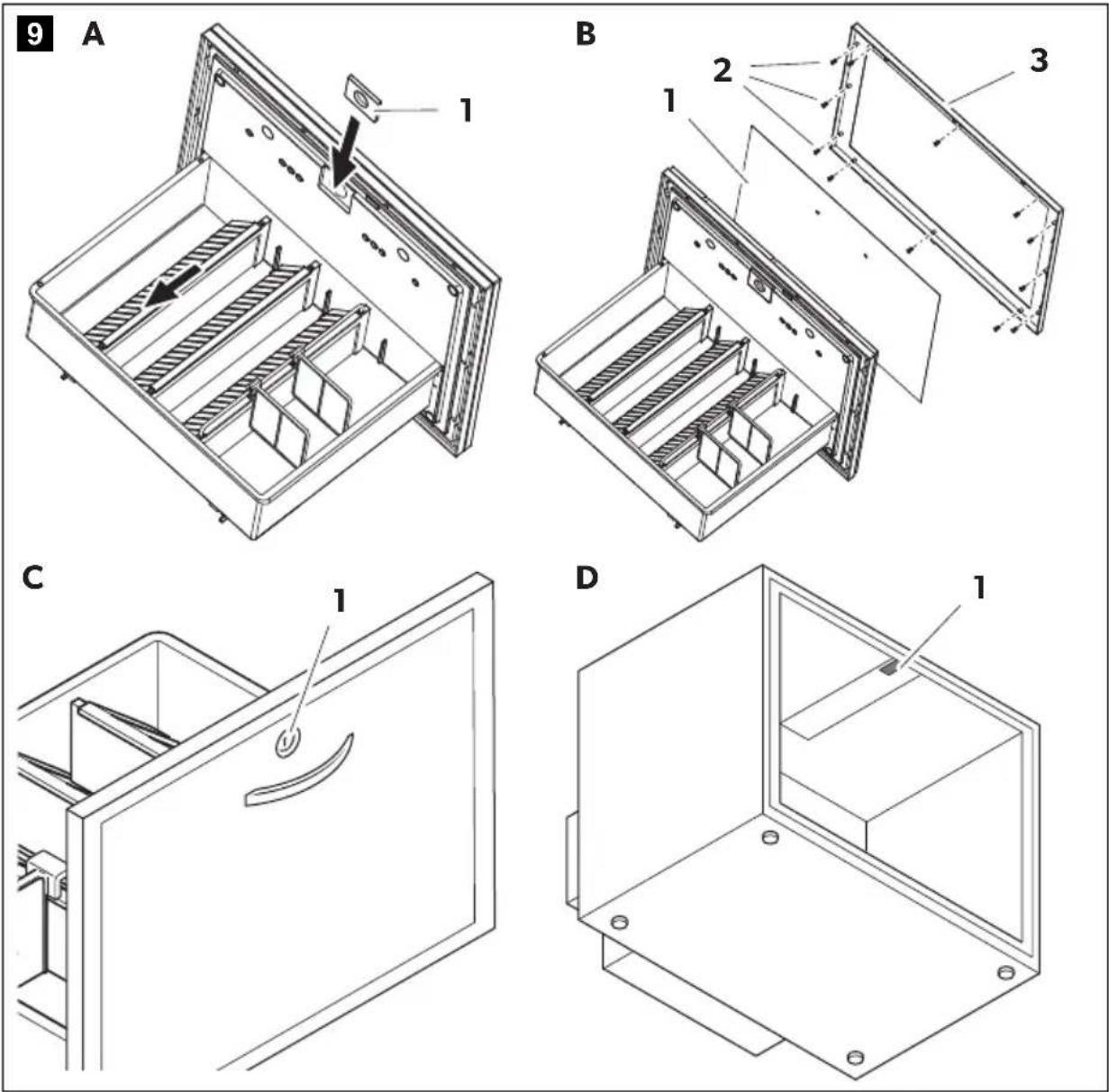

Assembling the lock (fig. 9, page 8)

▶ Put the new lock cover (A 1) into place.
▶ Put the decor (B 1) into the decor frame (B 3).
▶ Screw the decor frame (B 3) onto the door (B 2).
▶ Install the door lock (C 1).
▶ Install the lock catch in the cabinet (D 1).

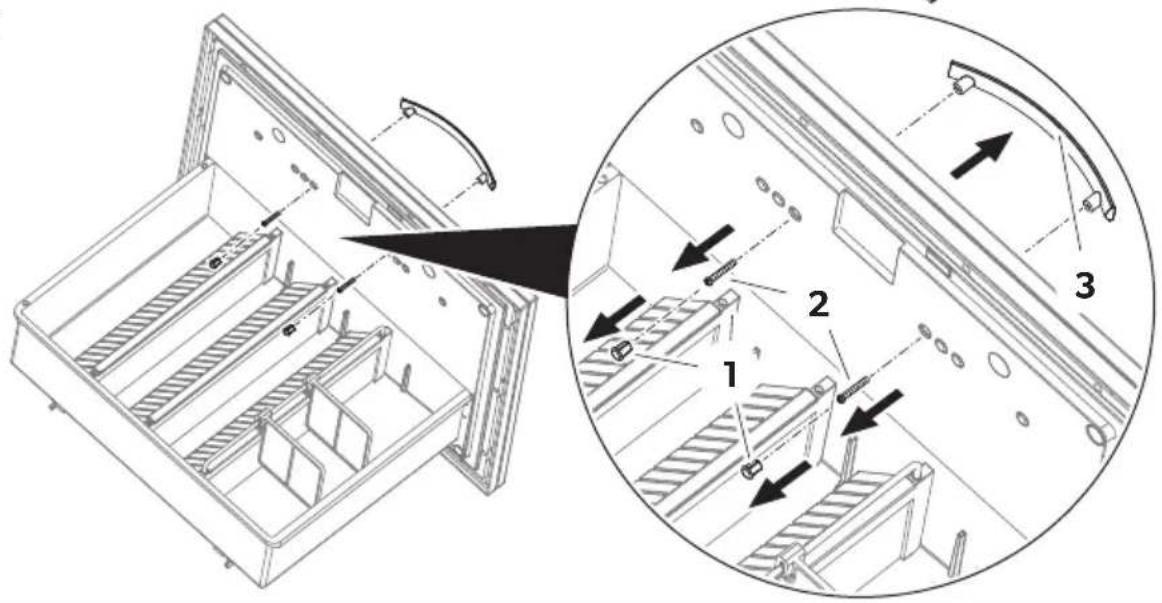

Assembling the drawer (fig. 10, page 8)

▶ Push the gasket (1) on the decor frame (2).
▶ Screw the door handle (4) onto the door.

▶ Push the plugs (3) on the screws of the door handle (4).
▶Push the drawer into the cabinet.

7 O p e r a t i o n

NOTICE! Damage hazard

The lamp can only be replaced by the manufacturer, a service agent or similarly qualified person to avoid hazard.

7.1 Saving energy

• Only open the minibar as often and for as long as necessary.
• Allow warm food to cool down first before placing it in the device to keep cool.
• Avoid unnecessarily low temperature settings.
• For optimal energy consumption, position the shelves and drawers according to their position on delivery.
• On a regularly basis, make sure the door seal still fits properly.
• Clean dust and dirt from the condenser at regular intervals.

7.2 Using the minibar

The minibar starts cooling when connected to power. During normal operation the Status LED is glowing. If an error occurs the Error LED is blinking (see chapter "Troubleshooting" on page 21).

7.3 Setting the temperature

To avoid food waste, note the following:

• Keep temperature fluctuation as low as possible. Only open the minibar as often and for as long as necessary. Store the foodstuff in such a way that the air can still circulate well.
• The minibar is equipped with an automatic temperature regulation function. Select the average of the possible temperature values.
• Adjust the temperature to the quantity and type of the foodstuff.

The minibar is set by default to a cooling temperature of 7^ C at an ambient temperature of 25^ C.

You can use the setting button (fig. 3 4, page 4) to set the cooling temperature to one of three values: 5 °C, 12 °C and 7 °C.

Thereby the temperature will be changed in the order 5^ C ... 12^ C ... 7^ C ... 5^ C etc.

▶ Press the setting button (fig. 3 4, page 4) and keep it pressed for 5 s, until the lamp (fig. 3 1, page 4) starts to blink.
▶ Press immediately the setting button (fig. 3 4, page 4) again.
√ The lamp (fig. 3 1, page 4) indicates the setting temperature:

• 5 °C: the lamp flashes five times in three intervals
• 12 °C: the lamp flashes once in three intervals
• 7 °C: the lamp flashes three times in three intervals

NOTE

The minibar sets the cooling temperature automatically to 7^ C when it is connected to a power source.

8 Troubleshooting

Fault Possible cause Suggested remedy

Device does not function, Status LED does not glow.	No voltage present in the AC voltage socket.	Try using another plug socket.
	The mains adapter is defective.	Contact service agent.
The device does not cool (plug is inserted, Status LED glows).	The cooling element is defective.	Contact service agent.
The Error LED flashes once per second.	Temperature sensor is defective.	Contact service agent.
The Error LED flashes twice per second.	The fan is defective. Contact service agent.
Device does not cool sufficiently, Status LED glows, Error LED does not glow.	The cooling element is defective.	Contact service agent.
	Poor ventilation	Check the ventilation.Clean the filter underneath the device.

9 Cleaning and maintenance

NOTICE! Damage hazard

• Never clean the cooler under running water or in dish water.
• Do not use abrasive cleaning agents or hard objects during cleaning as these can damage the cooler.

▶ Occasionally clean the device interior and exterior with a damp cloth.
▶Make sure that the air inlet and outlet vents on the device are free of any dust and dirt, so that heat can be released and the device is not damaged.
▶Occasionally clean the inlet filter.
▶ If you find water in the drip tray (fig. 2 1, page 3) check whether the drainage system is blocked.

NOTICE! Damage hazard

The lamp can only be replaced by the manufacturer, a service agent or similarly qualified person to avoid hazard.

10 Warranty

The statutory warranty period applies. If the product is defective, please contact your retailer or the manufacturer's branch in your country (see dometic.com/dealer).

For repair and warranty processing, please include the following documents when you send in the device:

• A copy of the receipt with purchasing date
- A reason for the claim or description of the fault

11 Disposal

Place the packaging material in the appropriate recycling waste bins wherever possible.

If you wish to finally dispose of the product, ask your local recycling centre or specialist dealer for details about how to do this in accordance with the applicable disposal regulations.

12 Technical data

For the current EU declaration of conformity for your device please refer to the respective product page on dometic.com or contact the manufacturer directly (see dometic.com/dealer).

Further product information can be accessed via QR code on the energy label (see figures) or via eprel.ec.europa.eu.

The refrigerant circuit contains R134a.

Contains fluorinated greenhouse gases

Hermetically sealed equipment

	DM 20D DM 20F
Voltage:	220 - 240 V~, 50/60 Hz
Cooling capacity: max. 20 °C below	ambient temperature (adjustable in three steps: +5 °C, +7 °C, +12 °C)
Category: Cellar
Total volume: 20 l
Energy efficiency class: G
Power consumption (at ambient temperature of +25 °C, +12 °C refrigerator):	0.368 kWh/24 h
Climatic class: N
Intended ambient temperature use:	+16 °C to +32 °C
Noise emission: 15 dB(A)
Refrigerant quantity:	48 g
CO2 equivalent: 0.069 t
Global warming potential (GWP):	1430
Dimensions main drawer W x D x H:	285 x 228.5 x 112 mm
Dimensions H x W x D (see also fig. 11, page 9):	365 x 384 x 428 mm	365 x 384 x 398 mm
Weight:	12.3 kg
Inspection/certification:	CE UK CA

5 Description technique

PASS PÅ! Fare for skade

PASS PÅ! Fare for skade

dometic.com/sales-offices
