USER MANUAL BKM-244CC SONY

HD/SD-SDI Closed Caption Adaptor

取扱説明書 JP

Operating Instructions ____ GB

Mode d'emploi FR

For the customers in the U.S.A.

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment.

All interface cables used to connect peripherals must be shielded in order to comply with the limits for a digital device pursuant to Subpart B of Part 15 of FCC Rules.

For the customers in Europe

This product with the CE marking complies with the EMC Directive issued by the Commission of the European Community. Compliance with this directive implies conformity to the following European standards:

• EN55103-1 : Electromagnetic Interference(Emission)

• EN55103-2 : Electromagnetic Susceptibility(Immunity)

This product is intended for use in the following Electromagnetic Environments: E1 (residential), E2 (commercial and light industrial), E3 (urban outdoors), E4 (controlled EMC environment, ex. TV studio).

For the customers in Europe

The manufacturer of this product is Sony Corporation, 1-7-1 Konan, Minato-ku, Tokyo, Japan. The Authorized Representative for EMC and product safety is Sony Deutschland GmbH, Hedelfinger Strasse 61, 70327 Stuttgart, Germany. For any service or guarantee matters please refer to the addresses given in separate service or guarantee documents.

Overview

The BKM-244CC HD/SD-SDI Closed Caption Adaptor is a video signal input adaptor for Sony professional monitors. When installed in an input option slot on the main unit, it provides video input and output connectors for the main unit and a decoder for HD/SD serial digital component signals.

Function

Decoder for serial digital component signals

The BKM-244CC is equipped with a built-in decoder for serial digital component signals.

Serial digital input and output signal connector

The BKM-244CC is equipped with two input and one monitor output connectors for serial digital signals.

Closed caption decode display

The BKM-244CC can decode closed caption signals that are superimposed on serial digital signals, and display those closed caption signals over the video signals.

Using the Input and Output Connectors

For information about installing the BKM-244CC in an input option slot on the main unit, see the operating instructions for the main unit.

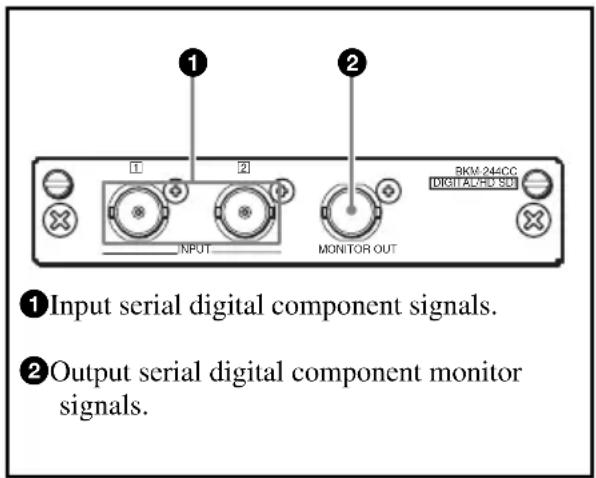

Configuration of Input/Output Connectors and Signals that may be Input

The configuration of the input and output connectors, and the signals that may be input are shown below.

① Input serial digital component signals. ② Output serial digital component monitor signals.

Input of serial digital component signals

You can input serial digital signals to connectors ① and output signals displayed on the screen of the main unit or the monitor from connector ②.

You need not attach the 75-ohm termination to connector 2.

Notes

• The MONITOR OUT signal is output only when the power of the main unit is ON. The MONITOR OUT signal is not output when the monitor is in standby mode.
• The MONITOR OUT signal does not comply with ON-LINE signal specifications.

Specifications

General

Voltage +3.3 V, +5 V (supplied from the main unit)

Power consumption Approx. 4 W

Operating conditions

Temperature 0 °C to 35 °C (32 °F to 95 °F)

Optimum temperature 20 °C to 30 °C (68 °F to 86 °F)

Humidity 0% to 90% (no condensation)

Pressure 700 hPa to 1060 hPa

Storage and transport conditions

Temperature -10^ to +40^ (14 °F to 104 °F)

Humidity 0% to 90%

Pressure 700 hPa to 1060 hPa

Maximum external dimensions (w/h/d)

$$ 1 0 0 \times 2 0 \times 1 6 2 \mathrm{mm} $$

$$ (4 \times^ {1 3} / 1 6 \times 6 ^ {1} / 2 \text { inches }) $$

Mass Approx. 250 g (9 oz)

Input/Output connectors

Digital input

BNC (2), with monitor output connector

Available signal format

Refer to the Operating Instructions of the multi format main unit.

Signal characteristics

Digital component signals

Sampling frequency

D1-SDI: Y/R-Y/B-Y: 13.5 MHz

HD-SDI: Y/PB/PR: 74.25 MHz

Quantization

10 bits/sample

MONITOR OUT

Output signal amplitude:

800 mVp-p ± 10%

Output impedance:

75-ohms unbalanced

Transmission distance

D1-SDI: 200 m (approx. 656 ft) max.

(When using 5C-2V coaxial cables (Fujikura. Inc.) or equivalent.)

HD-SDI: 100 m (approx. 328 ft) max.

(When using 5C-FB coaxial

Closed Caption Decode

Available signals

D1-SDI: 480/59.94i

HD-SDI: 1080/60i ^1),2) , 720/60P ^1)

1) Also available for frame frequency 1/1.001
2) Not available for Dual-link

Available standards

D1-SDI: EIA/CEA-608 (VBI), EIA/CEA-608 (ANC)

HD-SDI: EIA/CEA-608 (708), EIA/CEA-708

Available specifications (EIA/CEA-608)

Decode channel: CC1 to CC4, TEXT1 to TEXT4

Character: Standard Character, Special Character

Available specifications (EIA/CEA-708)

Caption service: Service #1 to #6

Character: G0 code, G1 code

Window style, Pen style

Window style
Justify Only available for LEFT
Print Direction	Only available for LEFT-TO-RIGHT
Scroll Direction	Only available for BOTTOM-TO-TOP
Word Wrap Not available
Display Effect	Only available for SNAP
Fill Color Only available for BLACK
Fill Opacity Available for SOLID, TRANSPARENT, TRANSCLUCENT
Border Type Not available

Pen style

Pen Size Available for LARGE, STANDARD, SMALL

Font Style 0 (one type of font)

Offset Only available for NORMAL

Italics Available

Underline Available

Edge Type Not available

Pen style
Foreground Color	Available for white, black, red, blue, green, yellow, cyan, magenta
Foreground Opacity	Only available for SOLID
Background Color	Only available for BLACK
Background Opacity	Only available for SOLID

Notes

• Not available for closed caption of analog signals.
• Not available for XDS service of 608 decode channel.
• May not be available for items that conform to 708 specifications depending on the sending order of the command.

Supplied accessories

Operating Instructions (1)

Design and specifications are subject to change without notice.

NoteAlways verify that the unit is operating properly before use. SONY WILL NOT BE LIABLE FOR DAMAGES OF ANY KIND INCLUDING, BUT NOT LIMITED TO, COMPENSATION OR REIMBURSEMENT ON ACCOUNT OF THE LOSS OF PRESENT OR PROSPECTIVE PROFITS DUE TO FAILURE OF THIS UNIT, EITHER DURING THE WARRANTY PERIOD OR AFTER EXPIRATION OF THE WARRANTY, OR FOR ANY OTHER REASON WHATSOEVER.
