Thank you for deciding to purchase a SOLAC brand product.

Thanks to its technology, design and operation and the fact that it exceeds the strictest quality standards, a fully satisfactory use and long product life can be assured.

WARNING: Your steam mop is designed to clean hard floor surfaces that will withstand high heat. Do not us on unsealed wood or unglazed ceramic floors. On surfaces that have been treated with wax or some no wax floors, the sheen may be removed by the heat and steam action. It is always recommended to test an isolated area of the surface to be cleaned before proceeding. We also recommend that you check the use and care instructions from the floor manufacturer.

IMPORTANT : Do not store unit with damp/wet micro-fiber cleaning pad attached. Never leave the steam mop in one spot on any surface for any period of time with a damp or wet micro-fiber cleaning pad attached as this will damage your floors.

. IMPORTANT : Do NOT store cleaning solutions, scented perfumes, oils or any other chemicals to the water used in this appliance. If you live in a hard water area, we recom-

mend using distilled water in yous steam mop.

WARNING: Danger of Scalding. Please use cautionwhenusingthesteam The steam emitted from penings is very hot.

DESCRIPTION

1. Select switch
2. Cover for buttery box
3. Cord wrap
4. Tube
5. Release button for water tank
6. Release button
7. Water tank
8. Power on light
9. Power switch

10. Main body
    11.Mophead

11. 1 Docking tray

12. 1 Carpet glider
13. 2 Cleanning pads

Read these instructions carefully before switching on the appliance and keep them for future reference. Failure to follow and observe these instructions may result in an accident.

BEFORE USE:

• Peel off appliance's protective film.
• Make sure that all the product's packaging has been removed.
• Certain parts of the appliance have been lightly greased, consequently, the appliance may give off a light smoke the first time it is used. After a short time, this smoke will disappear.
• Prepare the appliance according to the function you wish to use.

INSTRUCTIONS FOR USE

• Remove all the parts from the packaging.

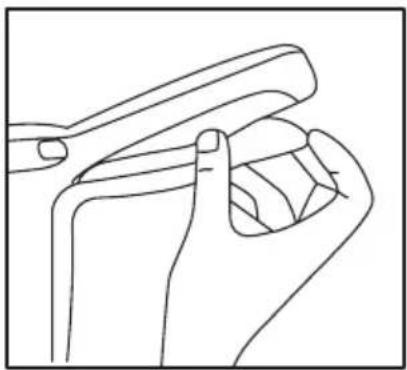

• Take out the handle, open the cover for buttery box, put 2*AAA buttery in it, and close the cover. (Fig. 1)

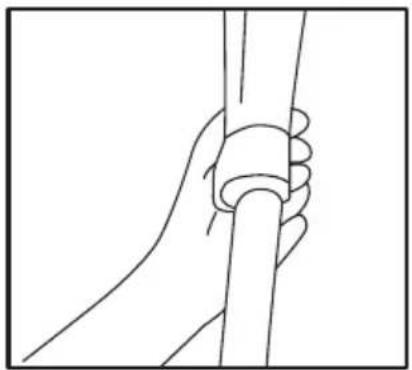

• After assembled, insert handle into the tube. (Fig. 2)
• Push it in until you hear it click into place.

EN

• Disassemble the handle, pull out the cord wrap. (Fig. 3)

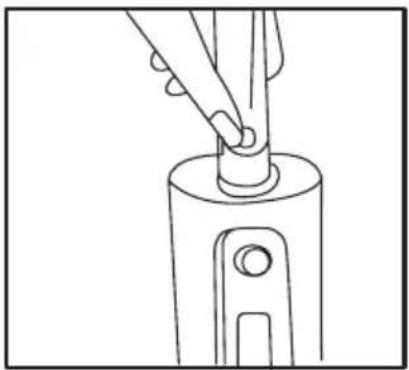

• Push release tap on tube, then insert tube assembled with handle into main body. Make sure that the locking tab snaps into place.

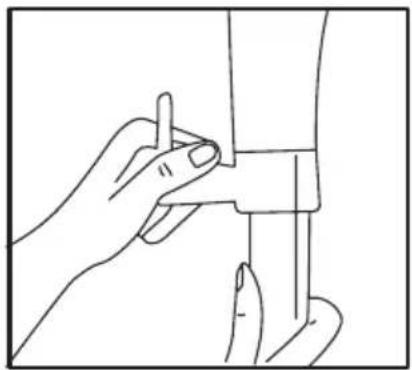

• Disassemble the tube, push release button on back of main body, then pull it out. (Fig. 4)

USING STEAM MOP

• Important: never use the steam mop without the micro-fiber cleaning pad attached to the mop head or without water in the water tank.
• Sweep the floors before using the steam mop.
• Place the micro-fiber cleaning pad underneath the mop head. Make sure that the velcro are facing up.(Fig. 5)
• Important:always insure that the unit is “unplugged” from the wall receptacle prior to filling and before attaching the micro-fiber cleaning pad to the bottom of the mop head.Never use the steam mop without the micro-fiber cleaning pad attached to the mop head.

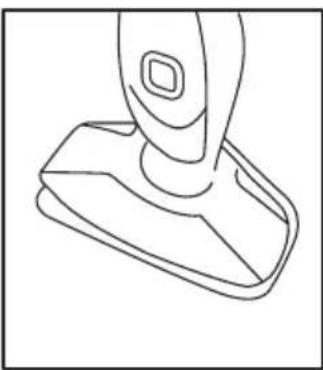

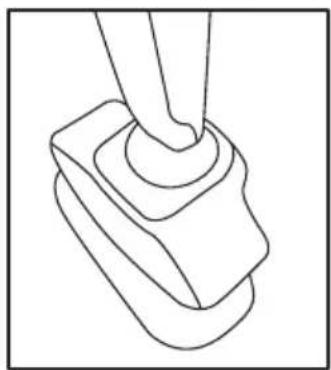

. Place steam mop on docking tray(Fig. 6)

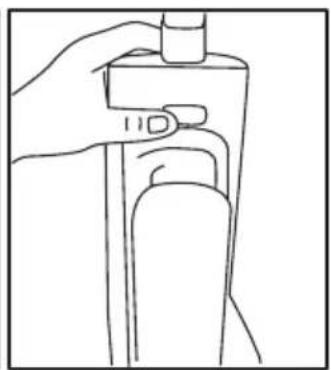

- Push the "PUSH" button on main body, lift up to remove the water tank.(Fig. 7)

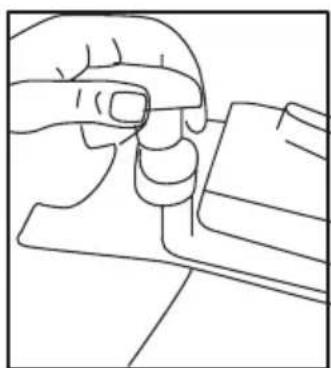

- Turn the cap counter clockwise(Fig. 8), using the filling funnel, pour the water into water tank. Do not overfill the unit past the MAX fill line on the water tank.

- Replace cap onto the water tank.

- Replace water tank onto main body.

- Twist the quick release cord holder to unwrap the power cord completely.

- Plug into electrical outlet, the same to voltage on rating plate.

- Press the power switch. The power-on light will glow red while the mop is heating up.

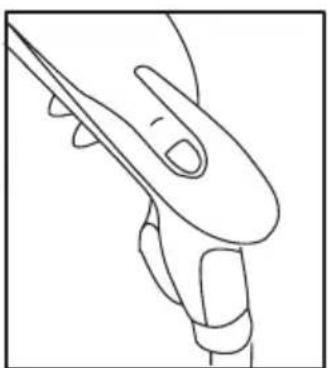

- Select the level of steam in the handle using the buttons on the handle to raise or lower the mode (low, medium or high). (Fig. 9)

- It takes approximately 45 seconds for the unit to heat up and the steam to be ready.

- Once hot, the power light will flash green while in the upright position and solid green while in use.

- Wait seconds, dampen the micro-fiber cleaning pad first, begin mopping with a forward and backward motion, it will release steam as you mop.

- When water tank is empty, the steam mop will stop emitting steam. Unplug the power cord from the electrical outlet and refill the water tank following the instructions above.

• When the unit is under vertical stand, the pump will stop working for the static protection
• Remove cleaning pad, put carpet glider to clean the tile at home.

FEATURES

• Steam mop utilizes steam to remove tough grease, dirt and grime. Cleaning house without using harsh chemicals, therefore it is perfectly ecological. It can be used to clean your tile, hardwood, ceramic tile, linoleum and vinyl floors.

. Quick&easy

- Eliminates rinsing, wringing, carrying buckets of water and redistributing the dirt on the floor. Save your time to clean up the floors.

. Sanitizing

- Powerful steam helps for superior cleaning and sanitizing. Kill 99,99% of viruses and germs

. No chemical used

- Use tap water or distilled water, perfectly ecological.

. Quick Start-up

. Steam is ready in just 45 seconds

- Reusable and washable cleaning pad

. Static Protection

- When the unit is under vertical stand, the pump will stop working for the static protection

· Energy saving for battery

- Without touching select switch, it will stop working to prolong use time for battery.

CARE AND MAINTENANCE

- If you consistently use distilled water, cleaning the water tank is not necessary.

CAUTION:

• This appliance must be unplugged from the electrical outlet before performing any cleaning or maintenance tasks on the unit.
• Care the micro-fiber cleaning pad
• Wash the pad with a mild detergent.
• Put it in washing machine using the warm water setting, and separately from other fabrics or placing them in a garment bag first.

RINSING OUT THE STEAM MOP

• Let the appliance cool down completely before cleaning or storing.
• Empty all water from the water tank after each use.

WATER

• Use tap water for all your cleaning needs.
• However, if you live in an area with hard water, it is recommended that you use distilled water.

TROUBLE SHOUTING

PROBLEM POSSIBLE CAUSE POSSIBLE SOLUTION
STEAM MOP WILL NOT OPERATE	1. Power cord not firmly plugged into outlet.2. No power in wall outlet.3. Needs servicing	1. Plug unit in firmly2. Check fuse or breaker.Replace fuse/reset breaker
STEAM MOP WILL NOT MAKE STEAM	1. No water in tank 1. Add water to the water tank following instructions.
STEAM MOP LEAVES WATER ON THE FLOOR	1. Micro-fiber cleaning pad is too wet.	1. Unplug unit from power outlet and change the micro-fiber cleaning pad
STEAM MOP LEFT WHITE SPOT IN FLOOR	1. Steam mop left in one spot too long.2. Hard water	1. Never leave the steam mop on the floor with a damp or wet cleaning pad still attached when not in use.2. Use distilled water.

FAULTS AND REPAIR

• In the event of a fault take the appliance to an authorised Technical Support Service. Do not try to dismantle or repair it, as this may be dangerous.
• If the mains cable has been damaged, it must be replaced, proceed as in the case of a fault.
• Do not use scented water, as this damages the coating inside the steamer.

FOR EU PRODUCT VERSIONS AND/OR IN THE CASE THAT IT IS REQUESTED IN YOUR COUNTRY:

ECOLOGY AND RECYCLABILITY OF THE PRODUCT

- The packaging materials for this appliance are included in a collection, classification and recycling system. Should you wish to dispose of them, use the appropriate public containers for each type of material.

- The product does not contain concentrations of substances that could be considered harmful to the environment

This symbol means that if you wish to dispose of the product once its useful life has, it must be deposited with an authorised management agent for the selective co- of Waste Electrical and Electronic Equipment (WEEE)

This symbol indicates that the surface may heat up during use.

This appliance complies with Directive 2014/35/EU on Low Voltage, with Directive 2014/30/EU on Electromagnetic Compatibility, with Directive 2011/65/EU on restrictions on the use of certain dangerous substances in electrical and electronic appliances and with Directive 2009/125/EC on the ecological design requirements applicable to products related to energy.
