USER MANUAL AS-42 MAC MILWAUKEE

Line drawing of a cleaning or maintenance device with wheels and control panel (no text or symbols)

AS-30 MAC AS-42 MAC

Two warning symbols: a triangular warning sign with an exclamation mark and a book with an information icon.

M M

Original instructions

Technical diagram of a portable air conditioner unit with labeled ports and directional arrows indicating movement or change.

2

Exploded view diagram of mechanical components including gears, springs, and a housing (no text or labels)

3

Technical diagram of a portable air purifier with labeled parts and directional arrows indicating assembly steps.

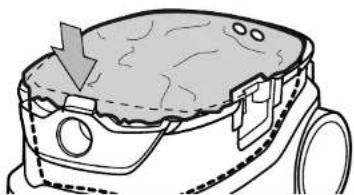

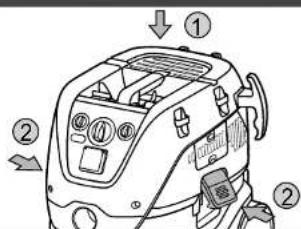

Filter bag installation

Diagram of a portable air purifier with labeled parts and directional arrows indicating airflow or movement.

2

Diagram of a robotic device with labeled parts and directional arrows indicating assembly or operation

3

Diagram of a portable air conditioner unit with labeled parts and directional arrows indicating operation

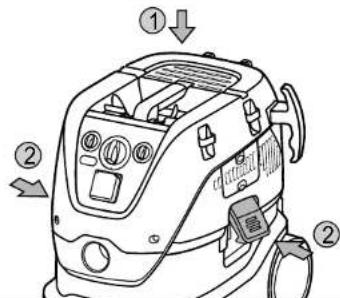

Disposal bag installation

Montening at engangspose

Iandembi, bokdau, chappipu

Doğatına şorczahmi aktivasi

Zebleria opeadimo sacro

Zakladanie pracloveno vrecka Zakladania urodo na imici

Diagram of a portable air conditioner unit with labeled parts and directional arrows indicating movement or status.

2

Line drawing of a robotic vacuum cleaner with visible mechanical components and warning symbols (no text or labels)

K

Line drawing of a mechanical device with a textured top and internal components (no text or symbols)

3

Diagram of a device with numbered parts and directional arrows indicating process flow or movement

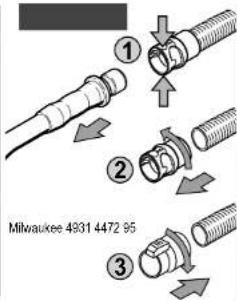

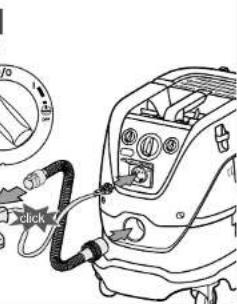

Hose insert & operations

Technical diagram of a car interior with numbered components and labeled parts

2

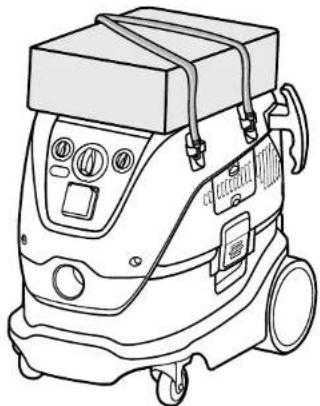

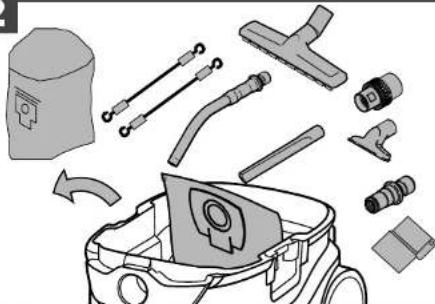

Accessories placement

Zubehör einsetzen

Pure diagram of a pipe with directional arrows indicating flow or movement (no text or symbols)

1

Line drawing of a mechanical vacuum cleaner (no text or symbols)

2

Line drawing of a mobile industrial robot with wheels and control panel (no text or symbols)

Two identical line drawings of a car's front and side views, showing mechanical components and no text or symbols.

3

Line drawing of a small industrial cleaning or dust purifier device with wheels and control panels (no text or symbols)

4

Line drawing of a mobile industrial cleaning or cleaning device with control panel and wheels (no text or symbols)

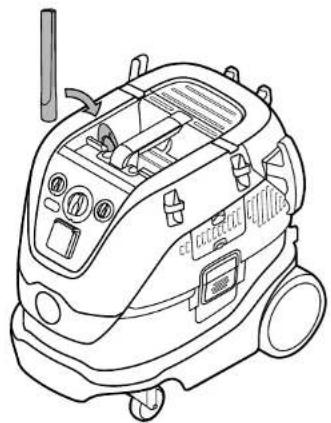

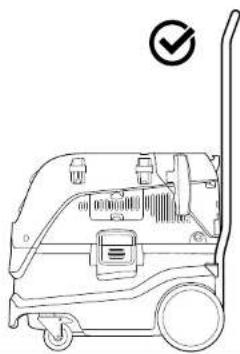

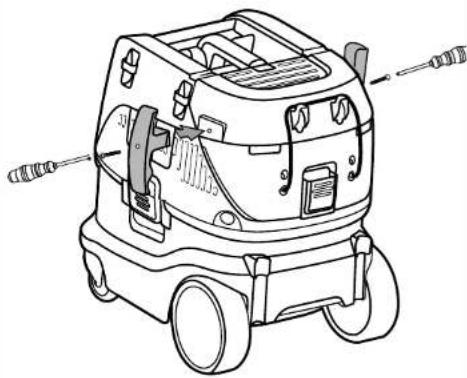

Trolley handle installation

Zuggriff einsetzen

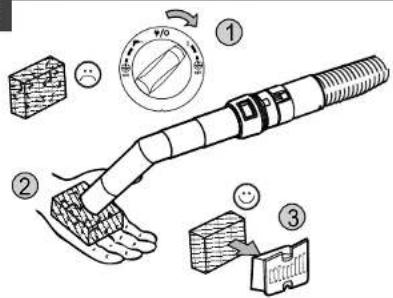

Monitoring at vaginnandag

TotaBianu Lefis vél

Araba kolunup tak masu

Istalace državila um poje zd

only applicable for AS-42 MAC

nur bei AS-42 MAC

Technical diagram showing mechanical assembly with labeled components and motion arrows, including a magnified inset labeled 'x2'

2

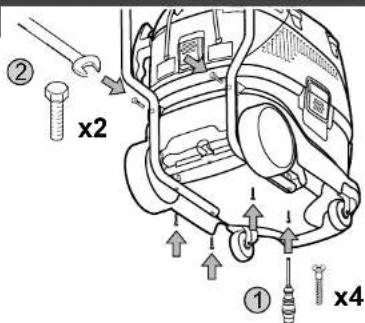

② x2 ① x4

3

Line drawing of a cleaning or cleaning machine with a checkmark symbol (no text or labels)

Flow rate and filter warning

Advarsel for flowrate no filler

Stvanningsharichel ca fillovarse

Also, you can fill your own

Diagram illustrating two methods of removing a textured surface into a single object, with visual indicators showing stress or deformation.

1 Ø/0 +/-

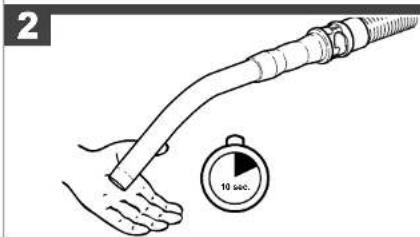

2 10 sec.

Auto-Clear

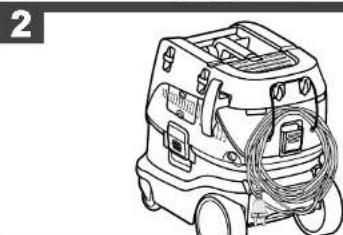

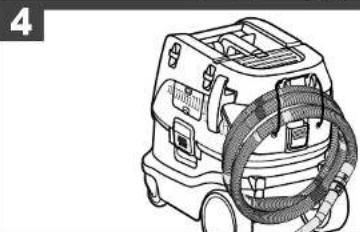

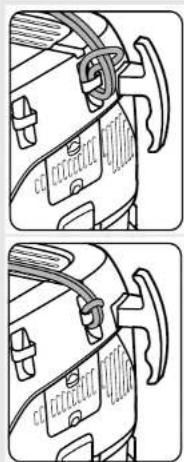

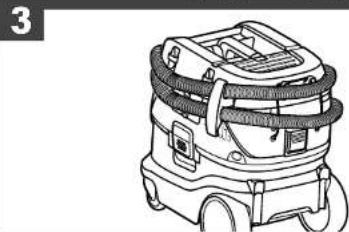

Cable and hose storage Kabel- und Schlauchsaufbewahrung Rangement des câbles et des fl exibles Immagazzinaggio cavo e tubo fl essibile Almacanamiento del cable y la manguera Guardar o cabo e a mangueira Kabel- en slangoplogl Opbevaring af ledning og slange Oppbevaring av kabel og slange Kabel- och slangförvaring Johdon ja letkun säillytäminen Філоźni koloúdou ki súkuptrou өшіріво Kabel ve horlum sakarna Uložení kabelu a hadice Uloženie kabla a hadice Przechowywanie przewodu i węża Kabel és tömić tárolás Predel za shranjevanje cevi in kabla Spremanje kabela i crijeva Kabola un šištenes uzglabášana laido ir žarnos laikymas Juhtme ja vooliku hoidik Хранение шнура и шланга Схранение на kabela и маркуча Depozltarea cabtului si a furtunului Складиральна на кабспог и церосто Зберігання kabcelo та шланга

Line drawing of a portable industrial vacuum cleaner with coiled tubing (no text or symbols)

Line drawing of a portable industrial machine with hoses and control panel (no text or symbols)

Line drawing of a vacuum cleaner with coiled tubing and wheels (no text or symbols)

Line drawing of a portable industrial vacuum cleaner with coiled hose (no text or symbols)

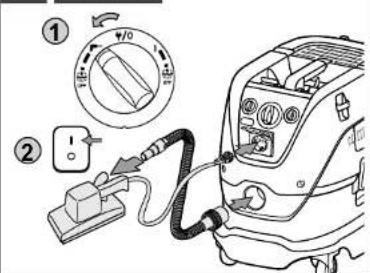

Power tool adaption

Diagram of a cleaning or cleaning machine with directional arrows indicating rotation and change in the dial (labeled ψ/0)

2
Standard Milv

Diagram showing two types of cable connectors with numbered parts and directional arrows indicating assembly or movement.

① ② ③ Milwaukee 4831 4472 95

3
Standard Milv

Diagram showing a gasifier with control knob and power plug, labeled with step numbers and directional indicators.

Diagram of a gasifier with labeled control panel and cable, showing operation instructions

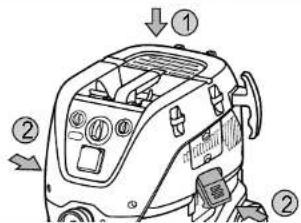

Filter bag replacement

Diagram of a device with numbered parts and directional arrows indicating motion or assembly steps

2

Diagram showing two views of a robotic device with numbered parts and directional arrows indicating process flow.

3

Diagram of a cleaning or cleaning device with numbered parts and directional arrows indicating components

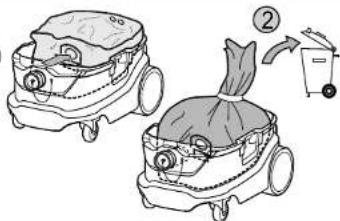

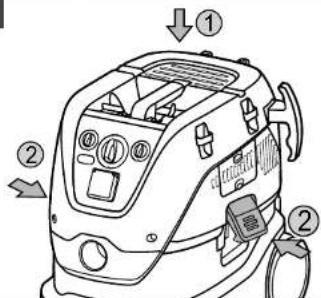

Disposal bag replacement

Diagram of a gas washing machine with labeled parts and directional arrows indicating movement or operation.

2

Diagram illustrating two car maintenance devices with labeled components and a recycling bin, showing mechanical parts and disposal mechanism.

3

Diagram of a robot's internal components with numbered labels and annotations

4

Diagram of a portable air purifier with labeled parts and directional arrows indicating process flow

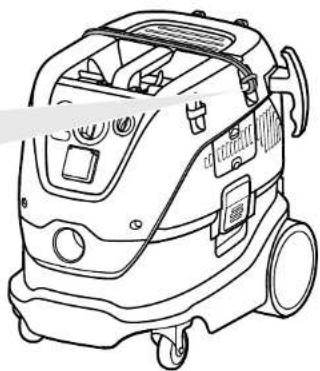

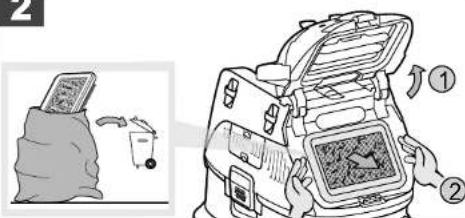

Filter replacement

Filleraustausch

Line drawing of a portable device with a hand adjusting its front panel (no text or symbols)

2

Illustration showing a bag being discarded into a trash bin with a hand inserting a device, labeled with steps ① and ②.

3

Diagram of a device with labeled parts, showing hand positioning and navigation arrows

4

Technical diagram of a portable device with labeled parts, showing hand and cable connections

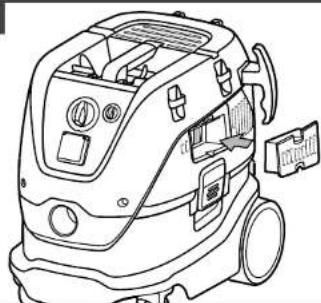

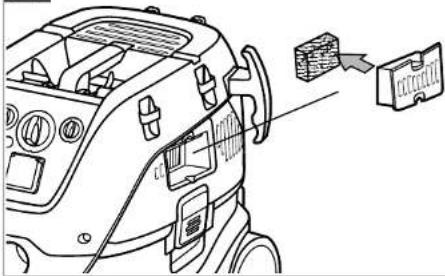

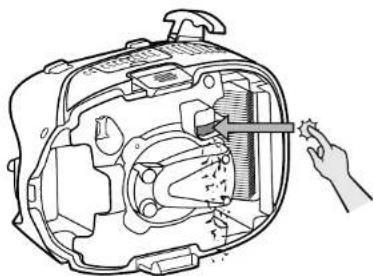

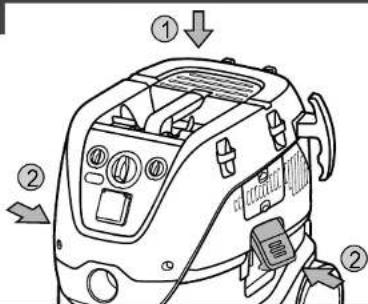

Motor cooling air diff user cleaning

Diagram of a hand operating a vacuum cleaner with labeled parts and directional arrows indicating action.

2

Line drawing of a mechanical device with a close-up view showing a component (no text or symbols present)

3

Diagram illustrating a mechanical or electrical component with numbered parts and directional arrows indicating motion or movement.

4

Line drawing of a cleaning or dust purifier device with control panel and attached sensor (no text or symbols)

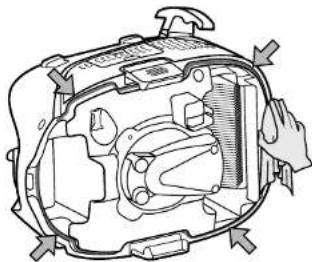

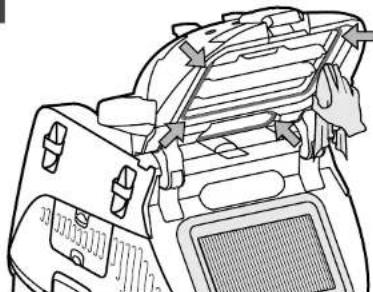

Gaskets and fl cater cleaning

Technical diagram of a portable air purifier with labeled parts and directional arrows indicating flow or movement.

2

Technical line drawing of a mechanical assembly (no text or symbols visible)

3

Cross-sectional diagram of a mechanical device with internal components and a hand adjusting a tool (no text or labels)

4

Technical line drawing of a vehicle air vent assembly (no text or symbols)

5

Line drawing of a mechanical device with a screen and control panel (no text or symbols)

6

Diagram of a portable air purifier with labeled parts and directional arrows indicating ports or connections.

TECHNICAL DATA DUST EXTRACTION
Production code
AS-30 MAC	4587 95 02	4588 05 02	4699 82 02
AS-42 MAC	4588 15 02
	.000001-999999	.000001-999999	.000001-999999
Volts	230 V	110 V	220-240 V
Mains frequency	50 Hz	50 Hz	50-60 Hz
Fuse	16 A	25 A	10 A
Safety class	I	I	I
Type of protection	IP X4	IP X4	IP X4
Total connected load
AS-30 MAC	2400 W	1000 W	2300 W
AS-42 MAC	2400 W
Power	1200 W	1000 W	1200 W
Rate of air flow
AS-30 MAC	270 m3/h	252 m3/h	270 m3/h
AS-42 MAC	270 m3/h
Vacuum	250 hPa	230 hPa	250 hPa
Sound pressure level L_p IEC 60335-2-69	67 dB(A)	67 dB(A)	67 dB(A)
Uncertainty K=	2 dB(A)	2 dB(A)	2 dB(A)
Vibration emission value a_w, IEC 60335-2-69	< 2.5 m/s	< 2.5 m/s2	< 2.5 m/s2
Tank volume
AS-30 MAC	30 l	30 l	30 l
AS-42 MAC	42 J
Maximum power off-hake	2400 W	1750 W	1100 W
Suction hose diameter	ø 36 mm	ø 36 mm	ø 36 mm
Weight according EPTA-Procedure 01/2014
AS-30 MAC	14.5 kg	14.5 kg	14.5 kg
AS-42 MAC	16.0 kg
Power supply cord	H05RR-F3G1.5	H07BQ-F3G2.5	H05RR-F3G1.5

OPERATING ELEMENTS

1. Hose diameter setting

2. Appliance socket

3. Latch

4. Inlet filling

5. Inlet cap

6. Container

7. Castor

8. Hose hook

9. Handle

10. Accessory positions

11. Speed control

12. Switch

WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference.

SAFETY INSTRUCTIONS

Instructions for use

The appliance must

• only be used by persons, who have been instructed in its correct usage and explicitly commissioned with the task of operating it
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge.
  • Children shall be supervised to make sure that they do not play with the appliance.
  • Do not use any unsafe work techniques.
• Never use the appliance without a filter.
• Switch off the appliance and disconnect the mains plug in the following situations:
• Prior to cleaning and servicing
• Prior to replacing components
• Prior to changing over the appliance

- If foam develops or liquid emerges

Besides the operating instructions and the binding accident prevention regulations valid in the country of use, observe recognised regulations for safety and proper use.

Before starting work, the operating staff must be informed on and trained within:

• use of the machine
• risks associated with the material to be picked up
  • safe disposal of the picked up material

Purpose and intended use

This mobile dust extractor is designed, developed and rigorously tested to function efficiently and safely when properly maintained and used in accordance with the following instructions.

This machine is intended for commercial use, for example in hotels, schools, hospitals, factories, shops, offices and rental businesses. This machine is also suitable for industrial use, such as e.g. plants, construction sites and workshops.

Accidents due to misuse can only be prevented by those using the machine.

READ AND FOLLOW ALL SAFETY INSTRUCTIONS.

Any other use is considered as improper use. The manufacturer accepts no liability for any damage resulting from such use. The risk for such use is borne solely by the user. Proper use also includes proper operation, servicing and repairs as specified by the manufacturer.
The air flow in Safety Vacuum systems has to be strictly controlled to achieve a minimum flow rate of V_p1 = 20 m/s in the suction hose.
The safety label on the machine wams:
This appliance contains dust hazardous to health. Emptying and maintenance operations, including removal of the dust collecting means, must only be carried out by authorised personnel wearing suitable personal protection. Operate only after the full filtration system has been fitted and checked.
For dust extractors, ensure adequate air change rate H, when the exhaust air is returned to the room. Observe national regulations before use.
For Dust Class M machines (with type designation -2M) following applies:

The appliance is suitable for picking up dry, nonflammable dust, non-flammable liquids, sawdust and hazardous dusts with OEL values >0.1 mg/m³

Dust Class M (IEC 60335-2-69). The dusts which belong to this class are dusts with OEL values ^1 ≥ 0.1 mg/m ^2 as well as saw dust. The machine is tested in its entirely by vacuums for this dust class. The maximum degree of permeability is 0.1% and the disposal must be low dust.

For dust extractors, ensure adequate air change rate M, when the exhaust air is returned to the room. Observe national regulations before use.

Electrical connection

- It is recommended that the machine should be connected via a residual current circuit breaker. - Arrange the electrical parts (sockets, plugs and couplings) and lay down the extension lead so that the protection class is maintained. - Connectors and couplings of power supply cords and extension leads must be watertight.

Extension lead

As an extension lead, only use the version specified by the manufacturer or one of a higher quality.

When using an extension lead, check the minimum cross-sections of the cable:

Cable length	Cross section
	< 16 A	< 25 A
up to 20 m	1.5 mm ^2	2.5 mm ^2
20 to 50 m	2.5 mm ^2	4.0 mm ^2

Important warnings

WARNING!

To reduce the risk of fire, electric shock, or injury, please read and follow all safety instructions and caution markings before use. This machine is designed to be safe when used for cleaning functions as specified. Should damage occur to electrical or mechanical parts, the machine and / or accessory should be repaired by a competent service center or the manufacturer before use in order to avoid further damage to the machine or physical injury to the user.

Do not leave the machine when it is plugged in. Unplug from the socket when not in use and before maintenance.

Do not use with damaged cord or plug. To unplug grasp the plug, not the cord. Do not handle plug or machine with wet hands. Turn off all controls before unplugging.

Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord around sharp edges or corners. Do not run machine over cord. Keep cord away from heated surfaces.

Keep hair, loose clothing, fingers and all parts of the body away from openings and moving parts. Do not put any objects into openings or use with opening blocked. Keep openings free of dust, lint, hair, and anything else that could reduce the flow of air.

Do not use in outside areas at low temperature.

Outdoor use of the appliance must be limited to occasional use.

Do not use to pick up flammable or combustible liquids such as gasoline, or use in areas where they may be present. Do not pick up anything that is burning or smoking, such as cigarettes, matches or hot ashes.

Use extra care when cleaning on stairs.

Do not use unless filters are fitted. If the machine is not working properly or has been dropped, damaged, left outdoors, or dropped into water, return it to a service center or dealer.

If foam or liquid escapes from the machine, switch off immediately.

The machine may not be used as a water pump. The machine is intended for vacuuming air and water mixtures.

22 ENGLISH

ENGLISH

Connect the machine to a properly earthed mains supply. The socket outlet and the extension cable must have an operative protective conductor. Provide for good ventilation at the working place. Do not use the machine as a ladder or step ladder. The machine can tip over and become damaged. Danger of injury. Only use the socket outlet on the machine for purposes specified in the instructions.

RISKS

Electrical components

DANGER!

The upper section of the machine contains live components.

Contact with live components leads to serious or even fatal injuries.

Never spray water on to the upper section of the machine.

DANGER!

Electric shock due to faulty mains connecting lead.

Touching a faulty mains connecting lead can result in serious or even fatal injuries.

• Do not damage the mains power lead (e.g. by driving over it, pulling or crushing it).
• Regularly check whether the power cord is damaged or shows signs of ageing.
• If the electric cable is damaged, it must be replaced by an authorized Milwaukee distributor or similar qualified person in order to avoid a hazard.
• In no circumstances should the power supply cord be wrapped around fingers or any part of the operators person.
• Hazardous dust

WARNING!

Hazardous materials.

Vacuuming up hazardous materials can lead to serious or even fatal injuries. The following materials must not be picked up by the machine:

• hot materials (burning cigarettes, hot ash, etc.)
• fl ammable, explosive, aggressive liquids (e.g. petrol, solvents, acids, alkalis, etc.)
• fl ammable, explosive dust (e.g. magnesium or aluminium dust, etc.)

Spare parts and accessories

CAUTION!

Spare parts and accessories.

The use of non-genuine spare parts, brushes and accessories can impair the safety and or function of the appliance.

Only use original spare parts and accessories from Milwaukee. Spare parts that can affect health and safety of the operator and or function of the appliance, are specified below:

Description Order No.
Flat fi liter PTFE, 1 pcs. 4932 4596 87
Fleece fi liter bag, 5 pcs. 4932 459689
Disposal bag, 5 pcs. 4932 4596 90
Motor cooling air fi liter PET, 1 pcs. 4932 4596 88

In explosive or infl ammable atmosphere

CAUTION!

This machine is not suitable for use in explosive or inflammable atmospheres or where such atmospheres are likely to be produced by the presence of volatile liquid or infl ammable gas or vapour.

SPECIFIED CONDITIONS OF USE

This mobile dust extractor is designed, developed and rigorously tested to function efficiently and safely when properly maintained and used in accordance with the following instructions.
This machine is intended for commercial use, for example in hotels, schools, hospitals, factories, shops, offices and rental businesses. This machine is also suitable for industrial use, such as e.g. plants, construction sites and workshops.
Accidents due to misuse can only be prevented by those using the machine.
The appliance is suitable for picking up dry, non-flammable dust and liquids.
Do not use this product in any other way as stated for normal use.

CONTROL OPERATION

CAUTIONI

Damage due to unsuitable mains voltage.

The appliance can be damaged as a result of being connected to an unsuitable mains voltage.

- Ensure that the voltage shown on the rating plate corresponds to the voltage of the local mains power supply.

Starting and operating of the machine

Check that the electrical switch is switched off (in position 0). Check that suitable filters are installed in the machine. Then connect the suction hose into the suction inlet at the machine by pushing the hose forward until it fits firmly in place at the inlet. Then connect the tubes with the hose handle, twist the tubes in order to ensure that they are properly fitted. Attach suitable nozzle to the tube. Choose nozzle depending on what, type of material that is to be picked-up. If used for dust extraction in connection

with dust producing tool then connect end of suction hose with appropriate adapter. Connect the plug into a proper electrical outlet. Put the electrical switch into position I in order to start the motor.

Turn I: Activate the machine

Turn 7/0: Stop the machine. Permanent power on socket. Turn P- : Activate Auto-On/Off operation.

Turn I + Off : Activate the machine with deactivated auto-matic filter cleaning function Turn P + Off: Activate Auto-On/Off operation with deactivated automatic filter cleaning function. Speed control operation on separate turning knob

The hose diameter and the setting for suction hose diameter must be the same.

Auto-On/Off socket outlet for power tools

CAUTION!

Appliance socket.

The appliance socket is designed for electrical auxiliary equipment; see technical data for reference.

• Prior to plugging in an appliance, always switch off the machine and the appliance that is to be connected.
• Read the operating instructions to the appliance to be connected and observe the safety notes contained in these.
  An appliance socket with earthing contact is integrated in the machine. An external power tool can be connected there. The socket features permanent power on, when the electrical switch is in position /O , i.e., the machine can be used as an extension cord.

In position the machine can be switched on and off by the power tool connected. Dirt is picked up from the source of dust immediately. To comply with regulations, only approved dust producing tools should be connected.

The maximum power consumption of the connected electrical appliance is stated in section "Specifications".

If the maximum power rating for the socket is exceeded, an external fuse will switch off the socket.

Before turning the switch to position P ensure that the tool connected to the appliance socket is switched off.

Auto-Clear

The "IC" machine is equipped with an automatic filter cleaning system, Auto-Clear. A frequent cleaning cycle will automatically run during operation to ensure that suction performance is always at its best.

If suction performance decreases or in extensive dust applications a manually filter cleaning operation is recommended:

- Switch off the machine

- Close the nozzles or suction hose opening with the palm of your hand. - Tum the switch to position, "I" and let the machine operate at full speed for approx. 10 seconds with the suction hose opening closed.

If suction power is still reduced take out the filter and clean mechanically or replace filter.

For certain applications, like wet pick up, it is recommended to turn off the automatic filter cleaning system. For details see chapter Starling and operating of the machine.

Flow rate warning

CAUTION!

Check that all the filters are present and properly fitted.

The machine is equipped with a system to monitor air velocity and Dust Class H filter condition. Before picking up dust with occupational exposure limit values, check the volume flow monitor.

When the motor is running, hold the suction hose shut to reduce the volume flow. The LED indicator on front panel will light after approx. 1 second. The acoustic warning sounds after some additional seconds.

Set the diameter setting to the actual hose size.

When LED indicator lights, air velocity is below 20 m/s. - check if container or filter bag is full. - check if air flow is reduced in suction hose, lute/nozzle, filter.

Antistatic connection

CAUTION

The machine is equipped with an antistatic system to discharge any static electricity that may develop during dust pick-up.

The antistatic system is placed in front part of the motor top and creates an earth ground connection to the inlet filling of the container. For proper function the use of an electrical conductive or antistatic suction hose is recommended. When inserting the optional disposal bag make sure the antistatic connection is kept.

Cooling air fi Iter

To protect the electronics and motor, the machine is equipped with a cooling air diffuser. Clean the cooling air diffuser regularly.

For areas with a high concentration of fine dust in the surrounding air it is recommended to equip the machine with an optional cooling air filter cartridge to prevent dust from settling inside the air channels and motor. Contact your local sales representative.

CAUTION!

If cooling air filter is clogged by dust the overload protection switch in the motor can be activated. In such case switch off the machine, clean cooling air filter and allow machine to cool for approx. 5 minutes.

Wet pick-up

CAUTION

The machine is equipped with a water level limit system which shuts off the machine when the maximum liquid level is reached.

When this occurs, switch off the machine. Disconnect the machine from the socket and empty the container. Never pick up liquids without the water level limit system and filter in place.

Picking up liquids.

- Do not pick up fl ammable liquids - Before liquids are picked up, always remove the filter bag/wastebag and check that the water level limit works properly. - If foam appears, stop work immediately and empty the tank.

• Clean the water level limiting device regularly and check for signs of damage.
  Before emptying the container, unplug the machine. Disconnect the hose from the inlet by pulling out the hose. Release the latch by pulling them outwards so that the motor top is released. Lift up the motor top from container. Always empty and clean the container and water level limit system after picking-up liquids.
  Empty by tilling the container backwards or sideways and pour the liquids into a floor drain or similar.
  Put back the motor top to the container. Secure the motor top with the latches.
  Heavy maneuvers can, by mistake, trigger the water level limiting device. Should this happen: turn off the machine and wait for 3 seconds to reset the device. Continue to operate the machine afterwards. Wet filters and interior part of the liquid container shall be dried before storage

Dry pick-up

CAUTION!

Picking up environmentally hazardous materials.

Materials picked up can present a hazard to the environment.

- Dispose of the dirt in accordance with legal regulations.

Before use, operators shall be provided with information, instruction and training for the use of the machine and the substances for which it is to be used, including the safe method of removal and disposal of the material collected.

Remove the electrical plug from the socket before emptying after dry pick-up. Remove the suction hose from the machine and close the inlet cap, to avoid harmful dust spreading. Release the latch by pulling them outwards so that the motor top is released. Lift up the motor top from container.

Main Filter: check the filter. To clean the filter you can either brush or wash it. Wait until the filter is dry before re-starting dust pick-up.

Dustbag: check bag to ensure the fill factor. Replace dust bag if necessary. Remove the old bag. The new bag is fitted by passing the carboard piece with the rubber membrane through the vacuum inlet. Make sure that the rubber membrane is passing past the heightening at the vacuum inlet.

Safety filter bag: check bag to ensure the fill factor. Replace dust bag if necessary. Wear mask and protective clothing when removing the old bag. Carefully remove the dust bag connection from the inlet fitting. Close the dust bag connection with the slide. Dispose of the dirt in accordance with legal regulations.

After emptying: close motor top to the container and secure the motor top with the latches. Never pick up dry material without filter fitted in the machine. The suction efficiency of the machine depends on the size and quality of the filter and dust bag. Therefore - use only Original filter and dust bags.

Before being taken out of the hazardous zone, the device must be decontaminated using a dust extraction method. wiped clean, or sealed. All parts of the device must be regarded as contaminated if they are removed from the hazardous zone and suitable measures must be taken to prevent dust from spreading.

AFTER USING THE MACHINE

After use

Remove the plug from the socket when machine is not in use. Wind up the cord starting from the machine. The power cord can be wound up around the motor top or at the container or placed in the included hook, or fastening means. Some variants have special storage places for accessories.

Transport

• Before transporting the machine, close all the latches.
- Do not tilt the machine if there are liquids in the dirt tank.
• Do not use a crane hook to lift the machine.
- Do not fit the machine by the trolley handle - Storage

orange

CAUTION!

Store the appliance in a dry place, protected from rain and frost. The machine shall be stored indoors only.

Accessory and tool storage

For convenient transport and storage of accessories or tools, integrated rails are found on side of machine which allows fastening with straps or other means. A flexible strap and hooks are included on back of machine for attachment of suction hose or mains cable. For instruction see quick reference guide.

An optional adapter plate with attachment system can be installed on top of machine for fastening of 2-point or 4-point storage cases.

Remove the electrical plug from the socket before installing the adapter plate.

CAUTION!

Do not lift machine in adapter plate without having storage case safely installed. Note the weight and balance of the appliance in case of storage. Maximum weight of storage cases is 30 kg.

Recycling the machine

Make the old machine unusable.

1. Unplug the machine.

2. Cut the power cord.

3. Do not discard of electrical appliances with household waste.

As specified in European Directive 2012/19/EU on old electrical and electronic appliances, used electrical goods must be collected separately and recycled ecologically.

MAINTENANCE

Regular servicing and inspection

Regular servicing and inspection of your machine must be carried out by suitably qualified personnel in accordance with relevant legislation and regulations. In particular, electrical tests for earth continuity, insulation resistance, and condition of the flexible cord should be checked frequently.

In the event of any defect, the machine MUST be withdrawn from service, completely checked and repaired by an authorized service technician.

At least once a year, a Milwaukee technician or an instructed person must perform a technical inspection including filters, air tightness and control mechanisms.

For user servicing, the machine shall be dismantled, cleaned and serviced, as far as is reasonably practicable, without causing risk to the maintenance staff and others. Suitable precautions include decontamination before dismantling. provision for local filtered exhaust ventilation where the machine is dismantled, cleaning of the maintenance area and suitable personal protection.

When carrying out service or repair operations, all contaminated items which cannot be satisfactorily cleaned are to be disposed of; such items shall be disposed of in impervious bags in accordance with any current regulation for the disposal of such waste.

Maintenance

Remove the plug from the socket before performing maintenance. Before using the machine make sure that the frequency and voltage shown on the rating plate correspond with the mains voltage. The machine is designed for continuous heavy work. Depending on the number of running hours – the dust litter should be renewed. Keep the machine clean with a dry cloth, and a small amount of spray polish.

During maintenance and cleaning, handle the machine in such a manner that there is no danger for maintenance staff or other persons.

In the maintenance area

• Use filtered compulsory ventilation

- Wear protective clothing

• Clean the maintenance area so that no harmful substances get into the surroundings.
  CAUTION Clean the water level limiting device regularly and examine it for signs of damage.
  Use only Milwaukee accessories and Milwaukee spare parts. Should components need to be replaced which have not been described, please contact one of our Milwaukee service agents (see our list of guarantee's service addresses).
  If needed, an exploded view of the tool can be ordered. Please state the machine type printed as well as the six-digit No. on the label and order the drawing at your local service agents or directly at: Techtronic Industries GmbH, Max-Eyth-Straße 10, 71364 Winnenden, Germany.

EC DECLARATION OF CONFORMITY

We declare as the manufacturer under our sole responsibility that the product described under "Technical Data" fulfills all the relevant regulations and the directives 2011/65/EU (RoHS), 2014/30/EU, 2016/42/E.C. and the following incorporated standards have been used

EN 60235 4:2012; IC-0514; A14-2014; A13-2017

EN 60335-1:2012+AC:2014+A11:2014+A13:2017 EN 60335 2:60:2012

EN 65503-2-03/2012 EN 65014-1:2017+A1

EN 55014-2:2015

EN 61000-3-2-2014

EN 61000-3-3:2013

EN IEC 630002018

Wangdong, D321 48 06

Alexander Krug

Managing Director

Authorized to compile the technical file

Techtronic Industries GmbH

Max-Fulb-Straße 10

71364 Winnenden

Germany

GB-DECLARATION OF CONFORMITY

We declare as the manufacturer under our sole responsibility that the product described under "Technical Data" fulfills all the relevant provisions of the following Regulations S.I. 2008/1597 (as amended), S.I. 2016/1091 (as amended), S.I. 2012/3032 (as amended) and that the following designated standards have been used:

Authorized to compile the technical file.

Techtronic Industries GmbH

May-Futb-Straße 10

Max-Lyd-Source 74264 Wisconsin

1964 Willenach

SYMBOLS

CAUTION! WARNING! DANGER!

Always disconnect the plug from the socket before carrying out any work on the machine.

Please read the instructions carefully before starting the machine.

Do not dispose of waste electrical and electronic equipment as unsorted municipal waste. Waste electrical and electronic equipment must be collected separately.

Waste light sources have to be removed from equipment. Check with your local authority or retailer for recycling advice and collection point.

According to local regulations retailers may have an obligation to take back waste electrical and electronic equipment free of charge.

Your contribution to re-use and recycling of waste electrical and electronic equipment helps to reduce the demand of raw materials.

Waste electrical and electronic equipment contain valuable, recyclable materials, which can adversely impact the environment and the human health, if not disposed of in an environmentally compatible manner. Delete personal data from waste equipment, if any.

Dust Class M (IEC 60335-2-69). The dusts which belong to this class are: dusts with OEL values ^1) ≥ 0.1 mg/m ^a as well as saw dust.

European Conformity Mark

British Conformity Mark

Regulatory Compliance Mark (RCM). Product meets applicable regulatory requirements.

Ukraine Conformity Mark

EurAsian Conformity Mark

Accessory and tool storage

For convenient transport and storage of accessories or tools, integrated rails are found on side of machine which allows fastening with straps or other means. A flexible strap and hooks are included on back of machine for attachment of suction hose or mains cable. For instruction see quick reference guide.

An optional adapter plate with attachment system can be installed on top of machine for fastening of 2-point or 4-point storage cases.

Remove the electrical plug from the socket before installing the adapter plate.

Do not lift machine in adapter plate without having storage case safely installed. Note the weight and balance of the appliance in case of storage. Maximum weight of storage cases is 30 kg.

Recycling the machine

Make the old machine unusable.

1. Unplug the machine.

In the event of any defect, the machine MUST be withdrawn from service, completely checked and repaired by an authorized service technician.

At least once a year, a Milwaukee technician or an instructed person must perform a technical inspection including filters, air tightness and control mechanisms.

For user servicing, the machine shall be dismantled, cleaned and serviced, as far as is reasonably practicable, without causing risk to the maintenance staff and others. Suitable precautions include decontamination before dismantling. provision for local filtered exhaust ventilation where the machine is dismantled, cleaning of the maintenance area and suitable personal protection.

When carrying out service or repair operations, all contaminated items which cannot be satisfactorily cleaned are to be disposed of; such items shall be disposed of in impervious bags in accordance with any current regulation for the disposal of such waste.

Maintenance

During maintenance and cleaning, handle the machine in such a manner that there is no danger for maintenance staff or other persons.

In the maintenance area

• Use filtered compulsory ventilation

- Wear protective clothing

DÉCLARATION CE DE CONFORMITÉ

Winnenden. 2020-12-01

Alexander Krug

Managing Director

Winnenden, 2020-12-01

Alexander Krug

Managing Director

Winnenden, 2020-12-01

Alexander Kuo

Managing Director

Schade door foulieve spanning.

Winnenden, 2020-12-01

Alexander Krup

Managing Director

OPGELET! WAARSCHUWING! GEVAAR!

Winnenden, 2020-12-01

Alexander Krug

Managing Director

71364 Winnenden Germany

SYMBOLER

VIGTIGT! ADVARSEL! FARE!

Winnenden, 2020-12-01

Alexander Krug

Managing Director

Winnenden, 2020-12-01

Alexander Krug Managing Director

Managing Director

Winnenden, 2020-12-01

Alexander Krug Managing Director

Valtuutettu kokoamaan tekniset dokumentit Techtronic Industries GmbH Max-Eyth-Straße 10 71364 Winnenden Germany

SYMBOLIT

HUOMIO! VAROITUS! VAARA!

• Many long-term trends in the market, who are

The following table is provided in the image:

The Ground Truth image displays a single, solid horizontal line. According to Rule 2 (UNDERSCORE & LINE RULES), if the GT contains lines used for stylistic emphasis or as background (like ruled paper), the OCR result must ignore them. The provided OCR content is "\_\_\_\_", which consists of four underscores. This is an incorrect interpretation of the line as a placeholder symbol, violating the rule that stylistic lines must be ignored. Therefore, the OCR output is inconsistent with the Ground Truth.

-

[Non-Text]

[Non-Text]

Regulatory Compliance Mark (RCM). To printf your https://www.103.com/103/103.com

Winnenden, 2020-12-01

Alexander Krug

Managing Director

Winnenden, 2020-12-01

Alexander Krug Meningine Director

Managing Director

DEKLARACJA ZGODNOŚCI WE

Winnenden, 2020-12-01

Alexander Krig

Managing Director

Winnenden, 2020-12-01

Alexander Krug

Managing Director

UPORABA V SKLADU Z NAMEMBNOSTJO

Winnenden, 2020-12-01

Alexander Krug Managing Director

The Ground Truth image displays a single, solid horizontal line. According to Rule 2 (UNDERSCORE & LINE RULES), this is a stylistic or background line, not a placeholder underscore. Therefore, the OCR result must ignore it and output nothing or only meaningful text. The provided OCR content is "____", which consists of four underscores. This is an incorrect interpretation of the line as a placeholder, violating the rule that stylistic lines must be ignored. The OCR has hallucinated placeholder underscores where none should exist in the GT. Hence, the OCR result is inconsistent with the Ground Truth.

[Non-Text]

TEHNIČKI PODACI
USISNI SUSTAV

Broj proizvodnje
AS-30 MAC	4587 95 02	4588 05 02	4699 82 02
AS-42 MAC	4588 15 02.
	.000001-999999.	.000001-999999.	.000001-999999.
Napon	230 V	110 V	220-240 V
Mrežna frekvencija	50 Hz	50 Hz	50-60 Hz
Osiguranje	16 A	25 A	10 A
Klasa zaštite	I	I	I
Vrsta zaštite	IP X4	IP X4	IP X4
Ukupna priključna vrijednost
AS-30 MAC	2400 W	1000 W	2300 W
AS-42 MAC	2400 W
Snagašiec	1200 W	1000 W	1200 W
Strujanje zraka
AS-30 MAC	270 m3/h	252 m3/h	270 m3/h
AS-42 MAC	270 m3/h
Sniženi tlak	250 hPa	230 hPa	250 hPa
nivo pritska zvuka	67 dB(A)	67 dB(A)	67 dB(A)
Nesigunost KF	2 dB(A)	2 dB(A)	2 dB(A)
Vrijednost emisije vibracije	< 2,5 m/s	< 2,5 m/s3	< 2,5 m/s3
Volumen spremnika
AS-30 MAC	30 I	30 I	30 I
AS-42 MAC	42 I
Utičnica aparata max.	2400 W	1750 W	1100 W
Promjer uisinog crjeva	ø 36 mm	ø 36 mm	ø 36 mm
Težna po EPTA-proceduri 01/2014
AS-30 MAC	14,5 kg	14,5 kg	14,5 kg
AS-42 MAC	16,0 kg
Kabel za napajanje	H05RR-F3G1,5	H07BQ-F3G2,5	H05RR-F3G1,5

RADNI ELEMENTI

1. Postavka promjera crijeva

2. Utičnica uređaja

3. Jezičac

4. Dovodni prikliučak

5. Sprempnik

6. Kotas

7. Kuke zo orijevo

8. Ruka za chijvo

9. Drska

10. Položaji dodataka

11. Kontrola brzine

12. Prekidač

Winnenden, 2020-12-01

Alexander Krug

Managing Director

Ovlašten za formiranje tehničke dokumentacije.

Techtronic Industries GmbH

Max-Eyth-Straise 10

71364 Winnenden Germany

SIMBOLI

PAŽNJA! UPOZORENIE! OPASNOST!

Prije radova na stroju izvući utikač iz uličnice.

Molimo da pažljivo pročitate uputu o upotrebi prije pušlanja u rad.

Winnenden, 2020-12-01

Alexander Krug

Managing Director

Winnenden, 2020-12-01

Alexander Knug

Managing Director

Igaliotas parengti techninius dokumentus.

Techtronic Industries GmbH

Max-Eyth-Straße 10

71364 Winnenden

Germany

SIMBOLIAI

DÉMESIO! | SPÉJIMAS! PAVOJUS!

SPETSIAALSED TURVAJUHISED

Kasutusjuhend

Seadet:

LUGEGE LÄBI KÖIK OHUTUSJUHISED JA PIDAGE NEIST KINNI.

Winnenden, 2020-12-01

Alexander Krug

Managing Director

71364 Winnenden Germany

SÜMBOLID

ETTEVAATUST! TÄHELEPANU! OHUD!

Winnenden, 2020-12-01

Alexander Krug Managing Director

Winnanden, 2020-12-01

Alexander Krug

Managing Director

Winnenden, 2020-12-01

Alexander Krug

Managing Director

Winnenden, 2020-12-01

Alexander Krug

Managing Direct

m = 311

Winnenden, 2020-12-01

Alexander Krau

Managing Direct

71364 Winnenden Germany

СИМВОЛИ

Winnenfeld 71354 Germany

Germany

وَقَاتْرُحِيَكِ الْتَحَادِ الْأَرْبِيُ EG/2012/19 لَأَحْزِهِ كَمْرِيمِيةِ وَالْإِنْكُرْفِيَةِ

Techtronic Industries (UK) Ltd

Parkway

Marlow, SL7 1YL

UK

(03.22)

4931 4148 80
