USER MANUAL ERB 550-1H Grizzly

Electric universal cleaning brush

DE

GB

Exterior view of a handheld electric tool with lever and base (no text or symbols visible)

ERB 550-3U

ERB 550-2S

ERB 550-1H

ERB 550-1MS

ERB 550-4U

Translation of the original instructions for use

GB Translation of the original instructions for use .....17

Grizzly Service-Center 132

Verwendungszweck

Before first using the machine, please read this instruction manual carefully, for your own safety and for the safety of others. Keep the manual in a safe place and pass it on to any subsequent owner to ensure that the information contained therein is available at all times.

Contents

Use....17

Safety instructions 17

Symbols on the device....17

Symbols in the manual....18

General safety instructions.... 18

General description....22

Extent of the delivery.... 22

Overview 22

Functional description ...... 22

Technical data....23

Assembly instructions....23

Inserting/replacing the brush....23

Mounting the guiding roller....23

Mounting the additional handle ..... 24

Operation....24

Switching ON and OFF 24

Device adjustments....24

Practical tips....24

Selecting the proper brush....25

Cleaning and maintenance....25

Cleaning 25

Maintenance.... 26

Storage 26

Disposal and protection of the environment....26

Guarantee....26

Repair service....26

Spare parts/Accessories...... 27

Translation of the original EC declaration of conformity .... 122

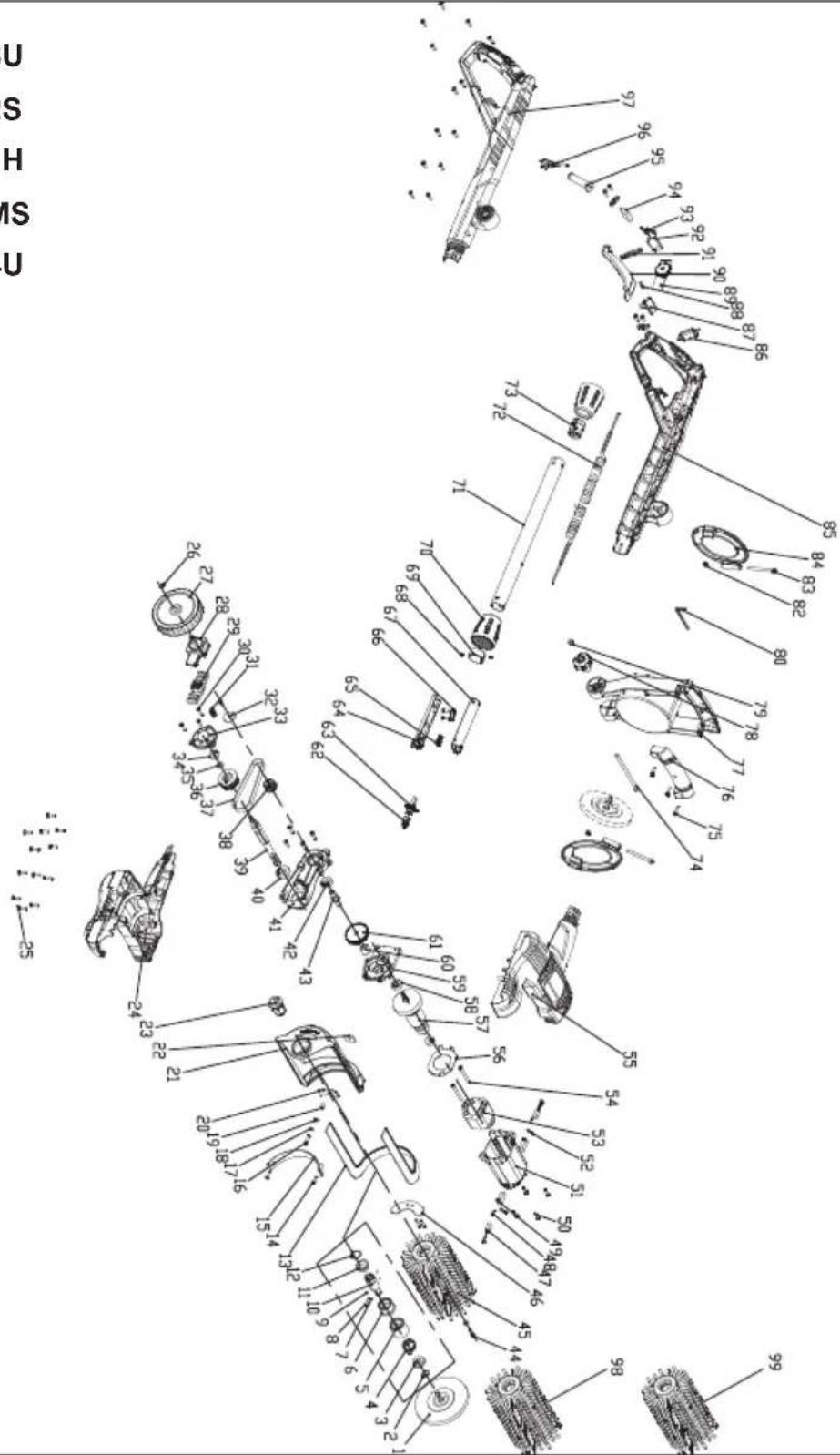

Exploded Drawing 131

Grizzly Service-Center 132

Use

This device is suitable for removing weed and moss from joints between paving tiles, interlocking pavement or gutters in residential applications.

Any other use not expressly approved in the present instruction manual can damage the device and thus present a substantial risk for the user. The operator or user is liable for any accidents or personal and/or material damage incurred by third parties.

The manufacturer is not liable for damages caused by an improper use or incorrect operation of this device.

Safety instructions

Symbols on the device

Caution!

Read the operating instructions.

Danger due to materials blown out of machine!

move persons in the vicinity from the danger area.

Warning!

Risk of injury from the rotating tool! Keep hands and feet away.

Wear ear and eye protection!

Do not expose the device to the damp.

Caution! Disconnect the plug before cleaning and repair work and if the power cable is damaged.

repair work and if the power cable is damaged.

GB

Wear gloves!

Noise level rating L_WA in dB

Electrical appliances must not be disposed of with the domestic waste.

Protection class II

Direction of travel of brush

Operation, brush support

Symbols in the manual

Warning symbols with in- formation on damage and injury prevention.

Hazard symbol with information on the prevention of personal injury caused by electric shock.

Instruction symbols (the instruction is explained at the place of the exclamation mark) with information on preventing damage.

Help symbols with information on improving tool handling.

General safety instructions

Operating the trimmer

CAUTION: How to avoid accidents and injuries:

Preparations:

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

• Never allow children and people who are not familiar with these Operating Instructions to use the trimmer. Local regulations may stipulate a minimum age for operators.

• Please make sure that no other persons or animals are present in your work area. Do not let anyone touch the device. Pay special attention to children.
  • Always wear suitable clothing and personal protective equipment when operating the device:

• Wear safety goggles. A failure to wear safety goggles can cause eye damages from ejecting objects.

• Always wear ear protectors when operating the device.
• Wear boots or shoes with anti-slip soles, long trousers and work gloves. Never use the device barefooted or wearing open sandals.

- Never use the equipment if it is damaged, incomplete or has been modified without the

approval of the manufacturer. Never operate the equipment if the protective equipment is defective. Before starting up the equipment always check that the equipment is in a perfectly safe condition, especially the switch and the protective cover.

- Never disconnect or remove any protective devices (splash guard). This ensures that the equipment remains safe.

Use:

- Always maintain a secure footing while working. Be especially careful when working on a sloping terrain.

This enables you to control the equipment better in unexpected situations.

- Do not operate the equipment if you are tired or lack concentration and after having drunk alcohol or taken medication. Always take a work break in due time. A moment of carelessness when using the equipment can result in serious injury.

- Do not use the equipment while it is raining, in poor weather conditions and when the surrounding area is wet. Only work when the light conditions are good.

There is a risk of accidents.

- Keep the brush away from all body parts and in particular hands and feet when starting the motor or when the motor is running.

- Never start the equipment when it is turned over or not in the correct working position.

- Switch off the motor and disconnect the plug from the mains socket:

- Whenever you are not using the equipment

- If the equipment is left unattended

- When the equipment is being cleaned, maintained or is to be inspected

- When relocating the equipment

- When you remove or exchange the cutting device or manually adjust the length of the cutting line

- Never try to stop the brush with your hands. Always wait until the brush stops rotating.

- Do not use the device for removing weed or moss not growing on the ground, i.e. moss growing on walls or rocks etc.

- Always inspect the brush before starting the device. Never use damaged brushes. Replace any damaged or worn brush.

- The brush must not be mounted on devices with an engine speed exceeding the admissible maximum engine speed of the brush.

- Do not traverse gravel paths while the equipment is operating. Gravel can be thrown up and result in injury.

- Do not operate the equipment in the vicinity of inflammable liquids or gases as this could give rise to the danger of a fire or explosion.

- Store the equipment in a dry place that is not accessible to children.

CAUTION! The following states how damage to the equipment and possible injury to people can be avoided:

Taking care of the equipment:

• Ensure that the ventilation openings are not clogged.
• Only use spare parts and accessories that have been supplied or recommended by the manufacturer.
• Never try to repair the equipment yourself. All work that has not been listed in these Instructions must only be carried out by an authorised servicing agency.
• Treat the equipment with the greatest care. Always keep the equipment clean for better and safer work. Follow the maintenance instructions.
• Never overload the equipment. Always work within the stated capacity range. Do not use low-power machines for heavy-duty work. Do not operate the equipment for purposes for which it is not intended.
• Always inspect the equipment before it is to be used. Do not operate the equipment if safety devices, parts of the cutting device or bolts are missing, worn out or damaged.
• Brushes may not be attached to machines whose speed is higher than the maximum permissible brush speed.
• Damaged brushes must not be used.
• Rust discolouration or other signs of chemical or mechanical change on the equipment mate-

rial can cause premature failure of the brush.

- Brushes must be stored in suitable racks, containers or boxes so that they are protected against the following influences:

• High levels of humidity, heat, water or other liquids, which could cause damage to the brush
• Acids or vapours of acids that could cause damage
• Temperatures that are so low that they could lead to condensation on the brushes if they are stored in an area with higher temperatures
• Deformation of any brush component

Electrical safety:

CAUTION! The following states how to avoid accidents and injuries due to electric shock:

- Never cross the extension cable while the device is operating. Always keep the extension cable behind the device operator.

Should the power cable become damaged during work, then instantly disconnect the power cable from the mains. DO NOT TOUCH THE POWER CABLE BEFORE IT HAS BEEN DISCONNECTED FROM THE MAINS! Risk of electric shock.

- Before each usage, check the mains power cable and the extension cable for damage

and signs of aging. Do not use the device if the cable is damaged or worn. Damaged mains power cables increase the risk of electric shock.

- If the power cable for this equipment is damaged, it must be replaced by the manufacturer, a customer service agent of the same or a similarly qualified person in order to prevent hazards.

- Check that the mains voltage is the same as indicated on the rating plate.

- Connect the equipment to a power socked with a residual-current circuit breaker that has a rated current of not more than 30 mA.

- Protect the equipment from moisture. The equipment must not be moist nor operated in a moist environment. Water entry into the equipment increases the risk of electric shock.

- Avoid body contact with earthed parts (e.g. metal fences, metal posts). There is an increased risk of electric shock if your body is earthed.

- Only use extension cables with a maximum length of 75 m that have been approved for open-air use. The stranded cord diameter of the extension cable must be at least 2.5 mm ^2 . Always unreel a cable drum to its full length so that the entire cable can be inspected for damage.

- Use the envisaged cable suspensions when attaching an extension cable.

- Never carry the equipment by its power cable. Never pull the cable to disconnect the plug from the mains socket. Protect the cable from heat, oil and sharp edges. The mains power cable could be damaged.

SERVICE

- Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

RESIDUAL RISKS

Even if properly operating and handling this electric tool, some residual risks will remain. Due to its construction and build, this electric tool may present the following hazards:

a) Eye damage if working without eye protection.

b) Ear damage if working without ear protection.

c) Damage to your health caused by swinging your hands and arms when operating the appliance for longer periods of time or if the unit is not held or maintained properly.

Warning! During operation, this electric tool generates an electromagnetic field which, under certain circumstances, may impair the functionality of active or passive medical implants.

To reduce the risk of serious or lethal injuries, we recommend that persons with medical implants consult their doctor and the manufacturer of their medical implant before operating the machine.

General description

The illustrations can be found on page 2+3.

Extent of the delivery

Carefully unpack the trimmer and check that it is complete. Dispose of the packaging material correctly.

• Electric universal cleaning brush
- Guiding roller
• Additional handle with spare brush holder
- 1 x nylon brush (black, for stone/concrete) (ERB 550-3U + ERB 550-2S + ERB 550-4U)
- 1 x metal brush (narrow) (ERB 550-3U + ERB 550-2S + ERB 550-4U)
- 1 x nylon brush (grey, for wood/WPC) (ERB 550-3U + ERB 550-1H)
- 1 x metal brush (wide, for cleaning coarse stone surfaces) (ERB 550-1MS + ERB 550-4U)
- brush support (ERB 550-3U + ERB 550-2S + ERB 550-4U)
- Hexagon socket wrench
- Instruction Manual

Overview

1 Handle

2 On/off switch

3 Mains cable
4 Switch lock
5 Strain relief
6 Handle screw, additional handle
7 Screw socket for length adjustment, handle
8 Telescopic arm
9 Splash guard
10 Nylon brush (black, for stone/concrete)
11 Guiding roller
12 Motor head
13 Additional handle
14 Speed regulator
15 Brush support (metal brush, narrow))
16 Hexagon socket wrench
17a Narrow metal brush
17b metal brush (wide, for cleaning coarse stone surfaces)
18 Nylon brush (grey, for wood/WPC)

19 Working position

20 Transport position

21 Retaining tab, guiding roller

Functional description

The hand-operated joint brush is equipped with an electric motor.

Depending on the application requirements, there are three different brushes which can be used for cleaning joints and surfaces.

The telescopic arm enables comfortable operation in an upright posture.

Please refer to the descriptions below for information about the operating devices.

Technical data

Electric universal cleaning brush ....

ERB 550-3U, ERB 550-2S, ERB 550-1H, ERB 550-1MS, ERB 550-4U

Motor voltage.....230-240 V\~, 50 Hz

Power P 550 W

Protection class....

Protection category......IPX0

Idling speed n_max .....600-1200 min ^-1

Sound pressure level

(L_pA) 81.5dB(A); K_pA = 3 dB

Sound power level ( L_WA )

measured .....93.9 dB(A); K_WA = 2.04 dB

guaranteed....96 dB(A)

Vibration ( a_h )

additional

handle ....3,542 m/s ^2 ; K= 1,5 m/s ^2

handle .....2,421 m/s ^2 ; K= 1,5 m/s ^2

Noise and vibration values have been determined according to the standards and regulations mentioned in the declaration of conformity.

The stated vibration emission value was measured in accordance with a standard testing procedure and may be used to compare one power tool to another. The stated vibration emission value may also be used for a preliminary exposure assessment.

Warning: The vibration emission value may differ during actual use of the power tool from the stated value depending on the manner in which the power tool is used.

Try to keep the exposure to vibrations as low as possible. Examples of measures to reduce vibration exposure are the wearing of gloves when using the tool and limiting the working hours.

For this purpose all parts of the operating cycle have to be considered (for example, times when the electric tool is switched off and times when it is switched on but running without any load).

Assembly instructions

The brush support (15), the hexagon socket wrench (16) and the metal brush (17) are situated in the two compartments in the additional handle (13).

Inserting/replacing the brush

Nylon brush (10/18):

Release/fasten the fixing screw on the inside of the nylon brush (10/18) on the motor head (12) using the hexagon socket wrench (16).

Metal brush (17a):

1. Push open the brush support (15) and attach it as it is to the motor head (12) (see A). Release the brush support (15) and it will spring back into its initial position.
2. Insert the desired brush.
3. To remove the brush, push the brush support (15) open and remove the brush (see Ⓑ).

Mounting the guiding roller

1. Insert the guiding roller (11) on to the motor head (12). It locks into place audibly.

GB

• If using the nylon brush (10/18), place the guiding roller (11) into the transport position (20).

• If using the metalbrush (1) place the guiding roller (11) into the working position (18).

• Release the guiding roller (11) by pushing the retaining tab (19) and remove the guiding roller (11).

Mounting the additional handle

1. Unscrew the additional handle (13) to take apart.

2. Insert the additional handle (13) into the holder beneath the handle (1).

3. Screw the additional handle (13) tightly using the grip screw (6). There are several possible latching positions.

Operation

Caution, risk of Injury! ys check whether the device functions correctly before using it.

Always wear eye protection when operating the device.

Always unplug the device before working on it. There is a risk of injury.

Observe the noise protection and other local regulations. .

Switching ON and OFF

1. Loop the end of the extension cable and hang it onto the cable tension relief (5) to ease the tension on the cable. See detailed illustration A

2. Plug the tool into the mains.

3. To turn on, use your thumb to actuate the switch lock (4), then press the On/Off switch (2). Release the switch lock.
4. To turn off, release the On/Off switch (2). There is no continuous operation mode.

The brush will keep rotating for a few seconds after the device has been switched off. Keep the brush away from hands and feet.

Do not try to lock the on/off switch in place. Do not use the device if the switch is damaged. A damaged switch may cause an injury risk due to the motor not being switched off after releasing the on/off switch.

Device adjustments

Length adjustment:

The telescopic arm enables you to adjust the device to your individual height.

Unfasten the screw socket (7). Adjust the telescopic arm (8) to the desired length and re-fasten the screw socket.

Adjusting the splash guard:

You can adjust the splash guard (9) by sliding it backwards and forwards.

Setting the rotation speed:

There are six possible rotation speed settings on the speed regulator (14).

Practical tips

Caution, risk of Injury!

ways inspect the brush before starting the device. Never use damaged brushes. Replace any damaged or worn brush.

• Use original brushes only.
• Never operate the device in rain or on wet ground. Operating the device in rain or on wet ground can cause an electric shock.
  • Always move across the slope when working on hills.
• Avoid any contact with fixed obstacles (rocks, walls, picket fences, etc.) in order to prevent damages to the device.
• Switch off the device during breaks or when transporting it and wait until the brush has completely stopped rotating.

Using the device:

Never move the brush across plastic or other flooring material while it is in operation. The brushes could scratch or damage the surface.

We do not assume any liability for damages in this case.

• Operate the device at walking speed.
• The arrow on the spray guard indicates the brush's rotational direction.
• Always test the device in an inconspicuous area before using it on sensitive floors.

Selecting the proper brush

For information on replacing the brush, please refer to the "Assembly instructions" section.

Nylon brush

(black, for stone/concrete, A10):

Select this brush for removing persistent lichenics and moss on robust grounds.

Steel brush (narrow, A17a):

Select this brush for removing weed, lichenics and moss from small narrow joints.

Nylon brush

(grey, for wood/WPC, A18):

For removing weeds, lichens and moss on wood or similar sensitive materials.

Use the steel brush/nylon brush (black, for stone/concrete) on robust surfaces only (road, pavement) as it may damage and/or scratch the ground.

Cleaning and maintenance

Always unplug the device before working on it.

Any work that is not described in these Instructions must be carried out by a servicing agency authorized by us. Danger of injury!

Cleaning

Do not jet water onto the trimmer and do not clean it under flowing water. This would result in the danger of an electric shock and the trimmer could be damaged.

Always keep the device clean. Do no use cleaning agents and solvents.

• Clean the device, brush and splash guard with a soft brush or cloth after every use.
• Keep the louvres clean.

Maintenance

- Only use spare parts and accessories that have been supplied or recommended by the manufacturer.

• Always inspect the equipment before it is to be used. Do not operate the equipment if safety devices, parts of the cutting device or bolts are missing, worn out or damaged.
• Always inspect the brush before starting the device. Never use damaged brushes. Replace any damaged or worn brush.

Storage

• Store the appliance in a dry place well out of reach of children.
• Do not expose the device for extended periods to direct sunlight. This could damage the device.
• Do not wrap plastic sacks around the appliance as this could result in the formation of moisture and mould.

Disposal and protection of the environment

Take the device, accessories and packaging for environmentally friendly recycling.

Electrical appliances must not be disposed of with the domestic waste

• Return the unit to a recycling centre. The plastics and metals in the unit can be sorted and appropriately recycled. Ask our Service Centre for details.
• Defective units returned to us will be disposed of for free.

Guarantee

• We grant a 24-month warranty for this appliance. Commercial use will invalidate the guarantee.
• Damage due to natural wear and tear, overload or incorrect use is excluded from the guarantee. Certain components are subject to normal wear and tear and are excluded from the guarantee. These include in particular: brushes, battery and splash guard provided that the claims are not traced back on material defects.
  • Furthermore, the prerequisite for guarantee services is that the references indicated in the operating instructions regarding cleaning and maintenance have been adhered to.
• Damage, which has been caused from material or manufacturing faults, will be made good free of charge, by replacement delivery or repair. This requires that the appliance is returned to our service center undismantled and with proof of purchase and guarantee.

Repair service

- Repairs, which are not covered by the guarantee, can be carried out for charge by our service center. Our service center will be glad to provide you with a cost estimate.

We can only process devices which have been packaged sufficiently and which have been dispatched with correct stamping.

- Note: In case of complaint or service, please deliver your device cleaned, and with an indication of the defect, to our service address.

Devices sent in freight collect - by bulk freight, express or with other special freight - are not accepted.

- Defective units returned to us will be disposed of for free.

Spare parts/Accessories

Designation Article no.

Nylon brush (grey, for wood/WPC) 89040406

Nylon brush (black, for stone/concrete) 89040407

metal brush (wide, for cleaning coarse stone surfaces) 30252402

Narrow metal brush 89040408

Brush support (metal brush, narrow) 91105270

Guiding roller 91105271

Additional handle 91105273

FR

Grizzly Service-Center....132

Grizzly Service-Center....132

Gebruik

Grizzly Service-Center 132

Uso previsto

Grizzly Service-Center 132

Účel použití

Grizzly Service-Center 132

Przeznaczenie

Grizzly Service-Center 132

Paskirtis

Translation of the original EC declaration of conformity
We hereby confirm that the ERB 550-3U / 550-2S / 550-1H / 550-1MS / 550-4U series Electric universal cleaning brush Batch number: B-46111, B-46314 conforms with the following applicable relevant version of the EU guidelines:
2006/42/EC • 2014/30/EU • 2005/88/EC • 2011/65/EU* • 2015/863/EU
In order to guarantee consistency, the following harmonised standards as well as national standards and stipulations have been applied:
EN 60335-1:2012/A13:2017 • EN ISO 12100:2010 • EN 62233:2008 EN 1083-2:1997 • EN 55014-1:2017 • EN 55014-2:2015 EN 61000-3-2:2014 • EN 61000-3-3:2013 • EN 62321-1:2013
This declaration of conformity is issued under the sole responsibility of the manufacturer:
Grizzly Tools GmbH & Co. KG Stockstädter Straße 20 63762 Großostheim GERMANY 24.02.2020	Christian Frank Documentation Representative

* The object of the declaration described above satisfies the provisions of Directive 2011/65/EU of the European Parliament and the Council of 8 June 2011 on limiting the use of certain harmful substances in electrical and electronic appliances.

* The object of the declaration described above satisfies the provisions of Directive 2011/65/EU of the European Parliament and the Council of 8 June 2011 on limiting the use of certain harmful substances in electrical and electronic appliances.

Explosionszeichnung • Exploded Drawing • Vue éclatée Vista esplosa • Explosietekening • Trimatis vaizdas Rysunek samorozwijający • Výkres sestavení Výkres náhradných dielov • Plano de explosión

ERB 550-3U

ERB 550-2S

ERB 550-1H

ERB 550-MS

ERB 550-4U

U S H IS U

informativ, informative, informatif, informativo informatief, pouczający, informační, informatyvus, informatívny

Grizzly Service-Center

Unit 3, Beldray Park

Beldray Road, Mount Pleasant

Bilston, West Midlands WV14 7NH

Tel.: [phone]

e-mail: [e-mail]

IT Garden Italia SPA

Via Zaccarini, 8
