USER MANUAL EHS 900 L-Set Grizzly

Product image of a red-handled hair clip with a meshing tool, shown from two different angles (no text or symbols visible)

Translation of the original instructions for use

Grizzly Service-Center ....167

Einleitung

Pure mechanical diagram showing a joint with an arrow indicating force or direction (no text or symbols)

Six circular icons representing different occupational and safety symbols (head, helmet, person, hand, boot, gear) without any text or labels.

Simple line drawing of a droplet being inserted into a container with leafy contents (no text or symbols)

Introduction......21

Lubrifier la transmission ....30

Service Réparations....35

Dépannage 36

Simple line drawing of a mechanical joint or bracket with an arrow indicating force or direction (no text or symbols)

Simple line drawing of a tool interacting with a grid-like pattern (no text or symbols)

Grizzly Service-Center ....167

Inleiding

Pure diagram of a mechanical joint or beam with an arrow indicating direction (no text or symbols)

Six circular icons representing different workplace safety symbols (head, helmet, face, person, hand, boot) without any text or labels.

Simple line drawing of a dropper interacting with a grid-like pattern (no text or symbols)

spray oliën.

Grizzly Service-Center ....167

Introduzione

Simple diagram showing a vertical line with an arrow pointing downward to a horizontal bar, no text or symbols present.

Diagram of a pipette dispensing liquid onto a grid-patterned surface (no text or symbols)

Grizzly Service-Center 167

Introdução

Simple diagram showing a vertical line with an arrow pointing downward to a horizontal bar, no text or symbols present.

Six circular icons representing different occupational and safety symbols (head, helmet, hand, glove, boot, gear) without any text or labels.

Diagram showing a droplet being inserted into a grid of pins (no text or symbols)

Grizzly Service-Center ....167

Wstep

Diagram showing a mechanical joint or support structure with an arrow indicating force direction (no text or symbols present)

Six circular icons representing different occupational and safety symbols (head, helmet, person, hand, boot, gear) without any text or labels.

Diagram showing a droplet being inserted into a grid-like structure (no text or symbols)

Grizzly Service-Center ....167

Introducción

Diagram showing a mechanical joint or beam with an arrow indicating force direction (no text or symbols present)

Six circular icons representing different occupational and safety symbols (head, helmet, person, hand, boot, gear) without any text or labels.

Diagram of a tool interacting with a grid-like structure (no text or symbols)

Introduction......117

Intended Use....117

General Description ....118

Extent of delivery 118

Function Description ......118

Overview....118

Technical Data 119

Notes on Safety 119

Symbols in the manual....119

Symbols on the Equipment......120

General Notes on Safety......120

General safety instructions for power tools....120

Hedge trimmer safety warnings .....122

Protective measures against kickbacks when working with the chain saw.....123

Assembling the Long-Handled Hedge Trimmer ....124

Operating the Hedge Trimmer .....124

Swivelling Out the Blade Beam......124

Attach the shoulder strap 125

Switching On and Off....125

Working with the Electric Hedge Trimmer....125

Swivelling the Arm....125

Lubricating the Gears....125

Cutting Techniques ......126

Assembly/commissioning of the chain saw attachment ....126

Assembly blade....126

Assemble chain saw 126

Tensioning the saw chain....126

Filling up with chain oil....127

Sawing techniques....127

Working Safely 128

Maintenance/Cleaning......128

Storage 129

Replacement parts/Accessories .....129

Waste Disposal and Environmental Protection....129

Guarantee....129

Repair Service....129

Trouble Shooting....130

Translation of the original EC declaration of conformity .... 160

Exploded Drawing 165

Grizzly Service-Center 167

Introduction

Congratulations on the purchase of your new device. With it, you have chosen a high quality product.

The operating instructions con- stitute part of this product. They contain important information on safety, use and disposal.

Before using the product, familiarise yourself with all of the operating and safety instructions. Use the product only as described and for the applications specified.

Keep this manual safely and in the event that the product is passed on, hand over all documents to the third party.

Intended Use

The device is intended for the following gardening tasks:

• a long-reach hedge trimmer to cut and trim hedges and bushes;
• a long-reach chain saw for limbing work on shrubs and trees;

Any other use that is not explicitly approved in these instructions may result in damage to the equipment and represent a serious danger to the user. This equipment is not suitable for commercial use. Commercial use will invalidate the guarantee.

The equipment is designed for use by adults. Adolescents over the age of 16 may use the device only under supervision. Do not use the hedge trimmer in the rain or on wet hedges.

The operator or user is responsible for accidents or damage to other people or their property. The manufacturer is not liable for damages caused by unspecified use or incorrect operation.

Before use, check that the blades are sharp. Ensure that the blades are sharpened whenever blunt, in order to avoid overstressing of the

machine. Damages caused by cutting with blunt blades are not covered by the guarantee.

General Description

The illustration how to handle the appliance can be found on page 2-3.

Extent of delivery

• Long-handled hedge trimmer (two-part)
• Blade protection
• Leg protection
• Shoulder strap
• Anterior cantilever chain saw
• Blade, sawing chain, Blade protective cover
• Instruction Manual

Function Description

The electric hedge trimmer is driven by an electronic motor. The equipment is double-insulated for safety and does not require earthing.

The device is equipped with a hedge trim-mer attachment (with safety cutter bars) and a chain saw attachment (with blade and sawing chain).

The unit can only be operated with the deadman switch depressed, in order to protect the operator. In addition, the hand guard protects against branches and briars.

Please note the following descriptions for the function of the operating components.

Overview

Long-reach hedge trimmer

1 Safety blade

2 Gearbox

3 Lubrication port

4 Stop lever fixing

5a Stop lever

5b Safety lever

6 Handle for adjusting the blade beam

7 Front arm

8 Safety button

9 Pivotal centre

10 Round handle

11 Safety slide

12 Deadman switch

13 On/off switch

15 Mains cable

16 Shoulder strap

17 Eye (for shoulder strap)

18 Leg protection

19 Blade protection

Chain saw attachment

20 Sawing chain 21 Blade

22 Spiked bumpers

23 Blade fixing screws

24 Chain wheel cover

25 Anterior cantilever chain saw

26 Oil tank cover

27 Oil tank

28 Fastening plate

29 Blade protective cover

30 Square nuts 31 Screws

32 Assembly block

Technical Data

Motor

Input voltage rating.....230-240 V\~, 50 Hz Input power .....900 W Safety class..... □ II Degree of protection .....IP 20

Long-reach hedge trimmer:

Cutting length....410 mm Cutting capacity....20 mm Weight (without cable)....6,22 kg Acoustic pressure level (LpA)....89,2 dB(A); KpA = 3 dB(A) Sound power level (LwA) measured....95,86 dB(A); KwA = 3 dB(A) guaranteed....99 dB(A) Vibration at the handle....2,750 m/s² at the round handle....4,540 m/s² K = 1,5 m/s²

Long-reach chain saw:

Chain speed v_0 ..... max. 11 m/s Length of the chain bar.....240 mm Oiltank ..... 120 ml Blade ..... Oregon 080SDEA041 Sawing chain ..... Oregon 91P033X Weight ..... 5,0 kg Acoustic pressure level (LpA) ..... 88,18 dB(A); KpA = 3 dB(A) Sound power level (LwA) gemessen ..... 101,85 dB(A); KwA = 3 dB(A) garantiert ..... 104 dB(A) Vibration (an) at the handle ..... 2,743 m/s² at the round handle ..... 4,710 m/s² K = 1,5 m/s²

Noise and vibration values have been determined according to the standards and regulations mentioned in the declaration of conformity. Technical and optical changes may be undertaken in the course of further development without notice. All dimensions, references and information in this instruction manual are therefore not guaranteed. Legal claims made on the basis of the instruction manual can therefore not be considered as valid.

The stated vibration emission value was measured in accordance with a standard testing procedure and may be used to compare one power tool to another. The stated vibration emission value may also be used for a preliminary exposure assessment.

Warning:

The vibration emission value may differ during actual use of the power tool from the stated value depending on the manner in which the power tool is used. Safety precautions aimed at protecting the user should be based on estimated exposure under actual usage conditions (all parts of the operating cycle are to be considered, including, for example, times during which the power tool is turned off and times when the tool is turned on but is running idle).

Notes on Safety

This section deals with the basic safety regulations to be observed when working with the electric hedge trimmer.

Symbols in the manual

Warning symbols with information on damage and injury prevention.

Instruction symbols (the instruction is explained at the place of the exclamation mark) with information on preventing damage.

Help symbols with information on improving tool handling.

GB

Symbols on the Equipment

Caution!

Read through the instruction manual carefully.

Wear personal protective equipment. Basically, wear protective goggles or, even better, face protection, safety helmet and ear protection.

Wear cut-protection gloves.

Wear cut-protection safety boots with anti-slip soles.

Keep the equipment away from nearby people.

Danger of death by electrocution! Keep at least 10m away from power lines.

Do not use the hedge trimmer in the rain or on wet hedges.

Caution! Falling objects. Particularly when cutting overhead.

Caution! Risk of injury from blades in operation.

Pull out the power plug immediately if the cable is damaged, has been badly twisted or is completely cut through and in the event that the device is left unattended for a short time.

Caution! Hot surface. Risk of burns.

Long-reach hedge trimmer: Information of the acoustic power level L_WA in dB.

Long-reach chain saw: Information of the acoustic power level L_WA in dB.

Machines are not to be place with domestic waste.

Safety class II

General Notes on Safety

Before working with the equipment, familiarise yourself with all operating components. Practice handling the equipment and have the function, operation and working methods explained to you by an experienced user or specialist. Ensure that you can shut off the equipment immediately in an emergency. In-appropriate use of the device may result in serious injury.

If an accident or fault occurs during operation, immediately switch off the device and disconnect at the plug. Treat injuries appropriately or consult a doctor. For the correction of faults, read the "Troubleshooting" chapter or contact our service centre.

General safety instructions for power tools

WARNING! Read all safety directions and instructions. Omissions in the compliance with safety directions and instructions can cause electrical shock, fire and/or severe injuries.

Retain all safety directions and instructions for future use.

The term "Power Tools" used in the safety instructions refers to mains-operated power tools (with power cord) and to battery-operated power tools (without power cord).

Work area safety

• Keep work area clean and well lit. Cluttered or dark areas invite accidents.
• Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
• Keep children and bystanders away while operating a power tool. Dis-tractions can cause you to lose control.

Electrical safety

• Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock
• Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
• Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
• Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
• When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
• If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the

risk of electric shock.

• Connect the equipment to a plug socket with a leakage-current-operated circuit breaker (FI switch), with a rated current of not more than 30 mA.
• If the power cable for this equipment is damaged, it must be replaced by the manufacturer, a customer service agent of the same or a similarly qualified person in order to prevent hazards.

Personal safety

• Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention white operating power tools may result in serious personal injury.
• Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
• Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
• Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
• Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
• Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from mov-

GB

ing parts. Loose clothes, jewellery or long hair can be caught in moving parts.

- If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

Power tool use and care

• Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
• Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
• Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjust -ments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
• Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
• Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
• Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
• Use the power tool, accessories

and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

• Carefully inspect the area to be cut and remove all wires or other foreign bodies.
• Hold the power tool only on the insulated handle surfaces, as the cutting blade may come into contact with concealed power cables. Contact between the cutting blade and a live cable may render metallic components live and result in an electric shock..

Service

- Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

Hedge trimmer safety warnings

• Keep all parts of the body away from the cutter blade. Do not remove cut material or hold material to be cut when blades are moving. Make sure the switch is off when clearing jammed material. A moment of inattention while operating the hedge trimmer may result in serious personal injury.
• Carry the hedge trimmer by the handle with the cutter blade stopped. When transporting or storing the hedge trimmer always fit the cutting device cover. Proper handling of the hedge trimmer will reduce possible personal injury from the cutter blades.
• Keep cable away from cutting area. During operation the cable may be hidden in shrubs and can be accidentally cut by the blade.

Protective measures against kickbacks when working with the chain saw

Caution kickbacks! In the event of a kickback, the user will feel a powerful blow from the device. As a consequence, he/she could lose control over the device and be seriously injured. A kickback is avoided through care and correct technique.

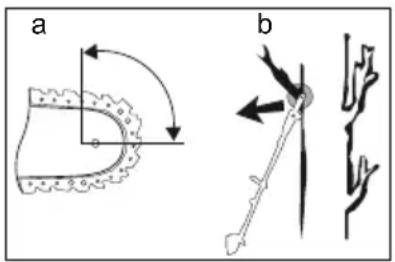

a b

• Kickback may occur when the nose or tip of the guide bar touches an object, or when the wood closes in and pinches the saw chain in the cut (cf. fig. b).
• Tip contact in some cases may cause a sudden reverse reaction, kicking the guide bar up and back towards the operator (cf. fig. a).
• Pinching the saw chain along the top of the guide bar may push the guide bar rapidly back towards the operator.

Kickback is the result of tool misuse and/or incorrect operating procedures or conditions and can be avoided by taking proper precautions as given below:

• Maintain a firm grip, with thumbs and fingers encircling the chain saw handles, with both hands on the saw and position your body and arm to allow you to resist kick-back forces. Kickback forces can be controlled by the operator, if proper precautions are taken. Do not let go of the chain saw.
• Do not overreach and do not cut above shoulder height. This helps

prevent unintended tip contact and enables better control of the chain saw in unexpected situations.

• Only use replacement bars and chains specified by the manufacturer. Incorrect replacement bars and chains may cause chain breakage and/or kickback.
• Follow the manufacturer's sharpening and maintenance instructions for the saw chain. Decreasing the depth gauge height can lead to increased kickback.
• Do not saw with the point of the blade (cf. fig. b) or above shoulder height. Do not lean over too far during the sawing operation.
• Ensure that there are no objects lying around on the ground that you can trip over.
• Place the claw stop securely with every cut and do not begin with the sawing before this.
• Be extremely careful during sawing small bushes and branches. The thin branch thicket can snag in the saw and whip in your direction or make you unbalanced.
• Do not cut wood that is lying on the ground.
• Pay attention to a possible spring-back during the sawing of a branch which is under stress, if the stress force of the wood is suddenly released. Danger of injury exists.
• In the event that the cutting attachment becomes jammed or stuck in the branches, do not attempt to free the equipment with the use of force. Switch off the equipment immediately and restart it only after clearing the blockage. There is a risk of injury!

Assembling the Long-Handled Hedge Trimmer

Pull out the power plug before carrying out any work on the equipment.

Use only original parts.

1. Unpack the device and check it for completeness.

2. Slide the front arm (7) of the long-handled hedge trimmer onto the tubular shaft of the long-handled hedge trimmer and turn slightly. The safety button (8) then locks into place. Fix the two shaft elements to the star wheel (9). Screw the nut onto this from the threaded rod on the star wheel (9) and place it sideways in the holder on the tubular shaft. With the star wheel, push the threaded rod (9) through the tubular shaft and screw the star wheel (9) together with the nut.

3. Assemble the leg protection for right-handed users in variant a). For left-handed users, assemble the leg protection rotated in variant b) as per the illustration.

Insert the square nuts (30) into the leg protection (18). Place the leg protection on the assembly block (32) in position a) or b) as desired. Push the screws (31) through the aligning holes and screw the leg protection onto the assembly block until it is sitting firmly.

Operating the Hedge Trimmer

Do not use the equipment without the hand guard. Wear suitable clothing and work gloves when working with the equipment. Ensure that the equipment is functional before each use. The On/Off switch and the safety switch must not be held closed. They must switch off the motor when on is released. Should a switch be damaged, stop working with the equipment. Ensure that the mains voltage value matches the label on the equipment.

Note noise protection and local specifications.

Swivelling Out the Blade Beam

1. Hold the safety blade beam (A 1) on the handle to adjust the blade beam (6).

2. Unscrew the stop lever fixing (4) from the stop lever (5a).

3. Unlock the stop lever (5a) by pressing the safety lever (5b). Press simultaneously on the safety lever (5b) and stop lever (5a) to release the safety blade beam fixing (A 1).

4. The safety blade beam (A 1) can now be swivelled out into the operating position. Use the stop stages and allow the stop lever (5a) and safety lever (5b) to click back in.

5. Screw the stop lever fixing (4) back into the stop lever (5a).

The angled-in blade shaft is a transport and storage position. For work with the equipment, the blade shaft can be angled up to max. 90°.

Attach the shoulder strap

Attach the shoulder strap spring clip (A16) to the carrying eyelet (A17) on the tubular shank of the device. Set the strap length such that the spring clip on the shoulder strap is roughly at the height of your hip.

Switching On and Off

Ensure that you are standing in a firm position with both hands gripping the hedge trimmer away from the body. Ensure that the trimmer is in contact with no other objects before switching on.

1. Form a loop in the end of the extension cable and hook this into strain relief on the end of the equipment housing.
2. Connect the device to the mains voltage.
3. To switch on, hold the safety switch (A 12) depressed and simultaneously press the on/off switch (A 13). The hedge trimmer will be run at maximum speed.
4. The equipment will switch off again when you release on/off switch (A 13).

Working with the Electric Hedge Trimmer

During cutting work, ensure that no contact is made with objects, e.g. such as wire fencing or main plant stems. This may result in damage to the cutter bar.

- Always hold the equipment firmly in both hands, with one hand on the rear handle and the other on the front handle. Thumbs and fingers must be firmly around the handles.

• Switch off the equipment immediately in the event that the blades are blocked by solid objects, pull out the power plug then remove the object.
• Always work away from the mains power outlet. Set the cutting direction before starting work. Ensure that the power cable is kept well away from the working area. Never lay the cable over the hedge, where it could easily be caught up in the trimmer blades.
• Avoid overstraining the equipment during work.

Pull out the power plug immediately if the cable is damaged, badly twisted or has been completely cut through.

Swivelling the Arm

Caution! The gear box (A2) becomes hot during operation. There is a risk of burns. Do not touch the gearbox housing or the connection to the front arm (A7).

Release the indexing by pushing the safety slide (11) forward.

1. The tubular shank can now optionally be turned 45^/90^ to the right or the left (see the scale on the device).

Lubricating the Gears

The angular gearbox requires lubrication after approx. 20 operating hours.

To do this, use the lubrication port (3) to press up to 5g standard grease into the gearbox (2).

To do this, remove the locking screw on the lubrication port (3) and grease the gears. Then reclose the lubrication port using the locking screw.

Cutting Techniques

• Cut thick branches beforehand using a branch clippers.
• The double-sided cutter bar enables cutting in both directions or, with a swinging action, from one side to the other.
• In case of vertical cutting, move the hedge trimmer uniformly forward or up and down in an arc movement.
• In case of horizontal cutting, move the hedge trimmer in a sickle-shaped movement to the edge of the hedge, so that cut branches fall to the ground.
• In order to achieve long straight lines, the placing of tensioned guiding cords is recommended.

Cutting Shaped Hedges:

It is recommended that hedges be cut in a trapezoidal shape, in order to prevent stripping off of the lower branches. This corresponds to the natural plant growth and allows the hedge to thrive optimally. During cutting, only the new annual growths are reduced and thus a dense branching and a good screen will develop.

1. Cut the sides of a hedge first. To do this, move the hedge trimmer in the direction of growth from bottom to top. If you cut down from the top, the thinner branches will move out, which may result in some areas having sparse growth or holes.
2. Cut the top edge, according to taste, in a flat shape, roof shape or rounded shape
3. Trim young plants to the required shape. The main growth should remain undamaged until the hedge has reached the planned height. All other shoots are lopped off to half size.

Care of Free-Growing Hedges:

Free-growing hedges are not shaped when cut, although they must be regularly maintained so the hedge does not become too high.

Assembly/commissioning of the chain saw attachment

Pull out the power plug before carrying out any work on the equipment.

Assembly blade

1. Loosen the blade fixing screws (A 23) and remove the chain wheel cover (A 24).

2. To facilitate the assembly, position the chain clamping pin (33) by turning the chain spanners (34) up to the stop anticlockwise.

3. Place the blade (21) with the longitudinal milling above the centre blade guide (21). The chain clamping pun (33) must be completed immersed in the borehole (35) in the blade.

Assemble chain saw

1. Place the sawing chain (20) in a way that the angled cutting edges of the chain links are aligned clockwise.

2. Place the sawing chain (20) in the nut of the blade (21) and around the chain wheel (36).

3. Screw the chain wheel cover (24) and the fastening plate (28) with the blade fixing screws (23).

Tighten the blade fixing screw (4) with light hand force only because the sawing chain (20) must still be tightened.

Tensioning the saw chain

• Saw chain (20) is correctly tensioned if it can be pulled around blade (21) by hand (wearing gloves) without sagging.
• When the saw chain (20) is tensioned with 9 N (approx. 1 kg), the gap between the saw chain and the blade (21) may not be more than 2 mm.

1. Turn blade fixing screw (23) anticlockwise to slightly loosen blade (21).

2. Set the tension of saw chain (20) using chain tensioner (G 34).

3. Turn the chain tensioner clockwise to increase the tension.

4. Turn the chain tensioner anti-clockwise to decrease the tension.
5. Turn blade fixing screw (23) to retighten blade (21). Where saw chain (20) has been newly tensioned, readjust the chain tension after a short period in operation.

Check the chain tension before each use of the electric pruner.

Filling up with chain oil

Blade and saw chain must always be oiled. Non-observance of this will result in increased wear on the blade and saw chain.

• Check the oil fill level in the oil level inspection window and regularly top up with chain oil.
• Use bio-oil; this product contains additives that reduce wear and tear and does not damage the pump system. bio-oil is available from our Service-Center.

• If you have no Grizzly bio-oil available, use chain lubrication oil with low adhesive additive content.

• Unscrew the oil fill cap (A 26) and fill up with chain oil.

• Wipe off any spilled chain oil and close the cap again.

Note that the saw can re-oil.

Sawing techniques

- Be thoroughly aware of the danger of rebounding branches.

Sawing Off Small Branches

Simple diagram showing a vertical line with an arrow pointing to a horizontal segment, no text or symbols present.

Set your saw cut of smaller branches (∅ 0-8 cm) from top to bottom, as illustrated.

Be aware of early breaking of the branch if you have

underestimated the size and weight. Be completely aware of the falling cut material

Sawing Off Larger Branches

b a

For controlled sawing of larger branches ( 8-25 cm), first select a relief cut (see cutting a). This is made from below. Saw a notch in the lower third of the branch. The

actual length cut (see cutting b) is again made from the top, as far as possible in line with the first cut so that the two cuts meet.

Sawing Off Parts

cba

For large/long branches, sawing off in parts is recommended (see cutting a, b, c). This is the only way to safely ensure the

point of impact of the cut material.

Clear away from the area in which you are standing any parts that have already been cut and are lying on the ground.

Working Safely

Six circular icons representing different workplace safety symbols: head, helmet, face, hand, glove, and boot (no text or labels)

• Keep the device and the cutting equipment in a good condition to avoid injuries.
• Check the carrying strap for comfortable positioning which facilitates holding the device.
• Always hold the device with both hands, one hand on the round handle and the other on the tube shaft. Thumb and fingers must tightly clasp around the handles.
• When working the chain saw attachment or the hedge trimmer attachment pay attention to prescribed working angle of 60^ ± 10^ , in order to ensure safe operation.
• If dropped, check the equipment for significant damage or defects.
• Do not use the electric pruner when standing on a ladder or in an unsafe position.
• Do not be tempted to make unconsidered cuts. Doing so may endanger both yourself and others.
• Children must be supervised to ensure that they do not play with the equipment.
• Change your working position regularly. Long use of the equipment can result in vibration-related circulatory disorders in the hands. However, the length of use can be extended by using suitable gloves or taking regular breaks. Note that a personal tendency for poor circulation, low outdoor temperatures, or high gripping forces during work will reduce the length of use.

Maintenance/Cleaning

Repair and servicing work not described in this manual should always be carried by our Service Centre. Use only original parts.

Pull out the power plug before carrying out any work on the equipment.

When handling the cutting equipment, wear gloves.

Carry out the following maintenance and cleaning work regularly. This will guarantee a long and reliable service life.

• Before each use, check the hedge trimmer for obvious defects such as loose, worn or damaged parts. Check the secure seating of the bolts in the cutter bar.
• Do not use the unit if the blades are blunt or worn. This will overstress the motor and gearbox of the machine.
• Check coverings and safety devices for damage and correct seating. Replace these where necessary.
• Keep the ventilation slots and motor housing of the device clean. Use a damp cloth or a brush to do this. Do not wash down the equipment with water, or submerge it in water.
• Do not use any cleaning agents or solvents. These could cause irreparable damage to the equipment. Chemical substances can attack the plastic parts of the equipment.
  • Always keep the blade clean. After using the equipment, it is imperative to:

- Clean the blade (with an oily cloth);

- Oil the blade shaft with an oil can or spray.

Diagram of a droplet being inserted into a grid-like structure (no text or symbols)

- Saw chain is to be wiped only with a dry cloth.

Storage

• Keep the trimmer in the blade guard supplied, in a dry place and out of reach of children.
• Always empty the oil tank before pauses in operation lasting several weeks because the biological chain oil can become resinous and block the oil outlet channel. Dispose of used oil in an environmentally correct manner.

Replacement parts/Accessories

Spare parts and accessories can be obtained at www.grizzly-service.eu

If you do not have internet access, please contact the Service Centre (see "Grizzly Service-Center").

Sawing chain Oregon 91P033X...30091332 Blade Oregon 080SDEA041.....30100210 Bio chain oil, 1 l.....30230001 Bio chain oil, 5 l.....30230002

Waste Disposal and Environmental Protection

Dispose of used oil in an environmentally correct manner - bring it to a waste disposal center. Do not dispose of used oil in the sewage system or drains. Be environmentally friendly. Return the tool, accessories and packaging to a recycling centre when you have finished with them.

Machines do not belong with domestic waste.

Empty the oil tank carefully and hand in your electric chainsaw at a disposal center. The plastic and metal parts employed can be separated out and thus recycled use can be implemented. Ask our Service-Center for details.

Guarantee

• We grant a 24-month warranty for this appliance. Commercial use will invalidate the guarantee.
• Damage due to natural wear and tear, overload or incorrect use is excluded from the guarantee. Certain components are subject to normal wear and tear and are excluded from the guarantee. These include in particular: cutter bars, blade, sawing chain, eccentric drives and carbon brushes provided that the claims are not traced back on material defects.
  • Furthermore, the prerequisite for guarantee services is that the references indicated in the operating instructions regarding cleaning and maintenance have been adhered to.
• Damage, which has been caused from material or manufacturing faults, will be made good free of charge, by replacement delivery or repair.
  This requires that the appliance is re-turned to our service center undismantled and with proof of purchase and guarantee.

Repair Service

For a charge, repairs not covered by the guarantee can be carried out by our service branch, which will be happy to issue a cost estimate for you.

We can handle only equipment that has been sent with adequate packaging and postage.

Attention: Please send your equipment to our service branch in clean condition and with an indication of the defect.

Equipment sent carriage forward or by bulky goods, express or other special freight will not be accepted.

We will dispose of your defective devices free of charge when you send them to us.

Trouble Shooting

Problem Possible cause	use Fault correction
Device does not start	Mains voltage not on	Check plug socket, cable, line and plug, where appropriate, have repaired through electrical specialist
	On/Off switch (A 13) defective	Repair by Service Centre
	Worn carbon brushes
	Defective motor
Device runs with interruptions	Power cable is damaged	Check the cable and have it changed by the Service Centre if necessary
	Internal loose electrical connection	Repair by Service Centre
	On/Off switch (A 13) defective
Bad cutting output	Cutting equipment assembled incorrectly	Correctly assembly cutting equipment
	Cutting equipment blunt	Sharpen cutting equipment (allow)
	Cutting equipment damaged	Replace cutting equipment
	Insufficient chain tension Check chain tension
	Too much friction due to lack of lubrication	Oil cutting equipment
Blades become hot	Blades are blunt	Have the blades (A 1) sharpened or replaced (Service Centre)
	Blades are notched	Have the blades (A 1) checked or replaced (Service Centre)
	Too much friction due to lack of lubrication	Oil the blades (A 1)
Chain (A 20) becomes hot, smoke development during sawing, discoloration of the rail	Too little chain oil	Check oil level and, where appropriate, refill with chain oil, check oil automatic system and, where appropriate, clean oil outlet channel (G 37) or have repaired by customer service Check fine-tuning for lubrication system (oil regulation button).

Obsah

Úvod....131

Použitie....131

Grizzly Service-Center 167

Úvod

Simple diagram showing a vertical beam with an arrow indicating force or displacement (no text or symbols)

Six circular icons representing different workplace safety symbols (head, helmet, face, person, hand, boot) without any text or labels.

Diagram of a droplet being inserted into a grid pattern (no text or symbols)

- Pílovú ret'az treba utriet' nasucho.

Skladovanie

Grizzly Service-Center 167

Úvod

Simple diagram showing a vertical line with an arrow pointing downward to a horizontal segment, no text or symbols present.

Six circular icons representing different occupational and safety symbols (head, helmet, glasses, helmet, person, hand, boot), no text or labels present.

Simple line drawing of a droplet being pointed at a surface with arrow-like patterns (no text or symbols)

Skladování

* The object of the declaration described above satisfies the provisions of Directive 2011/65/EU of the European Parliament and the Council of 8 June 2011 on limiting the use of certain harmful substances in electrical and electronic appliances.

Exploded view diagram of a mechanical assembly with numbered parts for identification

informativ, informative, informatif, informativo, informatief, pouczający, informatív, informační, informatívny

Grizzly Service-Center

Grizzly Tools

GmbH & Co KG

Kunden-Service

Unit B7 Oxford Street Industrial Park

Vulcan Road

Bilston, West Midlands WV14 7LF"

Tel.: [phone]

Fax: [phone]

e-mail: [e-mail]

I.T.S. Winschoten bv
