USER MANUAL SC2200PE SCHEPPACH

Black-and-white photo of a grass lawn mower with visible blade and control arm (no text or symbols)

https://www.scheppach.com/id/service scheppach

SC2200PE

DE	Benzin-KehrmaschineOriginalbedienungsanleitung	7
GB	Petrol sweeperTranslation of original instruction manual	28
FR	Balayeuse thermiqueTraduction des instructions d'origine	45
IT	Spazzatrice a benzinaLa traduzione dal manuale di istruzioni originale	64
NL	Benzine veegmachineVertaling van de originele gebruikshandleiding	83
ES	Barredora mecánica de gasolinaTraducción del manual de instrucciones original	102
PT	Vassoura mecânica a gasolinaTradução do manual de operação original	121

Technical diagram of a lawn mower with numbered parts and close-up views of the engine compartment

2 12 12a 12b 7

3 8d 8a8b 8b 8c

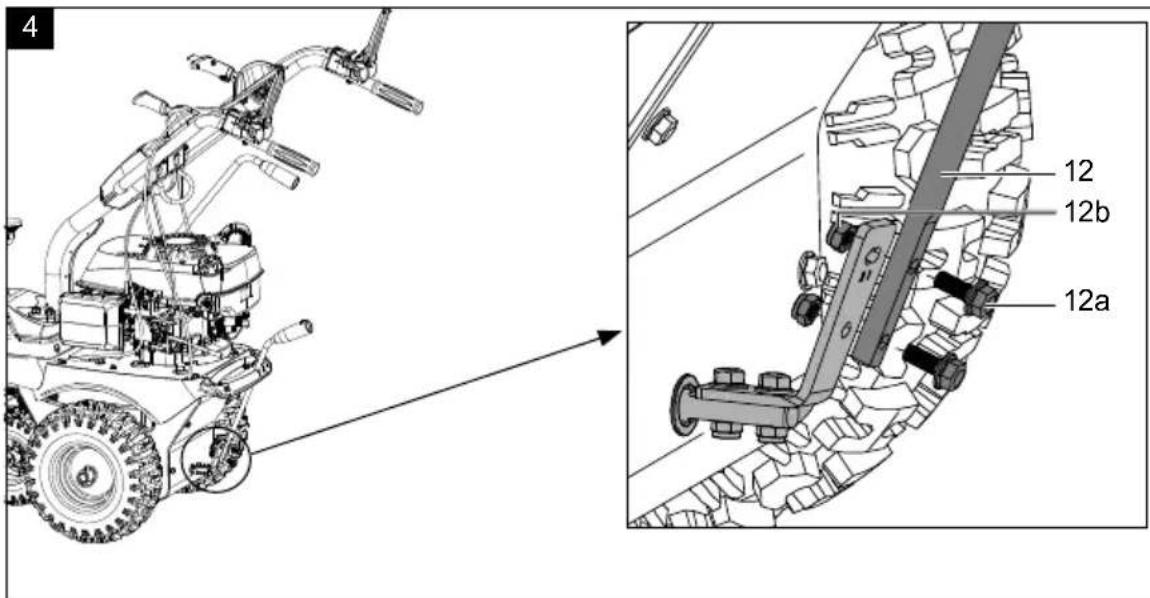

4 12 12b 12a

5 16 16a 16b

6 15c 15d 15b 15 15a

7 7a

Technical line drawing of a mechanical assembly with pipes and components (no text or symbols)

8 8c 8b 8d 8a

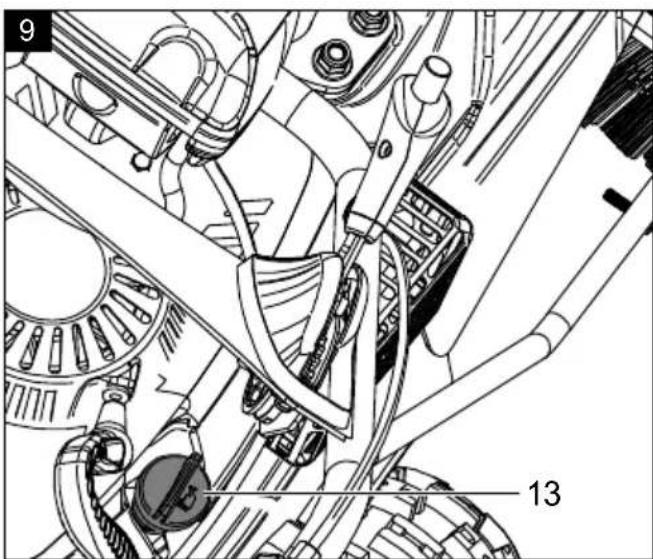

9 13

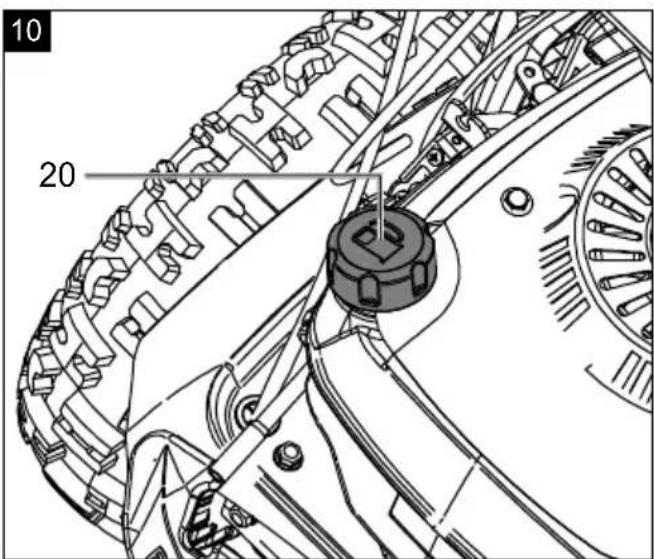

10 20

11 23 18 33a 2 1 24

12 16 19

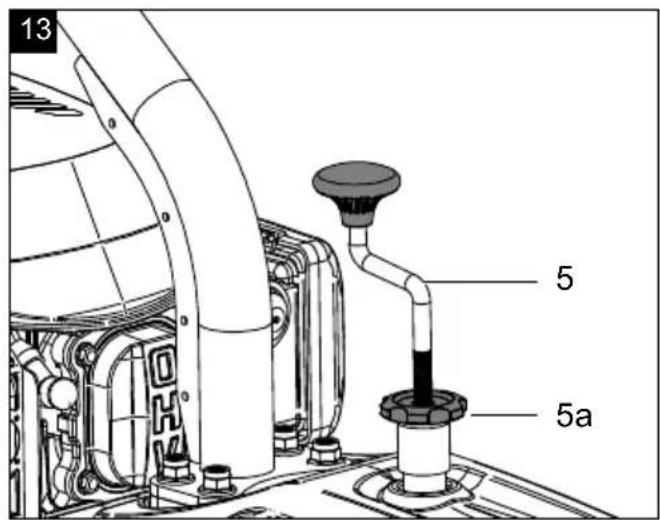

13 5 5a

14 11

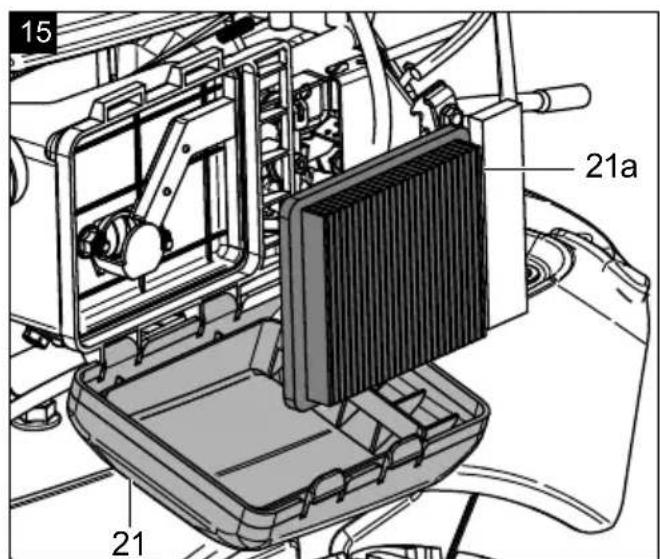

15 21a 21

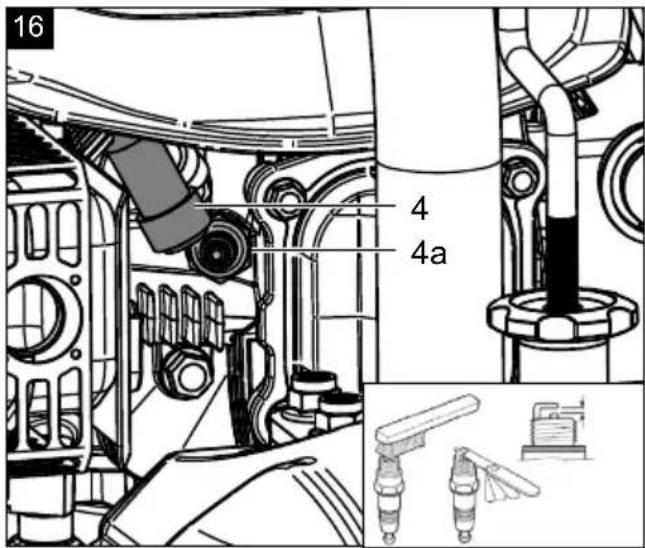

16 4 4a

Günzburger Straße 69

D-89335 Ichenhausen

Verehrter Kunde,

Homepage: https://www.scheppach.com/de/service

https://www.scheppach.com/de/service scheppach

Explanation of the symbols on the product

Symbols are used in this manual to draw your attention to potential hazards. The safety symbols and the accompanying explanations must be fully understood. The warnings themselves will not rectify a hazard and cannot replace proper accident prevention measures.

	Attention! Failure to observe the safety signs and warning information affixed to the machine and failure to observe the safety and operating instructions can result in serious injury or even death.
	Before commissioning, read and observe the operating manual and safety instructions!
	Wear safety goggles!
	Wear hearing protection!
	Wear sturdy footwear!
	The maximum slope is 20°.
	Removing or modifying protective or safety equipment is prohibited.
	Rotating brushes! Keep body away! Do not reach for rotating brushes. Danger of injury!
	ATTENTION! Operating materials are flammable and explosive - danger of burning.Do not refuel while the engine is hot or running.
	Danger of poisoning! Only use the device outdoors and never in closed or poorly ventilated rooms.
	Remove the spark plug connector prior to all maintenance work.
	Danger due to flying objects! Make sure that other persons maintain a sufficient safety distance. Keep uninvolved persons away from the device.
	Attention: hot surface - danger of burning.
	Guaranteed sound power level.
	Engine oil
	Check the oil level.
	Press the fuel pump “primer”.
	Throttle
	Speed control lever for the brushes (brush speed lever)
	Height adjustment of the steering bar
	Height adjustment for the brushes
	Brush drive
	Drive
	The product complies with the applicable European directives.
△ Attention!	We have marked points in this operating manual that impact your safety with this symbol.
	The product complies with the applicable Serbian directives.

Table of contents: Page:

1. Introduction....31
2. Product description (Fig. 1 + 11)....31
3. Scope of delivery 32
4. Proper use 32
5. General safety instructions.... 32
6. Technical data.... 35
7. Unpacking....36
8. Assembly 36
9. Before commissioning 37
10. Operating the sweeper 38
11. Maintenance & Cleaning 40
12. Repair & ordering spare parts 41
13. Transport....42
14. Storage 42
15. Disposal and recycling....43
16. Troubleshooting 44
17. Declaration of conformity 143

1. Introduction

Manufacturer:

Scheppach GmbH

Günzburger Straße 69

D-89335 Ichenhausen

Dear Customer,

We hope your new product brings you much enjoyment and success.

Note:

In accordance with the applicable product liability laws, the manufacturer of this product assumes no liability for damage to the product or caused by the product arising from:

• Improper handling
  • Non-compliance with the operating manual,
  • Repairs carried out by third parties, unauthorised specialists.
  • Installing and replacing non-original spare parts
  • Application other than specified
• Failure of the electrical system in the event of the electrical regulations and VDE provisions 0100, DIN 57113 / VDE0113 not being observed

Note:

Read through the complete text in the operating manual before installing and commissioning the device.

This operating manual should help you to familiarise yourself with your product and to use it for its intended purpose.

The operating manual includes important instructions for the safe, proper and economic operation of the product, for avoiding danger, for minimising repair costs and downtimes and for increasing the reliability and extending the service life of the product.

In addition to the safety instructions in this operating manual, you must also observe the regulations applicable to the operation of the product in your country.

Keep the operating manual package with the power tool at all times and store it in a plastic cover to protect it from dirt and moisture. They must be read and carefully observed by all operating personnel before starting the work.

The product may only be used by personnel who have been trained to use it and who have been instructed with respect to the associated hazards.

The required minimum age must be observed.

In addition to the safety instructions in this operating manual and the separate regulations of your country, the generally recognised technical rules relating to the operation of identical products must also be observed.

We accept no liability for accidents or damage that occur due to a failure to observe this manual and the safety instructions.

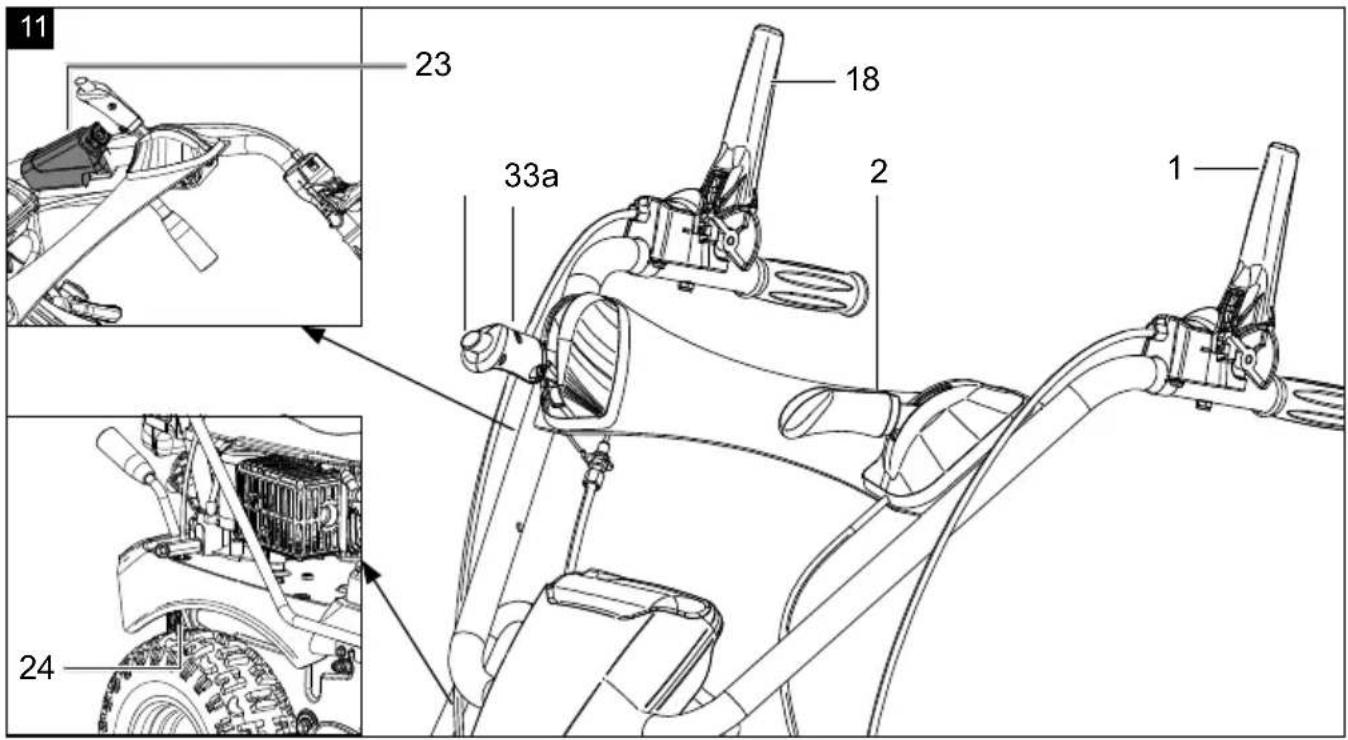

2. Product description (Fig. 1 + 11)

1. Brush drive clutch lever
2. Throttle
3. Brush speed lever
   3a. Locking knob
4. Spark plug connector
   4a. Spark plug
5. Crank
   5a. Star grip nut / locknut
6. Mounting bars for snow blade/collecting container

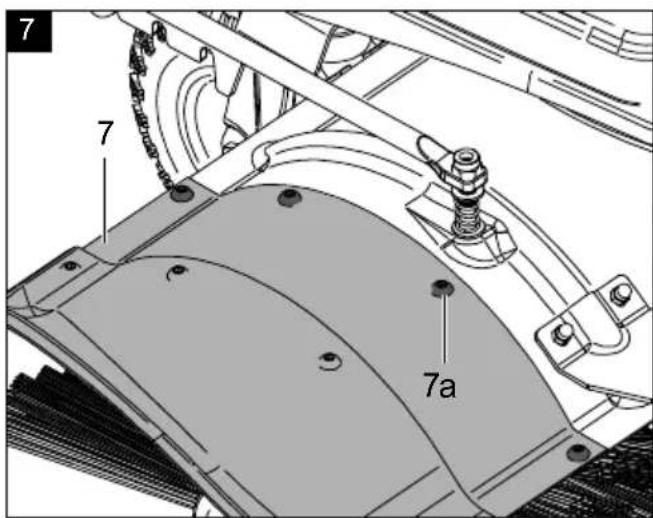

7. Guard left/right
   7a. Screw
   7b. Nut

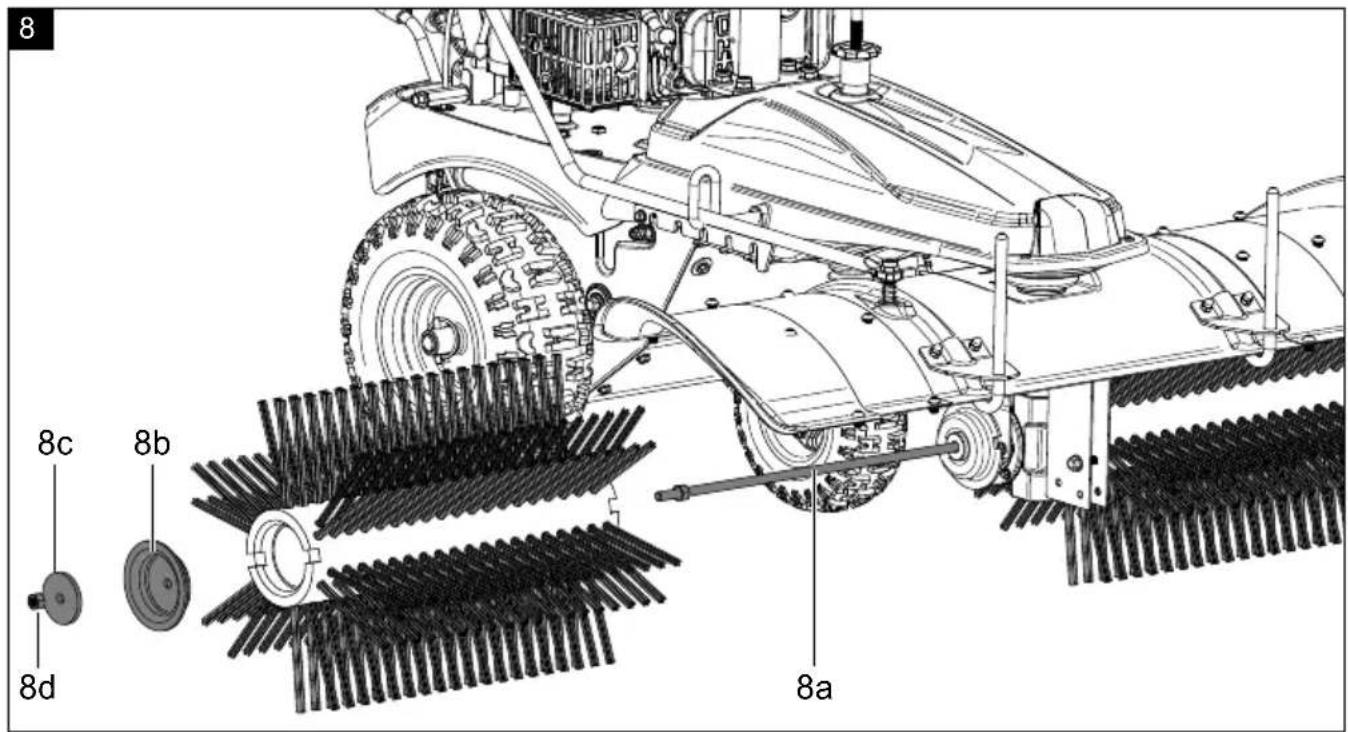

8. Brushing rollers

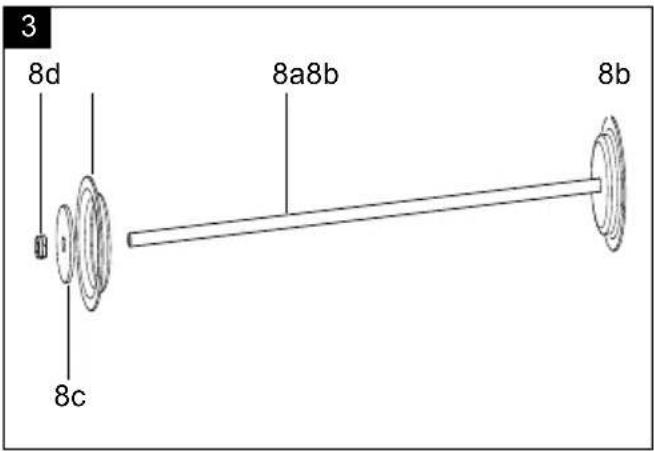

   8a. Brush shaft
   8b. Forming disc
   8c. Washer
   8d. Nut
9. Support wheel
10. Wheel

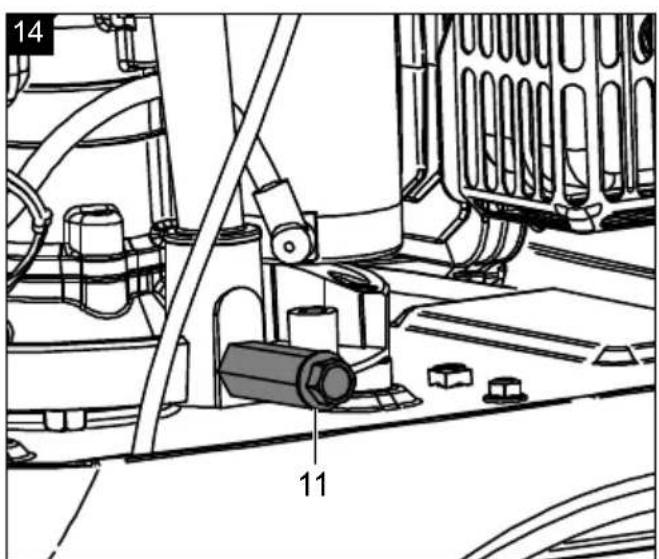

11. Oil drain screw

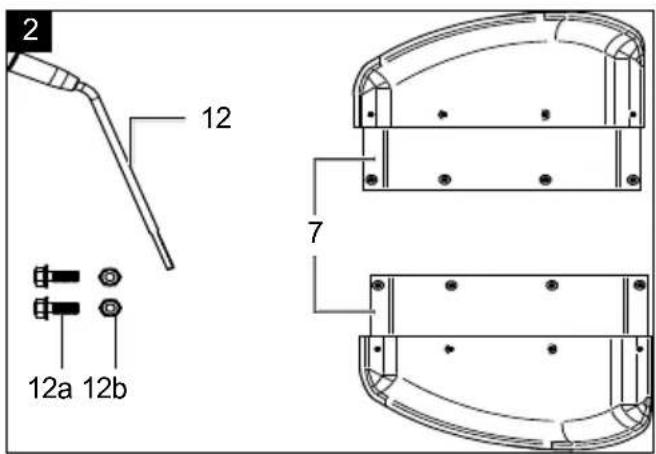

12. Gear selector lever
    12a. Screw
    12b. Nut
13. Oil dipstick
14. Pull starter

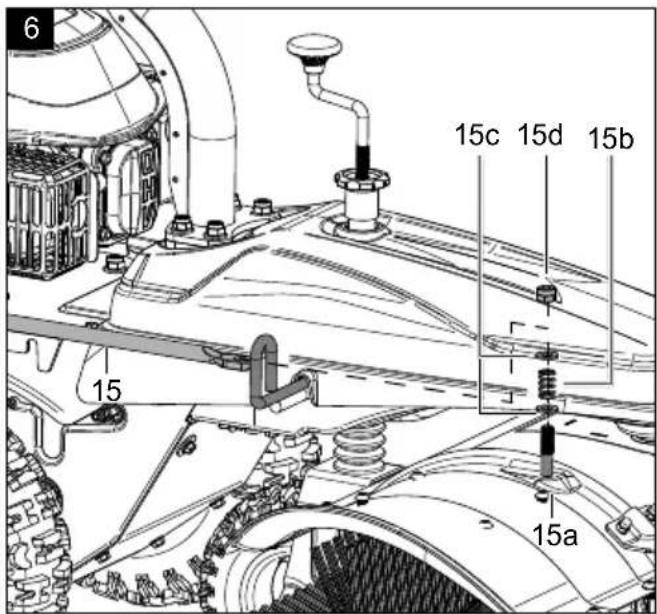

15. Swivel bar
    15a. Threaded pins
    15b. Spring
    15c. Washer
    15d. Nut

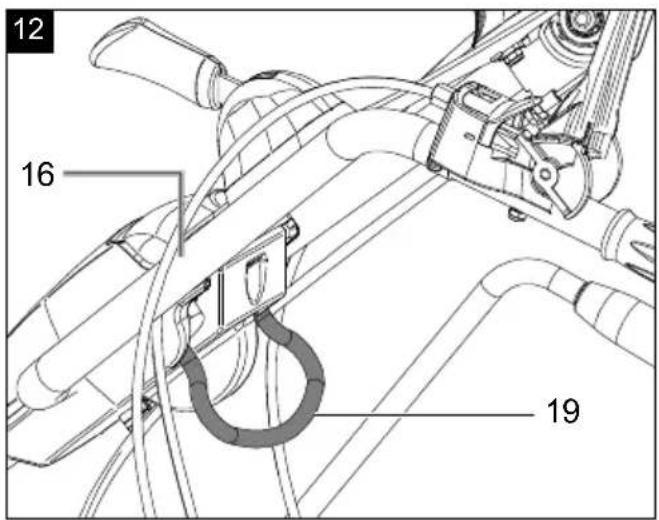

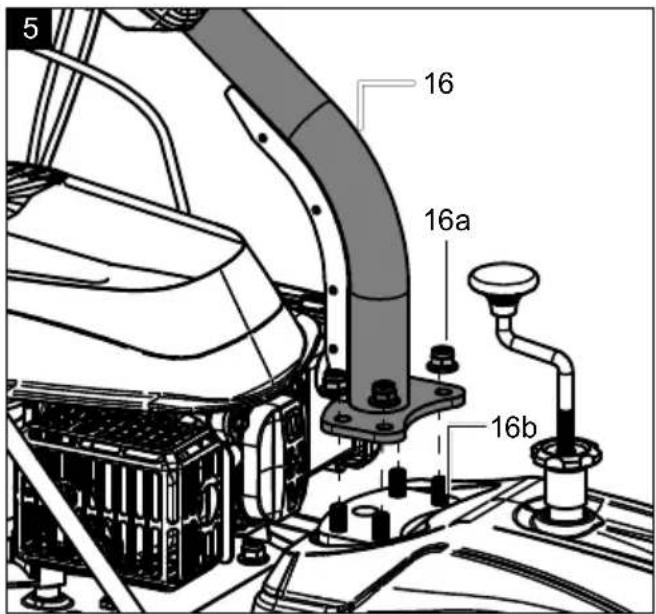

16. Steering bar
    16a. Nut
    16b. Fastening pins
17. Handle
18. Travel drive clutch lever
19. Handle for steering bar adjustment
20. Fuel filler cap

21. Air filter cover
    21a. Air filter

22. Primer pump

23. Ignition key / Electric starter
24. Charge socket
25. Battery (not illustrated)
26. Battery charger (not illustrated)

3. Scope of delivery

Item Quantity Designation

12 1x Gear selector lever

8 2x Brushing roller

8a 1x Brush shaft

8b 2x Forming disc

8c 2x Large washer

8d 2x Nut

7 2x Guard left/right

23 2x Ignition key

1x Battery charger

1x Operating manual

4. Proper use

The petrol sweeper, including attachments, is specially designed for the maintenance and cleaning of paved areas, walkways, yard entrances and good ventilated storage areas. Do not operate the machine in enclosed spaces.

The petrol sweeper is suitable for sweeping or picking up loose dirt. When attaching the snow blade, the petrol sweeper can be used to clear snow.

Do not use the petrol sweeper in the rain.

The machine may only be used in the intended manner. Any use beyond this is improper.

The user/operator, not the manufacturer, is responsible for damages or injuries of any type resulting from this.

An element of the intended use is also the observance of the safety instructions, as well as the assembly instructions and operating information in the operating manual.

Persons who operate and maintain the machine must be familiar with it and must be informed about potential dangers.

In addition, the applicable accident prevention regulations must be strictly observed.

Other general occupational health and safety-related rules and regulations must be observed.

The liability of the manufacturer and resulting damages are excluded in the event of modifications of the machine.

The machine may only be operated with original parts and original accessories from the manufacturer.

Please note that our equipment was not designed with the intention of use for commercial or industrial purposes. We assume no guarantee if the device is used in commercial or industrial applications, or for equivalent work.

5. General safety instructions

We have marked points in this operating manual that impact your safety with this symbol. △

Furthermore, the operating manual contains other important text sections that are marked with the word "ATTENTION!".

⚠ Attention!

When using equipment, several safety warnings must be observed to prevent injuries and damage. For this reason, please carefully read this operating manual / safety instructions. If you hand the device over to another person, please hand over this operating manual / safety instructions as well. We accept no liability for accidents or damage that occur due to a failure to observe this manual and the safety instructions.

⚠️ DANGER

A failure to observe these instructions poses an extreme danger of death or the risk of life-threatening injuries.

⚠ WARNING

A failure to observe these instructions poses a danger of death or the risk of serious injuries.

CAUTION

A failure to observe these instructions poses a minor to moderate danger of injury.

NOTE!

A failure to observe these instructions poses a risk of damage to the engine or other property.

• Familiarise yourself with your machine.
- Read the operating manual carefully and make sure you understand its contents, as well as all labels attached to the machine.
- Familiarise yourself with the area of application, as well as limitations of the machine, and particular sources of danger.
• Make sure that you know all the controls and their function exactly.
• Make sure you know how to stop the machine and quickly disable the controls.
- Do not attempt to use the machine without knowing the exact method of operation and the maintenance requirements of the engine and how to avoid accidents resulting in personal injury and/or property damage.
- Keep other people, particularly children, away from your work area.

Working range

• Never start or operate the machine in an enclosed space. The exhaust gases are dangerous because they contain the odourless and deadly gas carbon monoxide. Operate the machine only in a well-ventilated outdoor area.
• Never operate the machine without good visibility or lighting conditions.

Personal safety

• Do not use the machine if you have taken drugs, alcohol or medication that affects your ability to operate the machine correctly.
• Wear suitable clothing. Wear long trousers, boots and gloves.
• Do not wear loose clothing, shorts or jewellery of any kind. Tie back long hair so that it is at shoulder height at most. Keep hair, clothing and gloves away from moving parts. Loose-fitting clothing, jewellery or long hair may become caught in the moving parts. Check your machine before starting.
• Leave protective screens in place and in working order.
• Make sure that all nuts, bolts, etc. are securely tightened.
• Never use the machine if it is in need of repair or in poor mechanical condition. Replace damaged, missing or defective parts before use.
• Check the machine for fuel leaks.

• Keep it in good functional order. Do not use the machine if the engine cannot be switched on and off at the corresponding switch.

• A petrol-driven machine that cannot be controlled via the engine switch is dangerous and must be replaced.

• Before starting the machine, get into the habit of checking that screwdrivers and spanners are away from the area around the machine. A screwdriver or spanner that is still in a rotating device part may result in personal injury.
• Be attentive, watch your actions and use common sense when working with the machine. Do not overextend yourself.
• Do not operate the machine barefoot or with sandals or similar light footwear. Wear safety shoes that protect your feet and improve your grip on slippery surfaces.
• Ensure safe footing and balance at all times. This will allow you to better control the machine in unexpected situations.
• Prevent unintentional start-up. Make sure that the engine switch is switched off before transporting the machine or carrying out maintenance work on the machine. Transport or maintenance work on the machine can lead to accidents if the switch is on.

Safe handling of fuel

- Petrol is very flammable and its gases can explode if they ignite.

• Take safety measures when handling petrol to reduce the risk of serious injury.

- Use a suitable petrol can when filling or draining the tank.

- Carry out this work in clean, well-ventilated outdoor areas.

- Do not smoke. Do not allow sparks, naked flames or other sources of fire to get near when filling up with petrol or working with the machine.

- Never fill the tank indoors. Keep earthed, electrically conductive objects, such as tools, away from exposed electrical parts and wires to avoid sparking or arcing. This could ignite petrol gases.

- Always switch off the engine and let it cool down before refilling the fuel tank. Never remove the fuel filler cap or fill fuel into the tank while the engine is running or while the engine is hot.

- Do not use the machine if you know there is a leak in the fuel system. Slowly loosen the fuel filler cap to release any pressure in the tank. Never overfill the tank (petrol should never be above the marked maximum fill level). Close the fuel tank securely again with the fuel filler cap and wipe up any spilled petrol.

• Do not use the machine if the fuel filler cap is not screwed tightly shut. Avoid ignition sources near spilled petrol. If petrol has been spilled, do not attempt to start the machine.
  Move the machine away from the area of the spillage and prevent the formation of ignition sources until the petrol gases have dissipated.
• Store fuel only in containers specially manufactured for this purpose.
• Store petrol in a cool, well-ventilated area away from sparks and naked flames or other sources of ignition. Never store petrol or the machine with a filled tank in a building where petrol gases could reach sparks, naked flames or other ignition sources such as water heaters, ovens, clothes dryers or similar.
• Allow the engine to cool before storing the machine in an enclosed area.

Battery safety

• To avoid spark formation due to a short circuit, always disconnect the negative cable (-) from the battery first and reconnect it last.
• Never smoke during work on the battery. Always keep sparks, naked flames and other heat sources away from the battery.
• Special care must be taken when using jumper cables. Follow relevant instructions to avoid damage to the device (in particular, do not operate the starter for more than 10 seconds).
• Never open the battery and do not drop it.
  • Always charge the battery in a closed room with good ventilation, dry and protected against the weather.
• Do not short-circuit battery connections.
• Deformed or defective (leaking) batteries must not be used and must be replaced and disposed of in an environmentally friendly manner. Observe the country-specific regulations.
• If the batteries are defective, liquid may leak out. Avoid contact! In case of accidental contact, rinse with water. If the liquid gets into your eyes, seek additional medical attention. Leaking battery fluid can cause skin irritation, burns and chemical burns.
• Regularly visually inspect the connection cables on the battery for damage. Have damaged cables replaced by a specialist.
• Never bypass the fuses. Never use a fuse with a rating other than the prescribed rating (amperes).

Use and care of the machine

- Never pick up or carry the machine while the engine is running.

- Do not handle the machine violently.

- Use the right machine for your area of application. The right machine will do the job it was designed for better and more safely.

- Do not change the speed governor setting of the engine or over-rev it. The speed control system controls the maximum speed of the engine with maximum safety.

- Do not hold your hands or feet near rotating parts.

- Avoid contact with hot fuel, oil, exhaust gases and hot surfaces. Do not touch the engine or exhaust silencer. These parts become particularly hot during use. They are still hot a short time after the machine is switched off.

- Allow the engine to cool down before carrying out maintenance or adjustment work.

- If the machine starts to make unusual noises or vibrations, switch the engine off immediately, disconnect the spark plug cable and determine the cause. Unusual noises or vibrations are usually a safety sign of faults.

- Only use assembly and accessory parts approved by the manufacturer. Failure to do so may result in injury.

- Service the machine. Check for misalignment or jamming of moving parts, damaged parts and other conditions that could impair function of the machine. Have the machine repaired before any further use if you find any damage. Many accidents are the result of poorly maintained equipment.

- Keep the engine and silencer free of grass, leaves, excess grease or soot encrustation to reduce the risk of fire.

- Never pour or splash water or any other liquid onto the machine.

- Keep the handles dry, clean and free of small parts.

- Clean the machine after every use.

- Follow the applicable waste disposal guidelines for petrol, oil etc. to protect the environment.

- Keep the switched-off machine out of the reach of children and do not allow persons who are not familiar with the machine or these instructions to use the machine. The machine is dangerous in the hands of untrained operators.

Service

• Before cleaning, repairing, inspecting or adjusting, switch off the engine and ensure that all moving parts have come to a standstill.
• Always ensure that the throttle lever is in the "off" position. Disconnect the spark plug cable and keep it away from the spark plug to prevent accidental start-up.
• Have your machine serviced by qualified personnel. Use only original spare parts. This ensures that the machine remains safe.

Residual risks

The machine has been built according to the state-of-the-art and the recognised technical safety requirements. However, individual residual risks can arise during operation. Residual risks can be minimised if the "Safety Instructions" and the "Intended Use" together with the operating manual as a whole are observed.

• Keep your hands away from the working area when the machine is in operation.
• Carefully check the area where work is to be done and keep the work area clean and free of dirt to prevent trip hazards. Work on a level smooth floor.
• During assembly, installation, operation, maintenance, repair or transport, never place any part of your body in a position where it would be in danger if movement occurred.
• Never leave the operating position while the engine is running.
• Always hold the device with both hands during operation. Always hold the handlebar securely.
  • Take particular care when using reverse gear or pulling the machine towards you.
• Be especially careful when working on or crossing gravel paths, pavements or roads. Always watch out for hidden dangers and traffic.

Warning! This power tool generates an electromagnetic field during operation. This field can impair active or passive medical implants under certain circumstances. In order to prevent the risk of serious or deadly injuries, we recommend that persons with medical implants consult with their physician and the manufacturer of the medical implant prior to operating the power tool.

6. Technical data

Transmission 3 forward / 1 reverse
Forward speed 2.5 - 4.3 km/h
Reverse speed 2.5 km/h
Total machine width 106 cm
Sweeping width 100 cm
Brush diameter 350 mm
Brush speed	5 stages / 180 - 350 rpm
Brush angle -25° / +25°
Weight 82 kg
Drive:
Type of engine 4-stroke motor
Displacement 173 ccm3
Drive wheel tyre size 13"x5.00-6
Support wheel tyre size	4"x2.6-2.8
Load speed	2800 rpm.
Maximum speed	2900 rpm.
Slope	max. 20°
Engine starter	Pull starter / E-start
Power	3.6 kW / 4.9 HP
Fuel	Regular grade petrol/ lead-free max. 10% bioethanol
Fuel tank maximum capacity	1 l
Required engine oil	SAE 10W-30 / 10W-40
Oil tank maximum capacity	0.6 l
Battery voltage	12 V
Battery capacity	5Ah
Battery type	Lead acid

Subject to technical changes!

Noise and vibration

The specified device emissions values were determined according to EN ISO 3744 for sound power or EN ISO 11201 for sound pressure.

Noise can have serious effects on your health. If the machine noise exceeds 85 dB, please wear suitable hearing protection.

Noise data:

Sound pressure level L_pA	74.4 dB
Uncertainty K_pA	2.5 dB
Sound power level L_WA	98 dB

Vibration parameters:

Steering lever right vibration A_hv	7.127 m/s ^2
Steering lever left vibration A_hv	5.577 m/s ^2
Measurement uncertainty K_PA	1.5 m/s ^2

The specified sound levels have been measured in accordance with a standardised test procedure and can be used to compare different tools with one another. In addition, these values are suitable for estimating the stresses for the user resulting from the noise in advance.

⚠ WARNING

The vibration emission value can vary from the specified value during actual use, depending on the type and the manner in which the device is used.

Try to minimise stress from vibrations as low as possible. Some examples of means for reducing the vibration stress are wearing gloves while using the tool and limiting work time. In doing so, all parts of the operating cycle must be taken into account (such as times in which the device is switched off or times in which it is switched on, but is not running under a load).

Warning!

In case of extended working periods, the operating personnel may suffer circulatory disturbances in their hands (vibration white finger) due to vibrations.

Raynaud's syndrome is a vascular disease that causes the small blood vessels on the fingers and toes to cramp in spasms. The affected areas are no longer supplied with sufficient blood and therefore appear extremely pale. The frequent use of vibrating devices can cause nerve damage in people whose circulation is impaired (e.g. smokers, diabetics).

If you notice unusual adverse effects, stop working immediately and seek medical advice.

Observe the following information to reduce hazards:

- Keep your body and especially your hands warm in cold weather.

• Take regular breaks and move your hands to promote circulation.

- Ensure as little vibration as possible at the device via regular maintenance and stable parts on the machine.

Keep the noise level and vibration to a minimum!

7. Unpacking

- Open the packaging and carefully remove the product.

- Remove the packaging material, as well as the packaging and transport safety devices (if present).

- Check whether the scope of delivery is complete.

- Check the product and accessory parts for transport damage. In the event of complaints the carrier must be informed immediately. Later claims will not be recognised.

- If possible, keep the packaging until the expiry of the warranty period.

- Familiarise yourself with the product by means of the operating manual before using for the first time.

- With accessories as well as wearing parts and replacement parts use only original parts. Spare parts can be obtained from your specialist dealer.

- When ordering please provide our article number as well as type and year of manufacture for the product.

⚠ WARNING!

The product and the packaging material are not children's toys! Do not let children play with plastic bags, films or small parts! There is a danger of choking or suffocating!

8. Assembly

The sweeper is not completely fitted at the factory. At least 2 people are required for assembly!

The screws and nuts are already loosely pre-fitted and can be found on the respective parts.

8.1 Assembly of snow blade and collecting container

The assembly of the snow blade and the collecting container is described in separate installation instructions.

8.2 Assembly of the gear selector lever (12) (Fig. 4)

1. Secure the gear selector lever (12) using the enclosed hexagonal bolts (12a) (M6 x 22 mm) and the self-locking nuts (12b) (AF10).

8.3 Installing the steering bar (16) (Fig. 5)

1. Fit the steering bar (16) to the fastening bolts (16b) on the machine.

2. Now tighten the four self-locking nuts M10 (16a) (AF15).

8.4 Installing the swivel bar (15) (Fig. 6)

1. Put the washer (15c), the spring (15b) and the second washer (15c) on the threaded rod (15a).

2. Push the slide valve (15) through the opening.

3. Press the swivel rod (15) onto the threaded rod (15a) and tighten the self-locking nut M10 (15d) (AF15).

8.5 Installing the protective guards (7) (Fig. 7)

1. Fit the protective guards (7) on the left and right sides of the sweeper.

2. Secure the protective guards (7) with a Phillips screwdriver, the screws (7a) (M8 x 12 mm) supplied and the self-locking nuts (7b) (M8) (AF13).

8.6 Fitting the brush rollers (8) (Fig. 3, 8)

1. On one side of the brush shaft (8a), remove the pre-fitted nut (M10), spring washer, washer (8c) and forming disc (8b).

2. Then put the brush roller (8) on the brush shaft (8a). When doing so, make sure that the groove of the brush roller (8) aligns with the cams of the drive unit.

3. Slide the brush shaft (8a) through the drive unit.

4. Put the second brush roller (8) on the brush shaft (8a). When doing so, make sure that the groove of the brush roller (8) aligns with the cams of the drive unit.

5. Place the forming disc (8b), the washer (8c) and the spring washer on the brush shaft (8a).

6. Screw on the nut (M10) (AF16) and tighten it by countering the nut (M10) (AF17) on the opposite side.

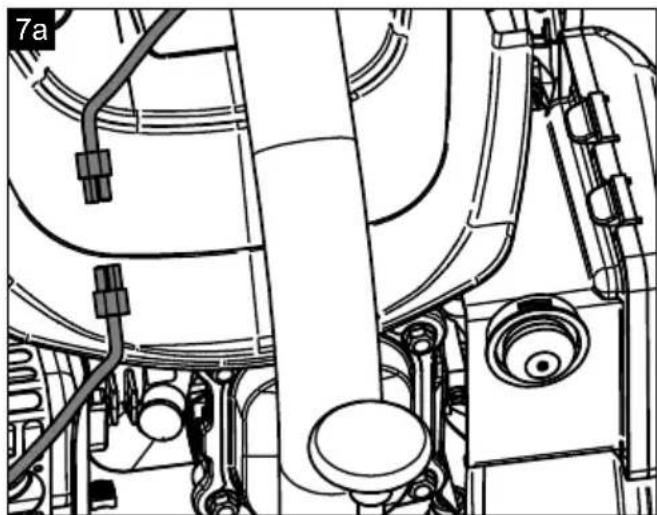

8.7 Connecting the electric starter (Fig. 7a)

1. In order to be able to use the electric starter, both connectors must be fitted together.

9. Before commissioning

ATTENTION!

Always make sure the machine is fully assembled before commissioning!

⚠ WARNING!

Health hazard!

Inhalation of petrol/lubricating oil vapours and exhaust gases can cause serious damage to health, unconsciousness and in extreme cases death.

- Do not breathe petrol/lubricating oil vapours and exhaust gases.

- Operate the product outdoors only.

NOTE!

Product damage

Using the product without or with too little engine and gear oil can result in engine damage.

- Fill with petrol and oil before commissioning. The product is supplied without engine and gearbox oil.

NOTE!

Environmental damage!

Spilled oil can pollute the environment permanently. The liquid is highly toxic and can quickly lead to water pollution.

- Fill/empty oil only on level, paved surfaces.

- Use a filling nozzle or funnel.

- Collect drained oil in a suitable container.

- Wipe up spilled oil carefully immediately and dispose of the cloth according to local regulations.

- Dispose of oil as per local regulations.

NOTE!

Risk of damage!

If incorrectly stored or undrained fuel is used, the carburettor may become clogged or engine operation may be affected.

- Put unused fuel in an airtight vessel and store it in a dark, cool room.

9.1 Filling up with engine oil (Fig. 9)

⚠ Attention!

The machine is delivered without engine oil. Therefore, ensure that you add oil before commissioning. Use multigrade oil (SAE 10W-30 or 10W-40 (depending on the operating temperature)) for this.

Check the oil level regularly before commissioning. An oil level that is too low can damage the engine.

1. Place the machine on a level, even surface.
2. Unscrew the oil dipstick (13).
3. Fill the tank with engine oil using a funnel (not included in scope of delivery). Note the max. filling capacity of 600 ml. Carefully fill the oil up to the lower edge of the filling port.
4. Wipe the oil dipstick (13) with a clean, lint-free cloth.
5. Re-insert the oil dipstick (13) and check the oil level without screwing the dipstick tight again.
6. The oil level must be within the middle mark on the oil dipstick.
7. If the oil level is too low, add the recommended amount of oil (max. 600 ml).
8. Then screw the oil dipstick (13) in again.

9.2 Filling up with petrol (Fig. 10)

⚠ Attention!

The machine is delivered without petrol. It is therefore essential to fill with petrol before commissioning.

1. Clean the area surrounding the filling area. Impurities in the tank lead to operational faults.
2. Carefully open the tank cover (20) so that any possible overpressure can be relieved.
3. Fill the tank with petrol (Super E10) using a funnel (not included in scope of delivery).
   Note the max. filling capacity of 1 litres. Carefully fill the petrol up to the lower edge of the filling nozzle.
4. Close the tank cover (20) again. Ensure that the fuel cap is tightly sealed.
5. Clean the fuel filler cap (20) and the surroundings.
6. Check the tank and fuel lines for leaks.
7. Move at least three meters away from the refueling area before starting the engine.
   Do not use petrol that has already been used or that is contaminated. Do not allow dirt or water to enter the fuel tank.

9.3 Check tire pressure

Check the tyre pressure regularly. Long standing times and sunlight contribute to rapid ageing of the tyres.

• Recommended tyre pressure in the drive wheels: 1.38 bar
• Recommended tyre pressure in the support wheel: 3.1 bar

Note: If you notice that the tyres or wheels are damaged, please contact the customer service or a specialist workshop.

Check before operation

• Check all sides of the engine for oil or fuel leaks.
• Check the engine oil level.
• Check the fuel level – the tank should be at least half-full.
• Check the condition of the air filter.
• Check the condition of the fuel lines.
• Look for signs of damage.
• Check that all protective covers are in place and all screws, nuts and pins are tightened.

10. Operating the sweeper

10.1 Adjusting the steering bar height (Fig. 12)

1. Set the steering bar (16) to a working height that you find comfortable (3 levels).
2. To do so, use the handle (19) on the underside of the steering bar (16).
3. Let the handle (19) audibly engage again.

CHOKE

Starting position

Engine off

10.2 Starting the engine (Fig. 1, 11)

Check the petrol and engine oil levels before each start (see sections 9.1 and 9.2). Make sure that the spark plug connector (4) is connected to the spark plug (4a).

1. With the engine cold, set the throttle lever (18) to the CHOKE position. The choke is not necessary when the engine is warm.

2. Press the primer pump (22) 1 to 4x depending on the temperature (see sticker on the air filter).

3. Start the engine with the pull starter (14). To do this, pull the handle out approx. 10-15 cm (until resistance is felt). And then pull hard with a jerk. If the engine does not start, pull on the pull starter (14) again.

4. Due to protective coating on the engine, a small amount of smoke may be present during the initial use of the machine and should be considered normal. This is a normal process.
5. Once the engine starts running, slowly move the throttle (18) to the start position.
6. After the engine has warmed up, set the throttle (18) to the desired speed - maximum speed hare and lowest speed turtle).

10.3 Using the electric starter to start the engine (Fig. 11)

Check the petrol and engine oil levels before each start (see sections 9.1 and 9.2). Make sure that the spark plug connector (4) is connected to the spark plug (4a).

1. Set the throttle (18) to the start position.
2. To start the machine, insert the ignition key (23) into the ignition lock under the handle and press it.
3. Press and hold the ignition key (23) until the engine starts, then release it.
4. Set the throttle (18) to the desired speed - maximum speed "hare" and lowest speed "tortoise").

Note: If starting the engine with electric starter does not work, charge the battery (25) with the supplied battery charger (26) (see 11.6.).

10.4 Switch off the engine (Fig. 1, 11)

1. To stop the engine, set the throttle lever (18) to "engine off" and release the two clutch handles (18, 1). Wait until the brushes stand still.
2. Disconnect the spark plug connector (4) from the spark plug (4a) to prevent the engine from restarting.
3. Remove the ignition key (23) and store it in a safe place.

10.5 Height adjustment for the brushes (Fig. 12)

The brushes are optimally adjusted when they are moved down approx. 1.5-2 cm from ground contact. Adjust the brushes to the desired height using the crank (5).

1. Loosen the star grip nuts (5a).

2. Turn the crank (5) anti-clockwise to move the brush downwards. Turn the crank (5) clockwise to move the brush upwards.

3. Tighten the star grip nut (5a) to lock the crank (5).

Attention! If the brushes are set too low this can overload the drive system and cause increased wear.

10.6 Changing the brush angle (Fig. 1)

The brushes can be swivelled 25 degrees to the right and left.

1. Lift the swivel rod (15) out of the locking mechanism.
2. Push the slide valve (15) forward to swivel the brushes to the left.
3. Pull the swivel bar (15) backwards to swivel the brushes to the right.
4. Release the swivel rod (15) again so that it locks into place.

Attention: With the collecting container fitted, it is not possible to swivel the brushes.

10.7 Travel drive (Fig. 11)

1. Put it in gear and the direction of travel.
2. Press the travel drive clutch lever (18), the machine starts moving.
3. Release the travel drive clutch lever (18) to stop the machine.

Attention! Do not change the gear while the travel drive clutch lever (18) is activated. This could cause significant transmission damage!

10.8 Clutch lever for brush drive (1) (Fig. 1, 11)

1. Press the brush drive clutch lever (1) down to switch on the brushes.
2. Release the brush drive clutch lever (1) so that the brushes stop.

10.9 Brush speed (Fig. 1, 11)

1. Actuate the locking knob (3a) on the brush speed lever (3) and push it forward to increase the speed of the brushes.
2. Actuate the locking knob (3a) on the brush speed lever (3) and pull it back to reduce the brush speed.

Attention! Only make this setting when the brush is running!

11. Maintenance & Cleaning

⚠ WARNING!

Danger of injury and burning!

The product can start unexpectedly and cause injuries. In addition, temperatures of 80^ C and more can be reached.

• Switch off the engine before carrying out any cleaning or maintenance work.
• Allow the engine to cool down.
• Pull the spark plug cable from the spark plug and remove the ignition key.

NOTE!

Risk of damage!

Water entering the housing can cause engine damages. In addition, the jet of a high-pressure cleaner can damage parts of the product.

• Clean the product with a cloth, a hand brush, etc.
• Do not immerse the product in water or any other liquid and do not wash it with a high-pressure cleaner.

NOTE!

Environmental damage!

Spilled oil can pollute the environment permanently. The liquid is highly toxic and can quickly lead to water pollution.

• Fill/empty oil only on level, paved surfaces.
• Use a filling nozzle or funnel.
• Collect drained oil in a suitable container.
• Wipe up spilled oil carefully immediately and dispose of the cloth according to local regulations.
• Dispose of oil as per local regulations.

Maintenance plan
Check for servicing	Interval
Loose screws	Before commissioning
Check for damage	Before commissioning
Check fuel tank for leaks	Before commissioning
Check tire pressure	Before commissioning
Clean machine	After commissioning
Clean the spark plug	Every 50 operating hours
Clean the air filter	Every 10 operating hours
Check the oil level	Every 25 operating hours
Change the oil	1x per year

11.1 Checking the oil level (Fig. 9)

1. Proceed as described in 9.1.

11.1.1 Changing oil (Fig. 9, 14)

Change the engine oil after 20 operating hours, then every 50 hours or once per year.

The engine oil change should be carried out while the motor is at operating temperature and switched off. Use only engine oil (SAE 30 or 10W-30).

1. Place the machine on a level, even surface.
2. Place a suitable collection container under the oil drain screw (11).
3. Use an open-end spanner size 13 mm (not included in the scope of delivery) to open the oil drain screw (11) and drain the engine oil.
4. After you have drained the engine oil completely, tighten the oil drain screw (11) again.
5. Now unscrew the oil dipstick (13) anti-clockwise.
6. Fill up with fresh engine oil and check the oil level (see 9.1).
7. Then screw the oil dipstick (13) back in clockwise.

11.2 Air filter maintenance (Fig. 1, 15)

⚠️ DANGER!

Risk of fire and explosion!

If not cleaned correctly, fuel may ignite and even explode. This can lead to severe burns or death.

• Clean the air filter only by knocking out or blowing out with compressed air.
• Never clean the air filter with petrol or flammable solvents.

NOTE!

Risk of damage!

Operating the engine without the filter element in place can cause engine damage.

- Never run the engine without the air filter element in place.

A fouled air filter insert diminishes the engine output due to reduced air supply to the carburettor. Regular inspection is therefore essential.

The air filter should be checked every 10 operating hours and cleaned as required.

1. Take off the air filter cover (21).

2. Check the air filter cover (21) for holes or cracks. Replace any damaged insert.

3. Wipe off dirt on the inside of the filter housing with a clean moist cloth. Make sure that no direct enters the opening. Set the air filter cover (21) on the filter housing for the duration of the filter cleaning process.

4. Take off the filter (21a). Check it for damage and replace it if necessary.
5. Blow out the filter (21a) from the inside to the outside with compressed air. Do not rub dirt off the filter (21a). This can result in damage.
6. Reinsert the clean filter (21a).
7. Put on the air filter cover (21).

⚠️ ATTENTION: Never run the engine without an air filter insert or with a damaged air filter insert. This would allow dirt to enter the engine, which would damage the engine. The manufacturer warranty is then invalidated.

11.3 Spark plug maintenance (Fig. 1, 16)

Check the spark plug for contamination for the first time after 10 operating hours and clean it with a copper wire brush if necessary. Thereafter, replace the spark plug every 50 operating hours if necessary.

1. Pull off the spark plug connector (4) with a twisting motion.
2. Remove the spark plug (4a) with a spark plug wrench (not included in the scope of delivery).
3. Clean the spark plug (4a) with a copper wire brush if necessary.
4. Use a feeler gauge to set the gap to 0.75 mm(0.030").
5. Replace the spark plug (4a) and take care not to pull it too firmly.

11.4 Drain fuel with a petrol extraction pump

In case of storage over a longer period of time, the fuel must be drained.

⚠ WARNING!

Health hazard!

Inhalation of fuel / lubricating oil vapours and exhaust gases can cause serious damage to health, unconsciousness and in extreme cases death.

• Do not breathe fuel / lubricating oil vapours and exhaust gases.

• Empty out fuel only outdoors.

• Hold a collection container under the hose of the petrol extraction pump (not included in the scope of delivery).

• Unscrew and remove the fuel filler cap (20).

• Push the hose of the petrol extraction pump into the fuel tank and drain out the fuel completely using the petrol extraction pump.

• Retighten the fuel filler cap (20).

11.5 Replacement of the V-belt

The V-belt may only be removed and replaced by our customer service.

11.6 Charge the battery (25) (Fig. 11)

The battery (25) is charged during operation. In any case, frequent starting may make it necessary to charge the battery (25) with the included battery charger (26):

1. Plug the connector into the charging socket (24) and the battery charger (26) into a 230V\~/50Hz socket.
2. Charge the battery for min. 5 hours.

11.7 Removing the battery (25)

The battery may only be removed and replaced by our customer service.

Ensure that batteries are secured against unauthorised use (e.g. by children).

Charge the battery (25) during the winter 1-2 times to ensure that the full charging capacity is maintained. Incorrect storage can damage the battery (25). In this case, the warranty is void.

12. Repair & ordering spare parts

After any repair or maintenance work, make sure that all safety-related parts are in place and in perfect condition. All parts which may cause injury must be kept where they are inaccessible to children or others.

Attention: According to the German Product Liability Act, no liability is accepted for damage caused by improper repairs or by not using original spare parts.

Such work should be performed by a customer service centre or an authorised specialist. The same applies to accessory parts.

Spare parts and accessories can be obtained from our Service Centre. To do this, scan the QR code on the front page.

Important note in the case of repairs:

When returning the device for repair, please ensure for safety reasons that it is free of oil and petrol when it is sent to the service centre.

12.1 Ordering spare parts

Please provide the following information when ordering spare parts:

• Model designation
• Article number
• Type plate data

Spare parts / accessories

Brush - Article no.: 5908703036

Snow blade - Article no.: 5908703811

Collecting container - Article no.: 5908703810

Battery - Article no: 5908703027

12.2 Service information

With this product, it is necessary to note that the following parts are subject to natural or usage-related wear, or that the following parts are required as consumables.

Wearing parts*: Brushes, V-belt, engine oil, spark plug, air filter, wheels, support wheel, rubber lip collection box, scraper bar snow blade

* may not be included in the scope of delivery!

13. Transport

⚠ WARNING!

Danger of injury!

Unintended and unexpected start-up of the product may lead to injuries.

- After loading, switch off the engine and, after the engine has cooled down, remove the spark plug connector from the spark plug.

- Remove the ignition key from the ignition lock.

- The product can cause severe crushing injuries due to its own weight.

Allow the engine to cool down before transporting or loading to avoid burns and to prevent fire hazards.

△ The machine can fall and cause damage or injury if it is not loaded properly.

When transporting over longer distances, drain the fuel tank completely.

Secure the machine on the transport vehicle against rolling, slipping or tipping over and also lash down the machine.

14. Storage

⚠ DANGER!

Risk of fire and explosion!

Storing the product near potential sources of ignition can result in a fire or an explosion. This can lead to severe burns or death.

- Eliminate possible sources of ignition, such as furnaces, hot water boilers with gas, gas dryers, etc.

NOTE!

Risk of damage!

If the product is not stored properly, the engine can be damaged.

- Store the product protected against dirt, dust and moisture.

14.1 Storage during extended breaks in operation:

If the machine will not be used for a period of more than 30 days, follow the steps below to prepare it for storage.

1. Empty the fuel tank completely (see section 10.4). Stored petrol containing ethanol or MTBE becomes stale within 30 days. Stale petrol has a high rubber content and can thus clog the carburettor and restrict the petrol supply.
2. Start the engine and let it run until it stops. This ensures that no petrol remains in the carburettor. This prevents deposits from forming in the carburettor and potentially damaging the engine.
3. Drain the engine oil from the engine while it is still warm. Top up with new oil. (See section 9.1.)
4. Disconnect the spark plug cable.
5. Remove the ignition key (23) from the ignition lock and store it securely to prevent unauthorised or improper use by children and other persons.
6. Use clean cloths to clean the machine.
7. Store the machine in an upright position in a clean, dry building with good ventilation.

Store the product and its accessories in a dark, dry and frost-free place that is inaccessible to children. The optimum storage temperature is between 5 and 30°C.

Store the product in its original packaging.

Cover the machine to protect it from dust or moisture.

Store the operating manual with the machine.

15. Disposal and recycling

Notes for packaging

The packaging materials are recyclable. Please dispose of packaging in an environmentally friendly manner.

Notes on the electrical and electronic equipment act [ElektroG]

Waste electrical and electronic equipment does not belong in household waste, but must be collected and disposed of separately!

• Used batteries or rechargeable batteries that are not installed permanently in the old appliance must be removed non-destructively before disposal. Their disposal is regulated by the battery law.
• Owners or users of electrical and electronic devices are legally obliged to return them after use.
• The end user is responsible for deleting their personal data from the old device being disposed of!
• The symbol of the crossed-out dustbin means that waste electrical and electronic equipment must not be disposed of with household waste.

• Waste electrical and electronic equipment can be handed in free of charge at the following places:

• Public disposal or collection points (e.g. municipal works yards)

• Points of sale of electrical appliances (stationary and online), provided that dealers are obliged to take them back or offer to do so voluntarily.
• Up to three waste electrical devices per type of device, with an edge length of no more than 25 centimetres, can be returned free of charge to the manufacturer without prior purchase of a new device from the manufacturer or taken to another authorised collection point in your vicinity.
• Further supplementary take-back conditions of the manufacturers and distributors can be obtained from the respective customer service.

- If the manufacturer delivers a new electrical appliance to a private household, the manufacturer can arrange for the free collection of the old electrical appliance upon request from the end user. Please contact the manufacturer's customer service for this.

• These statements only apply to devices installed and sold in the countries of the European Union and which are subject to the European Directive 2012/19/EU. In countries outside the European Union, different regulations may apply to the disposal of waste electrical and electronic equipment.

Information on the battery act [BattG]

Old batteries and rechargeable batteries do not belong in household waste, but must be collected or disposed of separately!

• For safe removal of primary batteries or rechargeable batteries from the electrical appliance and for information on their type or chemical system, please refer to the additional information in the operating or assembly instructions.
• Owners or users of primary batteries and rechargeable batteries are legally obliged to return them after use. The return is limited to household quantities.
• Old batteries may contain pollutants or heavy metals that can harm the environment or human health. Recycling old batteries and using the resources they contain helps to protect these two important issues.
• The symbol of the crossed-out dustbin means that primary batteries and rechargeable batteries must not be disposed of with household waste.
• If the signs Hg, Cd or Pb are also located below the dustbin symbol, this stands for the following:
• Hg: Battery contains more than 0.0005% mercury
• Cd: Battery contains more than 0.002% cadmium
• Pb: Battery contains more than 0.004% lead
• Rechargeable batteries and primary batteries can be returned free of charge to the following places:
• Public disposal or collection points (e.g. municipal works yards)
• Sales points for primary batteries and rechargeable batteries
• Take-back points of the common take-back system for old device batteries
• Take-back point of the manufacturer (if not a member of the common take-back system)

• These statements are only valid for rechargeable batteries and primary batteries sold in the countries of the European Union and subject to the European Directive 2006/66/EC. In countries outside the European Union, different regulations may apply to the disposal of rechargeable batteries and primary batteries.

Removing the battery before disposing of the device

• The integrated battery must be removed and disposed of separately in an environmentally friendly manner before disposing of the device.
• Mask off the contacts and package the battery such that it cannot move in the packaging. Please also observe any further national regulations.

Contact your local refuse disposal authority for more details of how to dispose of your worn-out electrical devices.

Fuels and oils

• Before disposing of the unit, the fuel tank and the engine oil tank must be emptied!
• Fuel and engine oil do not belong in household waste or drains, but must be collected or disposed of separately!
• Empty oil and fuel tanks must be disposed of in an environmentally friendly manner.

16. Troubleshooting

Fault Possible cause Remedy
Engine does not start S	Spark plug connector unplugged. Re-connect the spark plug cable to the spark plug.
	Contaminated spark plug. Clean, set gap or replace.
	No fuel or old fuel. Fill with clean, fresh petrol.
	Choke not in open position. The choke lever must be positioned in the choke position during cold starting.
	Fuel line clogged. Check the fuel line for kinks or damage.
	Engine dies. Wait a few minutes before restarting.
Motor runs erratically S	Spark plug connector loose. Connect and fasten the spark plug cable.
	Fuel line clogged or old fuel.	Fill the tank with clean, fresh petrol.
	Ventilation blocked	Clean the air filter.
	Water or contamination in the fuel system	Empty the tank. Fill the tank with fresh fuel.
	Incorrect carburettor setting	Contact the service department.
Motor is overheated	Engine oil level low.	Top up the oil.
	Contaminated air filter.	Clean or replace the air filter.
	Airflow restricted.	Remove and clean the housing.
	Carburettor not adjusted correctly.	Contact the service department.
The machine does not move when the engine is running	The gear was not chosen correctly.	Shift the shift lever to the correct shift position.
The machine does not run straight	Varying tyre pressure	Check the tyre pressure.
Engine does not start with electric starter	Battery has discharged.	Charge the battery for min. 5 hours.

Günzburger Straße 69

D-89335 Ichenhausen

Cher client,

Günzburger Straße 69

D-89335 Ichenhausen, Germania

Egregio cliente,

Günzburger Straße 69

D-89335 Ichenhausen

Geachte klant,

Günzburger Straße 69

Günzburger Straße 69

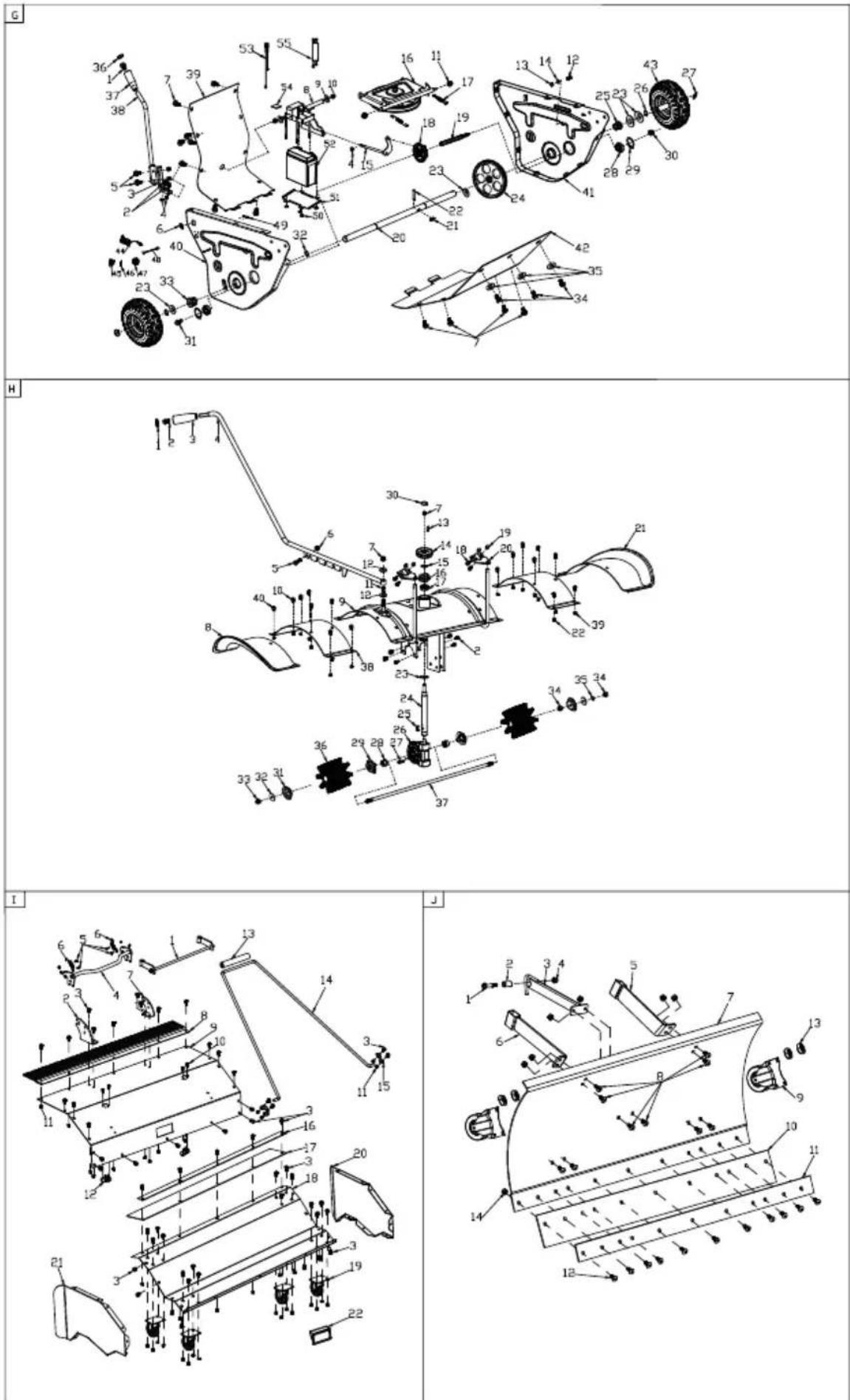

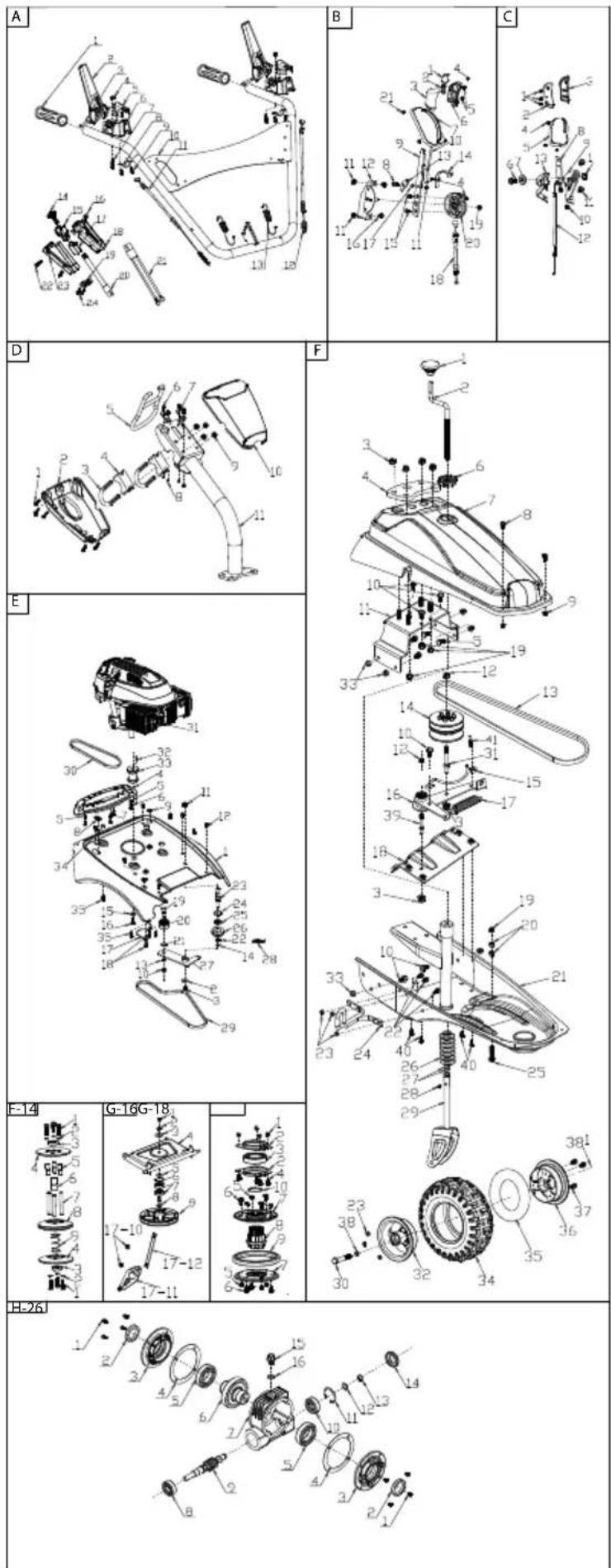

Exploded view diagram of a mechanical assembly with numbered components for identification

EU Declaration of Conformity

Standard references:

EN 12100:2010; EN 14982:2009; EN ISO 3744:1995; ISO 11094:1991

This declaration of conformity is issued under the sole responsibility of the manufacturer.

The object of the declaration described above fulfils the regulations of the directive 2011/65/EU of the European Parliament and Council from 8th June 2011, on the restriction of the use of certain hazardous substances in electrical and electronic equipment.

Subject to change without notice

Documents registrar: David Rümpelein Günzburger Str. 69, D-89335 Ichenhausen

Garantie DE

Apparent defects must be notified within 8 days from the receipt of the goods. Otherwise, the buyer loses its rights of claim due to such defects are invalidated. We guarantee for our machines in case of proper treatment for the time of the statutory warranty period from delivery in such a way that we replace any machine part free of charge which provably becomes unusable due to faulty material or defects of fabrication within such period of time. With respect to parts not manufactured by us we only warrant insofar as we are entitled to warranty claims against the upstream suppliers. The costs for the installation of the new parts shall be borne by the buyer. The cancellation of sale or the reduction of purchase price as well as any other claims for damages shall be excluded.

Garantie FR
