USER MANUAL AKS 2040-25 Lion Set Grizzly

Red and black Grijdy chainsaw with a 91-degree angle, no visible text or symbols on the device itself.

Translation of the original instructions for use

Mechanical chain-linking device with labeled part '26' (no other text or symbols visible)

Simple line drawing of a wooden log being cut with a black arrow indicating the direction (no text or symbols)

Illustration of a wooden log being inserted into a pipe, showing mechanical components and motion arrows (no text or symbols)

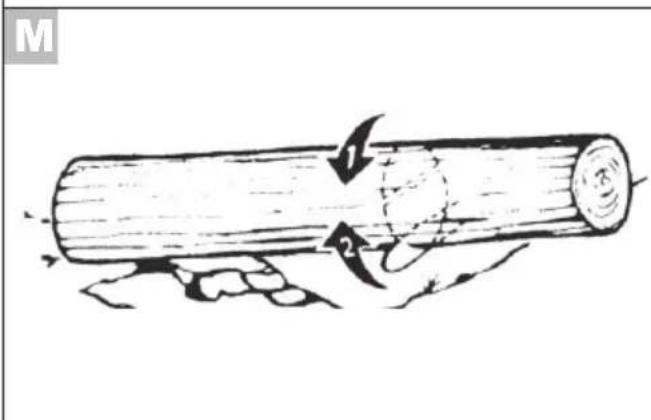

M 1 2

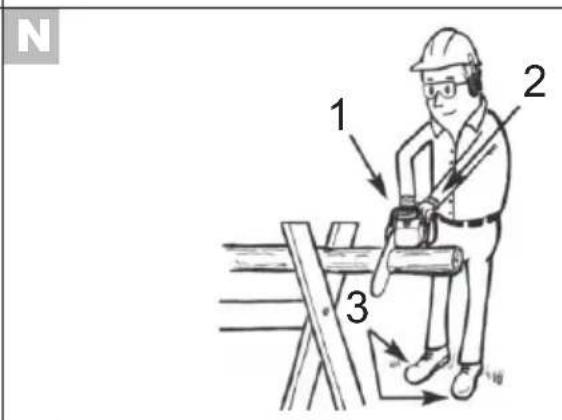

N 1 2 3

Diagram of tree branches with leaves and roots, showing root system and leaf damage (no text or labels)

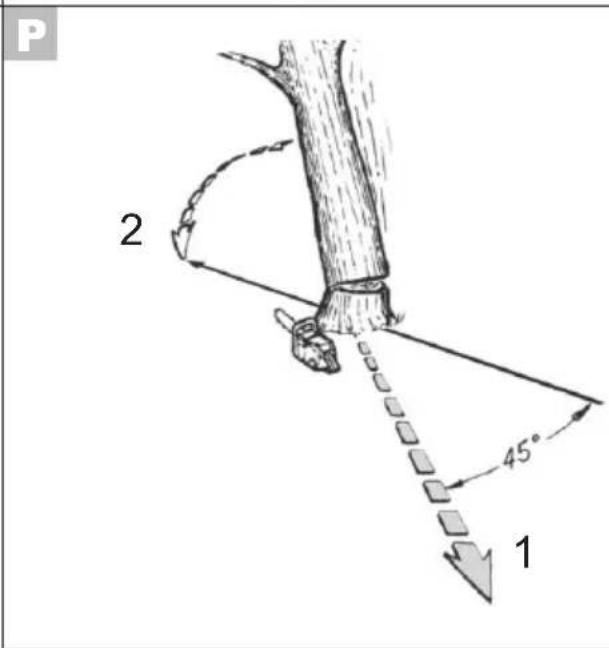

P 2 45° 1

GB Translation of the original instructions for use....74

Mechanical gear mechanism diagram showing rotational motion with no text or symbols

Diagram of a mechanical device with an upward arrow and circular component, no visible text or symbols

Mechanical gear meshing diagram showing rotational motion (no text or symbols)

Diagram of a mechanical device with an upward arrow indicating motion, no text or symbols present

Motorspanning....20 V==

Mechanical gear mechanism diagram showing rotational motion with no text or symbols

Diagram of a mechanical device with an upward arrow indicating motion, no text or symbols present

Deviations from the measurement data of the cutting geometry can lead to an increase of the spring-back slope of the machine. Increased danger of accident!

Before initial start-up, please read through these operating instructions carefully prior to using the machine. Keep the instructions safe and pass them on to any subsequent user so that the information is always available.

Content

Intended purpose 74

General description....75

Extent of the delivery 75

Function description 75

Overview....75

Technical Data 76

Notes on safety....76

Symbols....76

General safety instructions for

power tools 77

Safety functions 82

Operation startup 82

Fitting the blade and saw chain .....83

Tensioning the saw chain 83

Chain lubrication....83

Operating....84

Indicator charge level 84

Removing / inserting the battery......84

Switching on 84

Checking the chain brake 85

Checking the oil automatic system...85

Change the blade / sawing chain .....85

Sawing techniques 85

General....85

Bucking....86

Limbing 87

Felling trees 87

Maintenance and cleaning....89

Cleaning 89

Oiling the saw chain 89

Sharpening the saw chain 90

Adjusting the chain tension......91

Starting up a new saw chain....91

Maintaining the chain bar 91

Maintenance intervals....91

Storage 92

Waste disposal and environmental protection....92

Replacement parts/Accessories ..... 93

Guarantee....93

Repair service....93

Trouble shooting 94

Translation of the original EC declaration of conformity .... 234

Exploded Drawing 241

Service-Center 242

Intended purpose

The cordless chainsaw is constructed for sawing wood only. The saw is not designed for any other types of application (e.g. cutting of brickwork, plastic or food). The chainsaw is designed for employment in the do-it-yourselfer sector. It was not designed for continuous employment in the commercial sector.

The device is designed for use by adults. Young people over 16 years old may use the chainsaw under supervision only. The manufacturer is not liable for damages, which were caused through use in applications for which it was not designed, or incorrect operation.

This chainsaw is to be used only by one person and only for sawing wood. The chainsaw must be held with the right hand on the rear handle and the left hand on the front handle. Before use, the user must have read and understood all of the information and directions in the operating instructions. The user must wear appropriate personal protective equipment (PPE). The chainsaw is to be

used only for sawing wood. Materials such as plastic, stone, metal or wood containing foreign objects (e.g. nails or screws) must not be machined!

General description

The illustration how to handle the appliance can be found on pages 2-4.

Extent of the delivery

Carefully unpack the appliance and check that it is complete:

• Cordless chainsaw
• Chain bar
• Saw chain
• Saw bar protection sheath
• 180 ml Bio chain oil
• Battery

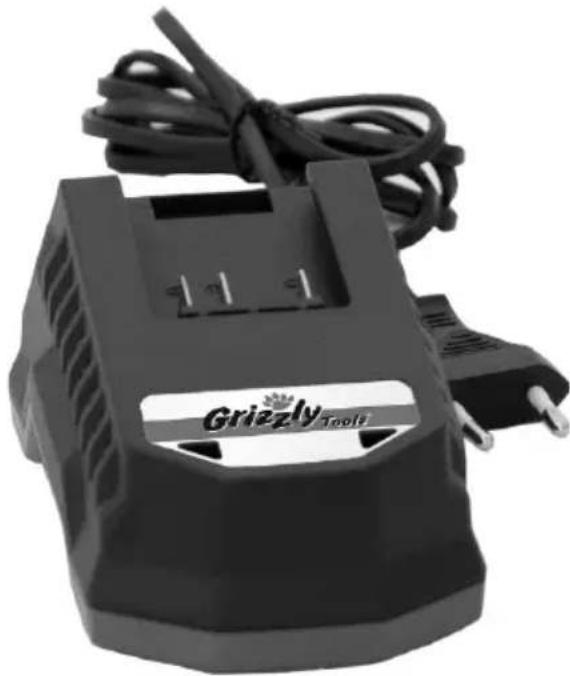

• Battery charger
• Instruction Manual rechargeable battery/Charger
• Instruction Manual

Dispose of the packaging material correctly.

Function description

The cordless chainsaw is fitted with a rapid-action chain-tensioning system and a fast-acting chain brake. An automatic oil dosing regulator ensures continuous chain lubrication.

The chainsaw is equipped with various protection fittings for the protection of the user.

Refer to the following descriptions for the function of control elements.

Overview

1 Rear handle

2 Oil filler cap

3 Chain brake handle, front hand guard

4 Chain bar

5 Saw chain

6 Nose sprocket

7 Bumper

8 Front handle

9 Motor (hidden)

10 Safety lock

11 On/off switch

12 Chain catcher (hidden)

13 Fastening bolt for sprocket chain wheel covering

14 Screw for the chain quick-tensioning system

15 Sprocket chain wheel covering

16 Rear hand guard

17 Guide rails for battery

18 Saw bar protection sheath

19 Battery

20 Battery charger

21 Bio chain oil

22 Bar bolt

23 Tab

24 Sprocket

25 Oil level control

26 Oil passages

Technical Data

Cordless

chainsaw......AKS 2040-25 Lion Set

Rated input voltage....20 V==

Idle time....20-28 min*

Idling speed 3000 min ^-1

Chain speed v_0 5.6 m/s

Weight

(without battery and charger) ..... 3.2 kg

Oiltank 220 ml

Chain bar....Oregon 120SDEA041

Chain....Oregon 91PX045X

Chain pitch.... 3/8" (9,5 mm)

Number of chain drive links......45

Chain width 1.3 mm

Teeth of the sprocket chain wheel.....6

Length of the chain bar ..approx. 305 mm

Sawing length ≡ ..... approx. 250 mm

Acoustic pressure level

(L_pA) 86.2 dB(A); K_pA = 3.0 dB

Sound power level ( L_WA )

measured .....96.1 dB(A); K_WA = 2.67 dB

guaranteed....98 dB(A)

Vibration (a_h) ......2.47 m/s², K=1.5 m/s²

Noise and vibration values were determined according to the standards and stipulations mentioned in the declaration of conformity.

Technical and optical changes can be carried out in the course of further development without notice. All dimensions, references and information of this instruction manual are therefore without guarantee.

Legal claims, which are made on the basis of the instruction manual, cannot thus be considered as valid.

The stated vibration emission value was measured in accordance with a standard testing procedure and may be used to compare one power tool to another.

The stated vibration emission value may also be used for a preliminary exposure assessment.

Warning: The vibration emission value may differ during actual use of the power tool from the stated value depending on the manner in which the power tool is used.

Try to keep the exposure to vibrations as low as possible. Examples of measures to reduce vibration exposure are the wearing of gloves when using the tool and limiting the working hours. All parts of the operating cycle are to be taken into account in this (for example times in which the electric tool is turned off and those in which even though it is turned on, it is not running under a load).

Notes on safety

This section deals with the basic safety regulations while working with the chain-saw.

Before working with the chainsaw, familiarise yourself with all the controls. Practise handling the saw (by cutting logs to size on a sawhorse) and have the functionality, mode of action, sawing techniques and personal safety equipment explained to you by an experienced user or an expert.

Symbols

Symbols used on the saw

A chainsaw is a dangerous device, which can cause serious or even fatal injuries with incorrect or careless use. Thus, for your own safety and the safety of others, you should always take note of the instructions on safety and, in case of

difficulties, consult a specialist for advice.

Read and take note of the operating manual belonging to the machine

Wear personal protective equipment. Basically, wear protective

goggles or, even better, face protection, safety helmet, cut-protection

working clothes and ear protection

Use protective clothing

Wear cut-protection gloves

Wear cut-protection safety boots with anti-slip soles.

Always use the chainsaw with both hands.

Caution! Spring-back - Be careful of spring-back of the machine during work.

Do not expose the unit to rain. The device must not be wet, nor should it be operated in a moist environment.

Remove the battery from the unit before servicing it.

Sound power level guaranteed

Length of the chain bar

Machines do not belong with domestic waste.

Symbols used in the instructions

Hazard symbols with information on prevention of personal injury and property damage.

Precaution symbol (explanation of precaution instead of exclamation mark) with information on prevention of harm / damage.

Notice symbol with information on how to handle the device properly.

General safety instructions for power tools

WARNING! Read all safety directions and instructions. Omissions in the compliance with safety directions and instructions can cause electrical shock, fire and/or severe injuries.

Retain all safety directions and instructions for future use.

The term "Power Tools" used in the safety instructions refers to mains-operated power tools (with power cord) and to battery-operated power tools (without power cord).

1) WORK AREA SAFETY

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.

b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.

c) Keep children and bystanders away while operating a power tool. Dis-tractions can cause you to lose control.
2) ELECTRICAL SAFETY
a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entan opergled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use a RCD (Residual Current Device) protected supply. Use of an RCD reduces the risk of electric shock.

3) PERSONAL SAFETY

Please note that children, individuals with limited physical, sensory or mental capabilities, those with insufficient experience or knowledge or individuals who are not familiar with the instructions must never be permitted to use the machine. Local regulations may specify an age restriction for the user.

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention white operating power tools may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.

f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts..

g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

h) Warning! During operation, this electric tool generates an electromagnetic field which, under certain circumstances, may impair the functionality of active or passive medical implants. To reduce the risk of serious or lethal injuries, we recommend that persons with medical implants consult their doctor and the manufacturer of their medical implant before operating the machine.

i) Change your working position regularly. Long use of the equipment can result in vibration-related circulatory disorders in the hands. However, the length of use can be extended by using suitable gloves or taking regular breaks. Note that a personal tendency for poor circulation, low outdoor temperatures, or high gripping forces during work will reduce the length of use.

4) POWER TOOL USE AND CARE

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.

b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.

c) Disconnect the plug from the power source and/or the battery pack from the power tool

• before making any adjust -ments, changing accessories, or storing power tools.
• whenever the user no longer remains in the vicinity of the machine.
• before the removal of blockages.
• before checking, cleaning or working on the machine.
• after touching a foreign body in order to check the machine for damage.
• for an immediate check if the machine begins to vibrate excessively.

Such preventive safety measures reduce the risk of starting the power tool accidentally.

d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.

e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.

f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.

g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

5) CAREFUL HANDLING AND USE OF BATTERY DEVICES

• Charge the batteries only in chargers that are recommended by the manufacturer. Risk of fire if a charger that is suitable for a specific type of battery is used with other batteries.
• In the power tools, use only the batteries designed for the purpose. The use of other batteries may result in injuries and risk of fire.
• Keep the unused battery away from paper clips, coins, keys, nails, screws and other small metal objects, which could cause bridging of the contacts. A short circuit between the battery contacts may cause burns or fire.
• If used incorrectly, liquid may leak from the battery. Avoid contact with this. In the event of accidental contact, rinse off with water. If the liquid gets into eyes, seek medical assistance. Leaking battery fluid may cause skin irritations or burns.

6) SERVICE
a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.
7) CHAIN SAW SAFETY WARNINGS:
a) Keep all parts of the body away from the saw chain when the chain saw is operating. Before you start the chain saw, make sure the saw chain is not contacting anything. A moment of inattention white operating chain saws may cause entanglement of your clothing or body with the saw chain.

b) Always hold the chain saw with your right hand on the rear handle and your left hand on the front handle. Holding the chain saw with a reversed hand configuration increases the risk of personal injury and should never be done.
c) Wear safety glasses and hearing protection. Further protective equipment for head, hands, legs and feet is recommended. Adequate protective clothing will reduce personal injury by flying debris or accidental contact with the saw chain.
d) Do not operate a chain saw in a tree. Operation of a chain saw white up in a tree may result in personal in jury.
e) Always keep proper footing and operate the chain saw only when standing on fixed, secure and level surface. Slippery or unstable surfaces such as ladders may cause a loss of balance or control of the chain saw.
f) When cutting a limb that is under tension be alert for spring back. When the tension in the wood fibres is released the spring loaded limb may strike the operator and/or throw the chain saw out of control.
g) Use extreme caution when cutting brush and saplings. The slender material may catch the saw chain and be whipped toward you or pull you off balance.
h) Carry the chain saw by the front handle with the chain saw switched off and away from your body. When transporting or storing the chain saw always fit the guide bar cover. Proper handling of the chain saw will reduce the likelihood of accidental contact with the moving saw chain.
i) Follow instructions for lubricating, chain tensioning and changing accessories.

Improperly tensioned or lubricated chain may either break or increase the chance for kickback.

k) Keep handles dry, clean, and free from oil and grease. Greasy, oily handles are slippery causing loss of control.

I) Cut wood only. Do not use chain saw for purposes not intended. For example: do not use chain saw for cutting plastic, masonry or non-wood building materials. Use of the chain saw for operations different than intended could result in a hazardous situation.

m) Hold the power tool only on the insulated handle surfaces, as the saw chain can come into contact with concealed power lines. Contact between the saw chain and a live wire can make metal parts of the equipment live and cause an electric shock.

8) CAUSES AND OPERATOR PREVENTION OF KICKBACK

Beware of kickback! Be careful of kickback of the machine during work. There is danger of injury here. You can avoid kickbacks by exercising caution and using a cor-

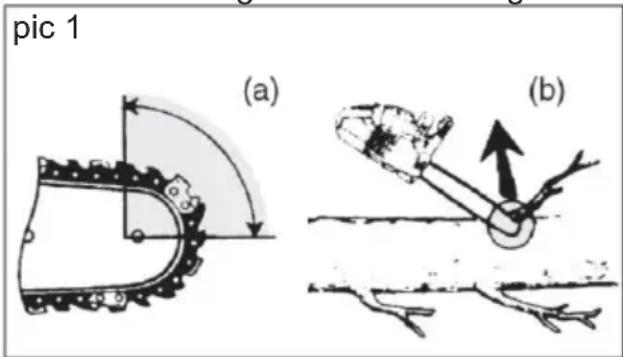

pic 1 (a) (b)

Kickback may occur when the nose or tip of the guide bar touches an object, or when the wood closes in and pinches the saw chain in the cut. (see pic 1. b).

Tip contact in some cases may cause a sudden reverse reaction, kicking the guide bar up and back towards the operator Pinching the saw chain along the top of the guide bar may push the guide bar rapidly back towards the operator. (see pic 1/. a). Either of these reactions may cause you to lose control of the saw which could result in serious personal injury. Do not rely exclusively upon the safety devices built into your saw. As a chain saw user, you should take several steps to keep your cutting jobs free from accident or injury. Kickback is the result of tool misuse and/or incorrect operating procedures or conditions and can be avoided by taking proper precautions as given below:

a) Maintain a firm grip, with thumbs and fingers encircling the chain saw handles, with both hands on the saw and position your body and arm to allow you to resist kickback forces. Kickback forces can be controlled by the operator, if proper precautions are taken. Do not let go of the chain saw

b) Do not overreach and do not cut above shoulder height. This helps prevent unintended tip contact and enables better control of the chain saw in unexpected situations.

c) Only use replacement bars and chains specified by the manufacturer. Incorrect replacement bars and chains may cause chain breakage and/or kickback.

d) Follow the manufacturer's sharpening and maintenance instructions for the saw chain. Decreasing the depth gauge height can lead to increased kickback.

RESIDUAL RISKS

Even if properly operating and handling this electric tool, some residual risks will remain. Due to its construction and build, this electric tool may present the following hazards:

a) Cuts
b) Ear damage if working without ear protection.
c) Damage to your health caused by swinging your hands and arms when operating the appliance for longer periods of time or if the unit is not held or maintained properly.

Warning! During operation, this electric tool generates an electromagnetic field which, under certain circumstances, may impair the functionality of active or passive medical implants. To reduce the risk of serious or lethal injuries, we recommend that persons with medical implants consult their doctor and the manufacturer of their medical implant before operating the machine.

Safety functions

1 Rear grip with hand guard (16)
Protects the hand against branches and boughs in the case of springing away by the chain.
3 Chain braking lever/hand guard
Control system, which stops the saw chain immediately in case of a spring-back; lever can also be activated manually; protects the left hand of the operator if it slides from the front grip.
5 Saw chain with small spring-back
helps you to catch spring-backs with specially developed control systems.

7 Metal stop claw

Reinforces the stability when vertical cuts are carried out and facilitates sawing.

10 Switch-on block

The switch-on block must be released for switching on the device.

11 On-off switch with safety chain brake

On releasing the On/Off switch, the device immediately switches off.

Operation startup

Always wear protective gloves when working with the chainsaw and employ only original parts. Injury hazard!

Prior to commissioning the device, you must:

• assemble the blade and the sawing chain
• tension the sawing chain
• fill it with biological chain oil
• charge and insert the battery
• test the oil automatics and the operability of the chain brake

Note that the saw can re-oil.

Please note that the saw re-oils after use and oil may leak out if it is stored on its side or on the head. This is a normal process due to the necessary ventilation opening on the upper edge of the tank and does not constitute a reason for complaint. As each saw is checked during production and tested with oil, a small residue may be in the tank despite draining, which may slightly dirty the housing with oil in transit. Please clean the housing with a cloth.

Fitting the blade and saw chain

Switch off the device and remove the battery from the device.

1. Lay the saw on a flat surface.

2. Turn the fastening bolt (13) anti-clockwise (→) to remove the sprocket chain wheel covering (15).

3. Spread the chain (5) out into a loop with the cutting edges running clockwise.

4. Slide the saw chain (5) into the bar guide groove. To mount the guide bar (4), raise it to an angle of approx. 45 degrees. This will make it easier to replace the saw chain (5) onto the sprocket (24).

5. Place the chain bar (4) and saw chain (5) on the bar bolts (22). When the nose on the right below the bar bolt (22) sits in the round recess on the blade, the blade is placed correctly. It is normal for the saw chain (5) to sag. It is normal that the saw chain (5) is slack.

6. Position the sprocket chain wheel covering (15). First place the tab (23) on the cover into the corresponding notch on the plate (15). Tighten the fastening bolt (13).

7. Pre-tension the saw chain (5) by turning the screw for the chain quick-tensioning system (14) in clockwise direction.

Tensioning the saw chain

With a correctly tensioned chain you get good cutting performance and a longer life.

An incorrectly tensioned chain may break or spring off, leading

to danger of injury. Test the saw before every start and the chain tension after every hour of sawing.

The chain is correctly tensioned if it does not sag at the rail underside and can be rotated completely around with the gloved hand.

When the saw chain is tensioned with 9 N (approx. 1 kg), the gap between the saw chain and the guide rail may not be more than 2 mm.

1h 9N max. 2 mm

1. Ensure that the chain brake has been released, that is, that the chain brake lever (3) is pulled up against the front grip (8).

2. Unscrew the fastening bolt (13)

1. To tension the saw chain, turn the screw (14) for the chain quick-tensioning system in clockwise direction.

To loosen the tension, turn the screw (14) in counter-clockwise direction.

1. Tighten up the fastening bolt (13)

again (→D).

With a new saw chain, you must readjust the chain tension after at least 5 cutting operations.

Chain lubrication

The rail and chain must never be without oil. If you operate the electric chainsaw with too little oil, the cutting performance and the life-

time of the saw chain is reduced, since the chain becomes blunt faster. You can identify a case of too little oil where smoke development or discoloration of the rail occurs.

The chainsaw is equipped with an automatic oiling system. As soon as the motor is speeded up, the oil also flows faster to the chain bar (4).

Filling up with chain oil:

• Check the oil fill level and regularly top up with oil (25). The oil tank holds 220 ml of oil.
• Use Grizzly bio-oil; this product contains additives that reduce wear and tear and does not damage the pump system. bio-oil is available from our Service-Center.
• If you have no Grizzly bio-oil available, use chain lubrication oil with low adhesive additive content.

1. Unscrew the oil fill cap (2) and fill up with chain oil.

2. Wipe off any spilled oil and close the cap again.

Always switch off the device and allow the motor to cool before filling with chain oil. There is a risk of fire if oil overflows.

Operating

Switch on the chainsaw only when chain bar, saw chain and sprocket chain wheel covering are correctly assembled.

Make sure you have a secure stance. Before starting, ensure that the electric chainsaw is in contact with no objects.

Caution! Saw can oil up, see notes on Operation startup.

Indicator charge level

Press the „Press“ button on the right of charging level indicator (E 19b), in order to check the status of the battery. The number of illuminated LED lights shows the charge level of the battery.

Removing / inserting the battery

1. To remove the battery (19) from the appliance, press the release button (E 19a) on the battery and pull out the battery.
2. To insert the battery (19), place it on the guide track (17) and push it back into the appliance. It will audibly snap in.

Switching on

1. Check before the start, whether sufficient chain oil is in the tank and, if necessary, refill with chain oil (see Chapter "Operation startup").
2. the charge status of the battery (see E).
3. Release the chain brake, where you shift the brake arm (3) back against the front grip (8).
4. Hold the chainsaw firmly with both hands, with the right hand on the rear grip (1) and the left hand on the front handle (8). Thumb and finger must close securely over the handles.
5. For switching on, activate the switch-on block (10) with the right thumb and then press the On/Off switch (11), the chainsaw runs with highest speed. Release the switch-on block again
6. The power saw switches off when you release the On/Off switch (11) again.

Switching for continuous running is not possible.

Checking the chain brake

The motor cannot be turned on if the chain brake has engaged. Do not employ the chain brake in order to start the chainsaw or to switch it off.

1. Place the chainsaw onto a solid, flat surface. It must not contact any objects.

2. Release the chain brake, where you shift the brake arm (3) back against the front grip (8).

3. Hold the chainsaw firmly with both hands, with the right hand on the rear handle (G 1) and the left hand on the front handle (G 8). Thumb and finger must close securely over the handles.

4. Turn on the chainsaw.

5. Activate the chain braking lever (3), with running motor, with the left hand. To do so, push the chain braking lever/front hand protection (3) away from the front handle (8). Chain should stop abruptly.

6. Once the chain brake is working properly, release the on/off switch (10) and the chain brake.

If the chain brake does not function correctly, you must not use the chainsaw. A slack saw chain leads to danger of injury. Return the chainsaw to our Service-Center for repair.

Checking the oil automatic system

Check the oil level and the automatic oil system before commencement of work.

- Switch on the chainsaw and hold it above a bright background. The saw must not touch the ground. If an oil trace can be seen, the chainsaw is working trouble-free.

If no oil trace can be seen clean the oil passages or turn the chainsaw to our Service-Center for repair.

Clean the oil passages of the chain bar (26), in order to guarantee a trouble-free, automatic oiling of the saw chain during operation.

Change the blade / saw- ing chain

1. Lay the saw on a flat surface.

2. Turn the fastening bolt (13) and the screw for the chain quick-tensioning system (14) in counter-clockwise direction in order to loosen the chain tension and to remove the sprocket chain wheel cover (15).

3. Remove the saw bar (4) saw chain (5). To remove the guide bar to an angle of approx. 45 degrees. This will make it easier to take the saw chain (5) off the sprocket (24).

4. For assembly, see „Assembling the blade and the sawing chain“

Refer to the start-up section on how to tension the saw chain.

Sawing techniques

General

Observe the noise protection and local regulations when cutting wood. Local requirements may require a suitability test. Ask the forestry commission.

• Dirt, stones, loose bark, nails, staples and wire must be removed from the tree.
• For sawing work on a slope, always stand above the tree trunk.
• To keep control at the moment of "sawing through", reduce the contact pressure at the end of the cut without loosening the firm grip on the chain-saw handles. Ensure that the saw chain does not come into contact with the ground.
  • After completing the cut, wait for the chainsaw to come to a standstill before removing the chainsaw.
  • Always switch off the chainsaw motor before moving from one tree to another.
• Lay the connecting lead such that it will not be caught on branches or similar during sawing.
• For each cut, apply the claw stop securely and only then start sawing.
• You have better control when you saw with the bottom side of the chain bar (with pulling saw chain) and not to with the top side of the chain bar (with pushing saw chain).
• The saw chain must not contact either the ground or another object during sawing through or after sawing completion.
• Make sure that the saw chain does not become jammed in the wood. Do not let the tree trunk break or split off.
• Consider also the precautions against spring-back (see notes on safety)..
• For sawing work on a slope, always stand above the tree trunk. To keep control at the moment of “sawing through”, reduce the contact pressure at the end of the cut without loosening the firm grip on the chainsaw handles. Ensure that the saw chain does not come into contact with the ground. After completing the cut, wait for the chainsaw to come to a standstill before removing the chainsaw. Always

switch off the chainsaw motor before moving from one tree to another.

If the saw chain jams, you do not attempt to pull out the electric chainsaw using power. There is a danger of injury here. Switch off the motor and use a lever or wedge to free the electric chainsaw.

Bucking

This refers to sawing up a felled tree trunk into smaller sections.

Ensure that you are in a secure position and that your body weight is distributed evenly on both feet. If possible, underpin and support the stem with branches, beams or wedges.

• Ensure that the saw chain does not come in contact with the ground during sawing.
• Make sure you have a secure stance and, in the case of sloping ground, stand above the log.

To maintain full control at the moment of “sawing through”, reduce the contact pressure at the end of the cut, without releasing the firm grip on the chain saw handles. Once cutting is complete, wait for the saw chain to come to a standstill before removing the chain saw from there. Always switch off the chain saw before changing from tree to tree.

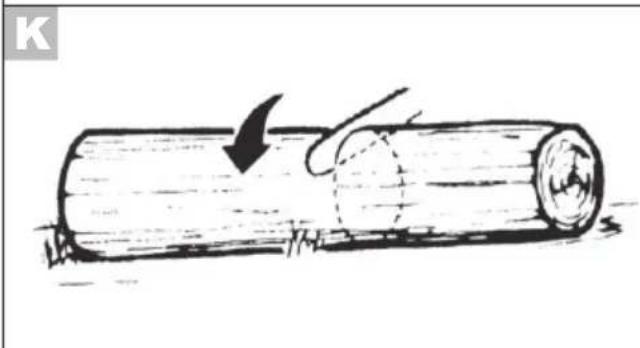

1. Log is lying on the ground:

Saw through the log completely from above and ensure at the end of the cut not to contact the ground.

If you can turn the tree trunk, saw two-thirds of the way through it. Then turn the trunk around and saw the rest of the way through from above.

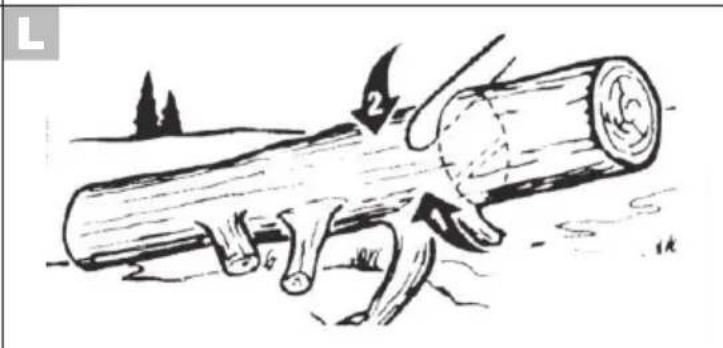

2. Log is supported at one end:

Start sawing from the bottom and work your way up (with the upper edge of the bar) a third of the way into the diameter of the trunk to prevent splitting. Then saw from the top downwards with the lower edge of the bar towards the first cut to prevent the bar from becoming jammed in the wood.

3. Log is supported at both ends:

Start from the top and work down (with the lower edge of the bar) to a third of the diameter of the trunk. Then saw from underneath with the upper edge of the bar until the two cuts meet.

4. Sawing on a sawhorse:

Hold the electric chainsaw steady with both hands, keeping the saw in front of you while sawing. Once the saw is through the wood, guide the machine passed you on the right (1). Hold your left arm as straight as you can (2). Watch out for the falling trunk. Position yourself to prevent any danger from the separated trunk. Watch your feet. The trunk may cause injuries when falling. Keep your balance (3).

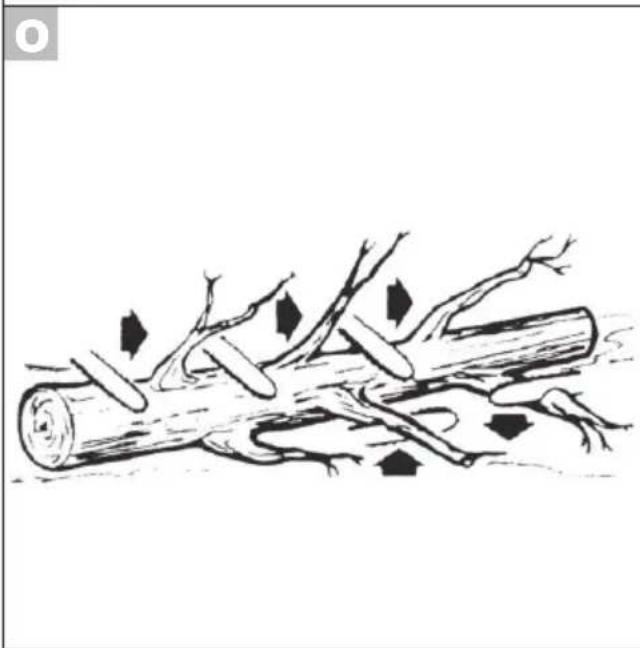

Limbing

Limbing is the designation for the sawing off of branches and boughs from a felled tree.

Many accidents occur during the removal of branches. Never cut tree limbs when you are standing on the log. Keep the spring-back area in mind if branches are under tension.

- Do not remove support branches until after the sawing off.

• Branches under tension must be sawed from below to above, in order to prevent jamming of the chainsaw.
  When working on thicker branches, use the same technique as when you are sawing up a felled trunk.
• Work to the left of the log and as near as possible to the electric chainsaw. As far as possible, the weight of the saw should rest on the log.
• Change position to saw off branches on the other side of the trunk.
• Branches sticking out are cut off separately.(see ☐).

Felling trees

A lot of experience is necessary in felling trees. Cut down trees only when you can safely handle the electric chainsaw. In no case should you use the electric chainsaw if you feel unsure about anything.

- Ensure that no people or animals are in the field of action. The safety distance between the tree to be felled and the nearest-located workplace must be 2 12 tree lengths.

- Note the felling direction: The user must be able to move safely near the felled tree, to saw off the tree easily and remove branches. It is to be avoided that the felled tree snags itself on another tree. Note the natural felling direction, which is dependent on the slope and curvature characteristic of the tree, wind direction and the number of branches.

- In the case of sloping ground, stand above the tree to be felled.

- Small trees, with a diameter of 15-18 cm, can usually be sawn off with one cut.

• In case of trees with a larger diameter, a notched cut and a back cut must be implemented (see diagram).
• If cutting and felling is being carried out by two or more persons simultaneously, the distance between the felling and cutting persons must be at least twice the height of the tree to be fellled. When felling trees, ensure that no other persons are subject to hazards and that no material damage is caused. If a tree should come into contact with a power line, the supply company must be informed immediately.
• Dirt, stones, loose bark, nails, clips and wires must be removed from the tree.

Do not fell any trees when a strong or changing wind is blowing, if the danger of property damage exists or if the tree could fall on electric wires.

Immediately after termination of the sawing procedure, remove the ear protection so that you can hear hooter and alarm signals.

1. Removal of branches:

Remove hanging branches by positioning the cut from above the branch. With removal of branches, never work higher than shoulder level.

2. Escape area:

Remove the undergrowth around the tree to ensure an easy escape. The escape area (1) should be around 45^ either side behind the planned felling direction (2).

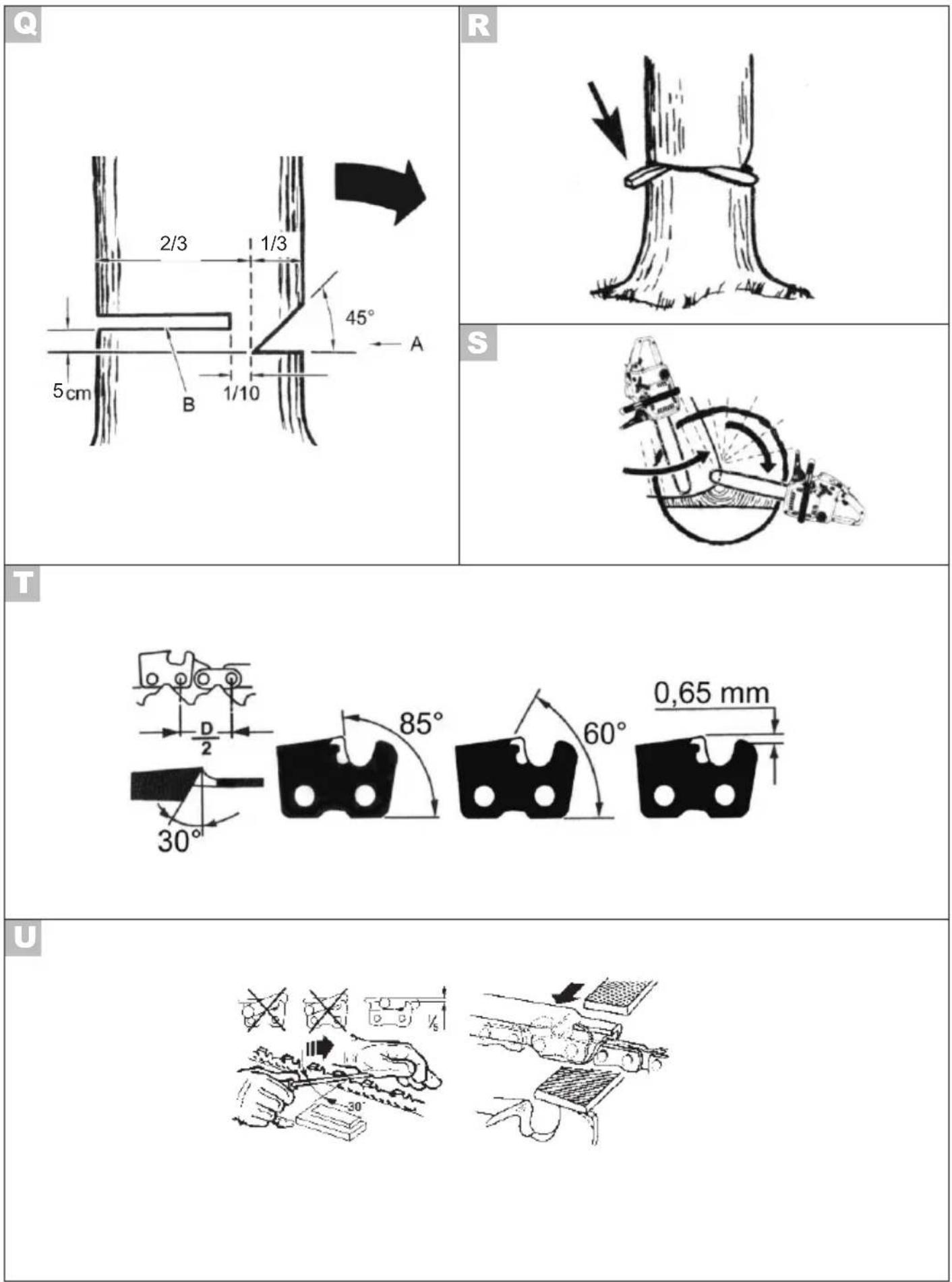

3. Cutting notch (A):

Make a felling notch in the direc- tion in which you wish the tree to fall. Start with the bottom, hori-

zontal cut. The cut depth should be around 1/3 of the trunk diameter. This will prevent the saw chain or the guard rails from jamming when placing the second chamfer. Now make a slanted saw cut from above at an angle of roughly 45^ to meet exactly with the bottom saw cut.

Never step in front of a tree which is notched.

4. Felling back cut (B):

Make the back cut from the other side of the log, where you stand to the left of the log and saw with the chainsaw pulling. The back cut must run horizontally 5 cm above the horizontal notched cut.

The back cut should be so deep that the separation distance between the back cut and the notch cutting line is at least 1/10 of the trunk diameter. The part of the stem not sawn through is called a stay (felling gib). The stay prevents the tree from turning and falling in the wrong direction. Do not saw through the stay.gen Sie den Steg nicht durch.

1. As you approach the felling cut on the stay the tree should start falling. If it becomes apparent that the tree may not fall in the required direction or is leaning back, and the saw chain is jamming, stop felling and use wedges made of wood, plastic or aluminium to open the cut and to tilt the tree in the required felling line.

1. If the trunk diameter is larger than the length of the chain bar, make two cuts.

For safety reasons, we advise in-experienced users not to fell any logs with a rail length which is smaller than the trunk diameter.

1. After carrying out of the back cut, the tree falls by itself or with the aid of the felling wedge or crowbar.

As soon as the tree begins to fall, pull out the saw from the section, stop the motor, place the chainsaw down and leave the workplace using the withdrawal path.

Pay attention to falling branches and do not stumble.

Maintenance and cleaning

Remove the battery prior to servicing the appliance.

Danger of injury!

Leave any maintenance and servicing work not covered by this manual to our Service-Center. Use only original spare parts.

Allow the machine to cool down before all maintenance and cleaning works. Danger of burn injuries!

Use cut-protection gloves when handling the chain or the chain bar.

Risk of cuts!

Remove the battery from the unit before servicing it.

Cleaning

- Clean the machine thoroughly after every use. In this way, you extend the life of the machine and avoid accidents.

• Keep the gripping handles free of petrol, oil or grease. Clean the gripping handles, where appropriate, with a moist cloth soaked in soap. Use no solvents or petrol for cleaning!
• Clean the saw chain after every use. Use a paint brush or wipe for that. Do not use any liquids to clean the chain. After cleaning, oil the chain lightly with chain oil.
• Clean the ventilation slots and the surfaces of the machine with a paint brush, whisk or dry cloth. Do not use any liquids for cleaning.

Oiling the saw chain

Clean and oil the chain regularly. In this way, you keep the chain sharp and get optimum machine performance. In case of damage due to inadequate maintenance of the saw chain, the guarantee claim is invalid. Use cut-protection gloves when you are handling the chain or the chain bar.

• Oil the chain after cleaning, after 10 hours of use or at least once weekly, depending on which comes first.
• Before oiling, the chain bar must be cleaned thoroughly, in particular the teeth of the rail. Use a whisk and a dry cloth for that.
• Oil the individual chain links with the aid of an oil suction gun with pinpoint tip (available in the specialist trade). Place individual oil drops onto the articulated links and onto the tooth tips of the individual chain links.

Sharpening the saw chain

An incorrectly sharpened saw chain increases the danger of spring-back! Use cut-protection gloves when you are handling the chain or the chain bar.

A sharp chain guarantees an optimal cutting performance. It eats effortlessly through the wood and leaves large, long wooden chips. A saw chain is blunt if you have to press the cutting equipment through the wood and the wooden chips are very small. In the case of a very blunt saw chain, no chip cuttings result at all, only sawdust.

• The sawing parts of the chain are the cutting elements, which consist of a cutting tooth and a depth limiting projection. The vertical separation distance between these two determines the sharpness depth.
• The following values must be noted in sharpening the cutting teeth:

- Sharp edge angle (30°)

• Breast angle (85°)
• Sharpness depth (0.65 mm)
• Round file diameter (4.0 mm)

Deviations from the measurement data of the cutting geometry can lead to an increase of the spring-back slope of the machine. Increased danger of accident!

Special tools are necessary for sharpening the chain, which guarantee that the cutting edges are sharpened at the correct angle and to the correct depth. For the inexperi-

enced user of chainsaws, we recommend to have the saw chain sharpened by a specialist or a specialist workshop. If you think yourself capable of sharpening the chain, you can acquire the special tools in the specialist trade.

1. Remove the saw chain (refer to the section on operating the saw). The chain should be well-tensioned to ensure proper sharpening.

2. For the sharpening, a round file with 4.0 mm diameter is necessary.

Other diameters damage the chain and can lead to danger during work!

1. Sharpen only from the inside to the outside. Guide the file from the inner side of the cutting teeth to the outer side. Lift the file when you are withdrawing it.
2. Sharpen first the teeth on one side. Turn the saw around and sharpen the teeth of the other side.
3. The chain is worn and must be replaced by a new saw chain if only approx. 4 mm of the cutting teeth is remaining.
4. After the sharpening, all cutting elements must now be equal in length and width.
5. After every third sharpening, the sharpness depth (depth limitation) must be checked and the height filed with the aid of a flat file. The depth limitation should be set back about 0.65 mm from the cutting tooth. After the setting back of depth limitation, round it off a little at the front.

Adjusting the chain tension

The adjustment of the chain tension is described in the chapter: Starting operation, tensioning chainsaw.

• Switch off the device and remove the battery from the device
• Check the chain tension regularly and re-adjust this as often as possible. When the saw chain is tensioned with 9 N (approx. 1 kg), the gap between the saw chain and the guide rail may not be more than 2 mm.

Starting up a new saw chain

In the case of a new chain, the tensioning force decreases after some time. Therefore you must re-tension the chain after the first 5 cuts and at longer intervals after this.

Never attach a new chain to a worn drive pinion or place onto a damaged or worn chain bar. The chain could spring back or break, potentially leading to serious injury.

Maintaining the chain bar

Use cut-protection gloves when handling the chain or the chain bar.

1. Switch off the saw and remove the battery from the device (A 19).
2. Remove the sprocket chain wheel covering (A 15), the saw chain (5) and the chain bar (4).
3. Check the chain bar (A 4) for wear. Remove burrs and straighten the guide surfaces with a flat file.

4. Clean the oil passages (☐ 26), of the chain bar, in order to guarantee a trouble-free, automatic oiling of the saw chain during operation.

5. Mount chain bar (4), chainsaw (5) and sprocket chain wheel covering (15) and tighten the chainsaw.

With the oil nozzles in good condition and the oil regulator set correctly, the saw chain will spray a little oil off after starting.

The blade (4) must be inverted every 8-10 working hours in order to guarantee even wear.

1. Switch off the saw and remove the battery from the device (A 19).
2. Remove the sprocket chain wheel covering (15), the saw chain (5) and the chain bar (4).
3. Turn the blade around its horizontal axis and install the blade and chain as described under "Fitting the blade and saw chain".

When doing so, pay attention to the correct rotation direction of the saw chain!

Direction of travel of the saw chain

Use the graphical symbol below the chain sprocket cover (15) as a guide to the alignment of the saw chain (5) when the blade is rotated. The illustrated direction of travel on the blade is no longer true.

Maintenance intervals

Regularly carry out the maintenance operations listed in the following table. The life of the saw is extended by regular maintenance of your chainsaw. Furthermore, you get optimum cutting performance and avoid accidents.

Maintenance Interval Table

Machine part Action		Before every use	After 10 hours of operation
Komponenten der Kettenbremse	Check, replace if required	√
Kettenritzel (24) Check	check, replace if required	√
Saw chain (5)	Check oil, regrind or replace if required	√
Guide bar (4) Check	clean and oil	√
Guide bar (4) Turn	around		√
Automatic oil system	Check, clean oil aperture if necessary	√

Storage

• Clean the equipment before putting it away.
• Empty the oil tank before longer periods of non-use. Dispose of waste oil environmentally correctly (see „Waste disposal and environmental protection“).
• Put on saw bar protection sheath.
• Store the appliance in a dry place well out of reach of children
• Before a longer period of storage (e.g. over winter), remove the battery from the equipment.
• Only keep the batteries partly charged. The charge condition should be 40-60% during a longer storage period.
• During a longer storage period, check the state of charge of the battery and recharge if necessary roughly every 3 months
• Store the equipment between 10 °C and 25 °C. Avoid extremes of cold and heat during storage, in order to prevent impairment of battery performance.

Waste disposal and environmental protection

Remove the battery from the device and take the device, battery, accessories and packaging for environmentally friendly recycling.

Machines do not belong with domestic waste.

• Before disposal, remove batteries from the device first.
• Hand the device and the charger in to a recycling point.
• Do not dispose of used oil in the sewage system or drains. Dispose of used oil in an environmentally correct manner - bring it to a waste disposal center.
• Defective units returned to us will be disposed of for free.

Replacement parts/Accessories

Spare parts and accessories can be obtained at www.grizzly-service.eu

If you have any other questions, contact the "Service-Center" (see "Service-Center").

Chain bar....

91105763

Saw chain....

91105764

The Oregon replacement saw chain is to be used only in conjunction with the associated Oregon blade and the chainsaw approved for this. There is a risk of injury.

Guarantee

This unit has a guarantee period of 24 months. Commercial use will invalidate the guarantee.

Damages, which can be attributed to natural wear, overloading or inappropriate use, are excluded from the guarantee. Certain component parts are subject to a normal wear and are excluded from the guarantee. In particular, these include: Saw chain, chain bar, sprocket chain wheel and carbon brushes, provided that the complaints cannot be attributed to flaws in the materials themselves. Also, all damage to the machine, the saw chain and the chain bar, which can be attributed to inadequate lubrication, are excluded from the guarantee.

Furthermore, a condition of the guarantee services is that the maintenance intervals, indicated in the operating instruction, have been adhered to and the instructions on the cleaning, care and maintenance have

been followed. Damages, which originate due to material or manufacturer faults, will be repaired free of charge by replacement delivery or repair. This is conditional upon the device being returned in one piece complete with proof of purchase and guarantee to our service centre.

Repair service

Our Service-Center will also carry out any non-guarantee repair work for a charge. We will be happy to give you a quote.

We will only work on units that have been sent in with the appropriate packaging, postage paid. The transportation risk is borne by the sender.

Caution: Please, in no case, send defective devices with filled oil tank. Completely empty the tank. Possible material damages (oil runs out if device is placed on its side or upside down!) and/or fire damages during transport are borne at the expense of the sender.

Devices sent in with freight collect - by bulk freight, express or with other special freight - are not accepted.

We will dispose of tools free of charge.

Trouble shooting

Problem Possible cause Fault correction
Gerät startet nicht	The battery (A 19) is empty or not inserted	Check the charge level, and have repairs carried out by a qualified electrician, if necessary.
	Defective On/Off switch (A 11)	Repair by customer service
	Worn carbon brushes Repair by customer service
	Defective motor Repair by customer service
Chain does not rotate	Chain brake blocks saw chain (A 5)	Check chain brake.Possibly release chain brake
Inferior cutting performance	Incorrectly mounted saw chain (A 5)	Mount saw chain correctly
	Saw chain (A 5) blunt	Sharpen cutting teeth or place on new chain
	Chain tension insufficient Check chain tension
Saw runs with difficulty, chain comes off	Chain tension insufficient Check chain tension
Chain becomes hot, smoke development during sawing, discoloration of the rail	Too little chain oil	Check oil level and, where appropriate, refill with chain oil, check oil automatic system and, where appropriate, clean oil outflow duct or have repaired by customer service

Mechanical gear mechanism diagram showing rotational motion with no text or symbols

Diagram of a mechanical device with an upward arrow indicating motion, no text or symbols present

Mechanical gear meshing diagram showing rotational motion (no text or symbols)

Diagram of a mechanical or geological interaction with an arrow indicating direction, no text or symbols present

Mechanical gear meshing diagram showing rotational motion (no text or symbols)

Diagram of a mechanical or geological interaction with a tool and tree, showing an upward arrow and ground level (no text or symbols)

Delenie ret'aze....3/8"(9,5mm)

Mechanical gear meshing diagram showing rotational motion (no text or symbols)

Diagram of a mechanical device with an arrow indicating motion, no text or symbols present

Translation of the original CE declaration of conformity

We confirm, that the Cordless chainsaw model AKS 2040-25 Lion Set Batch number B-46299 conforms with the following applicable relevant version of the EU guidelines:

2006/42/EC • 2014/30/EU • 2000/14/EC • 2011/65/EU* • 2005/88/EC

In order to guarantee consistency, the following harmonised standards as well as national standards and stipulations have been applied:

EN 60745-1:2009/A11:2010 • EN 60745-2-13:2009/A1:2010 EN 55014-1:2017 • EN 55014-2:2015 • IEC 62321-3-1:2013

The following are also confirmed as complying with Noise Emissions Directive 2000/14 2000/14/EC: Guaranteed sound power level: 98 dB(A) Measured sound power level: 96.1 dB(A) The conformity evaluation procedure employed is compliant with appendix III of 2000/14/EC Registered Office: No: 0123 TÜV SÜD Product Service GmbH, Ridlerstraße 65, D-80339 München Germany Design Type Certificate No. M6A 105384 0018 Rev. 00

This declaration of conformity is issued under the sole responsibility of the manufacturer:

Grizzly Tools GmbH & Co. KG Stockstädter Straße 20 D-63762 Großostheim, Germany 30.05.2020 Christian Frank (Documentation Representative)

* The object of the declaration described above satisfies the provisions of Directive 2011/65/EU of the European Parliament and the Council of 8 June 2011 on limiting the use of certain harmful substances in electrical and electronic appliances.

Exploded view diagram of a mechanical assembly with numbered parts for identification

informativ • informativo • pouczający • informatif • informatief informační • informative • informatyvus • informativo • informatívny

Service-Center

Unit 3, Beldray Park

Beldray Road, Mount Pleasant

Bilston, West Midlands WV14 7NH

Tel.: [phone]

e-mail: [e-mail]

PL Krysiak Sp. z o.o.ul. Rolna 6

62-081 Baranowo

Tel.: [phone]

Fax: [phone]

e-mail: [e-mail]

www.krysiak.pl

CZ HECHT MOTORS s.r.o.

U Mototechny 131

251 62 Mukařov-Tehovec

Tel.: [phone] linka 27

Fax: [phone]

Akululator/Ladowarka

Akumulátor/Nabíječka

Akumuliatorius/Kroviklis

Batería/cargador

Black Grizzly 1000 powertrain battery with visible circuit breakers and buttons (no text or symbols on body)

Grizzly Tool kit with attached power cord and terminal plug (no visible text or symbols on body)

Translation of the original instructions for use

GB Translation of the original instructions for use .....13

Akku 2,0 Ah ....80001169

Akku 4,0 Ah ....80001158

Safety information....14 Symbols in the manual....14 General Safety Directions....15 Correct handling of the battery charger....17

Charging Process....17 Removing/inserting the Battery....18 Checking the charge status of the rechargeable battery....18 Recharging the battery....18 Used batteries....19

Storage 19

Cleaning....19 Maintenance....19

Waste Disposal/Environmental Protection....19

Spare Parts/Accessories .... 20 Guarantee.... 20

Repair Service....20 Translation of the original EC declaration of conformity .... 89 Service-Center .... 98

Introduction

Congratulations on the purchase of your new device. With it, you have chosen a high quality product.

During production, this equipment has been checked for quality and subjected to a final inspection. The functionality of your equipment is therefore guaranteed.

The operating instructions constitute part of this product.

They contain important information on safety, use and disposal.

Before using the product, familiarise yourself with all of the operating and safety instructions. Use the product only as described and for the applications specified. Keep this manual safely and in the event that the product is passed on, hand over all documents to the third party.

Intended Use

The rechargeable battery and charger are to be used in conjunction with a device from the Grizzly Tools 20 V series. The rechargeable battery is compatible with all devices from the Grizzly Tools 20 V series. The batteries may only be charged using chargers from the Grizzly Tools 20 V series. Any other use can damage the device and thus pose a substantial risk to the user. This device is not suitable for commercial use. The warranty is void in the case of commercial use.

The manufacturer is not liable for damage caused by improper use or incorrect operation.

General Description

The illustration how to handle the appliance can be found on page 2.

Dispose of the packaging material correctly.

Overview

1 Release button

2 Button for the charge status display
3 Battery charge level indicator
4 Rechargeable battery 5 Charger
6 Control display on charger

Technical Data

Rechargeable battery (Li-Ion)

GGBP-20V2AH-GGNE2-PI-QX

Battery cells....5

Nominal voltage....20 V==

Capacity....2.0 Ah

Energy....40 Wh

Charging time .... approx. 1 h*

Temperature .... max. 45 °C

Charging process....4 - 40 °C

Operation ......-20 - 50 °C

Storage.... 0 - 45 °C

Rechargeable battery (Li-Ion)

GGBP-20V4AH-GGNE2-P2-QX

Battery cells....10

Nominal voltage....20 V==

Capacity....4.0 Ah

Energy....80 Wh

Charging time .... approx. 2 h*

Temperature .... max. 45 °C

Charging process....4 - 40 °C

Operation ......-20 - 50 °C

Storage.... 0 - 45 °C

Charger ......GGCH-20V2.4A-GGNE2-C1

Nominal consumption....65 W

Voltage input.....230-240 V\~, 50 Hz

Voltage output....21,5 V==

Voltage current 2,4 A

Miniature fuse....T3.15A

Safety class ....

Safety information

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

Symbols in the manual

Warning symbols with in- formation on damage and injury prevention.

Hazard symbol with information on the prevention of personal injury caused by electric shock.

Help symbols with information on improving tool handling.

Symbols on the Battery

Read through the instruction manual carefully.

Do not dispose of batteries in household

waste, fire or water.

Do not subject the battery to strong sunlight over long periods and do not leave it on a heater (max. 45 °C).

Take batteries to an old bat- tery collection point where they will be recycled in an environmentally friendly manner.

Electrical appliances must not be disposed of with the domestic waste.

Symbols on the Charger:

Caution!

Read the operating instructions before charging.

The rcharger is for indoor use only.

Protection class II (Double insulation)

Electrical appliances must not be disposed of with the domestic waste.

General Safety Directions

Caution! When using power tools, observe the following basic safety measures for the prevention of electric shocks and the risk of injury and fire.

Please read all these instructions before using this electric tool and please keep the safety instructions.

Careful handling and use of battery devices

- Charge the batteries only in chargers that are recommended by the manufacturer. If a charger that has been designed for a particular type of battery is used to charge other batteries, there is a risk of fire.

- In the power tools, use only the batteries designed for the purpose. The use of other batteries may result in injuries and risk of fire.

- Keep the unused battery away from paper clips, coins,

GB

keys, nails, screws and other small metal objects, which could cause bridging of the contacts. A short circuit between the battery contacts may cause burns or fire.

• If used incorrectly, liquid may leak from the battery. Avoid contact with this. In the event of accidental contact, rinse off with water. If the liquid gets into eyes, seek medical assistance. Leaking battery fluid may cause skin irritations or burns.
• Do not use damaged or altered batteries. Damaged or altered batteries can be unpredictable and lead to fire, explosion or risk of injury.
• Do not expose batteries to fire or elevated temperatures. Fire or temperatures over 130 C° can cause an explosion.
• Follow all instructions for charging and never charge the battery or the battery-powered tool outside the temperature range stated in the operating instructions. Incorrect charging or charging outside the permitted temperature range may destroy the battery and increase the risk of fire.

Service

- Never repair damaged batteries. All battery repairs should be carried out by the manufacturer or authorised customer service centres only.

Special safety directions for battery-operated tools

• Ensure that the device is switched off before inserting the battery. Inserting a battery into a power tool that is switched on may result in accidents.
• Recharge the batteries indoors only because the battery charger is designed for indoor use only.
• To reduce the electric shock hazard, unplug the battery charger from the mains before cleaning the charger.
• Do not subject the battery to strong sunlight over long periods and do not leave it on a heater. Heat damages the battery and there is a risk of explosion.
• Allow a hot battery to cool before charging.
• Do not open up the battery and avoid mechanical damage to the battery. Risk of short circuit and fumes may be

emitted that irritate the respiratory tract. Ensure fresh air and seek medical assistance in the event of discomfort.

- Do not use non-rechargeable batteries!

Correct handling of the bat- tery charger

- Keep the equipment away from children and pets. Children should be supervised in order to ensure that they do not play with the equipment.

• To charge the battery, use only the charger supplied. Risk of fire and explosion.

- Before each use, check the charger, cable and plug and have them repaired by qualified professionals and only with original parts. Do not use a defective charger and do not open it up yourself. This ensures that the safety of the device is maintained.

- Connect the charger only to a socket with an earth. Ensure that the mains voltage matches the specifications on the charger rating plate. Risk of electric shock.

- Disconnect the charger from the mains before closing or opening connection to the battery/ power tool/device.

• Keep the charger clean and away from wet and rain. Do not use the charger outdoors. Dirt and the entry of water increase the risk of electric shock.
• Operate the charger only with the appropriate original batteries. Charging other batteries may result in injuries and risk of fire.
• Avoid mechanical damage to the charger. This can result in internal short circuits.
• Do not operate the charger on a combustible surface (e.g. paper, textiles). Risk of fire due to heating during charging.
• If the power cable for this equipment is damaged, it must be replaced by the manufacturer, a customer service agent of the same or a similarly qualified person in order to prevent hazards.
• Do not use the charger to charge non-rechargeable batteries. The device could become damaged.

Charging Process

Do not expose the battery to extreme conditions such as heat or impact. Risk of injury from escaping electrolytic solution! After eye/skin contact, rinse the affected areas with water or a neutraliser and consult a doctor.

Charge the battery in a dry room only.

Prior to attaching the charger, check that the battery's outer surface is clean and dry.

There is a risk of injury due to electric shock.

Switch off the device and remove the battery before carrying out any maintenance work.

• Charge the battery before the first time of use. Do not briefly recharge the battery several times in a row.
• Only charge with the originally supplied charger.
• If a fully recharged battery lasts for considerably shorter operating times, the battery is used up and needs to be replaced. Only use an OEM spare battery available from our Customer Service.
• Always take heed of the applicable safety instructions as well as the environmental protection regulations and information.
• The warranty excludes all defects caused by improper handling.

Removing/inserting the Battery

1. To remove the battery (4) from the appliance, press the release button (1) on the battery and pull out the battery.
2. To insert the battery (4), place it on the guide track and push it into the appliance. It will audibly snap in.

Only insert the rechargeable battery once the device is completely assembled. Risk of injury!

Checking the charge status of the rechargeable battery

The battery charge status indicator (3) signalises the state of charge of the battery (4).

Press the button (2) on the battery. The number of illuminated LED lights shows the charge level of the battery.

4 lights means battery is fully charged. 1 light means that the battery needs to be charged.

Recharging the battery

Allow a hot battery to cool before charging.

Only charge the battery (4) when the red LED on the charge status indicator is on.

The charging time is around 1 - 2 hours.

1. Remove the battery (4) from the appliance, as necessary (see „Removing/inserting the battery“).
2. Insert the battery (4) in the charging compartment of the battery charger (5).
3. Plug the battery charger (5) into a mains outlet.
4. When the battery is fully recharged unplug the battery charger (5) from the mains.
5. Remove the battery (4) from the charger (5).

Overview of the control display (6) on the charger (5):

Green LED lights up without battery inserted: Charger ready.

Green LED lights up: Battery such alleged charged.

Red LED lights up: Battery charging.

Red LED flashes: Battery overheated

Red + green LEDs flash: Defective battery

Used batteries

• If a fully recharged battery lasts for considerably shorter operating times, the battery is used up and needs to be replaced. Only use an OEM battery pack replacement available from our Customer Service.
• Always take heed of the applicable safety instructions as well as the environmental protection regulations and information (see “Cleaning and Maintenance”).

Storage

• Remove the battery before storing the unit for longer periods of time (e.g. hibernation).
• Store the battery only in a partially charged state. The state of charge should be 40 – 60 % over a longer storage period (two LED lights on the charge status display (3) illuminate).
• During a longer storage period, check the state of charge of the battery and recharge if necessary roughly every 3 months.
• In order to keep the battery well charged, avoid exposing the appliance to extreme heat or cold in storage.
• The ideal storage temperature for the battery is between 0 °C and 45 °C. Avoid extreme cold or heat during

storage to ensure the battery output is not adversely affected.

Cleaning

Clean the rechargeable battery (1) and charger (3) with a dry brush or dry cloth. Keep the rechargeable battery (1) and charger (3) away from moisture and sharp objects.

Maintenance

• The equipment is maintenance free.

Waste Disposal/Environmental Protection

Remove the battery from the device and take the device, battery, accessories and packaging for environmentally friendly recycling.

Electric units do not belong with domestic waste.

Do not dispose of batteries in household waste, fire (risk of explosion) or water. Damaged batteries may damage the environment and your health if toxic fumes or liquids leak out.

• Return the unit and the recharger to a recycling centre. The plastic and metal parts employed can be separated out and thus recycled use can be implemented. Ask our Service-Center for details.
• Dispose of batteries in discharged condition. We recommend covering the pole with adhesive tape to prevent a short circuit. Do not open up the battery.

GB

• Dispose of batteries in accordance with the local regulations. Take batteries to an old battery collection point where they will be recycled in an environmentally friendly manner. For information about this, ask your local waste management company or our service centre.
• Defective units returned to us will be disposed of for free.
• Throw the cut grass on the compost. Do not throw it in the normal household waste.

Spare Parts/Accessories

Spare parts and accessories can be obtained at www.grizzly-service.eu

If you have any other questions, contact the "Service-Center" (see "Service-Center").

Battery 2.0 Ah....80001169

Battery 4.0 Ah....80001158

Charger....80001120

Guarantee

• This appliance has a 24-month guarantee. This equipment is not suitable for commercial use. Commercial use will invalidate the guarantee.
• Damages, which can be attributed to natural wear, overloading or inappropriate use, are excluded from the guarantee. Certain component parts are subject to a normal wear and are excluded from the guarantee. In particular, these include: battery.
  • Furthermore, the prerequisite for guarantee services is that the references

indicated in the operating instructions regarding cleaning and maintenance have been adhered to.

- Damage, which has been caused from material or manufacturing faults, will be made good free of charge, by replacement delivery or repair.

This requires that the appliance is re-turned to the merchant undismantled and with proof of purchase and guarantee.

Repair Service

- Repairs, which are not covered by the guarantee, can be carried out for charge by our service center. Our service center will be glad to provide you with a cost estimate.

We can only process devices which have been packaged sufficiently and which have been dispatched with correct stamping.

- Note: In case of complaint or service, please deliver your device cleaned, and with an indication of the defect, to our service address.

Devices sent in freight collect - by bulk freight, express or with other special freight - are not accepted.

- Defective units returned to us will be disposed of for free.

Inhoud

Inleiding....21

Gebruik....21

Accu 2,0 Ah ....80001169 Accu 4,0 Ah ....80001158 Lader ....80001120

Garantie

Introduction......29

Batteria 4,0 Ah....80001158

Caricabatterie EU 80001120

Garanzia

Akumulator 2,0 Ah ....80001169

Akumulator 4,0 Ah ....80001158

Ładowarka EU....80001120

Gwarancja

Akumuliatorius 2,0 Ah....80001169

Akumuliatorius 4,0 Ah....80001158

Kroviklis 80001120

Garantija

Translation of the original EC declaration of conformity
We hereby confirm that theChargerdesign series GGCH-20V2.4A-GGNE2-C1Batch number: B-46294conforms with the following applicable relevant version of the EU guidelines:
2014/30/EU • 2014/35/EU • 2011/65/EU*
In order to guarantee consistency, the following harmonised standards as well as national standards and stipulations have been applied:
EN 60335-1:2012/A13:2017 • EN 62233:2008EN 60335-2-29:2004/A11:2018 • EN 62321-1:2013EN 55014-1:2017 • EN 55014-2:2015 • IEC 62133-2:2017EN 61000-3-2:2014 • EN 61000-3-3:2013
This declaration of conformity (20)** is issued under the sole responsibility of the manufacturer:
CE Grizzly Tools GmbH & Co. KGStockstädter Straße 2063762 GroßostheimGermany15.05.2020	Christian FrankDocumentation Representative

* The object of the declaration described above satisfies the provisions of Directive 2011/65/EU of the European Parliament and the Council of 8 June 2011 on limiting the use of certain harmful substances in electrical and electronic appliances.
** The last two digits of the year in which the CE marking was affixed.

Unit 3, Beldray Park

Beldray Road, Mount Pleasant

Bilston, West Midlands WV14 7NH

Tel.: [phone]

e-mail: [e-mail]

PL Krysiak Sp.z o.o.ul. Rolna 6

62-081 Baranowo

Tel.: [phone]

Fax: [phone]

e-mail: [e-mail]

www.krysiak.pl

CZ HECHT MOTORS s.r.o.

U Mototechny 131

251 62 Mukařov-Tehovec

Tel.: [phone] linka 27

Fax: [phone]
