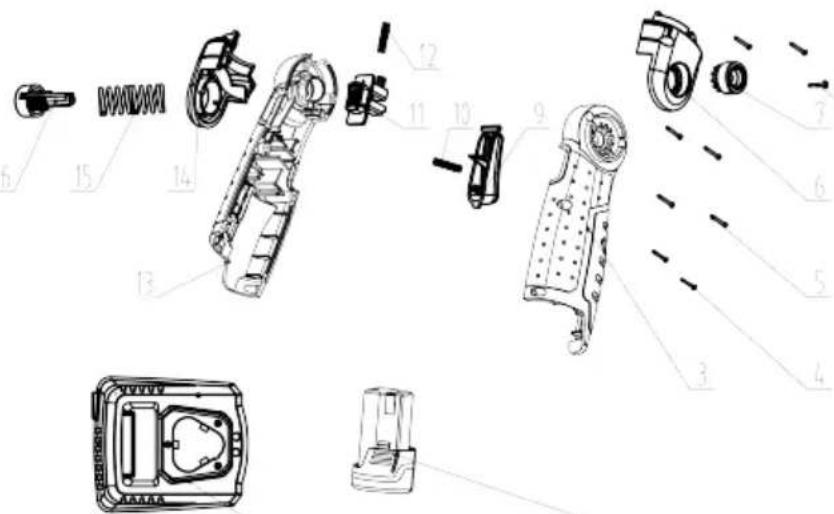

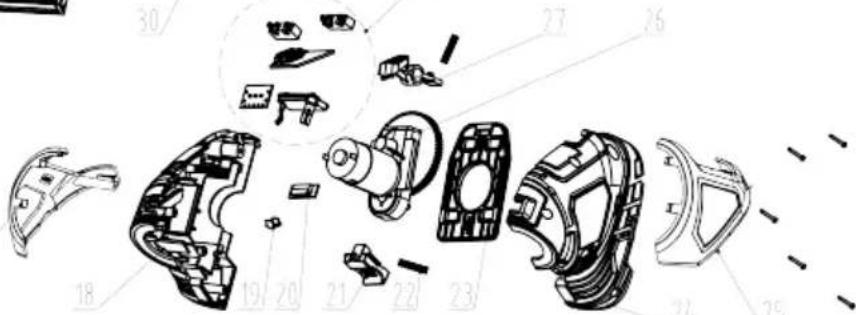

Exploded Drawing....137

Service-Center 139

Introduction

Congratulations on the purchase of your new device. With it, you have chosen a high quality product. During production, this equipment has been checked for quality and subjected to a final inspection. The functionality of your equipment is therefore guaranteed.

The operating instructions constitute part of this product. They contain im-nt information on safety, use and dis-

Before using the product, familiarise yourself with all of the operating and safety instructions. Use the product only as described and for the applications specified. Keep this manual safely and in the event that the product is passed on, hand over all documents to the third party.

Intended use

This device is only intended for cutting and trimming thin shoots on hedges, bushes and ornamental shrubs, as well as for cutting small sections of lawns, including lawn edges, and for spraying plants in residential applications.

The unit is only to be used by adults. People over 16 should only use this unit under adult supervision.

Any other use not specifically mentioned in this manual can lead to damage to the unit and may present a serious hazard to the user.

The operator or user is responsible for accidents or damage to other persons or their property.

This equipment is not suitable for commercial use. Commercial use will invalidate the guarantee.

GB

The manufacturer will not be held responsible for damage or injuries caused by use outside that stipulated by the manual or by improper handling.

General description

The illustration of the principal functioning parts can be found on the pages 2-3.

Extent of the delivery

Carefully unpack the appliance and check that it is complete.

Dispose of the packaging material correctly.

• Device
• Grass cutting blade with blade guard
• Shrub cutting blade with blade guard
• Spray attachment
• Rechargeable battery
• Charger
• Operating instructions for battery and charger
• Instruction Manual

Function description

The 3-in-1 battery-operated combined device features exchangeable cutting units and a spray attachment.

For use as a shrub trimmer, a double-sided blade block is used as the cutting head. The catching blades are round off at the side to prevent accidents, and positioned in an offset arrangement to reduce the risk of injury. A cutting head with several blades is provided for use as a grass trimmer. The spray attachment is intended for spraying a wide range of water-soluble plant protection agents or water. Please read the following descriptions for the function of the various controlling parts of the unit.

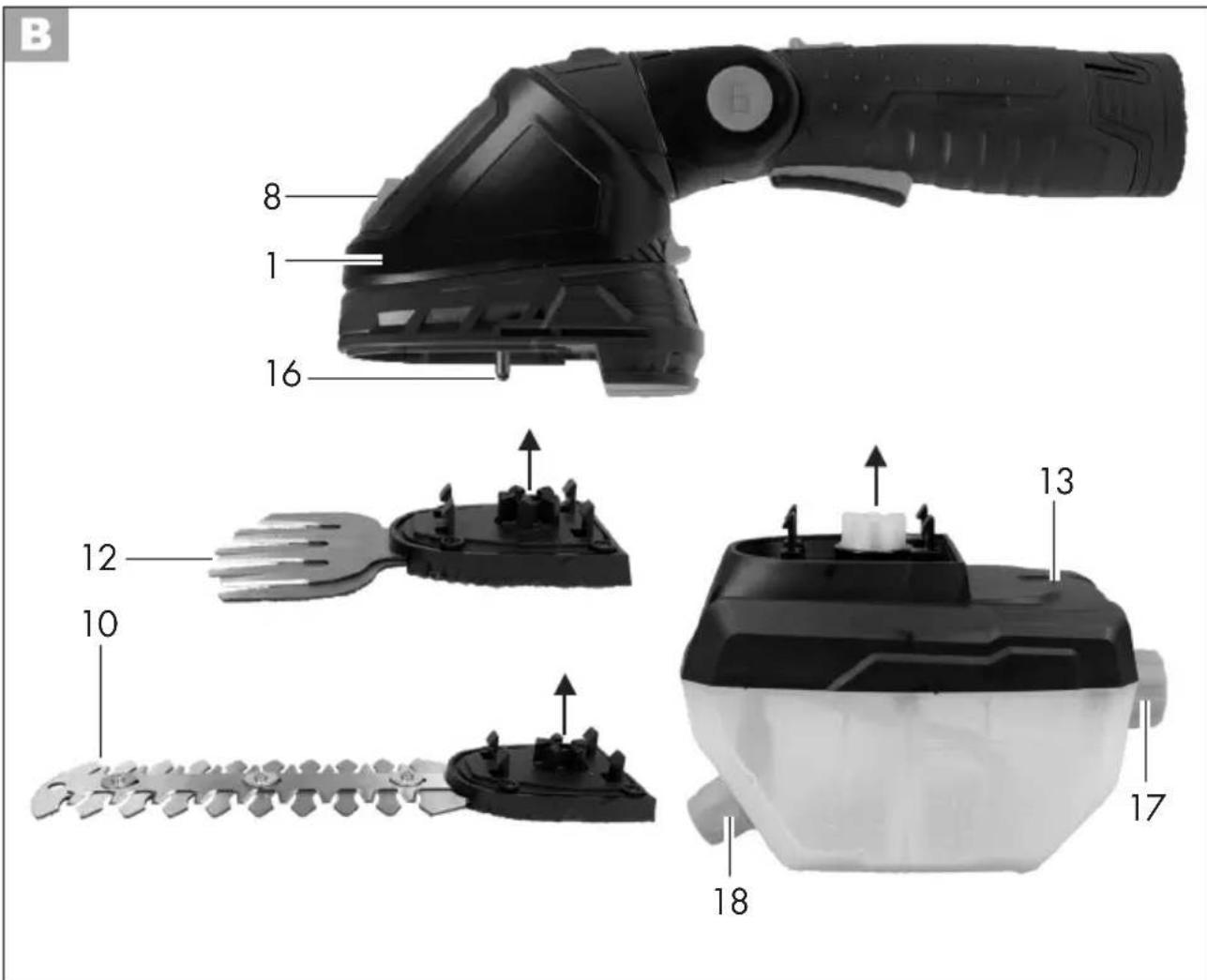

Overview

Equipment

Device head

2 Charge display (LED)
3 Switch lock, unit
4 Unit handle
5 On/off switch, unit

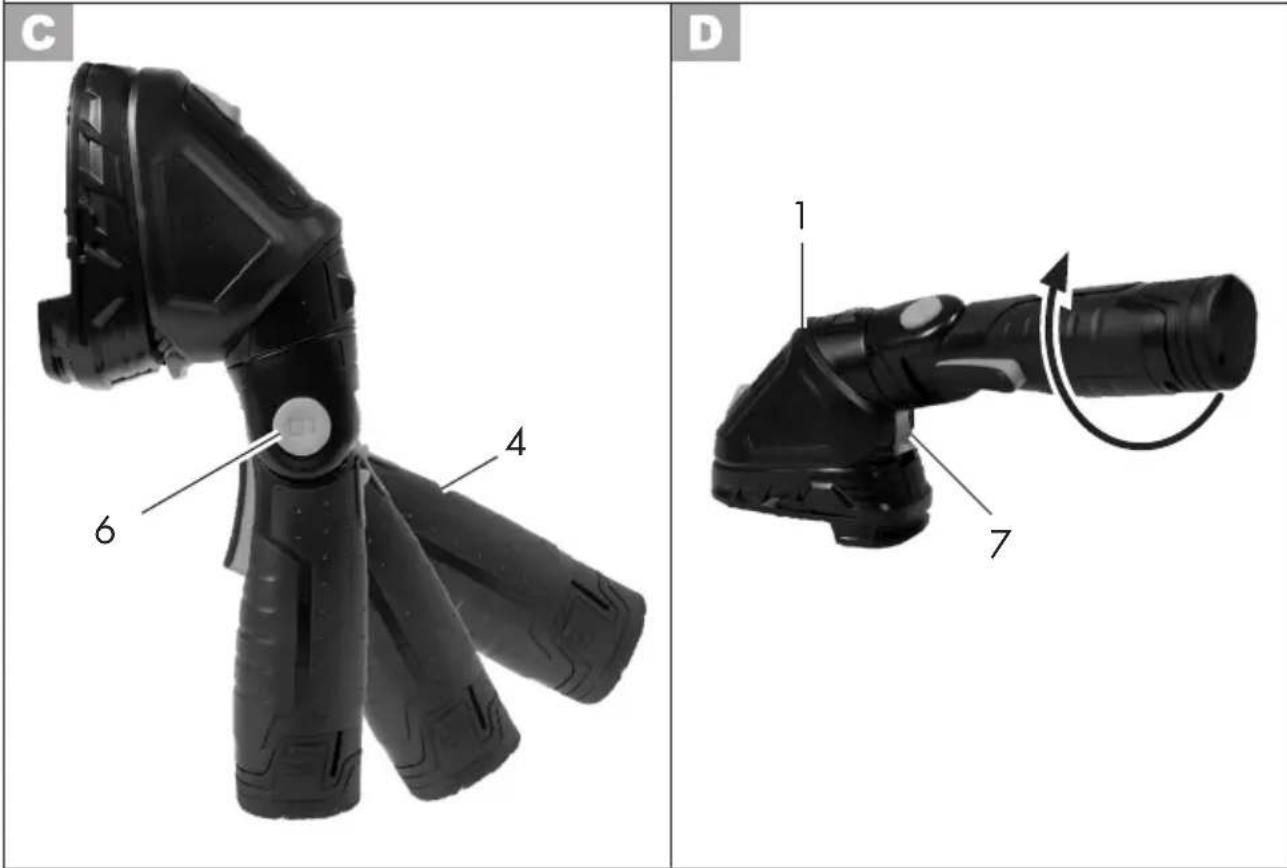

6 Unlocking mechanism for tilting the device handgrip
7 Unlocking mechanism for turning device head
8 Unlock buttons

Accessories

9 Blade guard for shrub shear blade

10 Shrub shear blade
11 Blade guard for grass cutter blade
12 Grass cutter blade

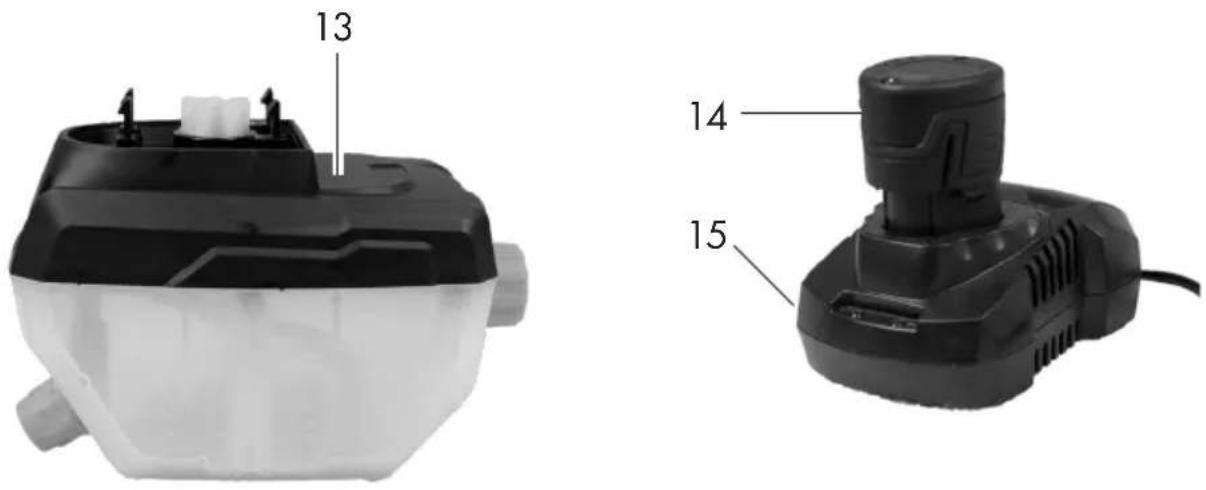

13 Spray attachment
14 Rechargeable battery
15 Charger

16 Plug-in connector

17 Tank cover, spray attachment
18 Nozzle, spray attachment

Technical data

Equipment......DG-CGC 1080 Set 3in1

Motor voltage U_max .....12 V==

Rated speed n_0 1200 min ^-1

Protection category.....IPX1

Sound power level ( L_WA ) guaranteed....86 dB(A)

Weight.....approx 0.86 kg

Vibration ( a_h )

at handle ....1.28 m/s ^2 , K= 1.5 m/s ^2

Grass-trimming blade

Blade width.... 100 mm

Sound pressure level

$$ \left(L _ {p A}\right) \dots 6 8. 8 \mathrm{dB(A)}, K _ {p A} = 3 \mathrm{dB} $$

Sound power level (LWA)

measured.....77.5 dB(A); K_WA = 3 dB

Shrub-trimming blade

Cutting length 160 mm

Distance between teeth... approx. 8 mm

Sound pressure level

$$ \left(L _ {p A}\right) \dots 6 7. 1 \mathrm{dB} (A), K _ {p A} = 3 \mathrm{dB} $$

Sound power level ( L_WA )

measured.....78.6 dB(A); K_WA=3 dB

Spray attachment

Volume 1000 ml

Sound pressure level

$$ \left(L _ {p A}\right) \dots 7 1. 7 \mathrm{dB} (A), K _ {p A} = 3 \mathrm{dB} $$

Sound power level ( L_WA )

measured .....83.6 dB(A); K_WA = 2.77 dB

The noise and vibration levels have been calculated according to the norms stated in the conformity statement.

The stated vibration emission value was measured in accordance with a standard testing procedure and may be used to compare one power tool to another. The stated vibration emission value may also be used for a preliminary exposure assessment.

Warning: The vibration emission value may differ during actual use of the power tool from the stated value depending on the manner in which the power tool is used.

Try to keep the exposure to vibrations as low as possible. Examples of measures to reduce vibration exposure are the wearing of gloves when using the tool and limiting the working hours. For this purpose all parts of the operating cycle have to

be considered (for example, times when the electric tool is switched off and times when it is switched on but running without any load).

Safety Instructions

This unit can cause serious in-jury if not used correctly. Before using the unit, carefully read through the instruction manual and familiarise yourself with all of its controls.

Symbols

Symbols in the manual

Warning symbols with information on damage and injury prevention.

There is a risk of injury from electric shock.

Instruction symbols with information on preventing damage.

Help symbols with information on improving tool handling.

Symbols on the unit

Before using for the first time, carefully read through the user manual.

Attention!

Remember that the cutting equipment will continue to move after switching the unit off.

GB

Do not use the unit during rain, bad weather damp surroundings or on wet grass or hedges.

Danger due to materials blown out of machine!

Remove persons in the vicinity from the danger area.

Guaranteed sound power level

Electrical devices must not be disposed of with domestic waste.

Graphical symbols on the spray attachment:

Empty the spray attachment prior to storage.

Do not spray people or animals.

Do not use any flammable liquids.

Store the device out of reach of children.

Do not inhale the vapours!

Opening/closing the tank cover

Spray attachment nozzle regulation

Level indicator

General safety instructions for power tools

WARNING! Read all safety directions and instructions. Omissions in the compliance with safety directions and instructions can cause electrical shock, fire and/or severe injuries.

Retain all safety directions and instructions for future use.

The term “Power Tools” used in the safety instructions refers to mains-operated power tools (with power cord) and to battery-operated power tools (without power cord).

1) WORK AREA SAFETY

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.

b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.

c) Keep children and bystanders away while operating a power tool. Dis-tractions can cause you to lose control.

2) ELECTRICAL SAFETY

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.

b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators.

There is an increased risk of electric shock if your body is earthed or grounded.

c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.

d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.

e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.

f) If operation of the power tool in a damp environment is unavoidable, please use a residual current device. The use of a residual current device reduces the risk of an electric shock.

3) PERSONAL SAFETY

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention white operating power tools may result in serious personal injury.

b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.

c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source

and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.

d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.

e) Do not overreach. Keep proper footing and balance at all times. This applies especially when working on slopes. This enables better control of the power tool in unexpected situations.

f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.

g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

h) Walk when holding the device in your hand. Do not run.

i) Do not touch any of the dangerous moving parts before you have removed the battery and all moving parts have come to a complete standstill. There is a risk of injury.

4) POWER TOOL USE AND CARE

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.

GB

b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjust -ments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

5) SERVICE

a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

Special Safety Directions for the cordless grass & shrub cutter

1) SPECIAL SAFETY DIRECTIONS FOR HEDGE TRIMMERS

a) Keep all body parts away from the blade. Do not attempt to remove clippings while the blade is operating or to hold on to material which is to be cut. Only remove trapped clippings when the tool is switched off. One moment of carelessness in the usage of the hedge trimmer can lead to severe injury.

b) Carry the hedge trimmer at the handle with an idle blade. Always pull on the protective cover during transport and storage of the hedge trimmer. Careful handling of the tool reduces the risk of injury from the blade.

c) Hold the power tool only on the insulated handle surfaces, as the cutting blade may come into contact with concealed power cables. Contact between the cutting blade and a live cable may render metallic components live and result in an electric shock.

d) Before the work, search the hedge for concealed objects, e.g. cable etc. To avoid damaging the equipment.

e) Hold the hedge trimmer correctly, e.g. with both hands on the handles, if there are two handles. Loss of control of the equipment may result in injuries.

f) Wear suitable clothing and work clothes when working with the equipment. Do not hold the equipment by the cutting blade or lift it on the cutting blade. Contact with the cutting blade can cause injuries.

Special safety instructions for the spray attachment

a) Keep the spray attachment away from children.
b) Only use the spray attachment in well-ventilated surroundings.
c) Spray with the direction of wind, away from people, animals and foodstuffs.
d) Do not eat or drink while working with the spray attachment.
e) Do not aim the spray attachment at open flames.
f) Observe location regulations.
g) Avoid operating the spray attachment while empty.
h) Observe all the instructions provided for the plant protection agent that you use in the spray attachment. Wear protective googles and gloves, or other recommended personal protective equipment, if required.
i) Do not use any hot, corrosive, flammable, caustic or heat-producing liquids in the spray attachment.
j) Keep hands and arms away from the nozzle while the spray attachment is in operation.
k) If you come into contact with chemicals, proceed in accordance with the instructions of the product used and seek medical assistance immediately.

Further safety directions

Warning! Children, individuals with limited physical, sensory or mental capabilities, as well as those who have insufficient experience or knowledge or are not familiar with the instructions must never be permitted to use the device. Local regulations may specify an age restriction for the user.

The device must never be used if people – especially children – or pets are nearby.

For your personal safety: - suitable work clothes such as boots with non-slip soles, sturdy long trousers, gloves and goggles. Hearing protection must be used in case the device is used over prolonged periods of time. Do not wear long flowing clothing or jewellery, as this may be caught by moving parts. Do not use this tool while walking barefooted or while wearing open sandals.

a) Only switch on the tool when hands, feet and all other body parts are at a secure distance to the tool. Risk of injury from cuts.
b) Take care that you do not injure your hands and feet with the cutting elements.
c) Remove the power supply unit before working with the equipment. Do not use extension cables. The power supply unit is to be used only in enclosed spaces. Water entry increases the risk of electric shock.

GB

d) Do not use the shrub cutter in combination with the telescopic shaft. There is a risk of cut wounds.
e) The tool is designed to trim hedges. Do not use the tool to cut branches, hard wood or other. To avoid damaging the equipment.
f) Do not attempt to dislodge a blocked/trapped blade before switching the tool off. There is a risk of injury.
g) Always switch off the device first and remove the rechargeable battery

- if you leave the tool unsupervised

- before removing jams

- before control- maintenance- or cleaning tasks

- if you have come into contact with a foreign object

- whenever the machine starts to vibrate uncontrollably

How to avoid accidents and injuries.

h) In the case of an accident or malfunction during operation, the device must be switched off immediately. Injuries must be properly treated or medical assistance sought. Read the „Trouble shooting“ section to correct any malfunctions or contact our Service Centre.
i) Operation of the machine in bad weather is to be avoided, especially if there is a risk of lightning. There is a risk of personal injury from an electric shock.

Residual risks

Even if properly operating and handling this electric tool, some residual risks will remain. Due to its construction and build, this electric tool may present the following hazards:

a) Cuts
b) Ear damage if working without ear protection.
c) Eye damage if suitable eye protection is not worn.
d) Damage to your health caused by swinging your hands and arms when operating the appliance for longer periods of time or if the unit is not held or maintained properly.

Warning! During operation, this electric tool generates an electromagnetic field which, under certain circumstances, may impair the functionality of active or passive medical implants. To reduce the risk of serious or lethal injuries, we recommend that persons with medical implants consult their doctor and the manufacturer of their medical implant before operating the machine.

Attention! Follow the safety instructions provided in your battery's instruction manual.

Operation

Keep to noise abatement regulations and other by-laws.

Attaching/replacing accessories

Switch off the device and remove the rechargeable battery before attaching or replacing accessories in order to avoid hazards and injury.

Attaching accessories

1. Place the grass cutting blade (12), the shrub cutting blade (10) or the spray attachment (13) onto the plug-in connector (16) on the bottom side of the device head (1).

2. Press the accessory into the direction of the device head (1).

It will lock into place audibly.

Removing accessories:

1. Press the release buttons (8) on the device head (1) and remove the accessories (10/12/13).

Switching on and off

1. If necessary, remove the blade guard (9/11) before switching the device on.
2. To start the device, push the switch lock (3) forwards and press the on/off switch (5). Then release the switch lock (3).

The equipment runs at top speed.

1. In order to switch off, let go of the on/off switch (5).

After switching the unit off, the blades take a short time to stop moving. Let the blades come to a complete standstill. Do not touch the blades or slow them down before the moving parts have come to a standstill.

General working instructions

• Check the device before each use for obvious defects such as loose, worn or damaged parts.
• Comply with the device's maintenance and cleaning instructions.

Adjusting the working angle

Tilting the device handgrip:

The device handgrip (4) features three angles of inclination:

1. Operate the unlocking mechanism (6) and tilt the device handgrip (4) to the desired angle.
2. Release the unlocking mechanism (6) so that the device handgrip (4) locks into place.

Rotating the device head:

The device head (1) features 7 positions:

1. Pull the unlocking mechanism (7) downwards and rotate the device head (1) into the desired position.
2. Release the unlocking mechanism (7), the device head (1) will lock into place.

Using the device as grass shears/shrub shears

Ensure objects such as wire, metallic parts, stones etc. do not enter the blades while trimming. This can cause damage to the cutting unit. If the blades become jammed with solid objects, turn the device off immediately.

• Ensure that the screws in the blade bar are firmly in place.
• Only use sharp blades to ensure good trimming performance and to protect the device and rechargeable battery.
• Do not overload the device while working to such an extent that it comes to a standstill.

GB

Working using the grass shears

- Grass is best cut when it is dry and not too high.

Working using the shrub shears

• Move the device in a steady forward motion, or up and down in an arch-shaped motion.
• The double-sided blade bar enables trimming in both directions, or via pendulum movements from one side to the other.

B

Using the device with spray attachment

The tank can be filled with water or water-soluble plant protection agents.

Please take notice of the safety information and instructions provided by the manufacturer of the plant protection agent. Wear the personal protective equipment recommended by the manufacturer.

Fill the tank before you attach the spray attachment (13) onto the device head (1).

Avoid operating the spray attachment (13) while empty..

1. Open the tank cover (17) and fill the spray attachment (13).
2. Close the tank cover (17).
3. Attach the spray attachment to the device head (1). (See "Attaching/replacing accessories")
4. You can regulate the spray attachment by turning the nozzle (18).

Checking the level indicator: Hold the spray attachment mounted to the device head vertically. This will allow you to read the markings (MAX, 23 , 13 und MIN) and see the fill level.

Cleaning/Maintenance

Leave any work not covered in this manual to our Service Centre. Only use original parts. There is a risk of injury!

Remove the battery before all maintenance work. There is a risk of injury.

Never use cleaning agents or solvents, which can cause irreparable damage to the unit. Chemicals can attack the plastic components on the unit.

Wear gloves when handling the blades (10/12). There is a risk of injury from cuts!

Clean and service the unit regularly as follows. This guarantees a long life for your unit:

• Check the covers and guards for damage and correct position. If necessary, replace.
• Never operate the machine with defective guards or covers or without protection or with damaged or worn cables.

• Keep the ventilation slits, motor housing and handles on the equipment clean. To do this, use a damp cloth or brush.
  • Always keep the blade clean.
  After using the equipment, it is imperative to:

• Clean the blade (with an oily cloth);

• Oil the blade shaft with an oil can or spray.

- Slight notches on the blades can be evened out. For this, sand down the blades with Only sharp blades can

Diagram of a droplet being inserted into a rack of pins (no text or symbols)

- Blunt, bent or damaged blades must be changed.

- Clean the spray attachment (A 13) with clean water while wearing personal protective equipment (e.g. gloves, safety googles).

Dispose of the liquids in accordance with the instructions provided by the manufacturer of the water-soluble plant protection agent.

- Do not use any aggressive cleaning agents to clean the spray attachment (13).

- If blocked, clean the nozzle (18) with a thin needle.

We are not liable for damage caused by the use of the unit if the original cause was improper repair or the use of non-original parts or through use other than that designated in this manual.

Storage

• Keep the equipment in the blade guard supplied, dry and out of reach of children.
• Empty and clean the spray attachment (13) prior to storage.

Disposal and the environment

Be environmentally friendly. Return the tool, accessories and packaging to a recycling centre when you have finished with them.

Electrical devices must not be disposed of with domestic waste.

Do not dispose of batteries in household waste, fire (risk of explosion) or water. Damaged batteries may damage the environment and your health if toxic fumes or liquids leak out.

• Dispose of the equipment in accordance with the local regulations. Take the equipment to a collection point, where it will be recycled in an environmentally friendly manner. For information about this, ask your local waste management company or our service centre.
• Defective units returned to us will be disposed of for free.
• Place cut branches in compost and not in the dustbin.
• Dispose of the liquids in accordance with the instructions provided by the manufacturer.

Spare parts/Accessories

Spare parts and accessories can be obtained at www.service-deltafox.de

If you have any other questions, contact the "Service-Center" (see "Service-Center").

Item Description Order No.

A 9 Blade guard for shrub shear blade 91105281
A 10 Shrub shear blade 13700055
A 11 Blade guard for grass cutter blade		91105282
A 12 Grass cutter blade 13699996
A 13 Spray attachment 91105280

Trouble shooting

Problem Possible Cause	Error correction
Device doesn't start	Equipment is not charged	Charge equipment (Observe the separate operating instructions for the rechargeable battery and charger)
	Switch lock (3) has not been operated properly	Switch on (see „Operation“)
	On/off switch (5) may be defective	Repair by Service Centre
Bad cutting results	Too much friction due to lack of lubrication	Lubricate blade (10/12)(see „Cleaning/Maintenance“)
	Dirty blade(10/12)	Clean blade(see „Cleaning/Maintenance“)
	Blade (10/12) is blunt or has nicks	Sharpen blade (see „Cleaning/Maintenance“) or replace (see „Spare parts/Accessories“)
	Blade (10/12) is damaged	Replace blade(see „Spare parts/Accessories“)
Spray attachment (A 13) not spraying	Nozzle (A 18) blocked	Clean nozzle (A 18)(see “Cleaning/Maintenance”)

Guarantee

• For the device and the charger, we provide a 24 month warranty. For the battery, we provide a 6 month warranty. Commercial use will invalidate the guarantee.
• Damages, which can be attributed to natural wear, overloading or inappropriate use, are excluded from the guarantee. Certain component parts are subject to a normal wear and are excluded from the guarantee.
  • Furthermore, the prerequisite for guarantee services is that the references indicated in the operating instructions regarding cleaning and maintenance have been adhered to.
• Repair or replacement of the product will not start a new warranty period.
• Damage, which has been caused from material or manufacturing faults, will be made good free of charge, by replacement delivery or repair.
  This requires that the appliance is re-turned to the merchant undismantled and with proof of purchase and guarantee.

Repair Service

For a charge, repairs not covered by the guarantee can be carried out by our service branch, which will be happy to issue a cost estimate for you.

We can handle only equipment that has been sent with adequate packaging and postage.

Attention: Please send your equipment to our service branch in clean condition and with an indication of the defect.

Equipment sent carriage forward or by bulky goods, express or other special freight will not be accepted.

We will dispose of your defective devices free of charge when you send them to us.

Spis tresci

Wstep....74

Przeznaczenie....74

Opis ogólny....75

Diagram of a droplet being inserted into a rack with arrows indicating direction (no text or symbols)

Simple line drawing of a tool interacting with a grid-like pattern (no text or symbols)

Laikymas

Diagram of a droplet being inserted into a grid-like pattern (no text or symbols)

Translation of the original EC declaration of conformity
We hereby confirm that the 3 in 1 cordless combo garden tool model DG-CGC 1080 Set 3in1Batch number: B-47563conforms with the following applicable relevant version of the EU guidelines:
2006/42/EC • 2014/30/EU • 2000/14/EC • 2005/88/EC • 2011/65/EU*
In order to guarantee consistency, the following harmonised standards as well as national standards and stipulations have been applied:
EN 60745-1:2009/A11:2010 • EN 60745-2-15:2009/A1:2010EN 55014-1:2017 • EN 55014-2:2015 • EN 60335-1:2012/A2:2019EN 50636-2-94:2014 • IEC 62321-1:2013 • EN 62233:2008EN 50580:2012/A1:2013
We confirm the following in accordance with the 2000/14/EC emissions guideline:Sound power level:
	Grass-trimming blade	Shrub-trimming blade	Spray attachment
measured 77,5 dB(A)	78,6 dB(A)	dB(A)
guaranteed 86 dB(A)
Compliance evaluation process carried out in accordance with Appendix III / 2000/14/EC
This declaration of conformity is issued under the sole responsibility of the manufacturer:
Grizzly Tools GmbH & Co. KGStockstädter Straße 2063762 Großostheim,GERMANY11.12.2020			Christian FrankDocumentation Representative

* The object of the declaration described above satisfies the provisions of Directive 2011/65/EU of the European Parliament and the Council of 8 June 2011 on limiting the use of certain harmful substances in electrical and electronic appliances.

Technical diagram showing exploded view of a device with labeled parts including a flat blade, fan blade, and battery pack.

Exploded view diagram of automotive components with numbered parts for identification

Exploded view diagram of a mechanical device with numbered parts for identification

informativ • informatif • informatief • informativo • pouczający • informative informační • informatyvus • informativo • informatívny

Service-Center
