LED Shadow - Lamp Chauvet - Free user manual and instructions

Product Type	Blacklight LED UV Effect Projector
Brand	Chauvet
Model	LED Shadow
Dimensions (approx.)	25.4 × 25.4 × 25.4 cm (10 × 10 × 10 in)
Weight (approx.)	2.3 kg (5 lb)
Power Supply	100-240 VAC, 50/60 Hz (universal)
Power Consumption	Varies by voltage (see label)
Fuse	Specific type and amperage (see label)
IP Rating	IP20 (indoor use only)
Max. Ambient Temperature	40 °C (104 °F)
Light Sources	UV LED (blacklight)
Operating Modes	Automatic, sound activation, DMX (3 channels), master/slave, dimmer, strobe
DMX Control	Yes, via 3-pin XLR connectors (input/output)
Remote Control	Compatible with IRC-6 (infrared, optional)
Power Linking	Yes, limited number of units (see manual)
Mounting	Mounting brackets included (wall or clamp mount)
Safety Cable	Required (not included, e.g., Chauvet CH-05)
Maintenance and Cleaning	Disconnect before cleaning; use a dry cloth
Spare Parts and Repairability	No user-serviceable parts; contact support
General Information	Reference manual included; download available at www.chauvetlighting.com

Frequently Asked Questions - LED Shadow Chauvet

How to set the DMX starting address?

Use the menu buttons to navigate to the Addr option, then set the address from d001 to d510. The maximum recommended address is 510 to allow access to all channels.

How to use master/slave mode?

Chain the units via DMX. On the master, set the desired mode (Auto, Sound, etc.). On the slaves, set the SLA option to SLAV. The master will control the slaves.

How to replace the fuse?

Unplug the fixture. Use a flathead screwdriver to pry open the fuse holder cap. Remove the blown fuse and replace with a fuse of the same type and amperage. Replace the cap and plug in.

Can I use this fixture outdoors?

No, the LED Shadow is rated IP20 and must be used indoors only. Avoid exposure to rain or moisture to prevent fire or electric shock.

How to clean the fixture?

Always disconnect the fixture before cleaning. Use a soft, dry cloth. Do not use solvents or abrasive cleaners. Ensure ventilation slots are not blocked.

What operating modes are available?

Modes include: automatic (5 programs with adjustable speed), sound activation, dimmer (UV 000 to 255), strobe (speed 0-8), and 3-channel DMX. Use the Aut and Sou menus to select them.

How to mount the fixture overhead?

Use the included mounting brackets and an appropriately rated clamp. Always attach a safety cable (e.g., CH-05) to secure the fixture. Read safety instructions before mounting.

What if the fixture does not power on?

First, check the fuse and replace if necessary. Ensure the power supply voltage matches the specified range (100-240 V). If the problem persists, contact technical support.

Can I use a remote control?

Yes, the LED Shadow is compatible with Chauvet's IRC-6 infrared remote (sold separately). No special configuration is required.

How to reset the fixture to defaults?

Go to the SYS menu, then select rEST. Confirm to reset the software to factory settings. All custom settings will be erased.

USER MANUAL LED Shadow Chauvet

Line drawing of a flat-screen monitor with mounting base (no text or symbols)

About This Guide

The LED Shadow™ Quick Reference Guide (QRG) has basic product information such as mounting, menu options, and DMX values. Download the User Manual from www.chauvetlighting.com for more details.

Disclaimer

The information and specifications contained in this QRG are subject to change without notice.

Safety Notes

These Safety Notes include important information about installation, use, and maintenance.

• This product is not intended for permanent installation.
• ONLY connect this product to a grounded and protected circuit.
• Always disconnect from power before cleaning or replacing the fuse.
• DO NOT look at the light source when the product is on.
• Make sure the power cord is not crimped or damaged.
• Never disconnect this product from power by pulling on the cord.
- When mounting this product overhead, use a safety cable.
• DO NOT allow flammable materials close to the unit while operating.
• DO NOT touch this product when it is operating because it may be hot.

• The voltage of the outlet to which you are connecting this product must be within the range stated on the decal or rear panel of the product.
• This product is for indoor use only! (IP20) To prevent risk of fire or shock, do not expose this product to rain or moisture.
  • Always mount this product in a location with adequate ventilation, at least 20 in (50 cm) from adjacent surfaces.
• Be sure that no ventilation slots on the unit's housing are blocked.
  • Never connect this product to a dimmer or rheostat.
• Replace the fuse with the same type and rating.
• ONLY use the hanging/mounting bracket or the handles to carry this product.
• The maximum ambient temperature is 104 °F (40 °C). Do not operate this product at higher temperatures.
  • In the event of a serious operating problem, stop using immediately.
  • DO NOT open this product. It contains no user-serviceable parts.
• To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely disconnect the product from power via the breaker or by unplugging it.

Contact

Outside the U.S., United Kingdom, Ireland, Mexico, or Benelux contact you distributor to request support or return a product. Visi www.chauvetlighting.com for contact information.

What Is Included

• LED Shadow™
- Power Cord
- Warranty Card
• Hanging Bracket with Mounting Hardware
• Quick Reference Guide

To Begin

Unpack your LED Shadow™ and make sure you have received all parts in good condition. If the box or contents appear damaged, notify the carrie immediately, not Chauvet.

Product Description

The LED Shadow™ is a stunning 3-channel LED UV black light effect light. It features blackout, static, dimmer, and strobe, with a fully adjustable flash rate. DMX control, as well as built-in automated and sound programs, allow for easy customization. The LED Shadow™ fits best in the CHS-40 VIP Gear Bag.

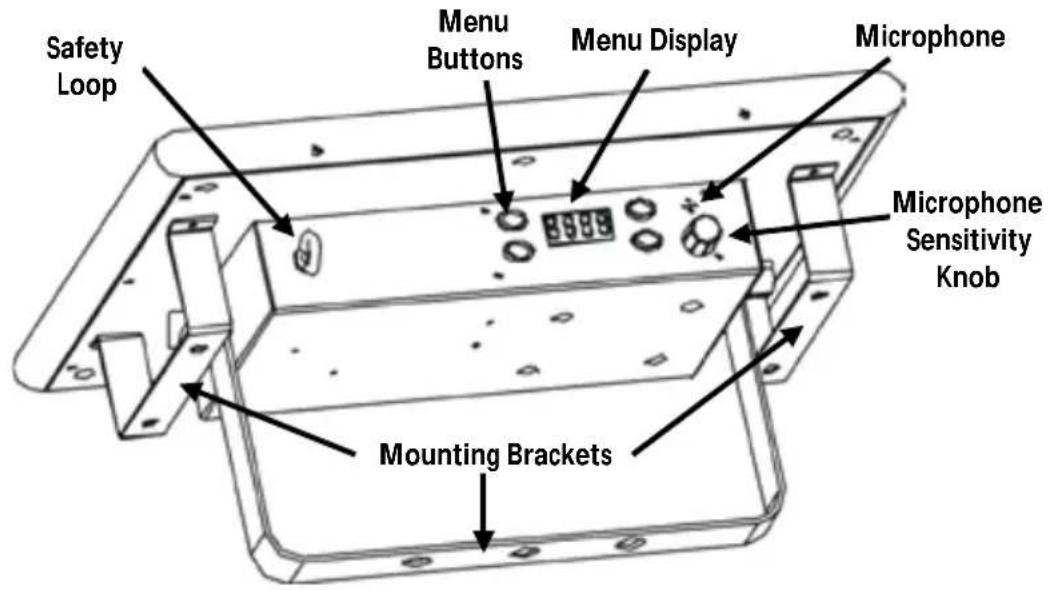

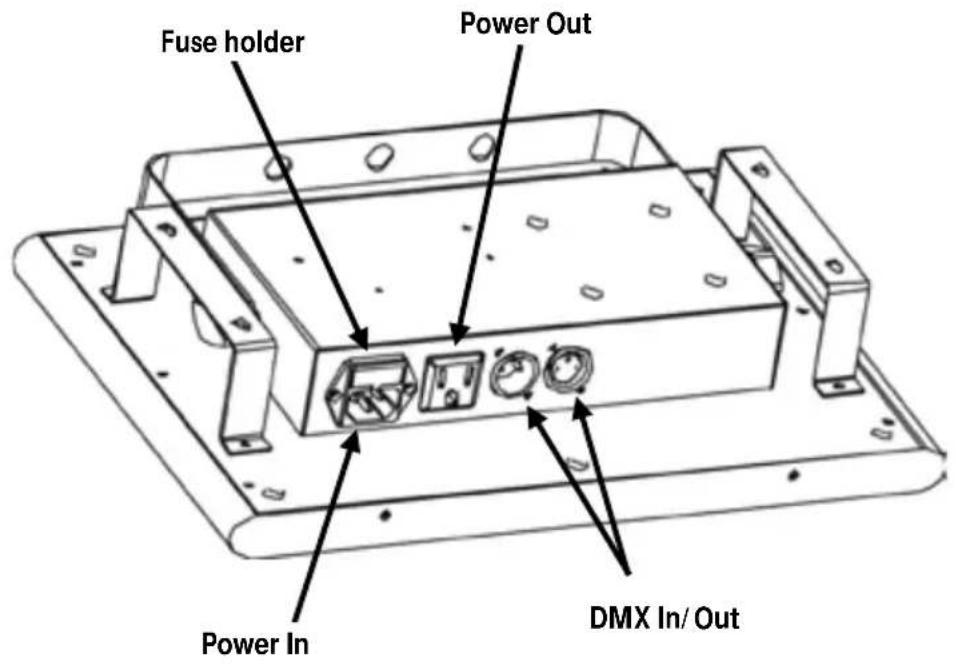

Product Overview

AC Power

This product has an auto-ranging power supply that can work with an input voltage range of 100–240 VAC, 50/60 Hz.

To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely disconnect the product via breaker or by unplugging it.

Power Linking

For the maximum number of LED Shadow™ products that you can power link at each voltage, see the User Manual or the sticker on the product.

Fuse Replacement

1. Disconnect the product from power.
2. Wedge the tip of a flat-head screwdriver into the slot of the fuse holder.
3. Pry the safety cap out of the housing.
4. Remove the blown fuse from the clip on the front of the safety cap and replace with a fuse of the exact same type and rating.
5. Re-insert the fuse holder and reconnect power.

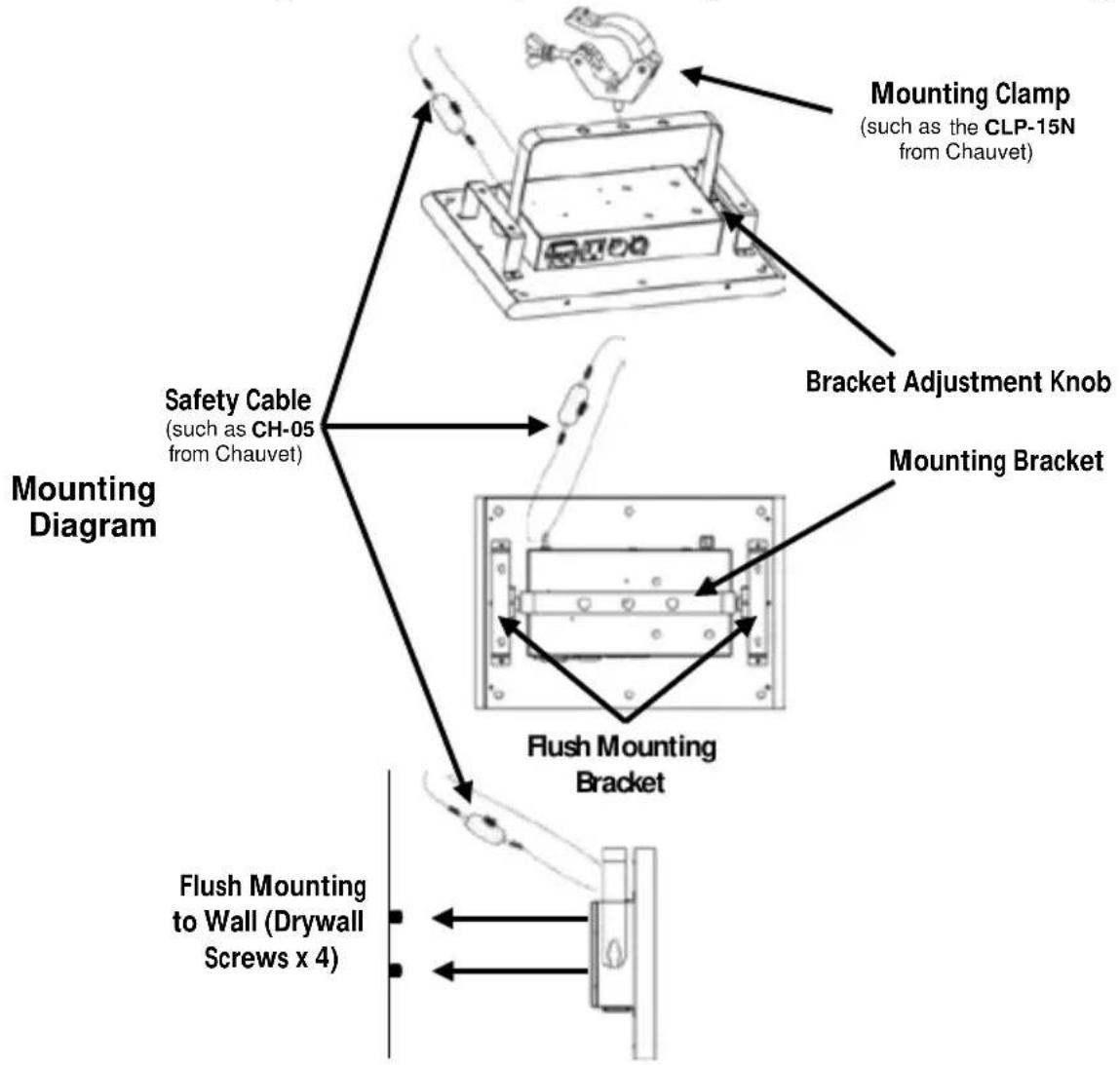

Mounting

Before mounting this product, read the Safety Notes. Make sure the mounting clamp is capable of supporting the weight of the product. For our Chauvet line of mounting clamps, go to www.chauvetlighting.com/cables-clamps-main.html. There are also two mounting brackets with keyhole mounting holes for flush wall mounting.

Control Panel Description	Button	Function
		Exits from the current menu or function
		Navigates upwards through the menu list and increases the numeric value when in a function
		Navigates downwards through the menu list and decreases the numeric value when in a function
		Enables the currently displayed menu or sets the currently selected value into the selected function
DMX Linking	The LED Shadow^TM can work with a DMX controller when linked by DMX serial connections. Instructions for connecting and configuring this product for DMX operation are in the User Manual. If you are not familiar with DMX, download the DMX Primer fromwww.chauvetlighting.com.
Starting Address	To ensure full access to all channels in each DMX mode, the highest recommended DMX address is 510.
Master/Slave Connection	The LED Shadow^TM uses the DMX data connection for its Master/Slave mode. Instructions for connecting and configuring this product for Master/Slave operation are in the User Manual.
IRC-6 Infrared Remote Control	The LED Shadow^TM is compatible with the IRC-6 infrared remote control from Chauvet. For more information on the IRC-6 or to download instructions, go towww.chauvetlighting.com.

Menu Options

Main Level	Programming Levels		Description
Aut(automatic)	Aut0	S. 01–100	Automated programs and speed
	Aut1
	Aut2
	Aut3
	Aut4
	Aut5
Sou(sound-active)	Soud		Sound-Active mode
CoL CoLo		L.000–255 (UV)	Dimmer
		S. 0–8	Strobe rate
Addr	d001–510		3-channel DMX mode
SLA	SLAV		Slave mode
SYS	LEdS	on	Display timeout on
		oFF	Display timeout off
	tESt		Performs a test of all LEDs
	rESt		Resets the software

DMX Values

3-CH Channel	Function Value		Percent/Setting
1 Mode		000	No function
		001 Ü 039	Dimmer mode
		040 Ü 079	Automatic mode 1
		080 Ü 119	Automatic mode 2
		120 Ü 159	Automatic mode 3
		160 Ü 199	Automatic mode 4
		200 Ü 239	Automatic mode 5
		240 Ü 255	Sound-active mode
2	Strobe Mode Speed(Ch. 1 001–039)	000 Ü 009	No strobe
		010 Ü 255	Strobe speed (0–100%)
	Auto Mode Speed(Ch. 1 040–239)	000 Ü 255	Automatic mode speed (slow to fast)
	No Function(Ch. 1 240–255)	000 Ü 255	No function
3	Intensity	000 Ü 255	100–0%
