USER MANUAL COLORado Solo Edge 3 Chauvet

QR code image containing encoded data, no visible human-readable text

Scan the QR code to access the product page, warranty terms, and the complete User Manual

COLORADO SOLO EDGE

3

Quick Reference Guide

English EN

Español ES

Français FR

Deutsch DE

Nederlands NL

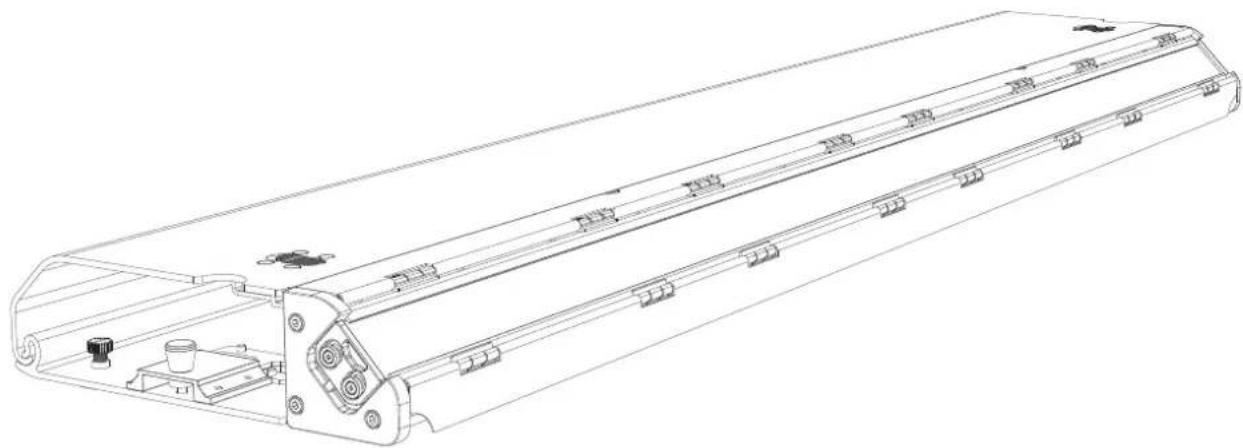

Technical line drawing of a rectangular air duct or duct system with internal components and mounting brackets (no text or symbols)

Model ID: COLORADOSOLOEDGE3

Intentionally Left Blank Page

Safety Notes

These Saety Notes include important information about installation, use, and maintenance of the COLORado Solo Edge 3.

- The luminaire is intended for professional use only.

• The luminaire should be positioned so that prolonged staring into the luminaire at a distance closer than 11.48 ft (3.5 m) is not expected.
• If the external flexible cable or cord of this luminaire is damaged, it shall be replaced by a special cord or cord exclusively available from the manufacturer or its service agent.
• The light source contained in this luminaire shall only be replaced by the manufacturer or its service agent or a similar qualified person.

- CAUTION:

• This product's housing may be hot when operating. Mount this product in a location with adequate ventilation, at least 20 in (50 cm) from adjacent surfaces.
• When transferring the product from extreme temperature environments, (e.g., cold truck to warm humid ballroom) condensation may form on the internal electronics of the product. To avoid causing a failure, allow the product to fully acclimate to the surrounding environment before connecting it to power.
• Flashing light is known to trigger epileptic seizures. User must comply with local laws regarding notification of strobe use.

• ALWAYS:

• Disconnect from power before cleaning the product or replacing the fuse.
• When using an IP65-rated product in an outdoor environment, use IP65- (or higher) rated power and data cable.
• Replace and secure IP-rated protective covers to all power, data, USB, or other ports when not in use.
• Use a safety cable when mounting this product overhead.
• Connect this product to a grounded and protected circuit.

D O N O T :

• Open this product. It contains no user-serviceable parts.
• Look at the light source when the product is on.
• Leave any flammable material within 50 cm of this product while operating or connected to power.
• Connect this product to a dimmer or rheostat.
• Operate this product if the housing, lenses, or cables appear damaged.
  • Submerge this product (adhere to standards for the published IP rating). Regular outdoor operation is fine.

• Permanently install outdoors in locations with extreme environmental conditions. This includes, but is not limited to:

• Locations where normal temperatures exceed the temperature ranges in this manual.

• Locations that are prone to flooding or being buried in snow.
  • Other areas where the product will be subject to extreme radiation or caustic substances.

- ONLY use the handles to carry this product.

• The maximum ambient temperature is 113 °F (45 °C). Do not operate this product at higher temperatures.
• The minimum ambient temperature is -4^ ( -20^ ). Do not operate the product at lower temperatures.
- To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely disconnect the product from power via breaker or by unplugging it.
- In the event of a serious operating problem, stop using immediately.

Connection of the control signal: DMX line

• The product has XLR sockets for DMX input and output.
• Notice: This control circuit is isolated and belongs to the Class 2 data port.
• The control circuit has a cumulative leakage current of less than 3.5 mA.

What is Included

• COLORado Solo Edge 3
- Seetronic Powerkon IP65 power cable
• Power and Data linking cables

• Stealth filter
  • 2 Omega brackets with mounting hardware
• Quick Reference Guide

AC Power

This product has an auto-ranging power supply that can work with an input voltage range of 100–240 VAC, 50/60 Hz.

AC Plug

Connection	Wire (U.S.)	Wire (Europe)	Screw Color
AC Live Black Brown Yellow/Brass
AC Neutral White Blue Silver
AC Ground Green/Yellow Green/Yellow Green

To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely disconnect the product from power via breaker or by unplugging it.

Power Linking

It is possible to power link COLORado Solo Edge 3 products. See the table below for the current draw at each voltage and frequency:

	100 V, 60 Hz	120 V, 60 Hz	208 V, 60 Hz	230 V, 50 Hz	240 V, 50 Hz
Current Draw	2.46 A	2.03 A	1.18 A	1.06 A	1.02 A

Never exceed 12 A on a single circuit. Power-linking cables can be purchased separately.

Mounting

Before mounting this product, read the Safety Notes. Use at least 2 mounting points per product. Make sure the mounting clamps are capable of supporting the weight of the product. For the Chauvet line of mounting clamps, go to http://trusst.com/productcategory/truss-clamps.

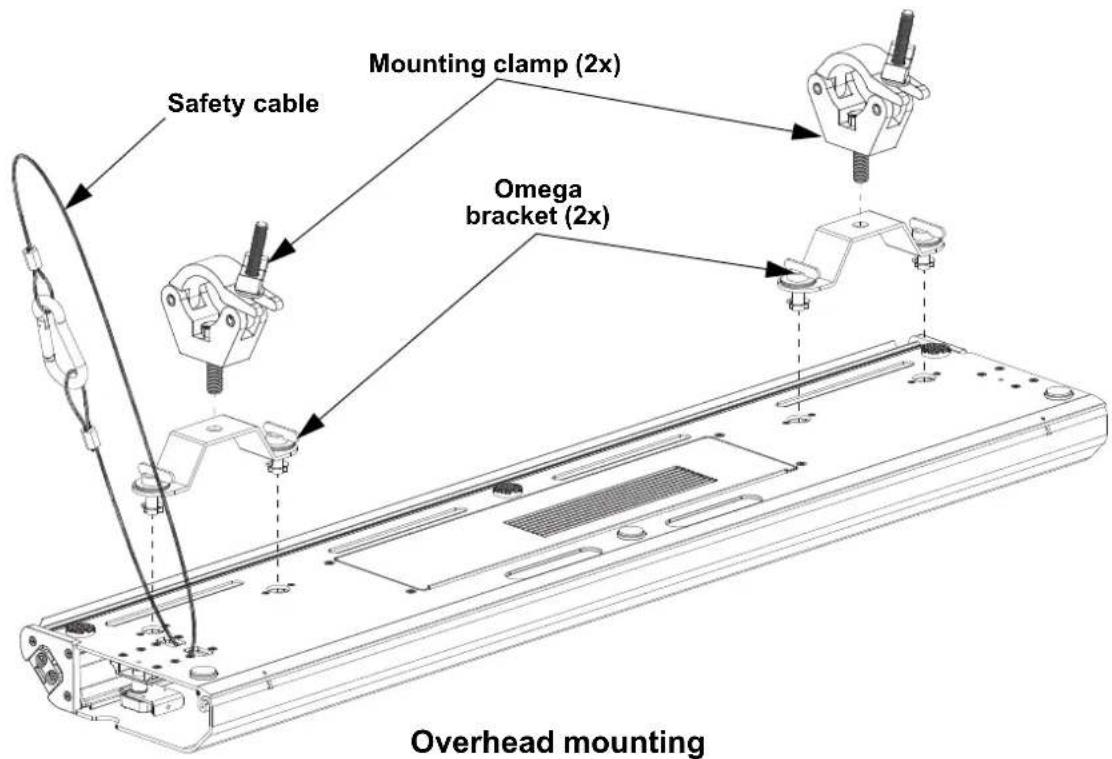

Mounting Diagram

Safety cable Mounting clamp (2x) Omega bracket (2x) Overhead mounting

Control Panel Description

Button	Name Function
		Exits the current menu or function
		Enables the currently displayed menu or sets a selected value into a function
		Navigates upwards through the menu or increases the numeric value of a function
		Navigates downwards through the menu or decreases the numeric value of a function
		Activates or deactivates Focus Mode: full output power for easy focusing. Does not change other settings.

Notas de seguridad

Intentionally Left Blank Page

Sicherheitshinweise

Intentionally Left Blank Page

Contact Us

General Information Technical Support

Chauvet World Headquarters

Address: 3360 Davie Rd., Suite 509 Voice: [phone]

Davie, FL 33314 Fax: [phone]

Voice: [phone] Email: [e-mail]

Fax: [phone]

Toll Free: [phone] Website: www.chauvetprofessional.com

Chauvet U.K.

Address: Pod 1 EVO Park Email: [e-mail]

Little Oak Drive, Sherwood Park

Nottinghamshire, NG15 0EB Website: www.chauvetprofessional.eu

UK

Voice: [phone]

Fax: [phone]

Chauvet Benelux

Address: Vaartlaan 9 Email: [e-mail]

9800 Deinze

Belgium Website: www.chauvetprofessional.eu

Voice: [phone]

Chauvet France

Address: 3, Rue Ampère

91380 Chilly-Mazarin

France Website: www.chauvetprofessional.eu

Voice: [phone]

Chauvet Germany

(Entrance by Calle 2)

Zona Industrial Lerma Website: www.chauvetprofessional.mx

Visit the applicable website above to verify our contact information and instructions to request support. Outside the U.S., U. K., Ireland, Mexico, France, Germany, or Benelux, contact the dealer of record.
