USER MANUAL Piccopresso 28636 UNOLD

Instructions for use Model 28636

Foreword. 30

Technical data. 30

Explanation of symbols. 30

For your safety 31

Tips for a perfect espresso 34

Explanation of the controls 36

Before first use. 37

Wash the appliance prior to first use.....37

Preparingpresso. 38

Changing the espresso quantity. 41

Restoring the factory setting 41

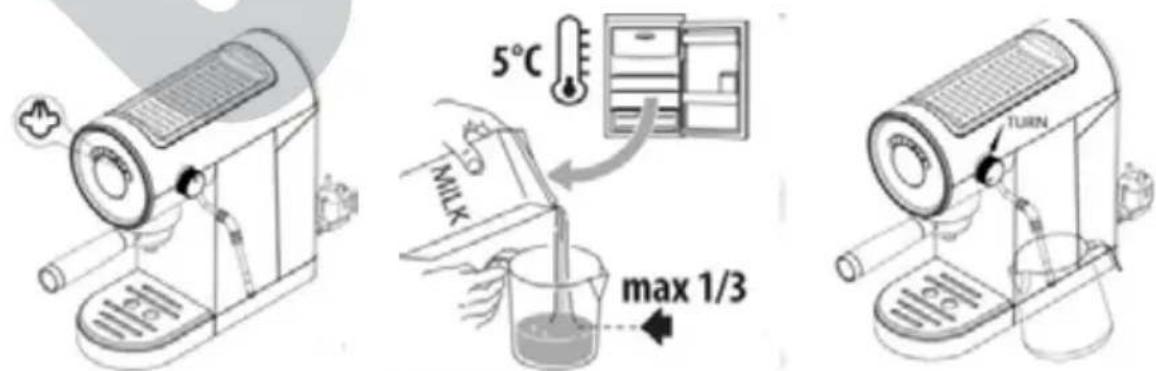

Making cappuccino / frothing milk. 42

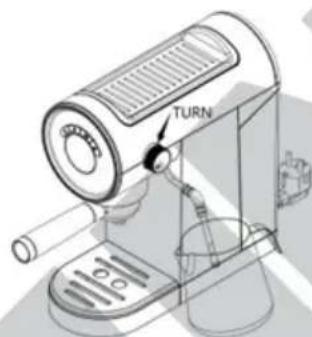

Preparing hot water. 44

Cleaning and maintenance 44

Dscaling the appliance 46

Recipe ideas 46

Troubleshooting 48

Guarantee Conditions 50

Waste Disposal/

Environmental Protection 50

Service 29

1 Measuring scoop with tamper
2 Control panel with buttons
3 Steam regulator
4 Water tank
5 Filter 1 cup
6 Filter 2 cups
7 Portafilter
8 Brew head
9 Heat-insulated grip surface
10 Steam wand
11 Frothing nozzle
12 Drip grid
13 Drip tray

FR Page 51

Thank you for having chosen a quality product from the Unold range. Please read the instruction manual carefully. This will allow you to familiarise yourself quickly with all functions of your new coffee maker (hereinafter also "appliance").

Please make sure that all persons who use, clean or maintain the appliance have read the instructions and adhere to them. When handing over the appliance to a new owner, always include the instruction manual.

If you have any queries that are not answered in this document, or if you encounter technical problems, please contact our customer service department or your dealer.

TECHNICAL DATA

Power: 1,150	-1,360 W, 22 0-2450V~, Hz
Dimensions:	approx. 13.6 x 35.5 x 29.8 cm (W/D/H)
Weight: approx.	3.8 kg
Cord length: approx.	7 5 m
Water tank: removable , capity approx. 0.9 nets
Features:	Pump pressure 20 bar, thermal block heating system, steam nozzle for hot water or for frothing milk
Accessories:	2-in-1 measuring scoop with tamper, instruction manual
Features, technology, colours and design are subject to change without notice; errors excepted

CE

EXPLANATION OF SYMBOLS

This symbol denotes a possible hazard which could cause injury or damage to the appliance.

This symbol indicates a potential burning hazard. Please be especially careful at all times here.

FOR YOUR SAFETY

Please read this instruction manual carefully and keep it for future reference!

General safety instructions

1. This appliance can be used by children aged 8 years or more and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge, provided they are supervised or have been instructed in the safe use of the appliance and understand the hazards involved.
2. Children must not play with the appliance.
3. Children from the age of 8 may be permitted to clean or maintain the appliance, provided they are supervised.
4. Keep the appliance and its power cord out of the reach of children under the age of 8.
5. The packaging material is not a toy – choking hazard! Keep packaging materials out of the reach of children.

6. The appliance is designed for use in the household and similar facilities, e.g.

7. tea kitchens in offices, shops, and other workplaces,

8. farms,

■kitchenettes for guests in hotels, motels, hostels or other accommodation facilities as well as in bed and breakfast accommodations and holiday homes.

Safe handling of electricity

1. Connect the appliance to an alternating current source as specified on the type plate.
2. Do not connect the appliance to an external timer or remotely controlled power system.
3. For reasons of electrical safety, never immerse the appliance or the power cord in water or other liquids.
4. For reasons of electrical safety, do not clean the appliance in the dishwasher.
5. Switches and cables must not come into contact with water or other liquids. If this happens regardless, all

parts must be completely dry before the appliance is used again.

1. To prevent damage to the power cord, never wrap the power cord around the appliance and avoid kinks in the power cord.
2. Unplug the appliance from the power socket after use and before cleaning. Never leave the appliance unattended while it is connected to the power socket.
3. When disconnecting the power cord from the power socket, always pull on the plug and not the cord itself.
4. Never touch the appliance or the cable with wet hands.
5. The appliance is not switched off completely until it has been disconnected from the power supply by pulling the plug.

Safe set-up and operation of the appliance

1. For safety reasons, never place the appliance on hot surfaces, metal trays or a wet surface.
2. Make sure that the appliance is freely accessible at all times so that it can be quickly disconnected from the power supply if necessary.
3. Set up the appliance in such a way that there is at least 3cm of side clearance to other objects and at least 15cm of clearance towards top.
4. Do not place the appliance or the power cord close to naked flames or receptacles holding water.
5. Do not set up the appliance in rooms where the temperature can drop below freezing.
6. Always use the espresso machine on an uncluttered, level and heat-resistant surface.
7. The appliance may only be used for preparing espresso using roasted and ground coffee beans and must never be used for heating up/keeping warm milk or other liquids.

8. The steam function may only be used in combination with milk and never with other liquids.

9. Do not allow the power cord to hang from the worktop, as this could result in accidents, for example if pulled on by small children.

10. Route the power cord safely so that it cannot be pulled on or tripped over.
11. Use the espresso machine only indoors.
12. During operation, do not cover the appliance as this may cause the appliance to overheat.
13. The appliance must not be operated with an empty water tank as this may damage the pump.
14. Use fresh, clean water and do not fill the water tank past the MAX mark.
15. Never remove the portafilter while brewing is in progress as the appliance operates under pressure and there is thus a risk of injury.
16. Make sure the portafilter has been inserted firmly before starting to make espresso.
17. Never point the steam nozzle to body parts to avoid the risk of injury!
18. Never remove the portafilter when the appliance is in operation.
19. Allow the appliance to cool down for at least 5 minutes between multiple uses.
20. Before cleaning the appliance, switch the appliance off, disconnect the plug from the power socket and allow the appliance to cool off completely.
21. To avoid injury, do not displace the appliance as long as it is in operation.
22. Make sure that all users, especially children, are aware of the fact that injury from burns may occur from escaping steam and splashes of hot water!
23. To prevent damage, do not operate the appliance with accessories from another manufacturer or brand.
24. Regularly check the appliance, the power cord and the plug for wear and damage. If the power cord or other parts of the appliance are damaged, return the

appliance for inspection and repair to our customer service department.

1. Improper repair can result in serious hazards to the user and shall void all warranty.

Never open the appliance housing. Risk of injury from electric shock!

The appliance is very hot during and after use! Never reach under the outlet openings (brew head, steam wand) during operation - risk of scalding from escaping steam! Keep children away from the appliance!

The manufacturer will not be liable in the event of incorrect assembly, improper or incorrect use or if repairs are carried out by unauthorized third parties.

TIPS FOR A PERFECT ESPRESSO

If the espresso you made does not come up to your expectations, check the factors listed below and adjust your preparation accordingly. When doing so, assess the factors one at a time so that you can judge the outcome adequately.

Water

1. U sceleart ap water.
2. Distilled water and mineral water are not suitable.
3. Heavily calciferous water can have a negative impact on the quality of the finished espresso.
4. If the tap water you are using is heavily calciferous, you can therefore also use carbonated water with a low mineral content.
5. For quality reasons, please refrain from using warmed-up water and always use water with tap water temperature.

6. The water in the water tank must be changed regularly for sanitary reasons. We recommend refreshing the water on a daily basis.

7. The water tank must be emptied at any rate when the appliance is not used for an extended period to keep lime scale and algae from forming in the appliance.

Coffee beans and powder

1. You will achieve a particularly rich aroma if grinding the coffee beans immediately prior to brewing. Ground coffee loses its aroma quickly. Nevertheless, you should not store coffee beans longer than two to three weeks in order to avoid degraded quality.
2. You should therefore store both ground coffee and coffee beans in a cool and airtight environment. Tip: The best way to preserve the aroma is to store the powder or the beans in a vacuum-sealed container.
3. If using fully ground coffee powder, make sure the powder is suitable for espresso machines. You will find a corresponding notice on the packaging.

Fineness

1. The strength of the espresso depends on the grind, the amount of powder in the portafilter, water quantity and the pressure used during preparation.
2. You may have to start by determining the coarseness of the grind that fits your liking best. When grinding your own beans, experiment with the coarseness or try a different coffee powder.

Proper fill level

1. Never tamp the coffee powder in the measuring scoop as the quantity will otherwise be incorrect. The coffee powder is only tamped with the tamper after it has been placed in the portafilter.
2. If tamping very firmly, you will increase the preparation time and make an espresso that is very strong. Conversely, if you tamp very lightly, the preparation time will be shorter and the espresso will be lighter.
3. Make sure that the surface of the coffee powder is as level as possible to allow the water to flow evenly through the entire powder.
4. If the espresso takes too long, the coffee powder may be too fine or tamped too firmly, resulting in clogging of the screen pores.

Milk for milk froth

1. Use only suitable receptacles. Please do not use glass receptacles – even if made of heat-resistant glass. Glass can burst on account of the highly concentrated heat, causing severe injuries.

2. It is best to use cold low-fat milk.

3. If the milk froth is not satisfactory, check if the steam nozzle is completely free of any residue and clean it if necessary.

4. Always use milk froth immediately as it will collapse again if stored too long.

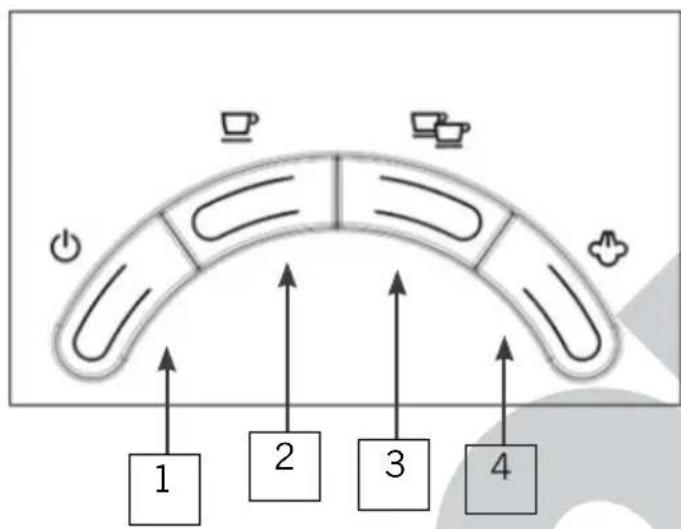

EXPLANATION OF THE CONTROLS

1 "ON/OFF" button Switch the appliance on or off
2 Button 1 cup Preparation of one cup of espresso
3 Button 2 cups Preparation of two cups of espresso
4 Button Steam Froth milk, heat liquids with steam

Steam regulator 5 For generating steam used for frothed milk, etc. Position O Preheating, Position Hot water and steam preparation

BEFORE FIRST USE

1. Remove all packaging materials and any transport guards (but not the type plate). Keep the packaging material away from children - choking hazard! Dispose of the packaging material according to the applicable statutory waste disposal regulations.
2. Inspect the appliance for damage. If there is visible damage, do not operate the appliance; instead, contact our customer service department.
3. Check whether all accessories listed in this manual have been shipped with your appliance.
4. Wash portafilter, filter and water tank in hot water with a mild dish washing detergent, rinse off with clear water and dry off thoroughly.
5. Wipe the housing down with a damp cloth and dry carefully.

WASH THE APPLIANCE PRIOR TO FIRST USE

After using it for the first time or after extended periods of non-use, you should flush the appliance with hot water.

Notice: When you press the "ON/OFF" button for the first time, all indicators will come on and an acoustic signal will sound, alerting you of the fact that the machine has not been serviced yet. You can cancel this warning with a press of any button.

1. Remove the water tank by sliding it out at an angle towards the rear and fill the water tank with fresh, clear water.
2. Reinsert the water tank firmly into the appliance so that the bottom valve can open.
3. Place the plug in a power socket.
4. Check if the steam regulator for steam is set to the "0" position.
5. Press the ON/OFF button.
6. The appliance starts preheating, the pump comes on for approx. 2 seconds, and the indicators of the buttons "ON/OFF", "1 cup" and "2 cups" flash.
7. Press the "Steam" button and open the steam regulator by turning it in order to release any excess air from the lines. When using the appliance for the first time, and after prolonged storage, perform this procedure for at least 30 seconds.

8. Notice: Too much excess air in the lines can cause the appliance to not function properly.

9. Turn the steam regulator to "0", press the steam button and switch the appliance on by pressing the "ON/OFF" button.

10. Place the filter into the portafilter, but do not fill it with coffee powder yet.

11. Insert the portafilter into the holder on the left of the appliance without any coffee powder and rotate the portafilter clockwise as far as it will go.

12. Place a heat-resistant receptacle with a capacity of at least 500ml under the brew head of the appliance.

13. Press the "ON/OFF" button to switch the appliance on.

14. The appliance will preheat again if necessary. Once preheating is complete, press the button "2 cups" and allow the water to percolate completely. Repeat this process five times, pour out the caught water every time, and refill the water container with tap water.

15. The appliance is now ready for operation.

PREPARING ESPRESSO

Caution: The appliance is very hot during and after use! Be particularly careful around the hot metal parts of the appliance - risk of injury from burns! Touch the hot parts of the appliance only at the corresponding grips.

Never remove the portafilter while water is percolating as the appliance operates under pressure - risk of injury from burns! Never operate the appliance when not supervised!

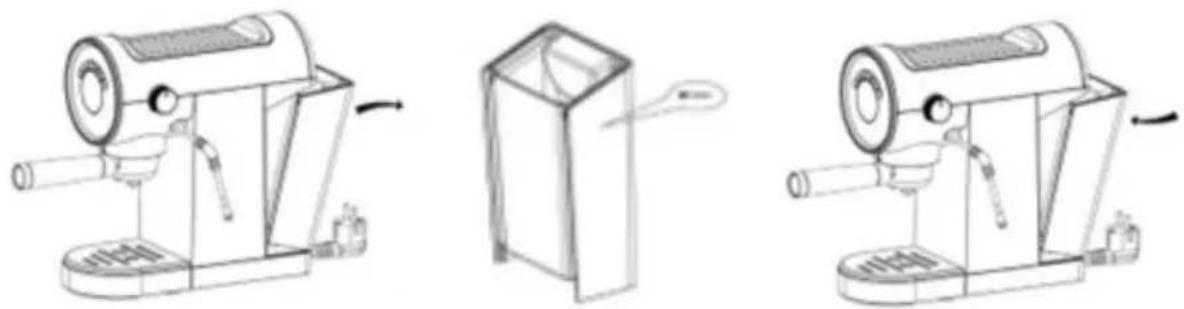

Filling the water tank

1. If it was switched on, switch off the appliance with a press of the "ON/OFF" button.
2. Remove the water tank from the appliance by sliding it out at an angle towards the rear.
3. Fill the water tank with fresh, clear water. Make sure not to fill the tank passed the MAX mark. Use only drinking filter, which can also be filtered. Never fill the water tank with chemical cleaners!
4. Reinsert the water tank firmly into the appliance so that the bottom valve can open.
5. Caution: At times, a small amount of water may accumulate below the water tank. This will not affect the operability of the appliance. Take up this water regularly using a sponge or kitchen towel.

1. Press the "ON/OFF" button to switch the appliance back on.

Caution: Never operate the appliance with an empty water tank or unless the water tank has been inserted correctly. This can cause damage to the appliance.

Preheating the appliance and cups

1. Insert the filter you wish to use into the portafilter for espresso.
2. Rinse out the espresso cup you wish to use with hot water. Preheated cups improve the quality of the espresso.
3. Insert the portafilter into the holder on the left of the appliance and rotate the portafilter clockwise as far as it will go and until you can feel it lock into place. Note the symbols that indicate when the portafilter is properly locked into place ( C = open Q = locked).
4. Place the rinsed cup under the brew head.
5. Press the "1 cup" button and let the hot water percolate into the cup.
6. Pour the water out.
7. Next, remove the portafilter by turning it anticlockwise to .

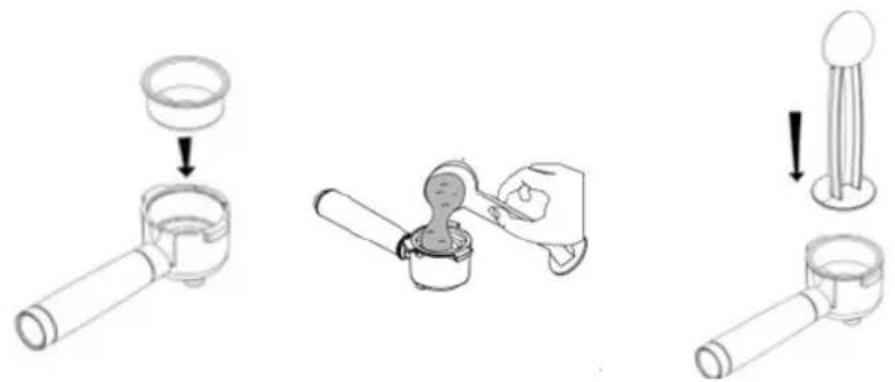

Filling and inserting the portafilter

1. Fill the portafilter with the required amount of espresso: 1 measuring scoop (approx. 8g of coffee powder) per espresso cup; 2 measuring scoops for one double espresso or 2 cups of single espresso.
2. Lightly tamp the powder using the tamper with rotating motions. Clean any coffee grounds off the edge of the filter.
3. Insert the portafilter into the holder on the left of the appliance and rotate the portafilter clockwise as far as it will go and until you can feel it lock into

place. Note the symbols that indicate when the portafilter is properly locked into place ( 0 = open 0 = locked)

Preheating

1. Place the plug in a power socket. All indicators light up briefly, and the appliance will afterwards go into standby mode.
2. Press the ,ON/OFF" button.
3. The appliance starts preheating, the pump comes on for approx. 1.5 seconds, and the indicators of the buttons "ON/OFF", "1 cup" and "2 cups" flash.
4. When all buttons are lit permanently and an acoustic signal sounds, the preheating phase is complete
5. If necessary, dry the drip grid and the drip tray if some water dripped from the brew head during preheating.

Making espresso

1. Now, place one or two cups on the drip grid below the outlet nozzles of the portafilter.
2. Press the "1 cup" button if you wish to make one cup of espresso of "2 cups" when making two cups of espresso.
3. The appliance starts making the espresso.
4. Once the process is complete, the indicators light up permanently.
5. Remove the cups.

6. Next, remove the portafilter by turning it anticlockwise to

7. Rinse out the portafilter and the filter under running water to remove any remaining coffee grounds.

8. If you wish to prepare additional cups, empty the portafilter, fill it with fresh coffee powder and reinsert it. The boiler must first be cooled or the coffee will be burnt, so we suggest to press 1 cup or 2 cup button and release few high temperature water before make another cup of coffee. Be careful about the splashing hot water and steam released.
9. When you are finished with using it, switch off the appliance with a press of the "ON/OFF" button and disconnect the power plug.
10. Check the drip tray regularly for excess amount of water. Pour this water out as described in the section "Cleaning and maintenance".

Caution: The appliance is very hot during and after use! Be particularly careful around the hot metal parts of the appliance - risk of injury from burns! Touch the hot parts of the appliance only at the corresponding grips. Never remove the portafilter when the appliance is in operation - risk of injury from burns!

CHANGING THE ESPRESSO QUANTITY

1. You can change the espresso quantity that has been set at the factory. Proceed as follows to do so.
2. Prepare the appliance as described in the section "Preparing espresso".
3. Press and hold the desired cups button and do not release the button until your desired amount of espresso has been filled into the cup.
4. This setting will now be saved automatically and used for all future preparations.

RESTORING THE FACTORY SETTING

1. To restore the espresso quantity that was set at the factory, follow the steps below:
2. Place the plug in a power socket, but do not switch the appliance on yet.

3. Press and hold the buttons "1 cup" and "2 cups" at the same time before pressing the "ON/OFF" button. Make sure not to release the cups buttons!

4. An acoustic signal will sound five times, indicating that the factory setting has been restored.

5. When this process is complete, all indicators will go out.
6. Press the „ON/OFF“ button.
7. A warning signal sounds. Next, press the buttons "1 cup" or "2 cups". The warning signal stops sounding, a small amount of water drips out of the brew head, and the machine returns to normal operating mode.

MAKING CAPPUCCINO / FROTHING MILK

Caution: Do not lift the nozzle out of the milk while steam is being generated – risk of injury from burns caused by splashes of liquid!

The steam nozzle becomes very hot - risk of injury from burns! Clean the steam nozzle after use.

1. Prepare the desired amount of espresso as described in the section "Preparing espresso".
2. Press the "Steam" button. Only this indicator comes on, and the appliance starts preheating.
3. Fill a slim cup with approx. 100ml of cold low-fat milk. This amount is enough for one cup of cappuccino. You achieve the best outcome with milk that has been chilled in the refrigerator, i.e. has a temperature of approx. 5^ . Make sure the cup fits well under the steam nozzle. Important: The milk will double to triple in volume while being frothed. Take this into account when selecting a suitable cup. Fill the cup up to 1/3.

1. Start by holding an empty, heat-resistant receptacle under the steam nozzle.

1. Open the steam regulator slightly to allow the air trapped in the lines of the appliance to escape. Return the steam regulator to the "0" position.
2. Next, place the cup containing the milk under the steam nozzle so that the nozzle is fully immersed in milk. The nozzle must not, however, come in contact with the bottom of the receptacle, and the black ring of the nozzle must never be fully immersed in the liquid.
3. Turn the steam regulator from position "0" to
4. This produces a strong jet of steam. The milk is frothed by this steam.
5. The milk froth will turn out particularly creamy if you carefully move the cup back and forth and up and down below the steam nozzle while frothing the milk.
6. When the required temperature (the ideal is 60^ ) and froth density is reached, interrupt steam delivery by turning off the steam button and turn the steam dial to OFF position. We recommend that you not use the steam function for more than 60 seconds as the milk will otherwise overheat.
7. Carefully add the milk froth to the espresso, e.g. using a spoon, and enjoy your finished beverage.
8. Tip: If you would like to make more than one cappuccino, start by making the necessary amount of espresso first before making the desired amount of milk froth for all cups.
9. To make coffee again immediately after frothing milk, the boiler must first be cooled or the coffee will be burnt, so we suggest to press 1 cup or 2 cup button and release few high temperature water before make another cup of coffee. Be careful about the splashing hot water and steam released from the cappuccino maker pipe. Interrupt steam by turning off the steam button, then turning the steam dial to OFF
10. The nozzle needs to be cleaned promptly after use to prevent the formation of germs.
11. To clean the nozzle, slightly open the steam regulator to remove any remnants of milk from the line.
12. Next, press the "ON/OFF" button to switch the appliance off.
13. Let the appliance and the steam nozzle thoroughly cool off afterwards.
14. Unscrew the steam nozzle and rinse it out thoroughly under running water.
15. Also wipe off the steam nozzle thoroughly from the outside using a damp cloth.
16. When you are finished using and cleaning it, switch off the appliance with a press of the "ON/OFF" button and disconnect the power plug.

PREPARING HOT WATER

Attention: The appliance is very hot during and after operation! Particular caution is required with the hot metal parts of the device - risk of burns! Only touch the hot parts of the device by the respective handles. Hot water can cause burns and scalds, use care when preparing.

Metal vessels in particular can get very hot when filled with hot water.

1. Make sure that the water tank is filled.
2. Allow the appliance to preheat as described.
3. Place a suitable, heat-resistant receptacle under the steam wand.
4. Turn the steam regulator anticlockwise to in order to open the valve.
5. Press the buttons "1 cup" or "2 cups" immediately to draw hot water.
6. Next, return the steam regulator to , before moving it to “0” to close the valve.
7. When you are finished with using it, switch off the appliance with a press of the "ON/OFF" button and disconnect the power plug.

CLEANING AND MAINTENANCE

After use and before cleaning, switch off the appliance with a press of the "ON/OFF" button, disconnect the power plug, and allow the appliance to cool off completely.

The appliance must not be immersed in water or other liquids.

1. The removable parts are not dishwasher-safe! Do not use abrasive scouring agents, steel wool, metal objects, hot cleaning agents or disinfectants, since they can cause damage to the appliance.

Cleaning the lines

1. Never fill the water tank past the MAX" mark.
2. Place the plug in a power socket.
3. Press the buttons "1 cup", "Steam" and "ON/OFF" at the same time.
4. The water is heated to 70^ , and the appliance automatically pumps 150ml of water through the lines to clean them.

Housing

1. If necessary, wipe down the exterior of the housing with a damp cloth. Do not use any cleaners, scouring agents or disinfectants.

Water tank

1. Rinse out the water tank regularly with clear water. If noticing the formation of a white layer, the appliance must be descaled as described in the next section.

Drip tray with grid

1. Pull the drip tray out of the appliance towards the front, remove the grid, and pour out any water contained in the tray. Wash tray and grid in some warm water - with added dish washing detergent if necessary. Once fully dried, place the drip tray with the grid back into the appliance.

Portafilter and filter

1. When finished making espresso, remove the espresso grounds from the corresponding filter. Rinse out the portafilter under running water to make sure that the outlet openings on the underside do not become clogged. If necessary, you can remove any clogs from these openings using a brush or a pointed object such as a toothpick.
2. You extend the useful life of the contained seal by keeping the portafilter and filter out of the appliance when the appliance is not in use.

Brew head

1. The brew head needs cleaning from time to time as well. Wipe down the brew head carefully with a soft damp cloth. You can use a soft brush or a toothpick to remove any adhering espresso grounds. For regular maintenance, run some water through the brew head every once in a while with the portafilter removed.

Cleaning the steam nozzle

1. Do not clean the steam nozzle unless it has cooled off.
2. To clean the tube, unscrew its bottom section and hold it under running water. If the tube is clogged, you can use a toothpick or another pointed object to pierce through the clog.
3. After that, screw the bottom section of the steam nozzle back onto the tube.

Storage

1. When it is not in use, keep the appliance in a dry and dust-free place. We recommend storing the appliance in its original box.

DESCALING THE APPLIANCE

1. Descale your espresso machine on a regular basis, depending on the frequency of use and the hardness of your local water source. You will thus extend the useful life of your appliance and keep power consumption low.
2. Use only descalers and follow the instructions provided by the manufacturer.
3. Fill the water tank with the descending solution as specified in the manufacturer's instructions.
4. Place a receptacle of sufficient size on the drip grid.
5. Next, follow the steps described under "Preparing espresso" until the water tank is completely drained.
6. Rinse ou the water tank and fill it with water again.
7. Proceed again as described under "Preparing espresso" until the water tank is completely drained. This ensures the removal of any remnants of lime scale.

RECIPIDEAS

Cappuccino - the Italian classic

It is made with 1/3 Espresso, 1/3 hot milk and 1/3 frothed milk. You can also sprinkle it with, for instance, cocoa powder.

Caffé latte

Known in France as café au lait, this beverage literally translates to coffee with milk. It is made with espresso as well. Add the desired amount of heated milk and, if you like, "top off" the drink with a dollop of frothed milk.

Latte macchiato

A well-made latte macchiato is made up of multiple layers. Start with the milk and pour espresso, hot milk and milk froth in an alternating pattern into a tall drinking glass. Always let the layer of frothed milk settle a bit before adding the espresso. This keeps the layers from blending into each other. Make sure the espresso is hot. If you would like to flavour the beverage, e.g. with syrup or liqueur, add these ingredients only to the hot milk and not the espresso, as this would cause the espresso to sink too quickly.

Mochaccino

Add 1 to 2 teaspoons of chocolate syrup to a glass and pour the slightly cooled milk froth on top. Carefully top off with espresso. Finish by topping the drink off with a dome of frothed milk or whipped cream and garnish it with grated chocolate or cocoa powder.

iced coffee

Pour strong, cold coffee into a tall glass. Next, add one or two scoops of vanilla ice cream to each glass and top the glass off with cold frothed milk. Garnish with grated chocolate if desired.

Use of frothed milk

Frothed milk is not only ideal for adding the finishing touch to speciality coffees. Did you know, for instance, that you can also substitute whipped cream for frothed milk when creating scrumptious desserts? This ingredient will help you create delicacies that are wonderfully creamy and easy to digest at the same time. For instance, you might want to pour hot frothed milk over strawberries or your morning cereal.

A dome of frothed milk also adds a special note to such dishes as cream soups. You will find plenty more recipe ideas in cookbooks or on the Internet.

While carefully considered and tested by their authors and UNOLD AG, the recipes included in this instruction manual are provided without guarantee. The authors / UNOLD AG or their agents cannot be held liable for any personal injury or damage to property or material.

TROUBLESHOOTING

Whenever experiencing problems, start by checking the following:

Has the water tank been firmly inserted?
Has the water tank been filled?
Has the plug been inserted?

Problem Cause Remedy
No water is running through	Air in the lines	Vent as described under step 7 in the section “Rinsing”
	Insufficient water in water tank	Top off the water tank
	Openings in filter clogged	Clean filter thoroughly
	Water tank inserted incorrectly	Lock the water tank in place properly to let the valve open
	Lime scale in the lines	Descale as described in the section “Dscaling”
Espresso flows over the top of the porta-filter	Filter not inserted correctly	Place the filter correctly into the portafilter
	Openings in filter clogged	Clean filter thoroughly
Portafilter does not lock into place	Too much coffee powder in the filter	Observe maximum capacity, re-move coffee powder
No function, indicators flash briefly	Insufficient water in water tank	Top off the water tank
	Water tank inserted incorrectly	Lock the water tank in place properly to let the valve open
	Brew head clogged	Clean brew head as described in the section “Cleaning”
	Openings in filter clogged	Clean filter thoroughly
	Lime scale in the lines	Descale as described in the sec-tion “Dscaling”
Crema too light, espresso percolates too quickly	Coffee powder not tamped properly	Press coffee powder slightly more firmly into the filter
	Too little coffee powder	Add more coffee powder
	Coffee powder too coarse	Use more finely ground coffee powder
	Coffee powder unsui- table for espresso ma- chines	Use only coffee powder that is suit-able for espresso machines

Crema too dark, espresso percolates too quickly	Coffee powder not tamped properly	Press coffee powder slightly less firmly into the filter
	Too much coffee powder	Reduce the amount of coffee pow-der
	Brew head clogged	Clean brew head as described in the section “Cleaning”
	Openings in filter clogged	Clean filter thoroughly
	Coffee powder too fine or moist	Use coffee powder for espresso machines that is coarser and ensure proper and dry storage
	Lime scale in the lines	Descale as described in the section “Dscaling”
Produced milk froth is not firm enough	Milk too warm	Use milk at refrigerator temperature (5 °C)
	Steam nozzle soiled	Clean steam nozzle as described in the section “Cleaning”
	Lime scale in the lines	Descale as described in the section “Dscaling”
No function, all indicators flash		Disconnect appliance from power supply and contact customer service
Steam comes out of the coffee spout.	The steam button is still ON.	Interrupt steam delivery by turning off the steam button first. Then turn off the the steam dial to OFF position.

GUARANTEE CONDITIONS

We grant a 24 months guarantee, and in case of commercial use a 12 months guarantee, starting from the date of purchase for any damage demonstrably due to manufacturing defects and when the appliance has been used according to its intended use. Within the warranty period we will remedy defective materials or workmanship through repair or replacement, at our option. Our warranty terms apply only to appliances sold in Germany and Austria. For other countries, please contact the responsible importer. In the event of a claim for remedy of defects, please send the appliance to our after sales service, properly packaged, together with a copy of the automatically generated sales receipt, which must show the date of purchase, and a description of the defect. You can print out a return receipt on our website www.unold.de/ruecksendingung. (only for entries from Germany and Austria). The warranty does not cover damage from normal wear, improper handling and failure to comply with the maintenance and care instructions. The warranty is void if repairs or modifications are made to the appliance by third parties. Any claims of the end consumer vis-à-vis the retailer are not limited by this warranty.

WASTE DISPOSAL / ENVIRONMENTAL PROTECTION

Our appliances are produced on a high quality level for a long lifetime. Regular maintenance and expert repairs by our after-sales service can extend the useful life of the appliance. If an appliance is defective and repair is not possible we ask you to follow the following instructions for disposal. Do not dispose this appliance together with your standard household waste. Please bring this product to an approved collection point for recycling of electric and electronic products. By separate collection and disposal of waste products you help to protect natural resources and ensure, that the product is disposed in an adequate way to protect health and environment.

The instruction booklet is also available for download: www.unold.de

NOTICE D'UTILISATION MODELE 28636

AVANT-PROPOS

CONDITIONS DE GARANTIE
