USER MANUAL Express Ava 18610 UNOLD

Exterior view of a modern office building (no signage)

Modern stainless steel water dispenser with a perforated base (no visible text or symbols)

Bedienungsanleitung

Instructions for use | Notice d'utilisation Gebruiksaanwijzing | Istruzioni per l'uso Instrucciones de uso | Instrukcja obsługi

Modell 18610/18615

INHALTSVERZEICHNIS

Instructions for use Model 18610/18615

Foreword....21

Technical data....21

Explanation of symbols....22

For your safety....22

Display and control panel 25

Before first use....26

Operation....27

Overheating protection 28

Removing residual water....29

Descaling....29

Cleaning and care....30

Guarantee Conditions....31

Waste Disposal / Environmental Protection ..31

Service 20

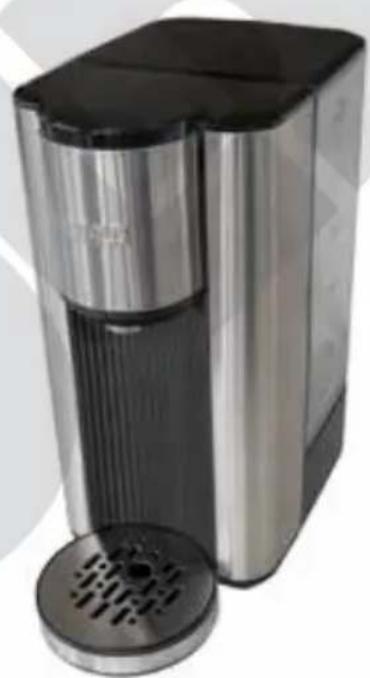

1	Water tank lid
2	Water tank
3	Display/control element
4	Water outlet
5	Drip tray

FR Page 32

Thank you for having chosen a quality product from the Unold range. We ask that you read these operating instructions carefully. They will familiarise you with the functions of your new water heater (hereinafter “appliance”).

Please ensure that the user manual is read and observed by everyone who uses, cleans or maintains the appliance. When handing over the appliance to a new owner, always include the user manual.

If you have any queries that are not answered in this document, or if you encounter technical problems, please contact our Customer Service department or your specialist dealer.

TECHNICAL DATA

Power: 2,200–2,600 W

,220-240-60,50

Hz

Volume: 2.5 litres

Colour: 18610 white,

black5

Material: Plastic inleta

s steel

Dimensions: pprox. 2 8.2x4. 8 x 30.2 cm (WXH)

Cable length: approx. 90 cm

Weight: app2ox. 2. kg

Features: Highly efficient hot water dispenser heats water in about 5 seconds; 6 temperature settings: 100^ , 85^ , 75^ , 65^ , 55^ and 37^ , 3 quantity settings: 150 ml , 250 ml , 350 ml , easy-to-clean 2.5 litre water tank, descale reminder function

Accessories: 0 peratg instructions

Features, technology, colours, and design are subject to change without notice; errors excepted

EXPLANATION OF SYMBOLS

This symbol denotes a possible hazard which could cause injury or damage to the appliance.

This symbol indicates a potential burning hazard. Please be especially careful at all times here.

FOR YOUR SAFETY

Please read this instruction manual carefully and keep it for future reference.

Persons in household

1. This appliance can be used by children aged 8 years or more and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge, provided they are supervised or have been instructed in the safe use of the appliance and understand the hazards involved.
2. The appliance is not a toy. Children must not be allowed to play with the appliance.
3. Children from the age of 8 may be permitted to clean or maintain the appliance, provided they are supervised.
4. Keep the appliance and its power cable out of the reach of children under the age of 8.
5. Make sure that all users, especially children, are aware of the danger of injury from emerging steam or hot splashing water – danger of scalding!
6. After heating, the water is very hot – always check the temperature of the water before drinking it.

7. Special caution is necessary if the water is to be used for preparing baby food. In this case, check the temperature of the water on the back of your hand first.

8. The appliance is designed for domestic use only, or for use in similar facilities, such as

■ tea kitchens in businesses, offices or other workplaces,
■ agricultural enterprises,
■ kitchenettes for guests in hotels, motels, hostels,
■ bed and breakfast accommodations or holiday homes.

Safety information for set-up and operation of the appliance

1. The appliance is not intended for installation in furniture or other objects.

2. Connect the appliance only to an AC power source as specified on the rating plate.

3. Use a power socket that is within easy reach, so you can unplug the appliance quickly in the case of a malfunction, etc.

4. The power cable should never come into contact with water or other liquids. In case this ever happens, it must be completely dry before operating the appliance again.

5. Do not clean the appliance in the dishwasher.

6. Never touch the appliance or the cable with wet hands.

7. The appliance is intended for household use only.

8. For safety reasons, never place the appliance on hot surfaces, a metal tray or a wet surface.

9. Do not operate the appliance near open flames, gas and electric burners, or in heated ovens.

10. Do not place the appliance in a disinfecting device or refrigerator.

11. Always use the water heater on a level, uncluttered and heat-resistant surface beyond the reach of children.

12. Do not allow the power cable to hang over the edge of the work surface, as this could result in accidents, for example if pulled on by small children.

13. Route the power cable safely so that it cannot be pulled on or tripped over.

14. To prevent damage to the power cable, never wrap the power cable around the appliance.

15. Use the water heater indoors only.

16. If you intend to use the appliance at a non-stationary location, such as on a boat, first consult an electrician.
17. Use the appliance only for heating water. Do not use it to heat milk or other liquids, since this would damage the appliance.
18. Make sure that the lid of the appliance is always completely closed.
19. Never switch the appliance on if there is no water in the tank or if the water level is too low; this will prevent damage to the heating element.
20. Never fill the water tank past the 2.5 litre mark.
21. To avoid scalding from splashing water, do not move the appliance whilst it is in operation.
22. During and after use, never touch the hot parts of the appliance, such as the water outlet – danger of scalding!
23. Never check the temperature of the water by touching the water outlet with any part of your body – danger of scalding!
24. To prevent damage, do not operate the appliance with accessories from another manufacturer or brand.
25. Unplug the appliance from the power socket and allow it to cool after use and before cleaning. Never leave the appliance unattended while it is connected to the power socket.
26. Regularly check the appliance, the power cable and the plug for wear and damage. If the power cable or other parts of the appliance are damaged, return the appliance to our customer service department for inspection and repair. Unauthorized repairs can result in serious risks to the user and void the warranty.
27. If the power cable of this appliance is damaged, it must be replaced by the manufacturer or his after sales service department or person with similar qualifications, to prevent hazards.

Caution!

The appliance is very hot during and after use! Hot water can cause scalding!

Never open the appliance housing. Risk of injury from electric shock.

The manufacturer will not be liable in the event of incorrect assembly, improper or incorrect use or if repairs are carried out by unauthorized third parties.

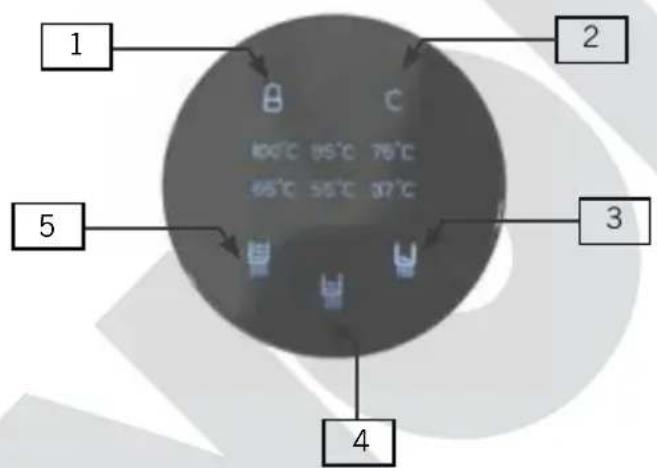

DISPLAY AND CONTROL PANEL

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80

1	8 button	Unlocks the control panel
2 °C but ton		For selecting the temperature: 100 °C, 85 °C, 75 °C, 65 °C, 55 °C and 37 °C, and temperature off (no heating of water)
3	150 ml button	For preparing 150 ml of water
4 250 ml button For preparing 250 ml of water
5 350 ml button		For preparing 350 ml of water, and for starting the rinsing process (circulation through the entire water tank)

BEFORE FIRST USE

CAUTION: The appliance becomes very hot during operation! Boiling water can cause scalding. Therefore, always handle the appliance with caution.

1. Remove all packaging materials and any transport guards and stickers (not the type plate or the serial number!). Keep the packaging material away from children. Choking hazard! Dispose of the packaging material according to the applicable statutory waste disposal regulations. Tip: Keep the original package for safe storage of the appliance when not in use, or if you ever have to ship the appliance.
2. Inspect the appliance for damage. If there is visible damage, do not operate the appliance; instead, contact our Customer Service department.
3. Clean all parts with a damp cloth, as described in chapter „Cleaning and maintenance“.
4. Check to make sure that the appliance is stable and the plug for the residual water drain on the bottom of the appliance is in place.
5. Push the drip tray into the holder on the appliance.
6. Fill the water tank to the “Max” marking (about 2.5 litres), place the lid on the water tank, and place the water tank in the housing, by positioning it above and letting it glide down into the guide that is provided.
7. Place a sufficiently large empty container under the water outlet.
8. Insert the plug into a power socket.
9. All ico ns lightup briefly afterwards, the Ⓗ button lights up continuously.
10. Press and hold the button for Ⓐ about 3 seconds, to switch on the appliance.
11. Press the “°C” button until the display flashes 100^ C, if this is not already displayed.
12. Press the button for 350 ml about 3 seconds and the rinsing process starts.
13. The water is heated and collects in the container under the water outlet. To interrupt the water outlet (e.g. to empty the appliance), press the button for 350 ml again.
14. The appliance is now ready for operation.

OPERATION

CAUTION: The appliance becomes very hot during operation! Boiling water can cause scalding. Therefore, always handle the appliance with caution. For hygienic reasons, you should change the water in the water tank every day, since germs can eventually accumulate in unheated water.

If you heat water at a low temperature, it will not boil. When preparing baby food, for example, first boil the water and let it cool before putting it in the water tank.

1. Before using the appliance, prepare it as described in the chapter "Before first use".
2. Make sure that the drip tray is attached.
3. Remove the lid from the water tank.
4. Fill the water tank with plenty of fresh water. Do not fill with more than 2.5 litres of water. You can either use a container to pour the water into the water tank, our you can remove the tank for filling.
5. Fill the water tank to the "Max" marking (about 2.5 litres) and put the water tank back in the housing.
6. Place the lid on the water tank.
7. Place your container under the water outlet on the drip tray.
8. Press and hold the button about 3 seconds, to switch on the appliance.
9. Now select the desired water temperature by repeatedly pressing the “°C” button. As long as the heated water is circulating, this temperature will be displayed continuously; otherwise, the display will only flash.
10. Then press the button for the desired water quantity twice in quick succession. You can choose a water quantity of 150 ml, 250 ml or 350 ml.
11. The desired water quantity now flows from the water outlet at the desired temperature. Tip: A long press on the 350 ml button allows the entire contents of the water tank to run through.
12. Repeat the process as necessary.
13. To interrupt a process once started, press the button for the selected water quantity again. The appliance stops heating and switches off the pump; however, some water will continue to flow. To heat the same amount of water

again, press the button for the water quantity twice, or change the selected temperature, as desired.

1. The water quantity that flows out of the appliance can vary due to changing ambient conditions, so it may be lower or higher.

2. If you do not press any buttons within about 30 seconds, the appliance automatically switches to standby mode, for safety reasons. You must press the Ⓗ button again, to continue entering the settings.

3. Notice: If the appliance is in standby mode, the set temperature is retained until you disconnect the appliance from the power supply.

4. When the water tank is empty, the appliance stops heating and the Ⓗ button flashes briefly. The appliance returns to standby mode. Add fresh water and start the process again.

5. When you have finished preparing water, unplug the appliance from the power socket.

OVERHEATING PROTECTION

This water heater is equipped with overheating protection. In case of malfunctions or overheating of the appliance, it will switch off.

1. Disconnect the plug from the power socket.

2. Remove the water tank.

3. Pull the small key from the holder on the bottom of the appliance.

4. Use this key to press the reset button, which is on the back of the housing (see illustration), until you hear a soft click.

5. Alternatively, you can use a pointed object, such as a toothpick; for electrical safety reasons, however, do not use metal objects.

6. We recommend that you return the key to the holder on the bottom of the appliance, to keep it from being lost.

Rese

1. Then insert the water container back into the appliance.

REMOVING RESIDUAL WATER

1. The residual water that collects in the appliance must be drained regularly.
2. To do so, disconnect the plug from the power socket.
3. Remove the water tank and empty it.
4. The plug for residual water is on the bottom of the appliance.
5. Hold the housing over a sink, for example.
6. Carefully turn the appliance over and remove the plug cap.
7. Allow the residual water that has collected to drain.
8. While draining the water, take care not to misplace the plug, since without the plug, the water will exit the residual water drain instead of the water outlet.
9. After draining is complete, close the residual water drain with the plug and make sure that it is attached properly, to prevent accidental leaking of water.

Residual water drain

Pure technical diagram of a mechanical assembly without any text, numbers, or symbols

DESCALING

CAUTION: The appliance becomes very hot during operation! Boiling water with descaler solution can cause scalding. Therefore, always handle the appliance with caution.

Descaling reminder function

1. To maintain the lifespan and performance of the appliance, please descale it regularly depending on the water hardness. For this purpose, the appliance has a reminder function which always appears after 12 hours of operation when the water temperature is above 85^ C . As soon as you have pressed the

button to end stand-by mode, the buttons for 150 ml and 250 ml flash to remind you to descale. After six seconds, this reminder disappears, and you can operate the appliance as usual. However, the reminder disappears permanently after descaling has been carried out.

Descaling

1. Use a commercially available descaler for kettles and follow the manufacturer's instructions and fill the water tank accordingly.

2. Place a sufficiently large container under the water outlet or place the appliance in a stable position on the edge of a sink.

3. Ensure that the appliance is not in stand-by mode. Now press the 150 ml and 250 ml buttons simultaneously, the descaling process starts and both buttons flash.

4. When the descaling process is complete, both buttons go out and the button lights up.

5. Complete the descaling process by filling the water tank completely up to the 'Max.' mark with fresh water and allowing this water to run through completely.

6. Then rinse the water tank with clean water.

7. Note: If you want to interrupt the descaling process, briefly press the 150 ml or 250 ml button. The appliance stops immediately.

CLEANING AND CARE

Let the appliance cool down before cleaning it. Before cleaning, always unplug the appliance from the power socket!

1. Do not immerse the appliance or its single components in water or other liquids or wash them in the dishwasher.
2. Wipe off the housing and the water tank with a damp cloth and a little washing-up liquid. Do not use scouring cleaners, steel wool, metal objects, harsh cleaners or disinfectants, since they can damage the appliance.
3. The appliance must be completely dry on the outside before you may use it again.
4. If the appliance is not used for an extended period, we recommend storing it in a protected, dust-free area. Tip: Store it in the original package.

GUARANTEE CONDITIONS

We grant a 24 months guarantee, and in case of commercial use a 12 months guarantee, starting from the date of purchase for any damage demonstrably due to manufacturing defects and when the appliance has been used according to its intended use. Within the warranty period we will remedy defective materials or workmanship through repair or replacement, at our option. Our warranty terms apply only to appliances sold in Germany and Austria. For other countries, please contact the responsible importer. In the event of a claim for remedy of defects, please send the appliance to our after sales service, properly packaged, together with a copy of the automatically generated sales receipt, which must show the date of purchase, and a description of the defect. You can print out a return receipt on our website https://unold.de/pages/rucksendungen. (only for entries from Germany and Austria). The warranty does not cover damage from normal wear, improper handling and failure to comply with the maintenance and care instructions. The warranty is void if repairs or modifications are made to the appliance by third parties. Any claims of the end consumer vis-à-vis the retailer are not limited by this warranty.

WASTE DISPOSAL / ENVIRONMENTAL PROTECTION

Our appliances are produced on a highquality level for a long lifetime. Regular maintenance and expert repairs by our after-sales service can extend the useful life of the appliance. If an appliance is defective and repair is not possible, we ask you to follow the following instructions for disposal. Do not dispose this appliance together with your standard household waste. There is a legal requirement to dispose of waste electrical and electronic equipment (WEEE) as well as batteries and accumulators separately from household waste. You can recognise this waste equipment by the crossed-out wheeled bin symbol (WEEE symbol).

Please bring this product to an approved collection point for recycling of electric and electronic products. By separate collection and disposal of waste products you help to protect natural resources and ensure, that the product is disposed in an adequate way to protect health and environment.

Symbol of a trash bin crossed with no visible text or labels
