Dream One - Coffee machine ASCASO - Free user manual and instructions

Brand	Ascaso
Model	Dream One
Product type	Espresso machine
Body material	Metallic ABS (Basic)
Brew group	Brass
Pump pressure	15 bars
Water tank capacity	1.2 L
Power	1300 W
Power supply voltage	220-240 V, 50/60 Hz
Dimensions (W x D x H)	20 x 25 x 30 cm
Weight	8 kg
Portafilter type	Removable and fixed depending on version
Steam wand	Swiveling
Built-in thermometer	Yes (Dream model)
Functions	Espresso, cappuccino, steam, hot water
Safety system	Automatic safety shut-off
Maintenance	Weekly backflushing, descaling every 2-3 months
Cleaning	Use Coffee Washer, descaling filter
Warranty	According to distributor
Certification	CE

Frequently Asked Questions - Dream One ASCASO

My coffee flows too slowly. What should I do?

Check the grind: it is too fine. Use a coarser grind. Ensure the portafilter is correctly positioned and that the filter is not clogged.

My coffee flows too quickly and lacks crema.

The grind is too coarse or the dose insufficient. Use a finer grind and increase the coffee dose. Tamp properly.

How to prepare a cappuccino with the Dream One?

First prepare an espresso. Then use the steam wand to froth cold milk. Insert the wand into the milk, open the steam, and froth by moving the wand. Close the steam once the froth is obtained.

The machine does not heat up or the light does not turn on.

Check that the machine is plugged in and that the main switch is on. If the indicator does not light up, contact technical support.

How to clean the steam wand?

After each use, wipe the wand with a damp cloth. For deep cleaning, let hot water run through the wand. Use a pin to unclog the holes if necessary.

How often should I descale the machine?

It is recommended to descale every 2-3 months depending on water hardness. Use a specific descaling product like Coffee Washer.

What to do if steam does not come out or is weak?

The steam wand may be clogged. Clean it with a pin. Check that the water tank is filled. If the problem persists, contact technical support.

Can I use ground coffee or pods?

Yes, the Dream One is compatible with ground coffee and pods (single-dose) depending on the portafilter used. Use the appropriate portafilter.

How to maintain the brew group?

Perform a weekly backflush with a blind filter. Use a cleaning product like Coffee Washer. Regularly clean the upper shower screen.

The machine leaks water. What to do?

Check that the tank is correctly inserted. Ensure the portafilter is tightly secured. If the leak persists, there may be a defective seal. Consult technical support.

USER MANUAL Dream One ASCASO

2009-11 UM 4 HOME.FH11 Tue Feb 23 14:39:51 2010 Pagina 1

Technique specifications and modula can change without notice. Las aplicaciones技术iques y los modulos pucaron Cambiar si Notification.
Lcs Socificaciones technicals et les modulos pouvont changar sans notification.
Tecnologiae Sporitikacion and Modulo como nohunch Ankufungtionandom.
Especulaciones Tecnolas o modulos podoomud sem aviso.
La Descriccion technici ed i modell poesono camplare sanza notificata.
Tecnologiae specificas en modell kuncen zonder op te zeggon verderan

Disposal of your appli

Oe

Please contact your distributor or your local waste collection centre.

Positional segments with k-atom (with additional residues) show a similar structure as those of the k-atom domains of the first order, but more strongly in one residue.

ascaso

Introduccion

Thank you very much for purchasing and asso product. This machine makes the best espresso coffee and delicious cappuccos.

Your coffee machine has been designed and built using the latest technological computing and engineering innovations, it is therefore a high-quality product.

Introduction

1. Technical specifications
   2.Diagram
2. Safty Start-up
   4.Preparation of coffee
   5.Preparation of caspuccino
   6.Preparation of steam
3. Mantonand
4. Guarantee
5. Declaration of EC conformity
6. Quick consultation table

ascaso

1. Technical specifications

	DREAM ARC ELLIPSE BASIC
Voltage (V)	230VAC~55Hz - 120VAC~86Hz
Power (W)
Pulse (pulses/min)
Velocity (m/s)	7.5 (FF) / 6.5 (MF)	10 (FH) / 9 (MF)	7 (FF) / 6 (MF)
Dimensions (L×H×P)°	245×345×280	220×320×280	245×373×283	210×310×290
Horizontal capacity (l)	1.3	2	1.8	2
Filter holder	Brass

*length x ngh x depth (mm)

1-1 bed hner. Ml - Mblte hnter

Main features

Metal body, ABS(Basic)
Brass coffee unit
Pralrnnnne yaeum
Aucnncnncnncnnnncnncnncnncnncnncnncnncnncnncnncnncnncnncnncnncnncnncnncnncnncnncnncnncnncnncnncnncnncnncnncnccnnne
SIRPHERIDENI (2)
Versatile (mobils filteri: Ground coffoos/rod. (Option)
Food materials
LID WATTER
Innovative and functional design
EG Certification

ENGLISH

2009-11 UM 4 HOME.FH11 Tue Feb 23 14:39:51 2010 Pagina 11

ENGLISH

ascasoascaso

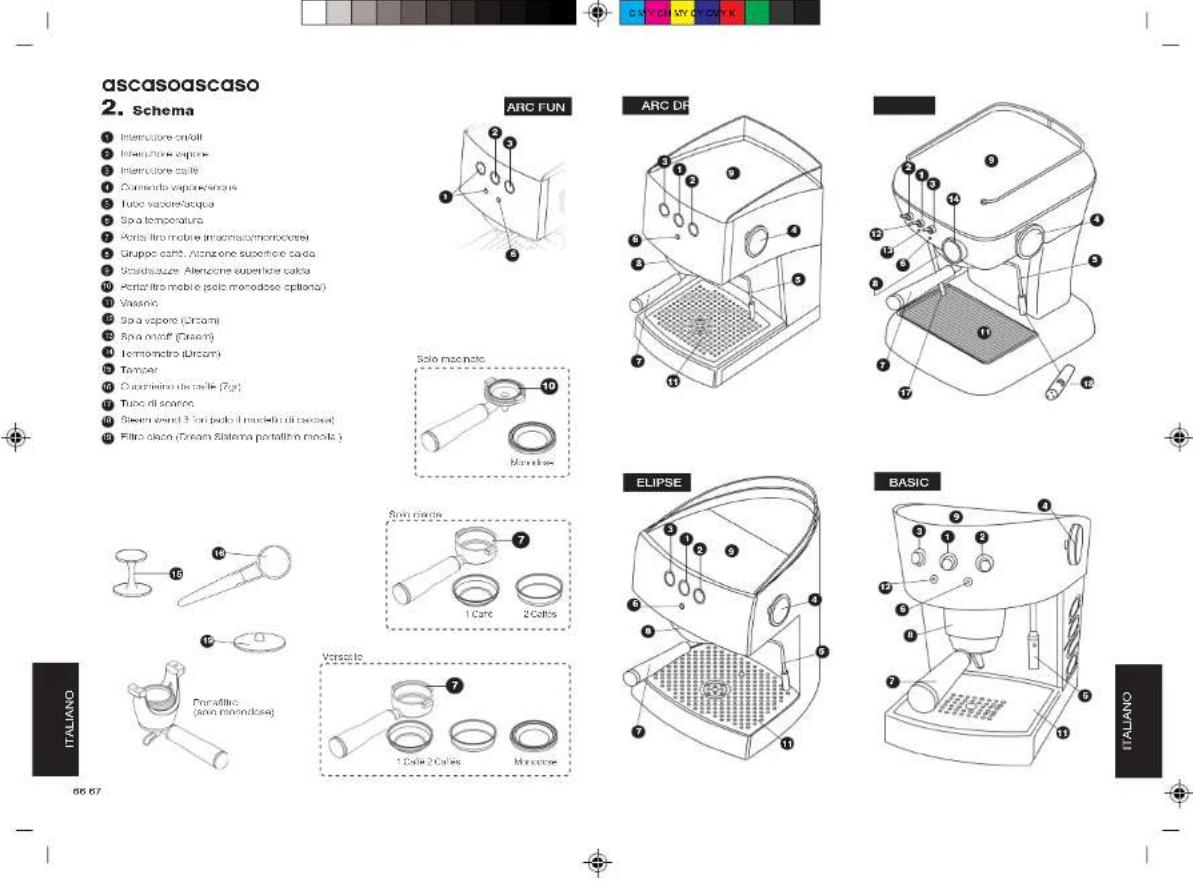

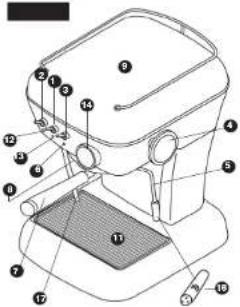

2. Diagram

Cryotswift
6 Fromawter
Coffce
SaeerWoter control
F
Temperature pilot light.
Mehn fnta hne (gpeep)
Colles group. (Allertion hot surfaces)
Cup warmer (attention hot surfaces)
M
tray
Streer pict 1g (Only Present)
Ee
Thummerer (r)
Cortice Fies
Cofine apener [79]
Dxchange lute
Starmwool5hghaa(snypolarmodals)
18Brid filer (Dre moile hiter)

ARC FUN

ARCDF

ENGLISH

ELIPSE

BASIC

3. - Safety Important Safeguards

1. Read all instructions
2. Do not touch hot surfaces. Use handles or knaps.
3. To proceed against fire, electric shock and injury to persons so ill or injured cord, plugs or (state specific part or other in calculation) in water or other liquid.
4. Close supervision is necessary when any appliance is used by or near the patient.
5. Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts and before cleaning the appliance.
6. Do not operate any appliance with a damaged cord or plug after the appliance malfunction, or has been damaged by any way. Return appliance to the nearest authorized service facility for examination, repair or adjustment.
7. The use of accessory attachments not recommended by the appliance manufacturer may result in fire, electronic shock or injury to persons.

8. Do not use outdoors (this item may be omitted if the products is specifically designed for outdoor use)

9. Do not let count hang over edge of table or counter or touch hat surfaces.

10. Do not place on or near a hot gas or electronic burner in a heated stove.

11. Always attach plug to appliance first, then plug cord into the wall outlet; it's not connect; turn any device on "off" then remove plug from wall outlet.
    12.Do not use appliances for other than intended use.
12. Save these instructions.

Before settling the appliance going, the person installing should read this manual carefully. The operator should be a responsible adult.

In the event of any anomaly, contact your distributor.

Start-up

1- Chock the electrical voltage is the same as the voltage displayed on the circuit.
2-3 Fill the reservoir with fresh water, (see picture 1) Check the water intake tube is immersed in the reservoir. The use of low mineral water is recommended. Water quality affects the inlet and quality of the coffee, in addition to preventing future breakdowns. Consult us about our filters (dacing treatment)-optional. 3- Plug it into the mains.

Important:

MOBILE FILTER HOLDER SYSTEM A) The machine is being used for the first time or has not been used for some time.

Change the water in the boiler and circuit.
1. Connect the coffee machine with switch 0/1

2-Put File Holder with curree
into position and a recipient below. 3. Switch on the coffee switch, and
run approximately at a reservoir capacity of water through it. Careful: Check that the reservoir has enough water; If the coffee machine is used without water, pump resistance may be damaged.

B) PRIMING

• If coffee does not emerge, when the machine has not been used for some time,
  After producing steam
  If there is not water in the reservoir, the following procedure should be performed:

1-Turn on the steam tap with the

coner machine switched by 2-Turn on the cofine function
allow the water to come out (one cup)
through the steam line 3-Turn off the coffee function
turn off the steam tap 1 The coffee machine is now ready for use.

C)After steam has been produced, it

is very important to wait for the pilot lightto go on again and either to switch
s or to perform priming

FIXED FILTER HOLDER SYSTEM

Step A is unnecessary. Step B and C are necessary.

4. Preparation of coffee

Please, check your system

round, versatilo, podi

Ground

(Only ground system)
Any type of coffee may be used. For example, you can use the special 'engagements' coffee blends as they

provide a suitable grind. If the coffee comes out either very quickly or very slowly, the type of coffee should be changed for another line or thicker grind and tampering of the coffee should be varied according to our recommendations.

1-Switch on the machine using the main switch 0/1 and place the filterholder (with the filter) into the group in Dream boiler model, orienting discharge tube toward the inlet of the tray 1
2. Wall for the pins light to switch off (approx. 1.5 minutes). This means the coffee machine has reached its ideal temperature. Press coffee switch and let water run out. To this before making the coffees. This will remove residues and balance the temperature to create optimum working conditions.
3.-Fill the coffee filter basket (1 or two cellless according to requirements).
4. Fill the filter mesh as it can be filled to 3 / 4 of its capacity, once processed (see picture 2A).

1. Clean off the remaining of coffee that have been deposited on the edges of the filter basket so that it fits perfectly.
   5- Place the filter holder 2 into the group 1 starting from the left and turning towards the right with enough force to make the cup of water. 6- Put the cups or cups on the grille and
   switch on the coffe switch 7- When the coffe has finished being
