USER MANUAL WIND MINIMAL Create

natural_image Line drawing of a three-bladed propeller or fan assembly (no text or symbols)

Wind Minimal

User manual | Manual de instrucciones

CREATE CREATE CREATE ATE CREATE CREATE CRE CREATE CREATE CREATE ATE CREATE CREATE CRE CREATE CREATE CREATE ATE CREATE CREATE CRE CREATE CREATE CREATE CREATE CREATE CREATE CREATE CREATE CREATE CREATE CREATE CREATE CREATE CREATE CREATE CREATE CREATE CREATE CREATE CREATE CREATE CREATE CREATE CREATE CREATE CREATE CREATE CREATE CREATE CREATE CREATE CREATE CREATE CREATE CREATE CREATE CREATE CREATE CREATE CREATE CREATE CREATE CREATE CREATE CREATE CREATE CREATE CREATE CREATE CREATE CREATE CREATE CREATE CREATE CREATE CREATE CREATE CREATE CREATE CREATE CREATE CREATE CREATE CREATE CREATE CREATE

CREATE CREATE CREATE ATE CREATE CREATE CRE CREATE CREATE CREATE ATE CREATE CREATE CRE CREATE CREATE CREATE ATE CREATE CREATE CRE CREATE CREATE CREATE ATE CREATE CREATE CRE CREATE CREATE CREATE ATE CREATE CREATE CRE CREATE CREATE CREATE ATE CREATE CREATE CRE CREATE CREATE CREATE ATE CREATE CREATE CRE CREATE CREATE CREATE ATE CREATE CREATE CRE CREATE CREATE CREATE ATE CREATE CREATE CRE CREATE CREATE CREATE ATE CREATE CREATE CRE CREATE CREATE CREATE ATE CREATE CREATE CRE CREATE CREATE CRE CREATE CREATE CRE CREATE CREATE CRE

INDEX

ENGLISH

Location and installation requirements 6

Mechanic tips 6

Electrical Tips 6

Security instructions 7

List of parts 8

Remote control 9

Installation instructions 10

Installation preparation 10

Fixing the mounting bracket 10

Wiring connection 11

Receiver Placement 11

Blade assembly 11

Patch Panel Mounting 12

Mounting the LED board 12

Check installation 13

PORTUGUÊS

Thank you for choosing our ceiling fan. Before using this appliance and to ensure its best use, please read the instructions carefully.

The safety measures listed here reduce the risk of fire, electric shock, and injury when followed correctly. Please keep the manual in a safe place for future reference, as well as the sales receipt and box. If applicable, give these instructions to the future owner of the appliance.

Always follow basic safety instructions and hazard prevention measures when using an electrical appliance. The manufacturer will not be responsible for any damage resulting from the user's failure to follow these instructions.

LOCATION AND INSTALLATION REQUIREMENTS

MECHANIC TIPS

  • According to safety regulations, the lowest point of the fan blade must be at least 2.3m (7 feet) from the floor.
  • Please make sure the chosen location will not allow the rotating fan blades to come into contact with any objects.
  • Ensure ceiling joists are sound and are large and strong enough to support the weight of the fan.
  • To reduce the risk of fire, electric shock or personal injury, ensure that the fan mounting bracket is attached directly to the building structure. Do not mount to an outlet box.
  • The mounting bracket must be firmly screwed to a load bearing structure, e.g. a concrete ceiling, steel structure or timber frame. If a timber frame is added, it must be securely nailed or screwed between two beams.
  • To reduce risk of personal injury and property damage, do not bend or damage the downrod or the fan blades when handling or installing them. If you notice any product imperfections, please contact our after-sales service before proceeding to install the fan.
  • Make sure the ceiling fan is securely fastened to the ceiling. All set screws must be checked and re-tightened where necessary before fan operation.

ELECTRICAL TIPS

  • Turn off the power before performing any work on the ceiling fan and turn off the power breaker. To avoid possible electrical shock, check that the power is turned off at the fuse box or circuit breaker panel before wiring.
  • The fan, mounting bracket and lighting equipment must be connected to a ground. Check that all splices are well insulated.
  • Check and confirm that all connections are correct and secure. Once all electrical connections have been made, store all cables securely.
  • Do not attempt to control this fan from a wall switch or remote control that is not approved by the manufacturer for use with the fan. Do not use a solid state controller. Use of a non-approved wall switch or remote control will void your warranty.
  • Do not connect the ceiling fan to a dimmer switch.

When using any electrical appliance, the following basic safety precautions should always be observed.

  • To reduce the risk of personal injury, attach the fan directly to the building support structure following these instructions and use only the material provided.
  • To avoid possible electrical shock, before installing your fan, disconnect power by turning off the electrical panel power switches and associated wall switches. If it is not possible to turn off the power switches, use a warning device such as a label on the electrical panel.
  • All cables must meet specifications established by local and national electrical codes and ANSI/NFPA 70. If you are not familiar with electrical installations, consult a qualified electrician.
  • Do not bend the blade attachment system while installing, tilting, or cleaning blades.
  • Do not insert other objects between the fan blades.
  • To reduce the risk of fire, electric shock, or motor damage, do not use a solid-state speed regulator with this fan. Only use the original speed regulators.
  • This appliance can be used by children aged 8 years and older and people with reduced physical, sensory or mental capabilities, or lack of experience or limited knowledge, provided they are supervised by a person responsible for their safety or who has been trained how to use it. the appliance safely.
  • Children should not play with this device. They should also not carry out cleaning and maintenance tasks unless they are over 8 years old and supervised. Children should be closely supervised when using any appliance.

NOTE: The instructions and safety precautions in this manual may not cover all possible problems and situations. You should understand that both common sense and caution are essential in the installation and use of the fan.

LIST OF PARTS

  • Carefully open the packaging and remove the parts included inside.
  • Place them on the floor on a rug or a piece of plastic large enough to prevent any damage.
  • Check that the objects listed below are inside the packaging.

Create WIND MINIMAL - LIST OF PARTS - 1
Mounting bracket

Create WIND MINIMAL - LIST OF PARTS - 2
Blades

Create WIND MINIMAL - LIST OF PARTS - 3
Screws

Create WIND MINIMAL - LIST OF PARTS - 4

natural_image Simple line drawing of a cylindrical container with a grid base (no text or symbols)

Motor

Create WIND MINIMAL - LIST OF PARTS - 5

natural_image Line drawing of a remote control with a handheld device (no text or symbols)

Remote control & Driver

Create WIND MINIMAL - LIST OF PARTS - 6

Create WIND MINIMAL - LIST OF PARTS - 7

Create WIND MINIMAL - LIST OF PARTS - 8

natural_image Simple line drawing of a circular mechanical component with evenly spaced holes and a central hub (no text or symbols)

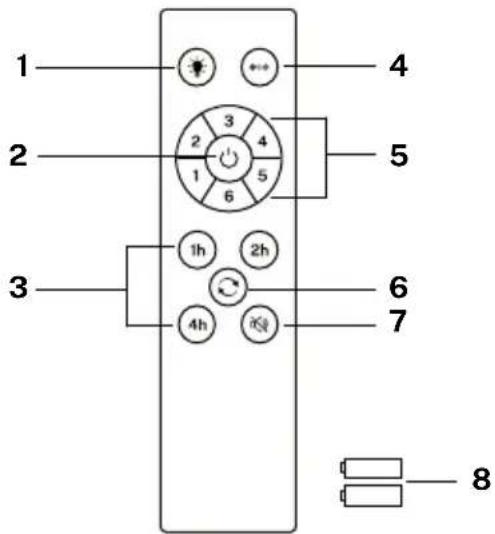

LED panelDecorative screen Con

  1. Light
  2. ON/OFF button
  3. Timer
  4. Color temperature control
  5. Fan intensity control
  6. Reverse function
  7. Sound off button
  8. Batteries (2 x AAA)

Create WIND MINIMAL - LIST OF PARTS - 9

text_image 1 2 3 4 5 6 7 8

Controller pairing

  1. Turn off the main light switch in the room where you have installed your fan for at least 10 seconds.
  2. Turn the switch on and you will hear a beep, within 3 seconds, press and hold the on/off button until you hear a beep.
  3. If the pairing process is unsuccessful, repeat the above steps again after turning off the wall switch for at least 1 minute.

Create WIND MINIMAL - Controller pairing - 1

LIGHT

Turn the fan light on and off, regardless whether the fan is running or not.

Create WIND MINIMAL - LIGHT - 1

COLOR TEMPERATURE

Alternates between the three types of available light color temperatures (warm, neutral and cool).

Create WIND MINIMAL - COLOR TEMPERATURE - 1

ON OFF

Turn the fan on or off completely, regardless whether the light is on or not.

Create WIND MINIMAL - ON OFF - 1

FAN INTENSITY

Increases or decreases the rotation speed of the fan blades.

Create WIND MINIMAL - FAN INTENSITY - 1

TIMER

Schedule automatic shutdown by choosing from the available options.

Create WIND MINIMAL - TIMER - 1

REVERSE FUNCTION

Changes the direction of rotation of the blades fan. The winter function (turn to the right) pushes the hot air accumulated in the ceiling downwards and the summer function (turn to the left) generates a breeze that cools the environment.

Create WIND MINIMAL - REVERSE FUNCTION - 1

DISABLE SOUND

By pressing the sound off button you can silence the sounds that the fan makes when you press any key on the remote control.

INSTALLATION PREPARATION

Create WIND MINIMAL - INSTALLATION PREPARATION - 1

text_image 76 cm 76 cm 2.3 m

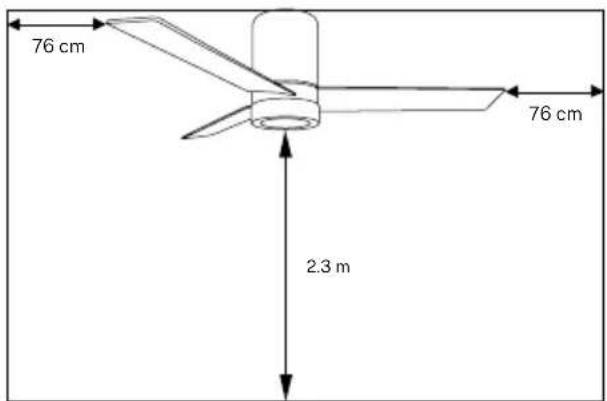

  • To avoid personal injury and injury, ensure that the fan is hung in a location that allows the blades to be 2.3 m or more from the floor and 76 cm from the nearest wall or obstacle.
  • Make sure the mounting bracket is properly attached to the building structure and can support the full weight of the fan.

FIXING THE MOUNTING BRACKET

  • Check that the ceiling where you intend to mount the fan is stable and capable of safely supporting the weight of the fan.
  • Do not fix the mounting bracket directly on ceilings less than 10mm to avoid the risk of the screw loosening and coming out.

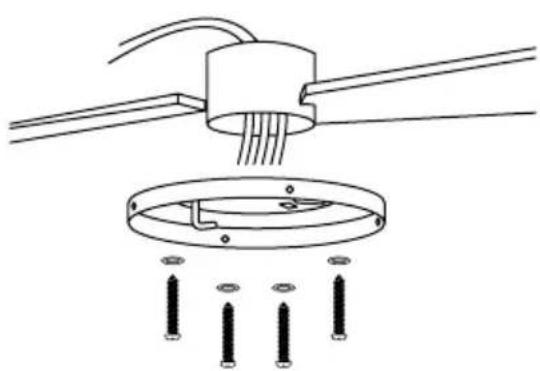

Create WIND MINIMAL - FIXING THE MOUNTING BRACKET - 1

natural_image Technical diagram of a mechanical assembly with labeled components and screw holes (no text or symbols)

Wood roof

Drill the necessary holes and then secure the mounting bracket with the wood screws and washers to the ceiling joints.

Create WIND MINIMAL - FIXING THE MOUNTING BRACKET - 2

natural_image Technical line drawing of a ceiling lamp with internal components and mounting base (no text or symbols)

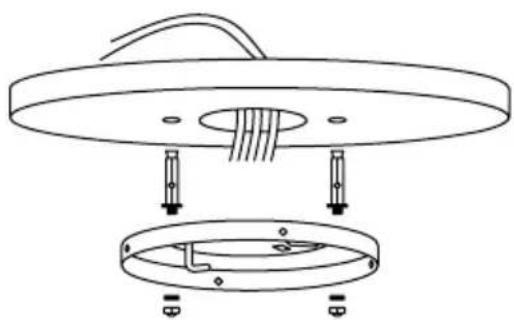

Concrete roof

Drill holes with an 8mm drill bit, according to the length of the expansion screws. Next, secure the mounting bracket to the ceiling with the expansion screws.

NOTE: This fan can also be installed in a false ceiling, for this you must use fixing screws with spring lever (not included).

  • Mark the correct position of the holes and fix the mounting bracket using the screws with metal anchors or screws and washers suitable for the type of ceiling chosen.
  • Verify proper installation of the bracket before hanging the fan. The mounting bracket must support the entire weight of the fan.

WIRING CONNECTION

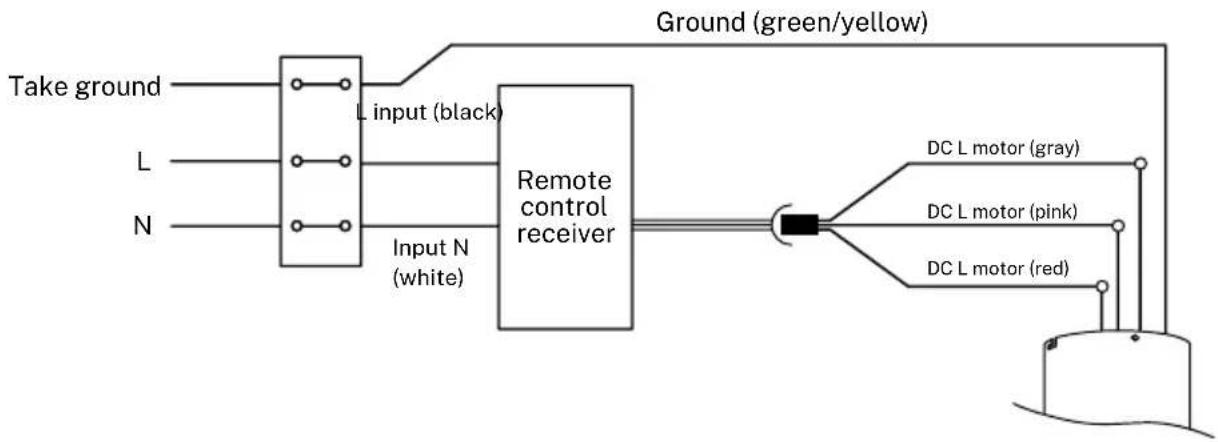

Make the connection between the receiver wires and the fan motor wires following the color indications. Make sure the connection is tight.

Create WIND MINIMAL - WIRING CONNECTION - 1


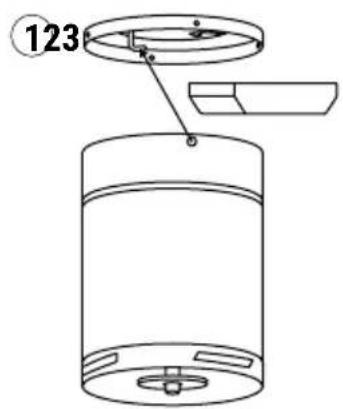

RECEIVER PLACEMENT
Create WIND MINIMAL - WIRING CONNECTION - 2

text_image 123

Create WIND MINIMAL - WIRING CONNECTION - 3

natural_image Technical line drawing of a cylindrical mechanical component with mounting holes and a circular inset element (no text or symbols)

Create WIND MINIMAL - WIRING CONNECTION - 4

natural_image Simple line drawing of a cylindrical container with internal components and a circular element on the left (no text or symbols)
  1. Insert the driver inside the motor body.
  2. Hook the engine body onto the left hook of the body mount and route the wiring so it does not get pinched.
  3. Position the motor body so that the holes fit and then screw the 4 body bracket screws to the motor body.

Note: Make sure that the motor body is perfectly installed to the ceiling.

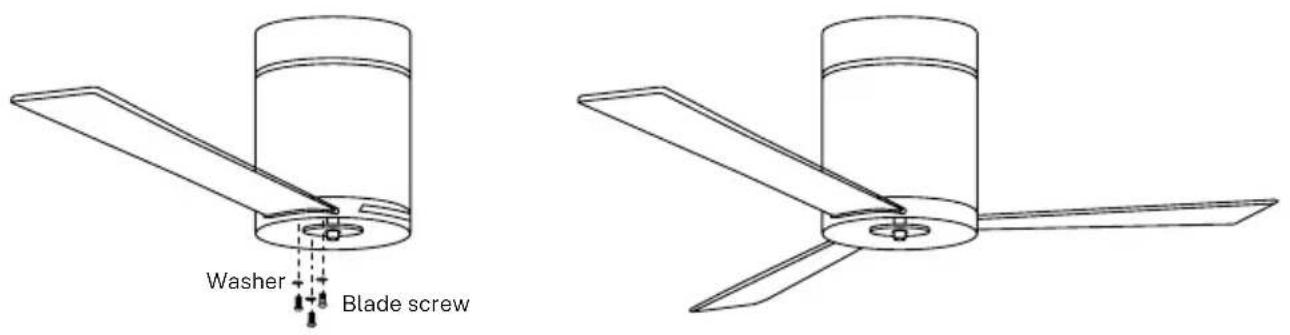

BLADE ASSEMBLY

Advice: Washers for the blade screws can be placed on each screw before installing the blades.

  1. Align the blade holes with the screw holes on the motor, and then tighten all the screws. Select the blade screws and attach the first blade, lining up the holes in the motor with the holes in the blade. Screw the blade in so that it is secured but without tightening the screws too much to be able to place the rest.

  2. Repeat the previous step with the rest of the blades.

  3. Once all the blades are in place, tighten the screws completely so that the blades are fully secured.

Create WIND MINIMAL - BLADE ASSEMBLY - 1

text_image Washer Blade screw

PATCH PANEL MOUNTING
Create WIND MINIMAL - BLADE ASSEMBLY - 2

text_image Connection panel panel screws

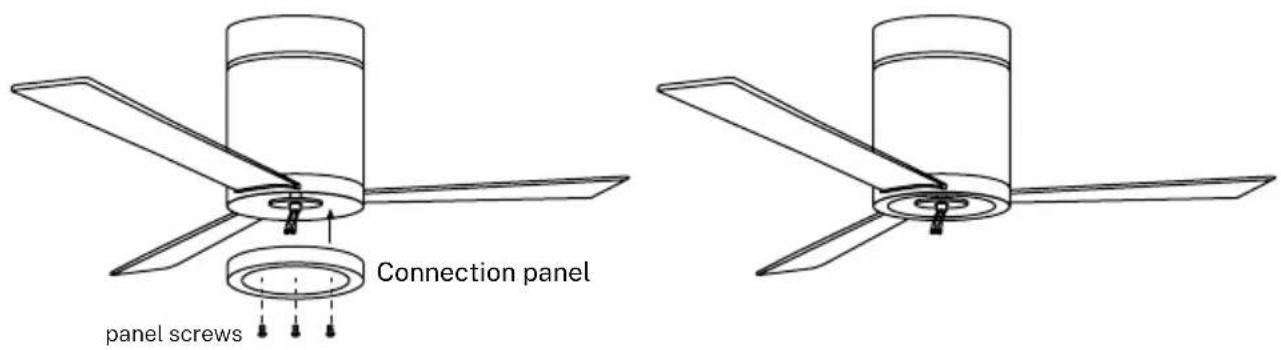

Attach the connection panel to the bottom of the fan by inserting the screw heads into the designated holes.

Screw in the screws and then secure them properly.

MOUNTING THE LED BOARD
Create WIND MINIMAL - BLADE ASSEMBLY - 3

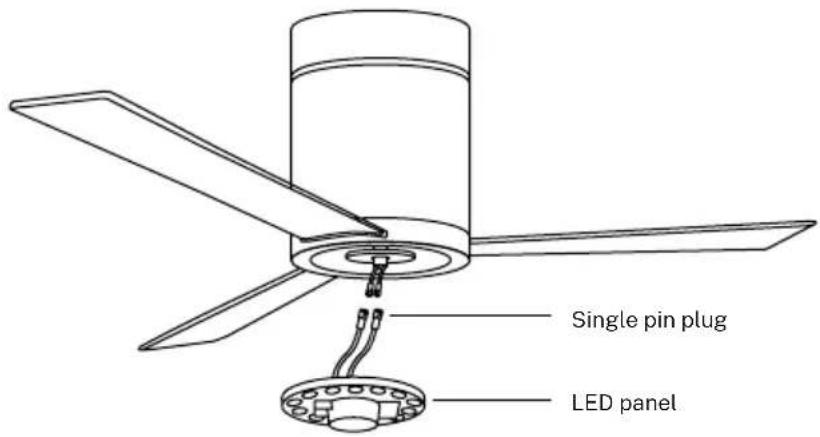

text_image Single pin plug LED panel

Connect the cables from the connection board to those from the LED panel. The LED panel is magnetized so it attaches to the connection board by simply putting both pieces together.

Note: While installing or removing the LED board, be careful not to touch the insulating tabs. Do not overtighten the screws or thread them too quickly as this could cause damage to the insulating tabs.

Create WIND MINIMAL - BLADE ASSEMBLY - 4

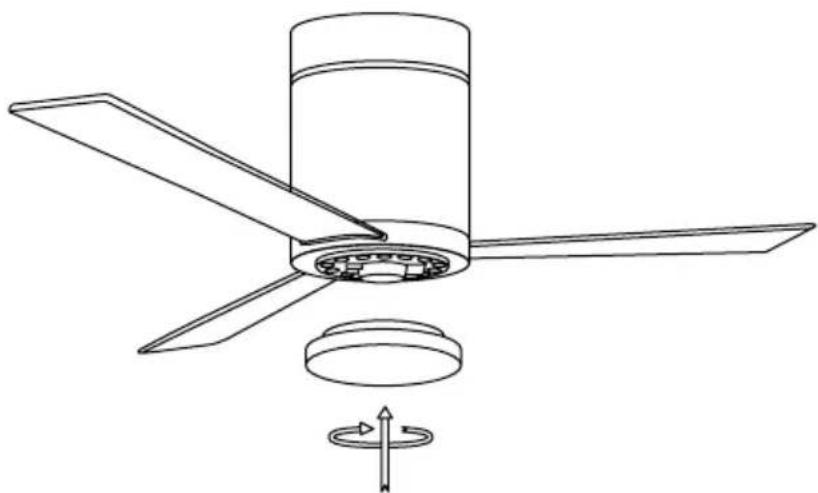

natural_image Technical line drawing of a three-blade propeller assembly with a rotating base and directional arrow (no text or symbols)

Then attach the LED board decorative screen by screwing it onto the motor connection panel.

CHECK INSTALLATION

  • Check the correct operation of the ceiling fan, checking that no strange movement or misalignment is observed in any part of the fan.
  • If you notice any type of hum/vibration, you can proceed to adjust the blades with the balancing kit.
  • This kit has self-adhesive counterweights and "u" shaped clips.
  • Turn off the ceiling fan.
  • You can put the clip in the center of any blade and check to see if the vibration decreases.
  • Turn on the fan and check. If no change is seen, turn off the fan and add another clip on another blade or use the adhesive weights.

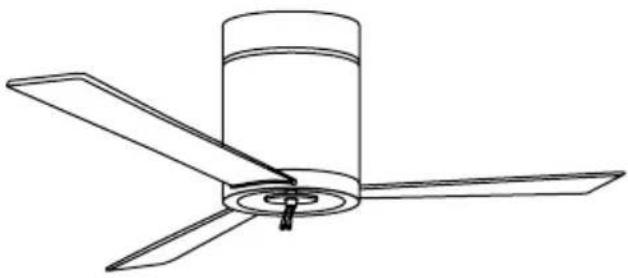

Create WIND MINIMAL - CHECK INSTALLATION - 1

In compliance with Directives: 2012/19/EU and 2015/863/EU on the restriction of the use of dangerous substances in electric and electronic equipment as well as their waste disposal. The symbol with the crossed dustbin shown on the package indicates that the product at the end of its service life shall be collected as separate waste. Therefore, any products that have reached the end of their useful life must be given to waste disposal centres specialising in separate collection of waste electrical and electronic equipment, or given back to the retailer at the time of purchasing new similar equipment, on a one for one basis. The adequate separate collection for the subsequent start-up of the equipment sent to be recycled, treated and disposed of in an environmentally compatible way contributes to preventing possible negative effects on the environment and health and optimises the recycling and reuse of components making up the apparatus. Abusive disposal of the product by the user involves application of the administrative sanctions according to the laws.

natural_image Simple line drawing of a cylindrical container with internal structure (no text or symbols)

Motor

Create WIND MINIMAL - CHECK INSTALLATION - 2

natural_image Line drawing of a remote control with a handheld device (no text or symbols)
natural_image Simple line drawing of a circular mechanical component with evenly spaced holes and a central hub (no text or symbols)

Panel LEDPantalla decorativa P

natural_image Technical diagram of a mechanical assembly with a central component and multiple screws below (no text or symbols)

Techo de madera

natural_image Technical diagram of a mechanical assembly with two views of a circular component (no text or symbols)

Techo de hormigón

natural_image Technical line drawing of a cylindrical mechanical component with mounting holes and a circular top (no text or symbols)

Create WIND MINIMAL - CHECK INSTALLATION - 3

natural_image Line drawing of a cylindrical container with internal components and a labeled section (no text or symbols)
natural_image Line drawing of a three-bladed propeller or fan assembly (no text or symbols)

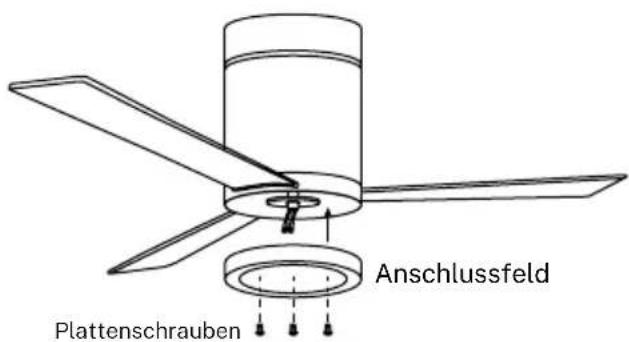

MONTAJE DEL PANEL DE CONEXIONES
Create WIND MINIMAL - CHECK INSTALLATION - 4

natural_image Line drawing of a three-bladed propeller or fan assembly (no text or symbols)
natural_image Technical line drawing of a three-blade propeller with a rotating base and directional arrow indicating rotation (no text or symbols)
natural_image Simple line drawing of a cylindrical container with a grid pattern at the bottom (no text or symbols)

Motor

Create WIND MINIMAL - CHECK INSTALLATION - 5

natural_image Line drawing of a remote control with two devices (no text or symbols)

Comando e motorista

Create WIND MINIMAL - CHECK INSTALLATION - 6

Create WIND MINIMAL - CHECK INSTALLATION - 7

Create WIND MINIMAL - CHECK INSTALLATION - 8

natural_image Simple line drawing of a circular mechanical component with evenly spaced holes and a central hub (no text or symbols)

Painel de LEDTela decorativa Pair

natural_image Technical diagram of a mechanical assembly with threaded components and a circular base, showing no text or symbols.

Telhado de madeira

natural_image Technical line drawing of a mechanical assembly with two circular components and mounting holes (no text or symbols)

Telhado de concreto

natural_image Technical line drawing of a cylindrical mechanical component with mounting holes and a circular detail (no text or symbols)

Create WIND MINIMAL - CHECK INSTALLATION - 9

natural_image Line drawing of a cylindrical container with internal components and a circular symbol on the left (no text or labels)
natural_image Line drawing of a three-bladed propeller or fan assembly (no text or symbols)

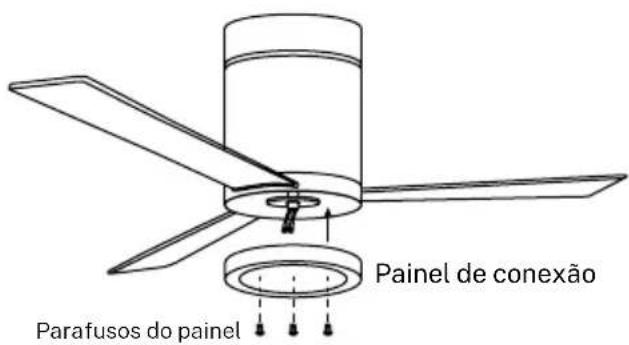

MONTAGEM EM PAINEL DE REMENDO
Create WIND MINIMAL - CHECK INSTALLATION - 10

text_image Painel de conexão Parafusos do painel

Create WIND MINIMAL - CHECK INSTALLATION - 11

natural_image Line drawing of a three-bladed propeller or fan assembly (no text or symbols)
natural_image Technical line drawing of a three-blade propeller with a central hub and mounting base, showing internal components and rotation arrow (no text or symbols)
natural_image Simple line drawing of a cylindrical container with internal structure (no text or symbols)

Moteur

Create WIND MINIMAL - CHECK INSTALLATION - 12

natural_image Line drawing of a remote control with a handheld device (no text or symbols)

Commande et pilote

Create WIND MINIMAL - CHECK INSTALLATION - 13

Create WIND MINIMAL - CHECK INSTALLATION - 14

Create WIND MINIMAL - CHECK INSTALLATION - 15

natural_image Simple line drawing of a circular mechanical component with evenly spaced holes and a central hub (no text or symbols)
natural_image Technical diagram of a mechanical assembly with a central component and multiple screws below (no text or symbols)

Toiture en bois

natural_image Technical diagram of a ceiling-mounted device with internal components and mounting holes (no text or symbols)

Toit en béton

natural_image Technical line drawing of a cylindrical mechanical component with mounting flanges and a circular detail (no text or symbols)

Create WIND MINIMAL - CHECK INSTALLATION - 16

natural_image Simple line drawing of a cylindrical container with internal components and a circular element on the left (no text or symbols)
natural_image Technical line drawing of a three-blade propeller assembly with a rotating base and directional arrow (no text or symbols)
natural_image Simple line drawing of a cylindrical container with internal structure (no text or symbols)

Motore

Create WIND MINIMAL - CHECK INSTALLATION - 17

natural_image Line drawing of a remote control with two devices (no text or symbols)
natural_image Simple line drawing of a circular mechanical component with evenly spaced holes and a central hub (no text or symbols)

Pannello LEDSchermo decorativo

natural_image Technical diagram of a mechanical assembly with threaded components and a circular base, showing no text or symbols.

Tetto in legno

natural_image Technical diagram of a mechanical assembly with two circular components and mounting holes (no text or symbols)

Tetto in cemento

text_image Technical diagram of a cylindrical device with labeled components and an arrow indicating assembly or insertion.

Create WIND MINIMAL - CHECK INSTALLATION - 18

natural_image Technical line drawing of a cylindrical mechanical component with mounting holes and a circular top (no text or symbols)

Create WIND MINIMAL - CHECK INSTALLATION - 19

natural_image Line drawing of a cylindrical container with internal components and a labeled section (no text or symbols)
natural_image Line drawing of a three-bladed propeller or fan assembly (no text or symbols)

MONTAGGIO SU PANNELLO PATCH
Create WIND MINIMAL - CHECK INSTALLATION - 20

natural_image Line drawing of a three-bladed propeller or fan assembly (no text or symbols)
natural_image Technical line drawing of a three-blade propeller assembly with a rotating base and directional arrow (no text or symbols)
natural_image Simple line drawing of a cylindrical container with internal structure (no text or symbols)

Motor

Create WIND MINIMAL - CHECK INSTALLATION - 21

natural_image Line drawing of a remote control with two devices (no text or symbols)

Befehl und Fahrer

Create WIND MINIMAL - CHECK INSTALLATION - 22

Create WIND MINIMAL - CHECK INSTALLATION - 23

Create WIND MINIMAL - CHECK INSTALLATION - 24

natural_image Simple line drawing of a circular mechanical component with evenly spaced holes and a central hub (no text or symbols)
natural_image Technical diagram of a mechanical assembly with a central component and multiple screws below (no text or symbols)

Holzdach

natural_image Technical line drawing of a mechanical assembly with two circular components and mounting holes (no text or symbols)

Betondach

natural_image Technical line drawing of a cylindrical mechanical component with mounting holes and a circular inset view (no text or symbols)

Create WIND MINIMAL - CHECK INSTALLATION - 25

natural_image Simple line drawing of a cylindrical container with internal components and a circular element on the left (no text or symbols)
natural_image Line drawing of a three-bladed propeller or fan assembly (no text or symbols)

PATCH PANEL-MONTAGE
Create WIND MINIMAL - CHECK INSTALLATION - 26

natural_image Line drawing of a three-bladed propeller or fan assembly (no text or symbols)
natural_image Technical line drawing of a three-blade propeller with a central hub and mounting base, showing internal components and rotation arrow (no text or symbols)
natural_image Simple line drawing of a cylindrical container with internal structure (no text or symbols)

Motor

Create WIND MINIMAL - CHECK INSTALLATION - 27

natural_image Line drawing of a remote control with two devices (no text or symbols)

Commando en chauffeur

Create WIND MINIMAL - CHECK INSTALLATION - 28

Create WIND MINIMAL - CHECK INSTALLATION - 29

Create WIND MINIMAL - CHECK INSTALLATION - 30

natural_image Simple line drawing of a circular mechanical component with evenly spaced holes and a central hub (no text or symbols)
natural_image Technical diagram of a mechanical assembly with threaded components and a circular base, showing no text or symbols.

Houten dak

natural_image Technical line drawing of a ceiling lamp with internal components and mounting base (no text or symbols)

Betonnen dak

natural_image Technical line drawing of a cylindrical mechanical component with mounting holes and a circular inset view (no text or symbols)

Create WIND MINIMAL - CHECK INSTALLATION - 31

natural_image Simple line drawing of a cylindrical container with internal components and a circular element on the left (no text or symbols)
natural_image Line drawing of a three-bladed propeller or fan assembly (no text or symbols)
natural_image Technical line drawing of a three-blade propeller with a central hub and mounting base, showing internal components and rotation arrow (no text or symbols)
natural_image Simple line drawing of a cylindrical container with a grid pattern at the bottom (no text or symbols)

Silnik

Create WIND MINIMAL - CHECK INSTALLATION - 32

natural_image Line drawing of a remote control with two devices (no text or symbols)
natural_image Simple line drawing of a circular mechanical component with evenly spaced holes and a central hub (no text or symbols)

INTENSYWNOŚĆ WENTYLATORA

natural_image Technical diagram of a mechanical assembly with a central component and four screws below (no text or symbols)

Dach drewniany

natural_image Technical line drawing of a ceiling fixture with internal components and mounting holes (no text or symbols)

Betonowy dach

natural_image Technical line drawing of a cylindrical mechanical component with mounting holes and a circular inset view (no text or symbols)

Create WIND MINIMAL - Betonowy dach - 1

natural_image Simple line drawing of a cylindrical container with internal components and a circular element above (no text or symbols)
natural_image Technical line drawing of a three-blade propeller with a central hub and base, showing internal components and a rotating knob (no text or symbols)
Manual assistant
Powered by Anthropic
Waiting for your message
Product information

Brand : Create

Model : WIND MINIMAL

Category : Fan
