Product type	Generator
Brand	PRAMAC
Model	P2200i
Series	Inverter
Engine type	4-stroke petrol
Max power	2200 W
Rated power	1800 W
Output voltage	230 V / 50 Hz
Weight	22 kg
Dimensions (L x W x H)	550 x 450 x 450 mm
Tank capacity	4.5 L
Runtime at 50% load	4 h
Starting	Manual (recoil)
Power outlet	Schuko 230 V
Electrical protection	Circuit breaker
Engine safety	Automatic low oil shutdown
Use	Outdoor only, away from windows and doors
Guaranteed sound level	95 dB(A)
Fuel	Unleaded petrol
Engine oil	SAE 10W-30 (quantity: 0.4 L)
Routine maintenance	Oil change, air filter, spark plug
Spare parts available	Air filter, spark plug, fuel filter

Frequently Asked Questions - P2200i PRAMAC

Can I use the PRAMAC P2200i generator indoors?

No, never indoors or in an enclosed space. The engine emits carbon monoxide (CO), an odorless and deadly gas. Use it exclusively outdoors, away from windows, doors, and vents.

What type of fuel should I use for the P2200i?

Use unleaded petrol with an octane rating ≥ 87. Do not use fuel containing more than 10% ethanol.

What engine oil is recommended?

Use SAE 10W-30 4-stroke engine oil. Capacity is about 0.4 L. Check level before each use.

How do I maintain the air filter?

Clean the air filter every 50 hours of use or more often in dusty environments. Remove it, wash with soapy water, dry, and lightly soak in engine oil before reinstalling.

What to do in case of generator overload?

The generator is protected by a circuit breaker. If power exceeds rated value, the breaker cuts the power. Reduce load and reset the breaker.

How do I start the P2200i generator?

Ensure the tank has fuel and oil level is correct. Open fuel valve, set choke, pull the starter cord. Once started, push choke back.

What is the runtime of the generator?

With a 4.5 L tank, runtime is about 4 hours at 50% load. Runtime varies with load.

Does the generator have surge protection?

Yes, the inverter technology provides stable voltage and surge protection, suitable for sensitive electronics.

Can I connect the generator to my home electrical system?

No, direct connection to home wiring is extremely dangerous (backfeed). Hire a qualified electrician to install a compliant transfer switch.

How do I ground the generator?

If necessary, use the grounding point on the frame with a ground rod and suitable cable. Under normal conditions, the neutral is not bonded to ground.

USER MANUAL P2200i PRAMAC

Line drawing of a portable electronic device with control panel and buttons (no text or symbols)

QR code image containing encoded data, no visible human-readable text

NOTE

The aim of the present document is to collect all the important information and procedures for the safe. Carefully reading, understanding and observing is an aid to avoiding hazards.

Unlike the operator's manual the "safety information guideline" doesn't provide specific indication about the way how the PRAMAC machine should be operated and maintained, but only underlines the possible hazards connected to these activities and indicates how to protect the user from them.

2 Warning symbols

This safety information guideline contains safety information of the categories: DANGER, WARNING, CAUTION, NOTICE.

They should be followed to prevent danger to life and limb of the operator or damage to equipment and exclude improper service.

	DANGER	This warning notice indicates immediate hazards that result in serious injury or even death.
	WARNING	This warning notice indicates possible hazards that can result in serious injury or even death.
	CAUTION	This warning notice indicates possible hazards that can result in minor injury.
	NOTICE	This warning notice indicates possible hazards that can result in material damage.

3 Safety and information labels

There are labels on your equipment that contain important information and safety instructions.

- Keep all labels legible.

- Replace missing or illegible labels.

The item numbers on the labels can be found in the parts book.

Item	Label	Description
1		Guaranteed sound power level.
2		DANGER!Danger of suffocation.Engines give off carbon monoxide.Do not run the machine indoors or in enclosed areas.NEVER operate in houses or garages, EVEN IF doors and windows are open.Only use OUTDOORS and away from windows, doors and aeration.Read through the operator's manual.No sparks, flames or burning objects are permitted near the machine.Stop the engine before refueling.
3		Warning against hot surface.
4		Warning against hot surface.PE = Potential grounding - Connect cable from grounding rod here (where required).WARNING!Electric shock will ca use serious injury or death.

4 Hazards tables

KIND OF HAZARD	HAZARD DESCRIPTION	INVOLVED ACTIVITIES	PRECAUTIONARY MEASURES
	Carbon monoxide.The application of a generator in buildings can LEAD TO DEATH WITHIN MINUTES.The exhaust fumes from the generator contain carbon monoxide (CO).This is an invisible odorless poison. If the exhaust fumes of the generator can be smelled, CO is being inhaled. Even if no exhaust fumes can be smelled, CO could still be being inhaled.	operating	- NEVER use the generator in buildings, garages, crawl spaces or other partially enclosed areas. Carbon monoxide can build up to deadly levels in these areas. A fan or open window does NOT provide sufficient fresh air.- ONLY use generators outdoors and far away from windows, doors and aeration. These openings can draw in generator exhaust fumes.- CO can penetrate into a home, even if a generator is used properly. ALWAYS use a battery-powered or battery-backup CO alarm in the home.- IMMEDIATELY get to fresh air if you feel unwell, dizzy or weak after using the generator. Consult a physician. It could be carbon monoxide poisoning.
	Electric shock or risk of fire or explosion. Incorrect connection of the generator to a building's mains supply can lead to current being lead from the generator back into the power supply system. This can cause electric shock, serious injury or death of the worker in the public utility company!	starting, operating	- The generator must meet the prerequisites with regard to performance, voltage and frequency of the equipment.- The generator must be disconnected from the electric power supply.- Connections from the generator to the power supply system of a building must be established by a licensed electrician.-The electrical connections must meet all laws and electrical regulations.
	Prerequisites for safe operation are familiarity with the machine and proper training. Machines that are incorrectly operated or that are operated by untrained personnel may pose a danger. Read through the operating instructions in the operator's manual and in the engine manual to make yourself familiar with the job and the proper use of the operator's controls.	general use	Only trained personnel may start, operate and switch off the machine. The personnel must also have the following qualifications:- be trained in the correct operation of the machine- be familiar with the necessary safety devices Access to the machine and operation of the machine is not permitted for:- Children- People under the influence of alcohol, drugs or medication.Specific personal protective clothing (PPE) is to be worn when operating this machine, read operator's manual for detailed information about PPE before operating the machine.
Warning	Carelessly maintained machines can pose dangers! Regular maintenance and occasional repairs are necessary to ensure the safe and correct functioning over longer time periods.	general use	Follow the period maintenance schedule and the general maintenance prescriptions listed in the operator's manual.If problems should occur with the generator or while the machine is being maintained, always attach a "DO NOT START" sign to the control panel in order to alert others of this.
Caution	The mid-point (neutral) conductor of this equipment is not grounded.Do not drive the PE rod into the ground under normal operating conditions.Refer to the local regulations if the equipment is intended to power a building or similar system.	electrical connection	For generator sets that are to supply a facility in a TT network, or if residual current protection is required in the TT network, or if this equipment must be used for additional protection due to conditions or regulations, only 30 mA residual current protective switches may be used as protective devices. The 30 mA residual current protective switch must be installed ON the generator set itself, but at least on the nearest possible position in relation to the generator set. Only with this type of installation is it allowed and necessary to establish the ground connection of the generator framework via the point provided on the frame.
Warning	Damaged cables may cause electric shock, which can lead to serious injury or death.	operating	NEVER use worn, bare or frayed cables.Replace damaged cables immediately.Never exceed the cable's rated power. Contact the cable manufacturer if you have questions about using the cable.
Warning	GASOLINE IS FLAMMABLE	operating, refueling, maintenance	When running the engine:- Keep the area around the exhaust pipe free of flammable materials.- Inspect the fuel lines and fuel tank for leaks and cracks before starting the engine.- Do not operate the machine if there are leaks or if the fuel lines are loose.-Do not smoke while operating the machine. - Do not operate the engine near sparks or open flames.- Do not operate the machine with a loose or missing fuel cap.- Do not start the engine if fuel has been spilled or there is an odor of gas. Move the machine away from the spilled fuel and wipe away the spilled fuel before starting.When refueling the machine or during maintenance:- Immediately wipe away any spilled fuel.- Fill the fuel tank in a well-ventilated area.- Reattach the fuel tank cap after refueling.- Do not smoke.- Do not refuel hot or running engines.- Do not refuel the engine near sparks or open flames.- Do not refuel the machine while it is on plasticcoated surfaces of pick-ups. Static electricity can ignite the fuel or fuel vapors.
	The exhaust will become very hot during operation and also remains hot for a while after the engine is switched off.	operating, maintenance	- Do not touch the engine or the muffler while the engine is running or shortly after switching the engine off.NOTE: A loose spark plug can become very hot and lead to engine damage, See the technical data for the recommended spark plug and spark plug air gap

LINEE GUIDA DI SICUREZZA SERIE P INVERTER P2200i

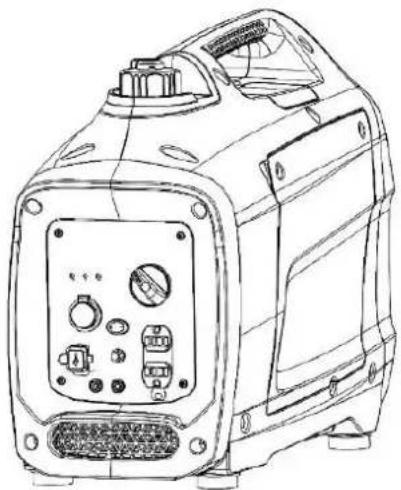

Line drawing of a portable electronic device with control panel and buttons (no text or symbols)

QR code image containing encoded data, no visible human-readable text

NOTA:

LEGGERE IL MANUALE COMPLETO DELL'OPERATORE PRIMA DI UTILIZZARE LA MACCHINA!

IL MANUALE DELL'OPERATORE PUÒ ESSERE SCARICATO NELLA LINGUA DESIDERATA TRAMITE II CODICE QR O DAL SITO WEB PRAMAC:

http://manuals.pramac.info/p2200i/

1 Premessa

Line drawing of a portable electronic device with control panel and buttons (no text or symbols)

QR code image containing encoded data, no visible human-readable text

REMARQUE

LISEZ LE MANUEL DE L'UTILISATEUR AVANT D'UTILISER LA MACHINE !

LE MANUEL DE L'OPÉRATEUR PEUT ÊTRE TÉLÉCHARGÉ DANS VOTRE LANGUE À L'AIDE D'UN LECTEUR DE CODE QR OU À PARTIR DU SITE WEB PRAMAC:

http://manuals.pramac.info/p2200i/

1 Avant-propos

Line drawing of a portable electronic device with control panel and buttons (no text or symbols)

QR code image containing encoded data, no visible human-readable text

HINWEIS

Line drawing of a portable electronic device with control panel and buttons (no text or symbols)

QR code image containing encoded data, no visible human-readable text

NOTA

Line drawing of a portable electronic device with control panel and buttons (no text or symbols)

QR code image containing encoded data, no visible human-readable text

NOTA

LEIA O MANUAL DO OPERADOR COMPLETO ANTES DE OPERAR A MÁQUINA!

O MANUAL DO OPERADOR PODE SER TRANSFERIDO NO SEU IDIOMA USANDO UM LEITOR DE CÓDIGO QR CODE OU A PARTIR DO SITE DA PRAMAC:

http://manuals.pramac.info/p2200i/

1 Preâmbulo

Line drawing of a portable electronic device with control panel and buttons (no text or symbols)

QR code image containing encoded data, no visible human-readable text

OPMERKING

DE VOLLEDIGE GEBRUIKERSHANDLEIDING LEZEN VOORDAT U DE MACHINE BEDIENT!

DE GEBRUIKERSHANDLEIDING KAN WORDEN GEDOWNLOAD IN UW TAAL MET BEHULP VAN EEN QR-CODELEZER OF VAN DE PRAMAC-WEBSITE:

http://manuals.pramac.info/p2200i/

1 Voorwoord

Line drawing of a portable electronic device with ports and buttons (no text or symbols)

QR code image containing encoded data, no visible human-readable text

UWAGA

PRZED OBSŁUGA URZĄDZENIA NALEŻY ZAPOZNAĆ SIĘ Z INSTRUKCJA OBSŁUGI

INSTRUKCJĘ OBSŁUGI W TWOIM JĘZYKU MOŻNA POBRAĆ ZA POMOĆĄ CZYTNIKA KODÓW QR LUB ZE STRONY INTERNETOWEJ PRAMAC:

http://manuals.pramac.info/p2200i/

1 Wstęp

Line drawing of a portable electronic device with control panel and buttons (no text or symbols)

QR code image containing encoded data, no visible human-readable text

NOTĂ

PARCURGETI INTEGRAL MANUALUL DE UTILIZARE ÎNAINTE DE UTILIZAREA APARATULUI!

MANUALUL DE UTILIZARE POATE FI DESCĂRCAT ÎN LIMBA DVS. UTILIZÂND UN CITITOR DE COD QR SAU DE PE SITE-UL WEB AL PRAMAC:

http://manuals.pramac.info/p2200i/

1 Prefață

Line drawing of a portable electronic device with control panel and buttons (no text or symbols)

QR code image containing encoded data, no visible human-readable text

ЗАБЕЛЕЖКА

Line drawing of a portable electronic device with control panel and buttons (no text or symbols)

QR code image containing encoded data, no visible human-readable text

NAPOMENA

PROČITAJTE KOMPLETAN PRIRUČNIK OPERATORA PRIJE RADA SA MAŠINOM!

PRIRUČNIK OPERATORA MOŽE SE PREUZETI NA VAŠEM JEZIKU KORIŠĆENJEM ČITAČA QR KODA ILI SA PRAMAC WEB STRANICE:

http://manuals.pramac.info/p2200i/

1 Predgovor

Cilj ovog dokumenta je prikupljanje svih važnih informacija i procedura za sef. . Pažljivo čitanje, razumijevanje i posmatranje predstavljaju pomoć pri izbjegavanju opasnosti.

Za razliku od priručnika za rukovanje, "vodič o sigurnosnim informacijama" ne daje specifičnu naznaku o načinu na koji treba rukovati i održavati PRAMAC mašinu, već samo naglašava moguće opasnosti povezane s tim aktivnostima i ukazuje kako zaštititi korisnikaUnlike.

2 Simboli upozorenja

Line drawing of a portable electronic device with control panel and buttons (no text or symbols)

QR code image containing encoded data, no visible human-readable text

NAPOMENA

PROČITAJTE KOMPLETAN PRIRUČNIK OPERATORA PRIJE RADA SA MAŠINOM!

PRIRUČNIK OPERATORA MOŽE SE PREUZETI NA VAŠEM JEZIKU KORIŠĆENJEM ČITAČA QR KODA ILI SA PRAMAC WEB STRANICE:

http://manuals.pramac.info/p2200i/

1 Úvodní slovo

Line drawing of a portable electronic device with control panel and buttons (no text or symbols)

QR code image containing encoded data, no visible human-readable text

NOTE

LÆS DEN FULDSTÆNDIGE BRUGERVEJLEDNING F∅R BETJENING AF MASKINEN!

BRUGERVEJLEDNINGEN KAN DOWNLOADES PÅ DIT SPROG VED HJÆLP AF EN QR-KODELÆSER ELLER FRA PRAMACS HJEMMESIDE:

http://manuals.pramac.info/p2200i/

1 Forord

Line drawing of a portable electronic device with control panel and buttons (no text or symbols)

QR code image containing encoded data, no visible human-readable text

ΣΗΜΕΙΩΣΗ

Line drawing of a portable electronic device with control panel and buttons (no text or symbols)

QR code image containing encoded data, no visible human-readable text

MÄRKUS

LUGEGE ENNE MASINA KÄITAMIST LÄBI KOGU KASUTUSJUHEND!

SOOVITUD KEELES KASUTUSJUHENDI SAATE ALLA LAADIDA QR-KOODI LUGEJA ABIL VÕI PRAMACI

http://manuals.pramac.info/p2200i/

1 Eessõna

Line drawing of a portable electronic device with control panel and buttons (no text or symbols)

QR code image containing encoded data, no visible human-readable text

HUOMAUTUS

LUE KÄYTTÄJÄN KÄSIKIRJA KOKONAAN ENNEN LAITTEEN KÄYTTÖÄ!

VOIT LADATA KÄYTTÄJÄN KÄSIKIRJAN OMALLE KIELELLESI KÄÄNNETTYNÄ KÄYTTÄMÄLLÄ QR-KOODIN LUKIJAOHJELMAA TAI PRAMACIN VERKKOSIVUSTOLTA:

http://manuals.pramac.info/p2200i/

1 Esipuhe

Line drawing of a portable electronic device with control panel and buttons (no text or symbols)

QR code image containing encoded data, no visible human-readable text

NAPOMENA:

PROČITAJTE CJELOKUPNI PRIRUČNIK ZA RAD PRIJE RUKOVANJA STROJEM!

PRIRUČNIK ZA RAD MOŽETE PREUZETI NA SVOJEM JEZIKU UPOTREBOM ČITAČA ZA QR KODOVE ILI S WEB-MJESTA DRUŠTVA PRAMAC:

http://manuals.pramac.info/p2200i/

1 Predgovor

Line drawing of a portable electronic device with control panel and buttons (no text or symbols)

QR code image containing encoded data, no visible human-readable text

MEGJEGYZÉS:

A GÉP MÜKÖDTETÉSE ELÖTT OLVASSA EL A TELJES KEZELÖI KÉZIKÖNYVET!

A KEZELŐI KÉZIKÖNYV A KÍVÁNT NYELVEN LETÖLTHETŐ QR-KÓD OLVASÓVAL VAGY A PRAMAC WEBOLDALÁRÓL:

http://manuals.pramac.info/p2200i/

1 Előszó

Line drawing of a portable electronic device with control panel and buttons (no text or symbols)

QR code image containing encoded data, no visible human-readable text

ATHUGID

LESA FYRIR HANDBÚNADUR ÖRYGGISVÉLARINNAR ÁDUR EN MERKID ER NOTAĐ!

Line drawing of a portable electronic device with control panel and buttons (no text or symbols)

QR code image containing encoded data, no visible human-readable text

PASTABA

ATIDŽIAI PERSKAITYKITE OPERATORIAUS VADOVĄ IR TIK TADA PRADĖKITE EKSPLOATUOTI MAŠINA!

OPERATORIAUS VADOVĄ GALIMA ATSISIŲSTI JŪSŲ KALBA NAUDOJANT QR KODŲ SKAITYTUVĄ ARBA IŠ "PRAMAC" INTERNETINĖS SVETAINĖS:

http://manuals.pramac.info/p2200i/

1 Pratarmè

Line drawing of a portable electronic device with control panel and buttons (no text or symbols)

QR code image containing encoded data, no visible human-readable text

PIEZIME

PIRMS IEKÄRTAS LIETOŠANAS IZLASIET VISU OPERATORA ROKASGRÄMATU!

OPERATORA ROKASGRĀMATU JŪSU IZVĒLĒTAJĀ VALODĀ VAR LEJUPIELĀDĒT, IZMANTOJOT QR KODU NOLASĪTĀJU VAI NO TĪMEKŁA VIETNES:

http://manuals.pramac.info/p2200i/

1 Priekšvārds

Line drawing of a portable electronic device with control panel and buttons (no text or symbols)

QR code image containing encoded data, no visible human-readable text

MERK

LES DEN KOMPLETTE BRUKERHÅNDBOKEN F∅R BRUK AV MASKINEN!

BRUKERHÄNDBOKEN KAN LASTES NED PÅ DITT SPRÅK VED Å BRUKE EN QR KODELESER ELLER FRA PRAMACS NETTSTED:

http://manuals.pramac.info/p2200i/

1 Forord

Line drawing of a portable electronic device with control panel and buttons (no text or symbols)

QR code image containing encoded data, no visible human-readable text

POZNÁMKA

PRED OBSLUHOU STROJA SI PREČÍTAJTE KOMPLETNÝ NÁVOD NA OBSLUHU!

NÁVOD NA OBLSUHU SI MÔŽETE STIAHNUŤ VO VAŠOM JAZYKU POMOCOU ČÍTAČKY QR KÓDOV ALEBO ZO STRÁNKY SPOLOČNOSTI PRAMAC:

http://manuals.pramac.info/p2200i/

1 Predslov

Line drawing of a portable electronic device with control panel and buttons (no text or symbols)

QR code image containing encoded data, no visible human-readable text

OPOMBA

PRED UPRAVLJANJEM S STROJEM DO KONCA PREBERITE NAVODILA ZA UPORABO!

NAVODILA ZA UPORABO LAHKO V SVOJEM JEZIKU PRENESETE Z UPORABO BRALNIKA KOD QR, ALI IZ SPLETNEGA MESTA PRAMAC:

http://manuals.pramac.info/p2200i/

1 Predgovor

Line drawing of a portable electronic device with control panel and buttons (no text or symbols)

QR code image containing encoded data, no visible human-readable text

OBS

LÄS HELA ANVÄNDARHANDBOKEN INNAN DU ANVÄNDER MASKINEN!

ANVÄNDARHANDBOKEN KAN LADDAS NER I DITT SPRÅK MED EN QR-KODLÄSARE ELLER FRÅN PRAMAC-WEBBPLATSEN:

http://manuals.pramac.info/p2200i/

1 Förord
