USER MANUAL SPR 600 A1 SILVERCREST

Operating instructions

FR BE

NETTOYEUR DE PORES

Mode d'emploi

CZ

ČISTIČ PÓRŮ

Návod k obsluze

SK

ČISTIČ PÓROV

Návod na obsluhu

DK

PORERENSER

GB/IE Operating instructions Page 1

Soft Normal Strong M SILVERCREST

B

Diagram of a cable with connector blocks and a pin, no text or symbols present

Simple line drawing of a conical container with a vertical line and number 11 at the base (no text or symbols on the container itself)

Simple line drawing of a conical flask with a vertical line and number 10 at the base (no text or symbols on the diagram itself)

Simple line drawing of a conical flask with a pointed tip and label '9' (no text or symbols on the diagram itself)

12x 4x

8 7

Contents

Introduction.... 2

Proper use 2

Warnings and symbols used 2

Notes on trademarks 3

Safety information 4

Package contents 9

Appliance description 10

Charging the integrated battery 11

Before first use ....

Preparing the appliance .... 1 2

Checking compatibility 12

Handling and operation.... 13

Selecting an attachment 13

Fitting an attachment with filter 14

Intensity levels 14

Treatment of the face 15

Areas of application 16

Cleaning and care 18

Storage 19

Ordering replacement parts 20

Disposal 20

Disposal of the appliance....21

Disposal of the packaging 22

Technical specifications 22

Kompernass Handels GmbH warranty 22

Service 25

Importer 2

Introduction

Congratulations on the purchase of your new appliance.

You have selected a high-quality product. The operating instructions are part of this product. They contain important information about safety, usage and disposal. Before using the product,

please familiarise yourself with all operating and safety instructions. Use the product only as described and for the specified range of applications. Please also pass these operating instructions on to any future owner.

Proper use

This appliance uses vacuum technology for deep cleaning of facial pores and treating blackheads. It also removes dead skin cells and stimulates circulation. The appliance is not suitable for treating sensitive areas around the eyes or lips.

The appliance is intended solely for personal, private use. Do not use the appliance on animals. It is not intended for use in medical/therapeutic or commercial fields.

It is not intended for any other purpose nor for use beyond the scope described. If you are uncertain whether the appliance is appropriate for you, please consult a physician.

Warnings and symbols used

The following warnings and symbols are used in these operating instructions, on the packaging and on the appliance (where applicable):

DANGER! A warning with this symbol and the signal word "DANGER" indicates an imminently hazardous situation that will result in death or serious injury if not avoided.

	WARNING! A warning with this symbol and the signal word "WARNING" indicates a potentially hazardous situation that could result in death or serious injury if not avoided.
	CAUTION! A warning with this symbol and the signal word "CAUTION" indicates a potentially hazardous situation that could result in a minor or moderate injury if not avoided.
	ATTENTION! A warning with this symbol and the signal word "ATTENTION" indicates a potential situation that could result in property damage if not avoided.
	A note identifies additional information that facilitates the use of the appliance.
	Read the instructions.
	DC current/voltage
	Removable power supply

Notes on trademarks

USB ^® is a registered trademark of USB Implementers Forum, Inc.

The SilverCrest trademark and the retail name are the property of their respective owner.

All other names and products may be trademarks or registered trademarks of their respective owner.

Safety information

DANGER!

• Connect the mains adapter only to correctly installed and earthed mains sockets. Ensure that the power supply corresponds with the information on the type plate of the appliance/mains adapter.
  ▶ To avoid potential risks, damaged mains cables should be replaced by the manufacturer, their customer service department or someone similarly qualified.
  ▶ Make sure that the charging cable does not become wet or damp. Route the cable in such a way that it cannot be caught or damaged.
• Keep the appliance and the charging cable away from hot surfaces.
• Do not perform any repairs to the appliance. All repairs must be performed by our customer service department or by a qualified specialist technician.
  ▶ Never open the appliance housing. There are no parts inside the appliance that require user maintenance. In addition, this will invalidate the warranty.
  ▶ Switch off the appliance after each use and before cleaning it.

▶ Never immerse the appliance in water or other liquids!

▶ Never reach for the appliance if it has fallen into water.

▶ Do not use the appliance while taking a bath or shower. Do not store or keep the appliance in places from where it can fall into the bath tub, sink or other containers filled with water or other liquids.

▶ Do not use the appliance if the power cable is damaged, if the mains adapter or accessories are defective, if the appliance is not working properly, or if it has sustained a fall.

WARNING!

This appliance may be used by children aged 8 over and by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge, provided that they are under supervision or have been told how to use of the appliance safely and are aware of the potential risks. Children must not play with the appliance. Cleaning and user maintenance tasks must not be carried out by children unless they are supervised.

Children must be supervised to make sure that they do not play with the appliance or its parts.

▶ Never leave children unattended with the packaging material. Keep children away from the packaging and the appliance. There is a risk of suffocation!

▶ Do not use the appliance if you suffer from one or more of the following illnesses or complaints: heart disease, multiple sclerosis, diabetes, autoimmune illnesses, skin cancer, circulatory disorders, or skin conditions such as herpes, vascular disorders, facial erythrosis, rosacea, skin growths, cracked skin, irritated skin.

▶ Never insert the suction head or a connected attachment into your eyes!

WARNING!

UN 34811 Tel. [phone]

The product is equipped or supplied with a lithium-ion battery.

This appliance contains a battery that cannot be replaced.

The appliance has an integrated lithium-ion battery. Incorrect handling can lead to fire, explosions, leakage of dangerous substances or other hazards!

▶ Do not throw the appliance into an open fire.

CAUTION!

▶ Never use the appliance on animals, during pregnancy, after cosmetic surgeries on the face, or on parts of the body that are exhibiting swelling, burns, sunburn, inflammation, eczema, wounds or cracked skin.

▶ Do not use the appliance if you are taking a blood thinner or medications containing steroids.

- Stop treatment with the appliance immediately if you experience any discomfort or pain. Excessive strain on the skin can lead to allergic reactions, bruises, swelling or broken capillaries. In case of doubt, consult your physician to determine if the treatment is suitable for you.

▶ Do not use the appliance on sensitive, movable parts of the eyes or on the lips.

- Do not use the appliance on nipples or in the genital area.

▶ Never use the appliance without the attachment.

▶ Uninterrupted application of the appliance may not last any longer than 5 minutes. The first treatments may not exceed 3 minutes. Do not treat the same area for too long or with too much force. Do not treat the same area several times in succession.

▶ Do not insert your fingers or any other objects into the opening for the attachment or into the suction head. Keep long hair away from the appliance.

ATTENTION!

▶ Use the appliance only with the supplied accessories.

▶ Use only the supplied charging cable to charge the appliance.

- Keep the appliance away from heat sources (radiators, ovens, etc.) and do not expose it to extreme temperature fluctuations.

There are no serviceable parts or parts requiring cleaning inside the appliance. Penetrating moisture can cause damage to the appliance.

▶ Do not use any aggressive cleaning liquids or solvents to clean the appliance.

They could damage the surface.

Package contents

The appliance is supplied with the following components as standard:

• Pore cleanser
• USB charging cable (USB-A to USB-C)
• 3x Attachments
• 12x Filters
• 6x Locking rings
• Operating instructions

⚠️ DANGER! Do not allow children to play with packaging materials.

There is a risk of suffocation.

1) Remove all parts of the appliance and the operating instructions from the box.
2) Remove all packaging material.

i Note:

Check the package for completeness and signs of visible damage. If the delivery is incomplete or damage has occurred as a result of defective packaging or during transport, contact the customer service hotline (see Service section).

Appliance description

Figure A:

① 2x Locking rings (on the appliance)
② Suction head
③ USB-C port
4 Intensity button
5 On/Off buttab
6 LED display

Figure B:

⑦ 4x Spare locking rings
8 12x Filters
9 Oval attachment
10 Small attachment
11 Large attachment

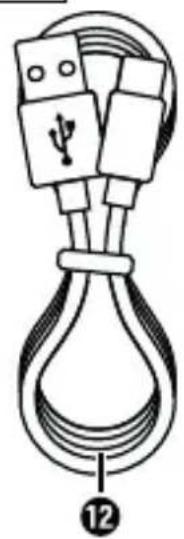

⑫ USB charging cable (USB-A to USB-C)

Charging the integrated battery

DANGER! Risk of fatal electric shock! Only charge the appliance indoors in dry locations away from water. For example, do not charge the appliance next to or above a sink filled with water.

(i) Note:

Before using the appliance, the integrated battery must be completely charged.

The USB charging cable ⑫ and the USB-C port ③ are used only to charge the internal battery. They are not suitable for data transmission.

Charging takes about 120 minutes at an input current of max. 500 mA. The maximum operating time for a fully charged battery is approximately 90 minutes.

Only charge the appliance with a USB power adapter with protection class II that is approved for use with household appliances and has an output voltage of 5 V = and an output current of max. 2 A.

Use only the supplied USB charging cable ⑫ to charge the integrated battery. Disconnect the USB charging cable ⑫ when charging is complete.

1) Make sure that the appliance is switched off. Hold down the On/Off button ⏻⑤ for about 2 seconds to switch off the appliance.
2) Connect the USB-A plug of the USB charging cable ⑫ to a suitable mains adapter.
3) Connect the USB-C plug of the USB charging cable ⑫ to the USB-C port ③ of the appliance.
4) Plug the mains adapter into a mains power outlet.
The battery symbol 📄 will light up in the LED display ⑥ to show the charge status.

i Note:

10 minutes after the charging process has finished, the appliance will switch off automatically.

5) Pull the mains adapter from the mains power socket and disconnect the USB charging cable ⑫ from the appliance.

Before first use

Preparing the appliance

1) Charge the battery as described in the section Charging the integrated battery.
2) We recommend cleaning the appliance and the attachments ⑨-⑪ as described in the section Cleaning and care before using them for the first time. This will remove any residues left from the production process.

The appliance is now ready for use.

Checking compatibility

We recommend first testing the appliance in a less sensitive area. Check how your skin reacts, for example, by testing it on the inside of your lower arm. First read the section Handling and operation so that you know how to use the appliance safely and avoid injuries.

■ Clean the skin and make sure that no cream or moisturizer has been applied to the area.

■ Only continue with the application on your face if no skin reactions appear on the test area after about 30 minutes.

In case of doubt, consult your physician to determine if the treatment is suitable for you.

Handling and operation

Selecting an attachment

The appliance comes with 3 attachments ⑨ - ⑪ for treating the skin.

You can:

• Clean the pores of your face and treat blackheads.
• Remove dead skin cells.
  ● Stimulate blood circulation in the skin.

Attachment Opening shape Areas of application
Small attachment 10		This attachment treats a small area, making it suitable for hard-to-reach locations, such as on the nose. The attachment is also suitable for initial applications or for sensitive skin.
Large attachment 11		This attachment treats a large area. The attachment can be applied to all areas of the face. Pay attention to the unique aspects of the eyes and mouth! This attachment is also suitable for use on blackheads.
Oval attachment 9		This attachment treats a somewhat large area and is particularly suitable for the sides of the nose and around the mouth. We recommend the intensity level "Soft".

Fitting an attachment with filter

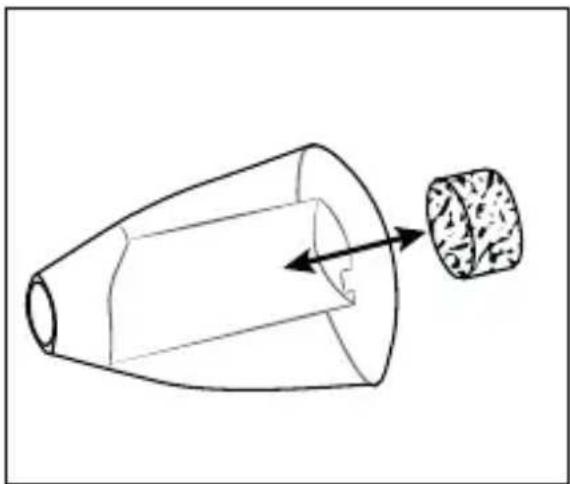

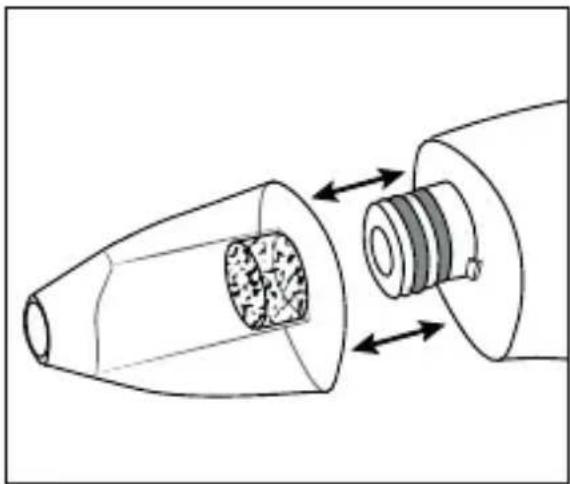

Diagram of a conical object with an arrow pointing to a textured circular component (no text or symbols)

1) If already fitted: remove the fitted attachment ⑨ - ⑪ from the suction head ②.

2) To change the filter ⑧, pull the current filter ⑧ out of the suction channel of the attachment ⑨ -⑪. Use tweezers, if necessary.

3) Insert a filter ⑧ into the suction channel of the selected attachment ⑨ -11.

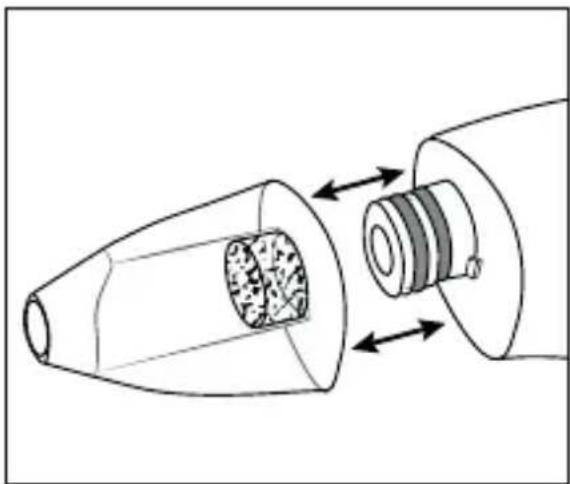

Technical line drawing of a mechanical component with internal cross-section and threaded end (no text or symbols)

4) Fit the attachment ⑨ - ⑪ onto the suction head ② so that the small rectangular tab on the lower part of the suction head ② engages precisely into the matching recess in the suction channel of the attachment ⑨ - ⑪.

5) Shake the appliance lightly if the filter ⑧ has slipped into the suction channel. The filter ⑧ must be resting directly on the suction head ② for the appliance to function properly.

Intensity levels

You can choose between 3 intensity levels.

The symbols ⬆ in the LED display ⑥ light up at different speeds depending on the selected intensity level.

Intensity level Function	Speed of symbols
"Soft" Light suction Slow
"Normal" Moderate suction Medium
"Strong" Strong suction Fast

Treatment of the face

⚠️ CAUTION! There is a risk of bruises, swelling and skin irritation.

Always begin at the lowest intensity level and gradually increase the intensity, if needed.

Take special care and use a low intensity level when treating sensitive areas or sensitive skin.

Do not use the appliance on the sensitive skin immediately around the eyes or on the lips.

Everyone's body reacts differently. If you find an application unpleasant, reduce the intensity level, switch immediately to a different location, reduce the pressure you exert on your skin with the appliance or stop the treatment completely.

(i) Note:

Before beginning a treatment, clean your skin to remove any powder, cream or make-up. Ensure that your skin is completely dry.

Avoid using a sauna or tanning bed on the day before and the day after a treatment. Protect your skin from the sun.

1) Fit the selected attachment ⑨-⑪ with filter ⑧.

2) Start the appliance by pressing the On/Off button ⏻⑤ for about 2 seconds.

The intensity level "Normal" lights up in the LED display ⑥.

The symbols will light up.

(i) Note:

During the initial applications, use the small attachment 10, which treats only a small area at a time. Also select the intensity level "Soft" with the lowest suction power. Sensitive skin can react with swelling. Perform a compatibility test, if necessary: before treating your face, check how your skin reacts at another location, such as the inside of your lower arm. Wait about 30 minutes for a possible skin reaction.

3) Press the Intensity button Ⓜ ④ to set the intensity level. This changes the amount of suction force.

CAUTION! There is a risk of bruises, swelling and skin irritation.

Uninterrupted application of the appliance may not last any longer than 5 minutes. The first treatments may not exceed 3 minutes. Do not treat the same area for too long or with too much force. Do not treat the same area several times in succession.

Do not use the appliance more often than twice per week.

4) Place the opening of the attachment ⑨ - ⑪ against the skin of your face. Move the appliance as follows:

Press only hard enough for the attachment ⑨ - ⑪ to make full contact with the skin so that the appliance cannot draw in outside air. You will feel a light suction force on the area being treated. Never remain at a fixed location. Always keep the appliance in motion. Pull the appliance over each area of skin only a single time!

5) Treat the areas of the face as described in the section Areas of application.

6) Press the On/Off button ⏻ ⑤ for about 2 seconds to switch off the appliance.

Areas of application

Note:

Take care that your skin is firm so that the attachment ⑨ - ⑪ can make a seal against the skin and not draw in outside air.

If necessary, use one hand to pull the treated area and tighten it while moving the appliance over the area with your other hand.

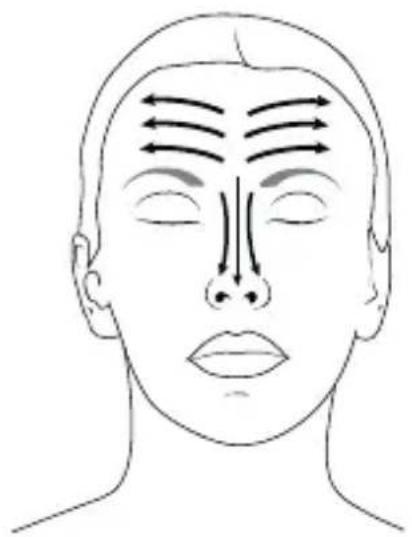

Line drawing of a human face with arrows indicating airflow or pressure direction (no text or symbols)

Forehead: Place the appliance in the middle of your forehead and pull it outward to just before the hairline.

Nose: Place the appliance on the upper part of your nose and pull it down the sides and middle of the nose.

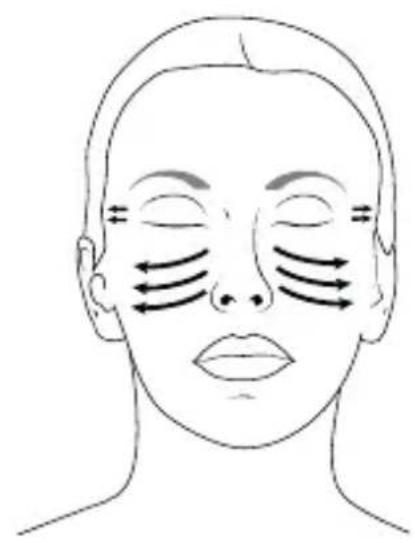

Line drawing of a human face with closed eyes and curved arrows indicating motion or pressure direction (no text or symbols)

Cheeks: Place the appliance next to your nose and pull it over your cheeks.

Temples: Place the appliance next to your eye. Maintain a distance of about 1 - 2 cm from the eye. Then pull the appliance towards the hairline.

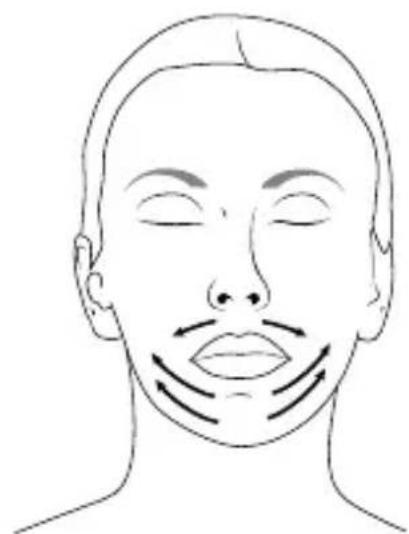

Line drawing of a human face with arrows indicating direction of movement or pressure points (no text or symbols)

Mouth and chin: Place the appliance above the mouth and pull it to the side towards your cheek. Do not touch the lips directly. Place the appliance on your chin and pull it up towards the cheeks. Stop before you reach your cheek.

After use

■ Clean your face with water. Do not use any irritating care products. Apply soothing skincare products or a moisturizing cream.

■ You may observe some reddening of the skin after the treatment. However, this is temporary and should go away within one or two days, at most. If you experience any issues, please consult your physician.

■ Avoid using a sauna or tanning bed on the day before and the day after a treatment. Protect your skin from the sun.

Cleaning and care

⚠️ DANGER! Risk of fatal injury from electrocution! Before every cleaning, disconnect the USB charging cable ⑫ from the appliance and pull the mains adapter out of the mains socket.

Never immerse the appliance, the USB power cable ⑫ or the mains adapter in water or other liquids!

ATTENTION! Do not use abrasive or caustic cleaning agents to clean the appliance. They can corrode the surface and damage the appliance beyond repair.

There are no serviceable parts or parts requiring cleaning inside the appliance. Penetrating moisture can cause damage to the appliance.

■ Make sure that the appliance is switched off and the USB charging cable ⑫ is not connected to the appliance.

Remove the fitted attachment ⑨ - ⑪ and take out the used filter ⑧. You can use the filters ⑧ multiple times. After use, wash the filter in lukewarm water and allow it to dry before the next use. If the filter is still dirty or defective, use a new filter ⑧.

- Clean the attachment ⑨ - ⑪ with water and washing-up liquid. If necessary, use a moistened cotton swab to clean the inside of the attachments ⑨ - ⑪. We recommend additionally applying a suitable disinfectant. Allow the attachments ⑨ - ⑪ to dry before the next use.

(i) Note:

If the locking rings ① break during cleaning, replace them with the provided spare locking rings ⑦. If necessary, you can order more filters ⑧, locking rings ⑪ and attachments ⑨-⑪ (see section Ordering replacement parts).

In case of soiling, pull the locking rings ① off the suction head ②. Use tweezers, if necessary. Clean the locking rings ① in lukewarm water with some washing-up liquid.

Wipe the area around the suction head ② with a slightly damp cloth. Then wipe it again with a dry cloth. Clean the other surfaces of the appliance only with a dry cloth.

Place the locking rings ① back on the suction head ② and slide them into the provided grooves.

Storage

■ Store the appliance and its accessories in a dry and dust-free location.
■ To ensure a long battery life, charge the battery at regular intervals.

Ordering replacement parts

You can order replacement parts for this product on the Internet at www.kompernass.com.

SPR 600 A1

Scan the QR code with your smartphone/tablet. You can use this QR code to go directly to our website to view and order the available spare parts.

i Note:

If you have problems with your online order, you can contact our service centre by phone or e-mail.

Please always quote the article number (IAN) 433835_2207 in your order. Please note that online ordering of replacement parts is not possible for all countries.

Disposal

Applies only to France:

The product, its packaging and the operating instructions are recyclable. They are subject to an extended manufacturer responsibility and will be collected separately.

Disposal of the appliance

Simple line drawing of a trash bin with no text or symbols

The adjacent symbol of a crossed-out dustbin means that this appliance is subject to Directive 2012/19/EU. This directive states that this appliance may not be disposed of in the normal household waste at the end of its useful life, but must be taken to specially set-up collection locations, recycling depots or disposal companies.

The disposal is free of charge for the user. Protect the environment and dispose of this appliance properly.

If your old appliance has stored any personal data, you are responsible for deleting it yourself before returning it.

If it is possible to do so without destroying the old appliance, remove the old batteries or rechargeable batteries before returning the appliance for disposal and take them to a separate collection point. In the case of permanently installed rechargeable batteries, you must indicate during disposal that the appliance contains a battery.

The integrated rechargeable battery in this appliance cannot be removed for disposal.

Your local community or municipal authorities can provide information on how to dispose of the worn-out product.

Disposal of the packaging

Simple line drawing of a three chasing recycling symbol (no text or labels)

The packaging materials have been selected for their environmental friendliness and ease of disposal and are therefore recyclable. Dispose of packaging materials that are no longer needed in accordance with applicable local regulations.

b a

Dispose of the packaging in an environmentally friendly manner. Note the labelling on the packaging and separate the packaging material components for disposal, if necessary. The packaging material is labelled with abbreviations (a) and numbers (b) with the following meanings: 1–7: plastics, 20–22: paper and cardboard, 80–98: composites.

Technical specifications

Appliance
Input voltage 5.0 V	---
Input current max. 500 mA
Integrated battery (Li-ion) 600 mAh / 3.7 V	--- / 2.22 Wh
Protection class	III / (Protection through low voltage)

This appliance has a 3-year warranty valid from the date of purchase. If this product has any faults, you, the buyer, have certain statutory rights. Your statutory rights are not restricted in any way by the warranty described below.

Warranty conditions

The warranty period starts on the date of purchase. Please keep your receipt in a safe place. This will be required as proof of purchase.

If any material or manufacturing fault occurs within three years of the date of purchase of the product, we will either repair or replace the product for you or refund the purchase price (at our discretion). This warranty service requires that you present the defective appliance and the proof of purchase (receipt) within the three-year warranty period, along with a brief written description of the fault and of when it occurred.

If the defect is covered by the warranty, your product will either be repaired or replaced by us. The repair or replacement of a product does not signify the beginning of a new warranty period.

Warranty period and statutory claims for defects

The warranty period is not prolonged by repairs effected under the warranty. This also applies to replaced and repaired components. Any damage and defects present at the time of purchase must be reported immediately after unpacking. Repairs carried out after expiry of the warranty period shall be subject to a fee.

Scope of the warranty

This appliance has been manufactured in accordance with strict quality guidelines and inspected meticulously prior to delivery.

The warranty covers material faults or production faults. The warranty does not extend to product parts subject to normal wear and tear or to fragile parts which could be considered as consumable parts such as switches, batteries or parts made of glass.

The warranty does not apply if the product has been damaged, improperly used or improperly maintained. The directions in the operating instructions for the product regarding proper use of the product are to be strictly followed. Uses and actions that are discouraged in the operating instructions or which are warned against must be avoided.

This product is intended solely for private use and not for commercial purposes. The warranty shall be deemed void in cases of misuse or improper handling, use of force and modifications / repairs which have not been carried out by one of our authorised Service centres.

Warranty claim procedure

To ensure quick processing of your case, please observe the following instructions:

Please have the till receipt and the item number (IAN) 433835_2207 available as proof of purchase.

■ You will find the item number on the type plate on the product, an engraving on the product, on the front page of the operating instructions (below left) or on the sticker on the rear or bottom of the product.

If functional or other defects occur, please contact the service department listed either by telephone or by e-mail.

■ You can return a defective product to us free of charge to the service address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred.

PDF ONLINE www.fdi-service.com

You can download these instructions along with many other manuals, product videos and installation software at www.lidl-service.com.

This QR code will take you directly to the Lidl service page (www.lidl-service.com) where you can open your operating instructions by entering the item number (IAN) 433835_2207.

Service

Service Great Britain

Tel.: [phone]

E-Mail: [e-mail]

Servicelreland

Tel.: [phone]

E-Mail: [e-mail]

IAN 433835_2207

Importer

Please note that the following address is not the service address. Please use the service address provided in the operating instructions.

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

Inhaltsverzeichnis

Einleitung 28

Diagram of a conical container with an arrow pointing to a textured cylindrical object (no text or symbols present)

Cross-sectional diagram of a mechanical component with internal components and directional arrows (no text or labels)

Line drawing of a human face with arrows indicating airflow or pressure direction (no text or symbols)

Line drawing of a human face with closed eyes and curved arrows indicating motion or pressure direction (no text or symbols)

Line drawing of a human face with arrows indicating airflow or pressure direction (no text or symbols)

Symbol of a trash bin crossed out by two diagonal lines (no text or labels)

Simple line drawing of a recycling symbol with three chasing arrows (no text or labels)

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

DEUTSCHLAND

www.kompernass.com

Table des matières

Introduction 54

Utilisation conforme .... 54

Diagram of a conical object with an arrow pointing to a textured circular component (no text or symbols)

Technical line drawing of a mechanical component with internal cross-section and directional arrows (no text or symbols)

Line drawing of a human face with arrows indicating airflow or pressure direction (no text or symbols)

Line drawing of a human face with closed eyes and curved arrows indicating motion or pressure direction (no text or symbols)

Line drawing of a human face with arrows indicating airflow or pressure direction (no text or symbols)

Symbol of a trash bin crossed out by two diagonal lines (no text or labels)

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

ALLEMAGNE

www.kompernass.com

Inhoud

Inleiding 84

Diagram of a conical container with a side outlet and internal structure, no text or symbols present

Diagram of a mechanical component with internal cross-section and directional arrows indicating movement (no text or symbols)

Line drawing of a human face with arrows indicating airflow or pressure direction (no text or symbols)

Line drawing of a human face with closed eyes and curved arrows indicating motion or pressure direction (no text or symbols)

Line drawing of a human face with arrows indicating airflow or pressure direction (no text or symbols)

Simple line drawing of a trash bin with crossed lines indicating no waste or restriction (no text or symbols)

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

DUITSLAND

www.kompernass.com

Obsah

Úvod....110

Diagram of a conical container with an arrow pointing to a textured cylindrical object (no text or symbols present)

Technical line drawing of a mechanical component with internal cross-section and directional arrows (no text or symbols)

Line drawing of a human face with arrows indicating airflow or pressure direction (no text or symbols)

Line drawing of a human face with closed eyes and curved arrows indicating motion or pressure direction (no text or symbols)

Line drawing of a human face with arrows indicating movement or pressure points (no text or symbols)

Symbol of a trash bin crossed with a diagonal line, representing no waste or discharge (no text or labels)

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

NĚMECKO

www.kompernass.com

Spis treści

Wstep.... 134

Diagram of a conical container with an arrow pointing to a textured cylindrical object (no text or symbols present)

Diagram of a mechanical component with internal cross-section and directional arrows indicating movement (no text or symbols)

Line drawing of a human face with arrows indicating airflow or pressure direction (no text or symbols)

Line drawing of a human face with closed eyes and curved arrows indicating motion or pressure (no text or symbols)

Line drawing of a human face with arrows indicating airflow or pressure direction (no text or symbols)

Simple line drawing of a trash bin with crossed lines indicating no waste or restriction (no text or symbols)

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

NIEMCY

www.kompernass.com

Obsah

Úvod 160

Diagram of a conical container with an arrow pointing to a textured cylindrical object (no text or symbols)

Technical line drawing of a mechanical component with internal cross-section and threaded end (no text or symbols)

Line drawing of a human face with arrows indicating airflow or pressure direction (no text or symbols)

Čelo: Priložte prístroj na stred čela a t'ahajte ním smerom von až k vlasom.

Line drawing of a human face with closed eyes and curved arrows indicating motion or pressure (no text or symbols)

Line drawing of a human face with arrows indicating airflow or pressure direction (no text or symbols)

Simple line drawing of a trash bin with two crossed lines indicating no waste or prohibition (no text or symbols)

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

NEMECKO

www.kompernass.com

Índice

Introducción 186

Uso previsto 186

Diagram of a conical object with an arrow pointing to a textured circular component (no text or symbols)

Diagram of a mechanical component with internal cross-section and directional arrows indicating movement (no text or symbols)

Line drawing of a human face with arrows indicating airflow or pressure direction (no text or symbols)

Line drawing of a human face with closed eyes and closed mouth, showing airflow or pressure lines around the eyes (no text or symbols)

Line drawing of a human face with arrows indicating direction of movement or pressure points (no text or symbols)

Simple line drawing of a trash bin with two crossed lines indicating no waste or prohibition (no text or symbols)

Simple line drawing of a recycling symbol with three chasing arrows forming a triangle (no text or labels)

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

ALEMANIA

www.kompernass.com

Indholdsfortegnelse

Indledning 212

Anvendelsesområde 212

Diagram of a conical object with a cylindrical component inserted into it, showing internal structure and flow direction (no text or symbols)

Technical line drawing of a mechanical component with internal cross-section and directional arrows (no text or symbols)

Line drawing of a human face with arrows indicating airflow or pressure direction (no text or symbols)

Line drawing of a human face with closed eyes and curved arrows indicating motion or pressure direction (no text or symbols)

Line drawing of a human face with arrows indicating movement or pressure points (no text or symbols)

Symbol of a trash bin crossed with two crossed lines, representing no waste or discharge (no text or labels)

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

TYSKLAND

www.kompernass.com

Indice

Introduzione 238

Uso conforme 238

Diagram of a conical object with an arrow pointing to a textured circular component (no text or symbols)

Cross-sectional diagram of a mechanical component with internal parts and directional arrows (no text or labels)

Line drawing of a human face with arrows indicating direction of movement or pressure points (no text or symbols)

Symbol of a trash bin crossed out by two diagonal lines (no text or labels)

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANIA

www.kompernass.com

Tartalomjegyzék

Bevezető 26

Diagram of a conical object with a cylindrical component inserted into it, showing internal structure and flow direction (no text or symbols)

Technical line drawing of a mechanical component with internal cross-section and threaded end (no text or symbols)

Line drawing of a human face with arrows indicating airflow or pressure direction (no text or symbols)

Line drawing of a human face with closed eyes and curved arrows indicating motion or pressure direction (no text or symbols)

Line drawing of a human face with arrows indicating movement or pressure points (no text or symbols)

Simple line drawing of a trash bin with two crossed lines indicating no waste or discharge (no text or symbols)

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

NÉMETORSZÁG

www.kompernass.com

Kazalo

Uvod 290

Predvidena uporaba....290

Varnostna opozorila in simboli v teh navodilih ..... 290

Opombe k blagovnim znamkam 291

Varnostna navodila 292

Vsebina kompleta 297

Opis naprave 298

Diagram of a conical object with an arrow pointing to a textured circular component (no text or symbols)

1) Če je že nameščen, povlecite nataknjeni nastavek ⑨–⑪ s sesalne glave ②.
2) Za zamenjavo filtra ⑧ povlecite obstoječi filter ⑧ iz sesalnega kanala nastavka ⑨-⑪. Po potrebi si pomagajte s pinceto.
3) Vstavite filter ⑧ v sesalni kanal želenega nastavka ⑨ - ⑪.

Technical line drawing of a mechanical component with internal cross-section and directional arrows (no text or symbols)

4) Nataknite nastavek ⑨-⑪ na sesalno glavo ② tako, da majhen, oglati zaskočni nastavek na spodnjem delu sesalne glave ② sega točno v primerno odprtino v sesalnem kanalu nastavka ⑨-⑪.

Line drawing of a human face with arrows indicating airflow or pressure direction (no text or symbols)

Line drawing of a human face with closed eyes and curved arrows indicating motion or pressure (no text or symbols)

Line drawing of a human face with arrows indicating airflow or pressure direction (no text or symbols)

Usta in brada: Napravo začnite uporabljati nad usti in jo pomikajte na stran v smeri lic. Ustnic se pri tem ne dotikajte. Napravo namestite na brado in jo pomikajte navzgor v smeri lic. Preden dosežete lica, se ustavite.

Po uporabi

Simple line drawing of a trash bin with two crossed lines indicating no waste or restriction (no text or symbols)

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

NEMČIJA

www.kompernass.com

Pooblaščeni serviser

SI ServisSlovenija

Tel.: [phone]

E-Mail: [e-mail]

IAN 433835_2207

Garancijski list

Diagram of a conical object with a cylindrical component inserted into it, showing internal structure and flow direction (no text or symbols)

1) Ako je već pričvršćen: povucite montirani nastavak ⑨ - ⑪ s usisne glave ②.

Technical line drawing of a mechanical component with internal cross-section and threaded end (no text or symbols)

Line drawing of a human face with arrows indicating airflow or pressure direction (no text or symbols)

Čelo: postavite uređaj na sredinu čela i povucite prema van do linije kose.

Nos: postavite uređaj malo ispod vrha nosa i povucite ga u strane i na sredini nosa prema dolje do nosnica.

Line drawing of a human face with closed eyes and curved arrows indicating motion or pressure (no text or symbols)

Obrazi: postavite uređaj uz nos i povucite ga preko obraza.

Line drawing of a human face with arrows indicating airflow or pressure direction (no text or symbols)

Usta i brada: postavite uređaj iznad usta i povucite ga u stranu prema obrazima. Nemojte izravno dodirivati usne. Počnite od brade i povucite uređaj prema obrazima. Prekinite prije nego stignete do obraza.

Nakon uporabe

Očistite lice vodom. Izbjegavajte korištenje iritirajućih sredstava za njegu, nanesite umirujuću kremu za njegu ili hidratantnu kremu.

Nakon tretmana može doći do blagog crvenila kože. Međutim, isto ne bi trebalo biti dugotrajno i trebalo bi nestati najkasnije nakon dan ili dva. U slučaju simptoma, obratite se svom liječniku za savjet.

Izbjegavajte saunu i solarij dan prije i dan nakon tretmana. Zaštitite kožu od sunca.

Simple line drawing of a trash bin with two crossed lines indicating no waste or restriction (no text or symbols)

Ovaj simbol prekrižene kante za otpad na kotačićima ukazuje na to da ovaj uređaj podliježe direktivi 2012/19/EU. Tom se direktivom zabranjuje bacati uređaj na kraju njegova roka uporabe u obično kućno smeće. Uređaj se mora predati na mjestu za sakupljanje posebnog otpada ili predati poduzeću za zbrinjavanje posebnog otpada.

Simple line drawing of a recycling symbol with three chasing arrows forming a triangle (no text or labels)

Materijali ambalaže odabrani su prema ekološkim načelima i nače-lima zbrinjavanja, te se stoga mogu reciklirati. Ambalažu koja vam više nije potrebna zbrinite u skladu s važećim lokalnim propisima.

b a

Ambalažu zbrinite na ekološki prihvatljiv način. Pazite na oznake na različitim materijalima ambalaže i po potrebi ih zbrinite odvojeno. Materijali ambalaže označeni su kraticama (a) i brojkama (b) sljedećeg značenja: 1–7: Plastika, 20–22: Papir i karton, 80–98: Kompozitni materijali.

Tehnički podaci

Uređaj
Ulazni napon 5 V	——
Ulazna struja maks 500 mA
Integrirana baterija (litij-ionska) 600 mAh / 3,7 V —/ 2,22 Wh
Razred zaštite	III/ [IMAGE] (Zaštita niskim naponom)

Jamstvo tvrtke Kompernass Handels GmbH

Poštovani kupci,

Za ovaj uređaj odobrava se jamstvo u trajanju od 3 godine od datuma kupnje. U slučaju nedostataka ovoga proizvoda, Vama pripadaju zakonska prava na teret prodavača proizvoda. U nastavku izloženo jamstvo ne ograničava ova zakonska prava.

Uvjeti jamstva

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

NJEMAČKA

www.kompernass.com

Cuprins

Introducere 340

Diagram of a conical object with an arrow pointing to a textured circular component (no text or symbols)

Technical line drawing of a mechanical component with internal cross-section and directional arrows (no text or symbols)

Line drawing of a human face with arrows indicating airflow or pressure direction (no text or symbols)

Line drawing of a human face with closed eyes and curved arrows indicating motion or pressure direction (no text or symbols)

Line drawing of a human face with arrows indicating direction of movement or pressure points (no text or symbols)

Simple line drawing of a trash bin with two crossed lines indicating no waste or restriction (no text or symbols)

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANIA

www.kompernass.com

Съдържание

Въведение 366

Употреба по предназначение .... 366

Diagram of a conical container with an arrow pointing to a textured cylindrical object (no text or symbols present)

Technical line drawing of a mechanical component with internal cross-section and directional arrows (no text or symbols)

Illustration of a human face with arrows indicating airflow or pressure direction (no text or symbols)

Line drawing of a human face with arrows indicating direction of movement or pressure points (no text or symbols)

QR code image containing encoded data, no visible human-readable text

SPR 600 A1

Simple line drawing of a trash bin with crossed lines indicating no waste or restriction (no text or symbols)

Simple line drawing of a recycling symbol (three chasing arrows) with no text or labels

Diagram of a conical container with an arrow pointing to a textured cylindrical object (no text or symbols present)

Cross-sectional diagram of a mechanical component with internal structure and directional arrows (no text or labels)

Line drawing of a human face with arrows indicating airflow or pressure direction (no text or symbols)

Line drawing of a human face with closed eyes and curved arrows indicating motion or pressure (no text or symbols)

Line drawing of a human face with arrows indicating direction of movement or pressure points (no text or symbols)

Simple line drawing of a trash bin with two crossed lines indicating no waste or discharge (no text or symbols)

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

ГЕРMANIA

www.kompernass.com

PDF ONLINE www.lidl-service.com

FR FR

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

Last Information Update · Stand der Informationen · Version des informations · Stand van de informatie

Stav informací · Stan informacji · Stav informácií · Estado de las informaciones
