GB/IE Operating instructions Page 1

Information about these operating instructions 2

Copyright 2

Proper use 2

Safety information .... 3

Appliance description 6

Package contents and transport inspection ....7

Using the appliance ....7

Assembling the appliance 7

Filling the fresh water tank 8

Handling and operation....10

Cleaning and maintenance 11

Cleaning the waste water tank 12

Cleaning the handle and cleaning attachment 15

Storage 16

Technical specifications....17

Ordering replacement parts 17

Troubleshooting 18

Disposal....19

Disposal of the appliance 19

Disposal of the packaging 19

Information about these operating instructions

Congratulations on the purchase of your new appliance.

You have selected a high-quality product.

The operating instructions are part of this product. They contain important information about safety, usage and disposal.

Before using the product, please familiarise yourself with all operating and safety instructions. Use the product only as described and for the range of applications specified. Please also pass these operating instructions on to any future owner.

Copyright

This documentation is protected by copyright. Any copying or reproduction, including in the form of extracts, or any reproduction of images (even in a modified state), is permitted only with the written authorisation of the manufacturer.

Proper use

This appliance is designed exclusively for cleaning indoor upholstery and carpets. It is not intended for any other purpose nor for use beyond the scope described. The appliance is not intended for use in commercial or industrial environments.

The manufacturer accepts no responsibility for damage caused by failure to observe these instructions, improper use or repairs, unauthorised modifications or the use of unapproved replacement parts. The operator bears sole liability.

Safety information

RISK OF ELECTRIC SHOCK!

• Connect the appliance only to a correctly installed mains socket supplying a mains voltage of 220-240 V \~, 50 Hz.
  ▶ Always pull on the plug to disconnect the appliance from the mains. Do not pull on the cable itself.
• Do not kink or crush the power cable, and route the cable so that it cannot be stepped on or tripped over.
  To prevent accidents, have defective plugs and/or power cables replaced immediately by an authorised specialist, our Customer Service or a similarly qualified person.
  ▶ Ensure that the power cable does not become wet or damp during use. Route the cable in such a way that it cannot be caught or damaged.
  In case of a malfunction, remove the power plug from the mains socket.
• Remove the power plug from the mains socket before filling the appliance with water, changing accessories or cleaning it.
  ▶ To prevent risks, stop using the appliance immediately if it is damaged.
  ▶ Operate the appliance only with dry hands and never without shoes (i.e. not barefoot). This will help reduce the effect of an electric shock in the event of a malfunction.

Use the appliance only in indoor areas, not outdoors.

RISK OF ELECTRIC SHOCK!

▶ Never immerse the appliance in water or other liquids.
▶ Never aim the appliance at moisture-sensitive objects, floors or surfaces.
This appliance may be used by children aged 8 years and above and by persons with limited physical, sensory or mental capabilities or lack of experience and knowledge, provided that they are under supervision or have been told how to use the tool safely and are aware of the potential risks. Do not allow children to use the appliance as a toy.
- Cleaning and user maintenance tasks may not be carried out by children unless they are supervised.

WARNING! RISK OF INJURY!

▶ Use only the original accessory parts recommended by the manufacturer for this appliance.
▶ Only use the appliance when it is properly and completely assembled.
The appliance may not be used if it has been dropped, if there are any obvious signs of physical damage or if it is leaking.
▶ Always pull the power plug out of the mains socket during each break in use, as well as after use and before any cleaning.
▶ Be particularly careful while using the appliance on steps or stairs.
- Do not use the appliance to vacuum up chemicals, poisonous materials or inflammable liquids.

ATTENTION! PROPERTY DAMAGE!

▶ Always comply with the cleaning instructions of the upholstery / carpet manufacturer. Before cleaning, check also whether the upholstery / carpet is suitable for cleaning with the appliance.
- Do not leave the appliance standing on wooden floors for any length of time when it is switched on. The wood could swell.
▶ Do not operate the appliance with an empty water tank. Otherwise, the pump could run empty and overheat.
▶ Do not insert any objects into the openings of the appliance.
▶ Do not use the appliance if the openings are blocked. Keep the openings free of dirt, fluff, hairs or anything that could impede the air circulation.
▶ Make sure that you do not vacuum up hard, pointed or sharp objects (e.g. glass, nails, screws, coins, etc.) with the appliance.
▶ Ensure that the appliance, the power cable and the plug do not come into contact with heat sources such as hotplates or naked flames.
▶ Use only the type and quantity of liquids listed in these operating instructions when operating the appliance.
▶ Never leave the appliance unattended during operation.

Appliance description

(See fold-out page for illustrations)

① Carrying handle
② On/Off switch
③ Waste water tank
4 Upper cable retainer
5 Lower cable retainer
6 Power cable with mains plug
7 Hose
8 Cleaning attachment
9 Handle
10 Hose retainer
⑪ Cleaning attachment cover
⑫ Cleaning attachment cover locking button
⑬ Cleaning attachment locking button
14 Spray button
15 Spray nozzle
16 Brush
17 Suction opening
18 Handle retainer
19 Float switch
20 Waste water tank lid
21 Dirt filter
22 Fresh water tank

Package contents and transport inspection

Remove all parts of the appliance and the operating instructions from the packaging.

◆ Remove all packaging materials and any films and labels.

Check the contents of the package. The package contents include the following components (see fold-out page for illustrations):

• Upholstery cleaner
- Cable retainer (2x)
- Operating instructions

NOTE

▶ Check the package for completeness and signs of visible damage.

▶ If the delivery is incomplete or damage has occurred as a result of defective packaging or during transport, contact the Service hotline (see section Service).

Using the appliance

CAUTION! PROPERTY DAMAGE!

▶ Never hold the appliance by the power cable 6 or the hose 7. Always use the carry handle 1.

Assembling the appliance

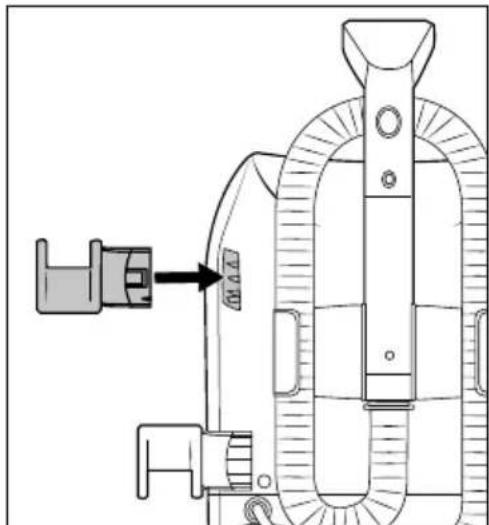

Slide both cable retainers 4/5 for winding the cable into the openings on the side of the appliance until they audibly click into place. Make sure that the upper and lower cable retainers 4/5 are in the correct positions (see Fig. 1).

Technical line drawing of a mechanical device with a component inserted, showing no text or symbols.

Fig. 1

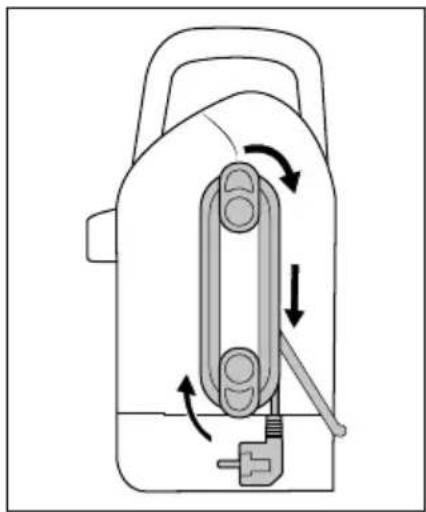

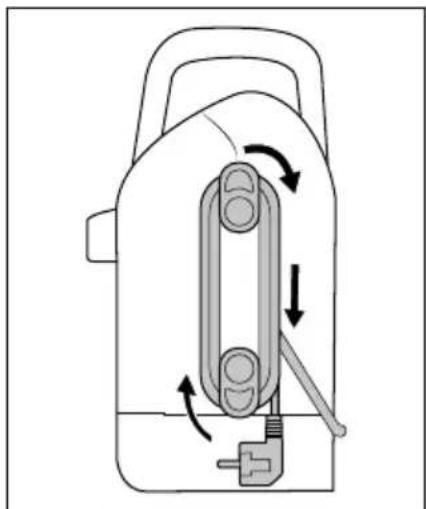

Wind the power cable ⑥ completely around the upper and lower cable retainers ④/⑤ (see Fig. 2).

Diagram of a portable electric kettle with internal components and directional arrows indicating rotation (no text or symbols)

Fig. 2

Filling the fresh water tank

CAUTION! PROPERTY DAMAGE!

▶ Fill the fresh water tap only with cold to warm tap water or distilled water. Do not use boiling water.
▶ Never operate the appliance without water in the fresh water tank 22.
▶ Use only standard commercial, non-foaming upholstery cleaning agents or LIDL W5 vinegar-based cleaner. Other cleaning agents can damage the appliance.
We recommend adding two tablespoons of LIDL W5 vinegar-based cleaner to a full (1 litre) fresh water tank ②. If necessary, add additional vinegar-based cleaner in small steps until obtaining the desired result.

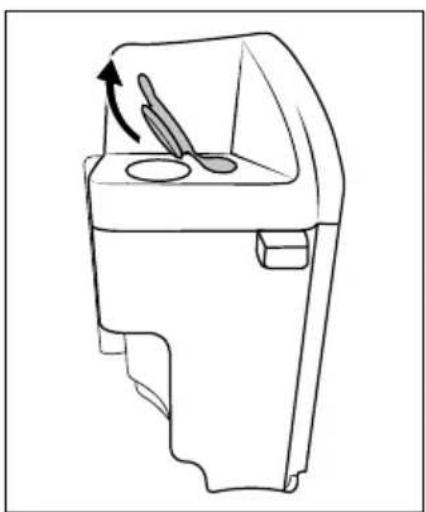

Hold the fresh water tan22 by gripping the handle and pull it towards you out of the appliance (see Fig. 3).

Illustration of a hand holding a device with a magnified view showing internal components (no text or symbols)

Fig. 3 Fig. 4

Line drawing of a mechanical device with a handle and internal components, no text or symbols present

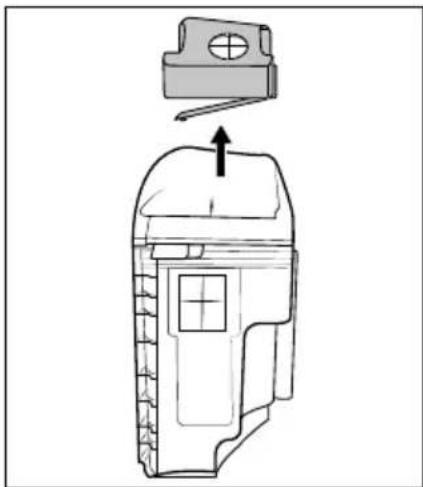

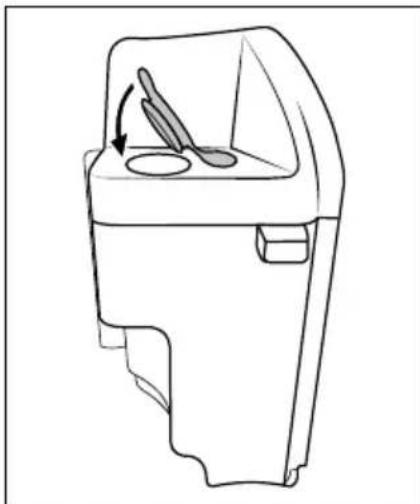

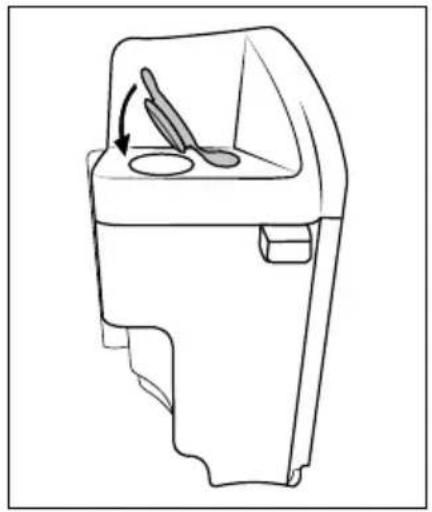

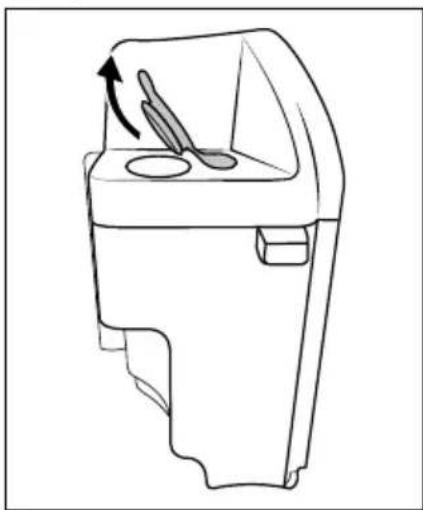

♦ Lift the attached seal of the fresh water tank 22 up out of the opening (see Fig. 4).

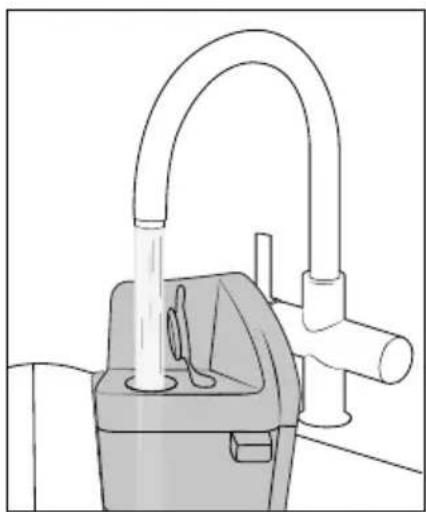

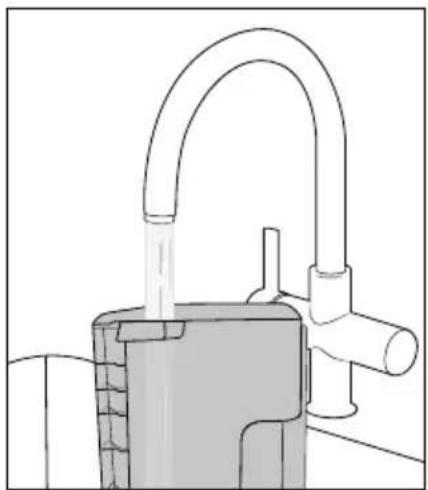

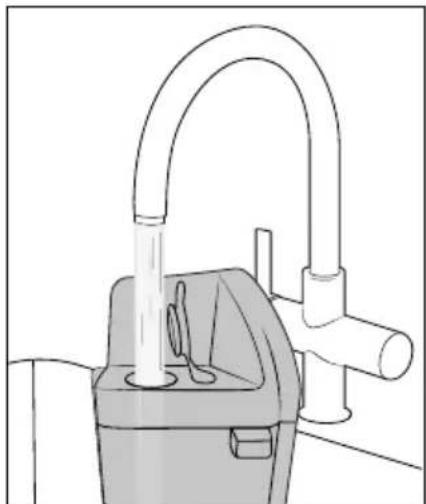

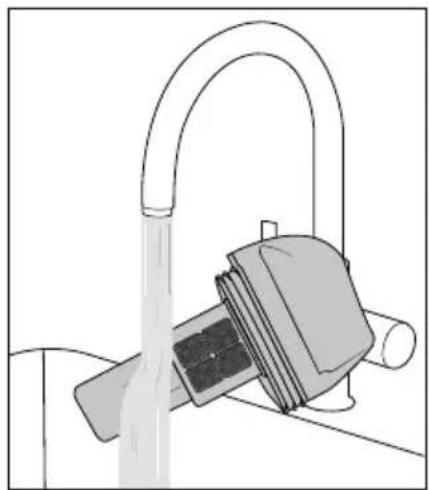

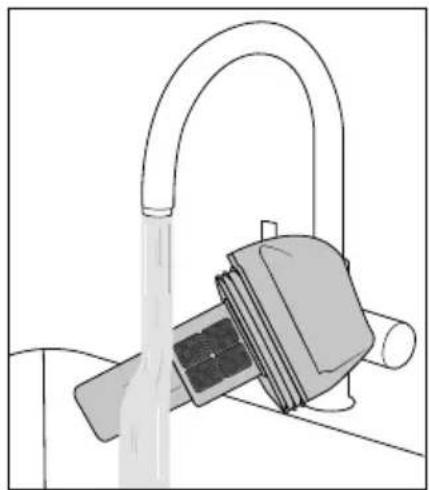

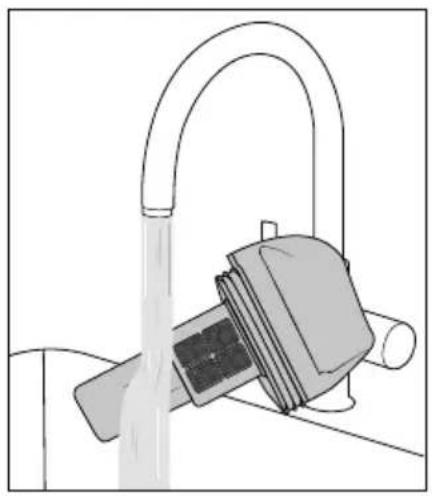

Fill the appliance with tap water (see Fig. 5) or distilled water, and add upholstery cleaning agent or W5 vinegar-based cleaner, if needed. Please observe the processing instructions of the manufacturer. Make sure that the fresh water tank 22 is filled no higher than the MAX marking.

Line drawing of a mechanical device with a curved pipe and base, no text or symbols present

Line drawing of a mechanical device with a handle and internal components, no text or symbols present

Fig. 5 Fig. 6

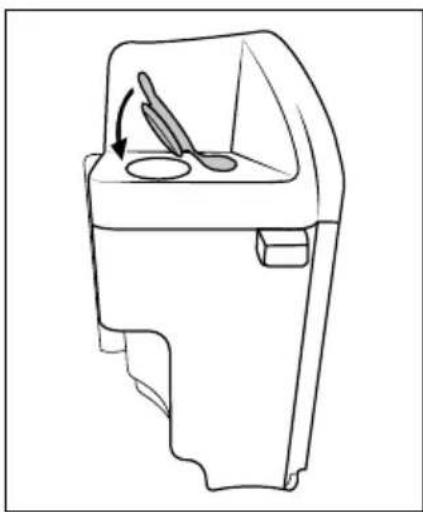

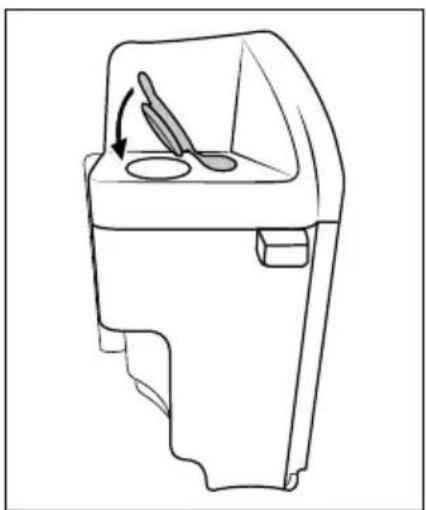

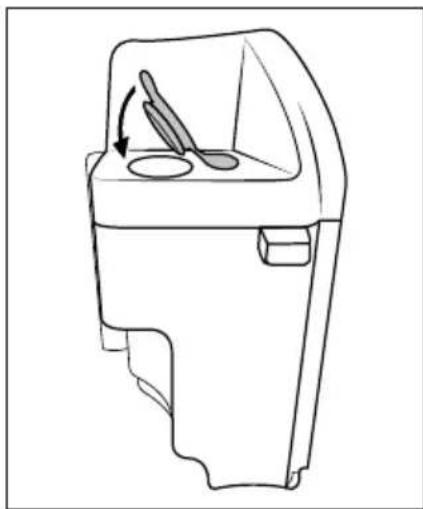

◆ Press the seal of the fresh water tan ^22 entirely back into the opening (see Fig. 6).

Grip the fresh water tan ^22 by the handle and place it back in the appliance. Push it forward into the appliance until it audibly clicks into place (see Fig. 7).

1 2

Fig. 7

Handling and operation

CAUTION! PROPERTY DAMAGE!

▶ While working with the appliance, make sure that the suction opening of the cleaning attachment ⑧ does not get blocked by loose objects lying around on the floor, lint, hair or the like. This could result in damage to the cleaning attachment ⑧, which may no longer work properly.
Before cleaning, check the upholstery / carpet manufacturer's label for special care instructions. The appliance is not suitable for sensitive textile fabrics (e.g. silk, leather, flokati).
▶ When using cleaning agents (vinegar-based cleaners and upholstery cleaning agents), always test how the appliance performs on an unobtrusive spot to ensure that no discolouration occurs.

Once the appliance is assembled and the fresh water tank 22 is filled with water and cleaning agent:

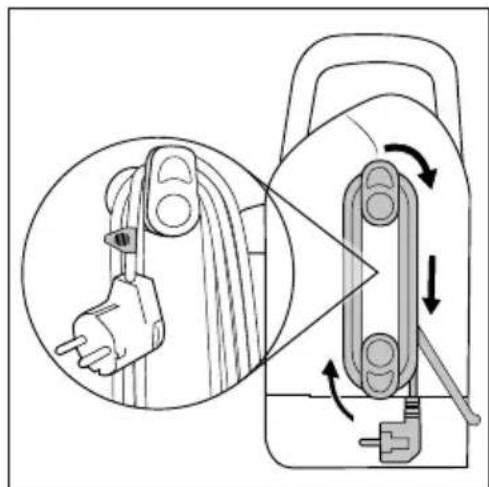

Unwind the power cable ⑥ from the cable retainer. To quickly unwind the power cable ⑥ from the cable retainers ④/⑤, turn the upper cable retainer ④ downward (see Fig. 8).

Diagram of a portable electric kettle with internal components and a handle, showing no text or symbols

Fig. 8

• Insert the power plug into the mains socket.
  Take the handle ⑨ from the handle retainer ⑱ and the hose ⑦ from the hose retainer ⑩.
  ◆ Press the On/Off switch② to turn on the appliance.

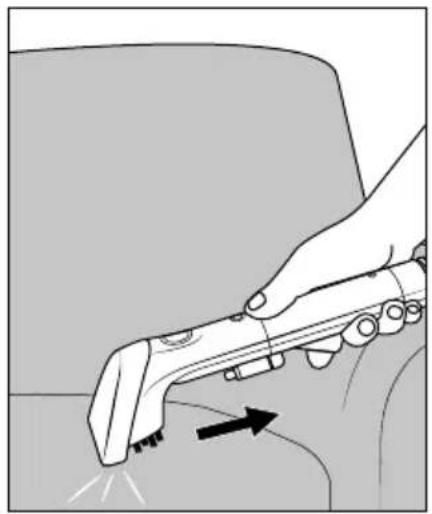

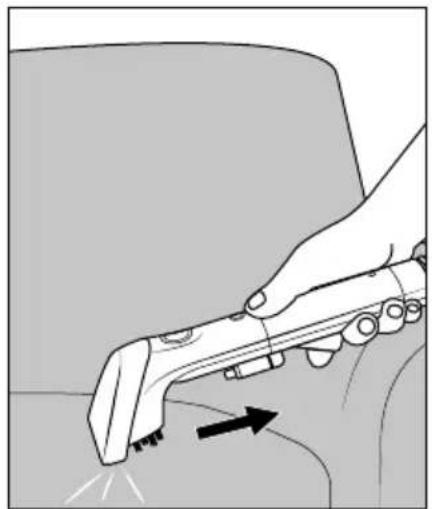

Hold the cleaning attachment ⑧ 2-3 cm above the area to be cleaned and press the spray button ⑭ to apply water / cleaning solution from the spray nozzle ⑮ (see Fig. 9).

Illustration of a hand using a tool to interact with a car, showing motion arrows (no text or symbols)

Illustration of a hand using a tool to interact with a car (no text or symbols visible)

Fig. 9 Fig. 10

Use the brush ^16 on the cleaning attachment ^8 to brush the soiled area with light pressure. If necessary, add more water / cleaning solution to the soiled area by pressing the spray button ^14 .
Then press the suction opening of the cleaning attachment against the soiled area. Drag the cleaning attachment multiple times in the desired direction to suck up dirt and liquid (see Fig. 10).
After cleaning, press the On/Off switch ^2 to switch off the appliance.

Cleaning and maintenance

RISK OF ELECTRIC SHOCK!

▶ Switch the appliance off and pull out the power plug ⑥ before cleaning the appliance!

CAUTION! PROPERTY DAMAGE!

▶ Do not use caustic, abrasive or solvent-based cleaning materials. These can damage the surfaces of the appliance.

NOTE

▶ Empty the waste water tan③ after every use.
Clean the dirt filter 21 after each use and let it dry completely before putting it back into the waste water tank 3.

- Clean the appliance with a damp cloth. For stubborn soiling, add a little mild detergent to the cloth.

Cleaning the waste water tank

NOTE

▶ Empty the waste water tan3 as soon as the dirty water has reached the MAX marking.
When emptying the waste water tank ③ make sure that the drain (e.g. the wash basin) is not blocked by hair or coarse dirt.
Once the waste water tank ③ is full, the appliance is automatically switched off by the float switch ⑲.

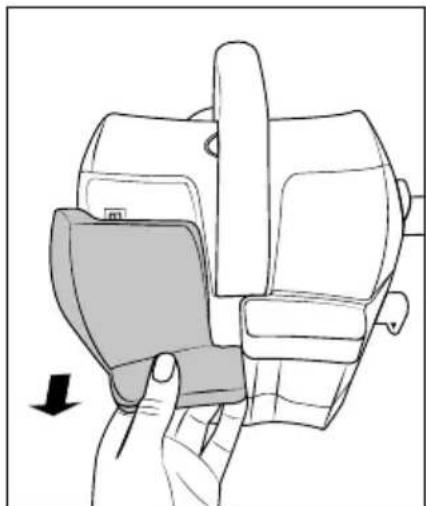

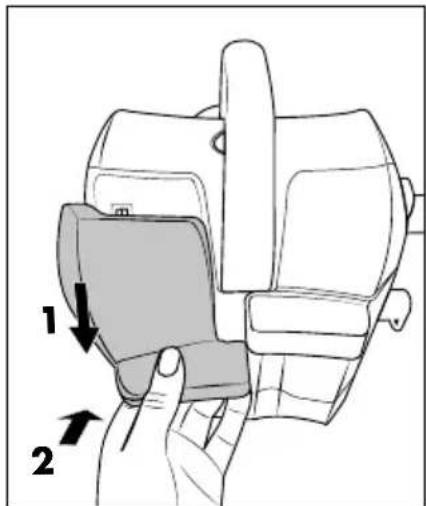

Hold the waste water tank ③ by gripping the handle and pull it towards you out of the appliance (see Fig. 11).

Illustration of a hand holding a device with a close-up view of its internal components (no text or symbols)

Technical line drawing of a mechanical device with an upward arrow indicating motion or assembly (no text or symbols present)

Fig. 11 Fig. 12

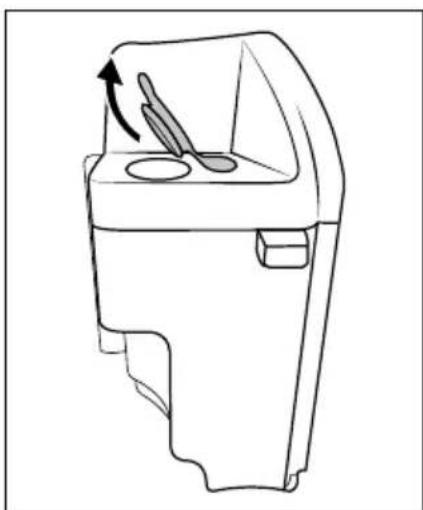

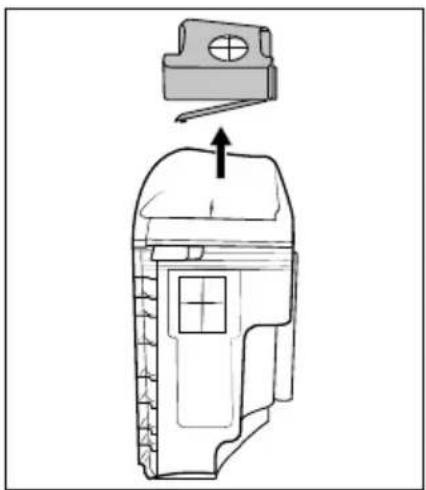

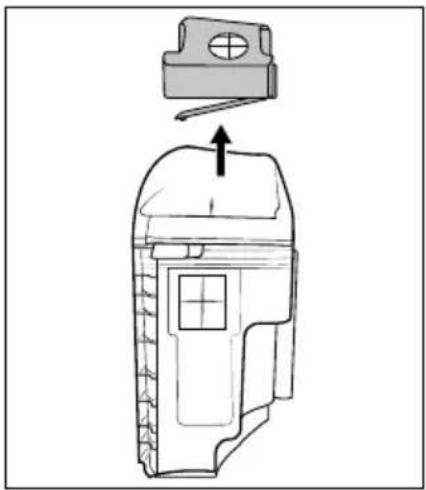

Remove the dirt filter from the lid of the waste water tank by gripping the grooves on the sides of the dirt filter with your thumb and forefinger. Pull the dirt filter upwards out of the lid of the waste water tank (see Fig. 12).

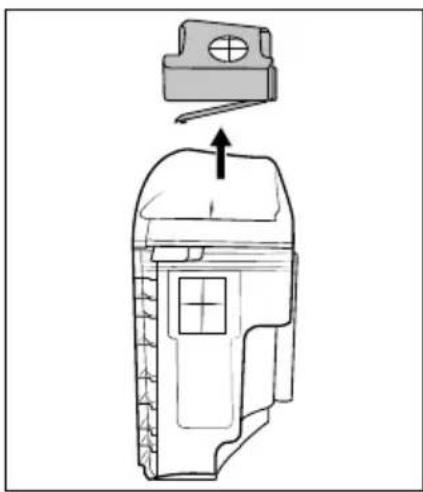

Pull the lidf the waste water tank 20 upwards off the waste water tank 3 (see Fig. 13).

Diagram of a mechanical component with a downward arrow indicating force or movement (no text or symbols present)

Technical line drawing of a mechanical component with a curved pipe and housing (no text or symbols)

Fig. 13 Fig. 14

Tip out the dirty water and dirt (see Fig. 14).

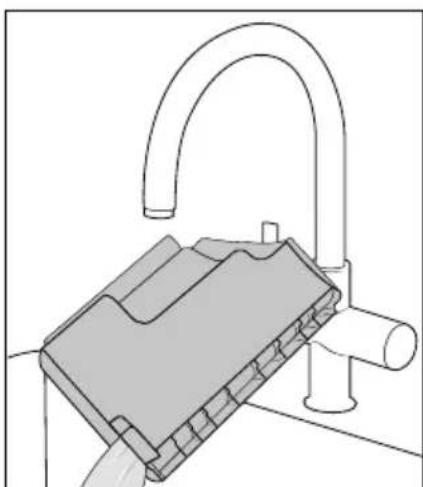

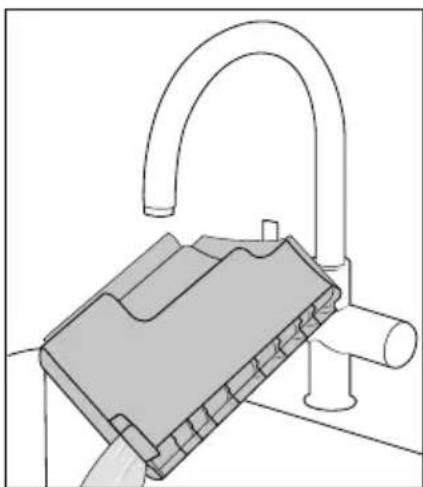

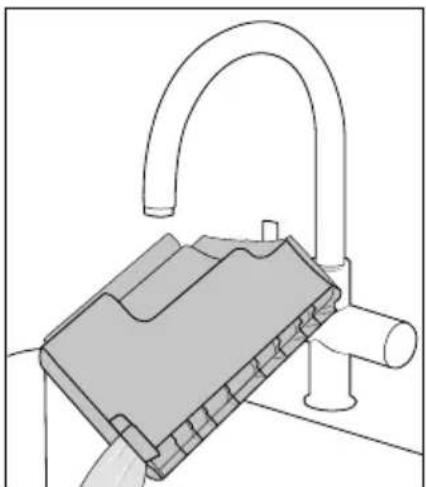

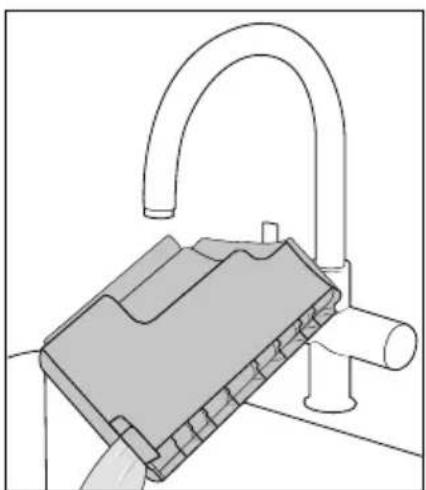

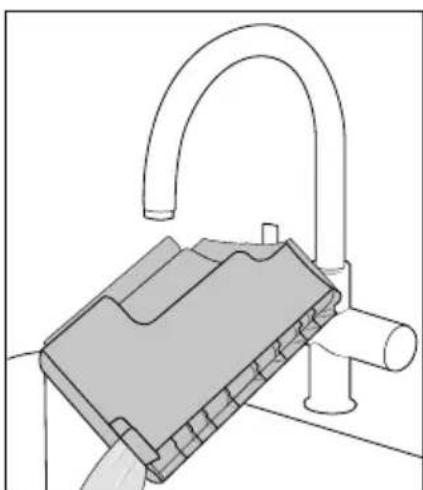

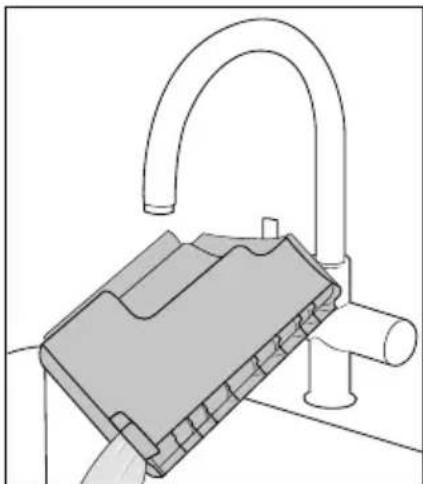

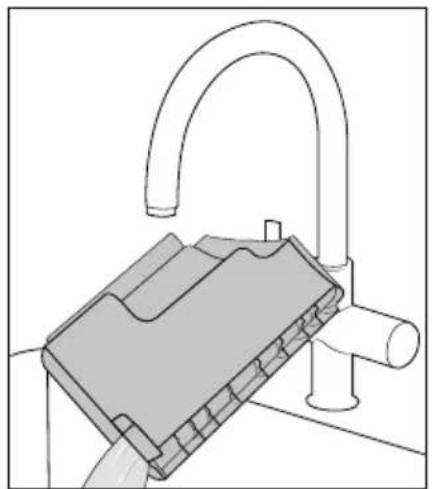

◆ Rinse the waste water tan③ in warm running water (see Fig. 15).

Line drawing of a faucet with a curved pipe and handle (no text or symbols)

Diagram of a water pump with a submerged object inside, no text or symbols present

Fig. 15 Fig. 16

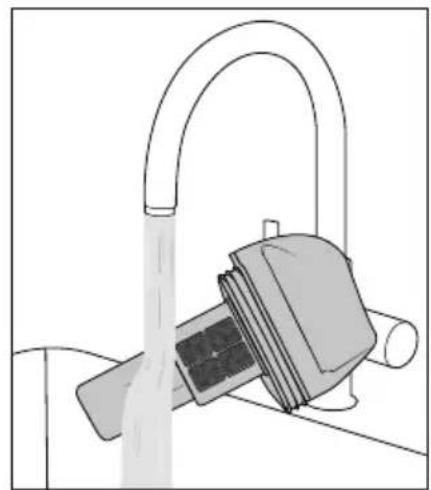

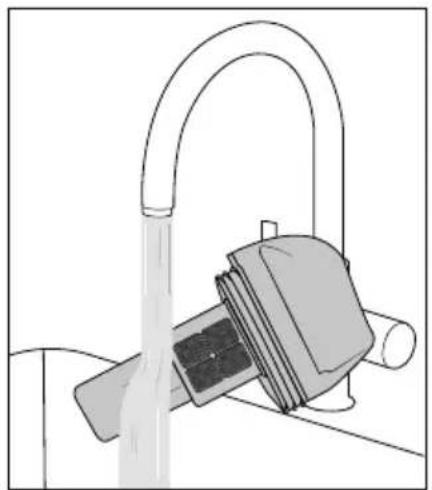

Clean the dirt filte ^21 and the lid of the waste water tank ^20 with the float switch ^19 under warm running water (see Fig. 16). If necessary, use a mild detergent.

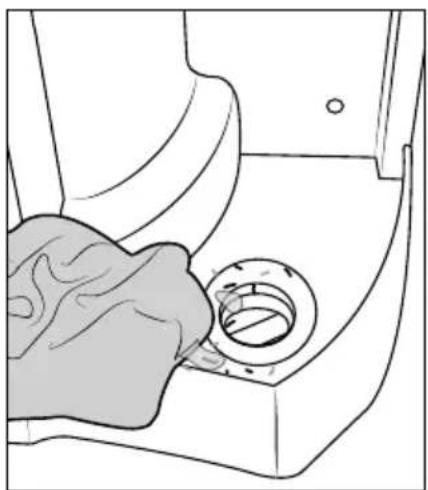

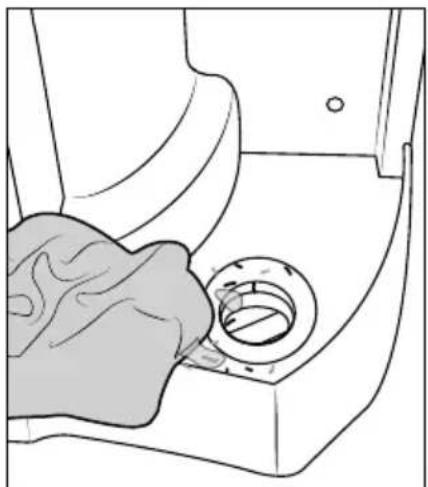

If necessary, clean the recess for the waste water tank ③ in the appliance with a damp cloth. Remove all dirt from the opening (See Fig. 17).

Line drawing of a hand pressing down on a mechanical component with a circular hole (no text or symbols)

Illustration of a sun, a lamp, and a device with a switch symbol (no text or labels)

Fig. 17 Fig. 18

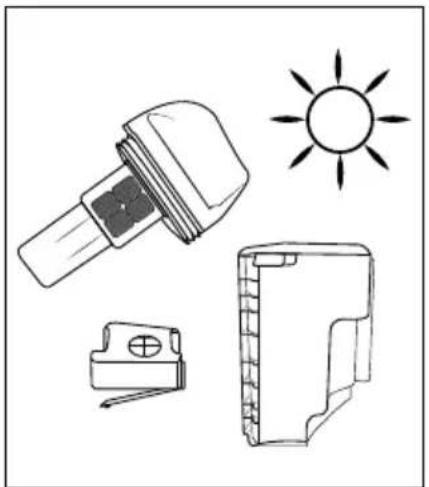

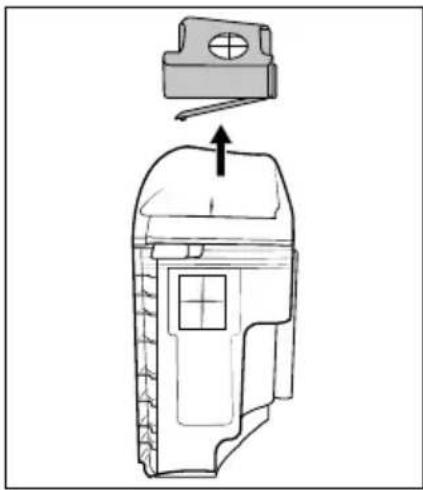

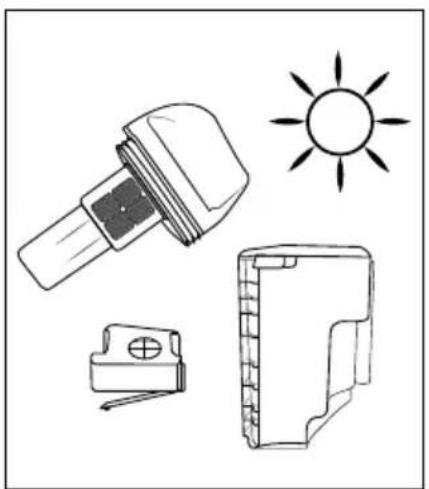

Let the dirt filte②1, the waste water tank ③ and the lid of the waste water tank ⑳, including float switch ⑲, dry completely (see Fig. 18).

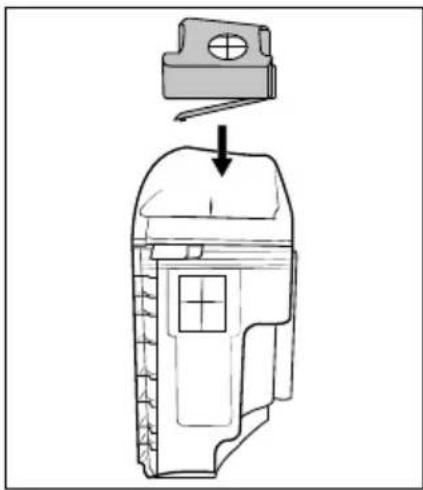

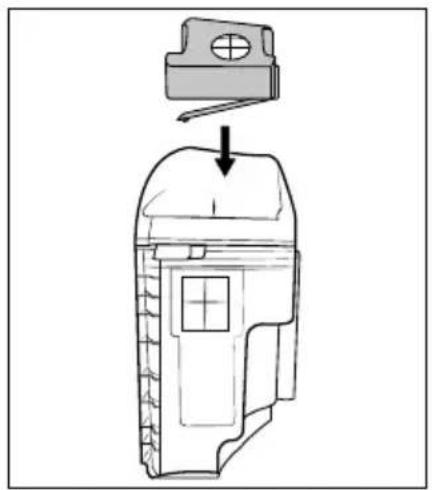

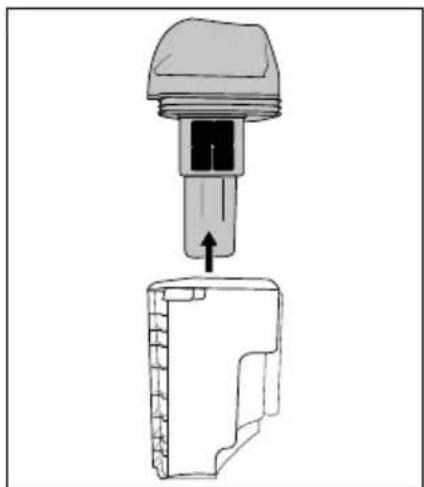

When the parts have dried, place the lid of the waste water tank 20 back on the waste water tank 3. Press it all the way down until it sits firmly on the waste water tank 3 (see Fig. 19).

Diagram of a mechanical component with a downward arrow indicating a process or assembly (no text or symbols present)

Diagram of a hand-operated device with a handle and internal components, showing no text or symbols.

Fig. 19 Fig. 20

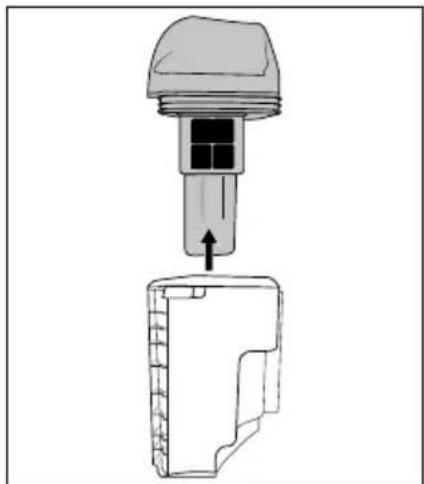

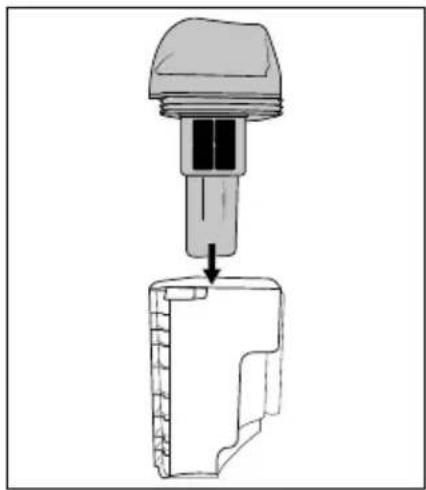

Place the dirt filter back on the lid of the waste water tank (see Fig. 20).

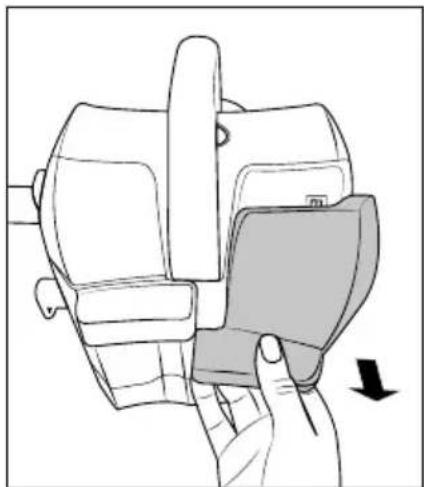

Grip the waste water tan ^3 by the handle and place it back in the appliance. Push it forward into the appliance until it audibly clicks into place (see Fig. 21).

Diagram showing a hand pressing a component labeled '1' and '2' with directional arrows indicating movement or force.

Fig. 21

Cleaning the handle and cleaning attachment

Make sure that the power plug 6 of the appliance is not plugged in.

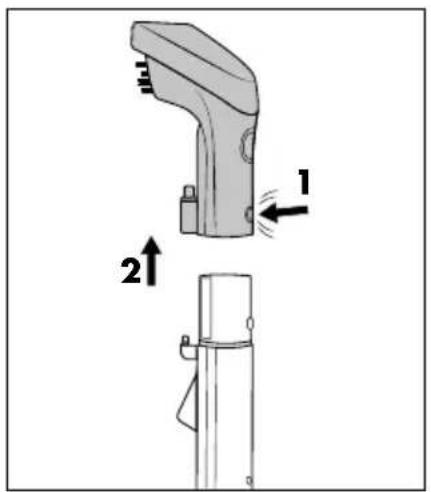

Press the cleaning attachment locking button ③ and pull the cleaning attachment ⑧ off the handle ⑨ (see Fig. 22).

Technical diagram showing a mechanical device with labeled parts and directional arrows indicating motion or force.

Diagram of a hairdryer with labeled parts and directional arrows indicating motion or movement

Fig. 22 Fig. 23

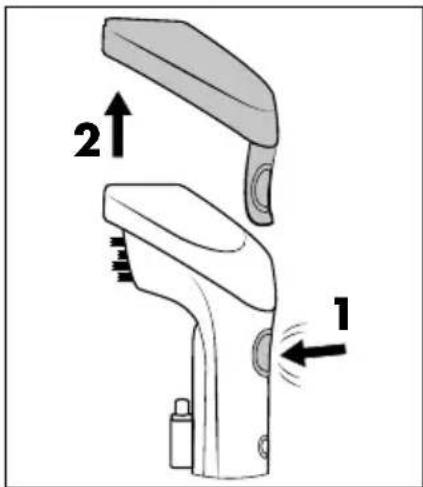

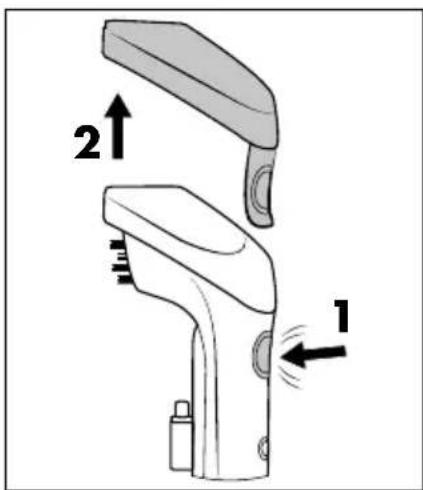

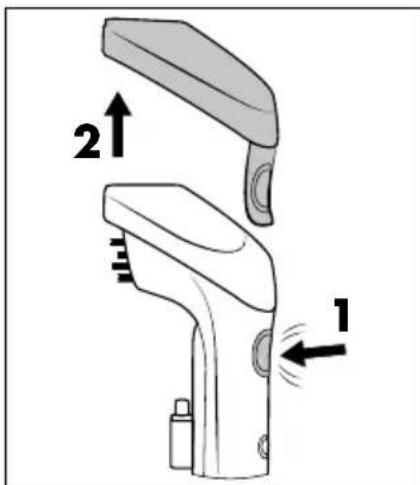

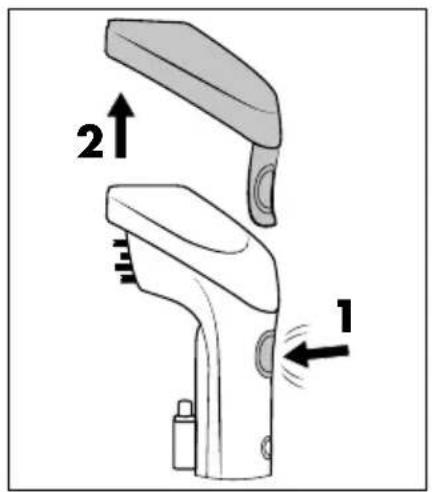

Press the cleaning attachment cover locking button 12 and pull the cleaning attachment cover 11 off the cleaning attachment 8 (see Fig. 23).

Clean the cleaning attachment ⑧ and the cleaning attachment cover ⑪ in warm running water.

- Clean the handle⑨ with a damp cloth, if necessary. For stubborn soiling, add a little mild detergent to the cloth.

Allow the cleaning attachment ⑧ and the cleaning attachment cover ⑪ to dry completely before attaching them to the handle ⑨ again.

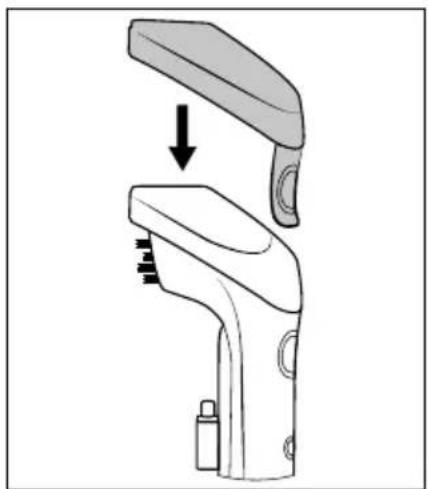

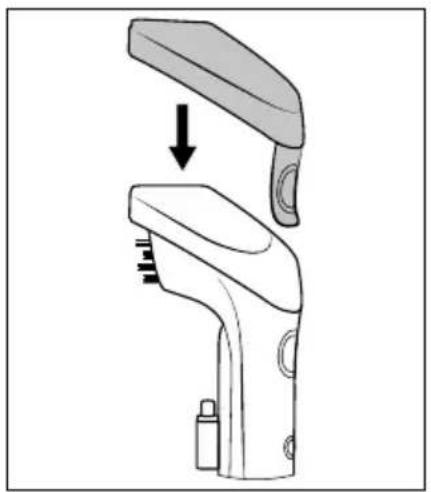

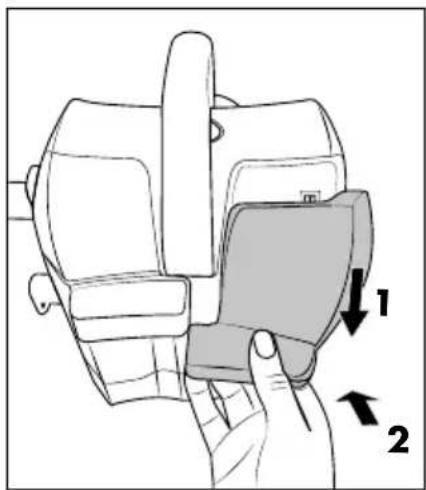

Place the cleaning attachment cover ⑪ back on the cleaning attachment ⑧ and slide it down until the cleaning attachment cover locking button ⑫ completely engages with the opening (see Fig. 24).

Diagram of a handheld device with a downward arrow indicating process (no text or symbols present)

Diagram showing a device being lifted or lowered, with no visible text or symbols

Fig. 24 Fig. 25

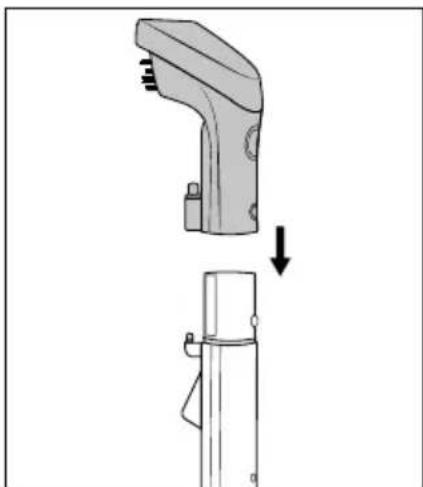

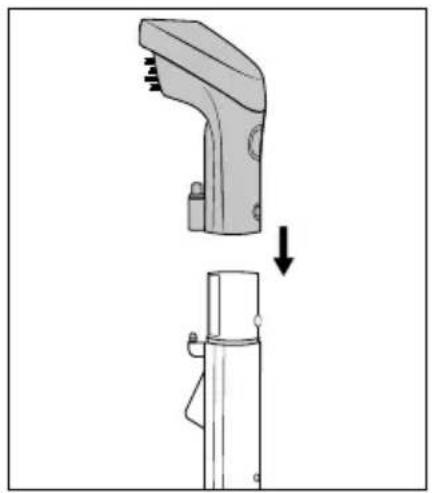

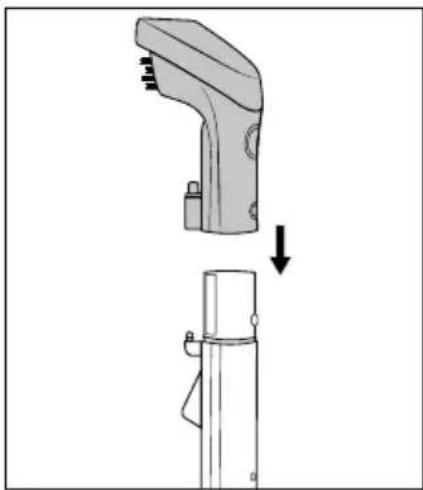

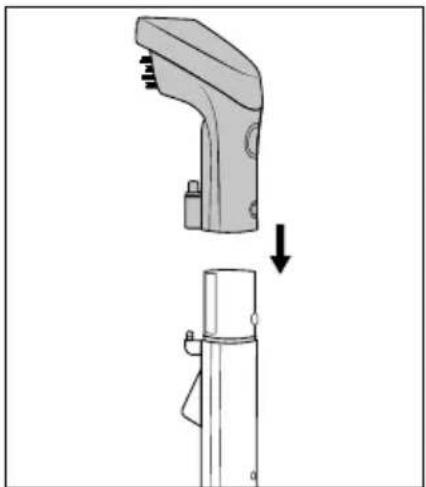

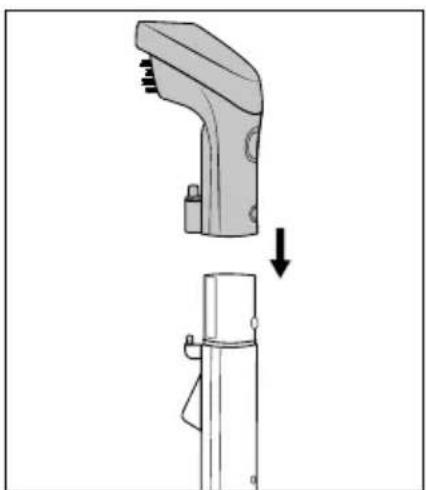

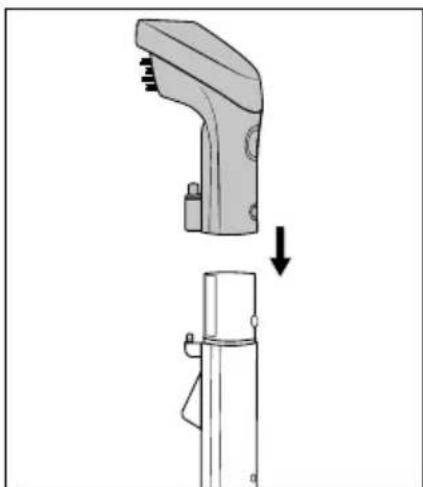

Place the cleaning attachment ⑧ on the handle ⑨ and slide it down until the cleaning attachment locking button ⑬ completely engages with the opening (See Fig. 25).

Storage

NOTE

▶ Empty the fresh water tanl ^22 if you are not going to use the appliance for a long period.
▶ Always clean the appliance before storage. Observe the instructions in the section Cleaning and maintenance.

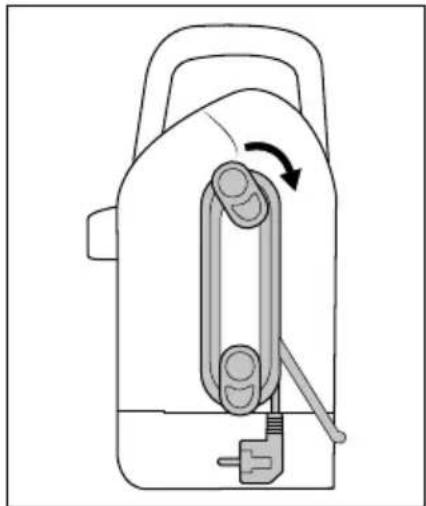

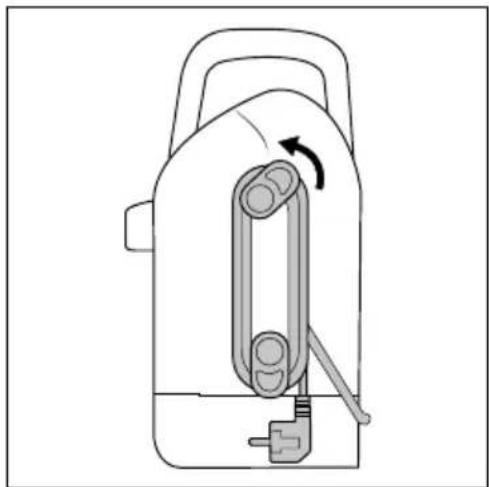

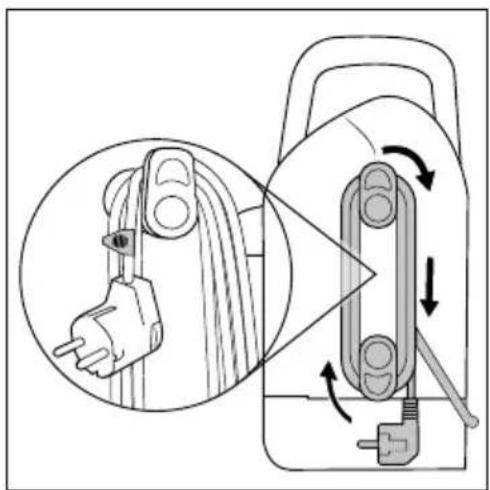

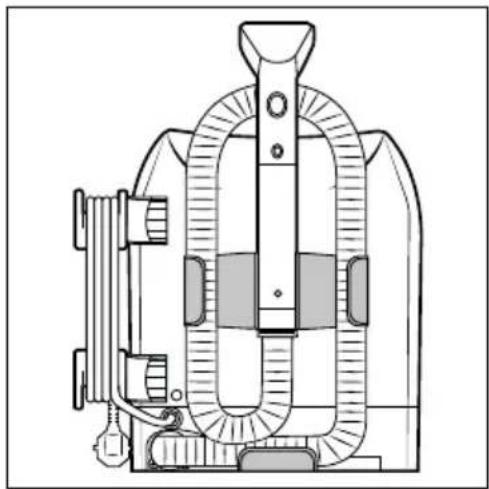

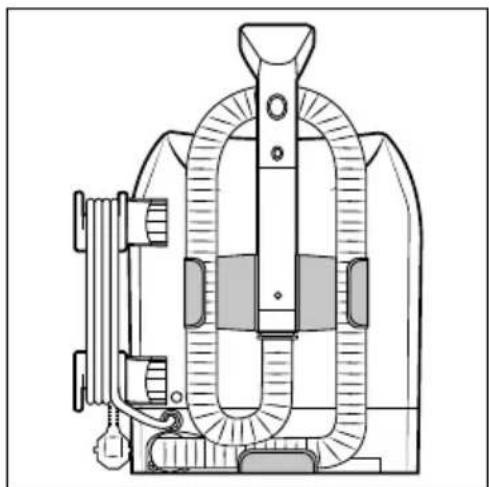

Turn the upper cable retaine ④ back up and wind the power cable ⑥ entirely around the upper and lower cable retainers ④/⑤ (see Fig. 26). Fasten the power cable ⑥ with the clip (see Fig. 27).

Line drawing of a portable device with a handle and internal mechanism, no text or symbols present

Diagram of a device with cable and plug, showing internal components and directional arrows (no text or symbols)

Fig. 26 Fig. 27

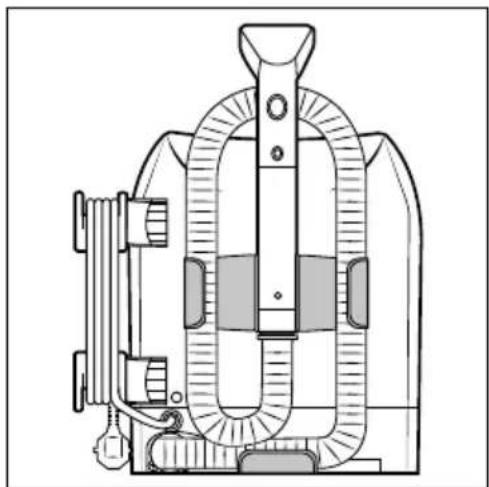

- Fasten the hose 7 in the hose retainer 10 and the handle 9 in the handle retainer 18 (see Fig. 28).

Technical line drawing of a mechanical device with no visible text or symbols

Line drawing of a hand holding a portable device with attached sensors and a handle (no text or symbols)

Fig. 28 Fig. 29

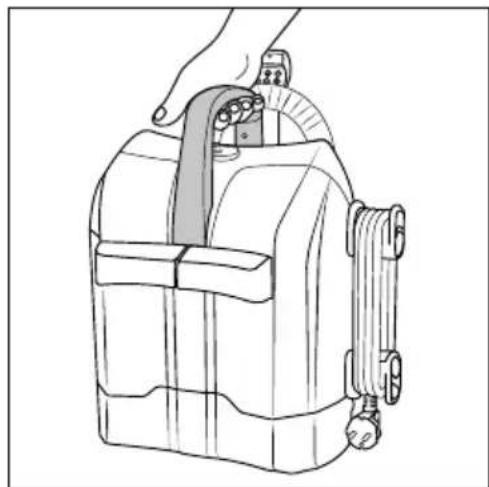

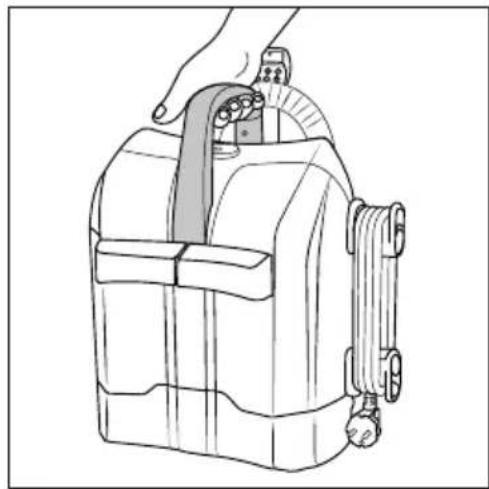

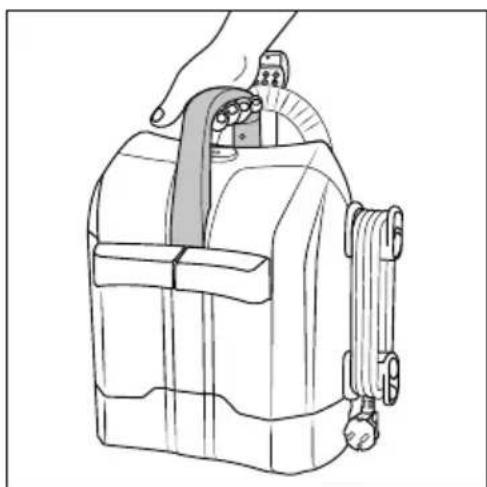

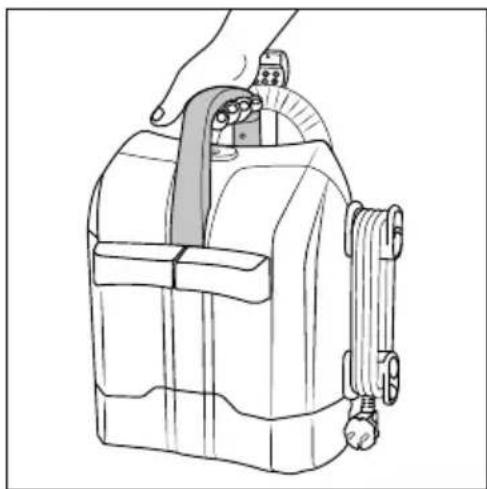

Always hold the appliance by the carrying hand when transporting it (see Fig. 29).

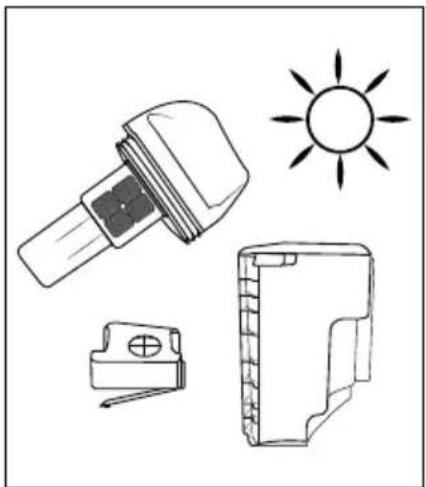

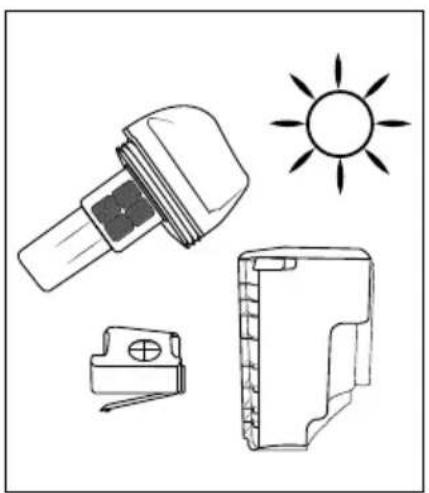

- Store the appliance in a dry and dust-free location out of direct sunlight.

Technical specifications

Power supply 220-240 V ~ (AC), 50 Hz
Power consumption 275-330 W
Protection type	IPX4(Protection against water splashes from any direction)

Ordering replacement parts

You can order replacement parts for this product on the internet at www.kompernass.com.

SPR 330 A1

Scan this QR code with your smartphone or tablet. You can use this QR code to navigate directly to our website (www.kompernass.com), where you can view and order spare parts available for this appliance.

NOTE

▶ If you have problems with your online order, you can contact our customer service centre by phone or e-mail (see section Service).
▶ Please always quote the article number 402449_2204. You can find it on the title page of these operating instructions.
▶ Please note that online ordering of replacement parts is not possible for all countries.

Troubleshooting

The following table will help you to identify and rectify minor malfunctions. If the solutions presented below do not resolve the problem, please contact Customer Service (see section Service).

Fault Cause Remedy
The appliance will not switch on.	The appliance is not switched on.	Make sure that the appliance is properly connected to the power supply. Press the On/Off switch 2 to turn on the appliance.
	The power plug 6 is not plugged in.	Insert the power plug 6 into the mains socket.
	The mains socket is not supplying any power.	Check the house mains fuse.
	The appliance is defective.	Contact the Customer Service department (see section Service).
The suction power is too weak.	The fresh and waste water tanks 22/3 are not fitted properly in the appliance.	Attach the fresh and waste water tanks 22/3 properly to the appliance (see sections Filling the fresh water tank and Cleaning the waste water tank).
	The waste water tank 3 is full.	Empty the waste water tank 3 (see section Cleaning the waste water tank).
	The suction opening 17 is blocked.	Clean the cleaning attachment and remove the blockage (see section Cleaning the handle and cleaning attachment).
	The dirt filter 21 is blocked.	Remove the dirt filter 21 and clean it (see section Cleaning the waste water tank).
The spray nozzle 15 is not discharging enough water / cleaning solution.	The fresh water tank 22 is empty.	Fill up the fresh water tank 22 (see section Filling the fresh water tank).
Water is leaking from the appliance.	The fresh water tank 22 is not properly sealed.	Take the fresh water tank 22 out of the appliance and make sure that the seal is properly affixed (see section Filling the fresh water tank).

Disposal

Three pixelated icons: a globe with stars, a shipping container with a circular symbol, and a trash can (no text or labels)

The product and its packaging are recyclable. They are subject to an extended manufacturer responsibility and will be collected separately.

Disposal of the appliance

The adjacent symbol of a crossed-out dustbin means that this appliance is subject to Directive 2012/19/EU. This directive states that this appliance may not be disposed of in the normal household waste at the end of its useful life, but must be taken to specially set-up collection locations, recycling depots or disposal companies.

The disposal is free of charge for the user. Protect the environment and dispose of this appliance properly.

If your old appliance has stored any personal data, you are responsible for deleting it yourself before returning it.

Your local community or municipal authorities can provide information on how to dispose of the worn-out product.

Disposal of the packaging

The packaging materials have been selected for their environmental friendliness and ease of disposal and are therefore recyclable. Dispose of packaging materials that are no longer needed in accordance with applicable local regulations.

Dispose of the packaging in an environmentally friendly manner. Note the labeling on the packaging and separate the packaging material components for disposal, if necessary. The packaging material is labelled with abbreviations (a) and numbers (b) with the following meanings:

1-7: plastics, 20-22: paper and cardboard, 80-98: composites.

This appliance has a 3-year warranty valid from the date of purchase. If this product has any faults, you, the buyer, have certain statutory rights. Your statutory rights are not restricted in any way by the warranty described below.

Warranty conditions

The warranty period starts on the date of purchase. Please keep your receipt in a safe place. This will be required as proof of purchase.

If any material or manufacturing fault occurs within three years of the date of purchase of the product, we will either repair or replace the product for you or refund the purchase price (at our discretion). This warranty service requires that you present the defective appliance and the proof of purchase (receipt) within the three-year warranty period, along with a brief written description of the fault and of when it occurred.

If the defect is covered by the warranty, your product will either be repaired or replaced by us. The repair or replacement of a product does not signify the beginning of a new warranty period.

Warranty period and statutory claims for defects

The warranty period is not prolonged by repairs effected under the warranty. This also applies to replaced and repaired components. Any damage and defects present at the time of purchase must be reported immediately after unpacking. Repairs carried out after expiry of the warranty period shall be subject to a fee.

Scope of the warranty

This appliance has been manufactured in accordance with strict quality guidelines and inspected meticulously prior to delivery.

The warranty covers material faults or production faults. The warranty does not extend to product parts subject to normal wear and tear or to fragile parts which could be considered as consumable parts such as switches, batteries or parts made of glass.

The warranty does not apply if the product has been damaged, improperly used or improperly maintained. The directions in the operating instructions for the product regarding proper use of the product are to be strictly followed. Uses and actions that are discouraged in the operating instructions or which are warned against must be avoided.

This product is intended solely for private use and not for commercial purposes. The warranty shall be deemed void in cases of misuse or improper handling, use of force and modifications / repairs which have not been carried out by one of our authorised Service centres.

Warranty claim procedure

To ensure quick processing of your case, please observe the following instructions:

■ Please have the till receipt and the item number (IAN) 402449_2204 available as proof of purchase.

■ You will find the item number on the type plate on the product, an engraving on the product, on the front page of the operating instructions (below left) or on the sticker on the rear or bottom of the product.

If functional or other defects occur, please contact the service department listed either by telephone or by e-mail.

■ You can return a defective product to us free of charge to the service address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred.

You can download these instructions along with many other manuals, product videos and installation software at www.lidl-service.com.

This QR code will take you directly to the Lidl service page (www.lidl-service.com) where you can open your operating instructions by entering the item number (IAN) 402449_2204.

Service

Service Great Britain

Tel.: [phone]

E-Mail: [e-mail]

Servicelreland

Tel.: [phone]

E-Mail: [e-mail]

IAN 402449_2204

Importer

Please note that the following address is not the service address. Please use the service address provided in the operating instructions.

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

Inhaltsverzeichnis

Einführung 24

Technical line drawing of a mechanical device with a component inserted, showing no text or symbols.

Abb. 1

Diagram of a portable electric kettle with internal components and directional arrows indicating rotation (no text or symbols)

Abb. 2

Illustration of a hand inserting a device into a device housing (no text or symbols visible)

Abb. 3 Abb. 4

Line drawing of a mechanical device with a rotating lever and handle (no text or symbols)

Line drawing of a laboratory apparatus with a curved pipe and a central container (no text or symbols)

Line drawing of a mechanical device with a handle and internal components, no text or symbols present

Abb. 5 Abb. 6

Technical line drawing of a portable device with internal components and a handle, showing no text or symbols.

Abb. 8

Illustration of a hand using a tool to lift a car, showing motion arrows (no text or symbols)

Illustration of a hand using a tool to interact with a car (no text or symbols visible)

Abb. 9 Abb. 10

Line drawing of a hand holding a device with a scroll wheel, showing no text or symbols

Technical line drawing of a mechanical component with an upward arrow indicating motion or assembly (no text or symbols present)

Abb. 11 Abb. 12

Diagram of a mechanical component with an arrow indicating assembly or force direction (no text or symbols present)

Technical line drawing of a mechanical component with a curved pipe and base (no text or symbols)

Abb. 13 Abb. 14

Two technical illustrations of a faucet with water flowing through it, showing different mechanical setups (no text or symbols present)

Abb. 15 Abb. 16

Illustration showing a car interior with a gear and a sun symbol (no text or labels)

Abb. 17 Abb. 18

Diagram of a mechanical component being inserted into a housing (no text or symbols present)

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Abb. 19 Abb. 20

Diagram showing a hand pressing a component labeled '1' and '2', with arrows indicating direction of movement.

Abb. 21

Technical diagram showing a device with labeled parts and directional arrows indicating motion or assembly.

Diagram of a hairdryer with labeled parts and directional arrows indicating motion or movement

Abb. 22 Abb. 23

Diagram of a handheld device with an arrow indicating process, showing the blade and handle (no text or symbols present)

Diagram showing a device being lifted from a cylindrical container, with no visible text or symbols.

Abb. 24 Abb. 25

Technical line drawing of a mechanical device with a handle and internal components, no text or symbols present.

Diagram showing a device with cable routing and a close-up of its cable being inserted into a housing (no text or symbols present)

Abb. 26 Abb. 27

Technical line drawing of a mechanical device with internal components and housing (no text or symbols)

Line drawing of a hand holding a portable device with attached straps and a handle (no text or symbols)

Abb. 28 Abb. 29

SPR 330 A1

Three pixelated icons: a globe with stars, a shipping container with a circular symbol, and a trash can (no text or labels)

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

DEUTSCHLAND

www.kompernass.com

Sommaire

Introduction 46

Technical line drawing of a mechanical device with a component inserted, showing no text or symbols.

Fig. 1

Diagram of a portable electric kettle with internal components and directional arrows indicating motion (no text or symbols)

Fig. 2

Illustration of a hand holding a device with a magnified view showing internal components (no text or symbols)

Fig. 3

Line drawing of a mechanical device with a handle and lever mechanism (no text or symbols)

Fig.

4

Line drawing of a laboratory apparatus with a curved tube and base (no text or symbols)

Line drawing of a mechanical device with a handle and lever mechanism (no text or symbols)

Fig. 5 Fig. 6

Line drawing of a portable electric kettle with a handle and internal components, showing no text or symbols.

Fig. 8

Illustration of a hand using a tool to lift or lift a car, with motion arrows indicating movement (no text or symbols present)

Illustration of a hand using a tool to interact with a car (no text or symbols present)

Fig. 9 Fig. 10

Line drawing of a hand holding a device with a button, showing no text or symbols

Technical line drawing of a mechanical component with an upward arrow indicating motion or assembly (no text or symbols present)

Fig. 11 Fig. 12

Diagram of a mechanical component with a downward arrow indicating force or movement (no text or symbols present)

Technical line drawing of a mechanical component with a curved pipe and housing (no text or symbols)

Fig. 13 Fig. 14

Diagram of a laboratory apparatus with a curved pipe inserted into a container (no text or labels)

Diagram of a showerhead spraying water into a pipe (no text or symbols)

Fig. 15 Fig. 16

Line drawing of a hand pressing down on a mechanical component with a circular hole (no text or symbols)

Illustration of a sun, a hammer, and a device with a handle (no text or symbols)

Fig. 17 Fig. 18

Diagram of a mechanical component with a downward arrow indicating assembly or force (no text or symbols present)

Diagram of a hand-operated device with a handle and internal components, showing no text or symbols.

Fig. 19 Fig. 20

Diagram showing a hand pressing a component labeled '1' and '2', with arrows indicating direction of movement.

Fig. 21

Technical diagram showing a mechanical device with labeled parts and directional arrows indicating motion or assembly.

Diagram of a hairdryer with labeled parts and directional arrows indicating motion or movement

Fig. 22 Fig. 23

Diagram of a handheld device with a lever and handle, showing a downward arrow indicating process (no text or symbols present)

Diagram showing a mechanical device with a downward arrow indicating compression or disassembly (no text or symbols present)

Fig. 24 Fig. 25

Technical line drawing of a portable electrical device with a handle and internal components (no text or symbols)

Diagram showing a device with cable and plug, illustrating the process of lifting a cable (no text or symbols present)

Fig. 26 Fig. 27

Technical line drawing of a mechanical device with no visible text or symbols

Line drawing of a hand holding a portable device with attached straps and buttons (no text or symbols)

Fig. 28 Fig. 29

SPR 330 A1

Three pixelated icons: a globe with stars, a shipping container with a circular symbol, and a trash can (no text or labels)

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

ALLEMAGNE

www.kompernass.com

Inhoud

Inleiding....70

WAARSCHUWING! LETSELGEVAAR!

Technical line drawing of a mechanical device with a component inserted, showing no text or symbols.

Afb. 1

Diagram of a portable electric kettle with internal components and directional arrows indicating rotation (no text or symbols)

Afb. 2

Schoonwaterreservoir vullen

LET OP! MATERIÈLE SCHADE!

Illustration of a hand holding a device with a button, showing internal components and a downward arrow (no text or symbols)

Afb. 3 Afb. 4

Line drawing of a mechanical device with a handle and lever mechanism (no text or symbols)

Line drawing of a laboratory apparatus with a curved tube and base (no text or symbols)

Line drawing of a mechanical device with a handle and lever mechanism (no text or symbols)

Afb. 5 Afb. 6

Line drawing of a portable electric kettle with a handle and rotary button (no text or symbols)

Afb. 8

Illustration of a hand using a tool to interact with a car, showing motion arrows (no text or symbols)

Illustration of a hand using a tool to interact with a car (no text or symbols visible)

Afb. 9 Afb. 10

Illustration of a hand holding a device with a close-up view of its internal components (no text or symbols)

Technical line drawing of a mechanical component with an upward arrow indicating motion or assembly (no text or symbols present)

Afb. 11 Afb. 12

Diagram of a mechanical component with a top view and cross-section showing internal structure (no text or symbols)

Technical line drawing of a mechanical component with a curved pipe and base (no text or symbols)

Afb. 13 Afb. 14

Line drawing of a laboratory apparatus with a curved pipe and tubing (no text or symbols)

Diagram of a water pump with a submerged object inside, no text or symbols present

Afb. 15 Afb. 16

Line drawing of a mechanical component with a circular hole and textured surface (no text or symbols)

Illustration of a sun, a mechanical hammer, and a device with a handle (no text or symbols)

Afb. 17 Afb. 18

Diagram of a mechanical component with a downward arrow indicating assembly or force (no text or symbols present)

Diagram of a hand-operated device with a handle and internal components, showing no text or symbols.

Afb. 19 Afb. 20

Diagram showing a hand holding a device with labeled parts and directional arrows indicating movement or force.

Afb. 21

Diagram showing two mechanical device components with labeled parts and directional arrows indicating motion or force.

Diagram of a hairdryer with labeled parts and directional arrows indicating motion or movement

Afb. 22 Afb. 23

Diagram of a handheld device with a lid and handle, showing a downward arrow indicating process (no text or symbols present)

Diagram showing a device being lifted by an arrow, with no visible text or symbols

Afb. 24 Afb. 25

Line drawing of a portable electric kettle with a handle and rotary button (no text or symbols)

Diagram illustrating a cable switch mechanism with labeled components and directional arrows indicating rotation or adjustment.

Afb. 26 Afb. 27

Technical line drawing of a mechanical device with no visible text or symbols

Line drawing of a hand holding a container with attached mechanical parts (no text or symbols)

Afb. 28 Afb. 29

Voeding 220-240 V \~ (wisselstroom), 50 Hz

Three pixelated icons: a circular icon with a star, a stylized box with a hand, and a trash can with a clock face (no text or symbols)

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

DUITSLAND

www.kompernass.com

Obsah

Úvod....92

POZOR! HMOTNÉ ŠKODY!

POZOR! HMOTNÉ ŠKODY!

Technical line drawing of a mechanical device with a component inserted, showing no text or symbols.

Obr. 1

Diagram of a portable electric kettle with internal components and directional arrows indicating rotation (no text or symbols)

Obr. 2

POZOR! HMOTNÉ ŠKODY!

Illustration of a hand holding a device with a downward arrow indicating action (no text or symbols present)

Obr. 3 Obr. 4

Line drawing of a mechanical device with a handle and lever mechanism (no text or symbols)

Line drawing of a mechanical device with a curved pipe and base, no text or symbols present

Line drawing of a mechanical device with a handle and internal components, no text or symbols present

Obr. 5 Obr. 6

Diagram showing a hand holding a device with labeled parts and directional arrows indicating movement or assembly.

Obr. 7

Obsluha a provoz

POZOR! HMOTNÉ ŠKODY!

Line drawing of a portable electric kettle with a handle and rotary button (no text or symbols)

Obr. 8

Illustration of a hand using a tool to lift a car, showing motion arrows (no text or symbols)

Obr. 9

Illustration of a hand using a tool to lift a car (no text or symbols present)

Obr. 10

POZOR! HMOTNÉ ŠKODY!

Illustration of a hand holding a device with a close-up view of its internal components (no text or symbols)

Obr. 11

Technical line drawing of a mechanical component with an upward arrow indicating motion or assembly (no text or symbols present)

Obr. 12

Diagram of a mechanical component with a downward arrow indicating force or movement (no text or symbols present)

Obr. 13

Technical line drawing of a mechanical component with a curved pipe and housing (no text or symbols)

Obr.

14

♦ Vylijte špinavou vodu a vysypte nečistoty (viz obr. 14).

Diagram of a laboratory apparatus with a curved pipe inserted into a container (no text or labels)

Obr. 15

Diagram of a showerhead spraying water into a pipe (no text or symbols)

Obr. 16

Line drawing of a hand pressing down on a mechanical component with a circular hole (no text or symbols)

Obr. 17

Illustration of a sun, a hammer, a device with a switch, and a folder (no text or symbols)

Obr. 18

Diagram of a mechanical component being inserted into a housing (no text or symbols present)

Obr. 19

Diagram of a hand-operated device with a handle and internal components, showing no text or symbols.

Obr. 20

Diagram showing a hand holding a device with labeled parts and directional arrows indicating movement or force.

Obr. 21

Technical diagram showing a mechanical device with labeled parts and directional arrows indicating motion or force directions.

Obr. 22

Diagram of a hairdryer with labeled parts and directional arrows indicating motion or movement

Obr. 23

Diagram of a handheld device with a handle and lever mechanism, showing a downward arrow indicating motion (no text or symbols present)

Obr. 24

Diagram showing a mechanical device with a downward arrow indicating compression or disassembly (no text or symbols present)

Obr. 25

Technical line drawing of a portable electrical device with a handle and internal components (no text or symbols)

Obr. 26

Diagram showing a device with a cable inserted into a socket, and its internal components being folded or removed (no text or symbols present)

Obr. 27

Technical line drawing of a mechanical device with internal components and no visible text or symbols

Obr. 28

Line drawing of a hand holding a container with attached mechanical parts (no text or symbols)

Obr. 29

SPR 330 A1

Three pixelated icons: a globe with stars, a trash can with a magnifying glass, and a document icon (no text or symbols)

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

NĚMECKO

www.kompernass.com

Spis treści

W step 114

Technical line drawing of a mechanical device with a component inserted, showing no text or symbols.

Rys. 1

Diagram of a portable electric kettle with internal components and directional arrows indicating motion (no text or symbols)

Rys. 2

Illustration of a hand holding a device with a gray panel, showing internal components and a downward arrow (no text or symbols)

Rys. 3 Rys. 4

Line drawing of a mechanical device with a handle and internal components, no text or symbols present

Line drawing of a laboratory apparatus with a curved tube and base (no text or symbols)

Line drawing of a mechanical device with a lever and handle (no text or symbols)

Rys. 5 Rys. 6

Line drawing of a mechanical device with a handle and internal components, no text or symbols present

Rys. 8

Illustration of a hand using a tool to lift or lift a car, with motion arrows indicating movement (no text or symbols present)

Illustration of a hand using a tool to interact with a car (no text or symbols present)

Rys. 9 Rys. 10

Illustration of a hand inserting a device into a device compartment, showing a blue object being inserted (no text or symbols present)

Technical line drawing of a mechanical component with an upward arrow indicating motion or assembly (no text or symbols present)

Rys. 11 Rys. 12

Diagram of a mechanical component with an arrow indicating assembly or force direction (no text or symbols present)

Technical line drawing of a mechanical component with a curved handle and pipe (no text or symbols)

Rys. 13 Rys. 14

Diagram of a laboratory apparatus with a curved pipe inserted into a container (no text or labels)

Diagram of a faucet with water flowing through it, showing mechanical components (no text or symbols)

Rys. 15 Rys. 16

Line drawing of a hand pressing down on a mechanical component with a circular hole (no text or symbols)

Illustration of a sun, a hammer, a switch, and a device (no text or symbols)

Rys. 17 Rys. 18

Diagram of a mechanical component with a downward arrow indicating assembly or force (no text or symbols present)

Diagram of a hand-operated device with a handle and internal components, showing no text or symbols.

Rys. 19 Rys. 20

Diagram showing a hand pressing a component labeled '1' and '2', with arrows indicating direction of movement.

Rys. 21

Technical diagram showing a device with two directional arrows labeled 1 and 2, indicating movement or force directions.

Diagram of a hairdryer with labeled parts and directional arrows indicating motion or movement

Rys. 22 Rys. 23

Diagram of a handheld device with a downward arrow indicating process (no text or symbols present)

Diagram showing a mechanical device with a downward arrow indicating compression or disassembly (no text or symbols present)

Rys. 24 Rys. 25

Line drawing of a portable device with a handle and internal mechanism, no text or symbols present

Diagram illustrating cable switch mechanism with labeled components and directional arrows indicating rotation or movement

Rys. 26 Rys. 27

Technical line drawing of a mechanical device with no visible text or symbols

Line drawing of a hand holding a portable device with attached straps and a handle (no text or symbols)

Rys. 28 Rys. 29

SPR 330 A1

Three pixelated icons: a globe with stars, a shipping container with a circular symbol, and a trash can (no text or labels)

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

NIEMCY

www.kompernass.com

Obsah

Úvod....136

Technical line drawing of a mechanical device with a component inserted, showing no text or symbols.

Obr. 1

Diagram of a portable electric kettle with internal components and directional arrows indicating rotation (no text or symbols)

Obr. 2

Illustration of a hand holding a device with a downward arrow indicating action (no text or symbols present)

Obr. 3 Obr. 4

Line drawing of a mechanical device with a handle and lever mechanism (no text or symbols)

Line drawing of a mechanical device with a curved pipe and base, no text or symbols present

Line drawing of a mechanical device with a handle and internal components, no text or symbols present

Obr. 5 Obr. 6

Diagram showing a hand holding a device with labeled parts and directional arrows indicating movement or force.

Obr. 7

Obsluha a prevádzka

POZOR! VECNÉ ŠKODY!

Line drawing of a portable electric kettle with a handle and internal mechanism (no text or symbols)

Obr. 8

Two-panel illustration showing a hand gripping a tool on a car, with arrows indicating motion or movement (no text or symbols)

Obr. 9 Obr. 10

Illustration of a hand inserting a device into a device housing (no text or symbols)

Technical line drawing of a mechanical device with an upward arrow indicating motion or assembly (no text or symbols present)

Obr. 11 Obr. 12

Diagram of a mechanical component with an arrow indicating assembly or force direction (no text or symbols present)

Technical line drawing of a mechanical component with a curved pipe and housing (no text or symbols)

Obr. 13 Obr. 14

Line drawing of a stainless steel kitchen sink with an arched pipe (no text or symbols)

Diagram of a faucet with water flowing through it, showing mechanical components (no text or symbols)

Obr. 15 Obr. 16

Line drawing of a car interior showing a hand cleaning the seat area with a circular vent (no text or symbols)

Illustration of a sun, a hammer, and a device with a switch (no text or symbols)

Obr. 17 Obr. 18

Diagram of a mechanical component with a downward arrow indicating assembly or force (no text or symbols present)

Diagram of a hand-operated device with a handle and internal components, showing no text or symbols.

Obr. 19 Obr. 20

Diagram showing a hand pressing a component labeled '1' and '2', with arrows indicating direction of movement.

Obr. 21

Diagram showing two mechanical device components with labeled parts and directional arrows indicating motion or force.

Diagram of a hairdryer with labeled parts and directional arrows indicating motion or movement

Obr. 22 Obr. 23

Diagram of a handheld device with a handle and lever mechanism, showing a downward arrow indicating process (no text or symbols present)

Diagram showing a device being lifted or lowered, with no visible text or symbols

Obr. 24 Obr. 25

Technical line drawing of a portable electrical device with a rotary knob and handle (no text or symbols)

Obr. 26 Obr. 27

Diagram showing a hand operating a device with a magnified inset of its cable (no text or symbols present)

Technical line drawing of a mechanical device with internal components and no visible text or symbols

Obr. 28 Obr. 29

Line drawing of a hand holding a container with attached mechanical parts (no text or symbols)

SPR 330 A1

Three pixelated icons: a globe with stars, a shipping container with a circular symbol, and a trash can (no text or labels)

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

NEMECKO

www.kompernass.com

Índice

Introducción....158

Technical line drawing of a mechanical device with a component inserted, showing no text or symbols.

Fig. 1

Diagram of a portable electric kettle with internal components and directional arrows indicating rotation (no text or labels)

Fig. 2

Illustration of a hand holding a device with a gray cover and arrow indicating rotation (no text or symbols)

Fig. 3

Line drawing of a mechanical device with a handle and lever mechanism (no text or symbols)

Fig. 4

Line drawing of a laboratory apparatus with a curved tube and central component (no text or symbols)

Fig. 5

Line drawing of a mechanical device with a handle and internal components, no text or symbols present

Fig. 6

Diagram showing a hand holding a device with labeled parts and directional arrows indicating movement or force.

Fig. 7

Diagram of a portable electric kettle with internal components and a rotary scroll (no text or symbols)

Fig. 8

Illustration of a hand using a tool to lift or lift a car, with motion arrows indicating movement (no text or symbols)

Fig. 9

Illustration of a hand using a tool to interact with a car (no text or symbols present)

Fig. 10

Illustration of a hand holding a device with a close-up view of its internal components (no text or symbols)

Fig. 11

Technical line drawing of a mechanical component with an upward arrow indicating motion or assembly (no text or symbols present)

Fig. 12

Diagram of a mechanical component with a top view and internal structure, showing a force or movement (no text or symbols)

Fig. 13

Technical line drawing of a mechanical component with a curved pipe and housing (no text or symbols)

Fig. 14

Line drawing of a mechanical device with a curved pipe and handle (no text or symbols)

Fig. 15

Diagram of a vacuum cleaner spraying water from a pipe (no text or symbols)

Fig. 16

Line drawing of a hand inserting a small object into a container (no text or symbols)

Fig. 17

Illustration of a sun, a mechanical component, and a device with a handle (no text or symbols)

Fig. 18

Diagram of a mechanical component with a downward arrow indicating force or movement (no text or symbols present)

Diagram of a device with a handle and internal components, showing an arrow pointing to a component (no text or symbols present)

Fig. 19 Fig. 20

Diagram showing a hand holding a device with labeled parts and directional arrows indicating movement or force.

Fig. 21

Diagram showing two mechanical device components with labeled parts and directional arrows indicating motion or force.

Fig. 22

Diagram of a hairdryer with labeled parts and directional arrows indicating motion or movement

Fig. 23

Diagram of a handheld device with a lid and handle, showing a step-down view of the handle (no text or symbols present)

Fig. 24

Diagram showing a device being lifted or lowered, with no visible text or symbols

Fig. 25

Line drawing of a portable device with a handle and internal components, showing a rotational arrow (no text or symbols)

Fig. 26

Diagram showing a cable being inserted into a device with rotating arrows indicating motion (no text or symbols present)

Fig. 27

Technical line drawing of a mechanical device with no visible text or symbols

Fig. 28

Line drawing of a hand holding a portable device with attached sensors (no text or symbols)

Fig. 29

SPR 330 A1

Three pixelated icons: a circular icon with a star, a stylized box with a hand, and a trash can with a circular symbol (no text or numbers)

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

ALEMANIA

www.kompernass.com

Indholdsfortegnelse

Introduktion 180

Technical line drawing of a mechanical device with a component inserted, showing no text or symbols.

Fig. 1

♦ Vikl strømledningen ⑥ helt om de to ledningsholdere ④/⑤ foroven og forneden (se fig. 2).

Diagram of a portable electric kettle with internal components and directional arrows indicating motion (no text or symbols)

Fig. 2

Illustration of a hand holding a device with a handle, showing internal components and a downward arrow (no text or symbols)

Fig. 3 Fig. 4

Line drawing of a mechanical device with a rotating lever and two circular components (no text or symbols)

Line drawing of a laboratory apparatus with a curved tube and base (no text or symbols)

Line drawing of a mechanical device with a handle and lever mechanism (no text or symbols)

Fig. 5 Fig. 6

Tryk lukningen til brugsvandsbeholderedind i abningen igen (se fig. 6).

Line drawing of a portable electric kettle with a handle and internal mechanism (no text or symbols)

Fig. 8

Two-panel illustration showing a hand holding a tool on a car, with arrows indicating motion or movement (no text or symbols)

Fig. 9 Fig. 10

Line drawing of a hand holding a device with a scroll wheel, showing a button and arrow (no text or symbols)

Technical line drawing of a mechanical component with an upward arrow indicating motion or assembly (no text or symbols present)

Fig. 11 Fig. 12

Technical diagram of a mechanical component with an arrow indicating assembly or force (no text or symbols present)

Technical line drawing of a mechanical component with a curved pipe and base (no text or symbols)

Fig. 13 Fig. 14

Line drawing of a laboratory apparatus with a curved pipe and tubing (no text or symbols)

Diagram of a mechanical device with a curved pipe and internal components, no text or symbols present

Fig. 15 Fig. 16

Line drawing of a toilet with a hand inserting a cup into the sink (no text or symbols)

Line drawings of a sun, a lamp, and a device with a handle (no text or symbols)

Fig. 17 Fig. 18

Lad snavsfiltere21, beholderen til snavset vand 3 og läget 20 til beholderen til snavset vand med svømmeren 19 tørre helt (se fig. 18).

Sæt låget 20 på beholderen til snavset vand 3 igen, när delene er tørre. Pres det helt ned, indtil det sidder fast på beholderen til snavset vand 3 (se fig. 19).

Diagram of a mechanical component with a downward arrow indicating a process or assembly (no text or symbols present)

Diagram of a hand-operated device with a handle and internal components, showing no text or symbols.

Fig. 19 Fig. 20

Sæt snavsfiltere21 på låget 20 til beholderen til snavset vand igen (se fig. 20).

Diagram showing a hand holding a device with labeled parts and directional arrows indicating movement or force.

Fig. 21

Diagram showing two mechanical device components with labeled parts and directional arrows indicating motion or force.

Diagram of a hairdryer with labeled parts and directional arrows indicating motion or movement

Fig. 22 Fig. 23

Diagram of a handheld device with a handle and lever mechanism, showing a downward arrow indicating motion (no text or symbols present)

Diagram showing a mechanical device with a downward arrow indicating motion or change (no text or symbols present)

Fig. 24 Fig. 25

Technical line drawing of a portable electrical device with a handle and internal components (no text or symbols)

Diagram showing a device with a plug inserted into a cable, and its internal components being folded or rotated (no text or symbols present)

Fig. 26 Fig. 27

Fastgør slanger 7 i slangeholderen 10 og motordelen 9 i holderen 18 til motordelen (se fig. 28).

Technical line drawing of a mechanical device with internal components and no visible text or symbols

Line drawing of a hand holding a portable device with attached straps and a handle (no text or symbols)

Fig. 28 Fig. 29

SPR 330 A1

Three pixelated icons: a circular icon with a star, a stylized box with a hand, and a trash can with a circular symbol (no text or numbers)

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

TYSKLAND

www.kompernass.com

Indice

Introduzione....202

Technical line drawing of a mechanical device with a component inserted, showing no text or symbols.

Fig. 1

Diagram of a portable electric kettle with internal components and directional arrows indicating motion (no text or symbols)

Fig. 2

Illustration of a hand holding a device with a magnified view showing internal components (no text or symbols)

Fig. 3 Fig. 4

Line drawing of a mechanical device with a rotating lever and handle (no text or symbols)

Line drawing of a laboratory apparatus with a curved tube and base (no text or symbols)

Line drawing of a mechanical device with a lever and handle (no text or symbols)

Fig. 5 Fig. 6

Diagram of a portable electric kettle with internal components and a rotary arrow indicating rotation (no text or symbols)

Fig. 8

Two-panel illustration showing a hand holding a tool on a car, with arrows indicating motion or movement (no text or symbols)

Fig. 9 Fig. 10

Illustration of a hand holding a device with a close-up view of its internal components (no text or symbols)

Technical line drawing of a mechanical component with an upward arrow indicating motion or assembly (no text or symbols present)

Fig. 11 Fig. 12

Diagram of a mechanical component with a downward arrow indicating force or movement (no text or symbols present)

Technical line drawing of a mechanical component with a curved handle and cylindrical shaft (no text or symbols)

Fig. 13 Fig. 14

Two technical illustrations of a water purifier with pipe fittings, showing internal flow and disposal (no text or symbols)

Fig. 15 Fig. 16

Illustration showing a car interior with a gear and a sun symbol (no text or labels)

Fig. 17 Fig. 18

Diagram of a mechanical component with a downward arrow indicating assembly or force (no text or symbols present)

Diagram of a hand-operated device with a handle and internal components, showing no text or symbols.

Fig. 19 Fig. 20

Diagram showing a hand holding a device with labeled parts and directional arrows indicating movement or force.

Fig. 21

Diagram showing two mechanical device components with labeled parts and directional arrows indicating motion or force.

Diagram of a hairdryer with labeled parts and directional arrows indicating motion or movement

Fig. 22 Fig. 23

Diagram of a handheld device with a downward arrow indicating process (no text or symbols present)

Diagram showing a device being lifted by an arrow, with no visible text or symbols

Fig. 24 Fig. 25

Line drawing of a portable device with a handle and internal mechanism (no text or symbols)

Diagram showing a hand inserting a plug into a device with rotating arrows indicating rotation (no text or symbols present)

Fig. 26 Fig. 27

Technical line drawing of a mechanical device with internal components and no visible text or symbols

Line drawing of a hand holding a container with attached mechanical parts (no text or symbols)

Fig. 28 Fig. 29

SPR 330 A1

Three pixelated icons: a circular icon with a star, a stylized box with a hand, and a trash can with a circular symbol (no text or numbers)

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANIA

www.kompernass.com

Tartalomjegyzék

Bevezető 224

Technical line drawing of a mechanical device with a component inserted, showing no text or symbols.

1. ábra

Diagram of a portable electric kettle with internal components and directional arrows indicating rotation (no text or symbols)

1. ábra

Illustration of a hand holding a device with a lock mechanism, showing internal components and a downward arrow (no text or symbols)

1. ábra 4. ábra

Line drawing of a mechanical device with a rotating lever and handle (no text or symbols)

Line drawing of a mechanical device with a curved pipe and base, no text or symbols present

1. ábra

Line drawing of a mechanical device with a handle and internal components, no text or symbols present

1. ábra

Diagram showing a hand holding a device with labeled parts and directional arrows indicating movement or force.

1. ábra

Diagram of a portable electric kettle with internal components and a handle, showing no text or symbols

1. ábra

Illustration of a hand using a tool to lift or lift a car, with motion arrows indicating movement (no text or symbols)

1. ábra

Illustration of a hand using a tool to interact with a car (no text or symbols present)

1. ábra

Illustration of a hand holding a device with a button, showing no text or symbols

1. ábra

Technical line drawing of a mechanical component with an upward arrow indicating motion or assembly (no text or symbols present)

1. ábra

Diagram of a mechanical component with an upward arrow, showing internal structure (no text or symbols)

1. ábra

Technical line drawing of a mechanical component with a curved pipe and housing (no text or symbols)

1. ábra

Line drawing of a stainless steel kitchen sink with an arched pipe (no text or symbols)

1. ábra

Diagram of a faucet with water flowing through it, showing mechanical components (no text or symbols)

1. ábra

Line drawing of a car interior showing a hand cleaning the seat area with a circular vent (no text or symbols)

1. ábra 18. ábra

Illustration of a sun, a hammer, and a folder with a switch symbol (no text or labels)

Diagram of a mechanical component with a downward arrow indicating a process or assembly (no text or symbols present)

Diagram of a hand-operated device with a handle and internal components, showing no text or symbols.

1. ábra 20. ábra

Diagram showing a hand holding a device with labeled parts and directional arrows indicating movement or force.

1. ábra

Technical diagram showing a device with labeled parts and directional arrows indicating motion or movement.

Diagram of a hairdryer with labeled parts and directional arrows indicating motion or movement

1. ábra 23. ábra

Diagram of a handheld device with a downward arrow indicating process (no text or symbols present)

Diagram showing a device being lifted by an arrow, with no visible text or symbols

1. ábra 25. ábra

Line drawing of a portable electric kettle with a handle and rotary button (no text or symbols)

Diagram showing a cable clamp device with a magnified inset illustrating the cable being inserted into a socket (no text or symbols present)

1. ábra 27. ábra

Technical line drawing of a mechanical device with no visible text or symbols

Line drawing of a hand holding a portable device with attached grip and handle (no text or symbols)

1. ábra 29. ábra

SPR 330 A1

Three pixelated icons: a globe with stars, a trash can with a magnifying glass, and a document icon (no text or symbols)

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

NÉMETORSZÁG

www.kompernass.com

Kazalo

Uvod....246

Informacije o teh navodilih za uporabo....246

Technical line drawing of a mechanical device with a component inserted, showing no text or symbols.

Slika 1

Diagram of a portable electric kettle with internal components and directional arrows indicating motion (no text or symbols)

Slika 2

Illustration of a hand holding a device with a magnified view showing internal components (no text or symbols)

Slika 3 Slika 4

Line drawing of a mechanical device with a rotating lever and handle (no text or symbols)

Line drawing of a laboratory apparatus with a curved tube and a central container (no text or symbols)

Line drawing of a mechanical device with a handle and lever mechanism (no text or symbols)

Slika 5 Slika 6

Line drawing of a portable electric kettle with a handle and rotary button (no text or symbols)

Slika 8

♦ Vstavite električni vti⑥ v električno vtičnico.
Izvlecite ročni de 9 iz držala 18 in cev 7 iz njenega držala 10.
♦ Pritisnite stikalo zavklop/izklo②, da vklopite napravo.

Illustration of a hand using a tool to lift a car, showing motion arrows (no text or symbols)

Slika 9

Illustration of a hand using a tool to interact with a car (no text or symbols present)

Slika 10

Illustration of a hand holding a device with a button, showing no text or symbols

Slika 11

Technical line drawing of a mechanical component with an upward arrow indicating motion or assembly (no text or symbols present)

Slika 12

Odstranite filter za nečistoče ②1 s pokrova posode za umazano vodo ⑳0, in sicer tako, da primete od strani s palcem in kazalcem vdolbini filtra za nečistoče ⑳1. Nato izvlecite filter za nečistoče ⑳2 navzgor iz pokrova posode za umazano vodo ⑳0 (glejte sl. 12).

Pokrov posode za umazano vodo 20 izvlecite navzgor iz posode za umazano vodo 3 (glejte sliko 13).

Diagram of a mechanical component with an arrow indicating assembly or force direction (no text or symbols present)

Abb. 13 Slika 14

Technical line drawing of a mechanical component with a curved pipe and housing (no text or symbols)

Line drawing of a laboratory apparatus with a curved pipe and central tank (no text or symbols)

Slika 15

Diagram of a mechanical device with a curved pipe and lever, showing fluid flow (no text or symbols)

Slika

16

Očistite filter za nečistočin pokrov posode z umazano vodo skupaj s plovcem pod tekočo toplo vodo (glejte sliko 16). Po potrebi uporabite blago čistilno sredstvo.

Line drawing of a toilet with a hand inserting a cup into the sink (no text or symbols)

Slika 17

Illustration of a sun, a hammer, and a device with a handle (no text or symbols)

Slika 18

Pustite, da se filter za nečistoč 21, posoda za umazano vodo 3 in pokrov posode za umazano vodo 20 skupaj s plovcem 19 popolnoma posušijo (glejte sliko 18).

- Ko so deli suhi, znova namestite pokrov posode za umazano vodo 20 na posodo za umazano vodo 3. Potisnite ga do konca navzdol, da se povsem uleže na posodo za umazano vodo 3 (glejte sliko 19).

Diagram of a mechanical component with a downward arrow indicating a process or assembly (no text or symbols present)

Slika 19

Technical line drawing of a mechanical device with a handle and internal components (no text or symbols)

Slika 20

Namestite filter za nečistoč 21 v pokrov posode za umazano vodo 20 (glejte sliko20).

Držite posodo za svežo vod 3 za ročaj in jo znova vstavite v napravo. Potisnite jo naprej v smeri naprave, dokler se slišno ne zaskoči (glejte sliko 21).

Diagram showing a hand pressing a component labeled '1' and '2' with directional arrows indicating movement or force.

Slika 21

Diagram showing two mechanical device components with labeled parts and directional arrows indicating motion or force.

Slika 22

Diagram of a hairdryer with labeled parts and directional arrows indicating motion or movement

Slika 23

Pritisnite tipko za zaklepanje pokrova čistilnega nastavka 12 in povlecite pokrov čistilnega nastavka 11 s čistilnega nastavka 8 (glejte sliko 23).

Pod toplo tekočo vodo očistite čistilni nastave in pokrov čistilnega nastavka 11.

Po potrebi očistite ročni de 9 z vlažno krpo. Pri trdovratni umazaniji nanesite na krpo blago sredstvo za pomivanje.

Diagram of a handheld device with a downward arrow indicating process (no text or symbols present)

Slika 24

Diagram showing a device being lifted by an arrow, with no visible text or symbols

Slika

25

Line drawing of a portable electric kettle with a handle and internal mechanism (no text or symbols)

Slika 26

Diagram showing a cable being inserted into a device with directional arrows indicating motion (no text or symbols present)

Slika

27

Pritrdite ce7 v njeno držalo 10 in vstavite ročni del 9 v njegovo držalo 18 (glejte sliko 28).

Technical line drawing of a mechanical device with no visible text or symbols

Slika 28

Line drawing of a hand holding a portable device with attached grip and handle (no text or symbols)

Slika 29

SPR 330 A1

Three pixelated icons: a globe with stars, a shipping container with a circular symbol, and a trash can (no text or labels)

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

NEMČIJA

www.kompernass.com

Pooblaščeni serviser

SI ServisSlovenija

Tel.: [phone]

E-Mail: [e-mail]

IAN 402449_2204

Garancijski list

Technical line drawing of a mechanical device with a component inserted, showing no text or symbols.

Slika 1

Mrežni kabel ⑥ potpuno namotajte oko gornjeg i donjeg držača kabela ④/⑤ (vidi sliku 2).

Diagram of a portable electric kettle with internal components and directional arrows indicating motion (no text or symbols)

Slika 2

Illustration of a hand holding a device with a downward arrow indicating action (no text or symbols present)

Slika 3 Slika 4

Line drawing of a mechanical device with a handle and lever mechanism (no text or symbols)

Povucite zatvarač spremnika za čistu vodu 22 za jezičak prema gore iz otvora (vidi sliku 4).

Napunite uređaj vodom iz slavine (vidi sliku 5) ili destiliranom vodom i po potrebi dodajte sredstvo za čišćenje presvlaka ili W5 sredstvo za čišćenje s octom. Pridržavajte se uputa proizvođača za primjenu. Pazite da je spremnik za čistu vodu 22 napunjen najviše do oznake MAX.

Line drawing of a mechanical device with a curved pipe and base, no text or symbols present

Line drawing of a mechanical device with a handle and internal components, no text or symbols present

Slika 5 Slika 6

Gurnite zatvarač spremnika za čistu vod ^22 ponovno do kraja u otvor (vidi sliku 6).

Diagram showing a hand holding a device with labeled parts and directional arrows indicating movement or force.

Slika 7

Rukovanje i rad

POZOR! OŠTEĆENJE PROIZVODA!

Line drawing of a portable electric kettle with a handle and rotary button (no text or symbols)

Slika 8

Illustration of a hand using a tool to lift or lift a car, with motion arrows indicating movement (no text or symbols present)

Illustration of a hand using a tool to interact with a car (no text or symbols present)

Slika 9 Slika 10

Illustration of a hand holding a device with a close-up view of its internal components (no text or symbols)

Technical line drawing of a mechanical component with an upward arrow indicating motion or assembly (no text or symbols present)

Slika 11 Slika 12

Uklonite filtar za prljavštinu 21 s poklopca spremnika za prljavu vodu 20 tako da bočna udubljenja filtra za prljavštinu 21 uhvatite palcem i kažiprstom. Zatim filtar za prljavštinu 21 izvucite prema gore iz poklopca spremnika za prljavu vodu 20 (vidi sliku 12).
Povucite poklopac spremnika za prljavu vodu 20 prema gore sa spremnika za prljavu vodu 3 (vidi sliku 13).

Diagram of a mechanical component with a downward arrow indicating force or movement (no text or symbols present)

Technical line drawing of a mechanical component with a curved handle and cylindrical shaft (no text or symbols)

Slika 13 Slika 14

- Izlijte prljavu vodu i prljavštinu (vidi sliku 14).

♦ Spremnik za prljavu vodu ③ isperite pod tekućom toplom vodom (vidi sliku 15).

Line drawing of a laboratory apparatus with a curved pipe and central tank (no text or symbols)

Diagram of a mechanical device with a curved pipe and lever, no visible text or symbols

Slika 15 Slika 16

Očistite filtar za prljavštin ^21 i poklopac spremnika za prljavu vodu ^20 s plovkom ^19 pod tekućom, toplom vodom (vidi sliku 16). Po potrebi koristite blagi deterdžent.

Po potrebi utor na uređaju u kojem se nalazi spremnik za prljavu vodu ③ očistite vlažnom krpom. Uklonite svu prljavštinu iz otvora. (vidi sliku 17).

Line drawing of a mechanical component with a circular hole and handle, no text or symbols present

Illustration of a sun, a hammer, and a device with a handle (no text or symbols)

Slika 17 Slika 18

Filtar za prljavštin ^21 , spremnik za prljavu vodu 3 i poklopac spremnika za prljavu vodu 20 s plovkom 19 ostavite da se potpuno osuše (vidi sliku 18).

Diagram of a mechanical component with a downward arrow indicating a process or assembly (no text or symbols present)

Diagram of a hand-operated device with a handle and internal components, showing no text or symbols.

Slika 19 Slika 20

Filtar za prljavštin ^21 ponovno umetnite u poklopac spremnika za prljavu vodu ^20 (vidi sliku 20).

Diagram showing a hand holding a device with labeled parts and directional arrows indicating movement or force.

Slika 21

Čišćenje ručnog dijela i nastavka za čišćenje

Technical diagram showing a device with two directional arrows labeled 1 and 2, indicating movement or force directions.

Diagram of a hairdryer with labeled parts and directional arrows indicating motion or movement

Slika 22 Slika 23

Pritisnite tipku za zaključavanje poklopca nastavka za čišćenje ⑫ i povucite poklopac nastavka za čišćenje ⑪ s nastavka za čišćenje ⑧ (vidi sliku 23).
Očistite nastavak za čišćenj 8 i poklopac nastavka za čišćenje 11 pod toplom tekućom vodom.
Ako je potrebno, ručni dio ⑨ očistite vlažnom krpom. U slučaju tvrdokornih onečišćenja, na krpu dodajte blago sredstvo za pranje posuđa.
Nastavak za čišćenje ⑧ i poklopac nastavka za čišćenje ⑪ ostavite da se potpuno osuše prije nego što ih ponovno pričvrstite na ručni dio ⑨.
Postavite poklopac nastavka za čišćenje ⑪ natrag na nastavak za čišćenje ⑧ i gurnite ga prema dolje sve dok tipka za zaključavanje poklopca nastavka za čišćenje ⑫ potpuno ne ulegne u otvor (vidi sliku 24).

Diagram of a handheld device with a lid and handle, showing a step-down view of the lever mechanism (no text or symbols present)

Diagram showing a device being lifted by an arrow, with no visible text or symbols

Slika 24 Slika 25

Line drawing of a portable electric kettle with a handle and rotary knob (no text or symbols)

Diagram showing a cable being inserted into a device with rotating arrows indicating motion (no text or symbols present)

Slika 26 Slika 27

♦ Pričvrstite crijev⑦ u držač za crijevo ⑩ i ručni dio ⑨ u držač ručnog dijela ⑱ (vidi sliku 28).

Technical line drawing of a mechanical device with no visible text or symbols

Line drawing of a hand holding a portable device with attached straps and a handle (no text or symbols)

Slika 28 Slika 29

SPR 330 A1

Three pixelated icons: a globe with stars, a shipping container with a circular symbol, and a trash can (no text or labels)

Proizvod i ambalaža mogu se reciklirati, podliježu proširenoj odgovornosti proizvođača i prikupljaju se odvojeno.

Zbrinjavanje uređaja

Ovaj simbol prekrižene kante za otpad na kotačićima ukazuje na to da ovaj uređaj podliježe direktivi 2012/19/EU. Tom se direktivom zabranjuje bacati uređaj na kraju njegova roka uporabe u obično kućno smeće. Uređaj se mora predati na mjestu za sakupljanje posebnog otpada ili predati poduzeću za zbrinjavanje posebnog otpada.

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

NJEMAČKA

www.kompernass.com

Cuprins

Introducere 288

Technical line drawing of a mechanical device with a component inserted, showing no text or symbols.

Fig. 1

Diagram of a portable electric kettle with internal components and directional arrows indicating rotation (no text or labels)

Fig. 2

Illustration of a hand holding a device with a button, showing no text or symbols

Fig. 3 Fig. 4

Line drawing of a mechanical device with a handle and lever mechanism (no text or symbols)

Line drawing of a kitchen sink with a curved pipe and water inlet (no text or symbols)

Line drawing of a mechanical device with a handle and internal components, no text or symbols present

Fig. 5 Fig. 6

Diagram of a portable electric kettle with a handle and internal mechanism, showing no text or symbols

Fig. 8

Illustration of a hand using a tool to lift or lift a car, with motion arrows indicating movement (no text or symbols present)

Illustration of a hand using a tool to interact with a car (no text or symbols present)

Fig. 9 Fig. 10

Illustration of a hand holding a device with a lock and arrow indicating rotation (no text or symbols)

Technical line drawing of a mechanical component with an upward arrow indicating motion or assembly (no text or symbols present)

Fig. 11 Fig. 12

Diagram of a mechanical component with an arrow indicating assembly or force direction (no text or symbols present)

Technical line drawing of a mechanical component with a curved handle and cylindrical shaft (no text or symbols)

Fig. 13 Fig. 14

Line drawing of a mechanical device with a curved pipe and handle (no text or symbols)

Diagram of a mechanical device with a curved pipe and internal components, no visible text or symbols

Fig. 15 Fig. 16

Line drawing of a car interior showing a hand holding a circular object (no text or symbols)

Illustration of a sun, a mechanical component, and a device with a handle (no text or symbols)

Fig. 17 Fig. 18

Diagram of a mechanical component with a downward arrow indicating assembly or force (no text or symbols present)

Diagram of a hand-operated device with a handle and internal components, showing no text or symbols.

Fig. 19 Fig. 20

Diagram showing a hand pressing a component labeled '1' and '2', with arrows indicating direction of movement.

Fig. 21

Diagram showing two mechanical device components with labeled parts and directional arrows indicating motion or force.

Diagram of a hairdryer with labeled parts and directional arrows indicating motion or movement

Fig. 22 Fig. 23

Diagram of a handheld device with a downward arrow indicating process (no text or symbols present)

Diagram showing a device being lifted by an arrow, with no visible text or symbols

Fig. 24 Fig. 25

Line drawing of a portable device with a handle and internal mechanism, showing no text or symbols

Diagram illustrating cable installation process with magnified detail and directional arrows indicating motion

Fig. 26 Fig. 27

Technical line drawing of a mechanical device with no visible text or symbols

Line drawing of a hand holding a portable device with attached straps and a handle (no text or symbols)

Fig. 28 Fig. 29

SPR 330 A1

Three pixelated icons: a circular icon with a star, a stylized box with a pencil, and a trash can with a circular symbol (no text or numbers)

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANIA

www.kompernass.com

Съдържание

Въведение....310

Technical line drawing of a mechanical device with a component inserted, showing no text or symbols.

Фиг. 1

Diagram of a portable electric kettle with internal components and directional arrows indicating motion (no text or symbols)

Фиг. 2

Illustration of a hand holding a device with a magnified view showing internal components (no text or symbols)

Фиг. 3 Фиг. 4

Line drawing of a mechanical device with a handle and lever mechanism (no text or symbols)

Line drawing of a laboratory apparatus with a curved pipe and tubing (no text or symbols)

Line drawing of a mechanical device with a handle and internal components, no text or symbols present

Фиг. 5 Фиг. 6

Diagram of a portable electric kettle with internal components and a rotary arrow indicating rotation (no text or symbols)

Фиг. 8

Illustration of a hand using a tool to lift or lift a car, with motion arrows indicating movement (no text or symbols present)

Illustration of a hand using a tool to interact with a car (no text or symbols present)

Фиг. 9 Фиг. 10

Illustration of a hand holding a device with a close-up view of its internal components (no text or symbols)

Technical line drawing of a mechanical device with an upward arrow indicating motion or force (no text or symbols present)

Фиг. 11 Фиг. 12

Diagram of a mechanical component with a top view and internal structure, showing no text or symbols.

Technical line drawing of a mechanical component with a curved pipe and cylindrical shaft (no text or symbols)

Фиг. 13 Фиг. 14

Diagram of a mechanical device with a curved pipe inserted into a rectangular housing (no text or symbols)

Diagram of a faucet with water flowing through it, showing mechanical components (no text or symbols)

Фиг. 15 Фиг. 16

Line drawing of a hand pressing down on a mechanical component with a circular hole (no text or symbols)

Illustration of a sun, a hammer, and a device with a switch (no text or symbols)

Фиг. 17 Фиг. 18

Diagram of a mechanical component with a downward arrow indicating assembly or force (no text or symbols present)

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Фиг. 19 Фиг. 20

Diagram showing a hand holding a device with labeled parts and directional arrows indicating movement or force.

Фиг. 21

Diagram showing two mechanical devices with labeled parts and directional arrows indicating motion or force directions.

Фиг. 22 Фиг. 23

Diagram of a hairdryer with labeled parts and directional arrows indicating motion or movement

Diagram of a handheld device with a downward arrow indicating process (no text or symbols present)

Diagram showing a device being lowered from its top, with no visible text or symbols

Фиг. 24 Фиг. 25

Line drawing of a portable electric kettle with a handle and rotary button (no text or symbols)

Diagram showing a cable being inserted into a device with rotating arrows indicating motion (no text or symbols present)

Фиг. 26 Фиг. 27

Technical line drawing of a mechanical device with no visible text or symbols

Line drawing of a hand holding a container with attached tools and a dial indicator (no text or symbols)

Фиг. 28 Фиг. 29

SPR 330 A1

Three pixelated icons: a circular icon with a star, a stylized box with a hand, and a trash can with a clock face (no text or symbols)

Technical line drawing of a mechanical device with a component inserted, showing no text or symbols.

Eik. 1

Diagram of a portable electric kettle with internal components and directional arrows indicating motion (no text or symbols)

Eik. 2

Illustration of a hand holding a device with a button, showing internal components and a downward arrow (no text or symbols)

Eik. 3 Eik. 4

Line drawing of a mechanical device with a handle and lever mechanism (no text or symbols)

Line drawing of a mechanical device with a curved pipe and base (no text or symbols)

Line drawing of a mechanical device with a handle and internal components, no text or symbols present

Eik. 5 Eik. 6

Line drawing of a portable electric kettle with a handle and rotary button (no text or symbols)

Eik. 8

Illustration of a hand using a tool to lift or lift a car, with motion arrows indicating movement (no text or symbols present)

Illustration of a hand using a tool to interact with a car (no text or symbols present)

Eik. 9 Eik. 10

Illustration of a hand holding a device with a close-up view of its internal components (no text or symbols)

Technical line drawing of a mechanical component with an upward arrow indicating motion or assembly (no text or symbols present)

Eik. 11 Eik. 12

Diagram of a mechanical component with an arrow indicating assembly or force direction (no text or symbols present)

Technical line drawing of a mechanical component with a curved handle and cylindrical shaft (no text or symbols)

Eik. 13 Eik. 14

Line drawing of a mechanical device with a curved pipe and handle (no text or symbols)

Diagram of a showerhead spraying water into a pipe (no text or symbols)

Eik. 15 Eik. 16

Line drawing of a mechanical component with a circular hole and textured surface (no text or symbols)

Illustration of a sun, a lamp, and a device with a switch (no text or symbols)

Eik. 17 Eik. 18

Diagram of a mechanical component with a downward arrow indicating assembly or force (no text or symbols present)

Technical line drawing of a mechanical device with a handle and internal components (no text or symbols)

Eik. 19 Eik. 20

Diagram showing a hand holding a device with labeled parts and directional arrows indicating movement or force.

Eik. 21

Technical diagram showing a mechanical device with labeled parts and directional arrows indicating motion or force directions.

Diagram of a hairdryer with labeled parts and directional arrows indicating motion or movement

Eik. 22 Eik. 23

Diagram of a handheld device with a downward arrow indicating process (no text or symbols present)

Diagram showing a device being lifted or lowered, with no visible text or symbols

Eik. 24 Eik. 25

Technical line drawing of a portable electrical device with a handle and internal components (no text or symbols)

Diagram showing a hand operating a device with a magnified inset of its cable (no text or symbols present)

Eik. 26 Eik. 27

Technical line drawing of a mechanical device with no visible text or symbols

Line drawing of a hand holding a portable device with attached grip and handle (no text or symbols)

Eik. 28 Eik. 29

SPR 330 A1

Three abstract icons: a globe with stars, a stylized box with a letter inside, and a trash can with a circular symbol (no text or numbers present)

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

ГЕРMANIA

www.kompernass.com

PDF ONLINE www.lidl-service.com

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

Last Information Update · Stand der Informationen · Version des informations · Stand van de informatie · Stav informaci Stan informacji · Stav informácií · Estado de las informaciones · Tilstand af information · Versione delle informazioni Információk állása · Stanje informacij · Stanje informacija · Versiunea informațiilor · Актуалност на информацията 'Ekdoση των πληροφοριών: 09/2022 · Ident.-No.: SPR330A1-062022-2
