DESCRIPCION

High pressure cleaners

Walk on Water

Walk on Water +

DESCRIPTION

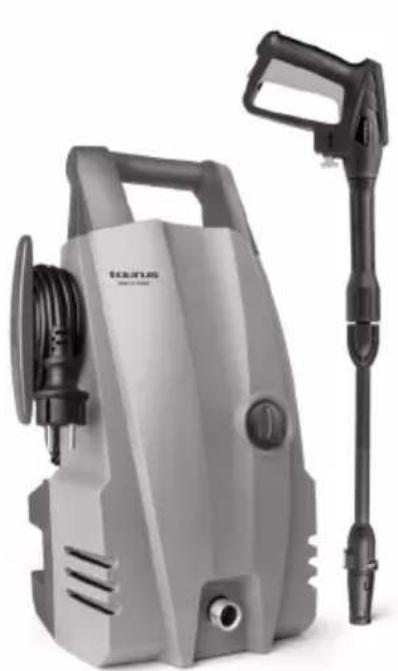

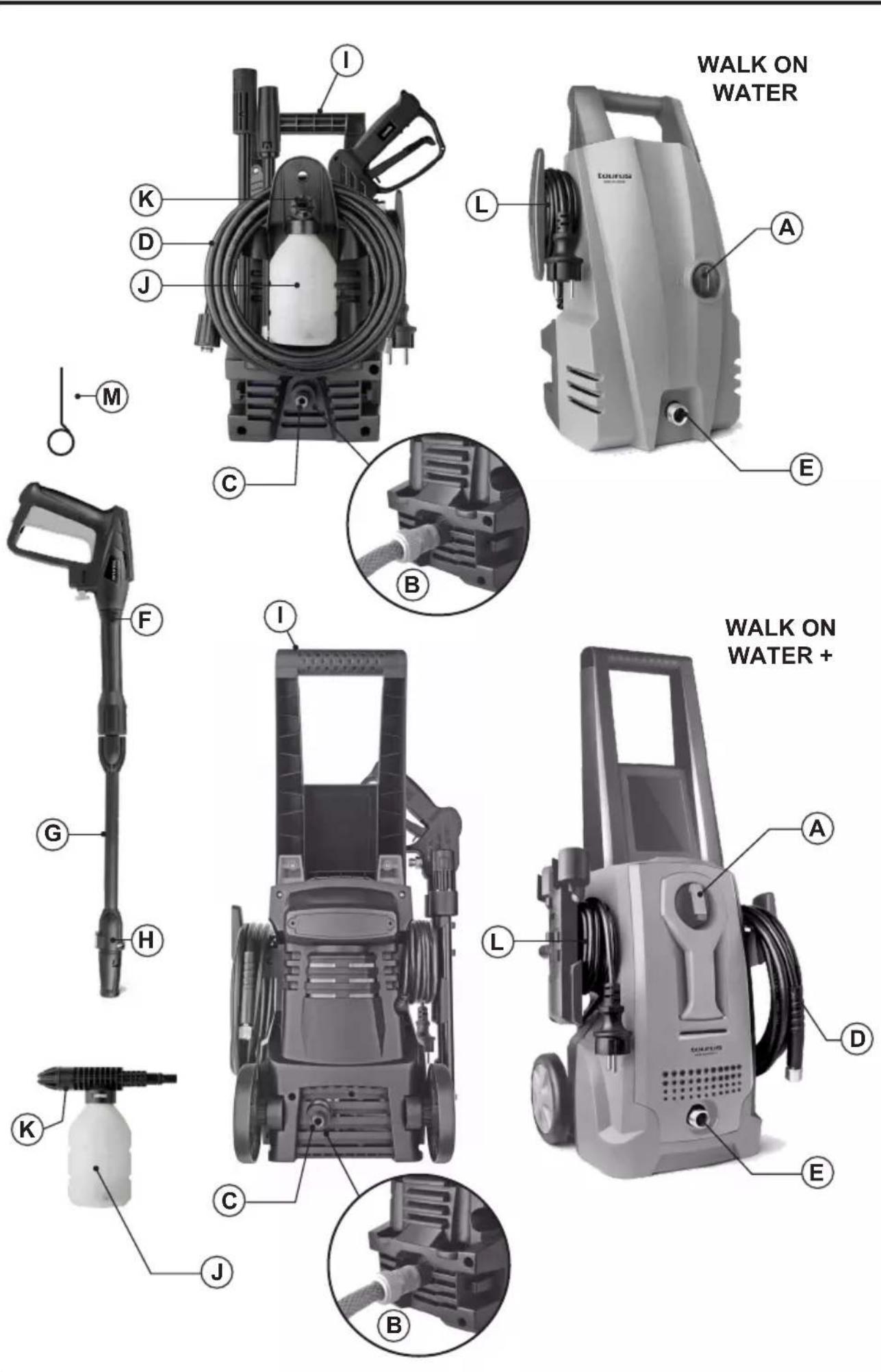

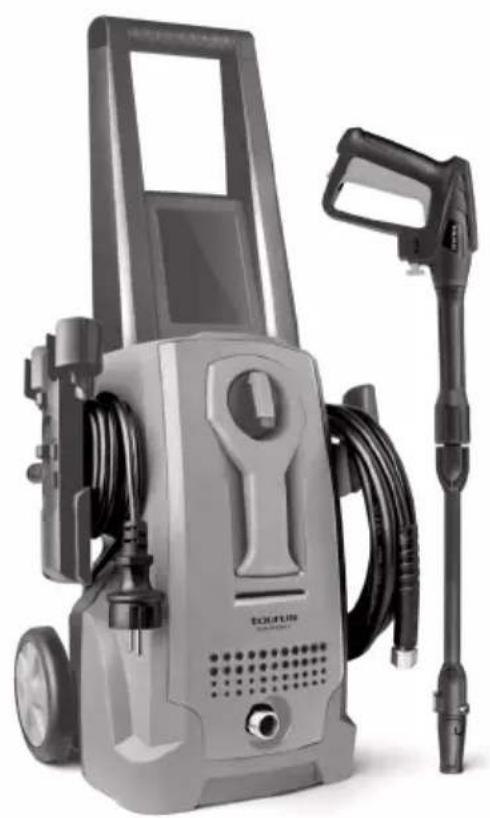

A Pump switch on/off
B Water Connection tuve (not included)
C Water Inlet
D High pressure tube
E Water Outlet
F Spray gun
G Extension Pipe
H Spray nozzle pipe
I Handle
J Detergent conatiner
K Soap Nozzle
L Mains power cord
M Tip Cleaner

(^*) Change position depending on the model.

If the model of your appliance does not have the accessories described above, they can also be bought separately from the Technical Assistance Service.

USE AND CARE:

• Check the position of power cables before commencing work ensuring they are well away from the work area.
• Do not use the appliance if the parts or accessories are not properly fitted.
• Do not use the appliance if the accessories or consumables attached to it are defective. Replace them immediately.
• Do not switch the appliance on without connecting it to a water supply.
• Do not use the appliance if the on/off switch does not work.
• Do not use the appliance if it is tipped up and do not turn the appliance over while it is in use or connected to the mains.
• This appliance is for household use only, not professional, industrial use.
• Store this appliance out of reach of children and/or persons with physical, sensory or reduced mental or lack of experience and knowledge.
• Use the appliance and its accessories and tools in accordance with these instructions, taking

into account the working conditions and the work to be performed. Use the appliance for operations different from those intended could result in a hazardous situation.

• Never leave the appliance unattended while in use.
• Do not use the appliance with pets or animals.
• Do not use the appliance on any part of the body of a person or animal.

USE

MOUNTING THE APPLIANCE

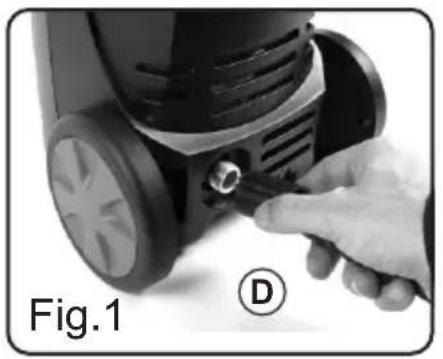

• Attach the High-pressure tube to the water outlet of the machine ensuring that's is well connected (Fig.1 Change position depending on the model).

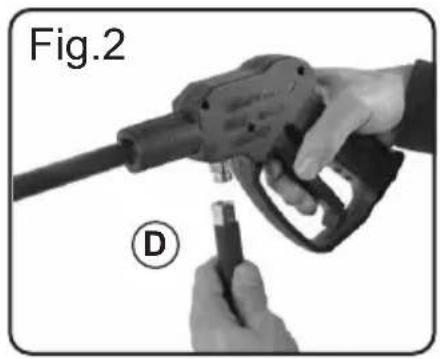

• Attach the spray gun to the high-pressure tube (Fig. 2).

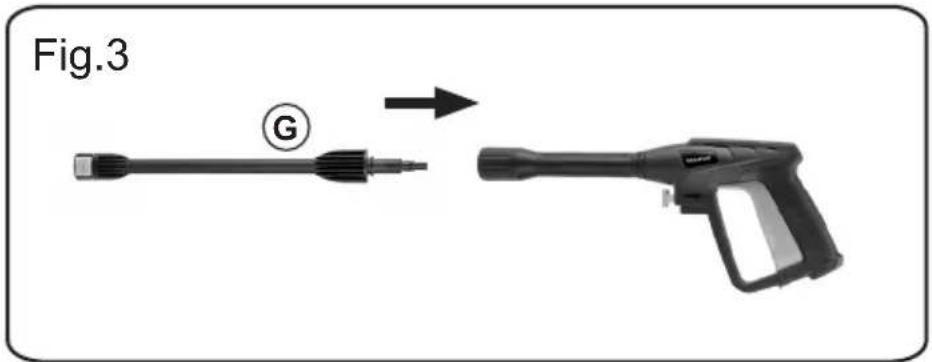

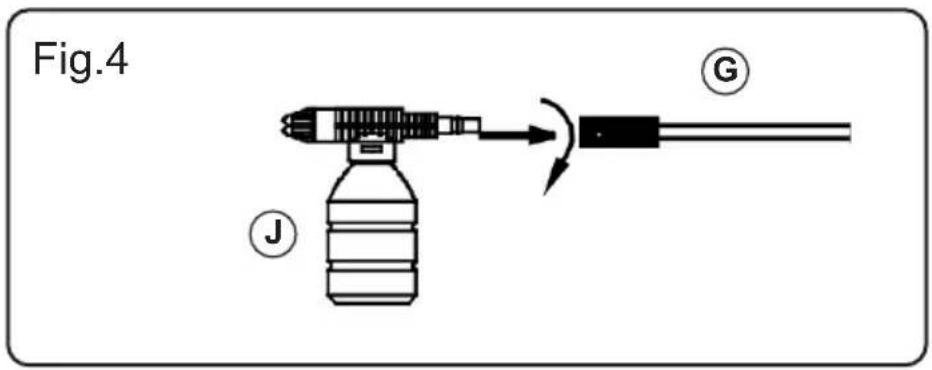

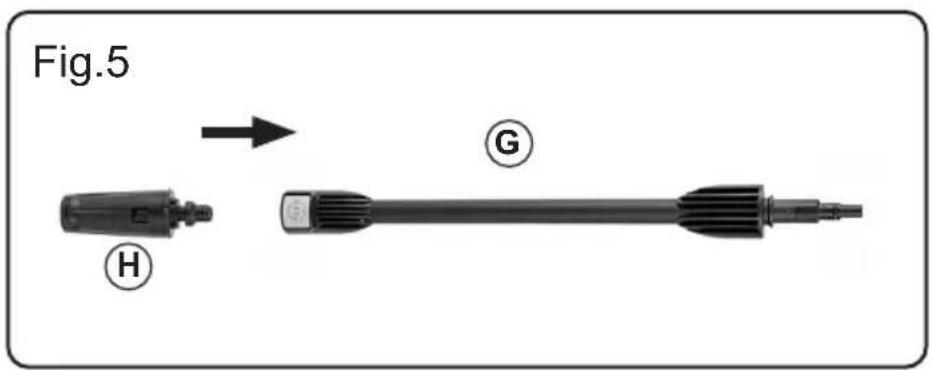

• Mount the extension pipe (Fig. 3), the soap nozzle (Fig. 4) or the spray nozzle pipe into the spray gun (Fig. 5)

• Connect the machine to water and power supplies.

• NOTE: If you notice that the appliance has some losses in water connections, you could use teflon tape in order to improve this connection.

• WARNING: Ensure that high-pressure tube is completely uncoiled before any use.

• WARNING: The water entering to the appliance should not exceed the 50^ .

PRE-OPERATION

• Useful information for during the use.
• WARNING: Before adjusting any kind of the features this appliance includes, switch off the appliance, turn off the water supply and disconnect the appliance from the mains.

ADJUSTING THE WATER JET OUTLET

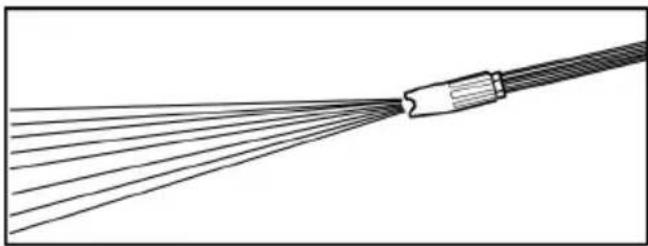

• The angle of spray coming out the appliance can be adjusted by rotating the nozzle. This will vary the spray pattern approximately from a narrow stream (high impact) to a 60^ wide fan spray.

CLEANING THE NOZZLE

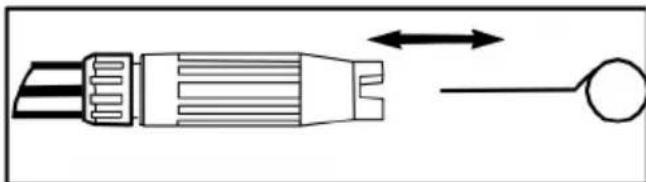

• To clean the nozzle, use the Tip cleaner (M) on the nozzle water outlet, so you will have to introduce the cleaning tip and move during 50-60 seconds in order to erase any water disturbance on the nozzle.

DETERGENT APPLICATION

• In order to use the detergent function, take the soap bottle out of the soap nozzle and fill it with an adequate cleaning product, suitable for this kind of products. Connect again the soap bottle to the soap nozzle (Fig. 6).

• After you used all the detergent in the bottle, refill it or replace it for the lance in order to finish cleaning task.

• WARNING: this appliance constantly takes the soap. If you are using the appliance with detergent and you want to stop using detergent but continue cleaning, take out the detergent tube, placed in the soap tank.

ANGLE TO THE CLEANING SURFACE

• For your knowing, maximum impact of water to the surface you want to clean is when you point perpendicularly the surface. However, this high impact may cause the dust particles to get imbed in the surface, difficulting the cleaning operation you want to do.

• The optimum angle for spraying water against a cleaning surface is 45 degrees.

• Distance from cleaning surface

• The optimum cleaning distance is 50~cm away from the surface. However, if the dirt is not removed with this distance, you can get closer, so the impact force will increase.

• WARNING: if the surface is not strong enough it could give in, so it could get rumpled.

HOW TO AVOID DAMAGING SURFACE

• By controlling the parameters explained before, you can adjust the hitting force of the water stream, so then you can regulate. The best way is to start with a complet 60^ of the nozzle, at 45^ and 50~cm away. Then you can start modifying these parameters.

OPERATION

• Mount the appliance according to the mounting the appliance section on this manual.
• Prepare the appliance to the suitable use you need to do.

SURFACE PREPARATION

• Before starting, make sure the cleaning surface is prepared to be cleaned. Also prepare the environment. If there are plants or trees, be assured to cover them with drop clothes. This will ensure that your plants are not sprayed with detergent.

INITIAL HIGH-PRESSURE RINSE

• Adjust theSpry nozzle to a wide fan position so you won't apply too much concentrated spray to the surface and avoid to damage the surface.

DETERGENT APPLICATION

• WARNING: Always use the appropriate instructions or model purchased. See them in detergent applications section.
• WARNING: Follow the detergent manufacturer's label instructions in order to mix the correct proportions between water and dt detergent (normally around 5% detergent per 95% water).

FINAL RINSE

• Once you finished applying detergent, change the detergent applicator (depending on model) or raise the pressure on the spray nozzle, and use water to wash up and remove all the detergent.

AFTER-USE

• Turn the appliance off and disconnect I from the mains and the water supply.
• Trigger the gun to depressurize the system so no damage can occur while dismounting the appliance.
• CAUTION: Never turn the water supply off without turning off the appliance. Serious damage can be caused to the pump and/or motor.

• WARNING: Despressurize the system every time before dismounting the appliance.

• After each use, wipe all surfaces with a clean, dry cloth.

MAINTENANCE AND CLEANING

• Clean and wipe the exterior of the appliance and all accessories removing all remaining water with a drop cloth.
• Regularly check for obvious defects such as loose fixings and worn or damaged components.
• Empty the detergent tank and clean it with

current water, so all the remaining detergent is wiped out.

STORAGE

• Dismount the unit following the steps on mounting but afterwards.
• Ensure cables are not trapped when stroing.

If any anomaly is detected, check the following table.

No detergent suction Detergent applicator is clogged	Clean applicator with warm water. If it not works, replace the applicator
Water inlet filter is clogged Clean	water inlet filter
Pump is sucking air from hose connections	Check that connections and locking ring are properly tightened
Nozzle is worn or not correct	Bring the appliance to any customer service
Unloader is clogged or worn
Valves are clogged or worn
Fluctuating pressure	Pump is sucking air from hose connectionsCheck that connections and locking ring are properly tightened
	Clogged nozzleClean the nozzle with the typ cleaner.
	Valves are dirty, worn or stuckBring the appliance to any customer service
	Water seals worn
Motor suddenly stops	Extension cord is too long or wire size too smallRemove extension cord
	Thermal safety switch has trippedCheck the voltage in the main supply match the voltage indicated on the Rating Label

Technical Data Walk on water Walk on water +
Working Pressure	70 Bar 90 Bar
Max pressure	105 Bar 135 Bar
Working flow rate	5 l/min 5,5 l/min
Maximum flow rate	6,2 l/min 6,8 l/min
Maximum water supply pres-sure	4 Bar 4 Bar
Rated Power	1400W 1600 W
Rated Voltage	220-230V~ 50 Hz 220-240V~ 50-60 Hz
Maximum Water temperature	50° 50°
Vibration	K: <2,5 m/s2	K: <2,5 m/s2
Sound Pressure level	LPA: 83 dBKPA: 3 dB	LPA: 81 dBKPA: 3 dB
Sound Power level	LWA: 99 dB L	W: 97 dB
Weight	6,5 Kg. 7,5 Kg.

• Measured sound level determined according EN 60335.

• The vibration emission level given in this information sheet has been measured according EN 60335-1 and may be used to compare one tool with other. It may be used for a preliminary assessment of exposure

• The vibration value during actual use of the power tool can differ from the declared total value depending on the way in which tool is used

• It's necessary to identify safety measures to protect the operator that are based on an estimation of exposure in the actual conditions of use (taking account of all parts of the operating cycle such as the times when the tool is switched off and when it is running idle in addition to the trigger time).
