Product Type	Active Bluetooth 2.0 Speakers
Brand	Ruark Audio
Model	MR1 Mk2
Dimensions (W x H x D)	130 x 175 x 140 mm
Weight	1.3 kg (right speaker), 1.1 kg (left speaker)
Power Supply	AC adapter 100-240 V AC, 50-60 Hz; output 14 V DC 2.0 A
Power Consumption	10-12 W typical, 28 W max, 0.5 W standby
Bluetooth	Bluetooth 5.0 with A2DP and aptX
Audio Inputs	3.5 mm stereo Aux jack, Toslink optical input, subwoofer output
Speakers	20 mm silk dome tweeter, 75 mm neodymium magnet woofer
Amplification	Linear amplifier 20 W per channel
Bluetooth Range	Up to 10 meters (30 ft) in open field
Remote Control	Infrared, CR2025 battery included (protective tab to remove)
Auto Standby	Yes, after 20 minutes without audio signal
Wall Mounting	Possible with 1/4-20 UNC thread on back
Compatible Battery	Ruark Audio BackPack battery pack (optional)
Warranty	2 years, extended to 3 years after registration at www.ruarkaudio.com
Care and Cleaning	Clean with a lint-free or slightly damp cloth. Do not use dusting agents or chemical products.
Safety	Do not expose to water, excessive heat, or obstruct ventilation openings. Do not open the device. Keep batteries out of reach of children.
Spare Parts and Repairability	Contact Ruark Audio customer service or an authorized dealer for repairs. Only use the provided or approved AC adapter.

Frequently Asked Questions - MR1 Mk2 Ruark Audio

How to pair my MR1 Mk2 speakers with a Bluetooth device?

Make sure your MR1 speakers are in Bluetooth mode (blue LED flashing). On your device, activate Bluetooth and select 'Ruark MR1' from available devices. Once connected, the LED becomes steady blue.

What is the Bluetooth range of the MR1 Mk2?

The Bluetooth range is approximately 10 meters in open field, but may be reduced by obstacles like walls.

How to adjust volume on the MR1 Mk2?

Turn the control knob on the right speaker clockwise to increase volume, counterclockwise to decrease. You can also use the volume buttons on the remote control.

My speakers turn off by themselves, is this normal?

Yes, the MR1 features auto standby after 20 minutes without audio signal. To disable this function, press and hold the Standby button on the remote for 5 seconds until the LEDs flash twice.

Can I connect a subwoofer?

Yes, the MR1 are equipped with a subwoofer output (phono jack) on the back of the right speaker.

How to clean the MR1 Mk2 speakers?

Use a lint-free or slightly damp cloth to wipe surfaces. Do not use chemicals, wax dusting agents, or sprays.

What to do if the remote control does not work?

Check that the orange plastic tab under the battery has been removed. If the problem persists, replace the battery with a new CR2025 respecting polarity.

How to connect my TV to the MR1 Mk2?

You can use the Toslink optical input on the back of the right speaker with an optical cable (sold separately). Then select the Optical source by pressing the control knob or remote.

What are the dimensions of the MR1 Mk2?

The dimensions of each speaker are 130 x 175 x 140 mm (W x H x D).

How to benefit from the extended warranty?

Register your product on www.ruarkaudio.com within 30 days of purchase to extend the warranty from 2 to 3 years.

USER MANUAL MR1 Mk2 Ruark Audio

Thank you for choosing our MR1 mk2 active Bluetooth speakers.

Ruark Audio began life as specialists in high-fidelity speaker systems and this passion for sound quality lies at the heart of all our products. The original MR1 won accolades from press and public alike for their rich sound and good looks, and the mark 2 edition ensures these gorgeous little speakers remain bang up to date. They look and sound better than ever, are even easier to use, and now feature optical input too.

Please take the time to read this user guide as it will help you to set them up and get the best performance from them. With due care, the MR1 should give you years of listening pleasure.

We love our MR1 and we hope you will too!

Alan O'Rourke

Founder and Managing Director

What's in the box

Ensure that all parts listed below are in the box. If any part is missing do not use the speakers and contact us directly if purchased in the UK, or your Ruark Audio dealer if purchased outside the UK.

1. Left speaker
2. Right speaker
3. Mains adaptor
4. Plug(s) for mains adaptor*
5. Speaker cable
6. Remote control
7. User guide & other documents

Please retain all packaging.

* The number and type of plug adapters supplied will vary according to region.

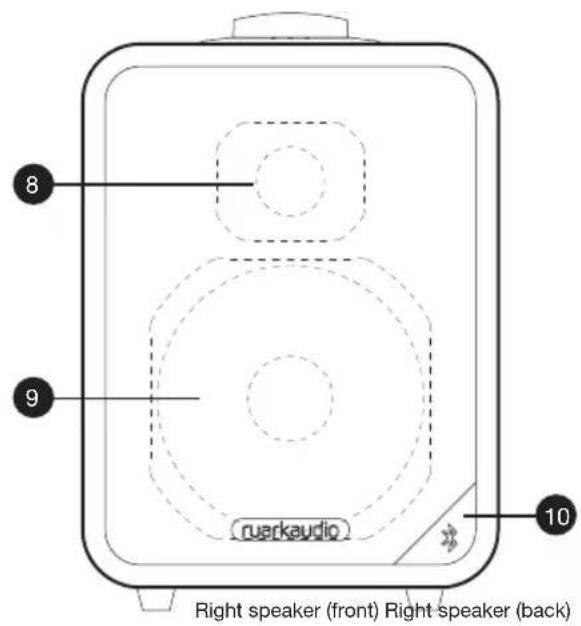

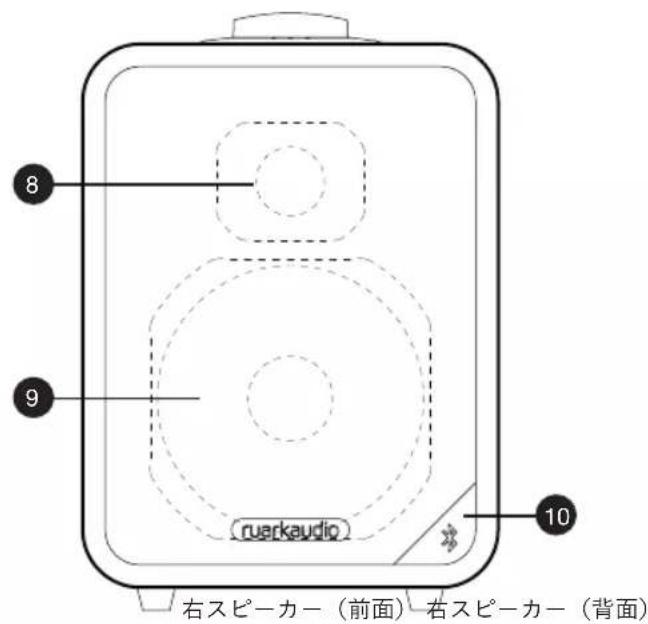

Overview

1. Silk dome tweeter
2. Neodymium woofer
3. Remote sensor
4. Optical input (Toslink)
5. Wall mounting (1/4-20 UNC thread)

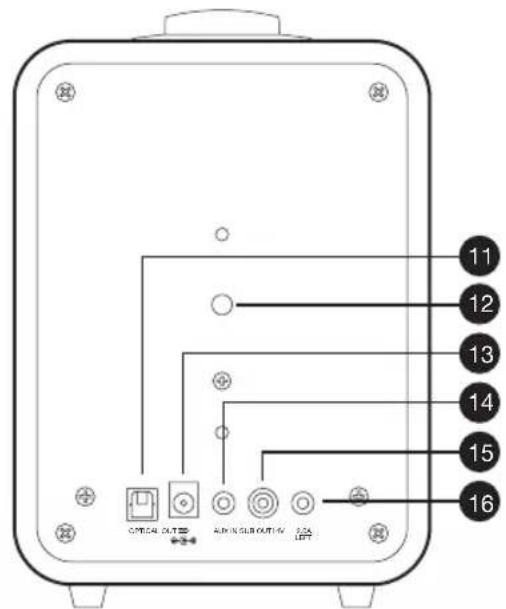

1. DC power socket
2. Aux input (3.5mm stereo jack)
3. Sub-woofer output (phono)
4. Output to left speaker (3.5mm mono jack)

1. Control knob
2. Optical input indicator LED (green)
3. Bluetooth input indicator LED (blue)
4. Aux input indicator LED (amber)

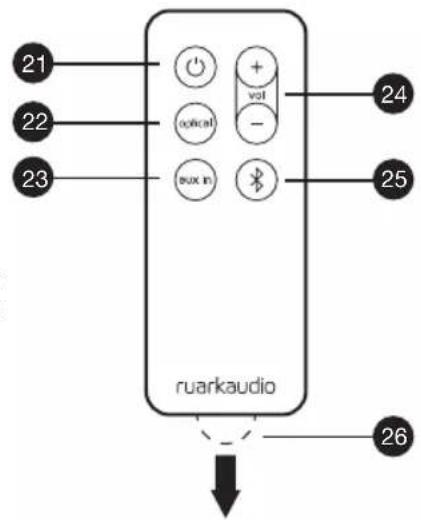

Remote controlControls

1. Standby
2. Optical
3. Aux in
4. Volume
5. Bluetooth
6. Battery tab

NOTE: before using your remote for the first time you must remove the plastic tab (26) to activate the battery.

EN

Changing battery

1. Hold the lock to the side with your finger and slide the battery compartment out.
2. With the remote face down, replace the battery with a new CR2025, ensuring the flat side marked with + faces up.
3. Push the battery compartment back into place.

Setup

1 Position speakers

For best stereo reproduction, place left and right speakers no less than 60cm (24in) apart with the speaker with volume control on the right. Avoid having objects in front of the speakers and also ensure the underside of each speaker is unobstructed.

2 Connect speakers together

Connect the two speakers with the interconnect cable, inserting one end into the output on the right speaker and the other end into the input on the left speaker.

3 Connect to mains power

Fit the correct plug for your region to the mains adaptor, it will "click" into place.

Connect the mains adaptor to the DC power socket on the back of your MR1, then connect it to the wall socket and where applicable turn on.

4 Turn on your speakers

Press the control knob, or the standby button on the remote. When turning on for the first time your MR1 will come on in Bluetooth mode and automatically enter pairing mode (blue LED flashes).

5 Change source

Press the control knob to cycle between Bluetooth, Aux input and Optical.

6 Adjust volume

Turn the volume control knob clockwise to increase the volume, anticlockwise to decrease it or use the volume buttons on the remote. When you reach the maximum or minimum volume, the source indicator LED goes off temporarily.

7 Standby

Press and hold the control knob for 1-2s until the source LED turns off, or press the standby button on the remote.

Aux in Optical

1 Connect your analogue audio device

Insert a standard 3.5mm stereo jack cable (sold separately) into the AUX IN socket on the back of the right speaker and the other end into the device you wish to play from (CD Player, Laptop, TV etc.)

2 Select Aux input

Repeatedly press the control knob until the amber Aux in LED lights up or press the Aux in button on the remote control.

3 Start audio playback on your device

1 Connect your optical audio device

Insert a standard Toslink optical cable (sold separately) into the OPTICAL socket on the back of the right speaker and the other end into the device you wish to play from (game console, TV etc.)

2 Select Optical input

Repeatedly press the control knob until the green Optical input LED lights up or press the Optical button on the remote control.

3 Start audio playback on your device

Bluetooth

To stream audio from a Bluetooth audio device you first need to pair it with your MR1 speakers.

Pair and connect your device

1 Select Bluetooth mode on your MR1

Repeatedly press the control knob until the blue Bluetooth LED lights up; it will start to flash indicating your MR1 are waiting to pair with a Bluetooth audio device.

2 Pair your Bluetooth audio device

Go to settings on your audio device, turn on Bluetooth and select “Ruark MR1” from the device list (it may take a few seconds for them to appear). When your MR1 have paired and connected, the blue LED will change to solid blue.

3 Start music play on your Bluetooth device

You may need to select "Ruark MR1" or Bluetooth as your playback device.

Auto connect

Your MR1 will automatically attempt to connect to the last connected Bluetooth device.

Operating range

Your MR1 will typically operate up to 10 metres from your Bluetooth audio device although obstructions such as walls will reduce this.

Disconnecting a device

Press the control knob or press the Bluetooth button on the remote control. This will disconnect the current device, the blue LED will flash and your MR1 will be ready to pair or connect again.

Pairing additional devices to your MR1

You can pair up to 8 devices although you will only be able to play audio from one device at a time.

Clearing the pairing list

Press and hold the control knob for 5s until all 3 LEDs light up. You may also need to unpair or delete the "Ruark MR1" entry in your device's Bluetooth pairing list.

Volume control

The volume controls on your Bluetooth audio device and your MR1 will remain independent of each other, we recommend turning the volume to near maximum on your audio device and controlling the output volume on the MR1.

Other features

Input level adjustment for Aux and Optical

If the volume when listening to Aux or Optical input is noticeably lower than when listening to other sources then you may need to increase the input level.

If the volume is higher and distorts you should decrease the input level.

To adjust the input level, select the source you wish to adjust, then press and hold the corresponding source button on the remote control until all 3 LEDs flash.

Use the volume buttons on the remote or the volume knob to change the level (1 LED = low, 3 LEDs = high) then press the knob to confirm your selection and all 3 LEDs will flash.

Snooze mode

To save power, your MR1 will automatically go into snooze mode after 20 minutes of inactivity and automatically turn back on when you resume audio playback. This applies to all modes including Bluetooth, which remains active during this time. When in snooze mode, the source LED will gently pulse.

Disabling snooze mode

To disable snooze mode, switch on your MR1, and then press and hold the standby button on the remote for 5 seconds until all the LEDs flash twice. To re-enable it, press the standby button for 5 seconds until all the LEDs flash once.

Wall mounting

Your MR1 speakers can be wall mounted using the integrated 1/4-20 UNC threaded insert on the back. For more information contact your dealer or visit www.ruarkaudio.com

BackPack battery pack compatible

Your MR1 are fully compatible with the Ruark Audio BackPack battery pack so you can use them where mains power is not available.

If your BackPack battery pack can be switched off, we recommend that you do so when not using your MR1 as even in standby they will slowly drain the batteries.

For useful hints and tips on using your MR1, please visit www.ruarkaudio.com

Safety and regulatory information

• Read this user guide and follow all instructions, it will help you set up and operate your product properly.
• Heed all warnings and keep this user guide for future reference.
• Do not attempt to use a damaged device as this could result in a dangerous electric shock.
• Do not open the unit or remove any panels to expose the electronics. No user serviceable parts inside.
• Refer all servicing to qualified service personnel. Servicing is required when the device has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the device, the device has been exposed to rain or moisture, does not operate normally, or has been dropped.
• This device is intended to be operated ONLY from the AC Voltages listed on the back panel or included power supply. Operation from other voltages other than those indicated may cause irreversible damage to the device and void the product warranty.
• Use only the power supply provided with the device or an approved alternative.
• Ensure that the power adapter, mains plug or mains connector into the unit is readily accessible in case disconnection from the mains is required.
• The mains adapter, mains plug or mains connector must be removed from the socket to completely disconnect the system from mains power.

• Do not place any naked flame sources, such as lighted candles, on or near the device. Do not install near any heat sources such as radiators, stoves, or other devices (including amplifiers) that produce heat.

• Avoid exposure to extreme heat or cold.

• Only use attachments/accessories specified for this device. Make no modifications to the system or accessories. Unauthorised alterations may compromise safety, regulatory compliance, and system performance.
• To reduce the risk of fire or electrical shock, do not expose the device to rain or moisture. Do not expose this device to dripping or splashing, and do not place objects filled with liquids, such as vases, on or near the device. As with any electronic products, use care not to spill liquids into any part of the system. Liquids can cause a failure and/or a fire hazard.
• Unplug this device during lightning storms or when unused for long periods of time to prevent damage to this device.
• To prevent risk of fire or electric shock, avoid overloading wall outlets, extension cords, or integral convenience receptacles.
• Long-term exposure to loud music may cause hearing damage. It is best to avoid extreme volume when using headphones, especially for extended periods.
• Do not install this device in a confined space. Always leave a space of at least 10cm around the device for ventilation and ensure that curtains or other objects never cover ventilation openings on the device.
• Remote control batteries must not be exposed to excessive heat, such as from sunshine or fire, and used batteries must be disposed of responsibly.

LITHIUM COIN CELL SAFETY NOTICE. The remote control contains a lithium coin cell battery which if ingested, may cause chemical burns. Keep new and used batteries out of reach of small children. If you think batteries may have been ingested, seek immediate medical attention. Do not handle leaking or damaged batteries. Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.

This device is labelled in accordance with European Directive 2012/19/EU concerning waste electrical and electronic equipment. This symbol indicates that the product or associated batteries should not be disposed of as general household waste. As with any electrical equipment, please dispose of it according to local regulations.

CE COMPLIANCE INFORMATION

This product conforms to all EU Directive requirements as applicable by law. You may obtain a free copy of the Declaration of Conformity by contacting your dealer, distributor, or Ruark Audio.

Hereby, Ruark Audio, declares that this device complies with the essential requirements and other relevant provisions of the European Radio Equipment Directive 2014/53/EU.

You can download the full CE Declaration of Conformity at www.ruarkaudio.com/doc/MR1mk2doc.pdf

UK CONFORMITY ASSESSMENT INFORMATION

This product conforms to all UK Conformity Assessment regulations as applicable by law. You can download the full UKCA Declaration of Conformity at www.ruarkaudio.com/doc/MR1mk2UKCA.pdf

Specifications

MR1 mk2 speakers

• Ruark 75mm neodymium woofers
• Ruark 20mm silk dome tweeters
• 20W Linear amplifier
• Audio grade crossover components
- Bluetooth: A2DP, aptX
• Power consumption: 10-12W typical, 28W max, 0.5W standby
• 3.5mm jack aux analogue input
• Toslink optical digital input
- Phono sub-woofer output
- Backpack battery compatible
• Dimensions: 175 x 130 x 140mm
• Weight: 1.3kg (R) 1.1kg (L)

Power supply

• Input power 100 to 240VAC 50-60Hz 1.0A max
  • Output power 14VDC 2.0A

Specification and design subject to modification without notice

Bluetooth®

Qualcomm aptX

Guarantee

Register your product to get an extended three-year guarantee.

As standard, this product is guaranteed to be free from defects for a period of two years from date of purchase, but this is extended to three years if you register your product at www.ruarkaudio.com.

This guarantee remains valid providing this product has been treated with due care and attention. Product failure through accidental damage, excessive wear and tear, negligence or unauthorised modification will void this guarantee.

If this product was purchased in the UK and it develops a fault, please contact the retailer from which it was purchased, or contact us directly via our website www.ruarkaudio.com/support.

For products purchased outside the UK the distributor in the country of purchase guarantees the product. For details, please contact the local Ruark distributor or outlet. If returning this product, please ensure it is packed in its original packaging and a proof of purchase is included.

This guarantee in no way varies or removes the purchaser's statutory rights.

Errors and omissions excepted.

General care

• Clean with a soft, lint-free duster or slightly dampened cloth. Do not use wax sprays or other substances as these may damage the surface finish or impair performance.
• Do not expose your unit to direct sunlight, high humidity, dust, excessive vibration or extreme temperatures, all of which can affect the finish, performance and reliability of the unit.
• Recommended operating temperature range is 5°C to 40°C.
• Natural wood finish cabinets will vary and lighten or darken with age, particularly when exposed to sunlight.

Copyright and trademarks

© Ruark Audio. All rights reserved. Ruark Audio, the Ruark Audio logo, and other Ruark Audio marks are owned by Ruark Audio and may be registered. All other trademarks are the property of their respective owners. Ruark Audio assumes no responsibility for any errors that may appear in this manual and the information contained in it may change without notice. Bluetooth® and associated logos are registered trademarks owned by Bluetooth SIG, Inc.

Qualcomm aptX is a product of Qualcomm Technologies International Ltd.

All other trademarks are the property of their respective owners.
