Brand	Fysic
Model	FB150 (B26)
Product type	Automatic upper arm blood pressure monitor
Dimensions (L x W x H)	118 x 110 x 52 mm
Weight (with batteries)	261.3 g
Display	Digital LCD screen 48 x 65 mm
Power supply	4 AAA 1.5V batteries or 5V DC 1A power adapter (not included)
Measurement method	Oscillometric
Measurement range – Systolic pressure	60 to 230 mmHg
Measurement range – Diastolic pressure	40 to 130 mmHg
Measurement range – Pulse	40 to 199 beats/min
Accuracy	Pressure: ±3 mmHg, Pulse: ±5% of reading
Memory	2 x 120 measurements (users A and B)
WHO classification	6 levels (optimal to severe) displayed
Irregular heartbeat detection	Yes
Auto-off	60 seconds
Compatible cuff	Arm circumference 22 to 42 cm
Operating conditions	Temperature 5 to 40°C, humidity 15 to 93% RH
Storage conditions	Temperature -25 to 70°C, humidity ≤93% RH
Maintenance	Clean the device with a soft, dry cloth; cuff washable with soapy water (do not immerse)
Safety	Home use – does not replace medical advice. Avoid strong electromagnetic fields.
Warranty	24 months against manufacturing defects
Included accessories	Main unit, cuff, user manual
Manufacturer	Shenzhen Jamr Technology Co., Ltd.

Frequently Asked Questions - FB150 Fysic

How to install the batteries in the blood pressure monitor?

Open the battery compartment cover on the back. Insert 4 AAA 1.5V batteries following the indicated + and - polarities. Close the cover. Preferably use long-lasting alkaline batteries.

What does the irregular heartbeat symbol mean?

This symbol (❤️ with a line) appears if the device detects an irregularity in the pulse during measurement. This may indicate a normal variation or a rhythm disorder. Repeat the measurement and if the symbol appears frequently, consult a doctor.

How to interpret the displayed WHO grids?

The device displays 6 levels according to the WHO classification: 1 (optimal), 2 (normal), 3 (high normal), 4 (mild hypertension), 5 (moderate), 6 (severe). These grids are an indicative guide; only a healthcare professional can diagnose hypertension.

What is the correct position to take your blood pressure?

Sit comfortably with your back supported and feet flat on the floor. Place the cuff on your left arm (or right if advised) at heart level, palm facing up. Stay still and do not speak during the measurement. The cuff should be 2-3 cm above the elbow.

What to do if the screen displays an error code (Er1, Er2, etc.)?

Error codes indicate a malfunction. For example: Er1 = abnormal sensor (contact the distributor), Er2 = pulse wave not detected (check air release), Er4 = cuff too loose or leaking. Consult the error table in the manual for each code and the appropriate corrections.

How to clean the cuff and the device?

Clean the device with a soft, dry cloth. For the cuff, use a damp cloth with a little soapy water, then air dry it. Do not wash the cuff in a washing machine or dishwasher, and do not immerse it in water.

Can I use the device with a pacemaker?

The pulse display is not suitable for checking the rate of pacemakers. In case of irregular heartbeat, measurements should be evaluated by a doctor. Consult your healthcare professional before use.

How to delete saved measurements from memory?

When viewing data in memory (press MEM), hold down the MEM button until the screen indicates deletion. All records of the current user will be erased. This action is irreversible, back up your data if necessary.

What is the accuracy of the device?

Accuracy is ±3 mmHg for blood pressure and ±5% for pulse rate. The device is clinically tested and complies with standards EN1060-3 and IEC 80601-2-30.

How many measurements can I store?

The device can store up to 120 measurements per user (A and B), for a total of 240 measurements. Each measurement is time-stamped and the average is calculated automatically.

USER MANUAL FB150 Fysic

Cuff Connector Port

AC Adapter Port

Afbeelding 2

EN	NL
Cuff Connector Port	Aansluitpoort manchet
AC Adapter Port	AC-adapterpoort

SET START/STOP STOP MEM LCD Display

1 2 3 4 5 38.8 38.8 38.8 AVG. NO. 38.8 38%88 6 7 8 9 10 11 12 13

Afbeelding 3

EN NL
SET INSTELLEN
START/STOP	START/STOP
MEM	GEHEUGEN
LCD DISPLAY	LCD-SCHERM

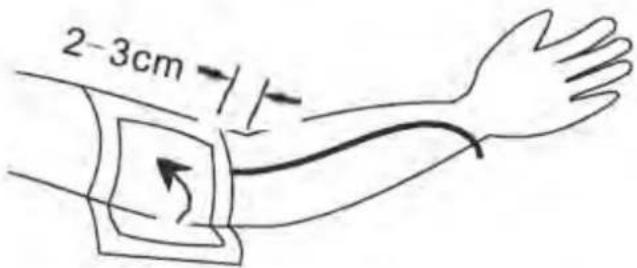

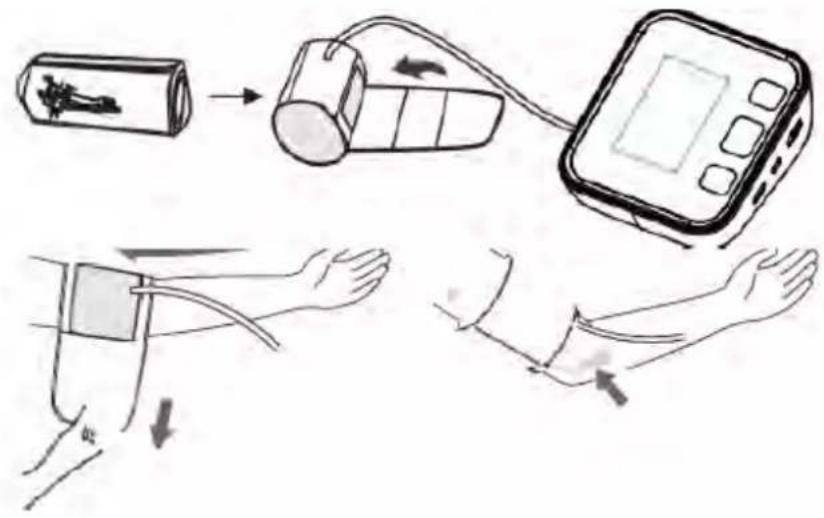

Medical procedure diagram showing steps from a device to a patient's arm and hand placement with arrows indicating motion.

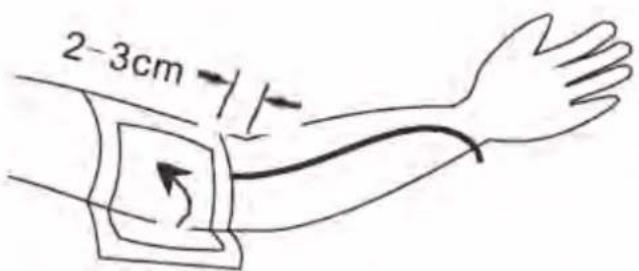

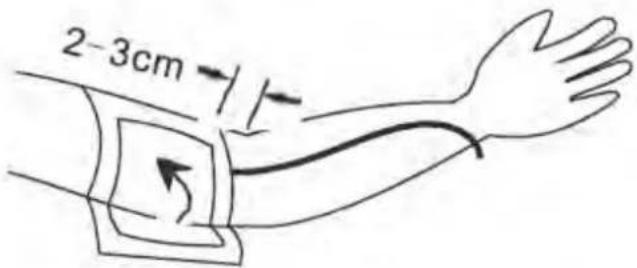

2-3cm

Afbeelding 5

5.3 Meetprocedure

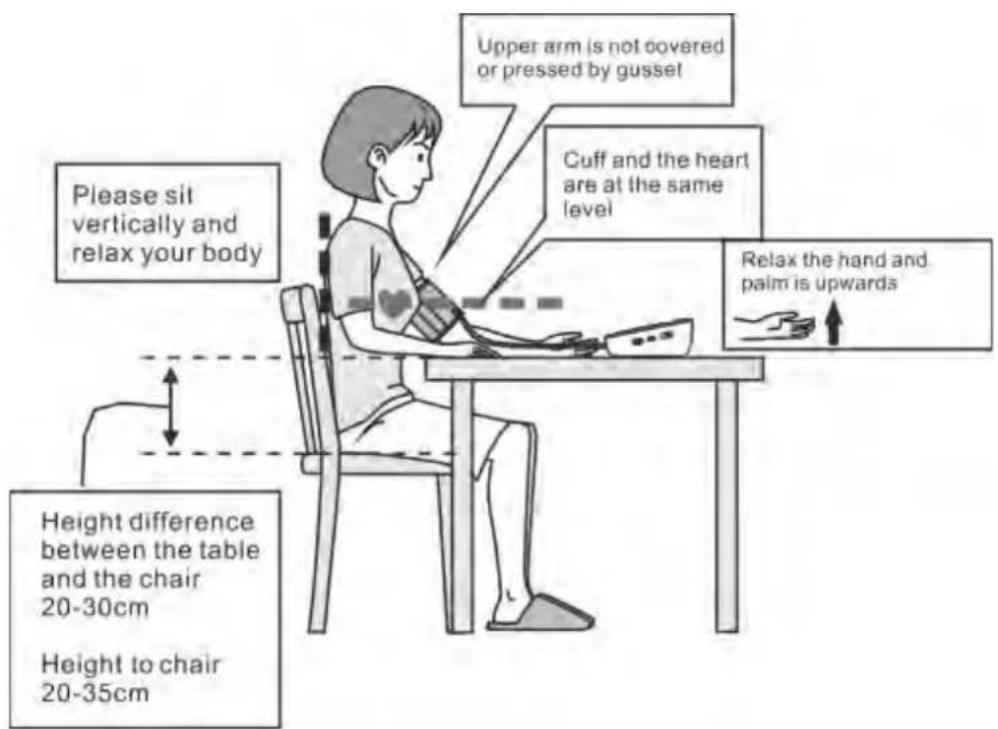

Please sit vertically and relax your body Height difference between the table and the chair 20-30cm Height to chair 20-35cm Upper arm is not covered or pressed by gusset Cuff and the heart are at the same level Relax the hand and palm is upwards

Afbeelding 6

A101-301, D101-201, Jamr Science & Technology Park, No. 2 Guiyuan Road,

Guixiang Community, Guanlan Street, Longhua District, Shenzhen 518100,

PEOPLE'S REPUBLIC OF CHINA

Shanghai International Holding Corp. GmbH (Europa)

Eiffestrasse 80, 20537 Hamburg, Duitsland. [e-mail]

Geïmporteerd door:

Commaxx B.V.

Wiebachstraat 37

6466 NG Kerkrade

The Netherlands

Versienummer: 1.3

FYSIC

Cuff Connector Port

AC Adapter Port

Image 02

SET START/STOP STOP MEM LCD Display

1 2 3 4 5 6 7 8 9 10 11 12 13 AVG. NO. AVG. NO. AVG. NO.

Image 03

EN FR
SET RÉGLAGE
START/STOP	MARCHE/ARRÊT
MEM	MEM
LCD DISPLAY	ÉCRAN LCD

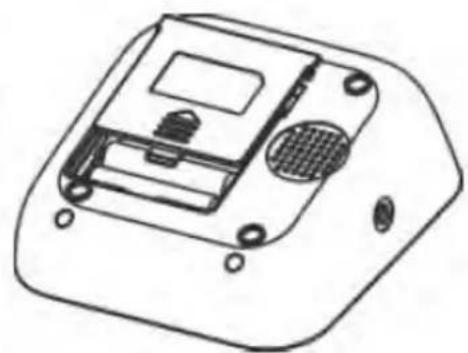

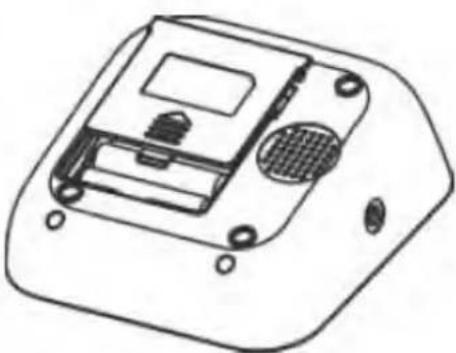

Technical line drawing of a device casing with mounting holes and internal components (no text or symbols)

Technical line drawing of a device casing with internal components and mounting holes (no text or symbols)

Image 04

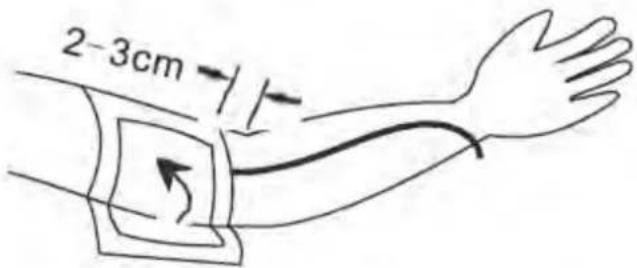

Medical procedure diagram showing blood pressure measurement steps with labeled components and directional arrows

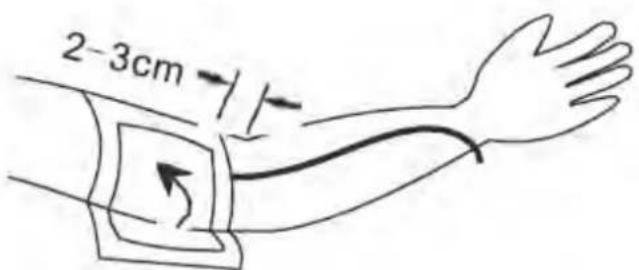

2-3cm

Image 05

Please sit vertically and relax your body Height difference between the table and the chair 20-30cm Height to chair 20-35cm Upper arm is not covered or pressed by gussel Cuff and the heart are at the same level Relax the hand and palm is upwards

Image 06

A101-301, D101-201, Jamr Science & Technology Park, No. 2 Guiyuan Road,

Guixiang Community, Guanlan Street, Longhua District, Shenzhen 518100,

PEOPLE'S REPUBLIC OF CHINA

Shanghai International Holding Corp. GmbH (Europe)

Eiffestrasse 80, 20537 Hamburg, Allemagne. [e-mail]

Importé par :

Commaxx B.V.

Wiebachstraat 37

6466 NG Kerkrade

The Netherlands

Cuff Connector Port

AC Adapter Port

Abbildung 02

SET START/STOP MEM LCD Display

1 2 3 4 5 6 7 8 9 10 11 12 13 AVG. NO. AVG. NO.

Abbildung 03

EN DE
SET Einstelltaste
START/STOP	START/STOPP
MEM	Speichertaste MEM
LCD DISPLAY	LCD-DISPLAY

Technical line drawing of a device casing with mounting holes and internal components (no text or symbols)

Technical line drawing of a device casing with internal components and mounting holes (no text or symbols)

Abbildung 04

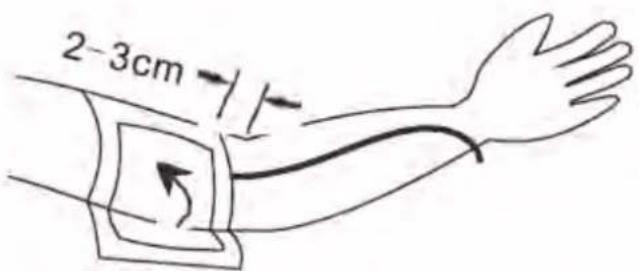

Medical procedure diagram showing blood pressure measurement steps with labeled components and directional arrows

2-3cm

Abbildung 05

5.3 Messverfahren

Siehe Abbildung 06.

Please sit vertically and relax your body Height difference between the table and the chair 20-30cm Height to chair 20-35cm Upper arm is not covered or pressed by gusset Cuff and the heart are at the same level Relax the hand and palm is upwards

Abbildung 06

A101-301, D101-201, Jamr Science & Technology Park, No. 2 Guiyuan Road,

Guixiang Community, Guanlan Street, Longhua District, Shenzhen 518100,

PEOPLE'S REPUBLIC OF CHINA

Shanghai International Holding Corp. GmbH (Europa)

Eiffestrasse 80, 20537 Hamburg, Deutschland. [e-mail]

Importiert durch:

Commaxx B.V.

Wiebachstraat 37

6466 NG Kerkrade

The Netherlands

Version Number: 1.3

FYSIC

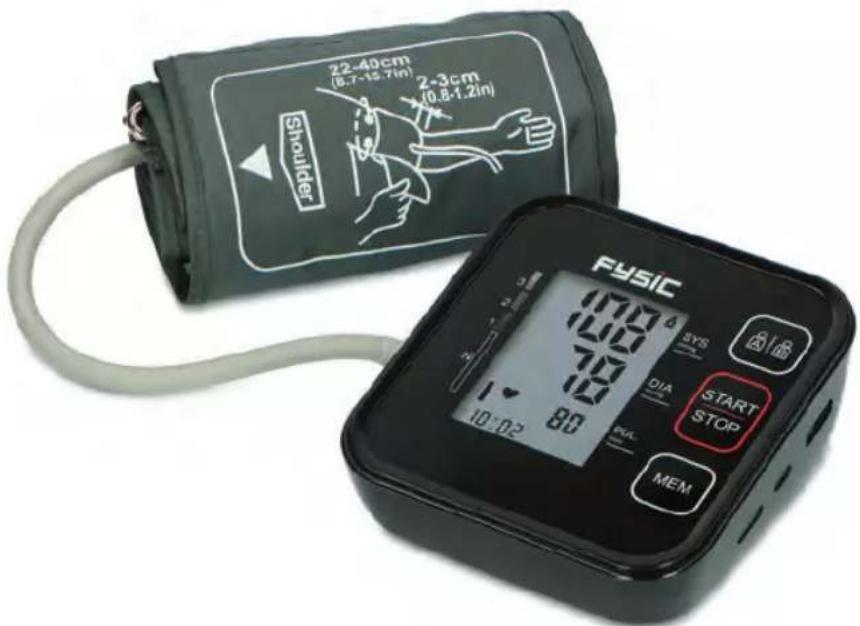

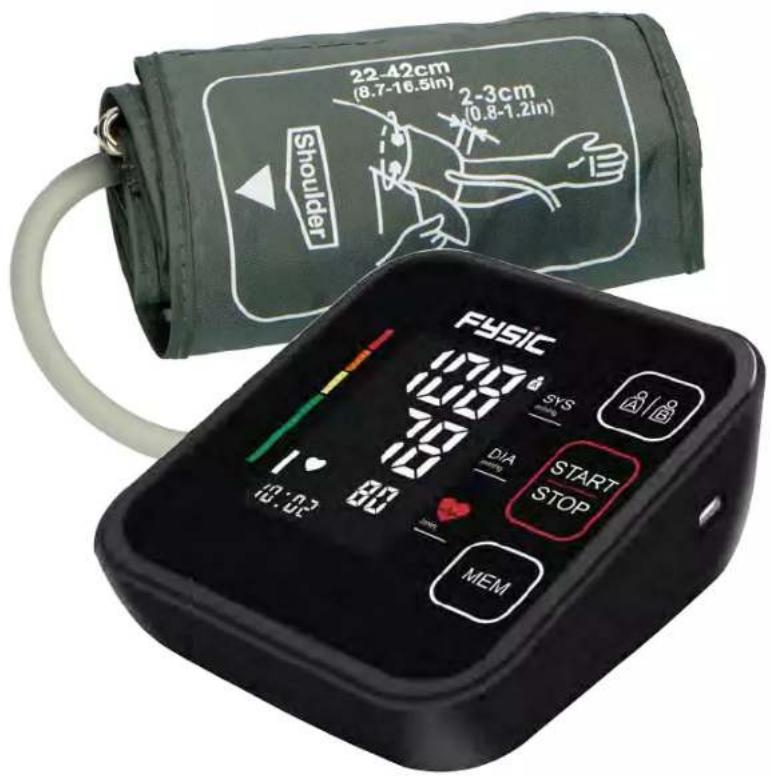

Fully Automatic Upper Arm

Blood Pressure Monitor

Model Number: B26 / FB150

USER'S MANUAL

22-42cm (8.7-16.5in) 2-3cm (0.8-1.2in) Shoulder FySiC SYS DIA START STOP MEM

CONTENTS

1 Introduction and Intended Use....2
2 Important Information on Blood Pressure and its Measurement....3
3 Components of your blood pressure monitor .... 5
4 Using your Monitor for the First Time 6
5 Measurement Procedure 8
6 Care and Maintenance....14
7 Warranty/Service....14
8 Certifications 14
9 Technical Specifications 15
10 EMC Declaration....15

1 Introduction and Intended Use

It enables reliable measurement of systolic and diastolic blood pressure as well as pulse through the oscillometric method.

Before using, please read this instruction manual carefully and then keep it in a safe place.

1.1 Remember...

● Only a health-care professional is qualified to interpret blood pressure measurements.
● This device is NOT intended to replace regular medical checkups.
- Blood pressure readings obtained by this device should be verified before prescribing or making adjustments to any medications used to control hypertension. Under no circumstances should YOU alter the dosages of any drugs prescribed by your physician.
- This monitor is intended for use by adults only. Consult with a physician before using this instrument on a child.
- In cases of irregular heartbeat, measurements made with this instrument should only be evaluated after consultation with a physician.
- Host products, including accessories, shall be processed in accordance with local regulations after reaching the life cycle.

1.2 Warnings and Precautions

Warning: The use of other accessories other than those specified or provided by the equipment manufacturer may cause electromagnetic radiation to increase or decrease electromagnetic immunity resulting in operational failure

Warning: This system may fail to yield specified measurement accuracy if operated or stored in temperature or humidity conditions outside the limits stated in the specifications section of this manual.

Warning: The separate ac adapter which is intended to connect USB interface of Blood Pressure Monitor has not been evaluated according to IEC 60601-1. The safety of the product shall be reappraised when it power supply by a separate ac adapter.

Warning: The user must check that the equipment functions safely and see that it is in proper working condition before being used.

Warning: The device is not suitable for use in the presence of flammable anesthetic mixtures with air or with oxygen or nitrous oxide.

Warning: The patient is an intended operator, the functions of monitoring blood pressure and pulse rate can be safely used by patient. The routine clean and changing batteries can be performed by the patient.

Warning: This device can not be used together with hf surgical equipment.

Warning: Use of power adapters

1. Adapter: input 100-240V, 50/60hz output DC 5V 1A
2. Do not to position the device to make it difficult to operate the disconnect on device while using adaptor.
3. Avoid usage in wet, moisture, high temperature, corrosive gas environments and in direct sunlight.

Warning: Too frequent measurements can cause injury to the PATIENT due to blood flow interference.

Warning: Don't place the cuff over wound part.

Warning: Pressurization of the CUFF can temporarily cause loss of function of simultaneously used monitoring EQUIPMENT on the same limb.

Caution: To avoid any possibility of accidental strangulation, keep this unit away from children and do not drape tubing around your neck.

Caution: To avoid damaging the device, keep this unit away from children and pets.

Caution: The standard material used for the bladder and tubing is latex-free.

Attention: Self-measurement means control, not diagnosis or treatment. Unusual values must always be discussed with a physician. Under no circumstances should you alter the dosages of any drugs prescribed by a physician.

Attention: The pulse display is not suitable for checking the frequency of heart pacemakers!

Attention: In cases of irregular heartbeat, measurements made with this instrument should only be evaluated after consultation with a physician.

Note: To obtain the greatest accuracy from your blood pressure instrument, it is recommended that the instrument be used within the specified temperature and the relative humidity, please see the Technical Specifications.

Note: The cuff is treated as the applied part. The user should contact the manufacturer for assistance, if needed, in setting up, using or maintaining the device.

Note: This device contains sensitive electronic components. Avoid strong electrical or electromagnetic fields in the direct vicinity of the device (e.g. mobile telephones, microwave ovens) during use. These can lead to erratic results.

Note: Do not attempt to service or repair this device yourself. Should a malfunction occur, refer to local distributor or the manufacturer.

2 Important Information on Blood Pressure and its Measurement

2.1 How does high or low blood pressure arise?

Your level of blood pressure is determined in the circulatory center of the brain and adjusts to a variety of situations through feedback from the nervous system. To adjust blood pressure, the strength and speed of the heart (Pulse), as well as the width of circulatory blood vessels is altered. Blood vessel width is controlled by fine muscles in the blood vessel walls.

Your level of arterial blood pressure changes periodically during heart activity: During the “blood ejection” (Systole) the value is highest (systolic blood pressure value). At the end of the heart’s “rest period” (Diastole) pressure is lowest (diastolic blood pressure value).

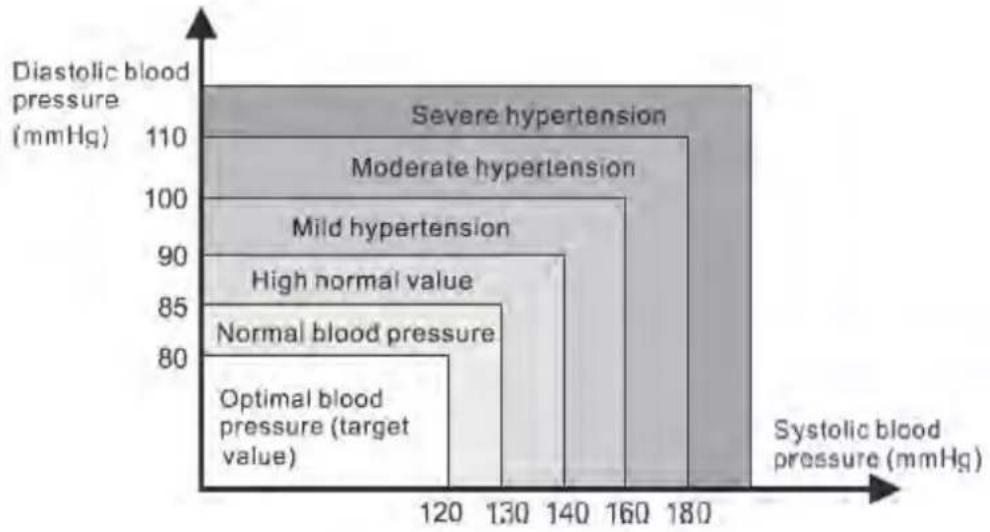

2.2 Which values are normal?

Please refer to the diagram below (Picture-01)

Picture-01

There are six grids in the display of device. Please refer to the picture-01-01. Different grids represent different interval scales of WHO.

Cropped image of a card with stylized text and geometric shapes, possibly a card or electronic device.

Blood pressure value	WHO grids in device	WHO Classification
DIA<80 & SYS<120	1	Optimal blood pressure
DIA<85 & SYS<130	2	Normal blood pressure
DIA<90 & SYS<140 3 High normal value
DIA<100 & SYS<160 4 Mild hypertension
DIA<110 8Moderate hypertension
DIA>= 110 or SYS>= 180 6 Severe hypertension

Picture-01-01

3 Components of your blood pressure monitor

3.1 Measuring unit

Cuff Connector Port

AC Adapter Port

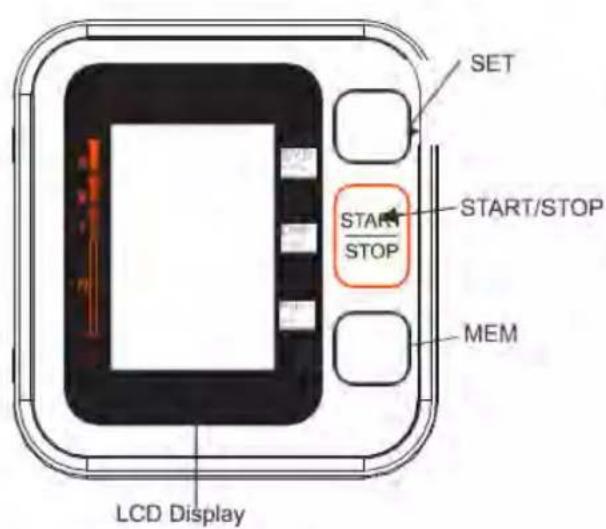

Picture-02

SET START/STOP MEM LCD Display

1 2 3 4 5 6 7 8 9 10 11 12 13 AVL. NO. 388 38%88

Picture-03

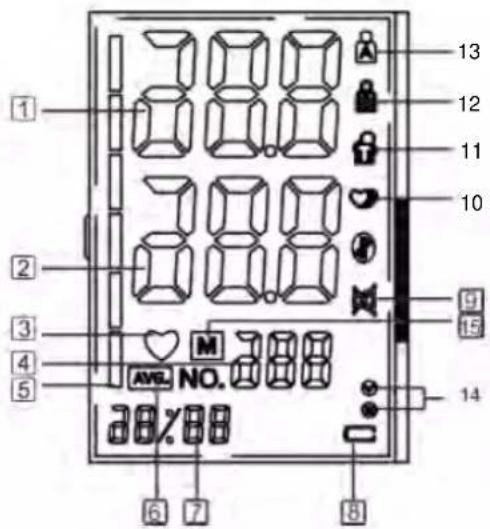

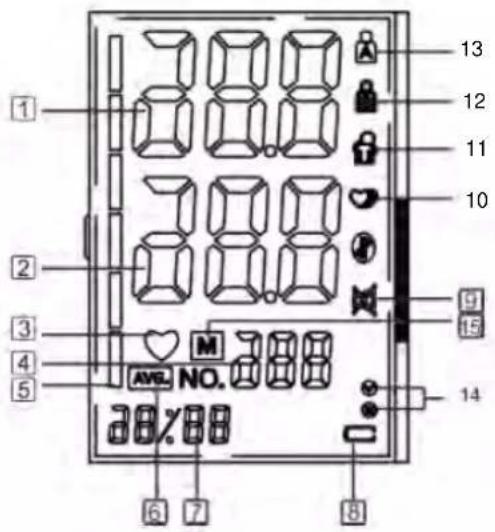

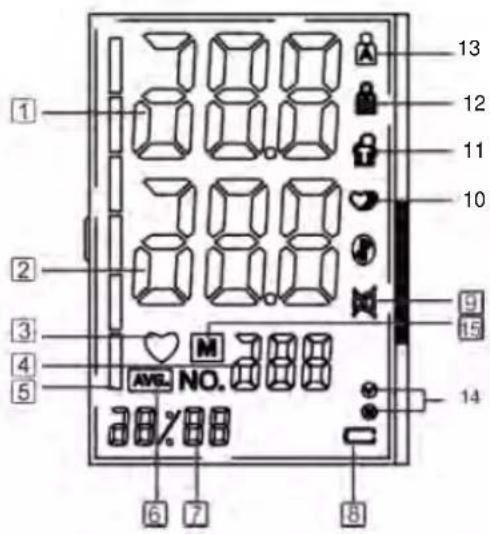

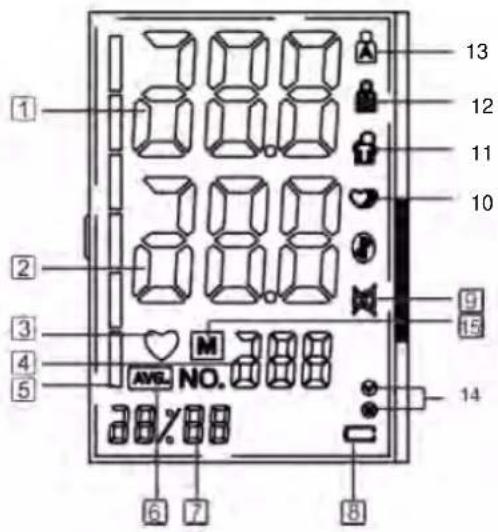

3.2 The symbols on the LCD display

1. Systolic blood pressure

2. Diastolic blood pressure

3. Heartbeat symbol (Flashes during measurement)

4. Pulse display

5. WHO Function symbol

6. Average value symbol

7. Date/Time display 8. Battery low symbol

8. Mute symbol

9. Irregular heartbeat symbol

10. Movement error symbol 12. USER B

11. USER A 14. Cuff self-checking function

12. Memory symbol

3.3 Features B26 / FB150

1. Date/time display 2. Double users: 2 x 120 sets memory

2. Average value function

3. Irregular heartbeat checking

4. WHO function 6. Low battery display

5. External power adapter support

6. Auto power-off

7. Cuff self-checking function

4 Using your Monitor for the First Time

4.1 Activating the pre-installed batteries

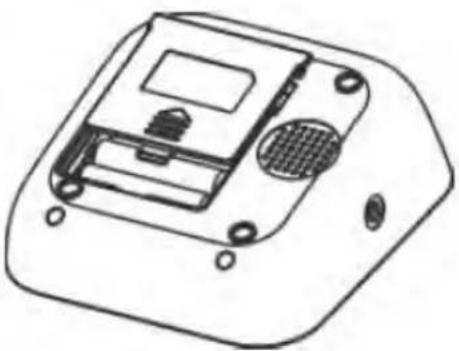

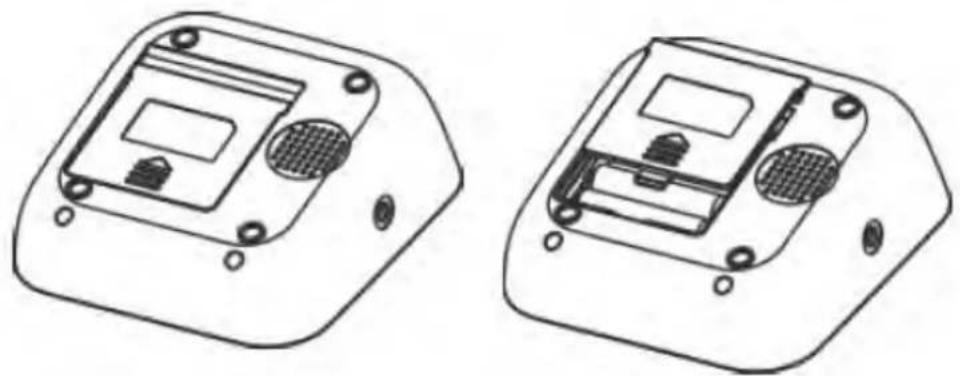

Battery Installation

Use only 1.5V "AAA" alkaline batteries with this device.

1. Press the hook on the bottom of the battery cover and lift the cover off in the direction of the arrow (Picture-04).

2. Install 4 "AAA" size batteries and make sure the + (positive) and - (negative) polarities match the polarities of the battery compartment, then close the battery cover. Make sure that the battery cover is securely in position.

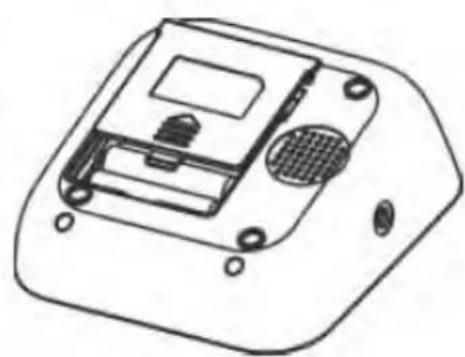

Technical line drawings of two electronic device modules with mounting holes and internal components (no text or symbols)

Picture-04

Battery replacement

Low Battery Indicator

1. When the Low Battery Indicator appears on the display, turn the monitor off and remove all the

batteries. Replace with 4 new batteries at the same time. Long-life alkaline batteries are recommended.

1. To prevent the damage of monitor from leaked battery fluid, please take out of battery if the monitor unused in a long time (generally more than 3 months). If battery fluid should get in your eyes, immediately rinse with plenty of clean water. Contact a physician immediately.
2. Dispose of the device, components and optional accessories according to applicable local regulations. Unlawful disposal may cause environmental pollution.

4.2 System Settings

After you load the battery or connect power for the monitor, long press the SET button for more than 3s, and then you can start to set.

User setting:

With the device switched off, press the SET button for 1 second. The display will show A or B. By pressing the SET button, you can choose between user A or B. To confirm the user, press the START/STOP button. The display goes out. Press the START/STOP button again to start with the selected user.

Setting the Year:

When the year display is flashing, press the MEM button continuously and it will increase continuously by 1 until 2049, and then return the original year, once the year set is OK, press SET button to confirm.

Setting Month/Date:

Initial Month/Date is 1/01, when the Month display is flashing, press the MEM button, the month will increase by 1, press SET button to confirm, and do in the same way to set the date. Press SET button to confirm.

Setting Time:

When the hour display is flashing, press the MEM button, the hour will increase by 1, press SET button to confirm, and do in the same way to set the minute. Press SET button to confirm.

Record Delete:

When you checking the memory data, long press MEM button to delete existing user measurement data. Note:

If you decide to delete all the records, please keep the records in another way, in case you need it some days later. Take the battery out won't lead to a record missing.

4.3 Cuff tube connection

Insert the cuff tube into the opening on the left side of the monitor indicated by the drawing of a cuff.

5 Measurement Procedure

5.1 Before measurement:

• Avoid eating and smoking as well as all forms of exertion directly before measurement. These factors influence the measurement result. Find time to relax by sitting in an armchair in a quiet atmosphere for about ten minutes before taking a measurement.
• Remove any garment that fits closely to your upper arm.
  ● Always measure on the same arm (normally left).

5.2 Fitting the Cuff

Please refer to picture-05

a) Wrap the cuff around your upper left arm. The rubber tube should be on the inside of your arm extending downward to your hand. Make certain the cuff lies approximately 2 to 3 ~cm above the elbow. Important! The on the edge of the cuff (Artery Mark) must lie over the artery which runs down the inner side of the arm.
b) To secure the cuff, wrap it around your arm and press the hook and loop closure together.
c) There should be little free space between your arm and the cuff. You should be able to fit 2 fingers between your arm and the cuff. Cuffs that don't fit properly result in false measurement values. Measure your arm circumference if you are not sure of proper fit.
d) Lay your arm on a table (palm upward) so the cuff is at the same height as your heart. Make sure the tube is not kinked.

Medical procedure diagram showing steps of blood pressure measurement with labeled components and directional arrows

2-3cm

Picture-05

5.3 Measure Procedure

Refer to picture-06

1. Sit comfortably in a chair with your feet flat on the floor.
2. Select your User ID (A or B).
3. Stretch your arm forward on the desk and keep relaxing, make sure the palm of hand is upturned. Make sure arm is in correct position, to avoid body movement. Sit still and do not talk or move during the measurement. After the cuff has been appropriately positioned on the arm and connected to the blood pressure monitor, the measurement can begin:
   a) Press the START/STOP button. The pump begins to inflate the cuff. In the display, the increasing cuff pressure is continually displayed.
   b) After automatically reaching an individual pressure, the pump stops and the pressure slowly falls. The cuff pressure is displayed during the measurement.
   c) When the device has detected your pulse, the heart symbol in the display begins to blink.
   d) When the measurement has been concluded, the measured systolic and diastolic blood pressure values, as well as the pulse will be displayed.
   e) The measurement results are displayed until you switch the device off. If no button is pressed for 60 seconds, the device switches off automatically.
   f) Cuff self-checking symbol ( )

The cuff correct symbol (☑) will be displayed if the cuff position is correct, otherwise the wrong symbol (☒) will be displayed. Please check again the cuff if the wrong symbol (☒) is displayed.

g) Movement error symbol ( )

The Movement Error Symbol (💡) is displayed if you move your body during the measurement. Please remove the cuff, and wait 2-3 minutes. Reapply the cuff and take another measurement.

NOTE:

Patient Position:

1) Comfortably seated 2) Legs uncrossed

3) Feet flat on the floor

4) Back and arm supported

5) Middle of the CUFF at the level of the right atrium of the heart

Please sit vertically and relax your body Height difference between the table and the chair 20-30cm Height to chair 20-35cm Upper arm is not covered or pressed by gusset Cuff and the heart are at the same level Relax the hand and palm is upwards

Picture-06

5.4 Irregular Heartbeat Detector

This symbol - indicates that certain pulse irregularities were detected during the measurement. In this case, the result may deviate from your normal basal blood pressure – repeat the measurement. Information for the physician on frequent appearance of the Irregular Heartbeat Symbol.

This instrument is an oscillometric blood pressure monitor device that also analyzes pulse frequency during measurement. The instrument is clinically tested.

If pulse irregularities occur during measurement, the irregular heartbeat symbol is displayed after the measurement. If the symbol appears more frequently (e.g. several times per week on measurements performed daily) or if it suddenly appears more often than usual, we recommend the patient to seek medical advice. The instrument does not replace a cardiac examination, but serves to detect pulse irregularities at an early stage.

5.5 Error Indicates

The following symbol will appear on the display when measuring abnormal

SYMBOL	CAUSE	CORRECTION
No display appears	Weak battery or improper placement	Replace both batteries with new ones.Check the battery installation for proper placement of the battery polarities.
Er 1 Sensor abnormal		Check if the pump is working or not. If it is working, then the problem is sensor abnormal. Please send it to the local distributor.
Er 2	Monitor could not detect pulse wave or cannot calculate the blood pressure data	Check if the air releasing is too slow or not. If it is too slow, please check if there is any dust in the tube plug of the cuff and the cuff port in the device. If yes, please clean and start the measurement again. If no, please send the device back to the local distributor.
Er 3	Measurement result is abnormal (SYS≤35mmHg, DIA≤23mmHg)	Occasionally-measure for one more time / Always - send it to local distributor
Er 4	Too loose cuff or air leakage (Cannot inflate to 30mmHg within 15s)	Tie the cuff correctly and make sure the air plug is properly inserted in the unit
Er 5 The air tube is crimped		Correct it and make the measurement again
Er 6	The sensor is sensing great fluctuation in the pressure	Please keep quiet and don’t move
Er 7	The pressure that the sensor sensing is over the limit	Please send back to the local distributor
Er 8	The demarcation is incorrect or the device has not been demarcated	Please send back to the local distributor

Trouble removal

Problem Check Cause and solutions
No Power Whether battery has enough power	power	Replace new one
	Whether polarity is correct	Installation for proper placement of the batteries polarities
No Inflation Whether the plug is correctly inserted	correctly inserted	Insert into the air socket tightly
	Whether the plug broken or leak	Change a new cuff
Err and stop working Whether move the arm when inflate	move the arm when inflate	Keep the body calm
	Whether the chatting icon when measured is on	Keep quite when measure
Cuff leak	Whether the cuff wrap too loose	Wrap the cuff tightly
	Whether the cuff broken	Change a new cuff
Please contact the distributor if you can't solve the problem, do not disassemble the unit by yourself!

SYMBOL DESCRIPTIONS

The following symbols may appear in this manual, on the Digital Blood Pressure Monitor B26 / FB150, or on its accessories. Some of the symbols represent standards and compliances associated with the Digital Blood Pressure Monitor B26 / FB150 and its use.

	Authorized Representative in the European Community
	CE Mark: conforms to essential requirements of the Medical Device Directive 93/42/EEC.
	Date of manufacture.
	Manufacturer
	Specifies serial number
	Type BF applied part
	Direct current
	DISPOSAL: Do not dispose this product as unsorted municipal waste. Collection of such waste separately for special treatment is necessary.
	Follow instructions for use
	Put up
	Fragile
	Afraid of the rain
	Fear of the sun
	Class II equipment
	Handle gently
	Temperature range
No Sterilize requirement
Not category AP / APG equipment
Mode of operation: continuous

5.6 Memory

Each unit stores 120 sets measurements for 2 users, totally 240 sets (User A and B).

Viewing the stored values

With the unit off, press the Memory button. The display first shows "A", then shows an average of all measurements stored in the unit. Please note: Measurements for each user are averaged and stored separately. Be certain that you are viewing the measurements for the correct user. Pressing the Memory button again displays the previous value. To view a particular stored memory, press and hold the Memory button to scroll to that stored reading.

5.7 Discontinuing a Measurement

If it is necessary to interrupt a blood pressure measurement for any reason (e.g the patient feels unwell), the Start/Stop button can be pressed at any time. The device then immediately lowers the cuff pressure automatically.

5.8 Using the AC Adapter

You may also operate this monitor using a CE approved AC adapter (output 5V DC1A with Micro connector).

a) Ensure that the AC adapter and cable are not damaged.
b) Plug the adapter cable into the AC adapter port on the right side of the blood pressure monitor.
c) Plug the adapter into your electrical outlet. When the AC adapter is connected, no battery current is consumed.

Note: No power is taken from the batteries while the AC adapter is connected to the monitor. If electrical power is interrupted, (e.g., by accidental removal of the AC adapter from the outlet) the monitor must be reset by removing the plug from the socket and reinserting the AC adapter connection.

6 Care and Maintenance

Wash hands after each time measurement.

If one device is used by different patients, wash hands before and after each use.

a) Do not expose the device either to extreme temperatures, humidity, dust or direct sunlight.
b) The cuff contains a sensitive air-tight bubble. Handle this cuff carefully and avoid all types of stress through twisting or buckling.
c) Clean the device with a soft, dry cloth. Do not use gas, thinners or similar solvents. Spots on the cuff can be removed carefully with a damp cloth and soapsuds. The cuff with bladder must not be washed in a dishwasher, clothes washer, or submerged in water.
d) Handle the tube carefully. Do not pull on it. Do not allow the tubing to kink and keep it away from sharp edges.
e) Do not drop the monitor or treat it roughly in any way. Avoid strong vibrations.
f) Never open the monitor! This invalidates the manufacturer's warranty.
g) Batteries and electronic instruments must be disposed of in accordance with the locally applicable regulations, not with domestic waste.

7 Warranty/Service

Your blood pressure monitor is guaranteed for 24 months against manufacturers" defects for the original purchaser only, from date of purchase. The warranty does not apply to damage caused by improper handling, accidents, professional use, not following the operating instructions or alterations made to the instrument by third parties.

Warranty only applies to the main device and its cuff. All other accessories are not covered by warranty. There are no user serviceable parts inside. Batteries or damage from old batteries is not covered by the warranty.

8 Certifications

Device standard:

This device is manufactured to meet the European blood pressure monitors: EN1060-3 / IEC 80601-2-30

/ ISO81060-1 / IEC60601-1-11 / IEC60601-1

Electromagnetic compatibility:

Device fulfills the stipulations of the International standard IEC60601-1-2

The declaration of conformity is available on:

http://DOC.hesdo.com/FB150-DOC.pdf

9 Technical Specifications

Model: B26 / FB150

Weight: 261.3g (Batteries included)

Display: 48*65mm【2.56"x1.89】_CD Digital Display

Size: 118 (W) x 110 (L) x 52 (H) mm 【4.65"(W)x4.33"(L)x2.05"(H)】

Accessories: 1×Main Device, 1×Cuff, 1×Users manual

Operating Conditions: Temperature: 5°C to 40°C; Humidity: 15% to 93% RH;

Storage And Shipping Conditions: Temperature: -25°C to 70°C; Humidity: ≤ 93% RH;

Atmospheric pressure range: 70kPa\~106kPa

Measuring method: Oscillometric Pressure sensor: Resistive

Measuring range: DIA: 40-130mmHg; SYS: 60-230mmHg Pulse: 40 to 199 per minute

Cuff pressure display range: <300mmHg

Memory: Automatically stores the last 120 measurements for 2 users (total 240)

Measuring resolution: 1 mmHg

Accuracy: Pressure within ± 3 mmHg / pulse ± 5 % of the reading Power source: a) 4*AAA batteries, 1.5 V

b) AC adapter INPUT: 100-240VAC 50/60HZ OUTPUT;5V DC 1A Accessories: Wide range rigid cuff 8.7" – 16.5" (22 - 42 cm)

Automatically power off: 60 seconds

Users: Adult

10 EMC Declaration

1) *This product needs special precautions regarding EMC and needs to be installed and put into service according to the EMC information provided, and this unit can be affected by portable and mobile RF communications equipment.
2) * Do not use a mobile phone or other devices that emit electromagnetic fields, near the unit. This may result in incorrect operation of the unit.
3) * Caution: This unit has been thoroughly tested and inspected to assure proper performance and operation!
4) * Caution: this machine should not be used adjacent to or stacked with other equipment and that if adjacent or stacked use is necessary, this machine should be observed to verify normal operation in the configuration in which it will be used

Guidance and manufacture's declaration – electromagnetic immunity
The device is intended for use in the electromagnetic environment specified below. The customer or the user of device should assure that it is used in such an environment.
Immunity test	IEC 60601 test level	Compliance level	Electromagnetic environment - guidance
Electrostatic discharge (ESD) IEC 61000-4-2	±8 kV contact ±2 kV, ±4 kV, ±8 kV, ±15 kV air	±8 kV contact ±2 kV, ±4 kV, ±8 kV, ±15 kV air	Floors should be wood, concrete or ceramic tile. If floor are covered with synthetic material, the relative humidity should be atleast 30%.
Electrical fast transient/burst IEC 61000-4-4	±2 kV for power supply lines ±1 kV for input/output lines	Not applicable	Mains power quality should be that of a typical commercial or hospital environment.
Surge IEC 61000-4-5	±1 kV line(s) to line(s) ±2 kV line(s) to earth	Not applicable	Mains power quality should be that of a typical commercial or hospital environment.
Voltage dips, short interruptions and voltage variations on power supply input lines IEC 61000-4-11	0 % UT; 0.5 cycle at 0°,45°,90°, 135°, 180°, 225°, 270°, 315°	Not applicable	Mains power quality should be that of a typical commercial or hospital environment. If the user of the device requires continued operation during power mains interruptions, it is recommended that the device be powered from an uninterruptible power supply or a battery.
	0 % UT; 1 cycle 70 % UT; 25/30 cycle 0% UT; 250/300 cycle
Power frequency (50Hz/60Hz) magnetic field IEC 61000-4-8	30 A/m 50/60Hz	30 A/m 50/60Hz	Power frequency magnetic fields should be at levels characteristic of a typical location in a typical commercial or hospital environment.
NOTE UT is the a.c. mains voltage prior to application of the test level.

Guidance and manufacture's declaration – electromagnetic immunity
The device is intended for use in the electromagnetic environment specified below. The customer or the user of the device should assure that it is used in such an environment.
Immunity test	IEC 60601 test level	Compliance level	Electromagnetic environment - guidance
	3 Vrms150 kHz to 80 MHz 3 V RMS outside the ISM band, 6 V RMS in the ISM and amateur bands80% AM at 1kHz	Not applicable	Portable and mobile RF communications equipment should be used no closer to any part of the device, including cables, than the recommended separation distance calculated from the equation applicable to the frequency of the transmitter.Recommended separation distance
Conducted RF IEC 61000-4-6
			d=0.35√pd=1.2√p
Radiated RFIEC 61000-4-3	10 V/m80 MHz to 2.7 GHz80% AM at 1kHz	10 V/m80 MHz to 2.7 GHz80% AM at 1kHz	80MHz to 800MHz:d=1.2√p800MHzto 2.7GHz:d=2.3√pWhere, P is the maximum output power rating of the transmitter in watts (W) according to the transmitter manufacturer and d is the recommended separation distance.Field strengths from fixed RF transmitters, as determined by an electromagnetic site survey, should be less than the compliance level in each frequency range.Interference may occur in the vicinity of equipment marked with the following symbol:
NOTE 1 At 80 MHz and 800 MHz, the higher frequency range applies.NOTE 2 These guidelines may not apply in all situations. Electromagnetic propagation is affected by absorption and reflection from structures, objects and people.
A Field strengths from fixed transmitters, such as base stations for radio (cellular/cordless) telephones and land mobile radios, amateur radio, AM and FM radio broadcast and TV broadcast cannot be predicted theoretically with accuracy. To assess the electromagnetic environment due to fixed RF transmitters, an electromagnetic site survey should be considered. If the measured field strength in the location in which the device is used exceed s the applicable RF compliance level above, the device should be observed to verify normal operation. If abnormal performance is observed, additional measures may be necessary, such as re-orienting or relocating the device.B Over the frequency range 150 kHz to 80 MHz, field strengths should be less than 3 V/m.
Guidance and manufacture's declaration – electromagnetic emission
The device is intended for use in the electromagnetic environment specified below. The customer of the user of the device should assure that it is used in such an environment.
Emission test	Compliance	Electromagnetic environment – guidance
RF emissionsCISPR 11	Group 1	The device use RF energy only for its internal function.Therefore, its RF emissions are very low and are not likely to cause any interference in nearby electronic equipment.
RF emissionCISPR 11	Class B	The device is suitable for use in all establishments, including domestic establishments other than domestic and those directly connected to the public low-voltage power supply network that supplies buildings used for domestic purposes.
Harmonic emissions IEC61000-3-2	Not applicable
Voltage fluctuations/flicker emissionsIEC 61000-3-3	Not applicable

Recommended separation distances between portable and mobile RF communications equipment and the device
The device is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of the device can help prevent electromagnetic interference by maintaining a minimum distance between portable and mobile RF communications equipment (transmitters) and the device as recommended below, according to the maximum output power of the communications equipment.
Rated maximum output power of transmitter (W)	Separation distance according to frequency of transmitter (m)
	150 KHz to 80 MHz d = 1,2	80 MHz to 800 MHz d = 1,2	800 MHz to 2.7 GHz d = 2,3
0.01	0.12	0.12	0.23
0.1 0.38 0.38 0.73
1 1.2 1.2 2.3
10 3.8 3.8 7.3
100 12 12 23
For transmitters rated at a maximum output power not listed above, the recommended separation distance d in meters (m) can be estimated using the equation applicable to the frequency of the transmitter, where P is the maximum output power rating of the transmitter in watts (W) according to the transmitter manufacturer.NOTE 1 At 80 MHz and 800 MHz, the separation distance for the higher frequency range applies.NOTE 2 These guidelines may not apply in all situations. Electromagnetic propagation is affected by absorption and reflection from structures, objects and people.
Guidance and manufacturer's declaration - electromagnetic immunity
The device is intended for use in the electromagnetic environment specified below. The customer or the user of the device should assure that it is used in such an environment.
Test frequency (MHz)	Band^a) (MHz)	Service^a)	Modulation^a)	Maximum power (w)	Distance (m)	IMMUNITY TEST LEVEL (V/m)
385	380-390 T	TETRA 400	Pulse Modulationb) 18 Hz	1.8	0.3	27
450	430-470	GMRS 460, FRS 460	FM^c)± 5 kHz deviation 1 kHz sine	2	0.3	28
710	704-787	LTE Band 13, 17	Pulse Modulationb) 217 Hz	0.2	0.3	9
745
780
810	800-960	GSM 800/900, TETRA 800, iDEN 820, CDMA 850, LTE Band 5	Pulse Modulationb) 18 Hz	2	0.3	28
870
930
1720	1700-1990	GSM 1800; CDMA 1900; GSM 1900; DECT; LTE Band 1,3 4,25;UMTS	Pulse Modulationb) 217 Hz	2	0.3	28
1845
1970
2450	2400-2570	Bluetooth, WLAN 802.11 b/g/n, RFID 2450, LTE Band 7	Pulse Modulationb) 217 Hz	2	0.3	28
5240	5100-5800	WLAN 802.11 a/n	Pulse Modulationb) 217 Hz	0.2	0.3	9
5500
5785
NOTE If necessary to achieve the IMMUNITY TEST LEVEL, the distance between the transmitting antenna and the ME EQUIPMENT or ME SYSTEM may be reduced to 1 m. The 1 m test distance is permitted by IEC 61000-4-3.
a) For some services, only the uplink frequencies are included.b) The carrier shall be modulated using a 50% duty cycle square wave signal.c) As an alternative to FM modulation. 50% pulse modulation at 18 Hz may be used because while it does not represent actual modulation, it would be worst case.

The MANUFACTURER should consider reducing the minimum separation distance, based on RISK MANAGEMENT, and using higher IMMUNITY TEST LEVELS that are appropriate for the reduced minimum separation distance. Minimum separation distances for higher IMMUNITY TEST LEVELS shall be calculated using the following equation:

$$ E = \frac {6}{d} \sqrt {P} $$

Where P is the maximum power in W, d is the minimum separation distance in m, and E is the IMMUNITY TEST LEVEL in V/m.

Shenzhen Jamr Technology Co., Ltd.

A101-301, D101-201, Jamr Science & Technology Park, No. 2 Guiyuan Road,

Guixiang Community, Guanlan Street, Longhua District, Shenzhen 518100,

PEOPLE'S REPUBLIC OF CHINA

Shanghai International Holding Corp. GmbH (Europe)

Eiffestrasse 80, 20537 Hamburg, Germany. [e-mail]

Imported by:

Commaxx BV,

Wiebachstraat 37

6466 NG Kerkrade

The Netherlands

Version Number: 1.3

FYSIC

Brazo completamente automático

Cropped image of a card slot machine interface showing various slot numbers and buttons

Cuff Connector Port

AC Adapter Port

Imagen-02

EN	ES
Cuff Connector Port	Puerto conector del tensiómetro
AC Adapter Port	Puerto del adaptador CA

SET START/STOP STOP MEM LCD Display

1 2 3 4 5 38.8 38.8 38.8 AVG. NO. 38.8 38X88 13 12 11 10 9 15 14 6 7 8

Imagen-03

EN ES
SET CONFIGURAR
START/STOP	INICIO/PARADA
MEM	MEMORIA
LCD DISPLAY	PANTALLA LCD

Technical line drawing of a device casing with mounting holes and internal components (no text or symbols)

Technical line drawing of a device casing with internal components and mounting holes (no text or symbols)

Imagen-04

Medical procedure diagram showing steps of blood pressure measurement with labeled components and directional arrows

2-3cm

Imagen-05

Please sit vertically and relax your body Height difference between the table and the chair 20-30cm Height to chair 20-35cm Upper arm is not covered or pressed by gusset Cuff and the heart are at the same level Relax the hand and palm is upwards

Imagen-06

A101-301, D101-201, Jamr Science & Technology Park, No. 2 Guiyuan Road,

Guixiang Community, Guanlan Street, Longhua District, Shenzhen 518100,

PEOPLE'S REPUBLIC OF CHINA

Shanghai International Holding Corp. GmbH (Europa)

Eiffestrasse 80, 20537 Hamburgo, Alemania. [e-mail]

Importado por:

Commaxx B.V.

Wiebachstraat 37

6466 NG Kerkrade

The Netherlands

Cuff Connector Port

AC Adapter Port

Figura 02

SET START/STOP STOP MEM LCD Display

1 2 3 4 5 6 7 8 9 10 11 12 13 AVG. NO. AVG. NO. 388

Figura 03

EN IT
SET IMPOSTA
START/STOP	AVVIO/ARRESTO
MEM	MEM
LCD DISPLAY	DISPLAY LCD

3.2 Icone sul display LCD

Technical line drawing of a device casing with mounting holes and internal components (no text or symbols)

Technical line drawing of a device casing with internal components and mounting holes (no text or symbols)

Figura 04

Medical procedure diagram showing blood pressure measurement steps with labeled components and directional arrows

2-3cm

Figura 05

Please sit vertically and relax your body Height difference between the table and the chair 20-30cm Height to chair 20-35cm Upper arm is not covered or pressed by gussel Cuff and the heart are at the same level Relax the hand and palm is upwards

Figura 06

A101-301, D101-201, Jamr Science & Technology Park, No. 2 Guiyuan Road,

Guixiang Community, Guanlan Street, Longhua District, Shenzhen 518100,

PEOPLE'S REPUBLIC OF CHINA

Shanghai International Holding Corp. GmbH (Europe)

Eiffestrasse 80, 20537 Amburgo, Germania. [e-mail]

Importato da:

Commaxx B.V.

Wiebachstraat 37

6466 NG Kerkrade

The Netherlands

Technical line drawing of a device casing with mounting holes and internal components (no text or symbols)

Technical line drawing of a device casing with internal components and mounting holes (no text or symbols)

Kuva-04

Pariston vaihto

Medical procedure diagram showing steps of blood pressure measurement with labeled components and directional arrows

2-3cm

Kuva-05

A101-301, D101-201, Jamr Science & Technology Park, No. 2 Guiyuan Road,

Guixiang Community, Guanlan Street, Longhua District, Shenzhen 518100,

PEOPLE'S REPUBLIC OF CHINA

Shanghai International Holding Corp. GmbH (Eurooppa)

Eiffestrasse 80, 20537 Hamburg, Saksa. [e-mail]

Maahantuoja:

Commaxx BV,

Wiebachstraat 37

6466 NG Kerkrade

The Netherlands

Versionnumero: 1.3

FYSIC

Fullt automatisert for overamen

Blodtrykksmåler

Modellnummer: B26 / FB150

BRUKSANVISNING

22-42cm (8.7-16.5in) 2-3cm (0.8-1.2in) Shoulder FySiC SYS DIA START STOP MEM 13:02 70 70 80 170 100 10 80

INNHOLD

Technical line drawing of a rectangular electronic device with mounting holes and internal components (no text or symbols)

Technical line drawing of a device casing with internal components and mounting holes (no text or symbols)

Bilde-04

Bytte av batteri

Indikator for lavt batteri

4.2 Systeminnstillinger

Medical procedure diagram showing blood pressure measurement with device, device connected to patient's arm, and hand placement steps

2-3cm

Bilde-05

5.3 Målingsprosedyre

Se bilde-06

A101-301, D101-201, Jamr Science & Technology Park, No. 2 Guiyuan Road,

Guixiang Community, Guanlan Street, Longhua District, Shenzhen 518100,

PEOPLE'S REPUBLIC OF CHINA

Shanghai International Holding Corp. GmbH (Europe)

Eiffestrasse 80, 20537 Hamburg, Germany. [e-mail]

Importør:

Commaxx BV

Wiebachstraat 37

6466 NG Kerkrade

Nederland

Versjonsnummer: 1.3

FYSIC®

FB150

22-40cm (8.7-15.7in) 2-3cm (0.8-1.2in) Shoulder FYSIC SYS DIA START STOP MEM 10:02 80 100 70 12 PVL MEM

DK Blodtryksmåler 2

INTRODUKTION OG TILSIGTET BRUG

Cropped image of a 3D electronic device panel with labeled buttons and icons, showing internal components and status indicators.

Simple line drawing of a door with a circular button and an arrow pointing to the center (no text or symbols)

Stik til slange

Simple line drawing of a door with an arrow pointing to the left side (no text or symbols)

Two technical line drawings of a device housing with mounting holes and internal components (no text or symbols)

Fig. 04

DK

Medical illustration showing blood pressure measurement steps: catheter, device, and forearm with hand placement arrows

2-3cm

Fig. 05

Måleprocedure

Se fig. 06

A101-301, D101-201, Jamr Science & Technology Park, No. 2 Guiyuan Road, Guixiang Community, Guanlan Street, Longhua District, Shenzhen 518100, PRC

Shanghai International Holding Corp. GmbH (Europe)

Eiffestrasse 80, 20537

Hamburg, Germany.

[e-mail]

FYSIC

Technical line drawing of a device casing with mounting holes and internal components (no text or symbols)

Technical line drawing of a device casing with internal components and mounting holes (no text or symbols)

Bild 04

Utbyte av batteri

Medical procedure diagram showing steps of blood pressure measurement with labeled components and directional arrows

2-3cm

Bild 05

5.3 Mätningsprocedur

Se bild 06

A101-301, D101-201, Jamr Science & Technology Park, No. 2 Guiyuan Road,

Guixiang Community, Guanlan Street, Longhua District, Shenzhen 518100,

PEOPLE'S REPUBLIC OF CHINA

Shanghai International Holding Corp. GmbH (Europe)

Eiffestrasse 80, 20537 Hamburg, Tyskland. [e-mail]

Importerad av:

Commaxx BV

Wiebachstraat 37

6466 NG Kerkrade

The Netherlands

Versionsnummer: 1.3
