Product type	2-door refrigerator (Side-by-Side)
Brand	Samsung
Model	RS64R5341M9
Total capacity (approx.)	655 L
Dimensions (H x W x D) approx.	178 x 91.2 x 73.4 cm
Net weight (approx.)	100 kg
Power supply	220-240 V, 50/60 Hz
Climate class	SN-T
Energy class	A++
Cooling technology	Metal Cooling, No Frost
Main functions	Quick cooling, Eco Mode, Door Alarm
Interior lighting	LED
Control type	Electronic, touch
Water dispenser	Not specified (according to manual, no dispenser)
Ice maker	Not specified
Maintenance and cleaning	Regularly clean the interior with a soft cloth and soapy water. Dust the rear grille.
Safety	Unplug before any repair. Heavy doors, 2 people required for disassembly.
User-repairable spare parts	Handles, door seals, drawers, hinges (with caution)
Tools required for repair	Phillips screwdriver, flathead screwdriver, 8/10/11 mm wrenches, 10 mm hex key
Warranty	Standard manufacturer's warranty (see terms)

Frequently Asked Questions - RS64R5341M9 SAMSUNG

How to reverse the refrigerator doors?

Reversing the doors requires at least two people. Unplug the appliance, remove the covers and disconnect the connectors. Replace the upper, middle (on 3-door models) and lower hinges. Follow the steps in reverse order for reassembly. Make sure to reconnect the hoses and connectors properly.

How to remove and replace the door seal?

To remove the seal, open the door, pull the 4 corners then the center. To install a new seal, push the corners then the center, ensuring there is no gap between the seal and the door.

How to remove a drawer?

Gently lift the front of the drawer and slide it towards you to remove it. Reinstall in reverse order, checking that the drawer is properly inserted into the rails.

Can I replace the hinges myself?

Yes, but with extreme caution as the doors are heavy. Use safety gloves and provide a cushion to avoid scratches. Unplug the power. It is recommended to call a professional.

What to do if the appliance does not cool?

Check that the appliance is plugged in and the temperature is set correctly. Make sure the ventilation grilles are not obstructed and the door seal is in good condition. If the problem persists, contact a technical service.

Where to find spare parts?

Go to samsung.com/support and enter the model code RS64R5341M9. User-repairable parts are handles, seals, drawers, and hinges.

How to clean the refrigerator?

Unplug the appliance. Clean the interior with a soft cloth and soapy water. Do not use abrasive products. Dust the rear grille regularly to ensure good ventilation.

Is a professional needed to replace the seal?

No, replacing the seal is considered user-repairable. Follow the instructions in the manual: remove the old seal by pulling on the corners and center, then install the new one by pushing firmly.

How to set the temperature?

Use the touch control panel to set the refrigerator and freezer temperatures. Recommended temperatures are 3 °C for the refrigerator and -18 °C for the freezer.

Why is my refrigerator making noise?

Operating noises are normal (compressor, fan). If the noise is unusual, check that the appliance is level, not in contact with furniture, and that the drawers are properly inserted.

USER MANUAL RS64R5341M9 SAMSUNG

French - Français ......10

German - Deutsch ......19

Dutch - Nederlands......28

Italian - Italiano 37

Hungarian - Magyar 64

Polish - Polski....73

Czech - Čeština....82

Slovakian - Slovenčina......91

Serbian - Srpski......109

Greek - ελληνικά......118

Croation - Hrvatski......136

Albanian - Shqip .....145

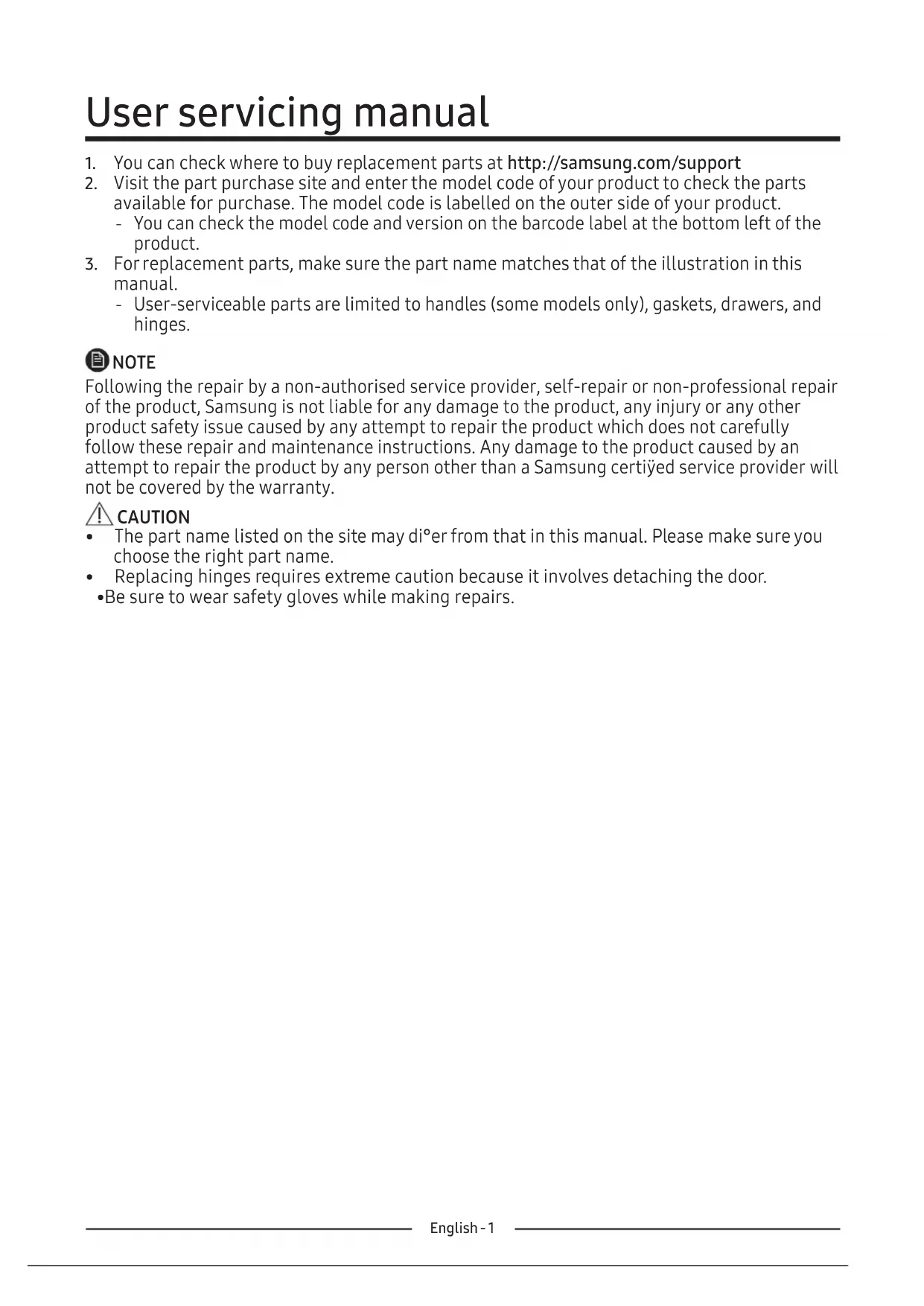

User servicing manual

1. You can check where to buy replacement parts at http://samsung.com/support
2. Visit the part purchase site and enter the model code of your product to check the parts available for purchase. The model code is labelled on the outer side of your product.

- You can check the model code and version on the barcode label at the bottom left of the product.

1. For replacement parts, make sure the part name matches that of the illustration in this manual.

- User-serviceable parts are limited to handles (some models only), gaskets, drawers, and hinges.

NOTE

Following the repair by a non-authorised service provider, self-repair or non-professional repair of the product, Samsung is not liable for any damage to the product, any injury or any other product safety issue caused by any attempt to repair the product which does not carefully follow these repair and maintenance instructions. Any damage to the product caused by an attempt to repair the product by any person other than a Samsung certified service provider will not be covered by the warranty.

CAUTION

• The part name listed on the site may di°er from that in this manual. Please make sure you choose the right part name.
• Replacing hinges requires extreme caution because it involves detaching the door.

- Be sure to wear safety gloves while making repairs.

The actual image and provided parts of the refrigerator may differ, depending on the model and the country.

01 Metal Cooling 02 03 04

01 Top hinge (Left and Right) 02 Gasket (Ref and Fre Door)

03 Drawer (Tray and Basket)

04 Bottom hinge (Left and Right)

CAUTION

Make sure you firmly attach the gasket. Otherwise, cold air from the refrigerator may leak.

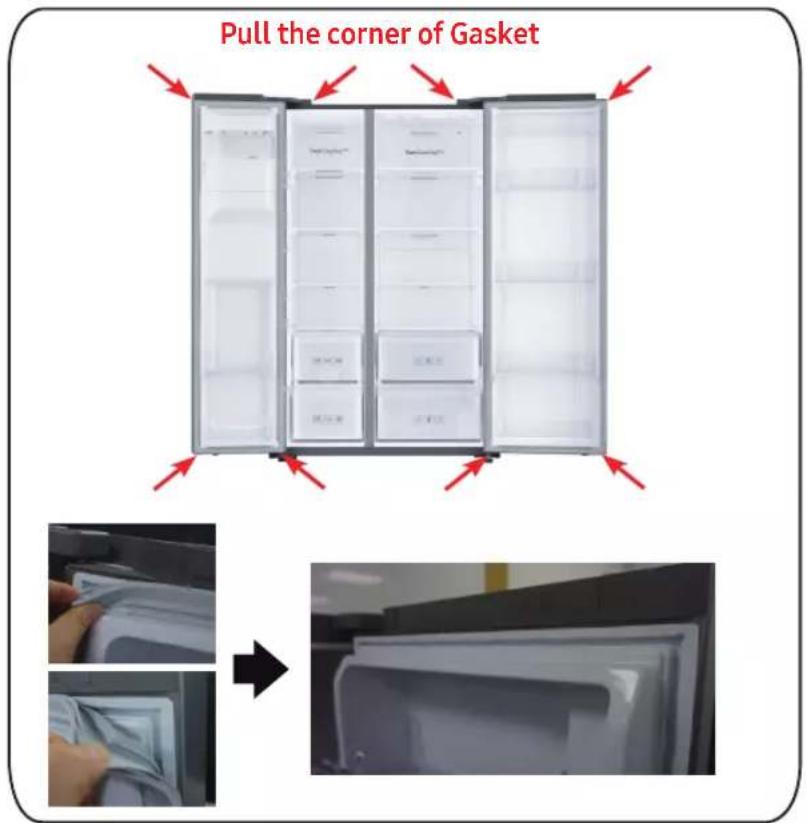

To remove the gasket

Pull the corner of Gasket

Open the door and remove the gasket from the door.

[Disassembly]

1. Pull the 4 corners of gasket.
2. Pull the center of gasket.

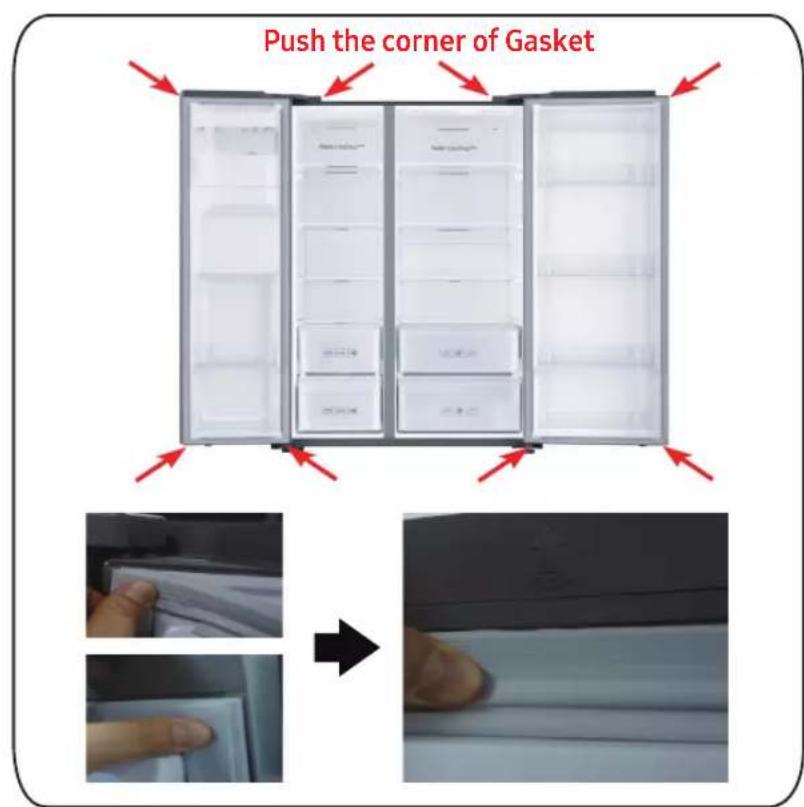

To replace the gasket

Push the corner of Gasket →

Attach a new gasket to the refrigerator door.

Make sure there is no gap between the new gasket and the door.

[Assembly]

1. Push the 4 corners of gasket.
2. Push the center of gasket.

Drawer replacement

CAUTION

Check that the drawer is inserted properly into the rail during assembly.

To remove the gasket

Close-up of a hand placing a transparent plastic container into a refrigerator (no visible text or symbols)

Close-up of a hand holding a transparent plastic container with a red curved arrow pointing downward (no text or symbols visible)

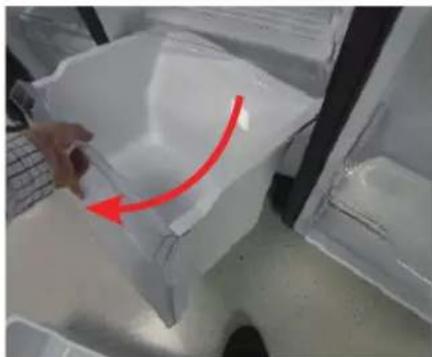

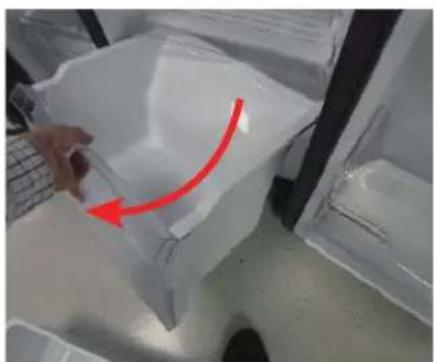

Gently lift up the front of the drawer and slide it out.

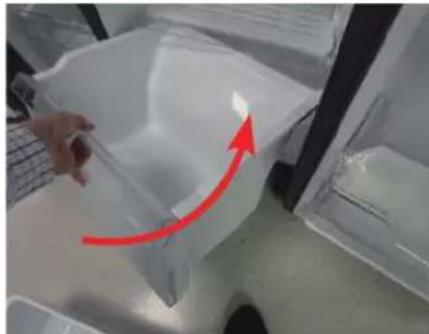

To reattach the drawers

Reattaching the drawers follows the reverse order of their respective removal steps.

Close-up of a hand holding a plastic bag with a red arrow indicating rotation (no text or symbols visible)

Close-up of a white plastic container with a red upward arrow indicating growth, placed inside a refrigerator (no text or symbols visible)

Reattaching the drawers follows the reverse order of their respective removal steps.

Hinge replacement

To replace the hinges, you must remove the doors .

CAUTION

• When removing the doors, take extreme caution because the doors are heavy.
• Before replacing the hinges, put a soft pad such as cardboard on the oor to prevent scratches on the door when you place the doors down.
• As the hinges must be handled carefully and replaced by two or more persons, we recommend you to call for professional technical service.
  • If you remove the hinge without holding the door, the door may fall and cause injury.
• Ensure that the shaft is rmly tightened on the hinge.
• Check that the hinge is rmly attached to the cabinet.
• Make sure the wire connectors are connected properly.
• Be careful not to damage the wires when fastening the top cover.

WARNING

• Tilting/laying the refrigerator requires a minimum of 2 people.
• Disconnect the power cord before reversing the doors.

Tools required (not provided)

Philips screwdriver Flat-head screwdriver 11 mm spanner

10 mm socket wrench 8 mm socket wrench 10 mm spanner

Top Hinge

Close-up of a mechanical component with a red circular highlight and measurement markings (no readable text or symbols)

Hand pressing a button on a computer mouse, with red arrows indicating the motion (no text or symbols visible)

Hand holding a yellow plastic connector with wires and connectors, no visible text or symbols

Close-up of a mechanical component with three red-circled features and yellow connectors (no visible text or symbols)

Close-up of a mechanical device with wires and connectors, no visible text or symbols

Close-up of a hand holding a black electronic device with attached wires and connectors (no visible text or symbols)

1. Disconnect the power cord, and remove 1 cover screws using a Phillips screwdriver.

Then open the Freezer door and pull the hooks on the sides to loosen the cover.

Lift up the cover towards you to detach it.

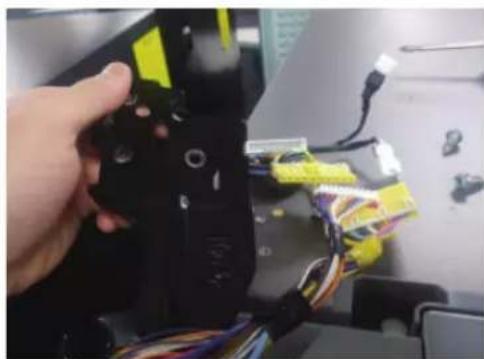

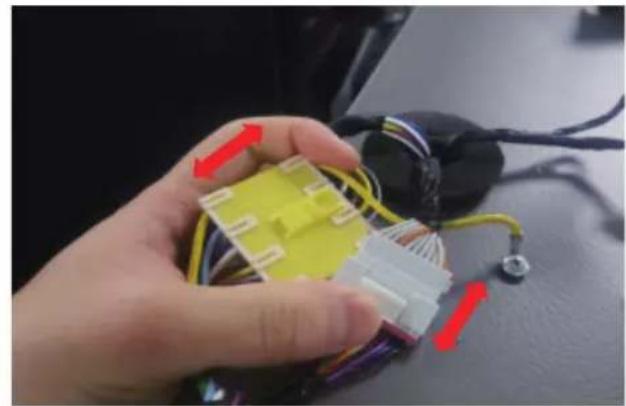

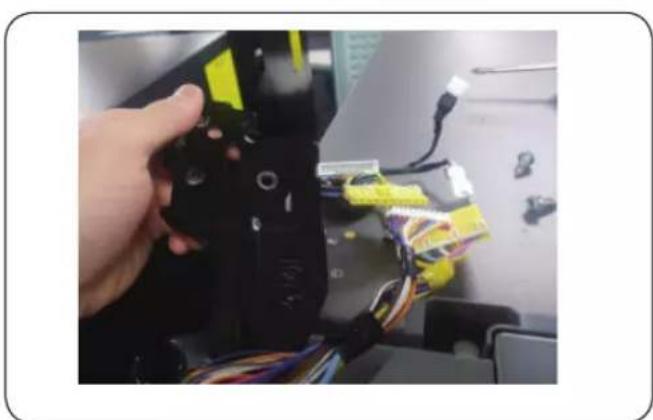

1. Disconnect the two top housings.

2. Remove the three bolts holding the hinge.

3. Disassemble the top hinge from the front of the door.

Hinge replacement

Model name looks like this: RS64R55**, RS64R56**, RS65R55**, RS65R56**, RS74R55**, RS75R56**, RS63R55**, RS63R56**

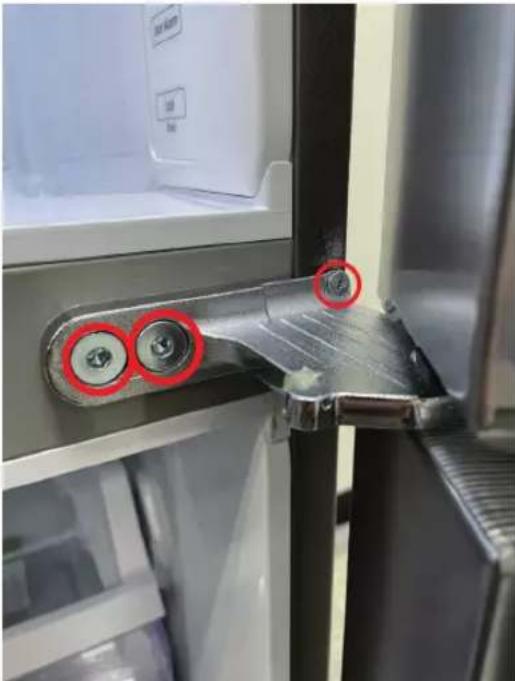

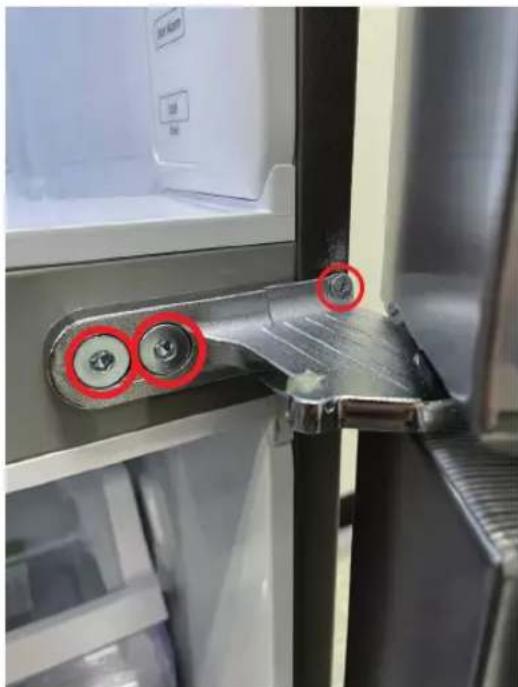

Mid Hinge (Only For 3-Door)

Interior view of a refrigerator with open door, showing interior compartments and lid (no visible text or symbols)

1. After disassemble the top hingerihgt, disassemble the Fridge door up.

Close-up of a refrigerator interior showing a metallic handle and two red-circled buttons on the door (no text or symbols visible)

1. Remove the three bolts holding the hinge, disassemble the Hinge-Mid

Bottom Hinge

Hinge low-linge low Hinge low-linge low

[Disassembly]

1. Disconnect the Power Cord.
2. Lay down the set.

CAUTION

• Must working more than 2 people.
• Be sure to unplug the power cord beforeperforming the operation above.

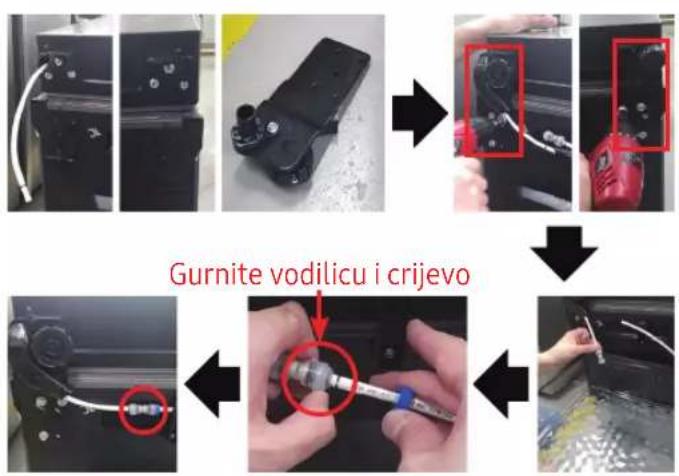

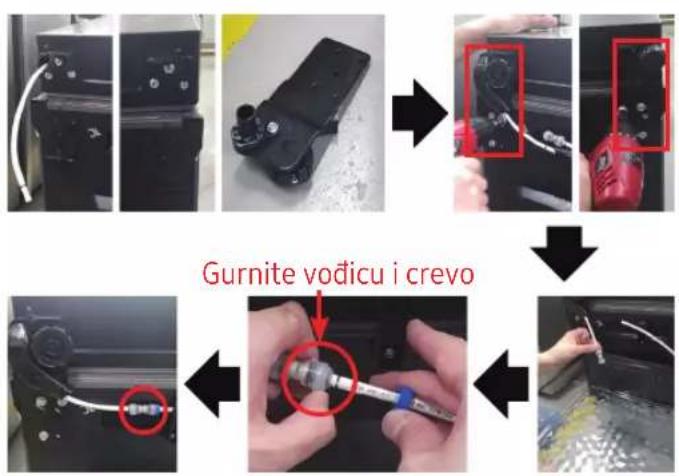

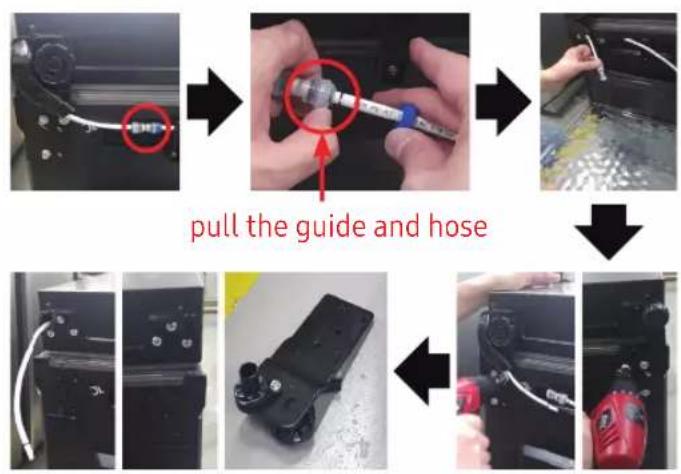

[Disassembly]

1. DisconnectHose. (Only Hinge Low Left)
2. Exhaust water in Hose. (Only Hinge Low Left)
3. RemoveBolt(3ea). (Using spanner or 10mm Box wrench)
4. Remove Hinge Low R/L.

[Assembly]

1. Assemble hinge low on bottom. (Using spanner or 10mm Box wrench)
2. Connect Hose (Only Hinge Low Left)
3. Assemble water in Hose. (Only Hinge Low Left)

CAUTION

- Be sure to unplug the power cord before performing the operation above.

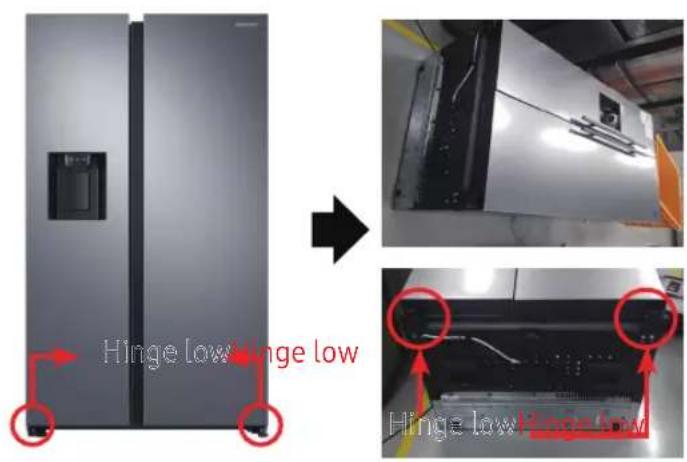

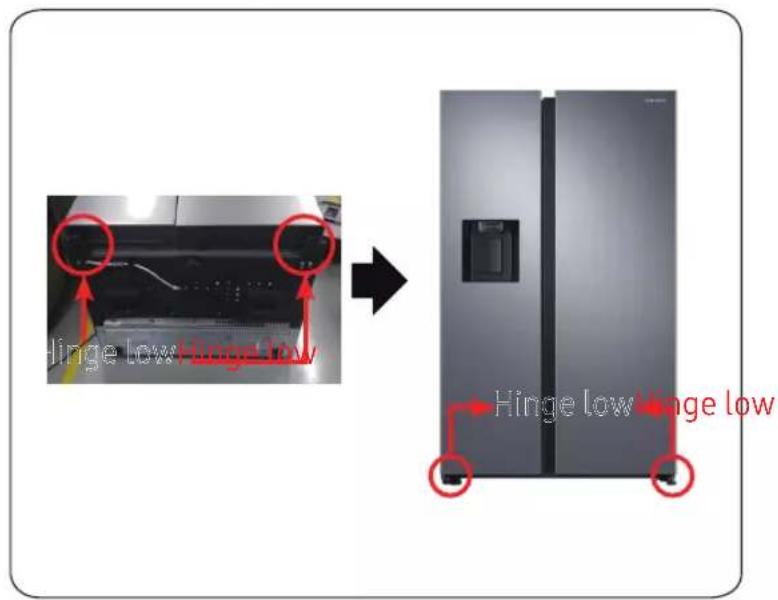

Bottom Hinge

Hinge Low-Linge Low Hinge low-Linge low

[Assembly]

1. Assemble Hinge low R/L.
2. Put up the set.

CAUTION

• Must working more than 2 people.
• Be sure to unplug the power cord before performing the operation above.
