Care For You YT3040 - Steam cleaner ROWENTA - Free user manual and instructions

Product type	Garment steamer
Brand	Rowenta
Model	Care For You YT3040
Main uses	Steaming, purification (eliminates odors and germs), gentle drying
Water tank capacity	1.5 liters (estimated)
Adjustable cycle time	Steaming: 10 to 30 min; Purification: 20 to 40 min; Drying: 10 to 90 min
Simultaneous garment capacity	Up to 3 garments
Included accessories	2 large tension clips, 10 small clips, triangle, integrated clips, infrared remote control, shelf
Dimensions (approx.)	170 x 50 x 55 cm (height with poles deployed x width x depth)
Weight (approx.)	12 kg
Electrical supply	220-240 V, 50/60 Hz, 2000 W
Safety	Curtain locking, automatic shut-off after several hours, 20 cm clearance required
Maintenance	Clean the curtain with a damp cloth, remove and clean the filter, avoid abrasive products, do not scratch the infrared area
Materials	Plastic (body), metal (poles), textile (curtain)
Power cord length	Approximately 2 meters (estimated)
Noise level	Not specified
Warranty	2 years (estimated)
Color	White/gray (typical Rowenta)
Country of manufacture	Not specified (likely China or France)
Repairability	Contact Rowenta customer service for spare parts

Frequently Asked Questions - Care For You YT3040 ROWENTA

How to place my garments in Care For You?

Place up to 3 garments on the hanger and integrated clips. For steaming, use the tension clips: two small ones on the sleeves, one large on the back for shirts; for pants, place a small clip at each end. For delicate garments (wool, viscose), avoid clips and use the steam cycle without tension.

Which program should I choose for steaming?

The STEAM mode offers three durations: 10 min for light steaming, 20 min for optimal results, 30 min for very wrinkled clothes. Use the tension clips for better results. You can adjust the time in 5-minute increments.

How to use the purification mode?

The SANITIZE mode eliminates odors and up to 99.99% of viruses, bacteria, and germs. Choose 20 min for quick purification or 40 min for deep purification. Tension clips are not needed.

Can I treat delicate garments?

Yes, use the GENTLE DRY mode for garments that cannot go in the dryer. Set the time from 10 to 90 min. For steaming fragile textiles, prefer the steam cycle without tension clips to avoid distortion.

The curtain is damp after the cycle, what should I do?

Residual moisture is normal if drying is incomplete. Run a 10-minute drying program or wipe the inside of the curtain with a dry cloth. Ensure the curtain is fully closed during the cycle.

The device no longer responds to the remote control.

Check that the remote is pointed at the infrared receiver (located on the base). Replace the batteries if necessary. Ensure no obstacles block the signal. If the issue persists, contact customer service.

What to do if the water tank is empty or not properly inserted?

A specific pictogram is displayed. Fill the tank with tap water and reinsert it correctly, ensuring it is locked. Also check that it is not cracked.

How to clean Care For You?

Turn off and unplug the device, wait 1 hour for it to cool down. Lift the shelf, remove the filter and wipe away residues with a sponge. Clean the curtain with a damp cloth. Never use abrasive products. Do not scratch the infrared area.

What types of garments are compatible?

Most textiles are compatible (hand wash, normal, no iron, delicate). Check the label: symbols for hand wash, normal tumble dry/ no iron/delicate, air dry are compatible. Do not use with shoes, gloves, or garments marked 'do not dry' or 'no heat'.

The steaming result is not satisfactory, why?

Check that you selected a sufficient time (20 or 30 min) and used the appropriate tension clips. Ensure the garments are not overloaded (max 3). For very wrinkled clothes, increase the time or restart a cycle. Refer to the 'How to place my garments' section.

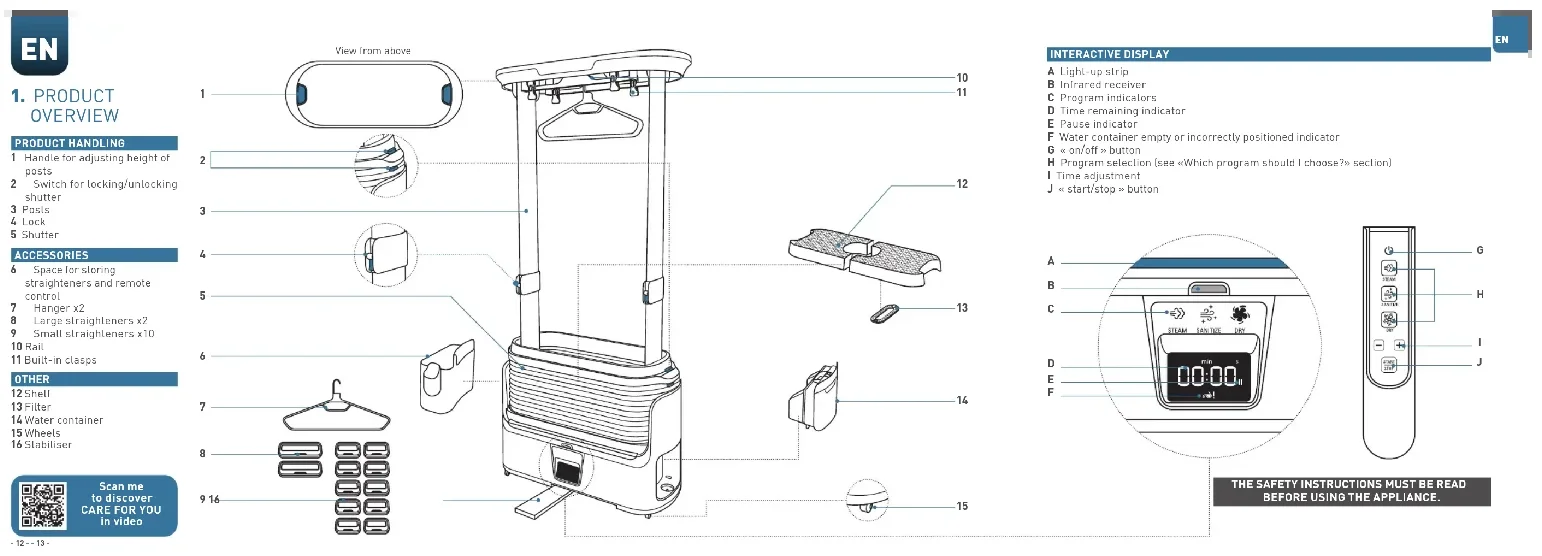

USER MANUAL Care For You YT3040 ROWENTA

Line drawing of three different household garments with different designs and front views (no text or symbols)

YT30XX/1820006599/03

www.calpr.com

www.tefal.com

CARE

FOR YOU —

MANIPULATION DU PRODUIT

1 Poignée

pas mâts

2. INSTALLATION DU PRODUIT

Diagram illustrating the installation and assembly of a portable air conditioner unit, showing internal components and motion indicators.

Diagram illustrating a person using a lift lift machine with labeled components and actions for lifting or adjusting the lift.

Diagram showing a person using a cleaning tool to clean air from a rack-mounted device, with labeled parts and a digital display.

Diagram illustrating a person using a BIP (Biochemical Bioplastic) device to install a jacket, with labeled components and directional arrows.

Technical diagram showing exploded view of a portable air conditioner unit with labeled components and airflow indicators

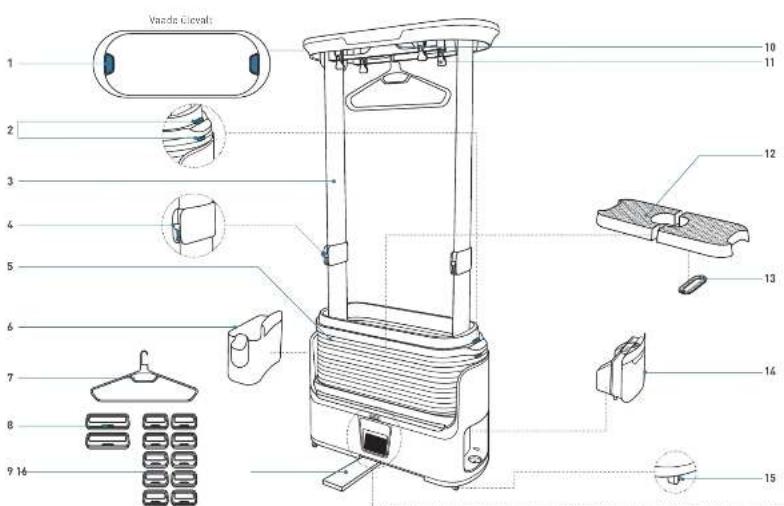

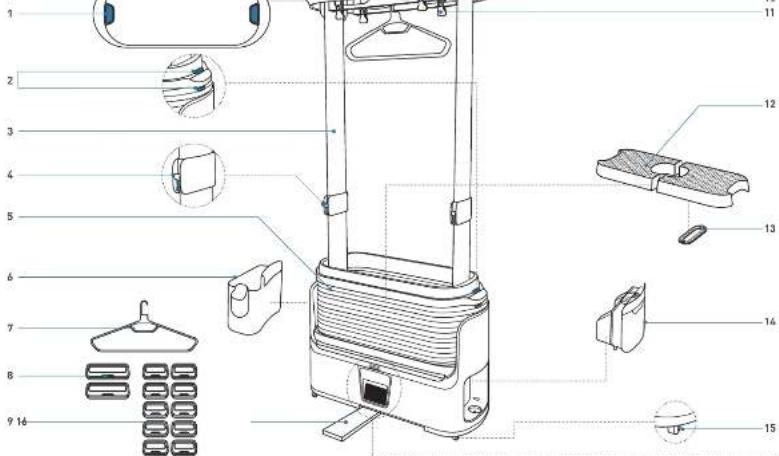

1. Handle for adjusting height of

posts

2 Switch for locking/unlocking

shutter

3 Posts

1. Lock

2. Gutton

5 Sichler

ACCESSORIES

6 Space for storing

straighteners and remote

control

1. Hapocay2

8 large straighteners x2

0 Large straighteners 22 9 Email straighteners v17

9 5

10 Rail

11 Built-in clasps

OTHER

Other

12 Shell

13 Filter

14 Water container

15 Wheels

16 Statliser

(1)

Scan me to discover CARE FOR YOU in video

-12--13

View from chance 1 2 3 4 5 6 7 8 9 14 10 11 12 13 14 15

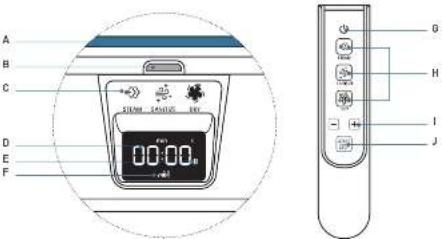

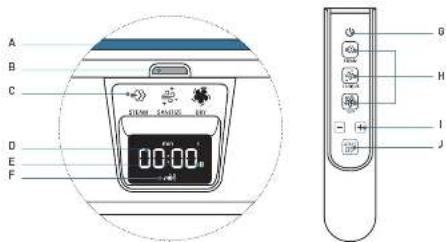

INTERACTIVE DISPLAY

A Licht-up strip
B. intraced receiver
C. Registered educator
C Program molecules D Time-containing indicators
D. UHs Parishring
E Pause indicator
F Water container empty or incorrectly positioned indicator
G × cm'off = button
H Program selection load «Which program should I choose» section
1 Time adjustment
L « star / s/ra » hullan

A B C D E F 00:00. ###

THE SAFETY INSTRUCTIONS MUST BE READ

BEFORE USING THE APPLIANCE

2. INSTALLING THE PRODUCT

Do not install Care For You in a bathroom or any other damp location.

Allow 20 cm at clear space around the product.

Do not install Care For You near a heat source.

Pull out the stabilisers at the front and back of Care For You

3. WHICH PROGRAM SHOULD I CHOOSE?

STEAM

You can adjust the steam time in two-minuta increments. The longer the cycle, the more steamed your garment will be. 10 min: Light and fast steaming. 20 min: Optimal steaming for most garments.

30 min: For garments that are difficult to decrease.

straighteners are recommended for best results.

SANITIZE

20 min: Light sanitation. Reduces odours. 40 min: Full sanitation. Effectively eliminates odours that are embedded in the garment and kill up to 99.99% of viruses ^11 bacteria and germs ^11 .

In any line mode = 40 min. Test carried out by an external iteration in Oct. 2001 on roller. 11 Converance: DCV 229E and Nut me No. 385. 12 S. Autovsk. K.Pigummure, E.Col.

It is not necessary to use straighteners in sandisa mode.

GENTLE DRY

Perfect for delicate garments that can be tumble dried. The cycle time can be adjusted between 10 and 90 min.

It is not necessary to use straighteners in drying media.

4. HOW DO I POSITION MY CLOTHES?

▲ Using straighteners will help you achieve better steaming results.

However, for garments that easily lose their shape (e.g. chunky knit jumpers, viscose, thin t-shirts etc.) use the STEAM cycle without straighteners.

Place up to two shirts on a hanger and hang on the rail. If you want to steam a shirt, button it up to the top.

To steam, place a large straightener on the back of the shirt, a small straightener on each sleeve and two small straighteners on the front of the shirt.

Use the built-in clasps to hang your trousers in Cara Far You. To steam, put a small straightener on the end of each trouser leg.

Make sure to empty the pockets of your garments.

Use the built-in clasps and shelf to place cuddly toys, pillows and linen into Care For You.

UP TO THREE GARMENTS CAN BE TREATED AT A TIME.

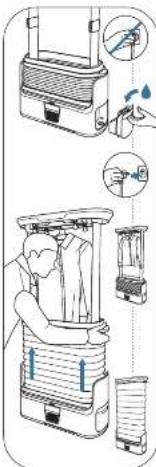

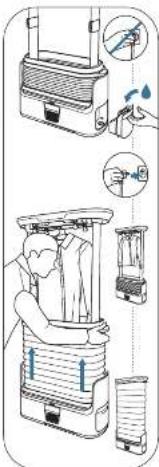

5. USING THE PRODUCT

Diagram illustrating a multi-step cleaning or storage procedure with labeled components and directional arrows indicating movement.

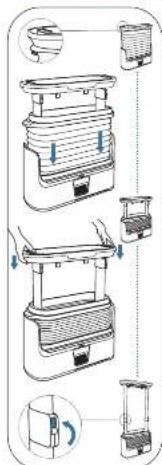

Pull the switch for locking/unlocking the shutter to lower it.
Press the up/down hands for adjusting the height of the posts and adjust them until you hear the locking mechanism click into place.
Lift the lock.

Diagram illustrating a person using a lift lift machine with labeled components and actions for lifting or cleaning the lift.

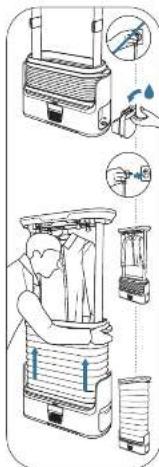

Make sure that the power cord is unplugged.
Remove the container and fill it with water.
Plug the appliance in.
Position up to three garments and any straighteners required for stazing. [See]
«How do I passion my clothes? » section).
Close the shutter.
Always close the shutter before you start a cycle.

Diagram illustrating household cleaning and device inspection steps with labeled components

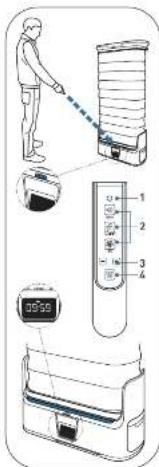

Point the remote control at the infrared receiver.
1 Press the « an/off » button on the remote control.
2. Select one of the three available programs. An indicator at the bottom of Care For You will light up to confirm the selected program.
3 Use the «+» et «-» buttons to adjust the time displayed on the bottom of Cara For You
4 Start the selected program by pressing the « start/stop » button.
The strip along the bottom of the product will light up as it heats up.

Diagram illustrating a person using a BIP (Biochemical Bioplastic) device to install a jacket, with labeled components and directional arrows.

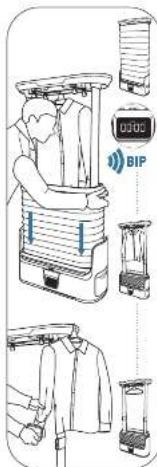

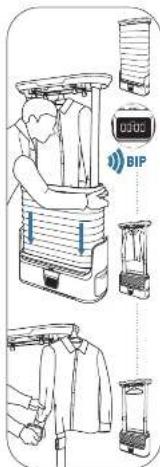

While your program is running, the screen will display the time remaining for the cycle.
Do not open the shutter while the program is running. A bleeping sound will indicate that
the program has finished. Press the switch lacking/unlocking shelter to lower
Remove the garments and any straighteners used

Technical diagram showing exploded view of a portable air conditioner unit with labeled components and airflow indicators

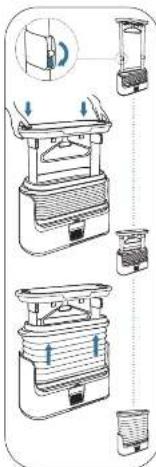

Optional: To put your product into storage position, disable the locks.
Press on the handles for adjusting the height of the pasts while applying pressure to lower them.
Lift the shutter.

6. WHAT KIND OF GARMENTS SHOULD I USE WITH CARE FOR YOU?

All three Care For You programs are suitable for use with most fabrics. If in doubt, refer to the symbols on your garment's care label.

Do not put shoes or gloves in Care For You.

CATEGORY SYMBOL MEANING CFY
WASHING SYMBOLS		Hard wash only	√
		Machine wash normal	√
		Synthetics cycle	√
		Gentle cycle	√
		Do not wash	√
TUMBLE DRYING SYMBOLS		Tumble dry allowed	√
		Permanent press	√
		Delicate	√
		Do not tumble dry	√
		Do not dry	✕
		Line dry	√
		Drip dry	√
		Dry flat	√
RECOMMENDED TUMBLE DRYER SETTINGS		Tumble dry on high heat	√
		Tumble dry on medium heat	√
		Tumble dry on low heat	√
		Tumble dry, no heat	✕

7. CLEANING THE PRODUCT

Turn off and unplug the appliance. Wait one hour for the appliance to cool down completely.

Slift out the shelf, remove the iller and remove any residue that may be there with a sponge.

Clean the shutter using a damp cloth or well wrong-out sponge.

Never use abrasive agents or products to clean or descale the appliance.

√:Suitable for use with Care For You. ✗:Do not use with Care For You.

Take care not to scratch the infrared receiver or transmitter on the remote control.

8. TROUBLESHOOTING

If you have any problems with this product, do not hesitate to contact customer service.

PROBLEMS CAUSES SOLUTION
I am not satisfied with the steaming results.	The selected time and/or number of straighteners is not suitable for the garment.	Restart a 30-minute STREAM cycle, button the garment up to the top where applicable and consider using straighteners if possible with your garment face show the position on my clothes in section.
Using the straighteners has stretched my garment.	You used the straighteners on a garment that saddy loses its drape.	Wash your clothes again. In mixed cases, this is enough for it to regain its original shape. In the future, use Care Not You without the straighteners for this garment.
When the program is finished, the inside of the shutter is wet.	The drying cycle is the end of the program was not finished.	Start a 10 minutes driving program or - Dry with a cloth or - Leave to dry naturally.
There is too much steam coming out of the top of my product.	The shutter is not correctly positioned.	Make sure that the shutter is properly clipped onto the top of the product.
The product has stopped responding to the remote control.	The remote control is not painted at the intrance director or his man out of history.	Paint the remote control at the intrance receiver at the bottom of the product and check its bottleies.
My product will not stay in the raised position.	The posts are up, being raised up high enough to activate the locking mechanism.	Lift the posts to maximum height to rotate the locking mechanism.
I am seeing this symbol.	Tank is empty or incorrectly positioned.	Take the water consumer and check that is properly clipped on.
Your appliance turns itself off.	After a few minutes, the appliance switches an automaticity to save energy.	You can turn your appliance back on using the window control.
I am not satisfied with the drying results.	Your garments are too neat. Spin your clothes before cutting them into Care For You.
It leaves damp patches on the wall or ceiling.	You have not left through space between Care For you and the wall during use, the room is not sufficiently ventilated or you have not closed the shutter fully.	Know Care for you at least 6 pm away from the wall during use or place he appliances in a larger room with better ventilation and more moderate temperature. Ensure that the shutter is properly closed.
