X-Cel Steam Travel DR7050 - Steam cleaner ROWENTA - Free user manual and instructions

Product type	Steam cleaner
Brand	Rowenta
Model	X-Cel Steam Travel DR7050
Voltage	120 / 230 V (selector)
Tank capacity	150 ml
Heat-up time	Approximately 45 seconds
Tank type	Removable
Included accessories	Door hanger, fabric brush, steam bonnet
Steam function	Continuous trigger
Usage	For garments on hanger
Heating indicator	On/off light (flashes then stays on)
Safety	Do not immerse, do not direct at people
Cleaning	Descaling with white vinegar
Repairability	Rowenta approved service center
Spare parts	Available accessories (brush, bonnet)

Frequently Asked Questions - X-Cel Steam Travel DR7050 ROWENTA

What water to use in the tank?

Use untreated tap water. If your water is very hard, mix 50% tap water and 50% demineralized water. Never use water containing additives (starch, perfume, etc.) or condensation water.

How to descale the appliance?

Perform the operation in a ventilated room. Fill the tank with a mixture of 50% water and 50% white vinegar. Heat the appliance and activate the steam until the tank is empty. Let cool for one hour, then clean with a damp sponge.

What to do if steam does not come out?

Check that the appliance is plugged in and turned on. Make sure the water tank is correctly installed and filled. If it is the first use, hold the steam trigger pressed for a few seconds to prime the pump.

How to use the fabric brush?

Before attaching or removing the brush, unplug the appliance and let it cool for one hour. The brush opens the weave for better steam penetration. Attach it to the gun before use.

Can I use the appliance on garments being worn?

No, never direct steam at people or animals. Do not iron garments while they are being worn. Use the appliance on garments hung on a hanger.

How long does the appliance take to heat up?

The heat-up time is approximately 45 seconds. The light stops flashing when the appliance is ready.

How to store the appliance after use?

Turn off the appliance, unplug it and wait one hour for it to cool completely. Empty the water tank, put it back in place, then store the appliance on a flat surface.

What to do if the appliance spits water or leaves stains?

This may be due to water containing additives or incomplete descaling. Never add additives and strictly follow the 'ANTI-CALC' procedure with white vinegar.

Can I use additives in the water?

No, never use water containing additives (starch, perfume, softener, etc.). They can damage the appliance and cause spitting or stains.

How to change the voltage of the appliance?

The appliance is equipped with a voltage selector (120/230 V). Make sure to set it correctly before plugging in the appliance, and never operate the selector while the appliance is plugged in.

USER MANUAL X-Cel Steam Travel DR7050 ROWENTA

Illustration of a hairdryer with a black body and gray body, emitting powder from its neck (no text or symbols visible)

DR70XX - DUAL VOLTAGE

Diagram of a hair dryer with labeled parts including front, back, and side views

* EN Depending on model / FR Dépend du modèle / ES Depende del modelo

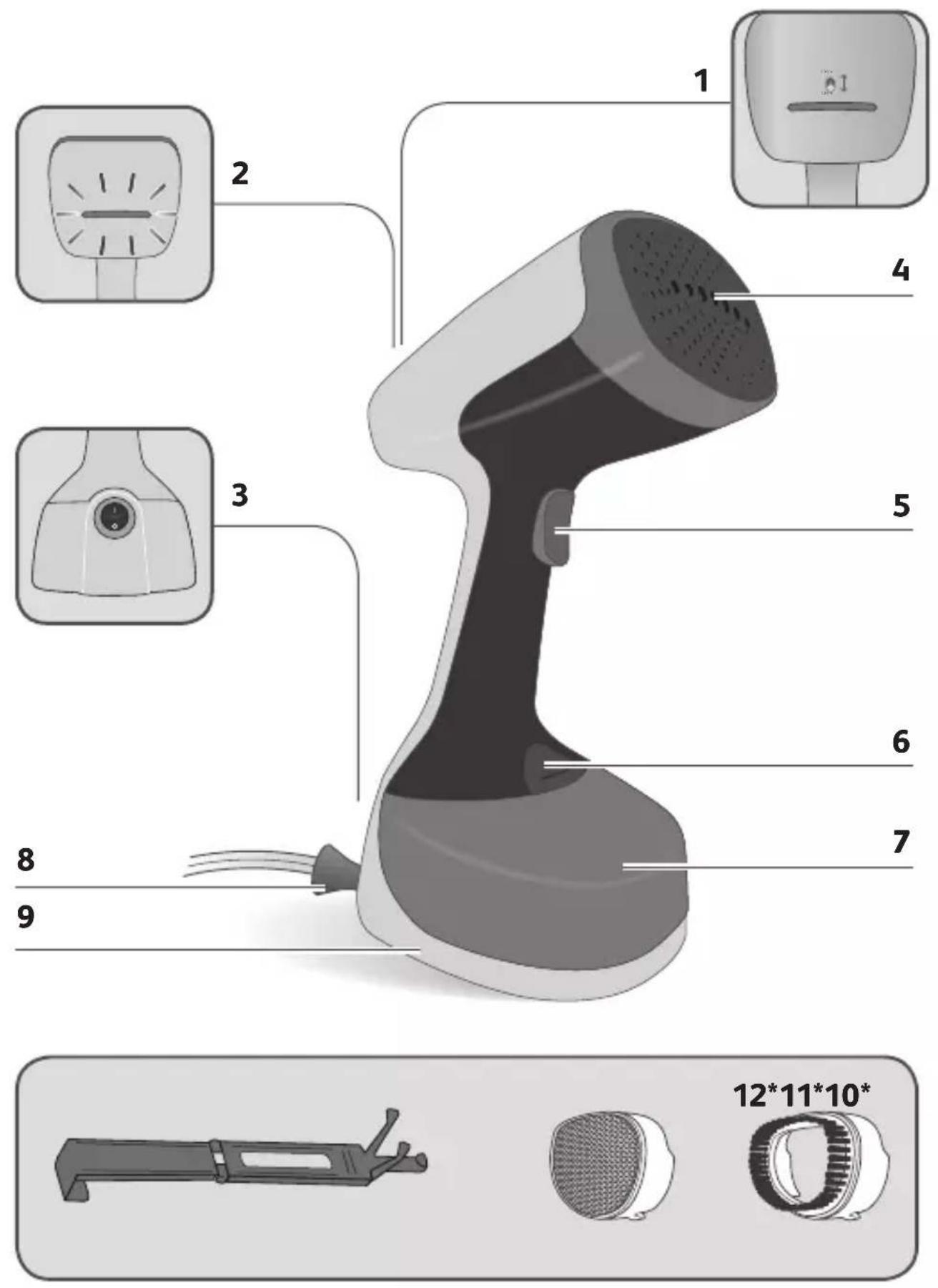

PRODUCT DESCRIPTION / DESCRIPTION DU PRODUIT / DESCRIPCIÓN DEL PRODUCTO

1. EN Voltage selector (120/230 V)

1. EN On/Off light indicator

1. EN Water tank locker

1. EN Removable water tank

12.* EN Fabric brush

FR Brosse à tissu

ES Cepillo para tejidos

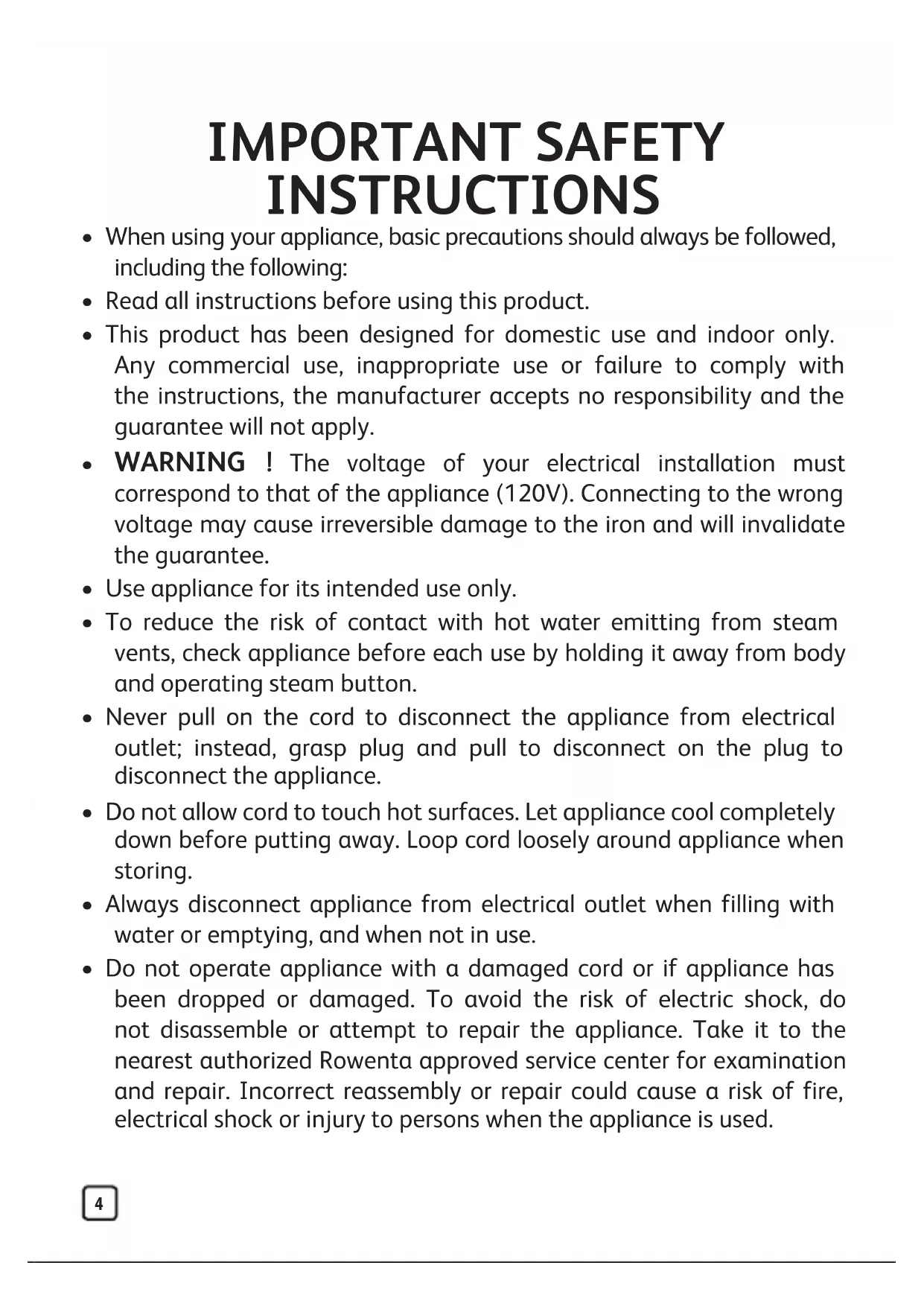

IMPORTANT SAFETY INSTRUCTIONS

• When using your appliance, basic precautions should always be followed, including the following:
• Read all instructions before using this product.
• This product has been designed for domestic use and indoor only. Any commercial use, inappropriate use or failure to comply with the instructions, the manufacturer accepts no responsibility and the guarantee will not apply.
• WARNING ! The voltage of your electrical installation must correspond to that of the appliance (120V). Connecting to the wrong voltage may cause irreversible damage to the iron and will invalidate the guarantee.
• Use appliance for its intended use only.
• To reduce the risk of contact with hot water emitting from steam vents, check appliance before each use by holding it away from body and operating steam button.
• Never pull on the cord to disconnect the appliance from electrical outlet; instead, grasp plug and pull to disconnect on the plug to disconnect the appliance.
• Do not allow cord to touch hot surfaces. Let appliance cool completely down before putting away. Loop cord loosely around appliance when storing.
• Always disconnect appliance from electrical outlet when filling with water or emptying, and when not in use.
• Do not operate appliance with a damaged cord or if appliance has been dropped or damaged. To avoid the risk of electric shock, do not disassemble or attempt to repair the appliance. Take it to the nearest authorized Rowenta approved service center for examination and repair. Incorrect reassembly or repair could cause a risk of fire, electrical shock or injury to persons when the appliance is used.

- Close supervision is necessary for any appliance being used by or near children.

- Do not leave appliance un-attended while plugged in or while it is still hot.

- Burns could occur from touching hot metal or plastic parts, hot water or steam.

- Use care when you empty a steam appliance. There may be hot water in the reservoir.

- If an extension cord is absolutely necessary, a cord with a 15A ampere rated shall be used. A cord rated for less amperage can result in a risk of fire or electric shock due to overheating. Care shall be taken to arrange the cord so that it cannot be pulled or be tripped over.

- To protect against a risk of electric shock, do not immerse the appliance in water or other liquids.

- Do not direct steam at people, animals or clothes while they are being worn.

- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

- The use of other accessory attachments than those provided by Rowenta is not recommended and may result in fire, electric shock or personal injury.

- The appliance must be rested on a stable surface. When placing the appliance on its base, ensure that the surface on which the base is placed is stable.

- The appliance must not be used if it has been dropped, if there are visible signs of damage or if it is leaking.

- Check the electrical power for sign and ware or damage prior to use. If the electrical power is damaged, it must be replaced at an approved service center to avoid any danger.

Before first use

- When you first use the appliance, some smoke or a harmless odour may be produced or there may be a small discharge of particles. This will not affect the use of the appliance and will disappear quickly.

What water to use?

- Your appliance has been designed to use tap water. If your water is very hard, mix 50% tap water and 50% bottled demineralised water. Never use water containing additives (starch, perfume, aromatic substances, softeners, etc.), or condensation water (for example water from tumble dryers, water from refrigerators, water from air conditioning units, rainwater). This water contains organic waste materials or minerals that concentrate under the effect of heat and cause spitting, brown colouring or premature ageing of your appliance.

SAVE THESE INSTRUCTIONS=

CONSIGNES DE SÉCURITÉ IMPORTANTES

Illustration of a person climbing a curved surface with an arrow indicating motion (no text or symbols)

Illustration of a hand holding a handheld device with a close-up inset showing a mechanical component (no text or symbols)

EN

Fill the water tank with a maximum of 150 ml of untreated tap water.

FR

Close the water inlet stopper.

FR

Return the water tank to its place for locking on the appliance. Make sure that the water tank is fully set in place.

FR

Illustration of a person hanging a sweater with a hand adjusting its shirt (no text or symbols)

Illustration of a person hanging a hanging weight with a downward arrow indicating force or pressure (no text or symbols)

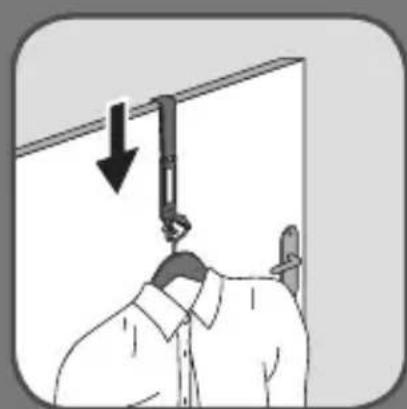

EN The door hook allows to hang your garment for steaming.

Illustration of a handheld device with a mesh grille and directional arrows indicating motion (no text or symbols)

EN

The fabric brush opens the weaves of the fabrics for better steam penetration.

Before removing or attaching the steam brush, unplug your appliance and allow it to cool down, for one hour.

FR

Diagram showing a hairdryer device with labeled temperature reading and directional arrows, including a 120 V mark.

EN

The steam cover filters water impurities and protects fabrics from water drips.

Before removing or attaching the steam cover, unplug your appliance and allow it to cool down for one hour.

FR

Switch the voltage selector in the correct position (120 or 230 V)

WARNING Never switch the voltage selector while the unit is plug-in

FR

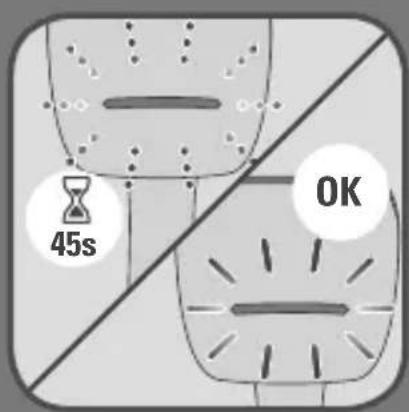

EN Wait until the light stops flashing (approximately 45 seconds). When the light is steady the appliance is ready to use.

EN Press the steam button with the steam brush facing away from you holding it in a vertical position.

Illustration of a person hanging clothes with a downward arrow indicating clothing loss (no text or symbols)

NO

OFF

EN

For optimal use, pass the steam jets over your garment from top to bottom.

FR

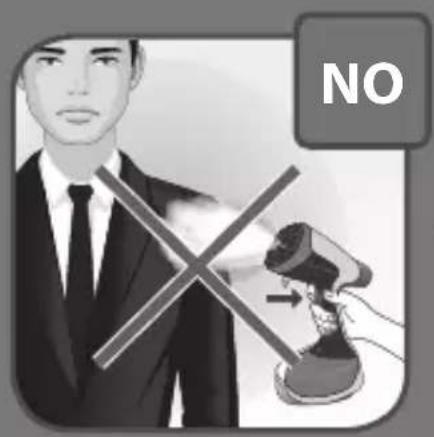

Warning : Never steam a garment while it is being worn.

FR

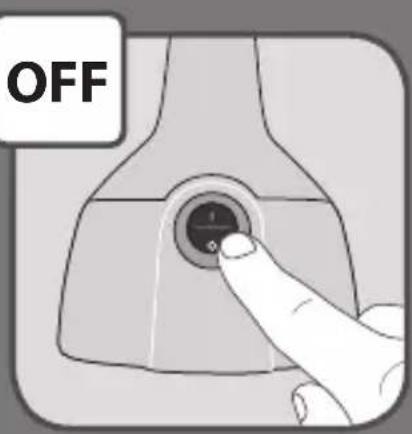

Press the On/Off button to switch the appliance off.

FR

Diagram illustrating four steps of appliance repair: wire cutting, 1 hour cycle, hand tooling, and final step with tool.

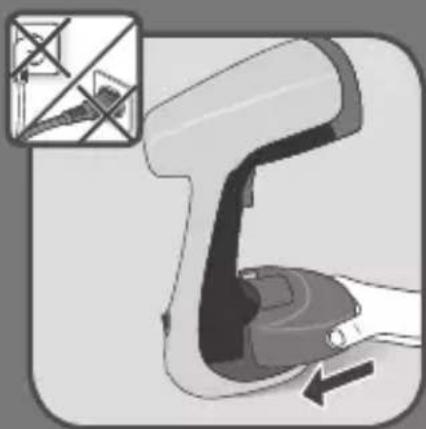

EN Press the water tank locker.

EN Remove the water tank.

Medical procedure illustration showing step-by-step instructions for a hand holding a tool, with a close-up of the open window and a magnified view of the tool being inserted.

EN Do this operation in a vented room.

50% Water + 50% White Vinegar

Press the water tank locker.

Remove the water tank.

Fill the water tank with 50% water and 50% white vinegar.

Do not use other descaling products.

Return the water tank to its place on the appliance. Make sure the water tank is fully set in place and locked.

Illustration of hands connecting a power plug to an electrical outlet, showing installation and disassembly (no text or symbols)

ON

45s OK

EN Plug-in the appliance.
FR Branchez l'appareil.
ES Enchufe el aparato.

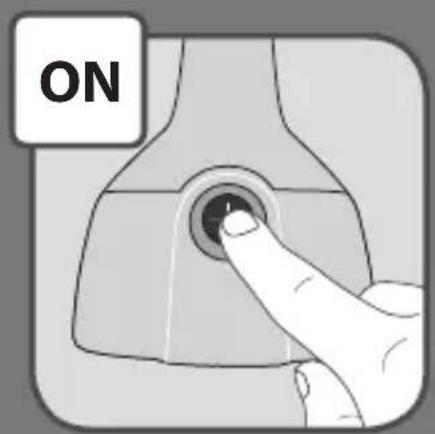

EN Switch on the appliance.
FR Allumez l'appareil.
ES Encienda el aparato.

EN Wait until the light stops flashing (approximately 45 seconds). When the light is steady the appliance is ready to use.

To release steam, press continuously on the steam button.

Allow the appliance to run until the water tank has completely emptied.

Press the On/Off button to switch the appliance off.

Unplug the appliance and press the water tank locker.

Remove the water tank.

EN Allow the appliance to run until the water tank has completely emptied.

Wait an hour for complete cool down.

Only use a sponge with water to clean.

Never wash or rinse appliance directly over a sink.

PROBLEMS POSSIBLE CAUSES SOLUTIONS
There is no steam. The appliance is not plugged in, or not switched on.		Check that your appliance is correctly plugged in and switched on.
		The water level is too low. Unplug your appliance and refill it.
		The steam pump has not been primed. Press the steam trigger continuously for a few seconds to begin steaming.
		You are using the appli-ance for the first time. Press the steam trigger continuously for a few seconds to begin steaming.
		The water tank is not fully in place. Ensure that stopper is closed and that the water tank snaps when put into place.
The appliance does not heat.	It is not plugged in, or not switched on.	Plug in your appliance and switch on.
Water leaks. The water tank is not fully in place or the stopper is not closed properly.		Ensure that stopper is closed and that the water tank snaps when put into place.
Steam rate decreases.	Calc Sealing. Refer to 'ANTI CALC section in instruc-tions for use.
The steam leaves stains on the fabric or the appliance spits.	You are using water with additives.	Never add any additive in the water tank.
	The appliance has not been cleaned enough after the descaling operation.	Read carefully the 'ANTI CALC' section in instructions for use.
	You are using other liquids than white vinegar to descale the product.	Use only white vinegar during 'ANTI CALC' procedure.
Appliance steams continuously.	The steam trigger is on the lock position.	Unlock the steam trigger.
There is not enough power or too much.	The dual voltage is not set correctly.	Ensure that the dual voltage selector is in correct voltage position before oper-ating. Unplug the appliance and switch the selector to the correct voltage.

GUIDE DE DEPANNAGE
