Product type	Cordless lawn mower
Brand	Fuxtec
Model	FX-E1RM20
Power supply	2 × 20 V Li-Ion batteries (not included)
Cutting width	330 mm
Cutting height	25–65 mm
Number of height positions	5
Collection bag capacity	35 L
Weight (without battery)	14 kg
Rotation speed	3900 min⁻¹
Guaranteed sound power level (LWA)	88.5 dB(A)
Measured sound pressure	77.9 dB(A)
Vibration	2.1 m/s² (K=1.5 m/s²)
Charger rated voltage	230 V~, 50 Hz
Battery charging time	60 min
Battery capacity	2 Ah
Safety devices	Safety button + on/off switch, safety key
Main functions	Mowing, height adjustment, collection bag
Maintenance and cleaning	Clean after use, check screws and blade

Frequently Asked Questions - FX-E1RM20 Fuxtec

What is the cutting width of the FX-E1RM20 mower?

The cutting width is 330 mm, ideal for medium-sized lawns.

How to adjust the cutting height?

Use the adjustment lever (figure 1, point 5) to choose from 5 positions from 25 to 65 mm. Only adjust the height when the motor is off and the blade is stationary.

Which battery should I use?

The mower works with two 20 V Li-Ion batteries (FUXTEC model recommended). Only use original batteries to avoid any risk.

How to start the mower?

Insert the batteries, then the safety key (figure 6). Press and hold the safety button (figure 8, point 8) while operating the on/off switch (point 1). Release to stop.

What is the charging time of the batteries?

The charging time is approximately 60 minutes for a 2 Ah battery with the supplied charger.

How to clean the mower after use?

Remove the battery. Clean the housing with a brush or dry cloth. Do not use water or liquid detergent. Make sure the ventilation slots are clean.

Can I mow wet grass?

It is not recommended to mow wet grass as it can clog the bag and damage the blade. Prefer dry grass for optimal results.

How to replace the blade?

Remove the battery and safety key. Turn the mower over, unscrew the fixing screw (figure 9, point 24). Replace the blade respecting the direction (holes must match). Tighten the screw fully.

What to do if the mower vibrates excessively?

Stop the mower immediately and remove the battery. Check that the blade is not damaged or unbalanced. An imbalance may indicate a bent blade or incorrect installation.

How to recycle the device at end of life?

Do not dispose of the mower with household waste. Take it to a recycling center or store (collection point). Batteries must be recycled separately. Visit www.quefairedemesdechets.fr.

USER MANUAL FX-E1RM20 Fuxtec

1. Introduction and safety 22
2. Safety Instructions for Lawn Mowers 25
3. Safety instructions for the charger 26
4. Safety Instructions for Li-Ion Batteries 27
5. Presentation 28
6. Switching the device on/off 33
7. Working Instructions 33
8. Disposal 34
9. Technical Data 35
10. EU Declaration of Conformity 36

VERSION FRANCAISE 37

Recycling raw materials instead of waste disposal.

9. Technische Daten

Rasenmacher

MD Directive: 2006 / 42 / EC

Angewandte Normen / applicable standards

EN 60335-1:2012+A11:2014+A13:2017+A1:2019+A2:2019+A14:2019+A15:2021

EN 60335-2-77:2010

EN 62233:2008

Hereby we declare that the above mentioned machine meet the essential safety and health requirements of the above stated EC directives. Any manipulation or change of the machine not being explicitly authorized by us in advance renders this document null and void.

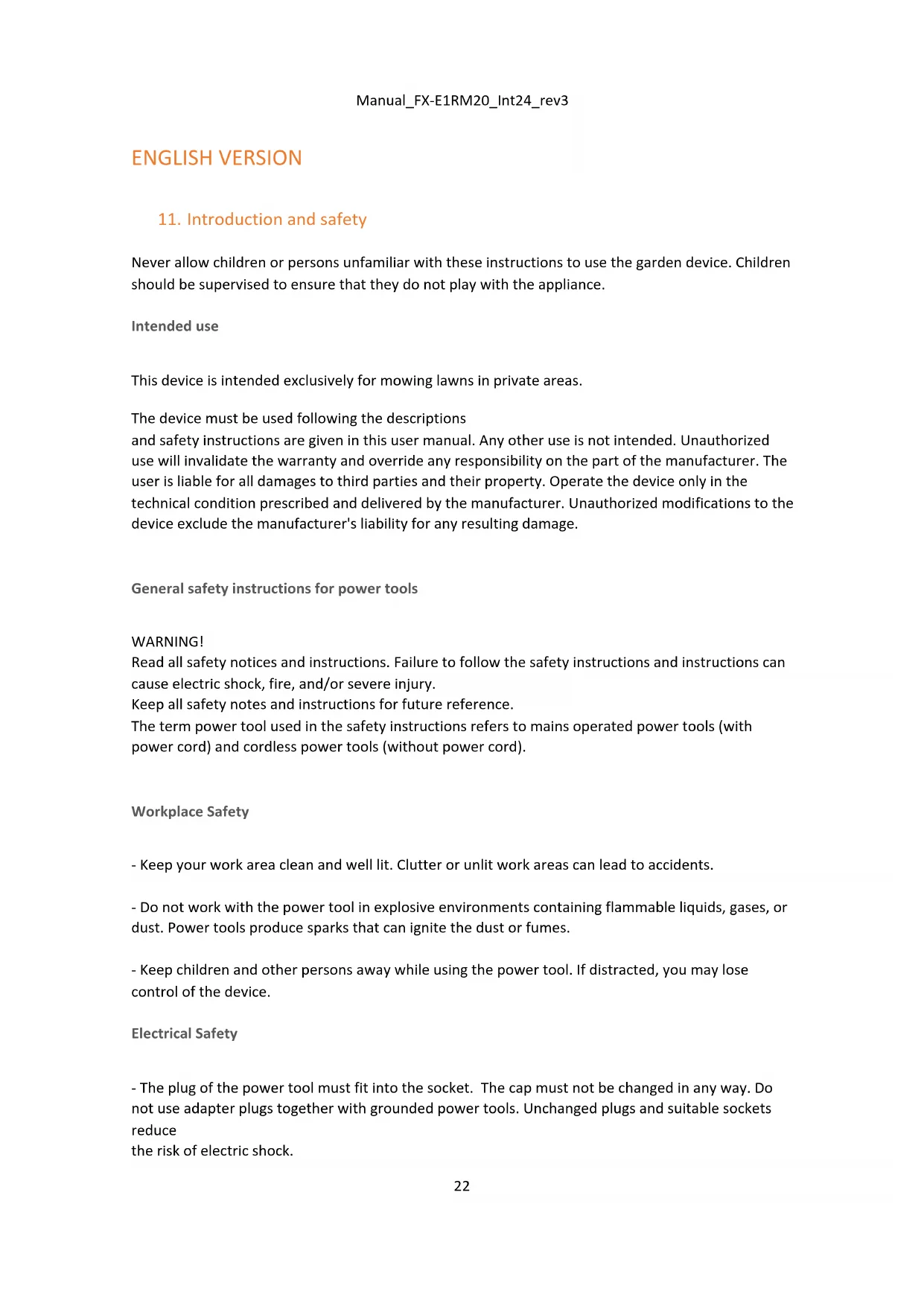

11. Introduction and safety

Never allow children or persons unfamiliar with these instructions to use the garden device. Children should be supervised to ensure that they do not play with the appliance.

Intended use

This device is intended exclusively for mowing lawns in private areas.

The device must be used following the descriptions

and safety instructions are given in this user manual. Any other use is not intended. Unauthorized use will invalidate the warranty and override any responsibility on the part of the manufacturer. The user is liable for all damages to third parties and their property. Operate the device only in the technical condition prescribed and delivered by the manufacturer. Unauthorized modifications to the device exclude the manufacturer's liability for any resulting damage.

General safety instructions for power tools

WARNING!

Read all safety notices and instructions. Failure to follow the safety instructions and instructions can cause electric shock, fire, and/or severe injury.

Keep all safety notes and instructions for future reference.

The term power tool used in the safety instructions refers to mains operated power tools (with power cord) and cordless power tools (without power cord).

Workplace Safety

• Keep your work area clean and well lit. Clutter or unlit work areas can lead to accidents.

• Do not work with the power tool in explosive environments containing flammable liquids, gases, or dust. Power tools produce sparks that can ignite the dust or fumes.

• Keep children and other persons away while using the power tool. If distracted, you may lose control of the device.

Electrical Safety

• The plug of the power tool must fit into the socket. The cap must not be changed in any way. Do not use adapter plugs together with grounded power tools. Unchanged plugs and suitable sockets reduce

the risk of electric shock.

• Avoid physical contact with grounded surfaces such as pipes, heaters, stoves, and refrigerators. There is an increased risk of electric shock if your body is grounded.
• Keep power tools away from rain or moisture. The penetration of water into a power tool increases the risk of electric shock.
• Do not use the cable to carry or hang up the power tool or to pull the plug from the socket. Keep the cord away from heat, oil, sharp edges, or moving parts. Damaged or tangled cables increase the risk of electric shock.
• If you use a power tool outdoors, only use extension cables that are suitable for outdoor use. The use of an extension cable

ideal for outdoor use reduces the risk of electric shock.

• If you use a power tool outdoors, only use extension cables that are suitable for outdoor use. The use of an extension cable

ideal for outdoor use reduces the risk of electric shock.

Safety of Persons

• Be alert, pay attention to what you are doing, and use common sense when working with a power tool. Do not use a power tool if you are tired or under the influence of drugs, alcohol, or medication. A moment of inattention while utilizing the power tool can cause serious injury.

• Wear personal protective equipment and always protective goggles. Wearing personal protective equipment, such as dust mask, non-slip safety shoes, safety helmet or hearing protection, depending on the type and use of the power tool reduces the risk of injury.

• Avoid unintentional commissioning. Make sure that the power tool is switched off before connecting it to the power supply and/or battery, picking it up or carrying it. If you have your finger on the switch when carrying the power tool

or if you connect the device to the power supply while it is switched on, this can lead to accidents.

• Remove adjustment tools or wrenches before turning on the power tool. A tool or key that is in a rotating part of the device

can cause injury.

• Avoid an abnormal posture. Make sure you have a secure

footing and keep your balance at all times. This allows you to better control the power tool in unexpected situations.

• Wear suitable clothing. Do not wear loose clothing or jewelry. Keep hair, clothing, and gloves away from moving parts. Loose clothing, jewelry, or long hair can be caught by moving parts.

Use and treatment of the power tool

• Do not overload the device. Use the appropriate power tool for your work. With the right power tool, you will work better and safer in the specified power range.

• Do not use a power tool with a defective switch. A power tool that can no longer be switched on or off is dangerous and must be repaired.

• Unplug the power cord and/or remove the battery before making any adjustments to the device, changing accessories, or putting the device away. This precaution prevents unintentional starting of the power tool.

• Keep unused power tools out of the reach of children. Do not allow persons to use the device which is not familiar with it or have not read these instructions. Power tools are dangerous if they are used by inexperienced persons.

• Maintain power tools with care. Check that moving parts function correctly and do not jam, that parts are not broken or damaged in such a way that the function of the power tool is impaired. Have damaged parts repaired before using the device. Many accidents are caused by poorly maintained power tools.

• Keep cutting tools sharp and clean. Carefully maintained cutting tools with sharp cutting edges jam less and are easier to guide.

• Use power tools, accessories, insertion tools, etc. according to these instructions. Take into account the working conditions and the job to be performed. The use of power tools for applications other than those intended can lead to dangerous situations.

Use and handling of the cordless tool

• Charge the batteries only with chargers recommended by the manufacturer. A charger that is suitable for a particular type of battery poses a fire hazard when used with other batteries.

• Only use the batteries provided in the power tools. Using other batteries may result in personal injury and fire hazards.

• Keep the unused battery away from paper clips, coins, keys, nails, screws, or other small metal objects that could cause the contacts to bridge. A short circuit between the battery contacts can cause burns or fire.

• The liquid may leak from the battery if misused. Avoid any contact with it. In case of accidental contact, rinse with water. If the liquid gets into your eyes, seek additional medical attention. Leaking battery fluid may cause skin irritation or burns.

12. Safety Instructions for Lawn Mowers

General Safety Instructions

• For your safety and the safety of others, read this user manual and its safety instructions before using the device. Please keep the user manual and its safety instructions in a safe place for future reference and keep them handy for any use.

• Pass on the operating instructions with the device if there is a change of ownership.

• Persons operating the device must not be under the influence of intoxicating substances (e.g., alcohol, drugs, or medicines).

• Operate the device only in the condition prescribed and delivered by the manufacturer. Unauthorized modifications to the device exclude the manufacturer's liability for any resulting damage.

• Only use the device in daylight or under good artificial lighting.

• Only use the device in dry weather conditions. Keep it away from rain or moisture. The penetration of water into the device increases the risk of electric shock.

• Switch off the device and remove the battery in the following conditions:

if the device is left unattended;
before checking, cleaning or other work on the device;
if the device starts to vibrate excessively.

Before Use

• Familiarize yourself with the device and its functions and controls before starting work.
• Check the device for signs of wear or damage before starting up and after a collision.
• Do not use a device whose switch is defective and can no longer be switched on or off.
• Check that all nuts, bolts, and screws are tight to ensure that the device is operated safely.
• Never use a device with damaged or missing parts. Have them repaired or replaced if necessary by a qualified specialist or workshop.
• When working with or on the device, always wear sturdy shoes, long trousers, and the appropriate personal protective equipment (safety goggles, hearing protection, non-slip work gloves, etc.). The wearing of personal protective equipment reduces the risk of injury.

During Operation

Do not switch on the device if persons (especially children) or animals are in the immediate vicinity. Make sure that children do not play with the device.

Interrupt work if you notice that people (especially children) or pets are nearby.

Working on steep slopes can be dangerous. Make sure that you have a firm stand and mow slowly.

Always mow across the slope and not up and down. Be especially careful when changing directions.

There is a danger of tipping over!

Do not mow on steep slopes. Be especially careful if you move backward when mowing and pull the mower onto yourself.

Do not tilt the mower when starting the motor.

Keep a safe distance, as indicated by the handle frame.

Do not start the motor until your feet are at a safe distance from the cutter bar. Be careful not to reach into the rotating cutter bar. Switch off the mower before tipping or transporting it, e.g.,

from/to lawn or over paths. Never drive over gravel while the motor is running. There is the danger of being hit by stones!

Before lifting or transporting the mower, turn off the motor, remove the safety key and service until the cutting bar has come to a standstill. Do not adjust the cutting height until the motor is switched off, and the cutter bar has come to a standstill. Never open the discharge hatch while the motor is running. Before removing the grass catcher, switch off the motor and wait until the cutter bar has come to a standstill. After emptying the grass catcher, carefully re-attach it and ensure that the grass catcher is securely attached to the mower. If possible, do not mow wet grass. Do not work with the garden device in a potentially explosive environment where there are flammable liquids, gases, or dust. If you interrupt work, never leave the device unattended and store it in a safe place.

After use

Switch off the device and remove the battery from the mower. Then place the unit in a safe place. Do not store the device within reach of children. Make sure that the ventilation slots in the device are clean.

Keep all nuts, bolts, and screws tightened to ensure that the mower is in safe working condition. Check the grass catcher frequently for wear or damage.

Only use the cutter bar designed for this mower.

Please follow the provided installation instructions and remove the battery before.

Have repairs carried out only by a qualified technician or service center.

13. Safety instructions for the charger

• Keep the charger away from rain or moisture. The penetration of water into a charger increases the risk of electric shock.

• Keep the charger clean. There is a risk of electric shock from soiling.

• Check the charger, cable, and plug before each use. Do not use the charger if you notice any damage. Do not open the charger yourself and have it repaired only by qualified personnel and only with original spare parts.

Damaged chargers, cables, and connectors increase the risk of electric shock.

• Do not place objects on the charger or place them on soft surfaces. There is a risk of fire.

• Always check that the mains voltage corresponds to the voltage indicated on the charger's nameplate.

• Never use the charger if the cable, plug, or the device itself is damaged by external influences. Take the charger to the nearest specialist workshop.

• Never open the charger under any circumstances. Take it to a specialist workshop in the event of a fault.

14. Safety Instructions for Li-Ion Batteries

• Do not open the battery. There is a danger of a short circuit.

• Protect the battery from heat, including continuous exposure to sunlight, fire, water, and moisture. There is a danger of explosion.

• Vapors may escape if the battery is damaged or misused. Supply fresh air and consult a doctor if you have any complaints. The vapors may irritate the respiratory tract.

• The liquid may leak from the battery if misused. Avoid any contact with it. In case of accidental contact, rinse with water. If the liquid gets into your eyes, seek additional medical attention. Leaking battery fluid may cause skin irritation or burns.

• Only use original rechargeable batteries with the voltage specified on the rating plate of your power tool. When using other batteries, e.g., imitation reconditioned batteries or batteries from different manufacturers, there is a risk of injury and material damage due to exploding batteries.

• The battery voltage must match the battery charging voltage of the charger. Otherwise, there is a risk of fire and explosion.

• Charge the batteries only with chargers recommended by the manufacturer. A charger that is suitable for a particular type of battery poses a fire hazard when used with other batteries.

• The battery can be damaged by pointed objects such as nails or screwdrivers or by an external force. An internal short circuit may occur, and the battery may burn, smoke, explode or overheat.

15. Presentation

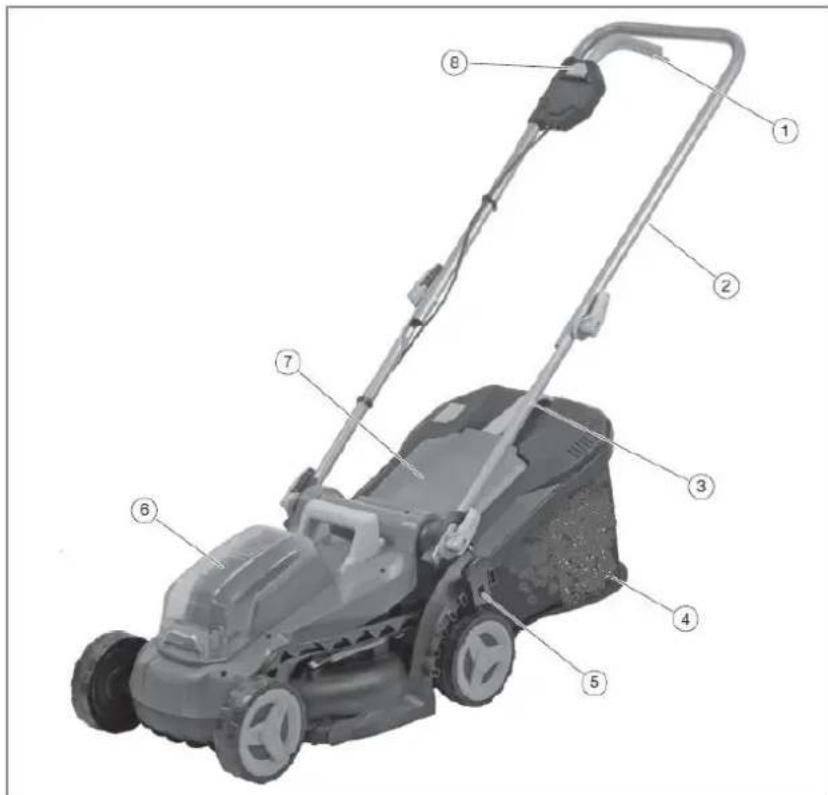

Figure 1: Lawn Mower

1. On/off switch or handle
2. Upper linkage
3. Lower linkage
4. Grass catcher basket
5. Height adjustment lever
6. Battery cover
7. Grass catcher box cover
8. Safety button

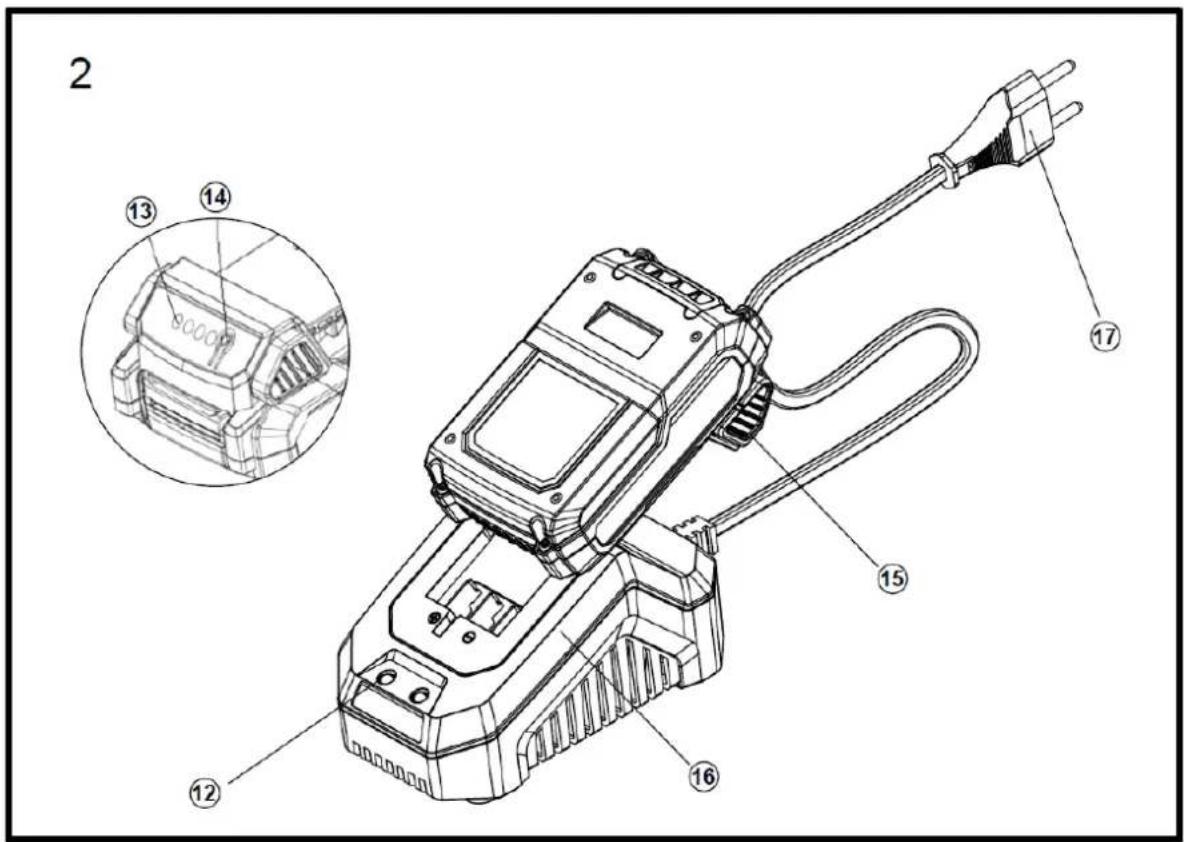

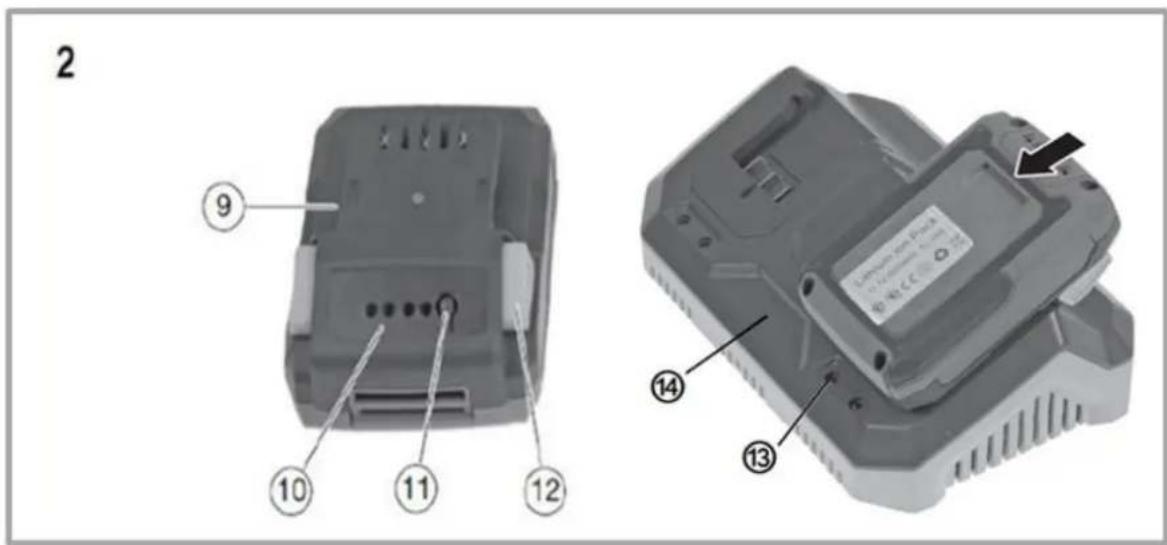

Figure 2: Charger and rechargeable battery (dual charger as shown on the the right is included)

1. Battery

2. Battery level indicator

3. Push button to display the charging capacity
4. Locking button (locks in place when inserted into charger or mower)
5. Control lights (in the right picture point 4)
6. Charger

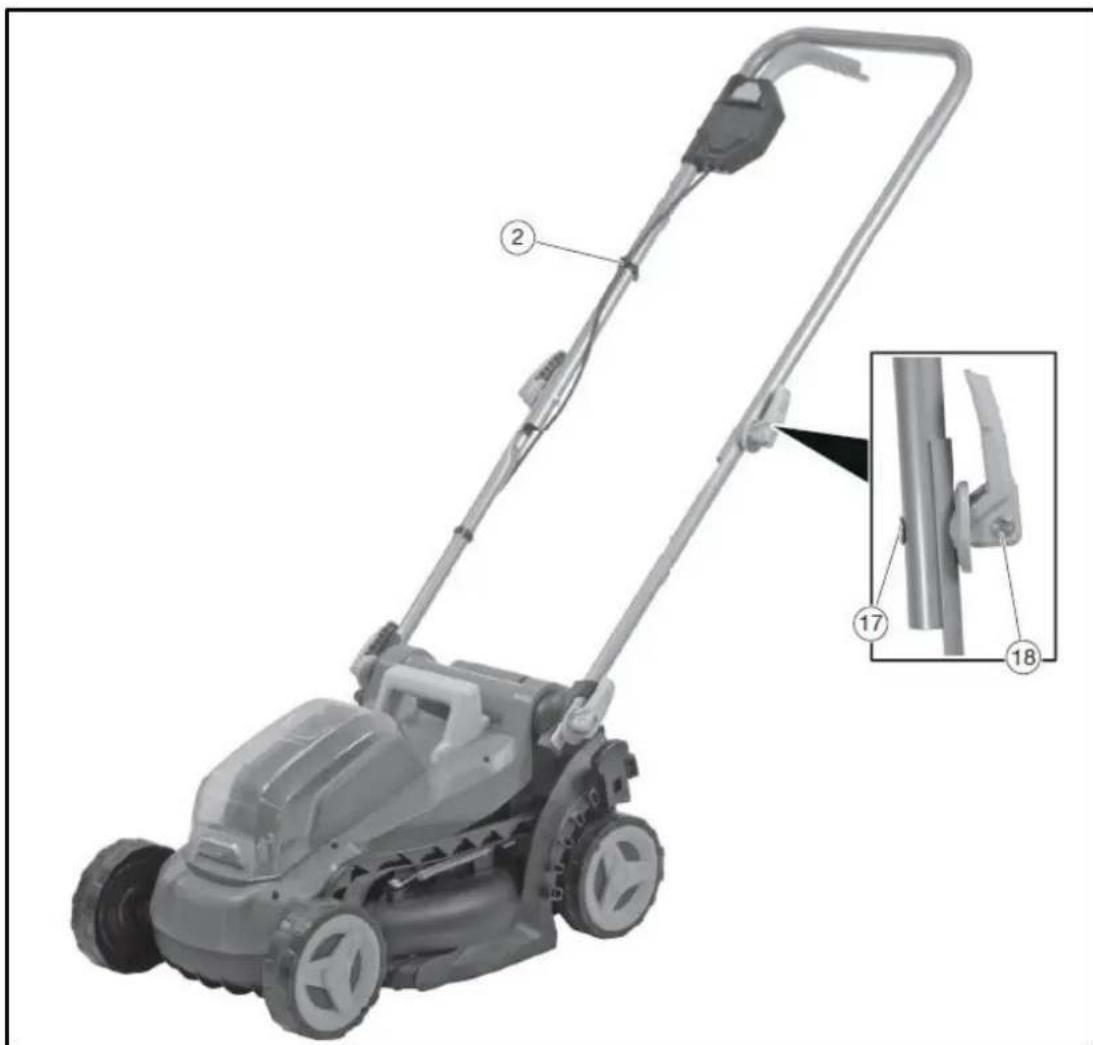

Figure 3: Lawn Mower

1. Locking lever for the lower linkage
2. Holding device for the lower linkage

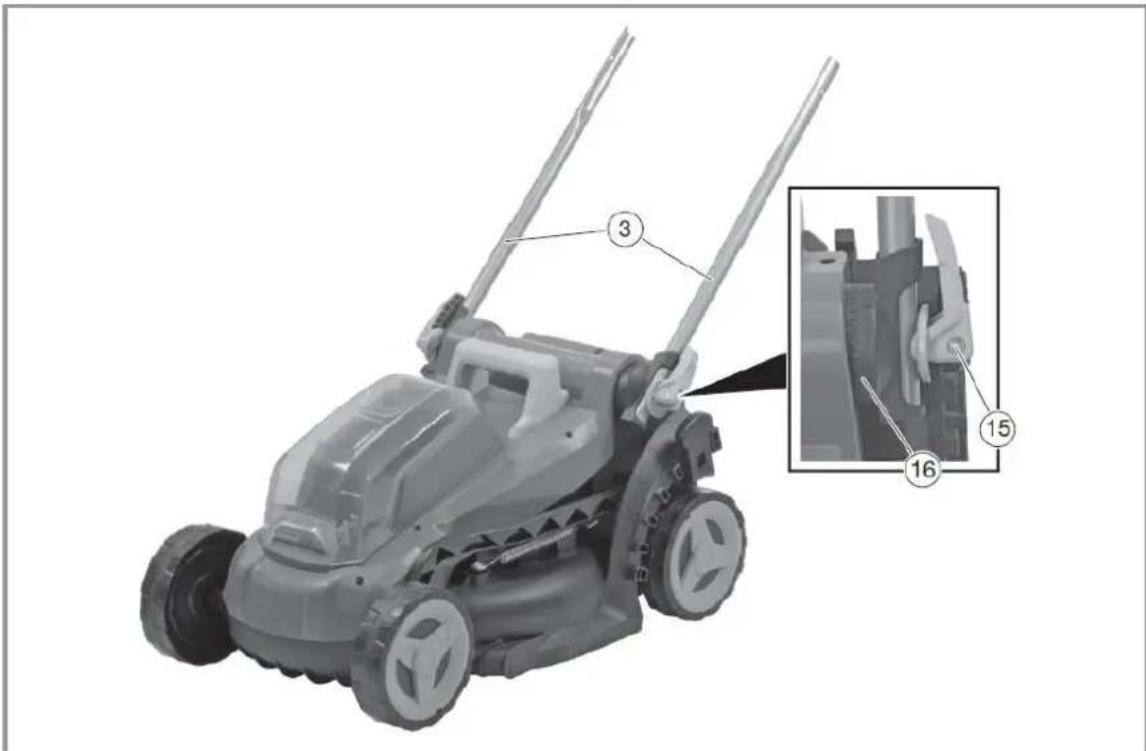

Figure 4: Lawn Mower

1. Screw for connecting the upper linkage with the lower linkage
2. Locking lever for connecting the two linkages

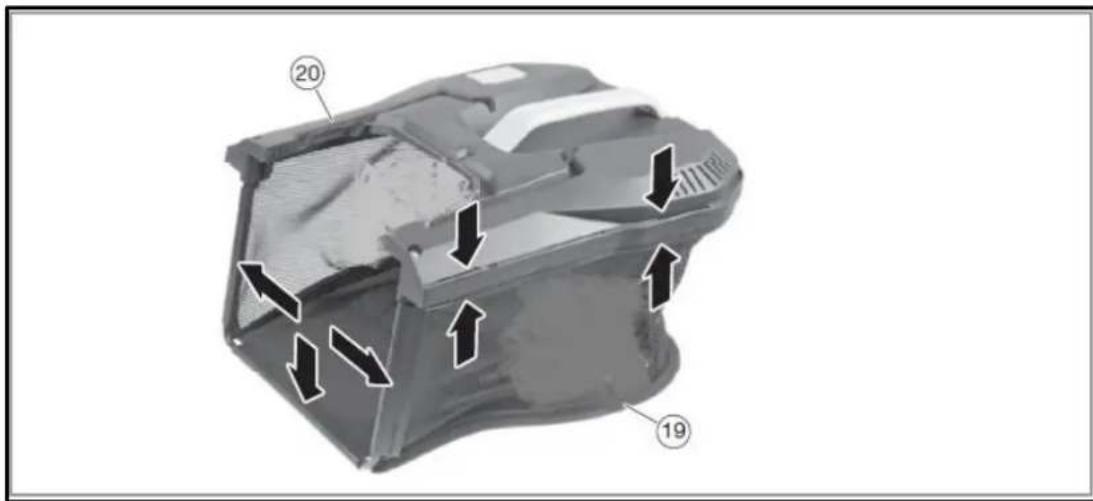

Figure 5: Grass catcher basket

1. Grass catcher basket
2. Rail for attachment to lawnmower

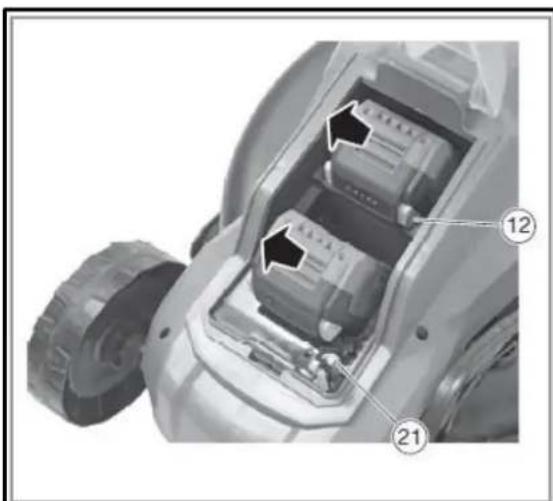

Figure 6: Battery compartment including batteries

1. Ensure that the safety key is correctly seated (circuit breaker)

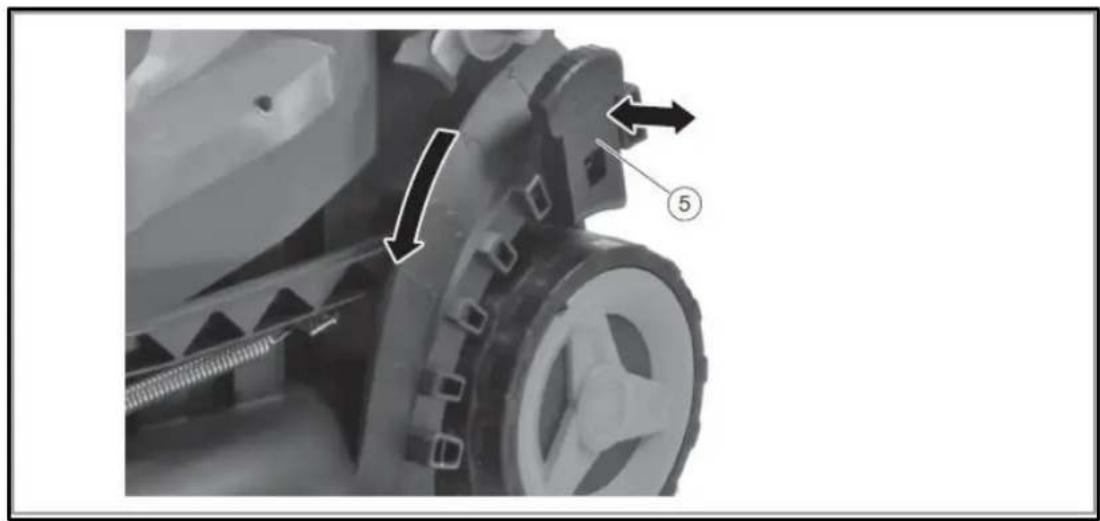

Figure 7: Close up of the height adjustment lever

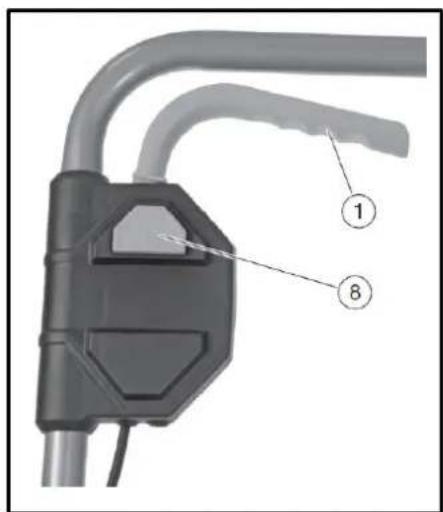

Figure 8: Close-up of the safety button and the on/off switch or handle.

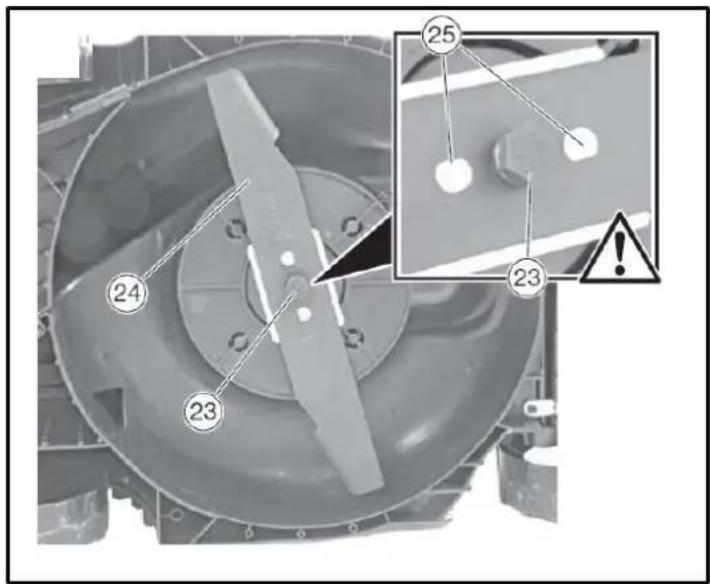

Figure 9: Close up of the bottom of the lawnmower

1. Screw for fixing the blade to the lawnmower
2. Blade
   25 Holes on the blade (ensure correct positioning)

16. Switching the device on/off

Insert the batteries in the rails provided. Then insert the security key (Figure 6, No. 21). Only then can you operate the safety button and the on/off switch (Figure 8, points 8 + 1 ). The device now turns on. When you

release the on/off switch, the device stops working. Attention: Cutting tools can still run on minimally.

17. Working Instructions

Lawn care tips

Here are some tips to help you keep your lawn healthy and ensure even growth: A lawn consists of different types of grass. Frequent mowing promotes the growth of grass,

this leads to strong roots and a firm grass leaf. If you rarely cut the grass, strongly growing grass species and other weeds (such as clover, daisies) will develop.

The average height of a lawn is about 4 - 5cm . Only a third of the total height should be mowed; therefore, cut 7 - 8cm of grass to the average height.

18. Disposal

WARNING!

Make used power tools unusable before disposal:

• mains-operated power tools by removing the connecting plug.
• cordless power tools by removing the battery.

For EU countries only

Do not throw power tools in household waste! According to the European Directive 2012/19/EC on waste electrical and electronic equipment and its implementation in national law, used electrical equipment must be collected separately and sent for environmentally sound recycling. Recovery of raw materials instead of waste disposal. The device, accessories, and packaging should be recycled in an environmentally friendly manner. Plastic parts are marked for recycling according to type.

WARNING!

Do not throw batteries in the household waste, fire, or water. Do not open worn-out batteries. Batteries should be collected, recycled, or disposed of in an environmentally friendly manner. For EU countries only: According to Directive 2006/66/EC, defective or exhausted batteries must be recycled.

NOTE:

Please contact your local authority/city for information on disposal options,

Recycling raw materials instead of waste disposal.

19. Technical Data

Lawn Mower

ldling speed 3,900 min-1

Nominal voltage 2 × 20 ~V

Working width 330 mm

Cutting heights 25-65 mm

Setting options 5

Grass catcher box volume 351

Granted sound power level (Lwa) 88.5 dB (A)

2.39 dB (A)

Measured sound pressure 77.9 dB (A)

(LPA) 3 dB (A)

Vibration 2.1 m/s²

$$ (K = 1, 5 \mathrm {m} / s ^ {2}) $$

Weight (without battery) 14 kg

Charger

Nominal voltage 230V ,50Hz

Nominal power 140W

Charging voltage 20.9 V

Charging current 2.4A

Protection class II

Battery Pack

Battery type Li-lon

Nominal voltage 20 V

Capacity 2Ah

Charging time 60min

20. EU Declaration of Conformity

Producer FUXTEC GmbH

Kappstraße 69, 71083 Herrenberg Germany

Phone.: [phone]

Fax: [phone]

Email: [e-mail] Web: www.fuxtec.de

Name E1 2 x 20V Cordless Lawn Mower

Model D03004500

EC directive MD Directive:2006/42/EC

Applicable standards

EN 60335-1:2012+A11:2014+A13:2017+A1:2019+A2:2019+A14:2019+A15:2021
EN 60335-2-77:2010
EN 62233:2008

We hereby declare that the device mentioned above, due to its design, in the version marketed by us, complies with the necessary safety and health requirements of the listed EC directive.

Any manipulation or change of the device not being explicitly authorized by us in advance renders this document null and void.

Storage of the technical documentation: FUXTEC GmbH · Kappstraße 69 · 71083 Herrenberg · Germany, L. Zirkler, Management

Herrenberg, February 23th, 2023

C. 3t E

L. Zirkler FUXTEC GmbH KAPPSTRASSE

69

71083 HERRENBERG GERMANY

VERSION FRANCAISE

Directive CE / EC Directive: 2006/42/CE

Normes applicable / applicable standards

EN 60335-1:2012+A11:2014+A13:2017+A1:2019+A2:2019+A14:2019+A15:2021
EN 60335-2-77:2010
EN 62233:2008

Tip0 / model D03004500

Norme applicate / applicable standards

EN 60335-1:2012+A11:2014+A13:2017+A1:2019+A2:2019+A14:2019+A15:2021

EN 60335-2-77:2010

EN 62233:2008

Hereby we declare that the above mentioned machine meet the essential safety and health requirements of the above stated EC directives. Any manipulation or change of the machine not being explicitly authorized by us in advance renders this document null and void.

Fabricante / Producer FUXTEC GmbH

Directiva CE / EC directive

Directiva MD:2006/42/EC

Normas aplicadas / applicable standards

EN 60335-1:2012+A11:2014+A13:2017+A1:2019+A2:2019+A14:2019+A15:2021

EN 60335-2-77:2010

EN 62233:2008

Hereby we declare that the above-mentioned machine meet the essential safety and health requirements of the above stated EC directives. Any manipulation or change of the machine not being explicitly authorized by us in advance renders this document null and void.

Conservación de la documentación技术水平: FUXTEC GmbH Kappstrasse 69 71083 Herrenberg

Alemania, L. Zirkler, administrador delegado

Herrenberg, 23/02/2023

1. Introduction and safety 22
2. Safety instructions for the grass trimmer 25
3. Safety instructions for the charger 27
4. Safety Instructions for Li-Ion Batteries 27
5. Presentation 28
6. Installation of the protective shield and rotation disk 31
7. Settings before use 31
8. Operating mode 32
9. Switching the device on/off 32
10. Working Instructions 32
11. Maintenance and care 33
12. Disposal 33
13. Technical Data 34
14. EU Declaration of Conformity 35

VERSION FRANCAISE 36

POLSKAWERSJAJEZYKOWA 126

Recycling raw materials instead of waste disposal.

Hereby we declare that the above mentioned machine meet the essential safety and health requirements of the above stated EC directives. Any manipulation or change of the machine not being explicitly authorized by us in advance renders this document null and void.

15. Introduction and safety

Never allow children or persons unfamiliar with these instructions to use the garden device. Children should be supervised to ensure that they do not play with the appliance.

Intended use

This garden device is designed for trimming and cutting grass edges and smaller grass and grass areas in the private sector. It is not suitable for trimming

bushes, hedges, and shrubs. The device must be used following the descriptions

and safety instructions are given in this user manual. Any other use is not intended. Unauthorized use will invalidate the warranty and override any responsibility on the part of the manufacturer. The user is liable for all damages to third parties and their property. Operate the device only in the technical condition prescribed and delivered by the manufacturer. Unauthorized modifications to the device exclude the manufacturer's liability for any resulting damage.

General safety instructions for power tools

WARNING!

Read all safety notices and instructions. Failure to follow the safety instructions and instructions can cause electric shock, fire, and/or severe injury.

Keep all safety notes and instructions for future reference.

The term power tool used in the safety instructions refers to mains operated power tools (with power cord) and cordless power tools (without power cord).

Workplace Safety

• Keep your work area clean and well lit. Clutter or unlit work areas can lead to accidents.

• Do not work with the power tool in explosive environments containing flammable liquids, gases, or dust. Power tools produce sparks that can ignite the dust or fumes.

• Keep children and other persons away while using the power tool. If distracted, you may lose control of the device.

Electrical Safety

• The plug of the power tool must fit into the socket. The cap must not be changed in any way. Do not use adapter plugs together with grounded power tools. Unchanged plugs and suitable sockets reduce

the risk of electric shock.

• Avoid physical contact with grounded surfaces such as pipes, heaters, stoves, and refrigerators.
  There is an increased risk of electric shock if your body is grounded.
• Keep power tools away from rain or moisture. The penetration of water into a power tool increases the risk of electric shock.
• Do not use the cable to carry or hang up the power tool or to pull the plug from the socket. Keep the cord away from heat, oil, sharp edges, or moving parts. Damaged or tangled cables increase the risk of electric shock.
• If you use a power tool outdoors, only use extension cables that are suitable for outdoor use. The use of an extension cable

ideal for outdoor use reduces the risk of electric shock.

• If you use a power tool outdoors, only use extension cables that are suitable for outdoor use. The use of an extension cable

ideal for outdoor use reduces the risk of electric shock.

Safety of Persons

• Be alert, pay attention to what you are doing, and use common sense when working with a power tool. Do not use a power tool if you are tired or under the influence of drugs, alcohol, or medication. A moment of inattention while utilizing the power tool can cause serious injury.
• Wear personal protective equipment and always protective goggles. Wearing personal protective equipment, such as dust mask, non-slip safety shoes, safety helmet or hearing protection, depending on the type and use of the power tool reduces the risk of injury.
• Avoid unintentional commissioning. Make sure that the power tool is switched off before connecting it to the power supply and/or battery, picking it up or carrying it. If you have your finger on the switch when carrying the power tool
  or if you connect the device to the power supply while it is switched on, this can lead to accidents.
• Remove adjustment tools or wrenches before turning on the power tool. A tool or key that is in a rotating part of the device can cause injury.
• Avoid an abnormal posture. Make sure you have a secure footing and keep your balance at all times. This allows you to better control the power tool in unexpected situations.
• Wear suitable clothing. Do not wear loose clothing or jewelry. Keep hair, clothing, and gloves away from moving parts. Loose clothing, jewelry, or long hair can be caught by moving parts.

Use and treatment of the power tool

• Do not overload the device. Use the appropriate power tool for your work. With the right power tool, you will work better and safer in the specified power range.

• Do not use a power tool with a defective switch. A power tool that can no longer be switched on or off is dangerous and must be repaired.

• Unplug the power cord and/or remove the battery before making any adjustments to the device, changing accessories, or putting the device away. This precaution prevents unintentional starting of the power tool.

• Keep unused power tools out of the reach of children. Do not allow persons to use the device which is not familiar with it or have not read these instructions. Power tools are dangerous if they are used by inexperienced persons.

• Maintain power tools with care. Check that moving parts function correctly and do not jam, that parts are not broken or damaged in such a way that the function of the power tool is impaired. Have damaged parts repaired before using the device. Many accidents are caused by poorly maintained power tools.

• Keep cutting tools sharp and clean. Carefully maintained cutting tools with sharp cutting edges jam less and are easier to guide.

• Use power tools, accessories, insertion tools, etc. according to these instructions. Take into account the working conditions and the job to be performed. The use of power tools for applications other than those intended can lead to dangerous situations.

Use and handling of the cordless tool

• Charge the batteries only with chargers recommended by the manufacturer. A charger that is suitable for a particular type of battery poses a fire hazard when used with other batteries.

• Only use the batteries provided in the power tools. Using other batteries may result in personal injury and fire hazards.

• Keep the unused battery away from paper clips, coins, keys, nails, screws, or other small metal objects that could cause the contacts to bridge. A short circuit between the battery contacts can cause burns or fire.

• The liquid may leak from the battery if misused. Avoid any contact with it. In case of accidental contact, rinse with water. If the liquid gets into your eyes, seek additional medical attention. Leaking battery fluid may cause skin irritation or burns.

16. Safety instructions for the grass trimmer

General Safety Instructions

• For your safety and the safety of others, read this user manual and its safety instructions before using the device. Please keep the user manual and its safety instructions in a safe place for future reference and keep them handy for any use.

• Pass on the operating instructions with the device if there is a change of ownership.

• Persons operating the device must not be under the influence of intoxicating substances (e.g., alcohol, drugs, or medicines).

• Operate the device only in the condition prescribed and delivered by the manufacturer. Unauthorized modifications to the device exclude the manufacturer's liability for any resulting damage.

• Only use the device in daylight or under good artificial lighting.

• Only use the device in dry weather conditions. Keep it away from rain or moisture. The penetration of water into the device increases the risk of electric shock.

• Switch off the device and remove the battery in the following conditions:

• if the device is left unattended;
  before checking, cleaning or other work on the device;
  if the device starts to vibrate excessively.

Before Use

• Familiarize yourself with the grass trimmer and its functions and controls before starting work.
• Check the device for signs of wear or damage before starting up and after a collision.
• Do not use a device whose switch is defective and can no longer be switched on or off.
• Check that all nuts, bolts, and screws are tight to ensure that the device is operated safely.
• Never use a device with damaged or missing parts. Have them repaired or replaced if necessary by a qualified specialist or workshop.

• To reduce the risk of serious injury, never use wire or metal-reinforced thread as cutting thread.

• When working with or on the device, always wear sturdy shoes, long trousers, and the appropriate personal protective equipment (safety goggles, hearing protection, non-slip work gloves, etc.). The wearing of personal protective equipment reduces the risk of injury.

• Do not wear jewelry or loose clothing that could be caught by the grass trimmer. Keep long hair away from the spindle.
• Check the area where the device is being used and remove stones and wires that could be caught by the grass trimmer to avoid endangering people.
• Remove adjustment tools or wrenches before turning on the trimmer. A tool or key that is in a rotating part of the device can cause injuries.

During Operation

• Do not operate the device if persons (especially children) or animals are in the immediate vicinity.
• Interrupt work if you notice that people (especially children) or pets are nearby.
• Always keep hands and feet away from the rotating string, especially when you switch on the grass trimmer.
• To prevent injury, still hold the grass trimmer parallel to the lawn when switching on.
• Always keep a safe distance during the trimming process and do not reach into the rotating thread.
• Avoid an abnormal posture. Make sure you have a secure footing and keep your balance at all times. This allows you to better control the grass trimmer in unexpected situations and on particularly steep slopes.
• Do not work with the grass trimmer in potentially explosive environments containing flammable liquids, gases, or dust. The grass trimmer can produce sparks that can ignite the dust or fumes.
• Exercise particular caution when walking backward. There is a danger of tripping!
• Walk at a walking pace only.
• Never leave the device unattended during work interruptions and store it in a safe place.

After use

• Turn off the device, remove the battery, and then place the device in a safe place.

• Do not store the device within reach of children.

• Make sure that the ventilation slots of the device are free of dirt.
• Spare parts must meet the requirements specified by the manufacturer. Therefore only use original spare parts or spare parts approved by the manufacturer. When replacing the battery, please follow the installation instructions provided and remove the battery first.
• Have repairs carried out exclusively by a qualified specialist or a specialist workshop.

17. Safety instructions for the charger

• Keep the charger away from rain or moisture. The penetration of water into a charger increases the risk of electric shock.
• Keep the charger clean. There is a risk of electric shock from soiling.
• Check the charger, cable, and plug before each use. Do not use the charger if you notice any damage. Do not open the charger yourself and have it repaired only by qualified personnel and only with original spare parts.

Damaged chargers, cables, and connectors increase the risk of electric shock.

• Do not place objects on the charger or place them on soft surfaces. There is a risk of fire.
• Always check that the mains voltage corresponds to the voltage indicated on the charger's nameplate.
• Never use the charger if the cable, plug, or the device itself is damaged by external influences. Take the charger to the nearest specialist workshop.
• Never open the charger under any circumstances. Take it to a specialist workshop in the event of a fault.

18. Safety Instructions for Li-Ion Batteries

• Do not open the battery. There is a danger of a short circuit.
• Protect the battery from heat, including continuous exposure to sunlight, fire, water, and moisture. There is a danger of explosion.
• Vapors may escape if the battery is damaged or misused. Supply fresh air and consult a doctor if you have any complaints. The vapors may irritate the respiratory tract.

• The liquid may leak from the battery if misused. Avoid any contact with it. In case of accidental contact, rinse with water. If the liquid gets into your eyes, seek additional medical attention. Leaking battery fluid may cause skin irritation or burns.

• Only use original rechargeable batteries with the voltage specified on the rating plate of your power tool. When using other batteries, e.g., imitation, reconditioned batteries, or batteries from different manufacturers, there is a risk of injury and material damage due to exploding batteries.

• The battery voltage must match the battery charging voltage of the charger. Otherwise, there is a risk of fire and explosion.
• Charge the batteries only with chargers recommended by the manufacturer. A charger that is suitable for a particular type of battery poses a fire hazard when used with other batteries.
• The battery can be damaged by pointed objects such as nails or screwdrivers or by an external force. An internal short circuit may occur, and the battery may burn, smoke, explode or overheat.

19. Presentation

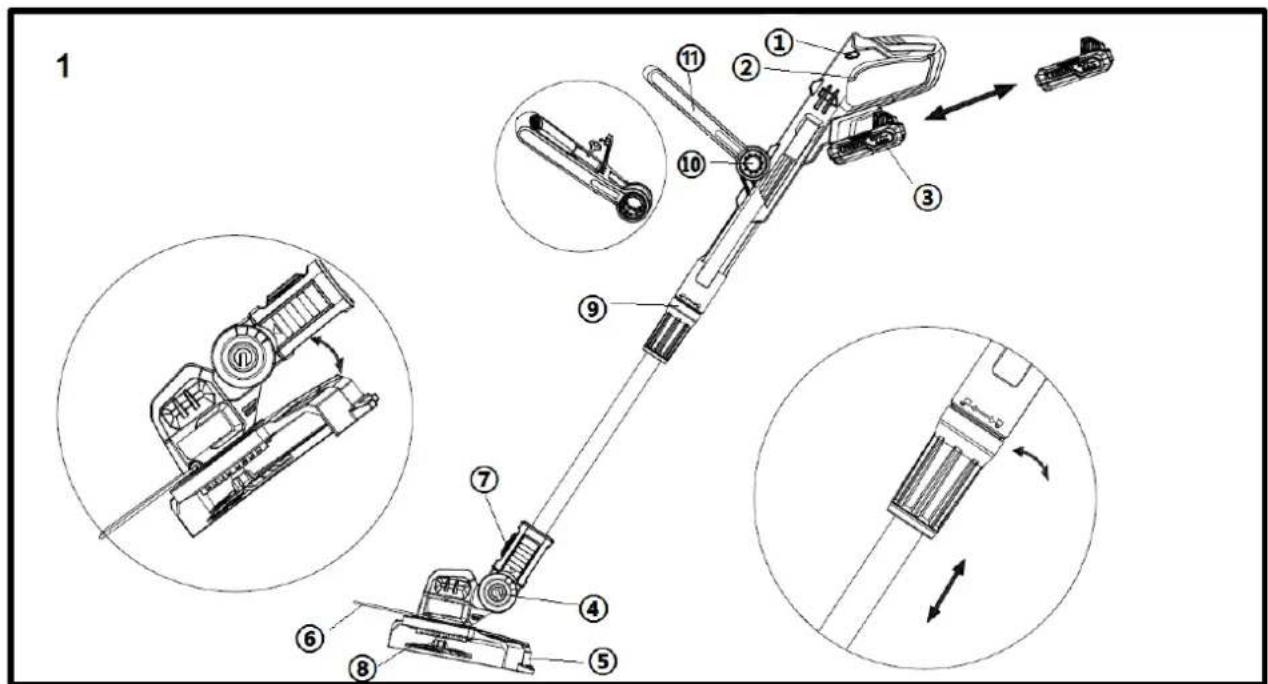

Figure 1: Grass trimmer

1. Safety lever
2. On/Off switch
3. Battery (only included in the set)
4. Joint for adjusting the cutting angle
5. Safety Shield

6. Plant hoop guard

7. Button for directional adjustment of the cutting head (normal trimming or lawn edge trimming)

8. Rotary disc with blade attachment
9. Telescopic extension
10. Adjusting knob for the front handle
11. Front handle

Figure 2: Battery and charger (only included in the set)

1. Indicator light
2. Display for battery level indicator
3. Push button for battery level indicator
4. Snap-in button
5. 2.4Ah Charger
6. Plug

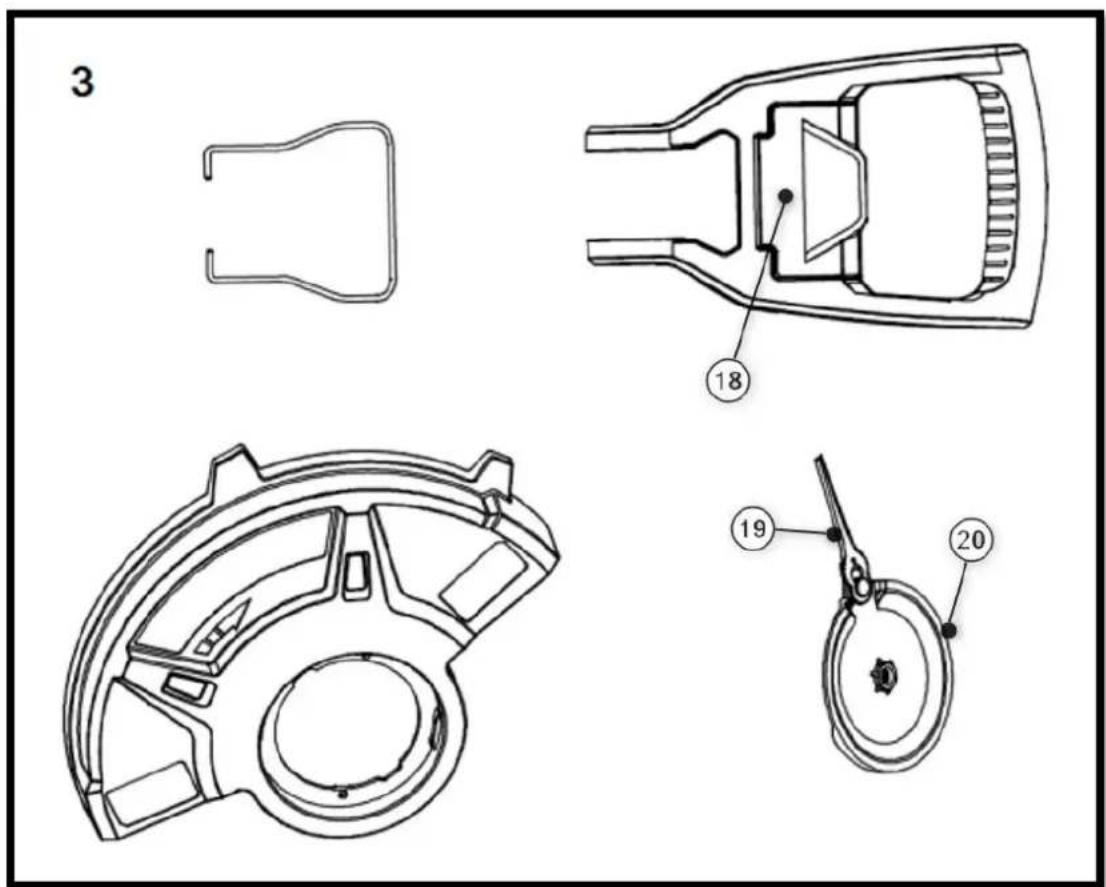

Figure 3:

1. Compartment for spare blades
2. Cutting blade
3. Rotation disc

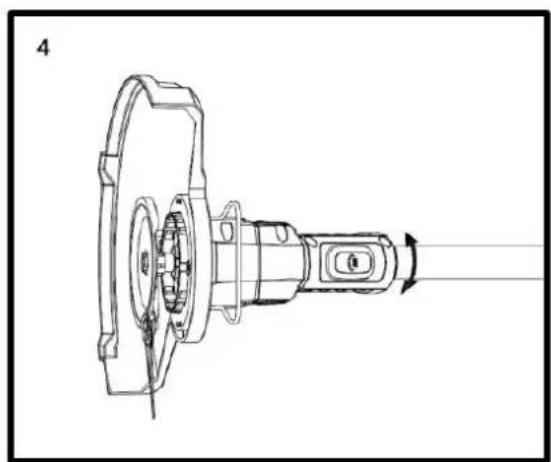

Figure 4:

Press the button (7) to adjust the angle according to the intended use (normal trimming or lawn edge trimming).

20. Installation of the protective shield and rotation disk

To attach the protective shield to the trimmer, make sure that the holes for the screws are correctly aligned.

To do this, place the opening of the label over the head of the battery trimmer and turn it so that the plastic rails snap into each other. As already mentioned, pay attention to the correct position of the drill holes. Now fasten the protective shield with the 2 screws supplied.

The rotation disk can then be attached to the center of the sensor head with the supplied screw.

21. Settings before use

Adjust shaft length

Adjust the grass trimmer to your height. To do this, loosen the threaded sleeve on the shaft coupling (Figure 1, item 9). Pull out the lower shaft until the ideal spar length is reached. Tighten the threaded sleeve

Adjusting the handlebars

Adjust the handlebar to your height. To do this, press the button on both sides of the handlebar and keep it pressed (Figure 1, item 10). Place the handlebar in the desired position. Release the button when the desired position is reached.

Adjust head tilt

With the grass trimmer, 3 angles of head tilt can be adjusted. This allows you to easily reach problematic and hard to reach places in the garden. The cutting head should always be parallel to the ground. Press the locking knob (fig. 1, point 4) to set the desired working angle.

Plant hoop guard

The plant protection bar protects shrubs, trees, and bedding plants. If the plant protection bar is not needed, it can be folded up.

22. Operating mode

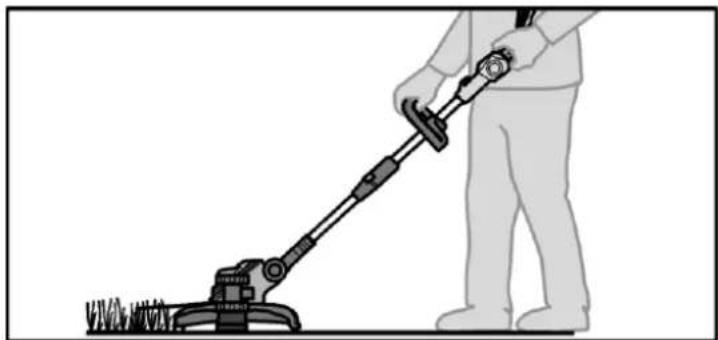

Free cutting

The cutting head is guided parallel to the ground. Guide the grass trimmer in a semicircle in front of the body when cutting free.

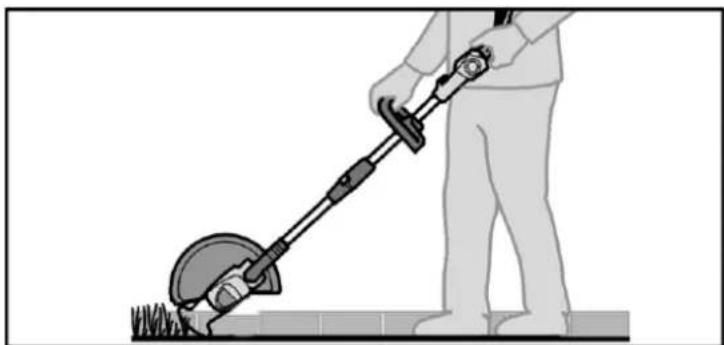

Edge cutting

The edge trimming function enables precise and comfortable trimming along the lawn edge.

23. Switching the device on/off

Insert the battery into the rail provided. Then push in the safety lever (Figure 1, item 1) at the side, only then you can operate the on/off switch (Figure 1, item 2). The device now starts to work. If you release the on/off switch, the device stops working. Attention: after releasing the on/off switch, the disc continues to rotate for a few seconds until it has come to a complete stop. For an immediate stop, press the disc onto the lawn.

24. Working Instructions

• Hold the device with both hands by the handles provided.

• Hold the device parallel to the floor and make stroking movements from one side to the other.

• Move forward slowly.

• Cut grass over 20cm from top to bottom in small steps to avoid premature blade wear and increased motor resistance.

• Only cut when grass and weeds are dry.

• The blade can breakthrough:

Entanglement with foreign bodies,

Normal fatigue

Attempts to cut the thickest weeds
Knocking against walls, garden fences, etc.

25. Maintenance and care

Attention: before any work on the power tool, remove the battery from the device

Do not use water or liquid detergents.

• Remove dirt and dust from the housing with a brush or dry cloth.
• Remove grass clippings from the bottom of the grass trimmer.

• Keep the contacts of the battery and device clean and dust-free.

• To change the blades, push the blade towards the cutting insert. If the blade is anchored in the larger opening, you can remove the blade and insert a new blade in reverse order. Please make sure that the blade is firmly fixed in the anchorage before using the device again.

26. Disposal

WARNING!

Make used power tools unusable before disposal:

• mains-operated power tools by removing the connecting plug,
• cordless power tools by removing the battery.

For EU countries only

Do not throw power tools in household waste! According to the European Directive 2012/19/EC on waste electrical and electronic equipment and its implementation in national law, used electrical

equipment must be collected separately and sent for environmentally sound recycling.

Recovery of raw materials instead of waste disposal. The device, accessories, and packaging

should be recycled in an environmentally friendly manner. Plastic parts are marked for recycling according to type.

WARNING!

Do not throw batteries in the household waste, fire, or water. Do not open worn-out batteries. Batteries should be collected, recycled, or disposed of in an environmentally friendly manner.

For EU countries only: According to Directive 2006/66/EC, defective or exhausted batteries must be recycled.

i NOTE:

Please contact your local authority/city for information on disposal options,

Recycling raw materials instead of waste disposal.

27. Technical Data

Cordless Grass Trimmer

RPM	7,000 min-1
Working area	250 mm
Vibration	2.1 m/s2(K = 1,5 m/s)
Guaranteed sound power level	96 (LwA) dB
Measured sound power level	92 (LpA) dB
Weight (without battery)	2 kg
Max. running time with a full battery	45 min2Ah battery

28. EU Declaration of Conformity

Producer FUXTEC GmbH

Kappstraße 69, 71083 Herrenberg Germany

Phone.: [phone]

Fax: [phone]

Email: [e-mail] Web: www.fuxtec.de

Name E1 20V Cordless Grass Trimmer

Model D04003000

EC directive MD Directive: 2006 /42/EC

Applicable standards

EN 60355-1:2012+A11:2014+A13:2017

EN 50636-2-91:2014

We hereby declare that the device mentioned above, due to its design, in the version marketed by us, complies with the necessary safety and health requirements of the listed EC directive.

Germany, L. Zirkler, Management

Herrenberg, 24th of May 2024

Fabricant / Producer

FUXTEC GmbH

Kappstraße 69, 71083 Herrenberg Allemagne / Germany

Telephone: [phone]

Fax: [phone]

E-mail:[e-mail] Web:www.fuxtec.de

Désignation / name

Directive CE / EC Directive

Directive MD : 2006 / 42 / CE

Normes appliquées / applicable standards

EN 60355-1:2012+A11:2014+A13:2017

EN 50636-2-91:2014

Hereby we declare that the above mentioned machine meet the essential safety and health requirements of the above stated EC directives. Any manipulation or change of the machine not being explicitly authorized by us in advance renders this document null and void.

Conservation de la documentation technique : FUXTEC GmbH ● Kappstraße 69 • 71083 Herrenberg ●

Tip0 / model D04003000

Norme applicate / applicable standards

EN 60355-1:2012+A11:2014+A13:2017

EN 50636-2-91:2014

Hereby we declare that the above mentioned machine meet the essential safety and health requirements of the above stated EC directives. Any manipulation or change of the machine not being explicitly authorized by us in advance renders this document null and void.

Fabricante / Producer FUXTEC GmbH

Directiva CE / EC directive Directiva MD:2006/42/CE

Normas aplicadas / applicable standards

EN 60355-1:2012+A11:2014+A13:2017

EN 50636-2-91:2014

Hereby we declare that the above mentioned machine meet the essential safety and health requirements of the above stated EC directives. Any manipulation or change of the machine not being explicitly authorized by us in advance renders this document null and void.

Conservación de la documentación técnica: FUXTEC GmbH · Kappstraße 69 · 71083 Herrenberg · Germany, L. Zirkler, Director General

Herrenberg, 24/05/2024

E-post: [e-mail] Web: www.fuxtec.de

Beteckning/namn

POLSKAWERSJAJEZYKOWA
