Product type	Vacuum cleaner
Brand	Black & Decker
Model	BXKE2202E
Net weight	4.5 kg
Supply voltage	220-240 V ~ 50/60 Hz
Nominal power	800 W
Suction power	160 W
Dust bag volume	3.5 L
Hose length	1.5 m
Action radius	7.5 m
Telescopic metal tube	Yes
Rubber wheels	Yes
Automatic cable rewinding	Yes
Suction power adjustment	Yes
Full bag indicator	Yes
Thermal protection	Yes
Motor filter	Yes
HEPA 11 filter	Yes
Included accessories	Floor brush (carpet/hard floor), combination nozzle, turbo brush, 12 dust bags
Noise level	< 78 dB
Maintenance	Clean filters regularly and replace the bag
Safety	Do not immerse in water, unplug before maintenance
Spare parts	Bags KOMA ECG VP 3163 S, Swirl Y12 MicroPor Plus, BASE BA 4090

Frequently Asked Questions - BXKE2202E BLACK & DECKER

How to assemble the vacuum cleaner?

Insert the end of the flexible hose into the front opening and lock. Connect the other end to the tube. Attach the appropriate accessory to the tube. Use the combination nozzle for narrow surfaces.

How to turn on the vacuum cleaner?

Plug the power cord into a suitable outlet, then press the on/off button. Adjust the desired power with the regulator.

How to rewind the power cord?

Unplug the plug from the outlet, then press the rewind button. The cord rewinds automatically. Never exceed the red mark on the cord.

When should the dust bag be replaced?

When the full bag indicator turns red, it is time to empty or replace the bag. Open the front cover, remove the full bag and install a new one.

How to clean the filters?

Clean the motor filter twice a year: wash it with warm water and dry thoroughly. The exhaust filter can be dusted regularly. Replace filters if damaged.

What to do if suction power drops?

Check that the bag is not full, that the hose or tube is not clogged, and that the filters are clean. Replace the bag or clean the filters if necessary.

What to do if the motor does not start?

Check the power cord and the electrical outlet. If the appliance still does not work, contact an authorized service.

Can I use the vacuum cleaner to vacuum liquids?

No, never vacuum water or other liquids. This could damage the appliance and cause electrocution.

How to transport the vacuum cleaner?

Always unplug the appliance before moving it. Use the transport handle provided for this purpose. Never pull on the power cord.

Which replacement bags are compatible?

You can use KOMA ECG VP 3163 S bags, Swirl Y12 MicroPor Plus or BASE BA 4090. These bags are suitable for your vacuum cleaner.

USER MANUAL BXKE2202E BLACK & DECKER

Read carefully and save for future use!

Warning: The safety measures and instructions, contained in this manual, do not include all conditions and situations possible. The user must understand that common sense, caution and care are factors that cannot be integrated into any product. Therefore, these factors shall be ensured by the user/s using and operating this appliance. We are not liable for damage caused during transportation, improper use, voltage fluctuation or any change or modification of any part of the appliance.

To protect against a risk of fire or electric shock, basic precautions shall be taken while using electrical appliances, including the following:

1. Read all instructions before using the appliance.
2. Make sure the voltage in your outlet corresponds to the voltage provided on the appliance label and that the socket is properly grounded. The outlet must be installed according to valid safety instructions.
3. Do not use the vacuum cleaner if the power cord is damaged. All repairs including cord replacements shall be performed by a professional service centre! Do not remove protective covers of the appliance, risk of electric shock!
4. Protect the vacuum cleaner from direct contact with water and other liquids, do not place on it containers with liquids to prevent electric shock.
5. Do not use the vacuum cleaner in upright position. Never use the vacuum cleaner without inserted dust bag, motor filter and exhaust filter.
6. Do not leave the plugged in vacuum cleaner unattended. Disconnect the cord from the electrical outlet prior to performing maintenance. When unplugging, grasp the plug, never pull the power cord.
7. Do not use the vacuum cleaner outdoors or in a damp environment. Risk of electric shock.
8. Do not allow children to play with the vacuum cleaner. A vacuum cleaner is not a toy. Be more attentive if you are using the vacuum cleaner near children.
9. Use only attachments and accessories approved by the manufacturer.
10. If the vacuum cleaner does not work properly, if it fell (e.g. into water), if it is damaged or if it was forgotten outdoors, have it inspected professionally at an authorized service center.
11. Do not hold the vacuum cleaner by the power cord when moving it. Make sure that the power cord is not broken or bent over sharp objects and edges. When working with the vacuum cleaner, do not drive over the power cord. Keep the power cord away from heat sources.
12. Do not touch the power cord or the vacuum cleaner with wet hands.
13. Do not insert any objects into the vacuum cleaner openings. Do not use the vacuum cleaner if the openings are blocked in any way. Make sure that the vacuum cleaner is clean, without dirt and any dirt residue, which can reduce the suction power of the vacuum cleaner.
14. Keep hair, loose clothing, hands and other parts of the body away from openings or moving parts of the vacuum cleaner.

15. Never vacuum the following objects, it could result in damage to the appliance or cause an injury:

16. sharp objects like glass, screws, coins, nails, etc.

17. hot or smouldering objects like embers, cigarettes or flammable and volatile liquids

18. wet surfaces, water and other liquids.

19. Use extra care when cleaning stairs.

20. Use the vacuum cleaner only in accordance with the instructions in this manual. This vacuum cleaner is designed for home use only. The manufacturer is not liable for damages caused by the improper use of this appliance.
21. This appliance can be used by children ages 8 and older and by the physically and mentally impaired or by individuals with insufficient experience and knowledge, if supervised or trained to use the appliance in a safe manner and understand potential dangers. Children shall not play with the appliance. Cleaning and maintenance operations performed by the user shall not be carried out by children, if they are not older than 8 years and under supervision. Children under the age of 8 shall keep away from the appliance and its power supply.

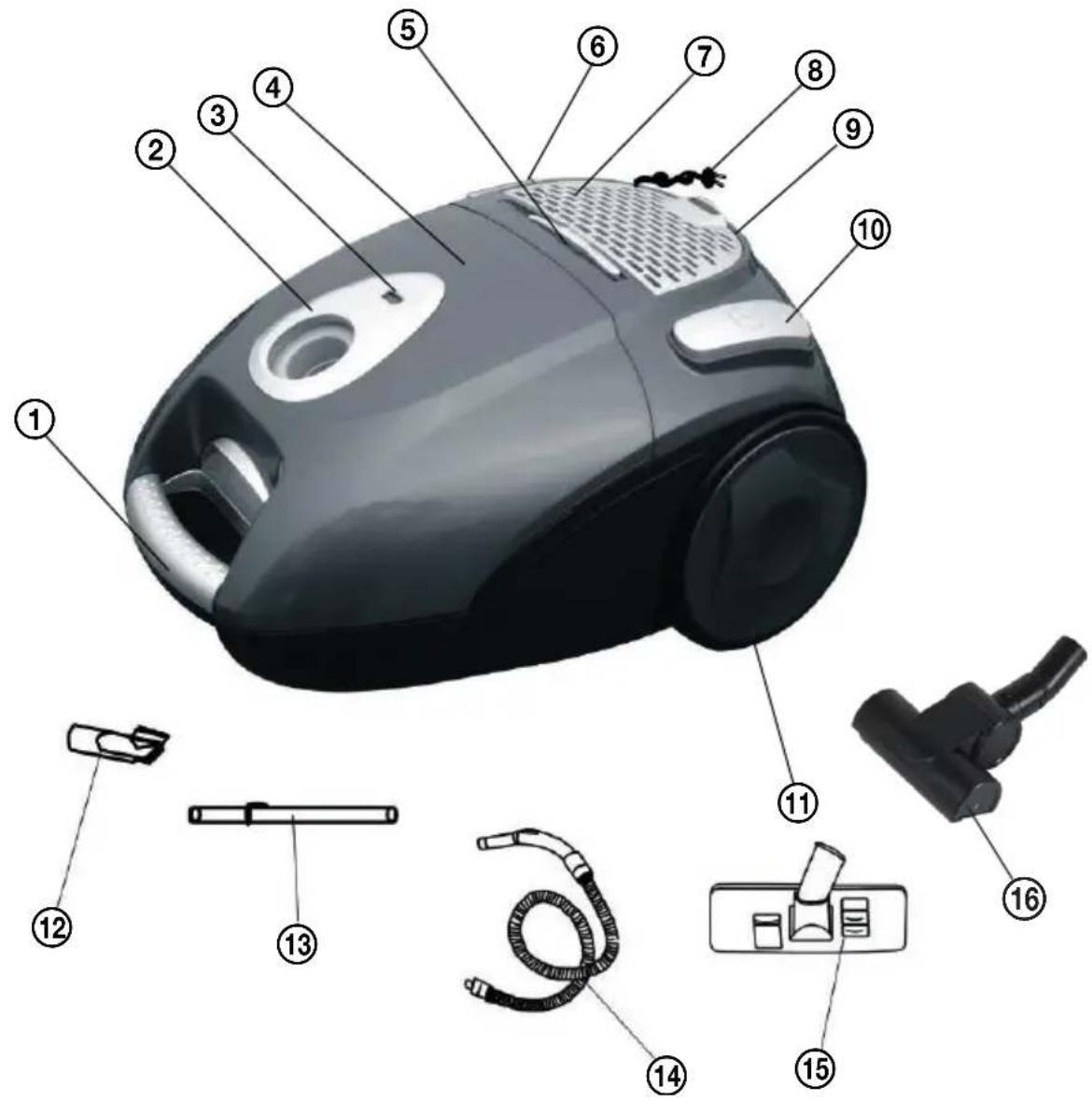

DESCRIPTION OF THE VACUUM CLEANER

List of parts

1. Carrying handle
2. Opening for inserting the hose
3. The full dust bag indicator
4. Front cover
5. Power control
6. Cable rewind button
7. Rear filter cover

8. Power cable

9. Holder to park the nozzle

10. ON/OFF button
    11.Wheels
11. Combined nozzle
12. Tube
13. Hose
14. Brush nozzle
15. Turbo brush

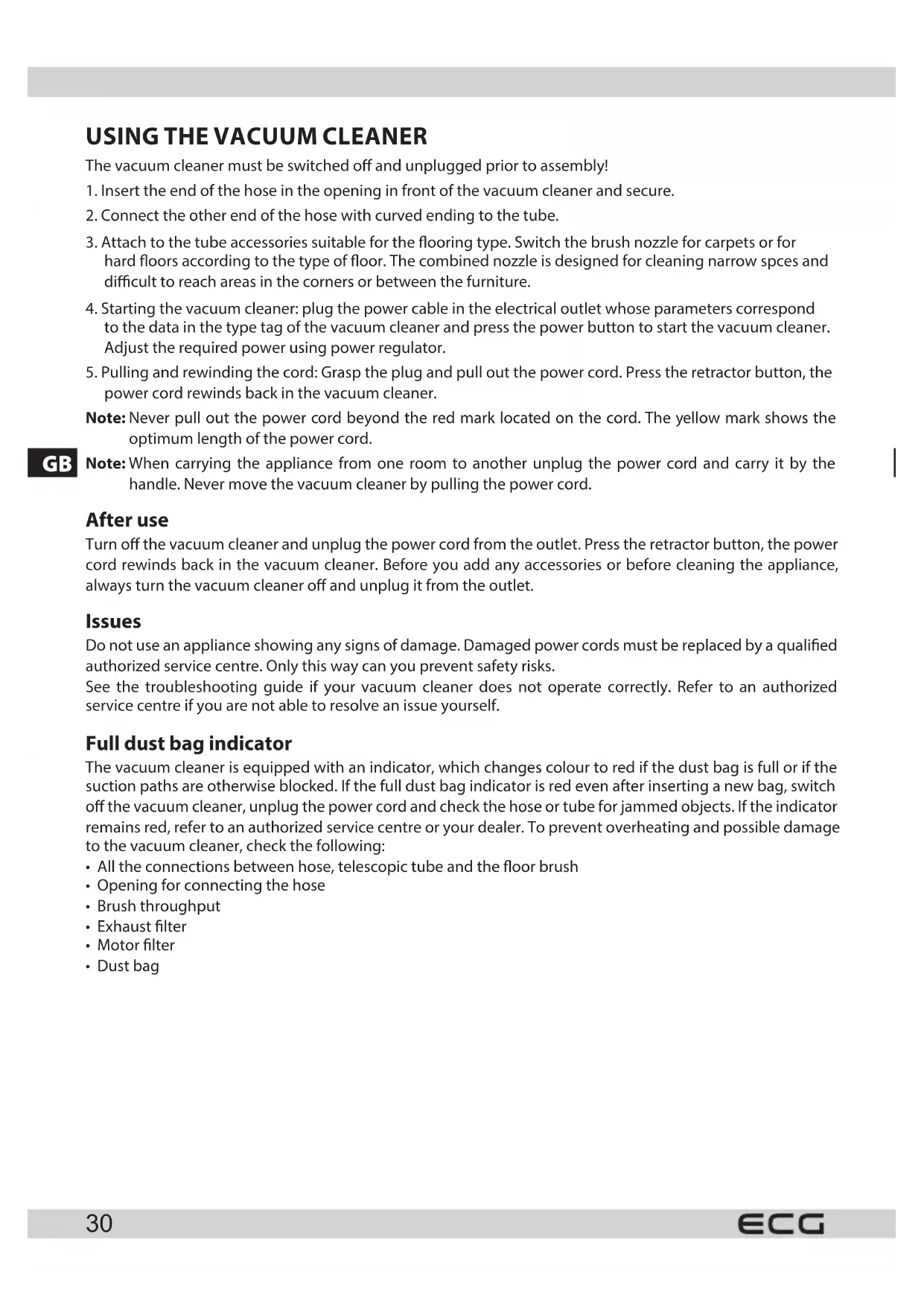

USING THE VACUUM CLEANER

The vacuum cleaner must be switched off and unplugged prior to assembly!

1. Insert the end of the hose in the opening in front of the vacuum cleaner and secure.
2. Connect the other end of the hose with curved ending to the tube.
3. Attach to the tube accessories suitable for the flooring type. Switch the brush nozzle for carpets or for hard floors according to the type of floor. The combined nozzle is designed for cleaning narrow spces and difficult to reach areas in the corners or between the furniture.
4. Starting the vacuum cleaner: plug the power cable in the electrical outlet whose parameters correspond to the data in the type tag of the vacuum cleaner and press the power button to start the vacuum cleaner. Adjust the required power using power regulator.
5. Pulling and rewinding the cord: Grasp the plug and pull out the power cord. Press the retractor button, the power cord rewinds back in the vacuum cleaner.

Note: Never pull out the power cord beyond the red mark located on the cord. The yellow mark shows the optimum length of the power cord.

GB

Note: When carrying the appliance from one room to another unplug the power cord and carry it by the handle. Never move the vacuum cleaner by pulling the power cord.

After use

Turn off the vacuum cleaner and unplug the power cord from the outlet. Press the retractor button, the power cord rewinds back in the vacuum cleaner. Before you add any accessories or before cleaning the appliance, always turn the vacuum cleaner off and unplug it from the outlet.

Issues

Do not use an appliance showing any signs of damage. Damaged power cords must be replaced by a qualified authorized service centre. Only this way can you prevent safety risks.

See the troubleshooting guide if your vacuum cleaner does not operate correctly. Refer to an authorized service centre if you are not able to resolve an issue yourself.

Full dust bag indicator

The vacuum cleaner is equipped with an indicator, which changes colour to red if the dust bag is full or if the suction paths are otherwise blocked. If the full dust bag indicator is red even after inserting a new bag, switch off the vacuum cleaner, unplug the power cord and check the hose or tube for jammed objects. If the indicator remains red, refer to an authorized service centre or your dealer. To prevent overheating and possible damage to the vacuum cleaner, check the following:

• All the connections between hose, telescopic tube and the floor brush
• Opening for connecting the hose
• Brush throughput
• Exhaust filter
• Motor filter
  Dust bag

MAINTENANCE AND CLEANING

Attention:

Always unplug the power cord from the outlet before any maintenance and cleaning.

1. Changing the dust bag: When the colour of the dust bag indicator changes to red, it is time to change or empty the dust bag.

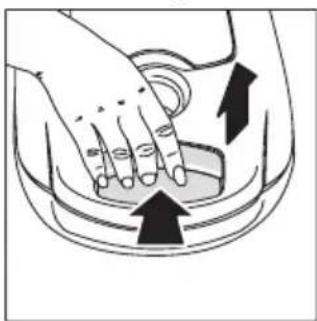

2. Press the lock in front to open the front cover.

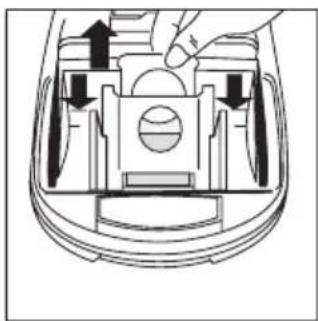

3. Remove the full dust bag from the holder.
4. Insert new dust bag in the holder under the front cover.

GB

1. Clean the motor filter twice a year: Open the front cover, remove the filter, wash it with warm water and dry thoroughly before using it again. If the filter is damaged replace it with a new one.
2. Clean the output filter regularly: Open and remove the cover grill of the output filter. Shake to remove the accumulated dust. If the filter is damaged replace it with a new one.
3. Cleaning of the appliance surface: To clean use a soft cloth slightly moistened with a few drops of mild detergent. Never use a solvent or any abrasive scouring cleaners. Never immerse vacuum cleaner in water or any other liquid and do not clean it under running water.

Attention:

You can find replacement filter bags for VP 3163 S vacuum cleaner under the name KOMA ECG VP 3163 S. You can also use universal bags Swirl® Y12® MicroPor® Plus a BASE BA 4090.

© Swirl, MicroPor Plus a Y 12 are registered trademarks of Melitta Group.

TROUBLESHOOTING

Before referring to a service centre, check the following list of common problems and how to remove them.

Problem Possible cause	Use Solution
The motor will not start.	The vacuum cleaner is not powered.	Check the power cord and plug.Refer to an authorized service centre if the problems persist.
The suction power is reduced.	Full dust bag, clogged hose or tube or dirty filters.	Replace the dust bag, remove foreign objects from the hose or tube, replace filters.

TECHNICAL INFORMATION

Suction power 160 W

Telescopic metal tube

Rubber coated wheels for easy transport

Automatic rewind

Suction power regulation

Thermostat fuse against motor overheating

Full dust bag indicator

Volume of the dust bag - 3.5 l

Hose 1.5 m

Operating radius 7.5m

Filters: motor, HEPA filter 11

Accessories:

Floor brush for carpets and hard floors (plastic bottom part)

Combined crevice tool and dust brush

Turbo brush

12 dust bags

Weight: 4.5kg

Nominal voltage: 220 - 240V 50 - 60Hz

Nominal input power: 800 W

Noise level: < 78 dB

USE AND DISPOSAL OF WASTE

Wrapping paper and corrugated paperboard - deliver to scrapyard. Packing foil, PE bags, plastic elements - throw into plastic recycling containers.

DISPOSAL OF PRODUCTS AT THE END OF LIFETIME

Disposal of electric and electronic equipment (valid in EU member countries and other European countries with an implemented recycling system)

The represented symbol on the product or package means the product shall not be treated as domestic waste. Hand over the product to the specified location for recycling electric and electronic equipment. Prevent negative impacts on human health and the environment by properly recycling your product.

Recycling contributes to preserving natural resources. For more information on the recycling of this product, refer to your local authority, domestic waste processing organization or store, where you purchased the product.

This product complies with EU directive requirements on electromagnetic compatibility and electrical safety.

The instruction manual is available at website www.ecg-electro.eu.

Changes in text and technical parameters reserved.
