JKC930C - Kettle BLACK & DECKER - Free user manual and instructions

Product Type	Electric Kettle
Brand	Black & Decker
Model	JKC930C
Capacity	1.7 L (60 oz) / 7 cups (max), 3.5 cups (min)
Material	Stainless steel body with black plastic handle and base
Power	1500 W (estimated typical)
Voltage	120 V AC, 60 Hz
Safety Features	Auto shut-off, boil-dry protection, grounded plug, stay-cool handle
Cord Length	Short (approx. 2 ft) with cord storage under base
Base Type	360° swivel base with cord storage
Filter	Removable filter behind spout (part # JKC930C-01)
Lid Type	Stay-open hinged lid with release button
Indicator Light	Power indicator light on/off switch
Warranty	2-year limited warranty (US and Canada)
Care Instructions	Hand wash interior and filter; wipe exterior; do not immerse; descale periodically
Replacement Parts	Removable filter (JKC930C-01) and 360° swivel base (JKC930C-02) available
Weight	Approx. 2.2 lbs (1.0 kg)
Dimensions (approx.)	9.5 x 7 x 6 inches (24 x 18 x 15 cm)

Frequently Asked Questions - JKC930C BLACK & DECKER

What is the capacity of the Black & Decker JKC930C kettle?

The kettle has a maximum capacity of 1.7 liters (60 oz) or 7 cups, and a minimum of 3.5 cups (0.8 L) for safe operation.

How do I descale the kettle?

Use a commercial scale/lime remover and follow the manufacturer's instructions. Alternatively, boil a mixture of water and vinegar (2 cups water + 1/4 cup vinegar), let it sit, then rinse thoroughly.

Why won't the kettle turn on?

Check that the kettle is properly placed on the base, the on/off switch is set to I, and the outlet is working. If the kettle has boiled dry, unplug and allow it to cool before refilling.

Can I use the kettle without the filter?

It is recommended to always use the removable filter to prevent scale particles from pouring into your beverage. However, the kettle will still function without it.

How do I clean the kettle?

Unplug and let cool. Wash the interior and removable filter with hot soapy water; rinse well. Wipe the exterior and base with a damp cloth. Do not immerse the kettle or base in water.

The switch won't stay on. What should I do?

Allow the kettle to cool for 5-10 minutes and ensure there is enough water. The switch is designed to not stay on when the kettle is too hot or empty.

What is the boil-dry protection?

The kettle automatically shuts off if it is turned on without water or if the water level drops too low. It will cycle on/off until unplugged, so always unplug if not in use.

Is the kettle cord long enough?

The kettle comes with a short power cord to reduce tripping hazards. Extra cord can be stored under the base. Extension cords may be used if rated for the appliance's power.

Can I boil other liquids like milk or soup?

The kettle is designed for water only. Do not use it for milk, soup, or other liquids as they may cause damage or create a safety hazard.

What does the warranty cover?

The 2-year limited warranty covers defects in material or workmanship. It does not cover commercial use, misuse, or normal wear. See the manual for full details.

USER MANUAL JKC930C BLACK & DECKER

Accessories/Parts (USA)

1-800-738-0245

For online customer service and to register your product, go to www.prodprotect.com/applica

Exterior view of a modern stainless steel kettle with black handle and side panel (no text or symbols visible)

Please Read and Save this Use and Care Book.

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be followed, including the following:

• Read all instructions before using.
  ○ Do not touch hot surfaces. Use handles or knobs.
  To protect against fire, electric shock and injury to persons do not immerse cord, plugs or appliance in water or other liquid.
  ○ Close supervision is necessary when any appliance is used by or near children.
• Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts, and before cleaning the appliance.
  Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner. Return appliance to the nearest authorized service facility for examination, repair or adjustment. Or, call the appropriate toll-free number on the cover of this manual.
  The use of accessory attachments not recommended by the appliance manufacturer may result in fire, electric shock or injury to persons.
  ○ Do not use outdoors.
  Do not let cord hang over edge of table or counter, or touch hot surfaces.
  Do not place on or near a hot gas or electric burner, or in a heated oven.
  To disconnect, turn any control to OFF (0) then remove plug from wall outlet.
  ○ Keep lid on kettle when in use.
  ○ Do not use this appliance for other than intended use.

SAVE THESE INSTRUCTIONS.

This product is for household use only.

GROUNDED PLUG

As a safety feature, this product is equipped with a grounded plug, which will only fit into a three-prong outlet. Do not attempt to defeat this safety feature. Improper connection of the grounding conductor may result in the risk of electric shock. Consult a qualified electrician if you are in doubt as to whether the outlet is properly grounded.

TAMPER-RESISTANT SCREW

Warning: This appliance is equipped with a tamper-resistant screw to prevent removal of the outer cover. To reduce the risk of fire or electric shock, do not attempt to remove the outer cover. There are no user-serviceable parts inside. Repair should be done only by authorized service personnel.

ELECTRICAL CORD

a) A short power-supply cord (or detachable power-supply cord) is to be provided to reduce the risk resulting from becoming entangled in or tripping over a longer cord.
b) Longer detachable power-supply cords or extension cords are available and may be used if care is exercised in their use.
c) If a long detachable power-supply cord or extension cord is used,

1) The marked electrical rating of the detachable power-supply cord or extension cord should be at least as great as the electrical rating of the appliance,
2) If the appliance is of the grounded type, the extension cord should be a grounding-type 3-wire cord, and
3) The longer cord should be arranged so that it will not drape over the countertop or tabletop where it can be pulled on by children or tripped over.

Note: If the power supply cord is damaged, it should be replaced by qualified personnel; in Latin America, by an authorized service center.

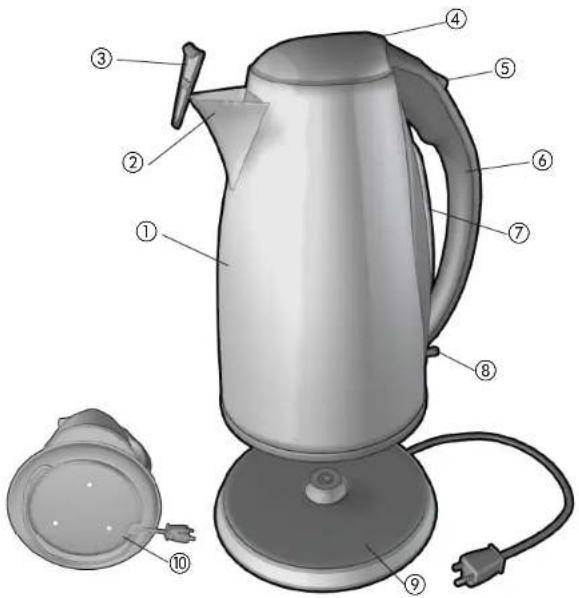

Product may vary slightly from what is illustrated.

1. 1.7 L (60-oz.) kettle

2. Pour spout

† 3. Removable filter (Part # JKC930C-01)

1. Stay-open hinged lid

2. Lid release button

3. Handle

4. Water window with level markings

5. On/Off (I/O) switch

† 9.360° swivel base (Part # JKC930C-02)

1. Cord storage (under base)

Note: † indicates consumer replaceable/removable parts

How to Use

This appliance is for household use only.

GETTING STARTED

• Remove all packing material and any stickers from the product.
• Please go to www.prodprotect.com/applica to register your warranty.
• Before first use, wash the interior of the kettle and removable filter with hot, soapy water and rinse well until water is clear.
• Select a level surface where this unit is to be used, allowing enough space for steam to escape without damage to counters, cabinets and walls.
• Uncoil power cord from to cord storage under the base.
• Fill kettle with 2 12 cups cold tap water and 1 14 cup vinegar and place on base. Close lid.
• Plug cord into standard electrical outlet.
• Bring to a full boil (follow steps 6 – 8 in BOILING WATER) then discard the water.
• Fill kettle with 6 cups of cold tap water. Bring to full boil and discard; repeat. Kettle is now ready for use.

Note: The kettle will only operate when the on/off (I/O) switch is in the on (I) position. The kettle will automatically switch off once the water has boiled. The kettle will also automatically shut off if there is no water in the kettle.

Warning: This product is protected by a boil/dry safety device. If the kettle is accidentally left plugged in without being filled or is allowed to boil to a very low level, it will automatically repeat a cycle of turning off, cooling down and coming back on unless unplugged.

FILLING THE KETTLE

Press lid release button to lift the lid of kettle (B). Fill with desired amount of cold tap water (from 312 - 7 cups (0.8 - 1.7 L). Be sure water does not come above the bottom of the pour spout to prevent boiling water from spilling onto the counter.

Note:

• Do not operate the kettle without water.
• Do not overfill the kettle – keep water level below the pour spout.
• Do not open the cover while water is heating.

BOILING WATER

1. Press lid release button to open lid of kettle.
2. Be sure kettle has at least 3½ cups (0.8 L) of cold tap water in it before use.
3. Close lid on kettle securely. (Lid snaps into place.)

4. Place kettle on base so the heating element on the bottom of the kettle rests securely on the base (C).

5. Position kettle with spout facing away from walls, cabinets and your body.

6. Plug the kettle into a standard electrical outlet.

1. Press the on/off (I/O) switch to the on (I) position (there will be a click), the power indicator light turns on and the water begins to heat (D).

Warning: This product is protected by a boil/dry safety device. If the kettle is accidentally left plugged in without being filled or is allowed to boil to a very low level, it will automatically repeat a cycle of turning off, cooling down and coming back on unless unplugged.

1. When water boils, the kettle will automatically shut off and the power indicator light will go out.

Important: Do not try to hold the switch in the on position once the water has boiled.

1. To re-boil water, it is necessary to wait several minutes for the water to cool.

2. To reuse the kettle, allow it to cool down. Pour off any unused water and refill. Before pressing the on/off (I/O) switch, check that there is enough water in the kettle. Simply press the on/off (I/O) switch to the on (I) position.

Warning: Kettle filled with boiling water is hot. Use only the handle to pick it up. When taking kettle to the table, carry kettle with caution to avoid spilling. Set it on a trivet or hot pad to protect the table surface or tablecloth.

1. Hold kettle level when pouring, especially when filled to maximum (MAX). Do not pour too fast.
   Note: Make sure lid is closed before pouring hot water from the kettle.
2. To remove kettle from base simply lift up.
3. Empty kettle and unplug when not in use.

HELPFUL TIPS

• Always use fresh, cold water for each boiling process.
- Do not store water in the kettle. This helps to prevent build up of mineral deposits.
- For your safety, make sure the lid of the kettle is closed securely before pressing the on/off (I/O) switch.
• Always unplug the kettle before filling.
- Never use less than the minimum amount of water (3½ cups / 0.8 L). Note the MIN line on the kettle.
- Never use more than the maximum amount of water (7 cups / 1.7 L). Note the MAX line on the kettle.
- The power supply is connected only to the base. This allows for easy movement of the kettle to the table. (Remember to use a trivet or hot pad under the hot kettle.)
- Do not try to hold the on/off switch in the on (I) position when water has boiled.
- Use your kettle to boil water for beverages, soups, cereal, noodles, rice and pasta.

REMOVABLE FILTER

Always boil water with the filter in place just behind the spout. To insert filter, place behind the spout, align and push down until securely in place (E).

Note: Lime scale forms over time when water is heated. Though scale is natural and harmless, it may produce a powdery substance or mineral-like chunks that can get into your hot beverages and affect the taste. While the concealed heating element in this kettle is designed to help reduce scale buildup, the filter helps prevent particles from pouring into your beverage.

Care and Cleaning

This appliance contains no user-serviceable parts. Refer service to qualified service personnel.

CLEANING

1. Before cleaning, be sure the base is unplugged and the kettle has cooled completely. Empty any remaining water from the kettle.
2. Pull out the removable filter for cleaning. Wash the filter in hot, soapy water and rinse or place it in the utensil holder of the dishwasher.
3. Wash the inside of the kettle with soapy water and rinse.

Important: Never immerse the kettle in water or other liquids or place in a dishwasher.

1. Wipe exterior of the kettle and base with a damp cloth or sponge and dry.

Note: The heating element at the bottom of the interior may discolor. This will not affect performance. Do not use abrasive soaps, cleansers, or scouring pads.

Note: Over time, the kettle may heat up but will not boil, depending on your use and the hardness of the water in your area. When this happens, it is time for descaling. Use a scale/lime remover and follow its manufacturer's directions.

CORD STORAGE

Conveniently store the cord beneath the base by wrapping it around the grooves on the base.

TROUBLESHOOTING

PROBLEM POSSIBLE CAUSE SOLUTION
Kettle is not heating. • Kettle is not plugged in.• Kettle is not properly placed on power base.		Check to be sure appliance is plugged into a working outlet, the on/off (I/O) switch is in the on (I) position and the kettle is securely placed on the power base.
Kettle has boiled dry. Kettle was accidentally turned on without water.		Kettle was accidentally turned on without water. Unplug kettle and allow to fully cool down before refilling.
Kettle heats but does not boil or works intermittently.	Appliance may need descaling.	Use a scale/lime remover and follow its manufacturer's directions.
The on/off (I/O) switch will not stay on.	The kettle is too hot. Allow the kettle to cool down at least 5 to 10 minutes. Make sure there is enough water in the kettle.

NEED HELP?

For service, repair or any questions regarding your appliance, call the appropriate 800 number on cover of this book. Please DO NOT return the product to the place of purchase. Also, please DO NOT mail product back to manufacturer, nor bring it to a service center. You may also want to consult the website listed on the cover of this manual.

Two-Year Limited Warranty

(Applies only in the United States and Canada)

What does it cover?

- Any defect in material or workmanship provided; however, Applica's liability will not exceed the purchase price of product.

For how long?

• Two years after date of purchase.

What will we do to help you?

- Provide you with a reasonably similar replacement product that is either new or factory refurbished.

How do you get service?

• Save your receipt as proof of date of sale.
- Visit the online service website at www.prodprotect.com/applica, or call toll-free 1-800-231-9786, for general warranty service.
• If you need parts or accessories, please call 1-800-738-0245.

What does your warranty not cover?

• Damage from commercial use
• Damage from misuse, abuse or neglect
• Products that have been modified in any way
• Products used or serviced outside the country of purchase
• Glass parts and other accessory items that are packed with the unit
• Shipping and handling costs associated with the replacement of the unit
- Consequential or incidental damages (Please note, however, that some states do not allow the exclusion or limitation of consequential or incidental damages, so this limitation may not apply to you.)

How does state law relate to this warranty?

- This warranty gives you specific legal rights. You may also have other rights that vary from state to state or province to province.

BLACK&DECKER. is a trademark of The Black & Decker Corporation, Towson, Maryland, USA

Made in People's Republic of China

Printed in People's Republic of China
