USER MANUAL TSA3542 Teesa

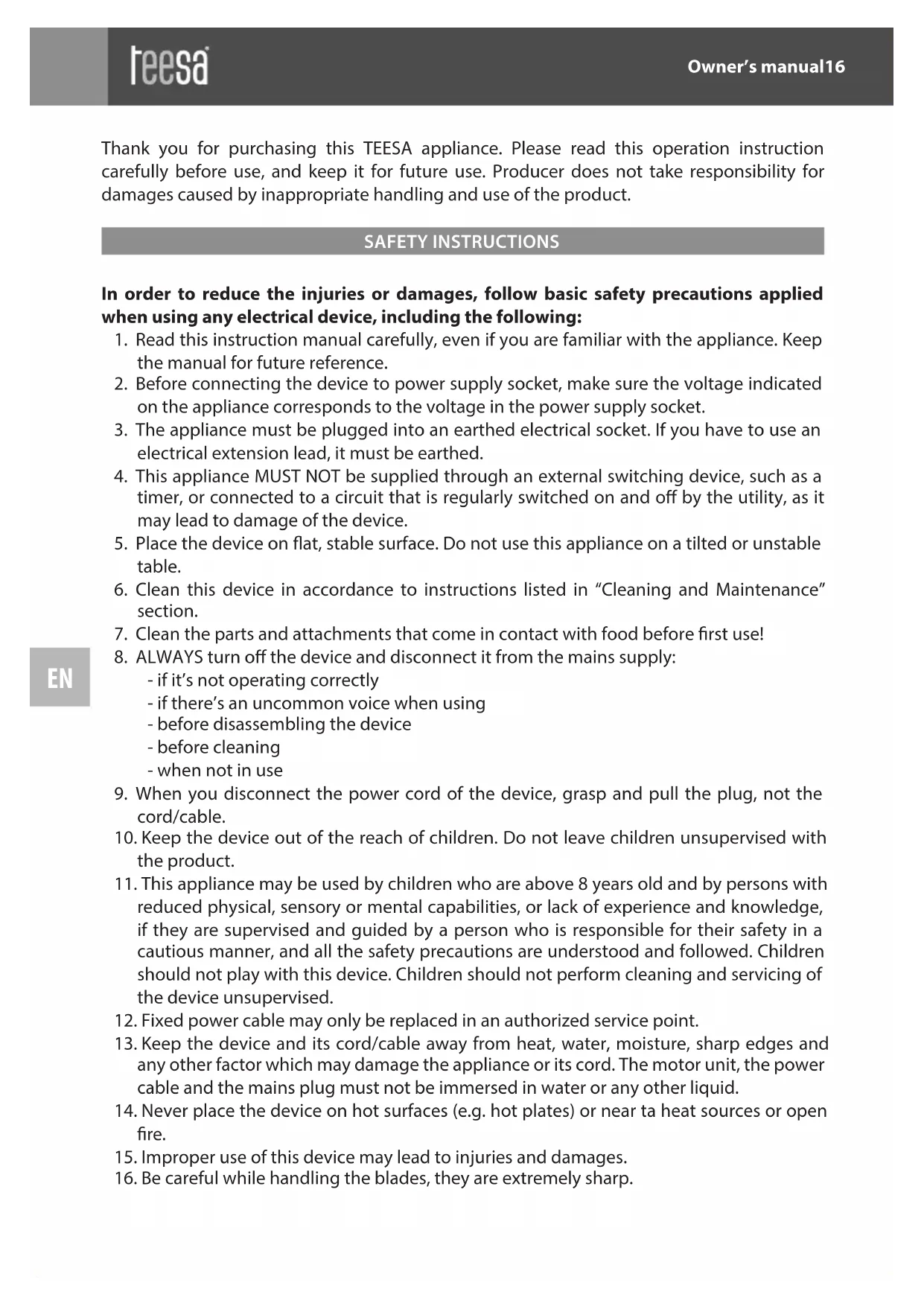

Thank you for purchasing this TEESA appliance. Please read this operation instruction carefully before use, and keep it for future use. Producer does not take responsibility for damages caused by inappropriate handling and use of the product. SAFETY INSTRUCTIONS In order to reduce the injuries or damages, follow basic safety precautions applied when using any electrical device, including the following:

1. Read this instruction manual carefully, even if you are familiar with the appliance. Keep

the manual for future reference.

2. Before connecting the device to power supply socket, make sure the voltage indicated

on the appliance corresponds to the voltage in the power supply socket.

3. The appliance must be plugged into an earthed electrical socket. If you have to use an

electrical extension lead, it must be earthed.

4. This appliance MUST NOT be supplied through an external switching device, such as a

timer, or connected to a circuit that is regularly switched on and o by the utility, as it may lead to damage of the device.

5. Place the device on at, stable surface. Do not use this appliance on a tilted or unstable

6. Clean this device in accordance to instructions listed in “Cleaning and Maintenance”

7. Clean the parts and attachments that come in contact with food before rst use!

8. ALWAYS turn o the device and disconnect it from the mains supply:

- if it’s not operating correctly - if there’s an uncommon voice when using - before disassembling the device - before cleaning - when not in use

9. When you disconnect the power cord of the device, grasp and pull the plug, not the

10. Keep the device out of the reach of children. Do not leave children unsupervised with

11. This appliance may be used by children who are above 8 years old and by persons with

reduced physical, sensory or mental capabilities, or lack of experience and knowledge, if they are supervised and guided by a person who is responsible for their safety in a cautious manner, and all the safety precautions are understood and followed. Children should not play with this device. Children should not perform cleaning and servicing of the device unsupervised.

12. Fixed power cable may only be replaced in an authorized service point.

13. Keep the device and its cord/cable away from heat, water, moisture, sharp edges and

any other factor which may damage the appliance or its cord. The motor unit, the power cable and the mains plug must not be immersed in water or any other liquid.

14. Never place the device on hot surfaces (e.g. hot plates) or near ta heat sources or open

15. Improper use of this device may lead to injuries and damages.

16. Be careful while handling the blades, they are extremely sharp.Owner’s manual 17

17. Do not use the product for purposes dierent from displayed in this operating manual.

This device is exclusively designed for food preparation. Do not place anything but food in the appliance.

18. Do not leave the appliance unattended when it’s working. ALWAYS disconnect the

product from the mains supply when it is not in use.

19. Do not move the appliance while it is operating.

20. Don’t place very hot ingredients inside the appliance. Hot ingredients should be cooled

down prior to processing in the appliance (max. ingredient temperature is 60°C).

WARNING: When processing hot ingredients, they may be ejected via the opening in

the lid if the measuring cup is not installed (It is suggested not to process too much hot ingredients at once, as it increases risk of ejecting from the blender and scalding). Make sure to place the measuring cup into the lid when processing hot ingredients. Sudden bursts of steam could also cause the lid to dislodge.

21. Appliance for indoor and household use only. The device is constructed to process

normal household quantities. Not for commercial use.

22. Always securely clamp in place all parts before the motor is turned on. Do not disassemble

while the device is operating. Note: the device can only be turned when the device is properly assembled.

23. Never touch any moving parts when the device is connected to power supply. Make sure

the motor stops completely before disassembling. Do not touch the rotating parts with spoons or any other kitchen utensils. Keep long hair and loose clothing away from the rotating parts.

24. Always wait until the moving parts stop running, and then unplug the appliance before

opening, disassembling or removing the parts. If food sticks to the wall of the blender jar, switch o the appliance and unplug it. Then use a spatula to remove the food from the wall. Do not use metal utensils as they may damage the blades.

25. Do not store food in the blender jar. Do not use it in the microwave for reheating.

26. Some parts are dishwasher safe (jar, lid, measuring cup).

27. Do not use for more than 3 minutes at a time, allow motor to cool before reusing!

28. DO NOT use this device if the cord or the plug is damaged, the appliance is broken or has

previously been dropped.

29. Do not attempt to repair this appliance yourself. Only authorized and qualied personnel

may repair this device. Never disassemble the motor body of the device.

30. Do not use unauthorized accessories.

31. Producer of this product is not responsible for damages caused by inappropriate handle

and use of the device.

32. IMPORTANT: In order to ensure children‘s safety, please keep all packaging (plastic bags,

boxes, etc.) out of their reach. Caution! Do not allow small children to play with the foil as there is a danger of suocation!

Wash the parts that will have contact with food before rst use. Rinse thoroughly with warm water and allow to air dry. Never submerge the device motor unit in water or any other liquid.Owner’s manual18

ASSEMBLY IMPORTANT: Plug the device into power mains only AFTER the device has been completely and correctly assembled.

1. Place the motor unit onto a level, dry, smooth, waterproof worktop.

2. Install the jar on the motor unit so that the arrow on the bottom part of the handle

points open padlock icon on the side of the motor unit.

3. Turn the jar clockwise until it locks in place and the arrow points closed padlock.

4. Place the lid on the jar and turn it clockwise until it locks in place. Place the measuring

cup on the lid. OPERATION Speed adjustments:

• Pulse: Rotate and keep the knob to “P” (function is active as long as you keep the knob in that position). Release the knob to turn o the function. Suggested for ingredients that require short time processing (e.g. nuts).

mode: Low speed for delicate foods processing with a folding motion. Suggested for combining wet and dry ingredients as well as chopping.

mode: High speed for breaking down ingredients. Suggested for liquefying. Preparing ingredients The ingredients to be processed need to be precut, peeled and pitted if necessary. Please note, very hard skin and pits can damage the blades of the device. When the ingredients are too big, the device may jam. Prepare the ingredients accordingly. Usually, a certain amount of drinking water or other liquids has to be added to facilitate the smooth running of the appliance. The proportion of the food and water is 2:3. The amount of mixture should not exceed the max level as indicated on the jar. Using blender

1. Make sure the device is properly assembled. Connect the device to power supply mains

3. Use the knob to set desired speed.

4. When processing is completed, turn it o and disconnect from power mains. Rotate the

• Do not run the blender for longer than necessary. Do not over blend ingredients.

• Use the pulse function when the ingredients are too thick or coarse to circulate within the blender jar.

• Do not exceed the maximum mark.

• The MAX line is usually a good indicator to prevent over loading, however some especially dense combinations of ingredients may still strain the motor. If the motor seems to be straining or running slowly, only operate for 10 seconds at a time, or reduce the amount of ingredients used. Adding more liquid can also help to loosen dense mixtures.

• Do not blend heavy mixture for more than 10 seconds. For normal blending tasks, it is suggested not to blend longer than 1 minute at a time. If you need to blend longer, turn o the blender and stir ingredients before starting again. For each use, the continuous operation time should not exceed 3 minutes and at least 10 minutes rest time must be maintained between two continuous cycles. After the shutdown, it is necessary to let it fully cool to room temperature.

• Some blending tasks cannot be performed eectively, such as: beating egg whites, beating cream, making mashed potatoes, ground meat, kneading dough, extracting juice from fruits or vegetables, etc.

• Do not blend the following foods as they may be dangerous: bones, large hard objects, frozen foods or hard foods.

• To add liquid ingredients during blending, pour them into the blender jar through the hole by removing the measuring cup.

TIPS AND NOTES ON FOOD PROCESSING

• Clean all the parts that will come in the contact with food prior to rst use of the device!

• Disconnect from the power supply socket before disassembling and cleaning.

• The motor unit, the power cable and the mains plug must not be immersed in water or any other liquid. Wipe the motor unit with soft, slightly damp cloth only.

• Do not use any sharp or abrasive cleaning agents.

• NOTE: clean the device as soon as possible after each use. Avoid the residues to dry on the surfaces of the device. Rinse the jar, lid, blade assembly and measuring cup as pre-cleaning.

• After processing very salty food or coloring food, it is suggested to rise the blades right away.

• Jar, lid and measuring cup can be washed in warm soapy water or dishwasher. If hand washed, rinse and dry thoroughly. Note: all parts (except motor base and blade assembly) may be washed in the dishwasher.

• Wash blade assembly in warm soapy water. Then rinse it under running water and let it dry upside down.

• When processing food with color, the plastic parts of the appliance may discolor. Wipe these parts with vegetable oil, then clean them the usual way.

• For fast cleaning in between preparation of dierent food, blender can be cleaned without disassembling: pour warm water with few drops of washing liquid into the blender jar. Close the cover. Fit it on the motor unit and give a few pulses. Remove the blender, rinse the jug under running water and leave it upside down to dry.

• WARNING: Be careful when handling the blades as they are extremely sharp!

• In case of stubborn stains use a little detergent and wipe over. CLEANING AND MAINTENANCEOwner’s manual20

SPECIFICATION Main features

• Dishwasher safe parts (jar, lid, measuring cup)

• Level indicator with scale Used materials

• Blade: Stainless steel Technical data

• Continuous working time: ≤ 3 minutes

• Power cord length: 80 cm

• Dry all parts carefully before reassembling the device and storing it.

• Keep the device out of the reach of children, even when storing.

• Store the device in cool, dry place. It is suggested to store the device disassembled. Do not store the blender with the jar on the motor unit. English Correct Disposal of This Product (Waste Electrical & Electronic Equipment) (Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government oce, for details of where and how they can take this item for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal. Made in China for Lechpol Electronics Leszek Sp.k., ul. Garwolińska 1, 08-400 Miętne.Manuel d’utilisation 21

• Vitesse max - 1. mode: 20000 tours/minute - 2. mode: 22000 tours/minute - Mode pulsations: 22000 tours/minute
