TSA1015 - Uncategorized Teesa - Free user manual and instructions

Product Type	Electric Kettle
Brand	Teesa
Model	TSA1015
Capacity	1.7 L
Power	2200 W
Voltage	220-240 V, 50/60 Hz
Base Type	360° rotatable
Heating Element	Flat heating element (concealed)
Auto Shut-off	Yes, after boiling
Boil-dry Protection	Yes
Filter	Removable and washable calcium filter (2 pcs)
Water Level Indicator	Yes
Body Material	Plastic
Dimensions (approx)	22 x 18 x 25 cm
Weight (approx)	0.8 kg
Cord Length	0.7 m
Features	360° base, concealed heating element, automatic switch-off, boil-dry protection, removable filter
Safety Certifications	CE, RoHS
Usage	Indoor household use only
Cleaning	Wipe exterior with damp cloth; descale periodically with vinegar solution
Repairability	No user-serviceable parts; contact authorized service

Frequently Asked Questions - TSA1015 Teesa

What is the capacity of the Teesa TSA1015 kettle?

The Teesa TSA1015 has a capacity of 1.7 liters, indicated by the MAX and MIN marks on the water level window.

How do I use the kettle for the first time?

Fill the kettle with cold water to the MAX mark, boil it, then discard the water. Repeat this process once to remove any manufacturing residues.

Can I open the lid while the kettle is boiling?

No, do not open the lid during boiling or shortly after, as it may cause scalding. Wait until the kettle has cooled down.

Does the kettle have automatic shut-off?

Yes, the kettle automatically switches off after the water reaches boiling point. The control lamp also turns off.

How do I clean the filter?

The calcium filter is removable. Take it out and wash it under running water with a soft brush. Ensure it is completely dry before reinstalling.

What should I do if the kettle does not turn on?

Check that the kettle is properly seated on the base, the power cord is plugged in, and the voltage matches (220-240 V). If it still does not work, contact qualified service.

How often should I descale the kettle?

Descale every 2-4 weeks depending on water hardness. Use a mixture of 1 part vinegar to 2 parts water, boil, let it sit overnight, then rinse thoroughly.

Is the kettle safe to use on a metal surface?

No, place the kettle base on a dry, stable, heat-resistant surface away from hotplates or gas burners.

Can I use the kettle without water?

No, never operate the kettle without water. The boil-dry protection will activate, but it may still damage the heating element.

What is the maximum water level?

Do not fill above the MAX mark. Overfilling may cause boiling water to eject and cause burns.

USER MANUAL TSA1015 Teesa

Close-up of a metallic teapot with a curved handle and lid, showing reflective surface (no text or symbols)

Bedienungsanleitung

Owner's manual

DE

EN

Instrukcja obsługi

PL

Manual de utilizare

RO

Návod na použitie

SK

White portable water heater with handle and spout (no visible text or symbols)

White kettle with a gray handle and silver lid, no visible text or symbols on the device itself.

White watermelon-shaped kettle with black handle and silver lid (no visible text or symbols)

Glass watercolor kettle with black handle and silver casing (no visible text or symbols)

Modern stainless steel kettle with handle and side panel (no visible text or symbols)

TSA1010 TSA1015 TSA1020 B/W TSA1510 TSA1515

DE - Elektrischer Wasserkocher	Kapazität: 1,7 I360° basisFlaches heizelementAutomatische abschaltungTrockenkoch-SchutzEntfernbarer & waschbarer filter (2 Stück)Max leistung: 2200 WSpannung: 220-240 V,50/60 Hz	Kapazität: 1,7 I360° basisFlaches heizelementAutomatische abschaltungTrockenkoch-SchutzEntfernbarer & waschbarer filter (2 Stück)Max leistung: 2200 WSpannung: 220-240 V,50/60 Hz	Kapazität: 1,8 I360° basisFlaches heizelementAutomatische abschaltungTrockenkoch-SchutzEntfernbarer & waschbarer filter (2 Stück)Max leistung: 2200 WSpannung: 220-240 V,50/60 Hz	Kapazität: 1,8 I360° basisFlaches heizelementBorosilikatglaskörper, langlebig und Schmutz-AbweisendAutomatische abschaltungTrockenkoch-SchutzEntfernbarer & waschbarer filter (2 Stück)Max leistung: 2200 WSpannung: 220-240 V,50/60 Hz	Kapazität: 1,7 I360° basisFlaches heizelementAutomatische abschaltungTemperaturkontrolle: gewünschte Heiztemperatur (60°, 70°, 80°, 90°) und Temperaturerhalt Option (für 2 Stunden)Farbige TemperaturanzełgeTrockenkoch-SchutzEntfernbarer & waschbarer filter (2 Stück)Max leistung: 2200 WSpannung: 220-240 V,50/60 Hz
EN - Electric kettle	Capacity: 1,7 I360° baseFlat heating elementAutomatic switch offBoil-dry protectionRemovable & washable filters (2 pcs)Max. Power: 2200 WVoltage: 220-240 V,50/60 Hz	Capacity: 1,7 I360° baseFlat heating elementAutomatic switch offBoil-dry protectionRemovable & washable filters (2 pcs)Max. Power: 2200 WVoltage: 220-240 V,50/60 Hz	Capacity: 1,8 I360° baseFlat heating elementAutomatic switch offBoil-dry protectionRemovable & washable filters (2 pcs)Max. Power: 2200 WVoltage: 220-240 V,50/60 Hz	Capacity: 1,8 I360° baseFlat heating elementBorosilicate glass body, durable and stain resistantAutomatic switch offRemovable & washable filters (2 pcs)Boil-dry protectionMax. Power: 2200 WVoltage: 220-240 V,50/60 Hz	Capacity: 1,7 I360° baseFlat heating elementAutomatic switch offThermal control: temperature sustaining (2 h), and desired heating settings (60°, 70°, 80°, 90°)Color indicator of temperatureRemovable & washable filters (2 pcs)Boil-dry protectionMax. Power: 2200 WVoltage: 220-240 V,50/60 Hz
PL - Czajnik Elektryczny	Pojemność: 1,7 IObrotowa podstawa 360°Zabudowany, płaski element grzejnyAutomatyczne wyłączenieZabezpieczenie przed włączeniem bez wodyWyjmowany filtr (2 szt.)Moc maksymalna: 2200 WZasilanie: 220-240 V,50/60 Hz	Pojemność: 1,7 IObrotowa podstawa 360°Zabudowany, płaski element grzejnyAutomatyczne wyłączenieZabezpieczenie przed włączeniem bez wodyWyjmowany filtr (2 szt.)Moc maksymalna: 2200 WZasilanie: 220-240 V,50/60 Hz	Pojiemność: 1,8 IObrotowa podstawa 360°Zabudowany, płaski element grzejnyAutomatyczne wyłączenieZabezpieczenie przed włączeniem bez wodyWyjmowany filtr (2 szt.)Moc maksymalna: 2200 WZasilanie: 220-240 V,50/60 Hz	Pojiemność: 1,8 IObrota podstawa 360°Zabudowany, płaski element grzejnyElementy ze szkła borokrzemianowego, trwałe i odporne na zabrudzeniaAutomatyczne wyłączenieZabezpieczenie przed włączeniem bez wodyWyjmowany filtr (2 szt.)Moc maksymalna: 2200 WZasilanie: 220-240 V,50/60 Hz	Pojiemność: 1,7 IObrotowa podstawa 360°Zabudowany, płaski element grzejnyAutomatyczne wyłączenieRegulacja temperatury: utrzymywanie stałej temperatury, podgrzewanie do wybranej temperatury 60°, 70°, 80°, 90°Kolorowy wskaźnik temperaturyZabezpieczenie przed włączeniem bez wodyWyjmowany filtr (2 szt.)Moc maksymalna: 2200 WZasilanie: 220-240 V,50/60 Hz
RO - Flerbator de apa electric	Capacitate: 1,7 IBaza pivotanta 360°Element de încălzire platComutator automat de oprireProtectie la supraincalzireFiltru detasabil si lavabil (2 buc.)Putere max: 2200 WTensiune de alimentare: 220-240 V,50/60 Hz	Capacitate: 1,7 IBaza pivotanta 360°Element de încălzire platComutator automat de oprireProtectie la supraincalzireFiltru detasabil si lavabil (2 buc.)Putere max: 2200 WTensiune de alimentare: 220-240 V,50/60 Hz	Capacitate: 1,8 IBaza pivotanta 360°Element de încălzire platComutator automat de oprireProtectie la supraincalzireFiltru detasabil si lavabil (2 buc.)Putere max: 2200 WTensiune de alimentare: 220-240 V,50/60 Hz	Capacitate: 1,8 IBaza pivotanta 360°Element de încálzire platCorp de sticlă borosilicat, durabil si rezistent la peteComutator automat de oprireProtectie la supraincalzireFiltru detasabil si lavabil (2 buc.)Putere max: 2200 WTensiune de alimentare: 220-240 V,50/60 Hz	Capacitate: 1,7 IBaza pivotanta 360°Element de încálzire platComutator automat de oprireTemperatura reglabila (60°, 70°, 80°, 90°), mentinere temperatura(2 ore)Indicator color a temperaturiiProtectie la supraincalzireFiltru detasabil si lavabil (2 buc.)Putere max: 2200 WTensiune de alimentare: 220-240 V,50/60 Hz
SK - Elektrická rychlovarna Kanvica	Objem: 1,7 I360° - stupňová základňaPloché vykurovacie telesoAutomatické vypnutieOchrana proti prehriatiuOdnimatełný a umývatelný filter (2 ks)Maximálny výkon: 2200 WNapätie: 220-240 V,50/60 Hz	Objem: 1,7 I360° - stupňová základňaPloché vykurovacie telesoAutomatické vypnutieOchrana proti prehriatiuOdnimatełný a umývatelný filter (2 ks)Maximálny výkon: 2200 WNapätie: 220-240 V,50 /60 Hz	Objem: 1,8 I360° - stupňová základňaPloché vykurovacie telesoAutomatické vypnutieOchrana proti prehriatiuOdnimatełný a umývatelný filter (2 ks)Maximálny výkon: 2200 WNapätie: 220-240 V,50/60 Hz	Objem:1,8 I360° - stupňová základňaPloché vykurovacie telesoTelo z borosilikátového skla, odolné proti škvrnámAutomatické vypnutieOchrana proti prehriatiuOdnimatełný a umývatelný filter (2 ks)Maximálny výkon: 2200 WNapätie: 220-240 V,50/60 Hz	Objem: 1,7 I360° - stupňová základňaPloché vykurovacia telesoAutomatické vypnutieNastavenie teploty: trvalé zohrievanie (2 hodiny), možnosť nastavenia teploty (60°, 70°, 80°, 90°)Farebná indikácia teplotyOchrana proti prehriatiuOdnimatełný a umývatelný filter (2 ks)Maximálny výkon: 2200 WNapätie: 220-240 V,50/60 Hz

1.

Line drawing of a hand holding a kettle with a lid, pouring liquid from a shower (no text or symbols)

Line drawing of a hand holding a kettle with a handle, showing a downward arrow indicating compression or disassembly (no text or symbols)

Thank you for purchasing TEESA appliance. Please read this operation instruction carefully before use, and keep it for future use.

Distributor does not take responsibility for damages caused by inappropriate handling and use of the product.

GENERAL SAFETY INSTRUCTIONS

• Before using this kettle, please read the instruction manual carefully.
• Please keep the manual, warranty, the sales receipt and if possible, the carton with the inner packaging.
• This kettle is intended exclusively for private and not for commercial use.
• Switch off the kettle and remove the plug from the socket when the kettle is not in use, while attaching accessory parts, cleaning the device or whenever any disturbance occurs. When you disconnect the power cord of the kettle, grasp and pull the plug, not the cord/cable.
• Keep the kettle out of the reach of children. Do not leave children unsupervised with the kettle.
• This appliance should not be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they are supervised by the person who is responsible for their safety.
• Test the kettle and the cord/cable regularly for damage. Check that the kettle operates properly. In case of any damage, or if the kettle does not operate properly, stop using the kettle and unplug it immediately.
• Do not attempt to repair the kettle yourself, only authorized and qualified personnel may repair this kettle.
• Keep the kettle and cord/cable away from heat, direct sunlight, water, moisture, sharp edges and the like.
• Use only original accessories, do not connect incompatible products.
• The kettle is for indoor use only.
• The base and exterior of the kettle are not water-resistant, keep it dry at all times.
• Under no circumstances must the kettle be placed in water or any liquid or come in contact with liquid. Do not handle the kettle with wet or moist hands. Should the kettle become wet or moist, remove the main plug from the socket immediately.
  • DO NOT touch the contents of the kettle.
• Use the kettle only for its intended purpose.
• The kettle is only to be used with the stand provided.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid hazard.
• Make sure, the mains supply cable does not hang over the edge of the table or a counter on which the kettle is placed.
• Before connecting the kettle to power supply socket, make sure the voltage indicated on the appliance corresponds to the voltage in the power supply socket.
• Do not use the kettle in the vicinity of explosive and/or flammable fumes. Do not place the kettle near oven and gas or electric cookers.
• Regularly cleaned and descaled kettle prevents from abnormal functioning of the product.
• Do not open the lid when the water is being boiled and for some time after it has been heated, as it may scald and burn skin.
• Do not turn on the kettle if there is no water.
• Do not touch the surface of the kettle when it is filled with hot water; to operate the kettle use the handle and knobs.
• Warning: If the kettle is overfilled, boiling water may be ejected.

WARNING

• Use only cold water when filling the device.

• The water level must be between the MAX. and MIN. marks.

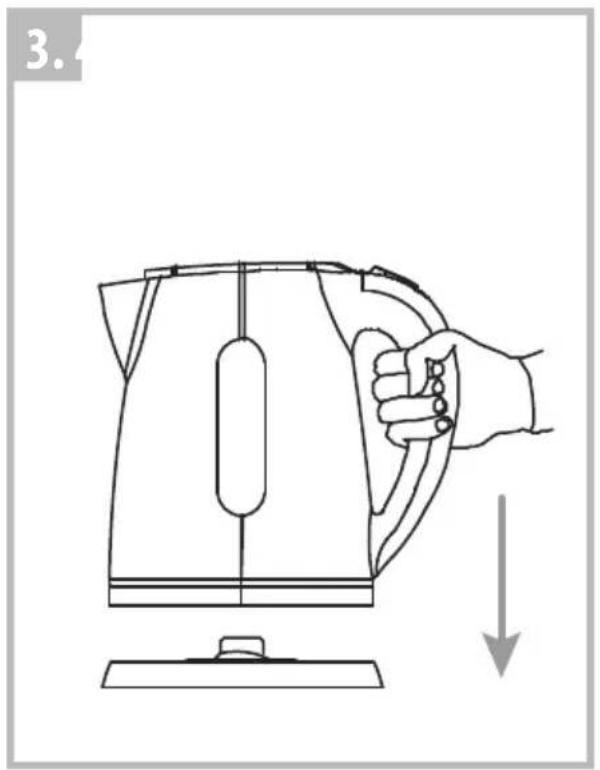

• Switch the kettle off before removing it from the base.
  • Always ensure that the lid is tightly closed.

• The base and exterior of the kettle must not become wet.
• Kettle body used must match with the kettle base.

FIRST USE OF THE KETTLE

Before using the kettle for the first time, fill the kettle with cold water and boil it. After the kettle switches off automatically, pour the water out, and repeat the process.

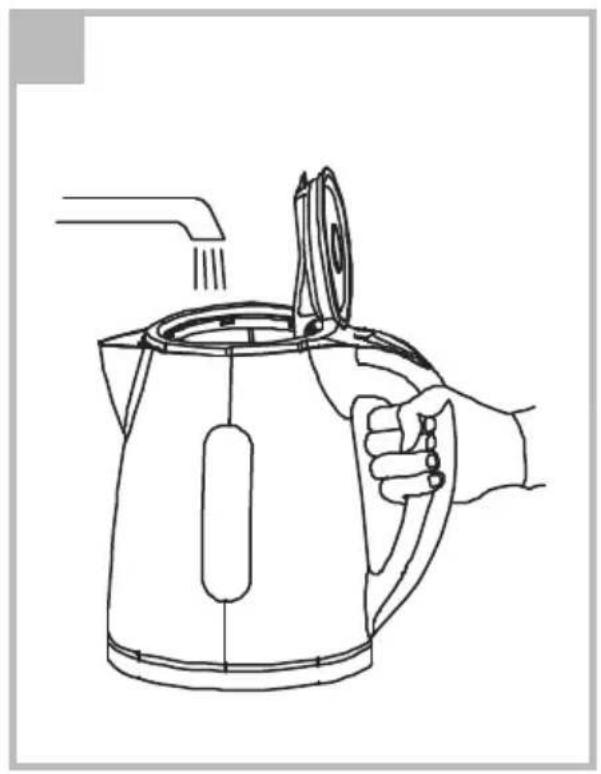

1. Fill the kettle with water. Do not overfill. Use the water level indicator.
2. Place the kettle on the base.
3. Connect the kettle to 220-240 V, 50/60 Hz socket.

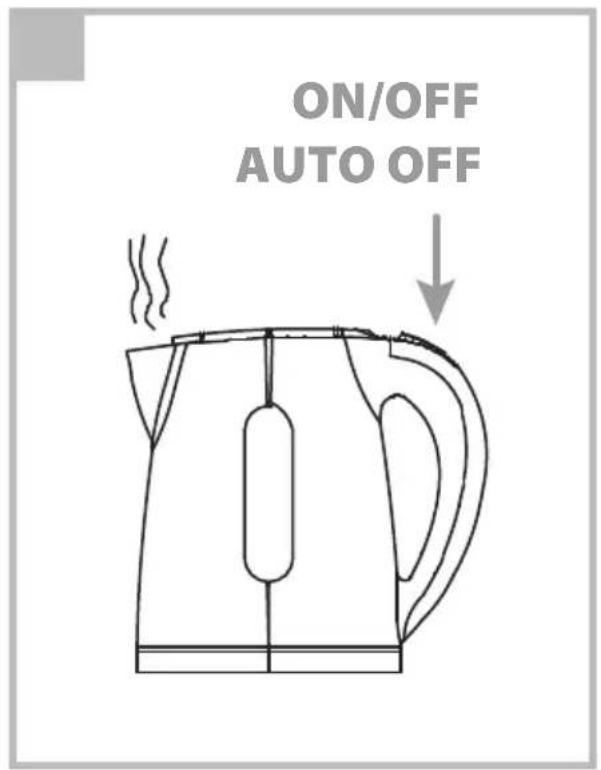

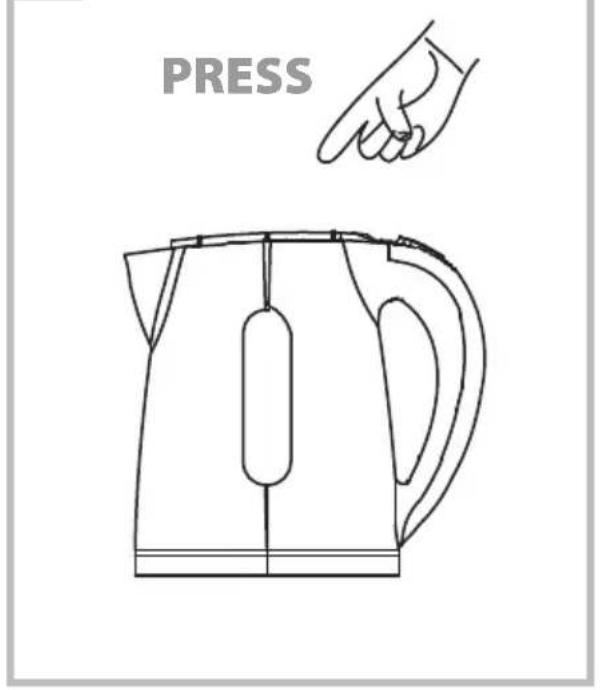

4. Switch the kettle to position '1'. The control lamp on the water indicator shows that the water is being boiled.
5. After boiling, the kettle switches off automatically.
   Do not open the lid when pouring.
   If the kettle is overfilled, boiling water may be ejected.
   The kettle is only to be used with the stand provided.

6. This appliance is intended to be used in household and similar applications such as:

7. staff kitchen areas in shops, offices and other working environments;

8. farm houses;
9. by clients in hotels, motels and other residential type environments.

THERMAL CONTROL (ONLY FOR TSA1515 MODEL)

This kettle is equipped in thermal control function, which allows to set desired heating temperature ( 60^ , 70^ , 80^ , 90^ ), or temperature sustaining option (for 2 hours).

Operation

1. Place the base on a dry, smooth and stable counter, and insert the plug into the socket.
2. Press the key shortly; short sound signal means the kettle has started to operate.
3. After the water is boiled, indicator turns off and the buzzer again sends out a sound.

Temperature sustaining function (2 hours)

Press and hold ⏻ button for 3 seconds. The buzzer sends out sound signal, and the kettle will boil the water.

Whenever the water temperature drops to 85^ C, the kettle will reheat the liquid inside the kettle. The process will be repeated automatically for 2 hours. After that, temperature sustaining function will be switched off. Throughout the entire 2 hours process, LED indicator will be red.

Desired heating settings 60°, 70°, 80°, 90°

Press ☑ once, LED light next to 60^ C will shine, while color indicator will become green. The kettle will heat water inside up to 60^ C, and automatically switch off.

Press 74 twice, LED light next to 70^ C will shine, while color indicator will become blue. The kettle will heat water inside up to 70^ C, and automatically switch off.

Press three times, LED light next to 80^ will shine, while color indicator will become yellow. The kettle will heat water inside up to 80^ , and automatically switch off.

Press four times, LED light next to 90^ will shine, while color indicator will become purple. The kettle will heat water inside up to 90^ , and automatically switch off.

MAINTENANCE AND CLEANING

Always remove the plug from the mains supply before cleaning the kettle.

The exterior of the kettle should be cleaned, if necessary, with a slightly damp cloth without additives.

Do not use abrasive scouring pads or powers.

Do not immerse the kettle in water or other liquids.

The calcium filter can be removed for cleaning.

After some time, depending on the nature of your water supply, a boiled scale deposit is naturally formed and can be found mostly adhered to the heating element, thus reducing the heating efficiency. The amount of boiled scale deposited largely depends on the water hardness in your area the frequency with which the kettle is used. Boiled scale is not harmful to your health, but gives a powdery taste to your drinks if water poured into them was boiled in scaled kettle. The kettle should be descaled periodically as indicated below:

DESCALING

1. Fill the kettle up to "max" with a mixture of one part ordinary vinegar and two parts water.

Switch on and wait for the appliance to switch off automatically.

1. Let the mixture remain inside the kettle overnight.

2. Discard the mixture the next morning.

3. Fill the kettle with clean water up to "max" mark and boil again.

4. Discard the boiled water to remove any remaining scale and vinegar.

5. Rinse the inside of the kettle with clean water.

English

Correct Disposal of This Product

(Waste Electrical & Electronic Equipment)

(Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or Its literature, indicates that It should not be disposed with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract This product should not be mixed with other commercial wastes for disposal.

Made in China for LECHPOL Zbigniew Leszek, Miętne, 1 Garwolińska Street, 08-400 Garwolin.
