USER MANUAL Xena Home 30.3074.10 TFA

Instruction manual Thank you for choosing this instrument from TFA. Before you use this product

Please make sure you read the instruction manual care- fully.

The operating instructions are enclosed with the device or can be downloaded at www.tfa-dostmann.de/en/service/downloads/instruction- manuals

This product should only be used as described within these instructions.

Following and respecting the instructions in your manual will pre- vent damage to your instrument and loss of your statutory rights arising from defects due to incorrect use.

Please take particular note of the safety advice!

Please keep this instruction manual safe for future refe- rence.

• Wireless thermometer (base station)

• Temperature transmitter (Cat. No. 30.3250.02)

2. Range of application and all the benefits of your new

instrument at a glance

• Outdoor temperature wireless (433 MHz), distance range up to 100 m (open field)

• Indoor temperature and humidity with comfort level

• Maximum and minimum values with time and date of recording, adjustable auto-reset

• Radio-controlled clock with entire date

• Wall mounting or table stand

• Optional: Expandable up to 3 temperature transmitters (sold separately), also for the temperature control of remote rooms, e.g. children's room, wine-cellar etc.

• This product is exclusively intended for the range of application described above.

• This product should only be used as described within these instructions. WARNING

• Keep the devices and the batteries out of reach of children.

• Small parts can be swallowed by children (under three years old).

• Batteries contain harmful acids and may be hazardous if swal- lowed. If a battery is swallowed, this can lead to serious internal burns and death within two hours. If you suspect a battery could have been swallowed or otherwise caught in the body, seek medical help immediately.

• Batteries must not be thrown into a fire, short-circuited, taken apart or recharged. Risk of explosion!

• Low batteries should be changed as soon as possible to prevent damage caused by leaking. Make sure the polarities are correct. Never use a combination of old and new batteries together, nor batteries of different types. TFA_No. 30.3074_Anl_04_23 19.04.2023 16:18 Uhr Seite 12– 24 – – 25 – Wireless Thermometer

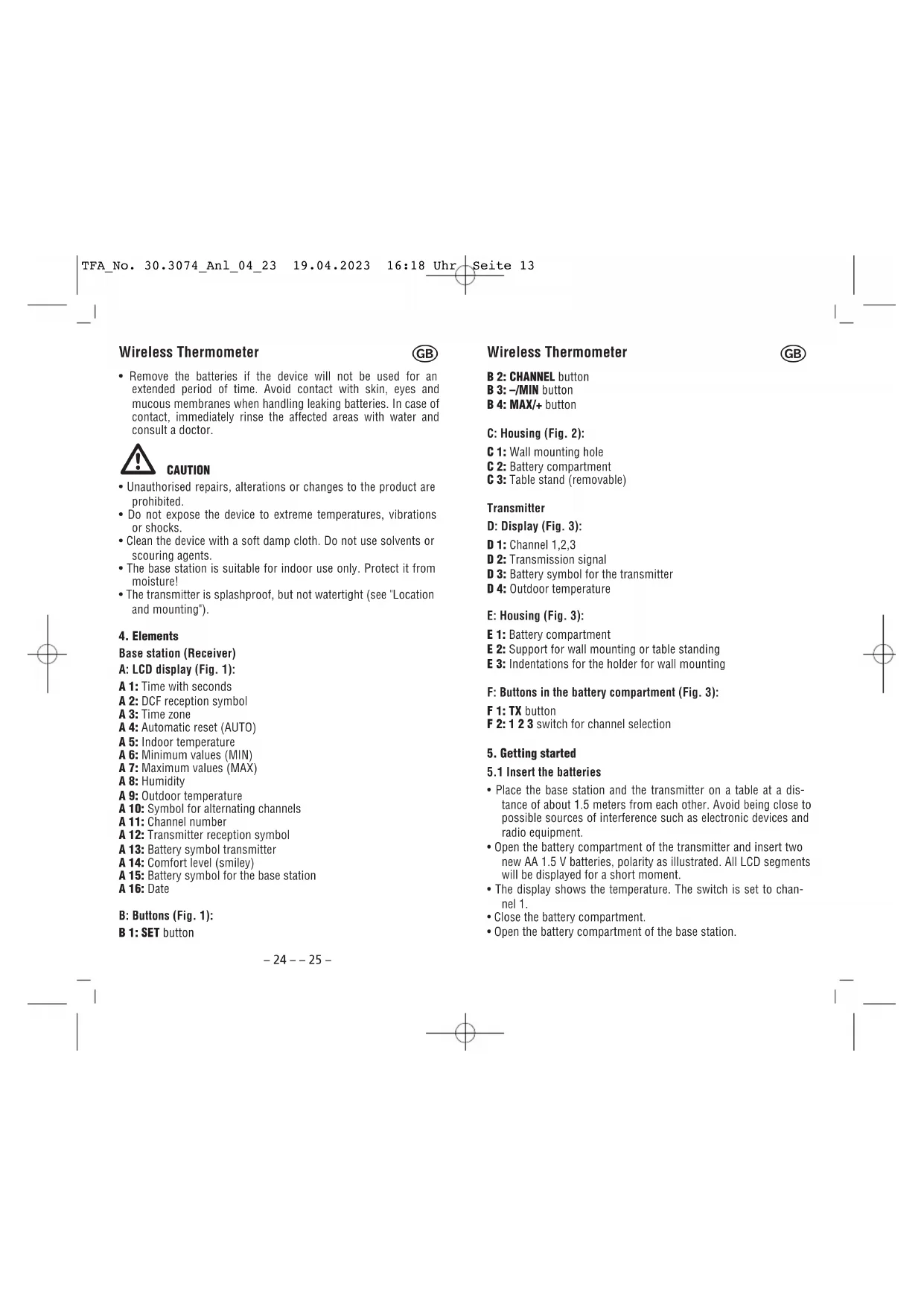

• Remove the batteries if the device will not be used for an extended period of time. Avoid contact with skin, eyes and mucous membranes when handling leaking batteries. In case of contact, immediately rinse the affected areas with water and consult a doctor. CAUTION

• Unauthorised repairs, alterations or changes to the product are prohibited.

• Do not expose the device to extreme temperatures, vibrations or shocks.

• Clean the device with a soft damp cloth. Do not use solvents or scouring agents.

• The base station is suitable for indoor use only. Protect it from moisture!

• The transmitter is splashproof, but not watertight (see "Location and mounting").

Base station (Receiver) A: LCD display (Fig. 1): A 1: Time with seconds A 2: DCF reception symbol A 3: Time zone A 4: Automatic reset (AUTO) A 5: Indoor temperature A 6: Minimum values (MIN) A 7: Maximum values (MAX) A 8: Humidity A 9: Outdoor temperature A 10: Symbol for alternating channels A 11: Channel number A 12: Transmitter reception symbol A 13: Battery symbol transmitter A 14: Comfort level (smiley) A 15: Battery symbol for the base station A 16: Date B: Buttons (Fig. 1): B 1: SET button Wireless Thermometer

B 2: CHANNEL button B 3: –/MIN button B 4: MAX/+ button C: Housing (Fig. 2): C 1: Wall mounting hole C 2: Battery compartment C 3: Table stand (removable) Transmitter D: Display (Fig. 3): D 1: Channel 1,2,3 D 2: Transmission signal D 3: Battery symbol for the transmitter D 4: Outdoor temperature E: Housing (Fig. 3): E 1: Battery compartment E 2: Support for wall mounting or table standing E 3: Indentations for the holder for wall mounting F: Buttons in the battery compartment (Fig. 3): F 1: TX button F 2: 1 2 3 switch for channel selection

• Place the base station and the transmitter on a table at a dis- tance of about 1.5 meters from each other. Avoid being close to possible sources of interference such as electronic devices and radio equipment.

• Open the battery compartment of the transmitter and insert two new AA 1.5 V batteries, polarity as illustrated. All LCD segments will be displayed for a short moment.

• The display shows the temperature. The switch is set to chan- nel 1.

• Close the battery compartment.

• Insert two new AA 1.5 V batteries, polarity as illustrated. All LCD segments will be displayed for a short moment. The humidity and the temperature appear on the display as well as a smiley to indicate the comfort level.

• Close the battery compartment.

5.2 Reception of outdoor transmitter

• The base station will scan the outdoor temperature and the reception symbol flashes.

• If the reception is successful, the outdoor temperature and the reception symbol appear steadily on the base station display.

• If the reception of the outdoor temperature fails, "- -.-" remains on the display. Check the batteries and try it again.

• You can also start the transmitter search manually later (e.g. if the transmitter signal is lost or if the batteries are changed). Press and hold the CHANNEL button on the base station for three seconds. The reception symbol for the outdoor transmit- ter will be flashing.

• Press the TX button in the transmitter's battery compartment. The transmission of the outdoor data takes place immediately and if the reception is successful, the outdoor temperature appears on the base station display.

• If the contact between the transmitter and receiver is lost at a later time after successful reception, reception attempts will happen after 30 and 60 minutes. Reception is reactivated every hour.

5.3 Reception of the DCF frequency signal

• After the reception of the outdoor temperature, the clock will now scan the DCF frequency signal and the DCF symbol flashes on the display.

• When the time code is successfully received after 3-10 minutes, the radio-controlled time and the DCF symbol will be shown steadily on the display.

• The DCF reception always takes place at 1:00, 2:00 and 3:00 o'clock in the morning. If the signal is not successfully received, further attempts will be taken at 4:00 and 5:00 o'clock.

• You can also activate the DCF reception manually. Press the –/MIN button for 3 seconds. The DCF reception symbol will be flashing.

• Press and hold the –/MIN button again for 3 seconds to stop the reception process. The DCF reception symbol disappears. Wireless Thermometer

• There are 3 different reception symbols: flashing symbol – reception is active solid – reception is successful no symbol – no DCF reception

• If the clock cannot detect the DCF-signal (e.g. due to interfer- ence, transmitting distance, etc.), the time can be set manually.

• The clock will then work as a normal quartz clock (see: “Manual settings”). Note on radio-controlled time

The time is transmitted from an atomic clock near Frankfurt am Main by a DCF-77 (77.5 kHz) frequency signal with a range of about 1,500 km. Your radio-controlled clock receives the signal, converts it and always shows the exact time. The adjustment of Daylight Saving Time and Standard Time is also automatic.

• Avoid being close to possible sources of interference that may affect radio reception (see “Location and mounting”).

• During night-time, the atmospheric interference is usually less severe. A single daily reception is adequate to keep the accuracy deviation under 1 second.

• The device will automatically quit the setting mode if no button is pressed for 20 seconds.

• Press and hold the MAX/+ or –/MIN button in setting mode for fast mode.

• Press and hold the SET button for three seconds to enter the setting mode.

• The first adjustable value flashes on the display.

• Use the MAX/+ or –/MIN button to make the desired setting, while the value flashes.

• Confirm with the SET button and go to the next setting.

• By default, the DCF reception is activated (DCF ON) and after successful reception of the DCF signal no manual time setting is necessary.

• In the setting mode, you can deactivate (DCF OFF) or activate again the DCF reception using the MAX/+ or –/MIN button.

• Once the DCF time reception is deactivated the clock must be manually set. No time zone will appear.

• If the DCF reception is activated, the manually set time will be overwritten by the DCF time when the signal is received success- fully.

6.1.2 Time zone setting

• In the setting mode, use the MAX/+ or –/MIN button to make the time zone correction (-12/+12).

• The time zone correction is needed for countries where the DCF signal can be received but the time zone is different from the DCF time (e.g. +1=one hour plus).

• If the automatic reset is activated, AUTO appears on the display.

• Press the –/MIN button in normal mode. MIN flashes on the dis- play.

• You can now see the lowest measuring value since the last reset with time and date of recording.

• The sequence is shown as follows: Indoor temperature, indoor humidity, outdoor temperature.

• If you have installed more than one transmitter, press the CHANNEL button to change between the outdoor transmitters.

• Press the –/MIN button once more to go back to the current values display.

• Repeat the process by pressing the MAX/+ button to see the maximum values. MAX flashes on the display. Wireless Thermometer

• Press and hold the SET button for 3 seconds while the highest or lowest values are displayed. The values will be deleted and reset to the current state. b) Automatic reset

• Provided that in the setting mode the automatic reset is activat- ed (AUTO MIN MAX ON). AUTO appears permanently on the display.

• All maximum and minimum values will be reset automatically every midnight at 0:00.

• An interim manual reset is still possible.

6.3 Comfort level (Fig. 4)

• On the display appears a smiley to indicate the comfort level.

• Provided that in the setting mode the function is activated (default ON).

7. Location and mounting

• When placed outdoors, choose a shady and dry place for the transmitter. Direct sunlight may trigger incorrect measurement and continuous humidity damages the electronic components needlessly.

• Place the base station in any room of the house.

• Avoid being close to possible sources of interference that may affect radio reception. It is recommended to keep a distance of at least 2 metres to possibly interfering sources (TV, computer, microwave, wireless phones, baby monitors) and large metal objects (e.g. refrigerator). Within solid walls, especially ones with metal parts, the transmission range can be reduced con- siderably. In extreme cases, please place the unit close to a win- dow to improve reception.

• Check whether the transmission from the transmitter to the base station is possible and whether the DCF radio clock signal can be received.

• If necessary, choose, another position for the outdoor transmit- ter and/or receiver.

• If the transmission is successful, you can place or wall mount the base station and the outdoor transmitter with the suspen- sion device. TFA_No. 30.3074_Anl_04_23 19.04.2023 16:18 Uhr Seite 15– 30 – – 31 – Wireless Thermometer

• To wall-mount the transmitter, screw the holder to the wall and click the outdoor transmitter into the holder.

• Do not use the base station in the vicinity of radiators, other sources of heat or in direct sunlight.

8. Battery replacement

• As soon as the battery symbol will appear on the outdoor values display of the base station or on the display of the outdoor transmitter, change the batteries of the outdoor transmitter.

• Change the batteries of the base station, when the battery sym- bol appears on the indoor values display.

• Please note: When the batteries are changed, the contact between the transmitter and the receiver must be restored – so always insert new batteries into both devices or start the manual search for the transmitter.

9. Additional outdoor transmitters (optional)

• When having more than one external transmitter, select a differ- ent channel for each one with the 1 2 3 switch inside the trans- mitter's battery compartment. Insert two new AA 1.5 V batter- ies, polarity as illustrated. Start the base station operation or the manual search for the outdoor transmitter: – Choose the respective channel by pressing the CHANNEL button. – Press and hold the CHANNEL button for three seconds. The last registered transmitter (channel) will be cancelled and the transmitter search begins. – Press the TX button in the corresponding transmitter's bat- tery compartment. The transmission of the outdoor data will take place immediately.

• The outdoor values and the channel number will be shown on the base station display. Press the CHANNEL button to change between the channels 1 to 3.

• Press the CHANNEL button. After the last registered channel (1 to 3) a circle symbol will appear. On the display the values of the installed transmitters are displayed in sequence (10 sec- onds). To deactivate the function press the CHANNEL button again.

• After a successful installation close the outdoor transmitter's battery compartment carefully. Wireless Thermometer

Problem Solution No display on the ➜ Ensure the batteries' polarities are base station/transmitter correct ➜ Change the batteries No transmitter ➜ No transmitter installed reception ➜ Check the outdoor transmitter's Display “- -.-” batteries (only use batteries/recharge- for channel 1/2/3 able batteries with 1.5V voltage!) ➜ Restart the transmitter and the base station according to the manual ➜ Start the outdoor transmitter manual search ➜ Choose another place for the outdoor transmitter and/or the base station ➜ Reduce the distance between the out- door transmitter and the base station ➜ Check if there is any source of inter- ference No DCF reception ➜ Activate (DCF ON) the DCF reception in setting mode ➜ Press and hold the –/MIN button for three seconds and start the initialisa- tion manually ➜ Wait for an attempt reception during the night ➜ Choose another place for your device ➜ Set the clock manually ➜ Check if there is any source of inter- ference ➜ Restart the instrument according to the manual Incorrect indication ➜ Change the batteries If your device fails to work despite these measures, please contact the retailer where you purchased the product from for advice. TFA_No. 30.3074_Anl_04_23 19.04.2023 16:18 Uhr Seite 16– 32 – – 33 – Wireless Thermometer

This product and its packaging have been manufactured using high- grade materials and components which can be recycled and reused. This reduces waste and protects the environment. Dispose of the packaging in an environmentally friendly manner using the collection systems that have been set up. Disposal of the electrical device Remove non-permanently installed batteries and rechargeable batteries from the device and dispose of them separately. This product is labelled in accordance with the EU Waste Electrical and Electronic Equipment Directive (WEEE). This product must not be disposed of in ordinary household waste. As a consumer, you are required to take end-of-life devices to a designated collection point for the disposal of electrical and electronic equipment, in order to ensure environmentally-compatible dispos- al. Observe the current regulations in place! Disposal of the batteries Never dispose of empty batteries and rechargeable bat- teries with ordinary household waste. They contain pollutants which, if improperly disposed of, can harm the environment and human health. As a consumer, you are required by law to take them to your retail store or to an appropriate collection site depending on national or local regulations in order to protect the environment. The return service is free of charge. The symbols for the contained heavy metals are: Cd=cadmium, Hg=mercury, Pb=lead.

Accuracy ±1°C (0…+50°C), ±1,5°C (-40…0°C, +50…60°C) Transmission range max. 100 m (open field) Transmission frequency 433 MHz Maximum radio-frequency power < 10mW Power consumption Batteries Base station 2 x 1,5 V AA (not included) Outdoor transmitter 2 x 1,5 V AA (not included) We recommend Alkaline batteries Base station Dimensions 82 x 27 (47) x 140 (145) mm Weight 128 g (device only) Outdoor transmitter Dimensions 48 (54) x 26 (44) x 129 (135) mm Weight 62 g (device only) No part of this manual may be reproduced without written consent of TFA Dostmann. The technical data are correct at the time of going to print and may change without prior notice. The latest technical data and information about this product can be found in our homepage by simply entering the product number in the search box. EU Declaration of conformity Hereby, TFA Dostmann declares that the radio equipment type 30.3074 is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: www.tfa-dostmann.de/service/downloads/ce www.tfa-dostmann.de E-Mail: [e-mail] TFA Dostmann GmbH & Co.KG, Zum Ottersberg 12, 97877 Wertheim, Germany 04/23 TFA_No. 30.3074_Anl_04_23 19.04.2023 16:18 Uhr Seite 17– 34 – – 35 – Thermomètre radio-piloté
