BAS 24 S - Drill Bavaria by Einhell - Free user manual and instructions

Brand	Bavaria by Einhell
Model	BAS 24 S
Product type	Cordless drill driver
Power supply	Battery 24 V (nickel-cadmium)
Motor voltage	24 V=
No-load speed	0-400 / 0-1150 rpm (2 speeds)
Torque	17 adjustable torque settings
Chuck capacity	2 to 13 mm
Hammer drilling	Yes
Rotation direction	Right and left
Weight	2.3 kg
Sound pressure level (LPA)	72 dB(A)
Sound power level (LWA)	82 dB(A)
Vibration (a_w)	<2.5 m/s²
Charger mains voltage	230 V - 50 Hz
Charging current	2 A
Delivery contents	Drill driver, interchangeable battery, charger, case
Warranty	2 years
Maintenance	Clean with a dry cloth; protect from moisture
Safety	Wear protective goggles; do not expose to rain

Frequently Asked Questions - BAS 24 S Bavaria by Einhell

How do I charge the battery for the first time?

Before first use, the battery must be fully charged with the supplied charger. The battery reaches its maximum capacity after approximately five charge and discharge cycles.

What is the battery life?

Battery life depends on usage. Nickel-cadmium batteries discharge even when not in use, so it is recommended to recharge them regularly.

How do I adjust the torque?

Turn the torque adjustment ring (fig. 1) to one of the 17 settings. The torque depends on the material and screw size. A clicking sound indicates the torque is reached.

How do I switch from drilling to hammer drilling?

For drilling, set the front ring to the 'Drill' symbol. For hammer drilling, set it to the 'Hammer' symbol and adjust the torque to 'Drill'.

How do I change the speed?

Use the speed switch (fig. 3) to switch between the two ranges (0-400 or 0-1150 rpm). Only switch when the device is at a standstill.

How do I change the rotation direction?

Use the rotation direction switch (fig. 4) above the On/Off switch. Only switch when at a standstill. The center position locks the switch.

What are the important safety precautions?

Wear protective goggles, use suitable clothing, avoid moisture and flammable liquids. Do not throw batteries into fire and avoid contact with battery acid.

How do I clean the drill?

Clean the device with a dry cloth. Protect it from moisture and dust. Do not use harsh cleaners.

How do I dispose of used batteries?

Do not dispose of batteries with household waste. Return them to a collection point or send them free of charge to the ISC after-sales service.

What should I do if the battery does not charge?

Check that the outlet is live and the contacts are clean. If the problem persists, send the charger and battery to the after-sales service.

USER MANUAL BAS 24 S Bavaria by Einhell

Open toolbox containing various electronic components including a power tool, battery, and wiring (no visible text or labels)

D Lieferumfang:

1 cordless drill/screwdriver
1 removable battery
1 battery charger
1 storage case

① Elementi forniti

1 t rapano avvitatore a batte-1 styk akku-skrue/boremas-
ria
1 batteria di ricambio
1 caricabatteria
1 contenitore a valigetta
e-1 styk akku-skrue/boremas-
kine
1 styk skiftebatteri
1 oplader
1 opbevaringskuffert

DK Leveringsomfang:

PL

Figure 1: Torque adjustment facility

Figure 2: Selecting drill or hammer mode

Figure 3: Changing over from 1st gear to 2nd gear

Figure 4: Forward / Reverse selector switch

Figure 5: On/Off switch

Figure 6: Removable battery pack; press both clips to take out the battery pack

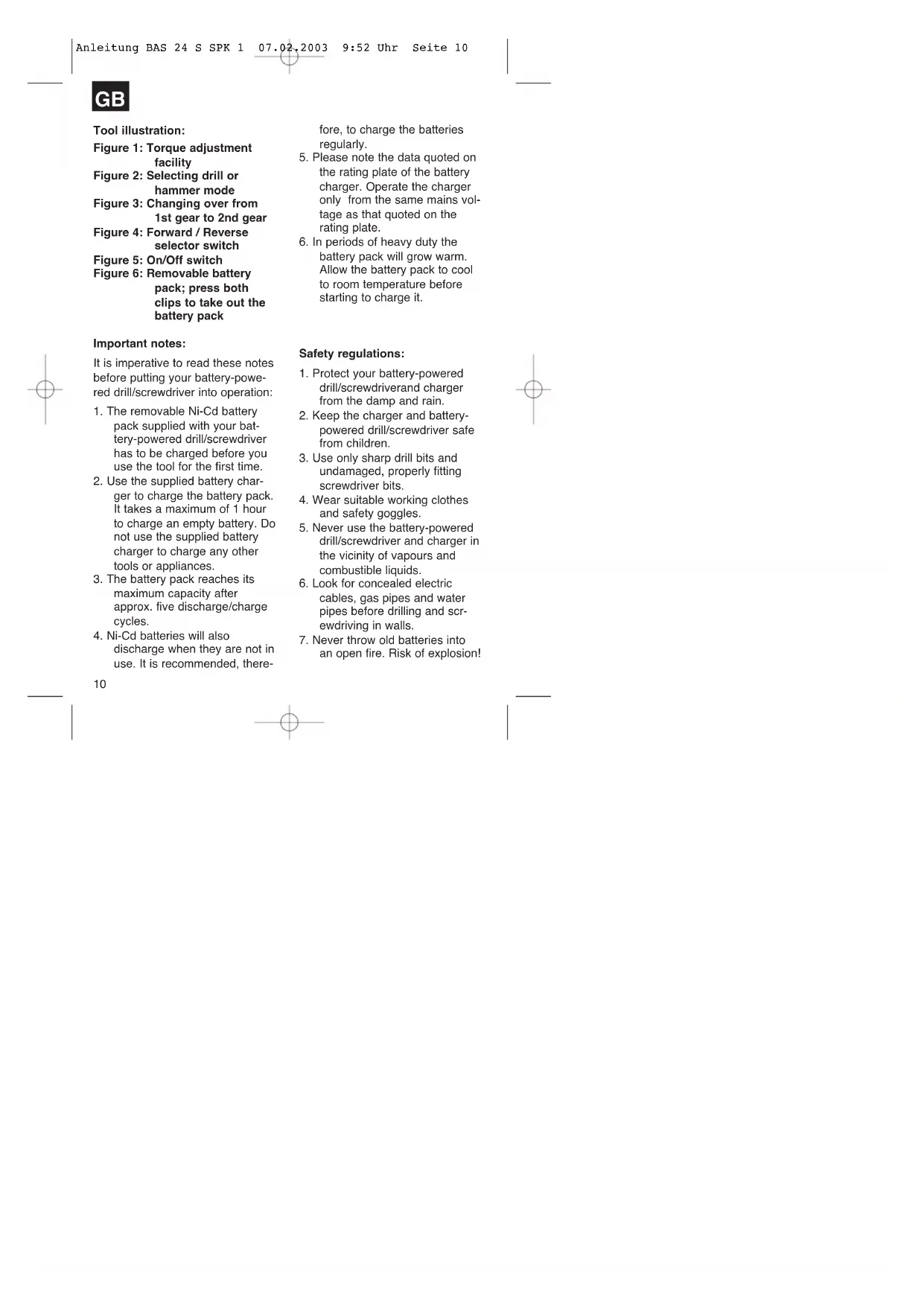

Important notes:

It is imperative to read these notes before putting your battery-powered drill/screwdriver into operation:

1. The removable Ni-Cd battery pack supplied with your battery-powered drill/screwdriver has to be charged before you use the tool for the first time.
2. Use the supplied battery charger to charge the battery pack. It takes a maximum of 1 hour to charge an empty battery. Do not use the supplied battery charger to charge any other tools or appliances.
3. The battery pack reaches its maximum capacity after approx. five discharge/charge cycles.
4. Ni-Cd batteries will also discharge when they are not in use. It is recommended, there-

fore, to charge the batteries regularly.

1. Please note the data quoted on the rating plate of the battery charger. Operate the charger only from the same mains voltage as that quoted on the rating plate.

2. In periods of heavy duty the battery pack will grow warm. Allow the battery pack to cool to room temperature before starting to charge it.

Safety regulations:

1. Protect your battery-powered drill/screwdriver and charger from the damp and rain.
2. Keep the charger and battery-powered drill/screwdriver safe from children.
3. Use only sharp drill bits and undamaged, properly fitting screwdriver bits.
4. Wear suitable working clothes and safety goggles.
5. Never use the battery-powered drill/screwdriver and charger in the vicinity of vapours and combustible liquids.
6. Look for concealed electric cables, gas pipes and water pipes before drilling and screwdriving in walls.
7. Never throw old batteries into an open fire. Risk of explosion!

GB

1. Avoid contact with leaky batteries. Should contact arise nevertheless, wash the affected area of skin immediately with soap and water. If battery acid gets in your eye, rinse the eye with clear water for at least 10 minutes and consult a doctor immediately.
2. Protect the charger and its cable from damage and sharp edges. Damaged cables are to be replaced immediately by an electrician.
3. Examine your tool for any signs of damage. Have repairs carried out only by an electrician.
4. Make sure that the contacts of the Ni-Cd battery pack do not touch other metallic objects, e.g. nails and screws. Risk of short-circuiting!

Putting into operation:

Loading the Ni-Cd battery pack

1. Check that your mains voltage is the same as that quoted on the rating plate. Insert the charger in a socket-outlet.
2. Pull the battery pack out of the handle (Figure 5) by depressing the clips on the side.
3. nsert the battery pack in the charger. The red light comes as a sign that the battery pack is being charged. The green LED comes on to signal that the

charging is completed. It takes 1 hour to charge an empty battery. The temperature of the battery may rise slightly during the charging operation. This is normal.

If the battery pack fails to become charged, please check

● whether there is voltage at the socket-outlet
● whether there is proper contact at the charging contacts on the charger.

If the battery still fails to become charged, please return

● the charger

● the battery pack to our Customer Service Department.

Timely recharging of the Ni-Cd battery pack is recommended in the interest of long battery life. Recharging is always necessary when you notice that the power of the battery-powered drill/screwdriver is decreasing.

Never allow the battery pack to discharge completely. This will result in damage to the Ni-Cd battery pack!

Adjusting the torque (Figure 1)

The Einhell battery-powered drill/screwdriver is equipped with a 17-step mechanical torque adjustment facility. The torque for a speci-

GB

fic size of screw is selected with the set-collar (Figure 1). The correct torque depends on several factors:

● on the type and hardness of material in question
● on the type and length screws used
● on the requirements needing to be met by the screwed joint.

The clutch disengages with a gra- ting sound to indicate when the set torque is reached.

Selecting drill or hammer mode (Figure 2)

For normal drilling, turn the front set-collar to the „drill“ symbol. For drilling with hammer action, turn the front set-collar to the „hammer“ symbol and the set-collar for torque adjustment to the „drill“ symbol.

Changing over from 1st gear to 2nd gear (Figure 3)

You can work at a higher or lower speed depending on the position of the selector switch. To avoid damaging the gear unit you should only change over gears when the tool has stopped.

Drilling

For drilling purposes, move the set-collar to the last step „Drill“ (Figure 1). In this setting the slip clutch is inactive. The maximum torque is

available in drilling mode.

Forward/Reverse switch (Figure 4)

With the slide switch above the On/Off switch you can select the direction of rotation of the battery-powered drill/screwdriver and secure it against being switched on accidentally. You can choose between clockwise and anticlockwise rotation. To avoid causing damage to the gearing it is advisable to change the direction of rotation only when the tool is at a standstill. The On/Off switch is blocked when the slide switch is in centre position.

On/Off switch (Figure 5)

Infinitely variable speed control is possible with the On/Off switch. The further you press the switch, the higher the speed of the battery-powered drill/screwdriver.

Screwdriving

We recommend using self-centering screws (e.g. Torx screws, recessed head screws) designed for reliable working. Be sure to use a bit that matches the screw in shape and size. Set the torque, as described elsewhere in these operating instructions, to suit the size of screw.

Technical data

GB

Voltage supply 24 V =

Speed 0-400 / 0-1150 rpm

Torque 17 levels

Forward and reverse rotation yes

Chuck clamping width 2 - 13 mm

Battery charging voltage 24 V =

Battery charging current 2 A

Mains voltage for charger 230 V ~ 50 Hz

Sound pressure level LPA: 72 dB(A)

Sound power level LWA: 82 dB(A)

Vibration a_W < 2,5 m/s ^2

Weigth: 2,3 kg

Old and defective batteries do not belong in the refuse bin. Think of the environment! Cadmium is toxic. For correct disposal, return old and defective batteries postage-paid to ISC or take them to your local old battery depot. Ask at your town hall for details of the old battery depots in your area.

F

The undersigned declares in the name of the company that the product is in compliance with the following guidelines and standards.

Eschenstraße 6 · D-94405 Landau/Isar (Germany)

Technical changes subject to change

The guarantee period begins on the sales date and is valid for 2 years.

Responsibility is assumed for faulty construction or material or functional defects.

Any necessary replacement parts an necessary repair work are free of charge.

We do not assume responsibility for consequential damage.

Your customer service partner

GARANTIBEVIS

YU MP Trading d.o.o.

Cika Liubina 8/IV

YU 11000 Beograd

GR An. Mayrofidopoulos S.A.

Technical & Commercial company

12, Papastratou & Asklipiou Str.

GR 18545 Piräus

Tel [phone], Fax [phone]

RUS Bermas

Altufyevskove shosse, 2A

RUS 127273 Moscow

Tel [phone], Fax [phone]

EH 01/2003
