Serie 6 BGS41HYG1 - Vacuum Cleaner BOSCH - Free user manual and instructions

Product type	Vacuum cleaner with bag
Brand	Bosch
Model	Series 6 BGS41HYG1
Power supply	Mains (power cord)
Power	Varies by model
Brush type	Adaptable floor brush with click fastening
Telescopic tube	With push button and click fastening
Handle	Remote-Power-Control with AAA batteries (LR03)
Filters	Fluff filter, dust container filter, exhaust filter
Control	On/Off switch with infrared receiver, Sensor Control
Indicator	Sensor Control light (flashing or steady red)
Parking position	Yes
Storage position	Yes
Dust container capacity	Variable (not specified in the manual)
Usage	Private domestic use, enclosed rooms, altitude ≤ 2000 m
Maintenance	Filter cleaning, emptying container, battery replacement
Handle batteries	2 AAA batteries (LR03)
Cord length	Not specified
Included accessories	Hose, telescopic tube, floor brush, handle
Safety	Do not vacuum liquids, hot or hazardous substances; use original parts
Customer service	See contact details at the end of the manual or on the website

Frequently Asked Questions - Serie 6 BGS41HYG1 BOSCH

How to use the Remote-Power-Control handle?

Insert two AAA batteries into the handle. To turn on, press the switch button. Communication with the device is via infrared. If it does not work, check the batteries or clean the emitters/receivers.

What to do if the device does not work?

Check that the cord is plugged in and the socket is powered. If the device remains off, unplug it and contact customer service. Do not attempt repairs yourself.

How to empty the dust container?

Turn off the device. Press the container release button (14) to remove it. Open the rear flap (11) and empty the container. Close and reinsert.

How to clean the dust container filters?

Remove the dust container. Clean the filters under running water or tap them. Let dry completely before replacing. Never use without filter.

Why is the Sensor Control light flashing red?

The flashing light indicates that the dust container filter is dirty. Clean the container filters. If the light stays on red, the container is full or the fluff filter is dirty.

How to change the handle batteries?

Open the battery compartment on the back of the handle. Replace the two used batteries with new AAA batteries. Observe polarity. Close the compartment.

What to do if suction power is low?

Increase power by turning the dial. Check that the container is not full, filters are not dirty, and the brush or hose is not clogged.

How to clean the turbo brush brush?

If the rotating brush of the turbo brush does not turn, it is probably dirty. Clean the rotating brush by removing entangled hairs or debris.

Can I vacuum liquids with this vacuum cleaner?

No, the vacuum cleaner is designed only for dry dust vacuuming. Never vacuum liquids, damp substances, ashes, or construction debris.

How to dispose of the used device?

Unplug the device and cut the power cord. Dispose of it in accordance with European Directive 2012/19/EU. Take it to a collection point for used electrical appliances.

USER MANUAL Serie 6 BGS41HYG1 BOSCH

QR code image containing encoded data, no visible human-readable text

[de]	Scannen Sie den QR-Code oder besuchen Sie die Webseite, um die erweiterten Hinweise zur Benutzung zu öffnen. Dort finden Sie zusätzliche Informationen zu Ihrem Gerät oder Zubehör.
[en]	Scan the QR code or visit the website to open the Further Notices for Use. You can find additional information about your appliance or accessory here.
[fr]	Scanner le code QR ou visiter le site Web pour ouvrir les informations d'utilisation complémentaires. Vous y trouverez des informations supplémentaires concernant votre appareil ou accessoire.
[it]	Scansionare il codice QR oppure visitare il sito Web per indicazioni dettagliate sull'uso. Si trovano informazioni aggiuntive sull'apparecchio o gli accessori.
[nl]	Scan de QR-code of bezoek de website om de uitgebreide gebruiksinstructies te openen. Hierin vindt u meer informatie over het apparaat of toebehoren.
[es]	Para abrir las indicaciones ampliadas sobre el uso, visite la página web o escanee el código QR. Allí encontrará más información sobre el aparato o los accesorios.
[pt]	Leia o código QR ou visite a página web para abrir as indicações avançadas relativas à utilização. Aí encontra informações adicionais sobre o seu aparelho ou acessório.
[el]	Σαρώστε τον κωδικό QR ή επισκεφτείτε την ιστοσελίδα, για να ανοίξετε τις διευρυμένες υποδείξεις για τη χρήση. Εκεί θα βρείτε πρόσθετες πληροφορίες για τη ουσκευή σας ή τα εξαρτήματα.
[tr]	Ayrıntılı kullanım bilgilerine ulaşmak için QR kodu taratın veya web sayfasını ziyaret ediniz. Cihaz ve aksesuarlar ile ilgili ayrıntılı bilgileri bu şekilde edinebilirsiniz.
[pl]	Aby uzyskać rozszerzone informacje na temat zastosowań urządzenia, należy zeskanować kod QR albo wejść na stronę internetową. Można tam znaleźć dodatkowe informacje na temat posiadanego urządzenia i akcesoriów.
[hu]	Olvassa be a QR-kódot vagy keresse fel a weboldalt a kibővített használati utasítás megnyitásához. Ott ki-egészítő információkat talál a készülékkel vagy tartozékkal kapcsolatban.
[kk]	QR- кодын сканерленіз немесе кенейтілген пайдалану нүсқаулықты ашу үшін веб-сайтқа кірініз. Онда сіз құрылғы немесе керек-жарактар туралы көбірек акпарат таба аласыз.
[ru]	Чтобы узнать больше о пользовании, отсканируйте QR-код или зайдите на сайт. Там вы найдете более подробные сведения о приборе и принадлежностях.
[bg]	Сканирайте QR кода или посетете уебстраницата, за да отворите разширените указания за използването. Там ще откриете допълнителна информация за Вашия уред или принадлежност.
[uk]	Щоб отримати докладніші вказівки з користування, зіскануйте QR-код або відвідайте сайт. Там ви знайдете додаткові відомості про прилад або приладдя.
[az]	İstifadəniz üçün daha geniş göstərişləri açmaqdan ötrü, QR-kodunu skan edin və ya veb sahifəyə daxil olun. Oradan Siz cihaziniz və aksessuariniza dair əlave məlumat tapa bilərsiniz.
[ka]	құқұлұзбөмғоқ QR-здққо әб ғұздғоқ әзд ғздғққққ құқққ ғұқұлбққ ғздқұмұбғдқ құқбққ қдөөөөөөөөөөөөөөөөөөөөөөөөөөөөөөөөөөөөөөөөөөөөөөөөөөөөөөөөөөөөөөөөөөөөөөөөөөөөөөөөөөөөөөөөөөөөөөөөөөөөүдмұымөндөндөндөндөндөндөндөндөндөндөндөндөндөндөндөндөндөндөндөндөндөндөндөндөндөндөндөндөндөндөндөндөндөндөндөндөндөндөндөндөндөндөндөндөндөндөндөндөндөндөнзүнзүнзүнзүнзүнзүнзүнзүнзүнзүнзүнзүнзүнзүнзүнзүнзүнзүнзүнзүнзүнзүнзүнзүнзүнзүнзүнзүнзүнзүнзүнзүнзүнзүндөндөндөндөндөндөндөндөндөндөндөндөндөндөндөндөндөндөндөндөндөндөндөндөндөндөндөндөндөндөндөндөндөндөндөндөндөндөндөндөндөндөндөндөндөндөндөндөндөндегнүнзүнзүнзүнзүнзүнзүнзүнзүнзүнзүнзүнзүнзүнзүнзүнзүнзүнзүнзүнзүнзүнзүнзүнзүнзүнзүнзүнзүнзүнзүнзүнзүнзэгнүнзүнзүнзүнзүнзүнзүнзүнзүнзүнзүнзүнзүнзүнзүнзүнзүнзүнзүнзүнзүнзүнзүнзүнзүнзүнзүнзүнзүнзүнзүнзүнзүнЗАТЫНЗАТЫНЗАТЫНЗАТЫНЗАТЫНЗАТЫНЗАТЫНЗАТЫНЗАТЫНЗАТЫНЗАТЫНЗАТЫНЗАТЫНЗАТЫНЗАТЫНЗАТЫНЗАТЫНЗАТЫНЗАТЫНЗАТЫНЗАТЫH3A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A10A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A2A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A8A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A5A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A6A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A4A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A3A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7A7B3A3A3A3A3A3A3A3A3A3A3A3A3A3A3A3A3A3A3A3A3A3A3A3A3A3A3A3A3A3A3A3A3A3A3A3A3A3A3A3A3A3A3A3A3A3A3A3A3A3A3B3B3B3B3B3B3B3B3B3B3B3B3B3B3B3B3B3B3B3B3B3B3B3B3B3B3B3B3B3B3B3B3B3B3B3B3B3B3B3B3B3B3B3B3B3B3B3B3B3B3C3B3B3B3B3B3B3B3B3B3B3B3B3B3B3B3B3B3B3B3B3B3B3B3B3B3B3B3B3B3B3B3B3B3B3B3B3B3B3B3B3B3B3B3B3B3B3B3B3B3A3B3B3B3B3B3B3B3B3B3B3B3B3B3B3B3B3B3B3B3B3B3B3B3B3B3B3B3B3B3B3B3B3B3B3B3B3B3B3B3B3B3B3B3B3B3B3B3B3A3A3A3A3A3A3A3A3A3A3A3A3A3A3A3A3A3A3A3A3A3A3A3A3A3A3A3A3A3A3A3A3A3A3A3A3A3A3A3A3A3A3A3A3A3A3A3A3A2A3A3A3A3A3A3A3A3A3A3A3A3A3A3A3A3A3A3A3A3A3A3A3A3A3A3A3A3A3A3A3A3A3A3A3A3A3A3A3A3A3A3A3A3A3A3A3A3A3A2B3B3B3B3B3B3B3B3B3B3B3B3B3B3B3B3B3B3B3B3B3B3B3B3B3B3B3B3B3B3B3B3B3B3B3B3B3B3B3B3B3B3B3B3B3B3B3B3B3B4B3B3B3B3B3B3B3B3B3B3B3B3B3B3B3B3B3B3B3B3B3B3B3B3B3B3B3B3B3B3B3B3B3B3B3B3B3B3B3B3B3B3B3B3B3B3B3B3B3B6B3B6B3B6B3B6B3B6B3B6B3B6B3B6B3B6B3B6B3B6B3B6B3B6B3B6B3B6B3B6B3B6B3B6B3B6B3B6B3B6B3B6B3B6B3B6B3B6B3B7B3B6B6B6B6B6B6B6B6B6B6B6B6B6B6B6B6B6B6B6B6B6B6B6B6B6B6B6B6B6B6B6B6B6B6B6B6B6B6B6B6B6B6B6B6B6B6B6B6B6B6B7B3B3B3B3B3B3B3B3B3B3B3B3B3B3B3B3B3B3B3B3B3B3B3B3B3B3B3B3B3B3B3B3B3B3B3B3B3B3B3B3B3B3B3B3B3B3B3B3B3B

QR code image containing encoded data, no visible human-readable text

Hand holding a blue tool with a black arrow pointing to the handle (no text or symbols visible)

CLICK

CLICK

Diagram of a device with bidirectional arrows indicating movement or force (no text or symbols)

Illustration of a hand using a tool to adjust a blue component on a car wheel (no text or symbols)

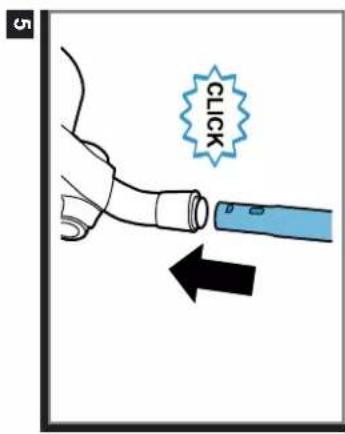

5 CLICK

CLICK

Illustration of a hand using a blue tool to adjust or install a car component, with no visible text or symbols.

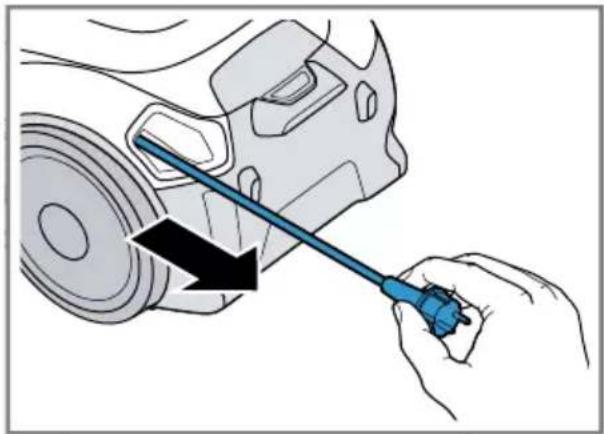

10

Line drawing of a hand adjusting a blue circular component on a mechanical device (no text or symbols)

The image is too blurry to recognize any text content.

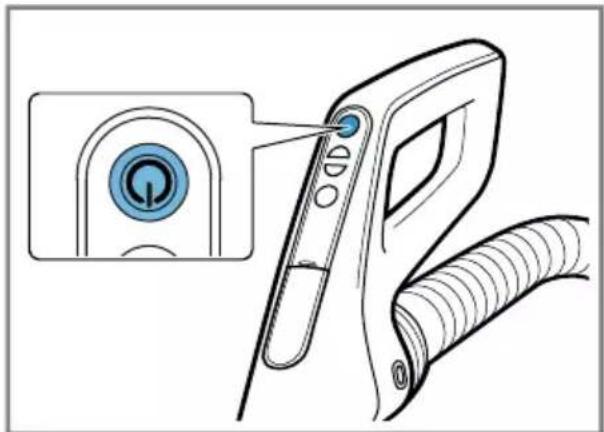

Diagram showing a device with a blue circular button labeled 'Q' and a close-up of its control panel, alongside a coiled cable.

12

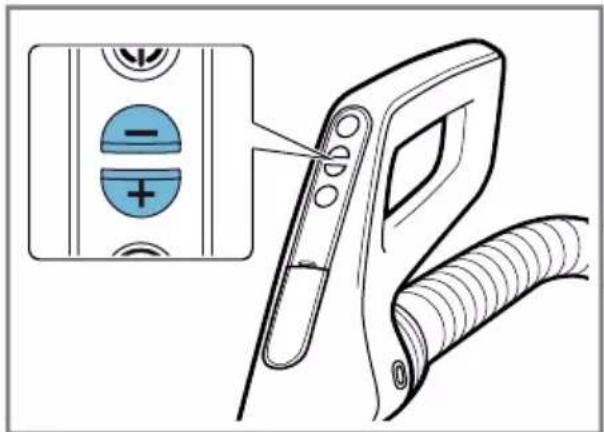

Diagram showing a device with labeled buttons and a magnified inset highlighting the negative and positive button.

The image is too blurry to recognize any text content.

Diagram illustrating a mechanical or electrical process with labeled components and directional arrows indicating motion or feedback.

14

Diagram of a car being adjusted to a blue vacuum cleaner's airbag, showing mechanical components and airflow direction (no text or symbols)

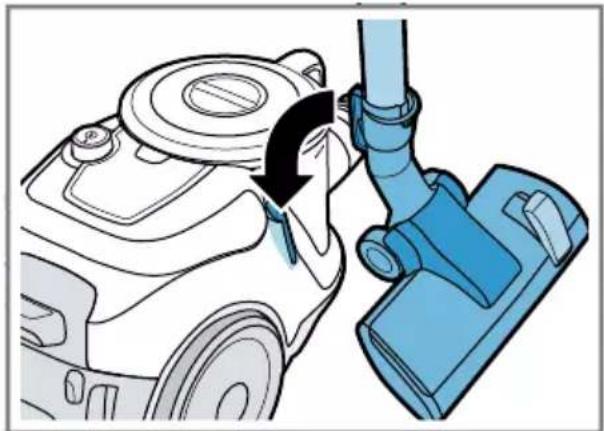

15

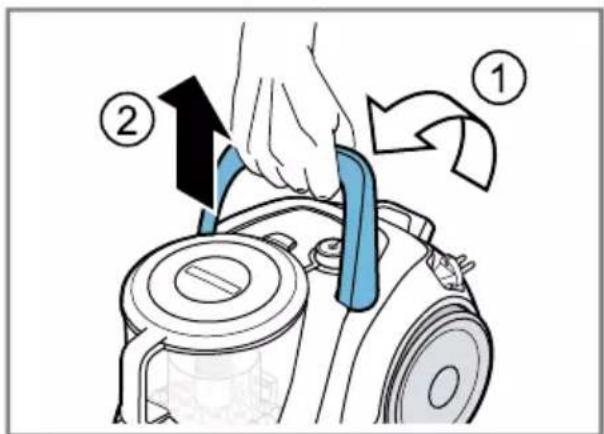

Diagram showing a hand using a blue tool to lift a vacuum cleaner, labeled with step numbers ① and ②.

16

Diagram showing a car's internal components with numbered annotations indicating assembly or inspection steps

The image is too blurry to recognize any text content.

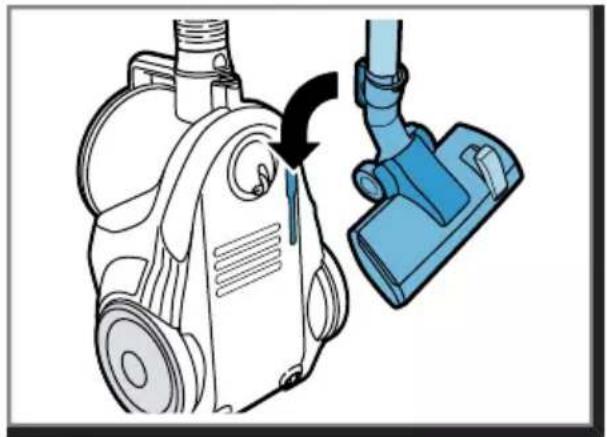

Illustration of a vacuum cleaner with a blue brush attachment, showing mechanical components and a close-up of the brush (no text or symbols present)

18

Diagram showing a mechanical device with labeled parts and directional arrows indicating motion or assembly steps.

19

Diagram of a blue safety device with numbered parts indicating different installation steps or components.

20

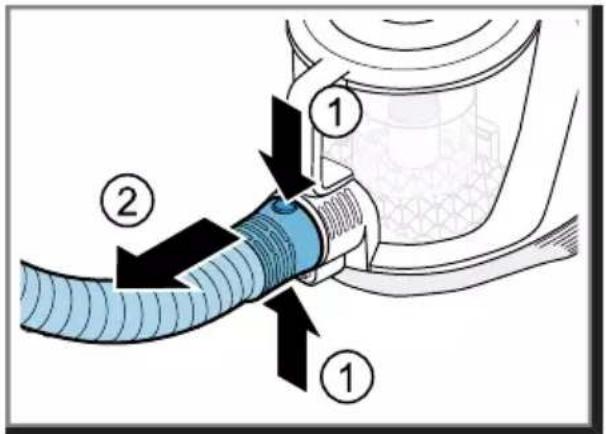

Diagram showing a blue hose being inserted into a device with numbered annotations indicating parts of the pipe connection.

21

Illustration showing a hand using a vacuum cleaner to check, with three blue X marks indicating inspection or rejection.

22

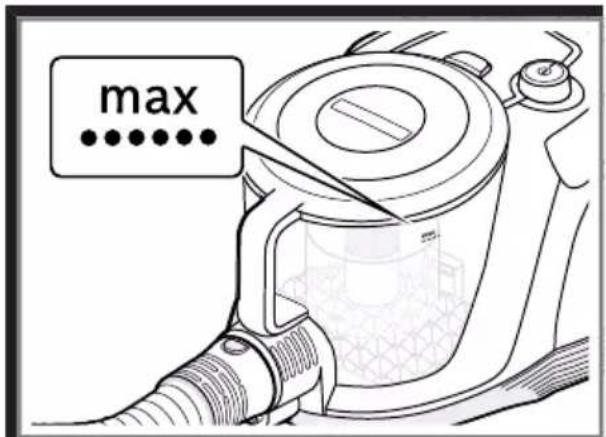

max

23

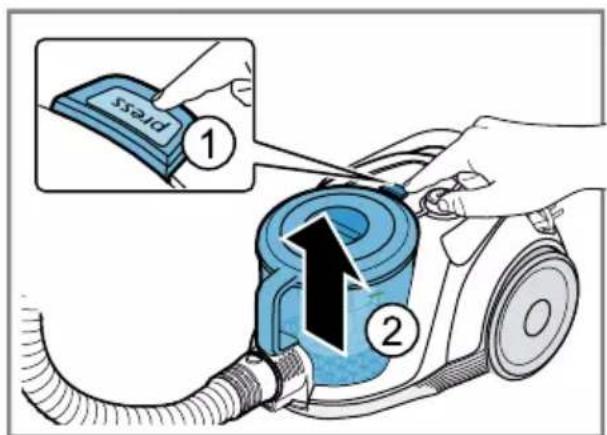

ssaid ① ②

24

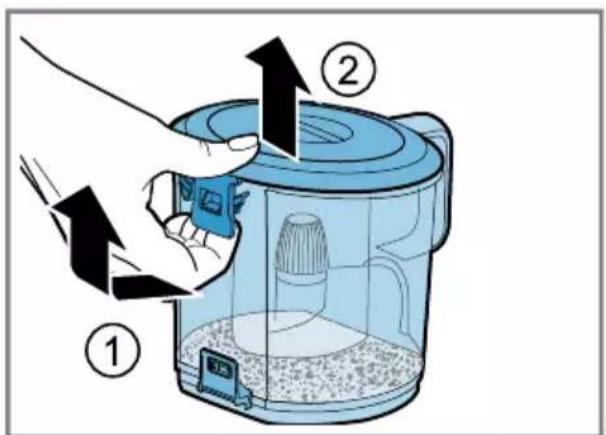

Diagram showing a hand inserting a device into a blue container with labeled parts ① and ②, indicating a process or installation step.

25

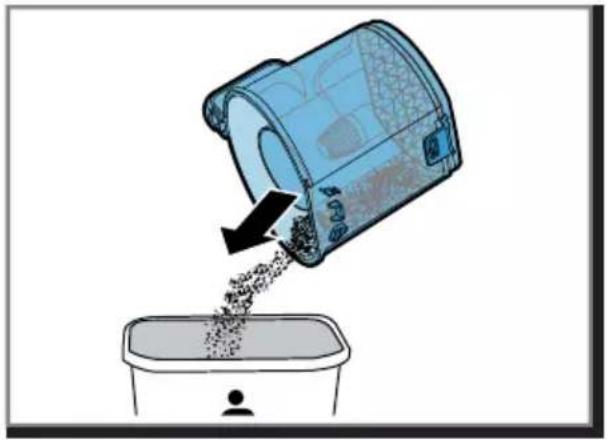

Illustration of a blue container pouring granular material into a container (no text or symbols)

26

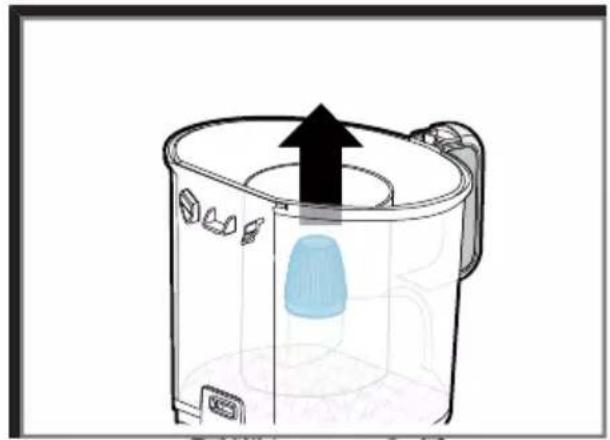

Diagram of a water heater with an upward arrow indicating flow or movement (no text or symbols present)

The image is too blurry to recognize any text content.

Illustration of a blue showerhead spraying water onto a blue showerhead (no text or symbols)

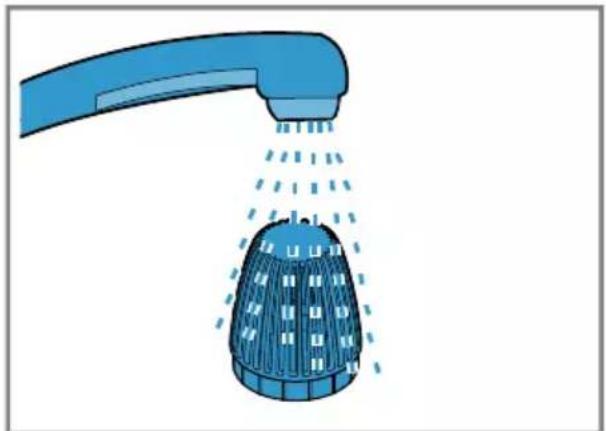

28

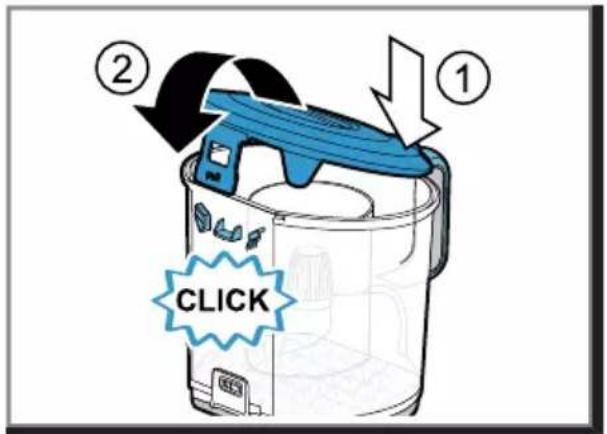

① ② CLICK

29

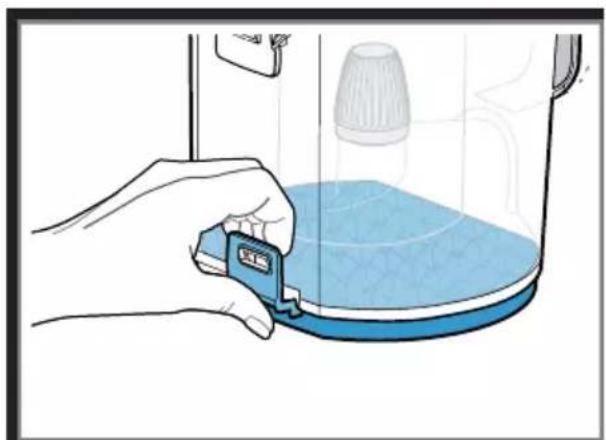

Illustration of a hand holding a blue digital stopwatch over a blue surface, with a small object above (no text or symbols)

30

Diagram of a kitchen sink with a blue mesh drain and black arrow indicating airflow direction (no text or symbols)

31

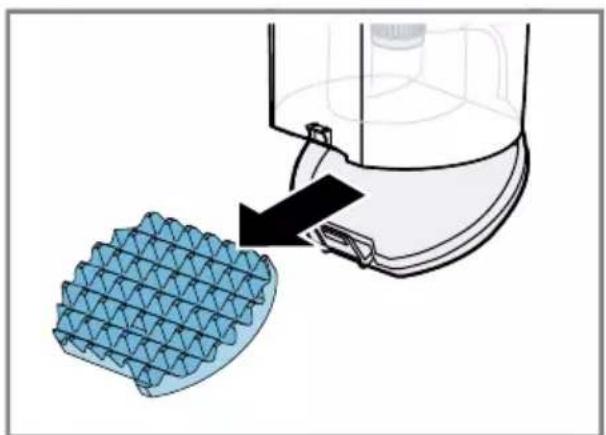

Diagram showing a blue mesh appliance next to a container with a black arrow pointing to it (no text or symbols present)

32

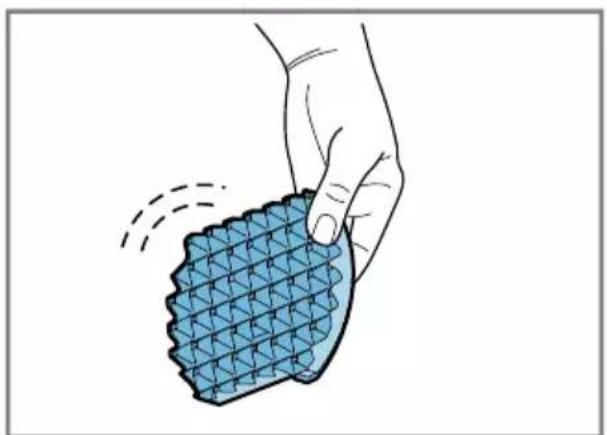

Illustration of a hand holding a blue textured surface with triangular patterns (no text or symbols)

The image is too blurry to recognize any text content.

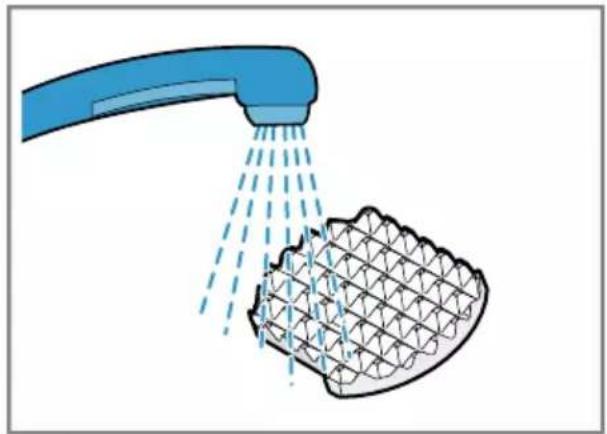

Illustration of a blue showerhead spraying water onto a meshed surface (no text or symbols)

34

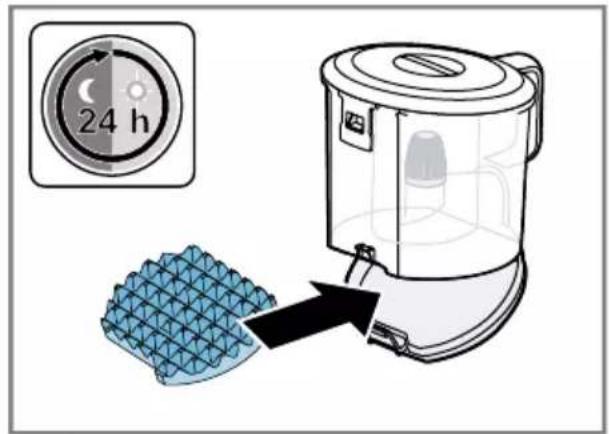

24 h

The image is too blurry to recognize any text content.

CLICK

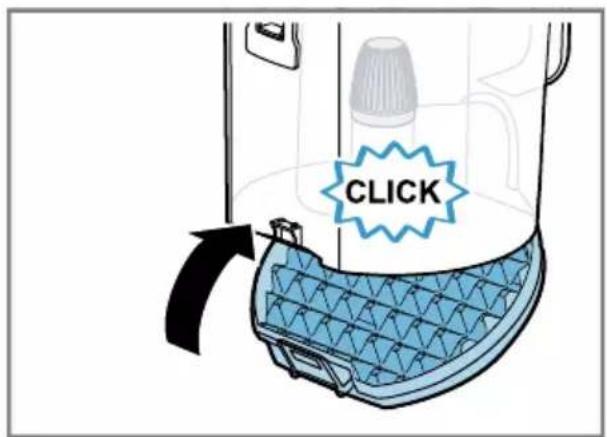

36

CLICK

37

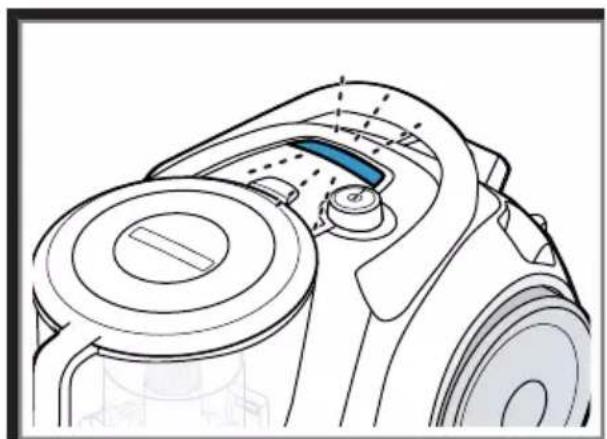

Technical line drawing of a mechanical device with no visible text or symbols

38

Illustration of hands using a blue mechanical switch to adjust a component (no text or symbols visible)

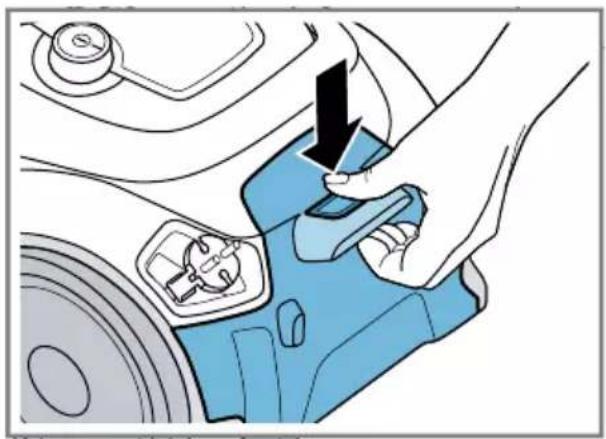

39

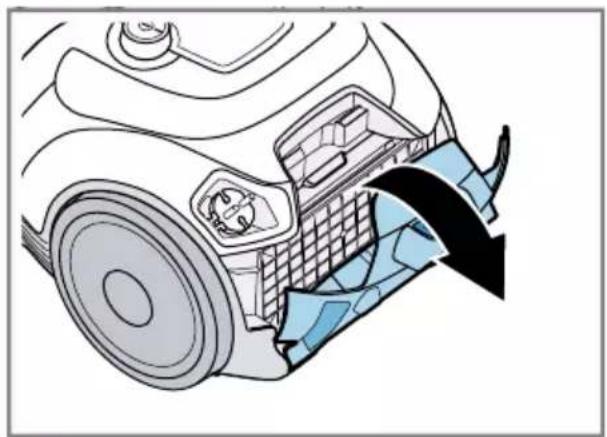

Diagram of a car interior showing engine compartment and air flow direction (no text or symbols)

40

Diagram showing a device's internal structure with labeled component '1' and directional arrow indicating assembly or operation.

The image is too blurry to recognize any text content.

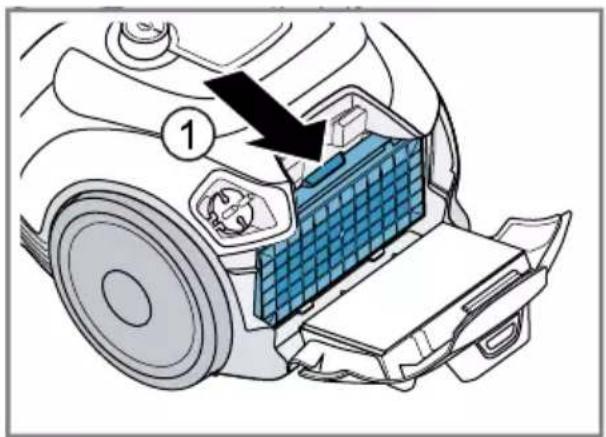

Diagram of a car interior showing a blue filter component inserted into the seat, with an upward arrow indicating direction (no text or symbols present)

42

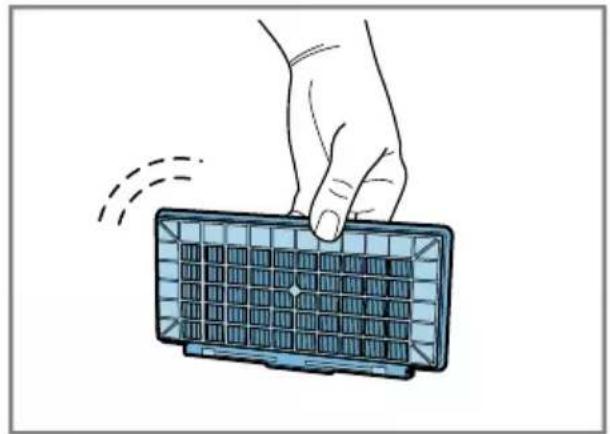

Illustration of a hand holding a grid-based device with a curved arrow indicating motion (no text or symbols)

The image is too blurry to recognize any text content.

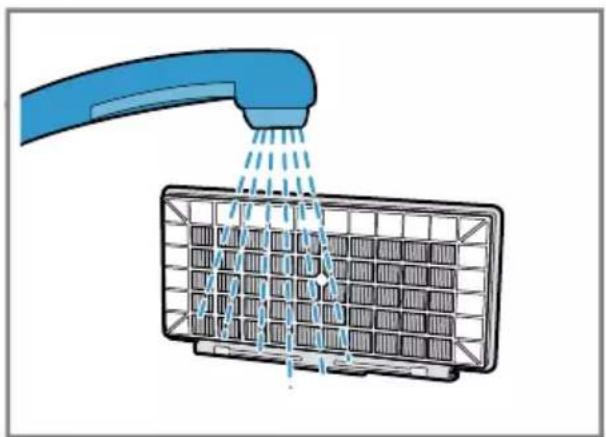

Diagram showing a blue showerhead spraying water onto a grid-patterned panel (no text or symbols)

44

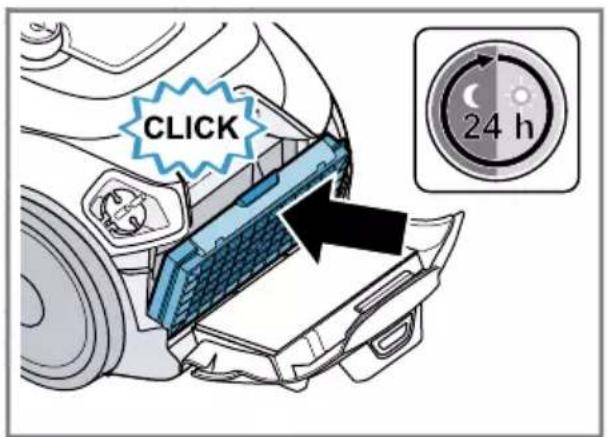

CLICK 24 h

The image is too blurry to recognize any text content.

Diagram of a car interior showing a grid-patterned panel and a blue battery cover with an upward arrow (no text or symbols)

46

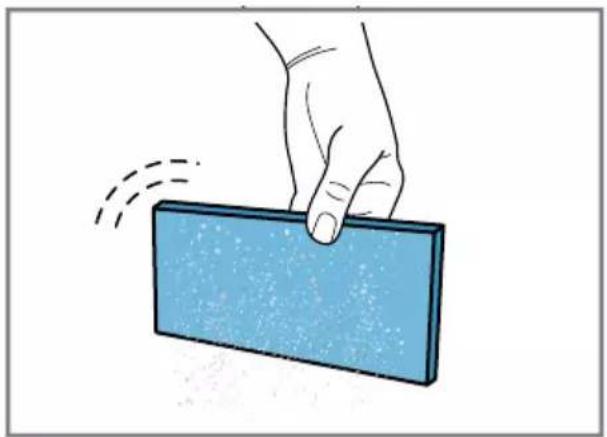

Illustration of a hand holding a blue rectangular object with motion lines indicating movement (no text or symbols)

The image is too blurry to recognize any text content.

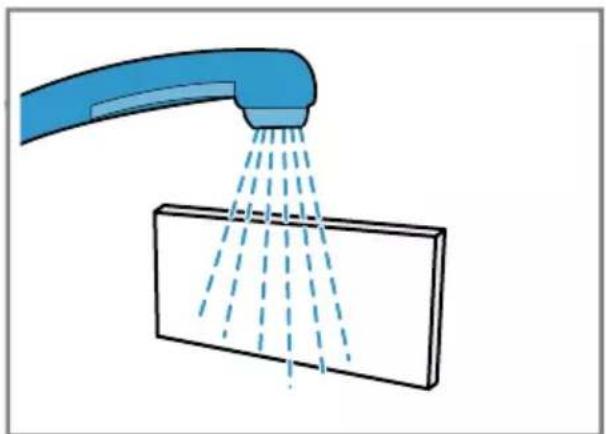

Illustration of a blue showerhead spraying water onto a rectangular surface (no text or symbols)

48

24 h

The image is too blurry to recognize any text content.

CLICK

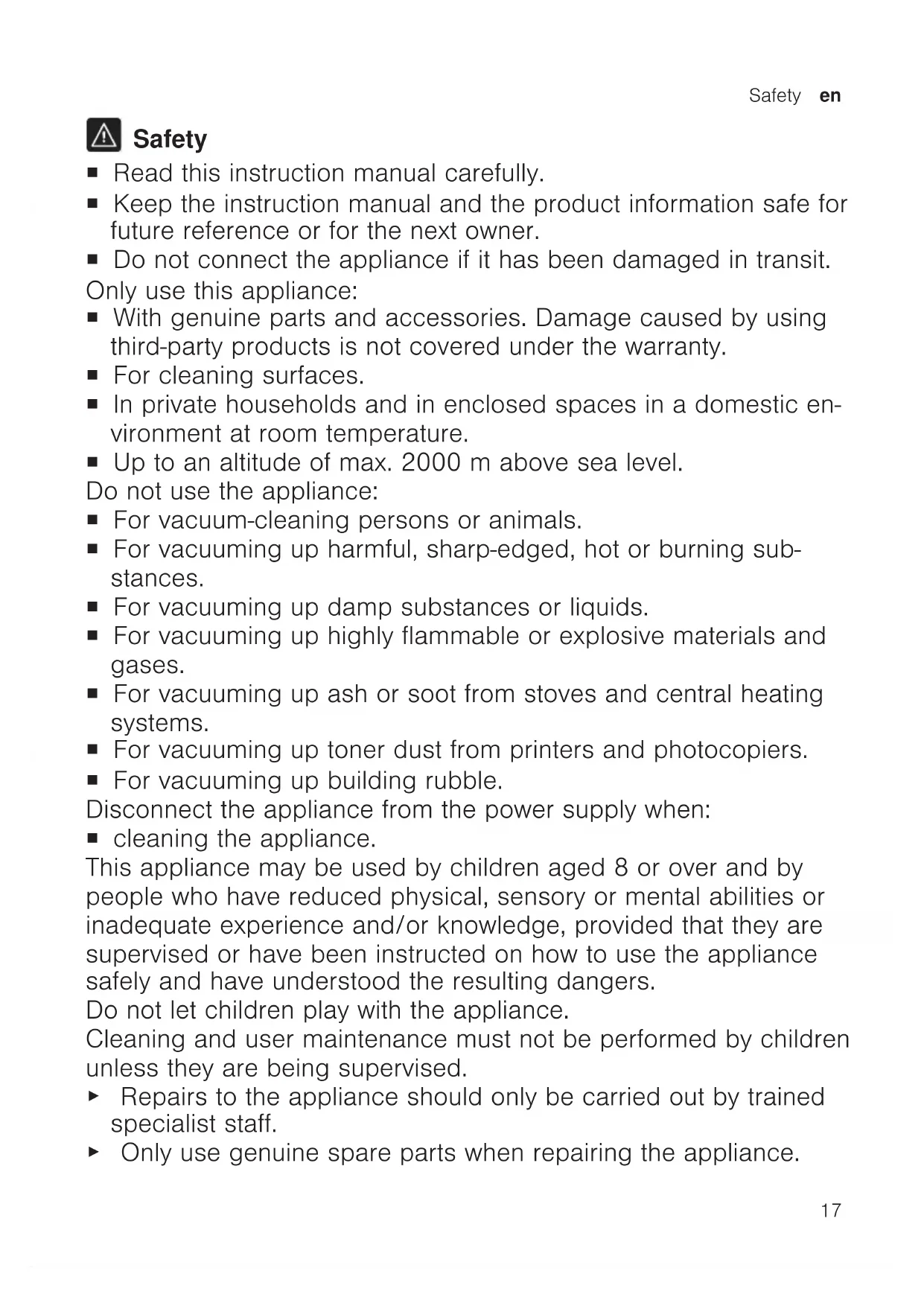

Sicherheit

• Read this instruction manual carefully.
• Keep the instruction manual and the product information safe for future reference or for the next owner.

■ Do not connect the appliance if it has been damaged in transit. Only use this appliance:

■ With genuine parts and accessories. Damage caused by using third-party products is not covered under the warranty.

■ For cleaning surfaces.

■ In private households and in enclosed spaces in a domestic environment at room temperature.

■ Up to an altitude of max. 2000 m above sea level.

Do not use the appliance:

■ For vacuum-cleaning persons or animals.
■ For vacuuming up harmful, sharp-edged, hot or burning substances.
■ For vacuuming up damp substances or liquids.
■ For vacuuming up highly flammable or explosive materials and gases.
■ For vacuuming up ash or soot from stoves and central heating systems.
■ For vacuuming up toner dust from printers and photocopiers.
■ For vacuuming up building rubble.

Disconnect the appliance from the power supply when:

■ cleaning the appliance.

This appliance may be used by children aged 8 or over and by people who have reduced physical, sensory or mental abilities or inadequate experience and/or knowledge, provided that they are supervised or have been instructed on how to use the appliance safely and have understood the resulting dangers.

Do not let children play with the appliance.

Cleaning and user maintenance must not be performed by children unless they are being supervised.

▶ Repairs to the appliance should only be carried out by trained specialist staff.
▶ Only use genuine spare parts when repairing the appliance.

en Safety

If the power cord of this appliance is damaged, it must be replaced by the manufacturer, the manufacturer's Customer Service or a similarly qualified person in order to prevent any risk.
▶ Never operate a damaged appliance.
▶ Never operate an appliance with a cracked or fractured surface.
▶ Never pull on the power cord to unplug the appliance. Always unplug the appliance at the mains.
▶ Never pull or carry the appliance by the power cord.
▶ If the appliance or the power cord is damaged, immediately unplug the power cord or switch off the fuse in the fuse box.
▶ Call customer services. → Page 21
▶ Only use the appliance in enclosed spaces.
▶ Never expose the appliance to intense heat or humidity.
- Do not use steam- or high-pressure cleaners to clean the appliance.
▶ Never let the power cord come into contact with hot appliance parts or heat sources.
▶ Never let the power cord come into contact with sharp points or edges.
▶ Never kink, crush or modify the power cord.
- Connect and operate the appliance only in accordance with the specifications on the rating plate.
- Connect the appliance to a power supply with alternating current only via a properly installed socket with earthing.
- The protective conductor system of the domestic electrical installation must be properly installed.
- When cleaning the appliance, do not use flammable substances or substances that contain alcohol.
▶ Pull out the power cord completely.
- Keep clothing, hair, fingers and other body parts away from the openings on the appliance and the moving parts.
▶ Never point the pipe or the nozzles towards eyes, hair, ears or mouths.
- When vacuuming stairs, ensure that there are no persons underneath the appliance.
- When taking a break from vacuuming, switch off the appliance and pull out the mains plug.

▶ Retract the power cord.
- When the cord is being rewound automatically, ensure that the mains plug is not thrown in the direction of persons, body parts, animals or objects.
▶ Do not charge the batteries.
▶ Do not short-circuit the batteries.
▶ Do not throw batteries into a fire.
- Keep packaging material away from children.
▶ Do not let children play with packaging material.

Preventing material damage

▶ Never place the appliance on the hose.
▶ Regularly check the running surfaces of the nozzles for wear.
▶ Replace worn nozzles.
▶ Never operate the appliance without the motor protection filter.
▶ Never operate the appliance without the exhaust filter.
▶ Do not short-circuit the terminals.
▶ Use the specified type of batteries only.
- Do not use different battery types together.
- Do not use new and used batteries together.
- Remove the batteries if you are not using the handle.
- Safely dispose of the empty or defective batteries in an environmentally friendly manner.

Overview

You can find an overview of the parts of your appliance here.

Note: Individual details and colours may differ, depending on the appliance model.

→ Fig. 1

1	Adjustable floor tool with click connection
2	Hose
3	Telescopic tube with sliding switch and click connection

4	Remote-Power-Control handle with two AAA LR03 batteries
5	Infrared transmitter
6	Power cord
7	Status display
8	Sensor Control indicator
9	Parking aid
10	Rear flap release button
11	Rear flap
12	Handle
13	On/Off switch with infrared receiver
14	Dust container release button
15	Fluff filter
16	Dust container
17	Dust container handle
18	Storage aid

Operation

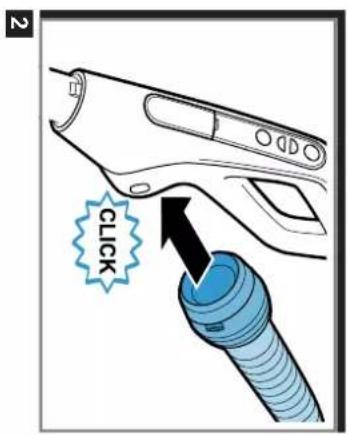

Installing the appliance

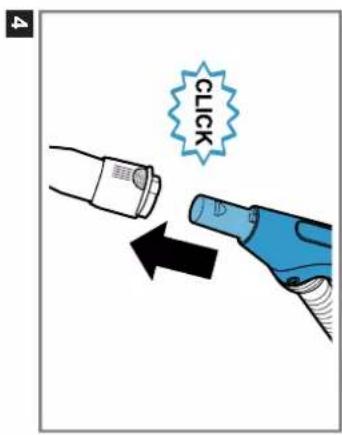

→ Fig. 2 - 5

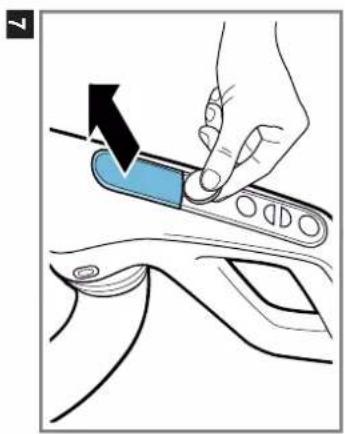

Starting up the handle ^1

→ Fig. 6 - 8

Operating the appliance

→ Fig. 9 - 18

en Cleaning and servicing

Removing the appliance

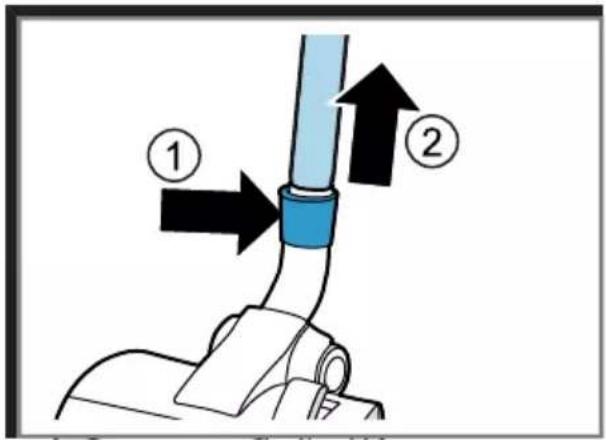

→ Fig. 19 - 21

Cleaning and servicing

To keep your appliance working efficiently for a long time, it is important to clean and maintain it carefully.

Cleaning the appliance

Requirement: The appliance is switched off.

- Clean the appliance and the accessory using a soft cloth and a commercially available plastic cleaner.

→ Fig. 22

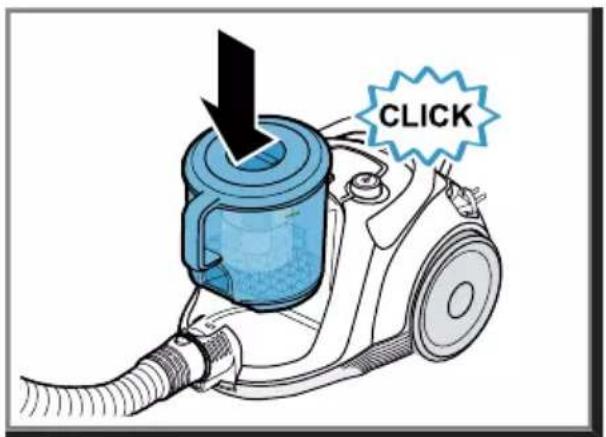

Emptying the dust container

→ Fig. 23 - 26

Cleaning the fluff filter

→ Fig. 27 - 29

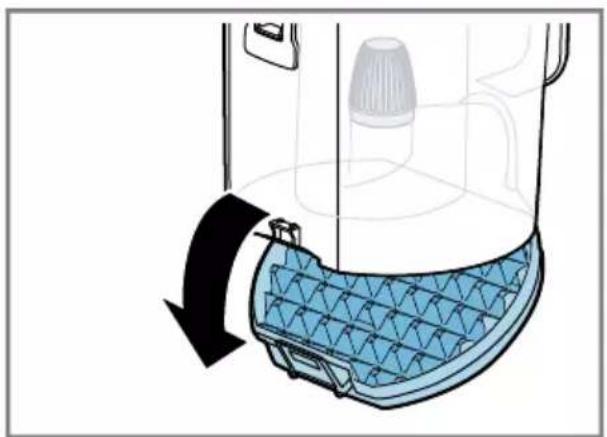

Cleaning the filter in the dust container

→ Fig. 30 - 37

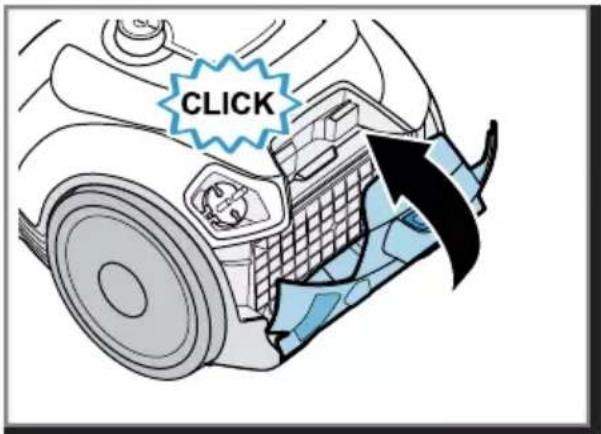

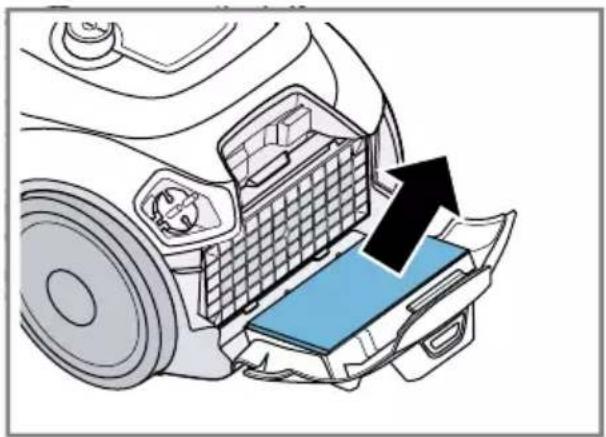

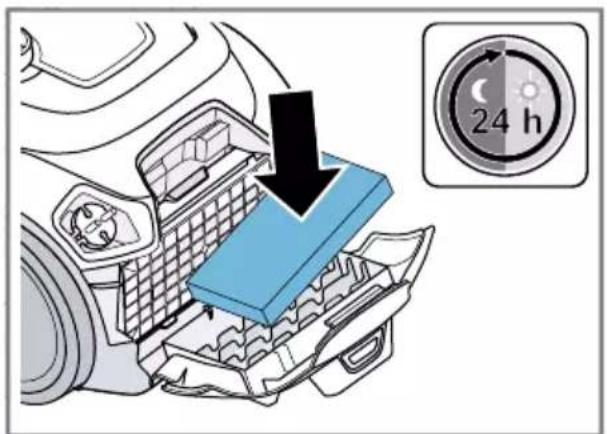

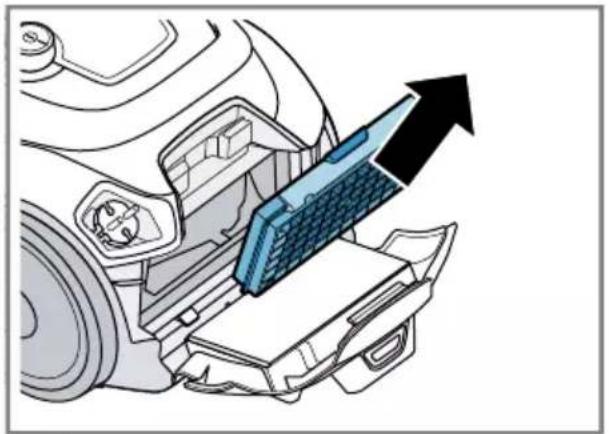

Cleaning the exhaust filter

→ Fig. 38 - 50

Changing the batteries

→ Fig. 7 - 8

Troubleshooting

▶ Repairs to the appliance should only be carried out by trained specialist staff.
▶ Only use genuine spare parts when repairing the appliance.
If the power cord of this appliance is damaged, it must be replaced by the manufacturer, the manufacturer's Customer Service or a similarly qualified person in order to prevent any risk.

The appliance is not working.

The Remote-Power-Control handle is not working.

The batteries are empty.

- Change the batteries in the Remote-Power-Control handle.

Wireless connection is faulty.

The infrared transmitter on the handle and/or the infrared transmitter on the On/Off switch are/is covered.

1. Remove any foreign objects.
2. Clean the Remote-Power-Control handle and the appliance.

The communication channel is faulty.

- Establish a direct connection between the infrared transmitter and the infrared receiver.

The appliance is adjusted to the lowest power level.

The Sensor Control indicator flashes red. Filter in the dust container is soiled.

1. Switch off the appliance.
2. Clean the filter in the dust container.

The appliance is adjusted to the lowest power level.

The Sensor Control indicator lights up red. Dust container is full

1. Check the fill level of the dust container.
2. Empty the dust container as needed.

Fluff filter is soiled.

▶ Clean the fluff filter.

Brush on the turbo nozzle does not turn.

Brush roller is soiled.

▶ Clean the brush roller.

Suction power is too low.

- Turn the power controller to maximum suction power.

Disposing of old appliance

1. Unplug the appliance from the mains.
2. Cut through the power cord.
3. Dispose of the appliance in an environmentally friendly manner. Information about current disposal methods are available from your specialist dealer or local authority.

This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment - WEEE). The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU.

Disposing of batteries

Batteries should be recycled in an environmentally friendly manner. Do not dispose of the batteries in the household rubbish.

- Dispose of batteries in an environmentally friendly manner.

According to the European Guideline 2006/66/EC, defective or used battery packs/batteries, must be collected separately and disposed of in an environmentally correct manner.

Customer Service

Detailed information on the warranty period and terms of warranty in your country is available from our after-sales service, your retailer or on our website.

The contact details for Customer Service can be found in the enclosed Customer Service directory or on our website.

Sécurité

Zuigvermogen is te gering.

- Troque as pilhas na pega Remote-Power-Control.

QR code image containing encoded data, no visible human-readable text

electrical and electronic

equipment - WEEE.(
