Product type	Electric convector
Brand	Adler
Model	AD 7750
Supply voltage	220-240 V ~ 50/60 Hz
Power	1800-2000 W
Heating powers	I : 1000 W, II : 2000 W
Dimensions (approx.)	50 x 30 x 40 cm
Weight (approx.)	5 kg
Thermostat	Adjustable, with automatic shut-off
Indicator light	Red operation indicator
Assembly	Castors included, screwed under the device
Overheat protection	Automatic shut-off in case of overheating
Tilt switch	Shut-off in case of tipping over
Maintenance and cleaning	Unplug, wipe with a damp cloth, do not immerse
Use	Indoor use only, 1 m away from flammable materials
Spare parts	Castors, assembly screws (included)
Repairability	Repairs by an authorized professional only
Warranty	Terms vary by use (domestic/commercial)
Number of pages in manual	88 pages

Frequently Asked Questions - AD 7750 ADLER

How to assemble the castors of the Adler AD 7750 heater?

Turn the device upside down, insert each wheel (7) into the designated hole, then place the screw (9) into the round hole in the base and tighten firmly with a screwdriver. Repeat for the second wheel, then turn the device right side up.

What are the available power settings?

Turn the heat knob (5) to position I for 1000 W or II for 2000 W. The thermostat (4) allows you to set the desired temperature.

How to adjust the thermostat to maintain a constant temperature?

Turn the thermostat (4) fully clockwise. When the desired temperature is reached, slowly turn counterclockwise until you hear a click: the indicator light goes out and the device maintains that temperature.

Why does my heater emit an odor or smoke during first use?

This is normal: new heating elements may emit an odor and smoke. This disappears after a short operating period.

What safety distances should be observed?

Place the device at least 1 meter away from flammable materials (furniture, curtains, bedding). Never cover the device and do not use it to dry laundry.

What to do if the heater turns off by itself?

This is likely due to overheating (blocked grilles) or tipping over. Unplug, let it cool for 30 minutes, remove the obstacle, and turn it back on. If the problem persists, contact your dealer.

How to clean the Adler AD 7750 heater?

Make sure it is cold and unplugged. Clean the exterior with a damp cloth (no abrasive detergents). Do not let water enter the interior and do not immerse the device.

Can I use the heater in a bathroom?

No, the device must not be used in very humid rooms (bathroom, shower, pool) to avoid short circuits. It is designed for dry indoor use.

Can the heater be left unattended?

It is not recommended to leave the device plugged in unattended, even for a short period. Turn it off and unplug it if you leave the room.

Where can I find spare parts for this model?

The castors and screws are included. For other parts, contact Adler after-sales service or an authorized dealer. Repairs must be carried out by a professional.

USER MANUAL AD 7750 ADLER

Exterior view of a white electric heater with gray base and control panel (no visible text or symbols)

AD 7750

8. 0 I II

Figure B

7. 7. 9. 7.

Figure C

ENGLISH

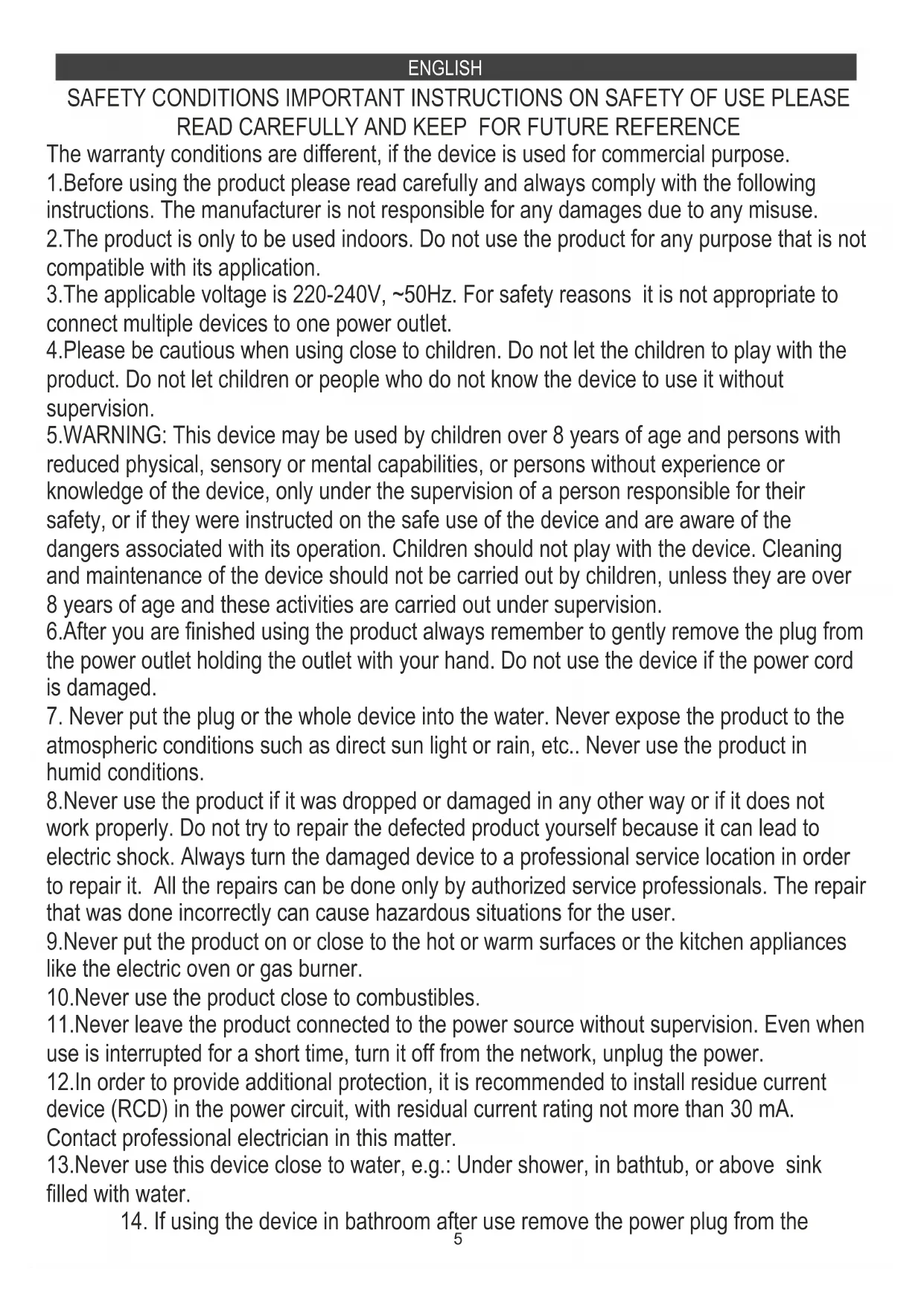

SAFETY CONDITIONS IMPORTANT INSTRUCTIONS ON SAFETY OF USE PLEASE READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

The warranty conditions are different, if the device is used for commercial purpose.

1. Before using the product please read carefully and always comply with the following instructions. The manufacturer is not responsible for any damages due to any misuse.
2. The product is only to be used indoors. Do not use the product for any purpose that is not compatible with its application.
3. The applicable voltage is 220-240V, \~50Hz. For safety reasons it is not appropriate to connect multiple devices to one power outlet.
4. Please be cautious when using close to children. Do not let the children to play with the product. Do not let children or people who do not know the device to use it without supervision.
   5.WARNING: This device may be used by children over 8 years of age and persons with reduced physical, sensory or mental capabilities, or persons without experience or knowledge of the device, only under the supervision of a person responsible for their safety, or if they were instructed on the safe use of the device and are aware of the dangers associated with its operation. Children should not play with the device. Cleaning and maintenance of the device should not be carried out by children, unless they are over 8 years of age and these activities are carried out under supervision.
5. After you are finished using the product always remember to gently remove the plug from the power outlet holding the outlet with your hand. Do not use the device if the power cord is damaged.
6. Never put the plug or the whole device into the water. Never expose the product to the atmospheric conditions such as direct sun light or rain, etc.. Never use the product in humid conditions.
7. Never use the product if it was dropped or damaged in any other way or if it does not work properly. Do not try to repair the defected product yourself because it can lead to electric shock. Always turn the damaged device to a professional service location in order to repair it. All the repairs can be done only by authorized service professionals. The repair that was done incorrectly can cause hazardous situations for the user.
8. Never put the product on or close to the hot or warm surfaces or the kitchen appliances like the electric oven or gas burner.
9. Never use the product close to combustibles.
10. Never leave the product connected to the power source without supervision. Even when use is interrupted for a short time, turn it off from the network, unplug the power.
11. In order to provide additional protection, it is recommended to install residue current device (RCD) in the power circuit, with residual current rating not more than 30 mA.
    Contact professional electrician in this matter.
12. Never use this device close to water, e.g.: Under shower, in bathtub, or above sink filled with water.
13. If using the device in bathroom after use remove the power plug from the

socket, because water proximity presents risk, even if the device is turned off.

1. Do not allow the device to get wet. If the device falls into water, immediately remove the power plug from the socket. If the device is powered, do not put hands in the water. Have the device checked by the qualified electrician before using it again.

2. Do not touch the device or power adaptor with wet hands.

3. Never use the device in high humidity rooms – bathroom, shower room, swimming pools etc. The humidity can cause short circuit, and effect in damaging the device.
4. Do not connect the device to the automatic switching device, for example temperature controlling device or time switch.
5. Flammable materials, for example furniture, bedclothes, paper, clothes, curtains should be kept at least one meter from the device.
6. The heating surfaces can heat to a temperature of 60^ C or higher. The device should be in a place that children and animals do not have access to.
7. The device is not intended to be installed or used in vehicles.
8. Some parts inside the device can be hot or cause sparking. Do not use the device in places, where gasoline, paints or other flammable materials are used or stored.
9. The device must not be located immediately below a socket-outlet.
10. Do not cover the device or put any objects on it while it is operating. Do not use the device to dry clothes.

"Caution Hot Surface" - The temperature of accessible surfaces may be higher when the equipment is in operation, which means that the housing elements become hot during operation, BE CAREFUL !!!

WARNING: In order to avoid overheating - do not cover the heater. The device is not to be covered with clothing, blankets and other textile products which could cause ignition.

WARNINGS:

- Do not use this heater in small rooms where there are people who are unable to leave them by themselves, unless constant supervision is ensured.

- To reduce the risk of fire, keep textiles, curtains or other flammable materials at least 1 m away from the heater air outlet.

ASEMBLY

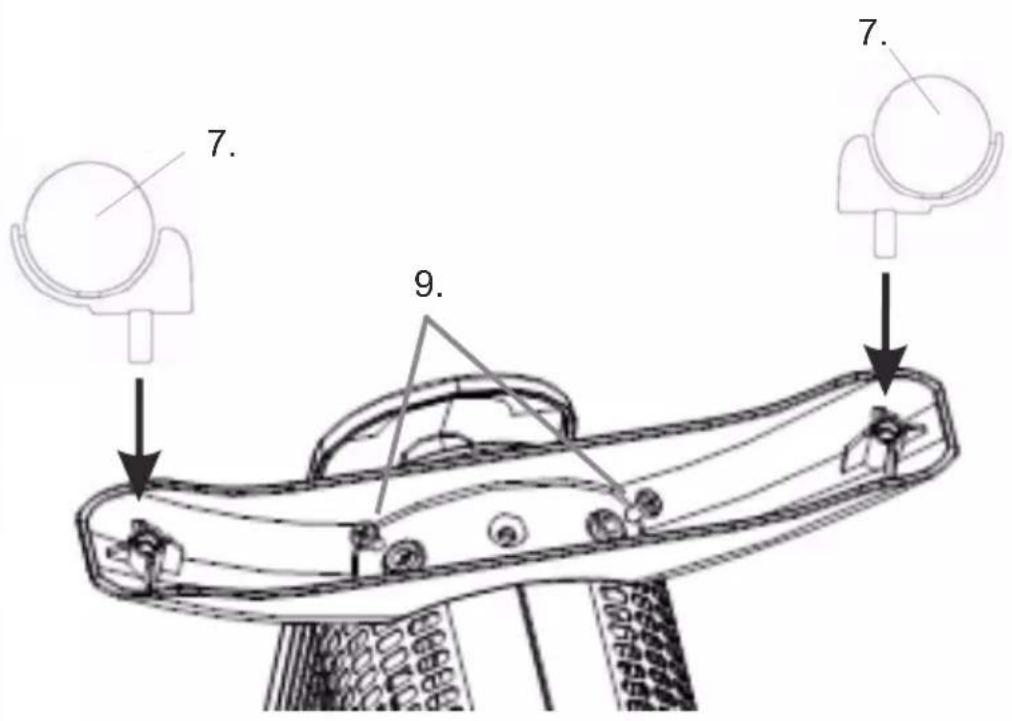

1. Before using the heater, the wheels (7) supplied separately in the carton, must be fitted to the device. Position the device carefully upside down.
2. Press wheel (7) to the hole – look at figure C. Next place the screw (9) in the round hole of the wheels' base and screw it tightly with a screwdriver.
3. Repeat for second wheel's base.
4. Turn the device the right way up.

BEFORE FIRST USE

1. Do not use the heater unless both bases with wheels are correctly assembled.
2. Do not place the device on carpets having a very high pile. Ensure that the device is not located close to curtains or furniture as this could create a fire hazard.
3. Place the device on flat, even surface.
4. Always unplug the device before moving it from one location to another.

WARNINGS:

1. It is normal when the heaters are turned on for the first time or when they are turned on after having not been used for a long period of time that the heating elements may emit some smell and fumes. The smell and fumes will disappear after short time of operation.

2. In order to avoid a hazard due to inadvertent resetting of the thermal cut-out this device must not be supplied through an external switching device such as a timer or connected to a circuit that is regularly switched on and off by the utility.

3. Do not use this heater in small rooms when they are occupied by persons not capable of leaving the room on their own, unless constant supervision is provided.

Device description: Convector heater – look at figure A

1. Handle

2. Air outlet grid

3. Indication lamp

4. Thermostat knob

5. Heating knob

6. Power cord storage

7. Wheels

8. Thermostat OFF position

9. Screws for wheel's base assembling

OPERATION

1. Place the device upright position on flat and stable surface with 1 meter distance to any other objects.
2. Ensure the heating knob (5) is at off position and thermostat is turned to off position (8). Plug in the device into a suitable socket.
3. The device operated when both the heating knob (5) and the thermostat knob (4) are active. The indication lamp (3) does not light on red when plugged into the power socket, it is lighting on when the heater is heating.

Switch on the device in two steps:

3a. Turn the heating knob (5) to position:

I – means heating power 1000W or II – means heating power 2000W

3b. Turn the thermostat knob (4) fully in a clockwise direction to the maximum setting. When the desired room temperature has been reached, the thermostat knob (4) should be turned slowly anti-clockwise until the thermostat is heard to click off and the indication lamp (3) will turn off. After this the device will keep the air temperature in the room at the set temperature by switching on and off automatically. The red indication lamp (3) will switch on and off at intervals when the heater is heating.

1. To switch off the device fully, turn the heating knob (5) to zero position and the thermostat knob (4) to off position (8), then the indication lamp (3) will turn off also.

SAFETY DEVICES

OVERHEAT PROTECTION This heater is protected with an over-heat protection cut-out facility that switches it off automatically if it overheats. Overheating can be caused by obstruction to the air in takes on the back of the heater or the grill on the front. If this occurs please disconnect the heater from the power socket and allow it to cool for 30 minutes. Remove any obstruction and turn the heater back on. The heater should operate normally. Should the problem persist contact your retail seller.

TIP-OVER SAFETY SWITCH The heater is fitted with a safety cut-out switch to switch the heater off if it is knocked over. If the heater is knocked over and the cut-out switch activates turn the heater off at the power outlet and take EXTREME care when standing the heater up right as it will still be hot. Inspect the heater for damage especially to the heating elements and supply cord. If any damage is visible do not operate the heater.

CLEANING AND MAINTENANCE

Make sure the device is not hot. Remove the plug from the socket before cleaning. Keep the inlet and outlet grids clean. Clean the outside of the heater by wiping with a damp cloth and buff with a dry cloth. Do not use any detergents or abrasives and do not allow any water to enter the heater. Do not immerse the device in water. Pack the device in bag to protect from the dust. Store it in a cool, dry place until next use.

TECHNICAL DATA

Voltage: 220-240V \~50/60Hz

Power: 1800-2000W

To protect your environment: please separate carton boxes and plastic bags and dispose them in corresponding waste bins. Used appliance should be delivered to the dedicated collecting points due to hazarsous components, which may effect the environment. Do not dispose this appliance in the common waste bin.
