Product Type	Fan Heater
Brand	Adler
Model	AD 7708
Dimensions (approx.)	25 x 15 x 20 cm
Weight (approx.)	1.5 kg
Power Supply	220-240 V ~ 50 Hz
Power Consumption	2000 W
Heating Power Levels	2 (1000 W / 2000 W)
Fan Speed Settings	2 (low / high)
Thermostat	Adjustable thermostat
Oscillation	Yes, 70° wide angle
Safety Features	Overheat protection, tip-over switch
Housing Material	Plastic, heat-resistant
Cleaning	Unplug and wipe with a dry cloth
Spare Parts Availability	Contact Adler customer service
Repair Information	Refer to user manual or authorized service center
Warranty	2 years

Frequently Asked Questions - AD 7708 ADLER

How do I turn on the Adler AD 7708 heater?

What should I do if the heater does not turn on?

How do I clean the AD 7708 heater?

Is the heater safe to leave unattended?

What is the power consumption of the heater?

Can I use the heater in a bathroom?

Why does the heater make a clicking sound?

How long does it take to heat a room?

Can the heater be used with an extension cord?

Where can I find spare parts or service?

USER MANUAL AD 7708 ADLER

White ADLER European electric heater with mesh grille and control panel (no visible text or symbols on body)

AD 7708

(GB) user manual

(F) mode d'emploi

ENGLISH

SAFETY CONDITIONS IMPORTANT INSTRUCTIONS ON SAFETY OF USE PLEASE READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

The warranty conditions are different, if the device is used for commercial purpose."

1. Before using the product please read carefully and always comply with the following instructions. The manufacturer is not responsible for any damages due to any misuse.

2. The product is only to be used indoors. Do not use the product for any purpose that is not compatible with its application.

3. The applicable voltage is 230V, \~50Hz. For safety reasons it is not appropriate to connect multiple devices to one power outlet.

4. Please be cautious when using around children. Do not let the children to play with the product. Do not let children or people who do not know the device to use it without supervision.

5. WARNING: This device may be used by children over 8 years of age and persons with reduced physical, sensory or mental capabilities, or persons without experience or knowledge of the device, only under the supervision of a person responsible for their safety, or if they were instructed on the safe use of the device and are aware of the dangers associated with its operation. Children should not play with the device. Cleaning and maintenance of the device should not be carried out by children, unless they are over 8 years of age and these activities are carried out under supervision.

6. After you are finished using the product always remember to gently remove the plug from the power outlet holding the outlet with your hand. Never pull the power cable!!!

7. Never put the power cable, the plug or the whole device into the water. Never expose the product to the atmospheric conditions such as direct sun light or rain, etc.. Never use the product in humid conditions.

8. Periodically check the power cable condition. If the power cable is damaged the product should be turned to a professional service location to be replaced in order to avoid hazardous situations.

9. Never use the product with a damaged power cable or if it was dropped or damaged in any other way or if it does not work properly. Do not try to repair the defected product yourself because it can lead to electric shock. Always turn the damaged device to a professional service location in order to repair it. All the repairs can be done only by authorized service professionals. The repair that was done incorrectly can cause hazardous situations for the user.

10. Never put the product on or close to the hot or warm surfaces or the kitchen appliances like the electric oven or gas burner.

11. Never use the product close to combustibles.

12.Do not let cord hang over edge of counter or touch hot surfaces.

1. Never leave the product connected to the power source without supervision. Even when use is interrupted for a short time, turn it off from the network, unplug the power.

2. In order to provide additional protection, it is recommended to install residue current device (RCD) in the power circuit, with residual current rating not more than 30 mA. Contact professional electrician in this matter.

1. Never use this device close to water, e.g.: Under shower, in bathtub, or above sink filled with water.

2. If using the device in bathroom after use remove the power plug from the socket, because water proximity presents risk, even if the device is turned off.

3. Do not allow the device or power adaptor to wet. If the device falls into water, immediately remove the power plug or power adaptor from the socket. If the device is powered, do not put hands in the water. Have the device checked by the qualified electrician before using it again.

4. Do not touch the device or power adaptor with wet hands.

5. Place the fan heater only on flat, stable surface

6. Always turn the fan heater off and set the thermostat dial to minimum before removing the power plug from the socket.
7. Never use the fan heater in high humidity rooms – bathroom, shower room, swimming pools etc. The humidity can cause short circuit, and effect in damaging the device.
8. The operating fan heater needs to be under supervision and in sight all the time. If you are leaving the room with the fan heater, always turn the fan heater off. If the fan heater is not used, the power plug has to be removed from the power outlet.
9. Do not connect the fan heater to the automatic switching device, for example temperature controlling device or time switch.
10. Flammable materials, for example furniture, bedclothes, paper, clothes, curtains should be kept at least one meter from the fan heater.
11. Do not cover the device or put any objects on it while it is operating. Do not use the device to dry clothes.
12. The power cord should not be placed above the fan heater, and it should not touch or be placed near hot surfaces of the fan heater. Do not place the fan heater directly under the power outlet.
13. The heating surfaces can heat to a temperature of 60 °C or higher. The fan heater should be in a place that children and animals do not have access to.
14. The device is not intended to be installed or used in vehicles.
15. Some parts inside the device can be hot or cause sparking. Do not use the fan heater in places, where gasoline, paints or other flammable materials are used or stored.

DESCRIPTION OF THE DEVICE

1. Thermostat dial

2. Power switch/heating power selector

(a) - cold airflow

(b) - 1000W

(c) - 2000W

USING THE DEVICE

The fan heater has two levels of heating power.

Position 0 - device is switched off

Position ✗ - unheated air flow

Position • - 1000 W warm air flow

Position ●● - 2000 W hot air flow

On both heating levels the temperature can be adjusted using thermostat dial (1).

The device is protected against the overheating by the means of a thermal switch, which can power it off for a while. If this happens, unplug the device and wait couple of minutes. After a while you can continue to use the device.

CLEANING AND MAINTENANCE

1. Make sure the fan heater is not hot.
2. Before cleaning the device remove the plug from the electrical socket.
3. Keep the air inlet and outlet openings clean. Do not allow dust to collect on the openings.
4. Clean the housing using only dry or moist cloth.
5. Do not immerse the device in water!

TECHNICAL DATA

Voltage: 220-240V \~50Hz

Power: 2000W

This device is made in class II insulation and does not require grounding.

The device is compliant with the requirements of the following standards:

The Low Voltage Standard (LVD)

Electromagnetic compatibility (EMC)

The product is CE marked on the nameplate

To protect your environment: please separate carton boxes and plastic bags and dispose them in corresponding waste bins. Used appliance should be delivered to the dedicated collecting points due to hazarsous components, which may effect the environment. Do not dispose this appliance in the common waste bin.

DEUTSCH

(a) - ar frio
(b) - 1000W
(c) - 2000W

BESCHRIJVING VAN HET APPARAAT

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Black and silver hair dryer with metallic handle and bulb (no visible text or symbols)

Hair Dryer Ad2224

Black iron frying iron with a silver strap (no text or symbols visible)

Hair Straightener Ad261

Hair Styler Ad203

Exterior view of a silver-colored electronic device (no visible text or symbols)

Kitchen Scale Ad3140

Steam Mop Ad7003

Exterior view of a modern electric juice maker with black and silver casing (no visible text or symbols)

Juice Extractor Ad4106

White handheld electronic device with curved handle and small buttons (no visible text or symbols)

Massanger Ad8406

White portable medical kit with a lid and handle (no visible text or symbols)

Portable Cooler Ad806

Metallic water heater with black handle and silver casing (no visible text or symbols)

Kettle Ad 1203

Front view of a standard office desk fan with visible blades and base (no text or symbols)

Table Fan Ad7302

Exterior view of a steam iron with visible steam drop and handle (no text or symbols)

Steam Iron Ad5014

Exterior view of a stainless steel electric oven with open lid and control knobs (no visible text or symbols)

Electric Oven Ad6001

Digital kitchen scale with four black buttons and a digital display showing '80" (no text or symbols on the scale itself)

Bathroom Scale Ad8121

Close-up of a silver computer mouse with a black handle and control buttons (no visible text or symbols)

Lint Remover Ad961

Exterior view of a modern electric heating fan with visible grille and heat sink (no text or symbols)

Fan Heater Ad7703

ADLER

EUROPE

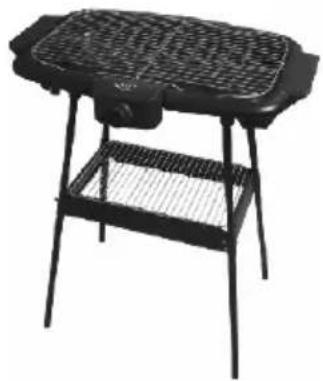

Black portable grill with mesh grille and side legs (no text or symbols visible)

ELECTRIC GRILL AD 6602

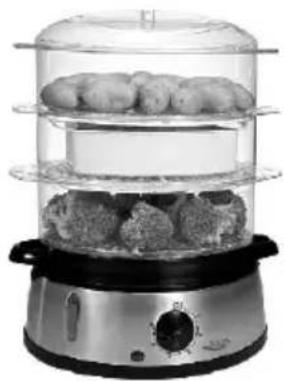

Steamed kitchen appliance with three-tiered steamer and food items (no visible text or labels)

STEAM COOKER AD 634

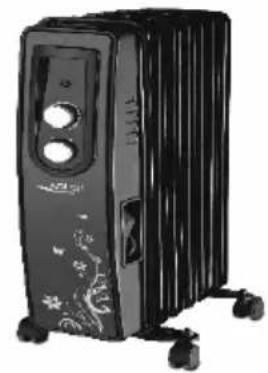

Black industrial air conditioner unit with floral decoration (no visible text or symbols)
