USER MANUAL YT-23247 Yato

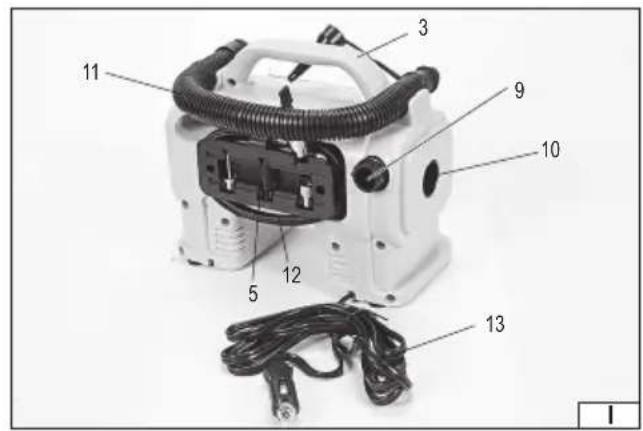

12. high-pressure hose

± K [dB(A)] 71,2 ± 3,0 - moc L

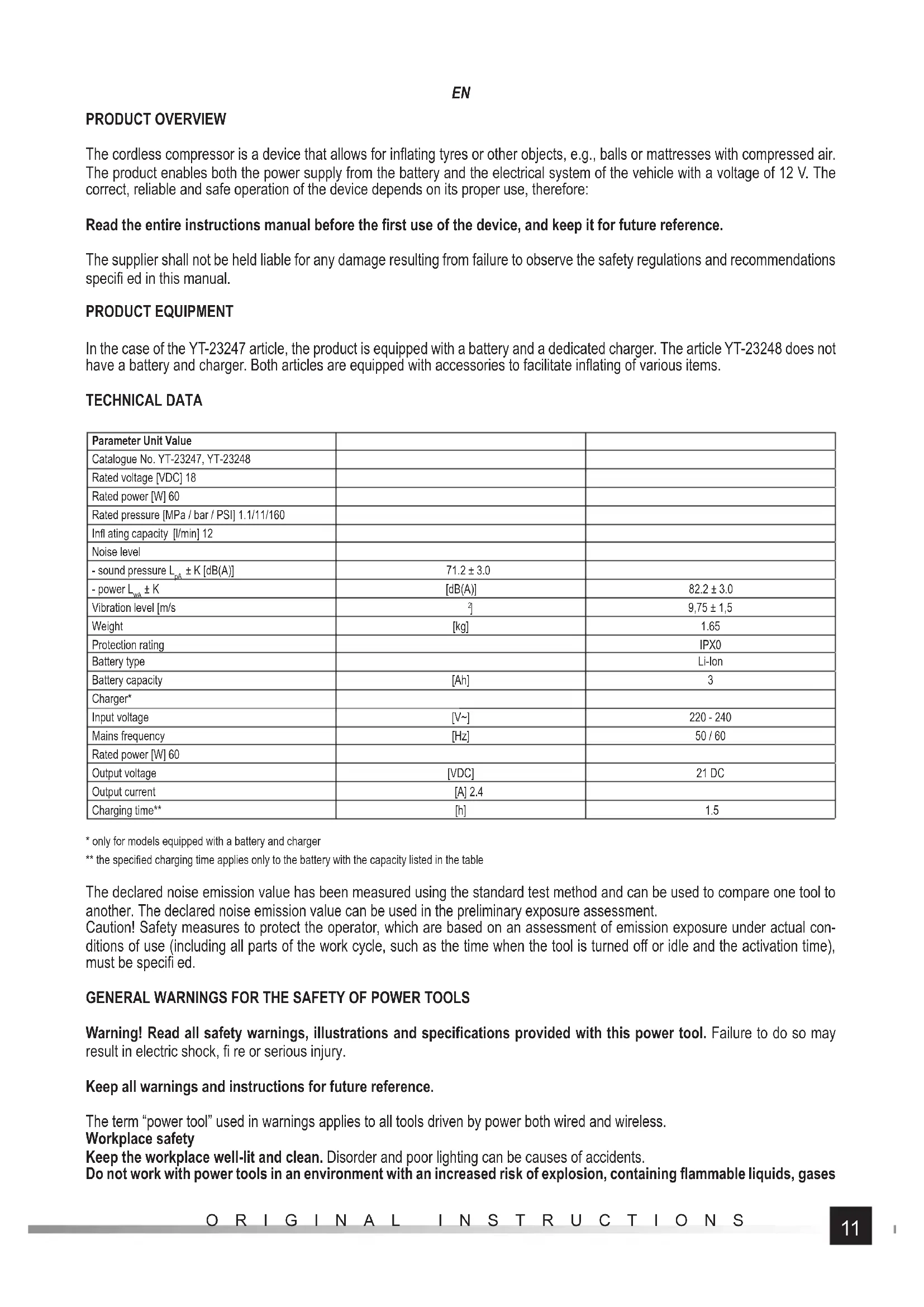

ORIGINAL INSTRUCTIONS PRODUCT OVERVIEW The cordless compressor is a device that allows for infl ating tyres or other objects, e.g., balls or mattresses with compressed air. The product enables both the power supply from the battery and the electrical system of the vehicle with a voltage of 12 V. The correct, reliable and safe operation of the device depends on its proper use, therefore: Read the entire instructions manual before the fi rst use of the device, and keep it for future reference. The supplier shall not be held liable for any damage resulting from failure to observe the safety regulations and recommendations specifi ed in this manual. PRODUCT EQUIPMENT In the case of the YT-23247 article, the product is equipped with a battery and a dedicated charger. The article YT-23248 does not have a battery and charger. Both articles are equipped with accessories to facilitate infl ating of various items. TECHNICAL DATA Parameter Unit Value Catalogue No. YT-23247, YT-23248 Rated voltage [VDC] 18 Rated power [W] 60 Rated pressure [MPa / bar / PSI] 1.1/11/160 Infl ating capacity [l/min] 12 Noise level - sound pressure L

± K [dB(A)] 71.2 ± 3.0 - power L

± K [dB(A)] 82.2 ± 3.0 Vibration level [m/s

] 9,75 ± 1,5 Weight [kg] 1.65 Protection rating IPX0 Battery type Li-Ion Battery capacity [Ah] 3 Charger* Input voltage [V~] 220 - 240 Mains frequency [Hz] 50 / 60 Rated power [W] 60 Output voltage [VDC] 21 DC Output current [A] 2.4 Charging time** [h] 1.5

• only for models equipped with a battery and charger ** the specifi ed charging time applies only to the battery with the capacity listed in the table The declared noise emission value has been measured using the standard test method and can be used to compare one tool to another. The declared noise emission value can be used in the preliminary exposure assessment. Caution! Safety measures to protect the operator, which are based on an assessment of emission exposure under actual con- ditions of use (including all parts of the work cycle, such as the time when the tool is turned off or idle and the activation time), must be specifi ed. GENERAL WARNINGS FOR THE SAFETY OF POWER TOOLS Warning! Read all safety warnings, illustrations and specifi cations provided with this power tool. Failure to do so may result in electric shock, fi re or serious injury. Keep all warnings and instructions for future reference. The term “power tool” used in warnings applies to all tools driven by power both wired and wireless. Workplace safety Keep the workplace well-lit and clean. Disorder and poor lighting can be causes of accidents. Do not work with power tools in an environment with an increased risk of explosion, containing fl ammable liquids, gases12

ORIGINAL INSTRUCTIONS or vapors. Power tools generate sparks that can ignite dust or fumes. Children and third persons should not be allowed to enter the workplace. Loss of concentration can result in loss of control. Electrical safety The plug of the electric cable must match the power socket. You must not modify the plug in any way. Do not use any plug adapters with earthed power tools. An unmodifi ed plug that fi ts the outlet reduces the risk of electric shock. Avoid contact with earthed surfaces such as pipes, radiators and coolers. Grounding the body increases the risk of electric shock. Do not expose power tools to contact with atmospheric precipitation or moisture. Water and moisture that gets inside the power tool increases the risk of electric shock. Do not overload the power cable. Do not use the power cord to carry, pull or unplug the power plug from the power outlet. Avoid contact of the power cable with heat, oils, sharp edges and moving parts. Damage or entanglement of the power cord increases the risk of electric shock. In the case of working outside closed rooms, use extension cords intended for work outside closed rooms. The use of an extension cord adapted for outdoor use reduces the risk of electric shock. When using a power tool in a humid environment is unavoidable as a protection against supply voltage use a residual current device (RCD). The use of RCD reduces the risk of electric shock. Personal safety Stay alert, pay attention to what you do and keep common sense while working with the power tool. Do not use a power tool when you are tired or under the infl uence of alcohol or medication. Even a moment of inattention while working can lead to serious personal injury. Use personal protective equipment. Always wear eye protection. The use of personal protective equipment such as dust masks, anti-slip safety shoes, helmets and hearing protection reduce the risk of serious personal injury. Prevent accidental operation. Make sure that the electric switch is in the “off ” position before connecting to the power supply and / or battery, lifting or moving the power tool. Moving the power tool with the fi nger on the switch or powering the power tool, when the switch is in the “on” position can lead to serious injuries. Before turning on the power tool remove any keys and other tools that were used to adjust it. The key left on the rotating parts of the power tool can lead to serious injuries. Do not reach and do not lean too far. Keep the right attitude and balance all the time. This will allow easier control over the power tool in case of unexpected work situations. Dress accordingly. Do not wear loose clothing or jewelry. Keep your hair and clothing away from moving parts of the power tool. Loose clothing, jewelry or long hair can be caught by moving parts. If the devices are fi tted for the connection of dust extraction or dust collection, make sure that they are connected and used properly. The use of dust extraction reduces the risk of dust hazards. Do not let the experience acquired from frequent use of the tool resulted in carelessness and ignoring safety rules. Carefree action can cause serious injuries in a fraction of a second. Use and care of the power tool Do not overload the power tool. Use the power tool appropriate for the selected application. The right power tool will pro- vide a better and safer job if used according to the designed load. Do not use the power tool, if the electric switch does not allow switching on and off . Power tool, which cannot be controlled by means of a power switch is dangerous and must be returned for repair. Disconnect the plug from the power socket and / or remove the battery if it is detachable from the power tool before adjusting, changing accessories or storing the tool. Such preventive measures will allow you to avoid accidentally turning on the power tool. Keep the tool out of the reach of children, do not let people who do not know how to operate the power tool or these instructions use a power tool. Power tools are dangerous in the hands of untrained users. Maintain power tools and accessories. Check the tool for mismatches or jams of moving parts, damage to parts and any other conditions that may aff ect the operation of the power tool. Damage must be repaired before using the power tool. Many accidents are caused by incorrectly maintained tools. Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp edges are less prone to jamming and are easier to control when working. Use power tools, accessories and inserted tools etc. in accordance with these instructions, taking into account the type and conditions of work. The use of tools for work other than designed is likely to result in a dangerous situation. Handles and gripping surfaces must be dry, clean and free from oil and grease. Slippery handles and gripping surfaces do not allow for safe operation and control of the tool in dangerous situations. Repairs Repair the power tool only in authorized facilities using only original spare parts. This ensures proper operation safety of the power tool.13

ORIGINAL INSTRUCTIONS SAFETY INSTRUCTIONS Learn how to use the tool. Do not start working or charging before reading the instructions manual. Following the guidelines con- tained in the instructions manual reduces the risk of injury, electric shock or fi re. The device is not intended for use in potentially explosive atmospheres in highly humid and dusty environments. The temperature at the workplace should be within the range of +5

C, and the relative humidity should not exceed 80%. The device should not be operated near places where water is sprayed. Place the device only on a hard, even and fl at surface. Make sure that the ventilation openings in the device housing are not obstructed during and after operation. During operation, some elements of the housing may become hot – touching them may cause burns. For carrying the device use only its handle. The device must be turned off before carrying it. The on/off switch must be in the off position and the batteries must be removed from the device. Observe the maximum pressure of the infl ated products. Use a pressure gauge (built-in or separate) to control the pressure inside the infl ated product. Exceeding the maximum pressure may cause damage to the infl ated product or even its rupture. Rupturing the product can cause serious injuries. Periodically check that the readings of the pressure gauge built into the tool match those of the calibrated pressure gauge. Check the tool for damage before each use. If you notice any cracks, abrasions or other damage, do not use the tool until the defects are removed. The device is designed for use with fl exible pressure hoses only. The hoses connected to the device should withstand at least the pressure that the compressor is capable of generating. Hoses for pressures higher than 7 bar / 0.7 MPa should be equipped with a protective shell, e.g. in the form of wire ropes. Before connecting the hose to the device, check that the hose is not damaged. If abrasions, cracks or air leaks of the insulation are discovered, stop using the damaged hose and replace it with a new hose before commencing work. Never bend or twist the hose during operation. Bending the hose can reduce its inside diameter even to the point where the air fl ow stops. This can lead to damage to the hose or even to its rupture, which can result in serious injuries. Bending and twisting the hose also speeds up hose wear. Never carry the tool holding it by the hose. Do not overtension the hose during operation. Avoid the creation of long lines for the transfer of compressed air. Shorter lines are easier to control. All devices and accessories connected to the compressor should withstand at least the pressure that the compressor is capable of generating. It is forbidden to adjust or modify the safety valve on your own. The improperly adjusted or modifi ed safety valve may cause damage to the product, which may result in serious injury. Do not use the device as an artifi cial respiration device, for spraying any substance or for any other application not described in the instructions manual. Never point the air stream towards yourself, other people or animals. Do not use your fi nger or any other part of the body to check if the device is pumping air. Make sure that the device is turned off before connecting the hose and accessories to the device. The device is not intended to be used by children. PRODUCT OPERATION Preparing for operation Unpack the product by removing all packaging components. Check that the on/off switch is in the off position – O. In case of selecting the battery, set the power switch to the OFF position. Select the type of infl ated item. The compressor allows for infl ating products requiring large volumes of air, e.g. mattresses, beach balls, etc., or infl ating products requiring high pressure, e.g. tyres, balls, etc. For both modes, other hoses and corresponding tips are used. When selecting the large-volume mode connect the hose to the socket at the back of the housing (II). The hose is provided with cut-outs through which the socket pins must fi t, and then the hose must be turned to lock its position in the socket. If high-pressure mode is selected, the hose is permanently mounted to the compressor and only needs to be unwound from the handle at the back of the housing. The selected work tip can be installed in the hose valve. Set the valve lever so that it is parallel to the valve and then insert the tip into the valve (III), then lower the valve lever to lock the tip in the valve (III). Select the power supply source: battery or vehicle’s 12 V system. Slide the battery into the battery socket guides until it snaps into the socket (IV). If the vehicle’s 12 V system is selected as the power supply source, set the power switch in the position marked with a light symbol. Unwind the power cord completely and plug the plug into the vehicle’s system socket, the so-called cigarette lighter socket. Connect the selected hose to the infl ated product. The compressor is ready for use. Turning on and off The device is turned on by means of the on/off switch. The on/off switch has three positions. The middle one indicates that it is14

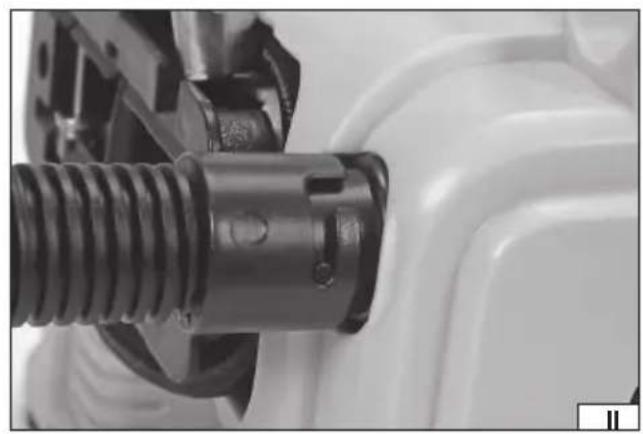

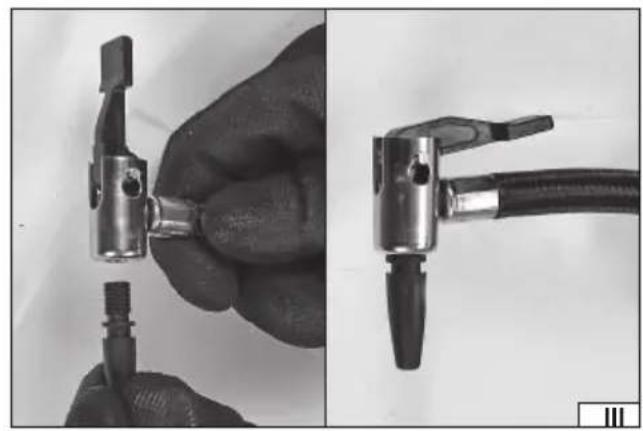

ORIGINAL INSTRUCTIONS in the off state – O. Setting the on/off switch to the – I position means operation in high-pressure mode. Setting the on/off switch to the – II position means operation in the large-volume mode. Using the device The device has a display and a control panel in the form of buttons. The button marked PSI/BAR/kPa is used to select the unit of pressure visible on the display. Each subsequent pressing of the button changes the pressure unit in the following sequence: PSI (pound/square foot); bars and kilopascals. The buttons marked with the “+” and “-” symbols are used to change the pressure value in the selected unit. The button marked with “+” is used to increase the value, and the button marked with “-” is used to decrease the value. The buttons allow for setting an automatic infl ation end after setting the relevant pressure. Such manner of operation is only available in the high-pressure mode. In the large-volume mode you cannot automatically end the infl ating after reaching the set pressure. Set the desired pressure using the buttons. Approximately 3 seconds after the last button is pressed, the set value will start to fl ash on the display and then the display will start to show 0. During infl ating, the display will show the current pressure and once the set value has been reached, the infl ating will stop auto- matically. The compressor can also be used to pump air out of previously infl ated products faster. This function is only available in large-vol- ume mode. The hose used for infl ating in this mode must be connected to the air inlet and then to the product from which the air is to be pumped out. Start the compressor in the large-volume operating mode and wait for the air to be pumped out from the product. Warning! The compressor cannot be used as a vacuum pump. When powered from the battery, setting the power switch to the light symbol will turn on a small fl ashlight built into the side of the housing. Safety instructions for battery charging Caution! Before starting charging, make sure that the power unit body, cord and plug are not cracked or damaged. It is forbidden to use a defective or damaged charging station and power unit! Use only the supplied charging station and power unit to charge the batteries. The use of another power unit may result in fi re or damage to the tool. The battery should only be charged in a closed, dry room, protected against unauthorised access, especially by children. Do not use the charging station and power unit without the constant supervision of an adult! If you need to leave the room where the tool is being charged, disconnect the charger from the mains by removing the power unit plug from the mains socket. If smoke, suspicious odours, etc. are escaping from the charger, remove the charger plug from the mains socket immediately! The compressor is supplied with an uncharged battery and should therefore be charged according to the procedure described below with the included power unit and charging station before use. Li-ion (lithium-ion) batteries do not have the so-called “mem- ory eff ect”, which means they can be recharged at any time. However, it is recommended to discharge the battery during normal operation and then charge it to full capacity. If, due to the nature of work, it is not possible to use the battery in such a manner every time, it should be done at least every several work cycles. Never discharge any batteries by short-circuiting the battery plates, as this will cause irreparable damage! In addition, do not check the battery charge status, by short-circuiting the plates and checking their sparking. Battery storage Ensure the proper storage conditions to extend the battery’s life. The battery can withstand approximately 500 charge-discharge cycles. Store the battery at a temperature ranging from 0ºC to 30ºC at the relative air humidity of 50%. Charge the battery to ap- prox. 70% of its total capacity to store it for a longer period of time. In case of prolonged storage, the battery should be periodically charged once a year. Do not over-discharge the battery as this will shorten its life and may cause irreparable damage. During storage, the battery will gradually discharge due to leakage. The self-discharge process depends on the storage tempera- ture – the higher the temperature, the faster the discharge process. If the batteries are stored incorrectly, the electrolyte may leak. In case of leakage, secure the leak with a neutralising agent. In the case of electrolyte contact with eyes, rinse eyes thoroughly with water, and immediately seek medical attention. It is not allowed to use the device with a damaged battery. If the battery is completely worn, return it to a specialist waste disposal centre. Transport of batteries Lithium-ion batteries are treated as hazardous materials, according to legal regulations. The user of the device can transport the product together with the battery and the batteries alone, by land. In that case, no additional conditions have to be met. If you en- trust transport to third parties (e.g. a courier company), follow the regulations regarding the transport of hazardous goods. Before shipping, please contact a properly qualifi ed person. It is not allowed to transport damaged batteries. For the duration of transport, remove the demountable batteries from the product, secure the exposed contacts, for example by covering them with insulation tape. Protect the batteries in the packaging in such a way that they do not move inside the packaging during transport. National regulations for the transport of hazardous materials must also be observed.15

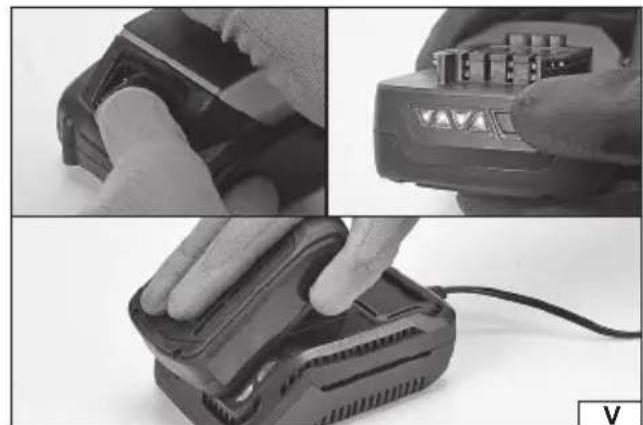

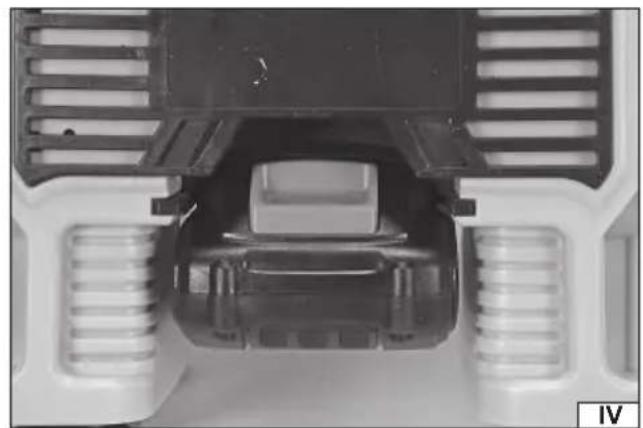

ORIGINAL INSTRUCTIONS Charging the battery Caution! Before charging, disconnect the power unit from the mains by removing the plug from the mains socket. In addition, clean the battery and battery clamps of dirt and dust with a soft, dry cloth. The battery has a built-in charge indicator. The LEDs will light up by pressing the button (II), the more of them come on, the more charged the battery is. If the LEDs do not light up when the button is pressed, the battery is discharged. Disconnect the battery from the tool. Slide the battery into the charger socket (V). Plug the charger into a mains socket. The red LED will light up, which indicates the charging process. When charging is complete, the red LED will turn off and the green LED will light up to indicate that the battery is fully charged. Pull the power unit plug out of the mains socket. Pull the battery out of the charging station by pressing the battery clamp button. Caution! If the green LED lights up when the charger is connected to the mains, the battery is fully charged. In this case, the charger will not start the charging process. MAINTENANCE After each use, turn off the compressor using the on/off switch and disconnect the battery or the power cord plug from the socket. Warning! All maintenance works must be carried out with the battery disconnected from the device and the plug disconnected from the socket. Clean the device housing with a soft and damp cloth or a compressed air stream with a pressure of not more than 0.3 MPa. Ven- tilation opening can also be cleaned with a paint brush or a brush with soft plastic bristles. Do not use alcohol, solvents, acids or corrosive agents for cleaning. After cleaning, the compressor is ready for further operation or storage.

TRANSPORT AND STORAGE

Transport the device by grasping it by the handle or the base. In the case of transporting it by the means of transport, the com- pressor must be secured against movement. The device should only be transported and stored when turned off with the battery disconnected and the plug disconnected from the socket. Store the device in closed well-ventilated rooms. During storage and transport, the device should not be exposed to direct sunlight, heat sources and precipitation. The storage place should protect the device from access by unauthorised persons, especially children. Do not place anything on the device.16 ORIGINALANLEITUNG

± K [dB(A)] 71,2 ±3,0 - Leistung L

± K [dB(A)] 71,2 ± 3,0 - galia L

± K [dB(A)] 71,2 ± 3,0 - potencia L

± K [dB(A)] 71,2 ± 3,0 - vermogen L

± K [dB(A)] 71,2 ± 3,0 - ισχύς L

DECLARATION OF CONFORMITY

(Name and signature of authorized person) (Place and date of issue) We declare and guarantee with full responsibility that the following products: meet requirements of the following European Standards / Technical Specifications: and fulfill requirements of the following European Directives: 2006/42/EC Machinery and safety elements 2014/30/EU Electromagnetic compatibility (EMC) Directive 2011/65/EU Restriction of the Use of Certain Hazardous Substances Serial number: concern all serials numbers of item(s) mentioned in this declaration The person authorized to compile the technical file: Agnieszka Rędziak TOYA S.A., ul. Sołtysowicka 13 - 15, 51-168 Wrocław, Polska

gnature of authorized

DECLARATION OF CONFORMITY

We declare and guarantee with full responsibility that the following products: fulfil requirements of the following European Directive: 2000/14/WE conformity and references of the other Community Directives applied: 2006/42/EC Machinery and safety elements 2014/30/EU Electromagnetic compatibility (EMC) Directive 2011/65/EU Restriction of the Use of Certain Hazardous Substances 0825/YT-23247/EC/2025 Manufacturer quality-control system, examination of the manufacturer’s technical file and periodical inspection by notified body Notified body: TÜV SÜD Industrie Service GmbH; (0036) Westendstraße 199, 80686 München, Germany Wrocław, 2025.08.27

Soseaua Odai 109-123 Sector 1, Bucuresti www.yato.ro offi [e-mail] tel: [phone] fax [phone] (Name and signature of authorized person) (Place and date of issue) Cordless car air compressor; 18 V d.c.; 60 W; 11 bar; 98 l/min; item no. YT-23247, YT-23248 Conformity assessment procedure: Measured sound power level on an equipment representative for this type: 82,2 dB(A) Guaranteed sound power level for this equipment: 86 dB(A)
