AL 9.6 - Pump Alpha Tools - Free user manual and instructions

Product type	Accumulator air pump
Brand	Alpha Tools
Model	AL 9.6
Nominal voltage	9.6 V
Max pressure	9 bars
Max flow rate	10 L/min
Battery type	Nickel-Cadmium (NiCd)
Charging time	Approx. 5 hours
Charger input	230 V - 50 Hz
Sound pressure level	75 dB(A)
Sound power level	88 dB(A)
Vibration	≤ 2.5 m/s²
Main functions	Inflation of vehicle tires, bicycles, inflatable sports and beach items
Included accessories	1 accumulator, 1 charger, 1 charging adapter, 1 pressure hose, 3 adapters (bike, ball, mattress)
Care and cleaning	Clean with a dry soft cloth; do not use detergents; store in a dry, frost-free place
Safety	Do not exceed 9 bars; do not direct the jet at people or animals; use original parts; remove the battery before maintenance
Warranty	2 years

Frequently Asked Questions - AL 9.6 Alpha Tools

How to charge the battery for the first time?

Before first use, charge the included NC accumulator with the dedicated charger for about 5 hours. Full capacity is reached after about five charge/discharge cycles.

What maximum pressure can the pump reach?

The pump can generate up to 9 bars of pressure. Never exceed this limit to avoid risk of bursting.

What items can I inflate with this pump?

It is designed to inflate vehicle and bicycle tires, as well as inflatable toys, sports and beach items. It is not suitable for large items (boats, large mattresses) or industrial use.

How to use the included adapters?

Use the bike adapter (ref. 8) on bicycle valves, the ball needle (ref. 9) for balls, and the mattress nozzle (ref. 10) for air mattresses. Attach them to the pump or pressure hose.

What to do if the battery does not charge?

Check that the power outlet is live and the charger contacts are clean. If the problem persists, send the charger and accumulator to customer service.

Can I use the pump continuously?

No, the operating time must not exceed 10 minutes per cycle. Let the compressor cool for about 10 minutes between each inflation to avoid overheating.

How to clean and maintain the device?

Use a dry soft cloth to clean the surface. Never use detergents. Store the device in a dry, frost-free place. Always remove the battery before any maintenance.

What to do in case of contact with battery acid?

In case of skin contact, wash thoroughly with water and soap. If acid gets into eyes, rinse with clear water for at least 10 minutes and consult a doctor immediately.

Where can I dispose of a used battery?

Do not dispose of accumulators in household waste. They contain toxic cadmium. Return them free of charge to ISC company or drop them at an appropriate collection point. Ask your local council.

Is this pump suitable for truck tires?

No, it is not suitable for high-pressure tires like those of trucks, tractors or trailers. Use it only for light vehicle and bicycle tires.

USER MANUAL AL 9.6 Alpha Tools

Labeled diagram of a handheld electric shock gun with numbered parts for identification

3

D

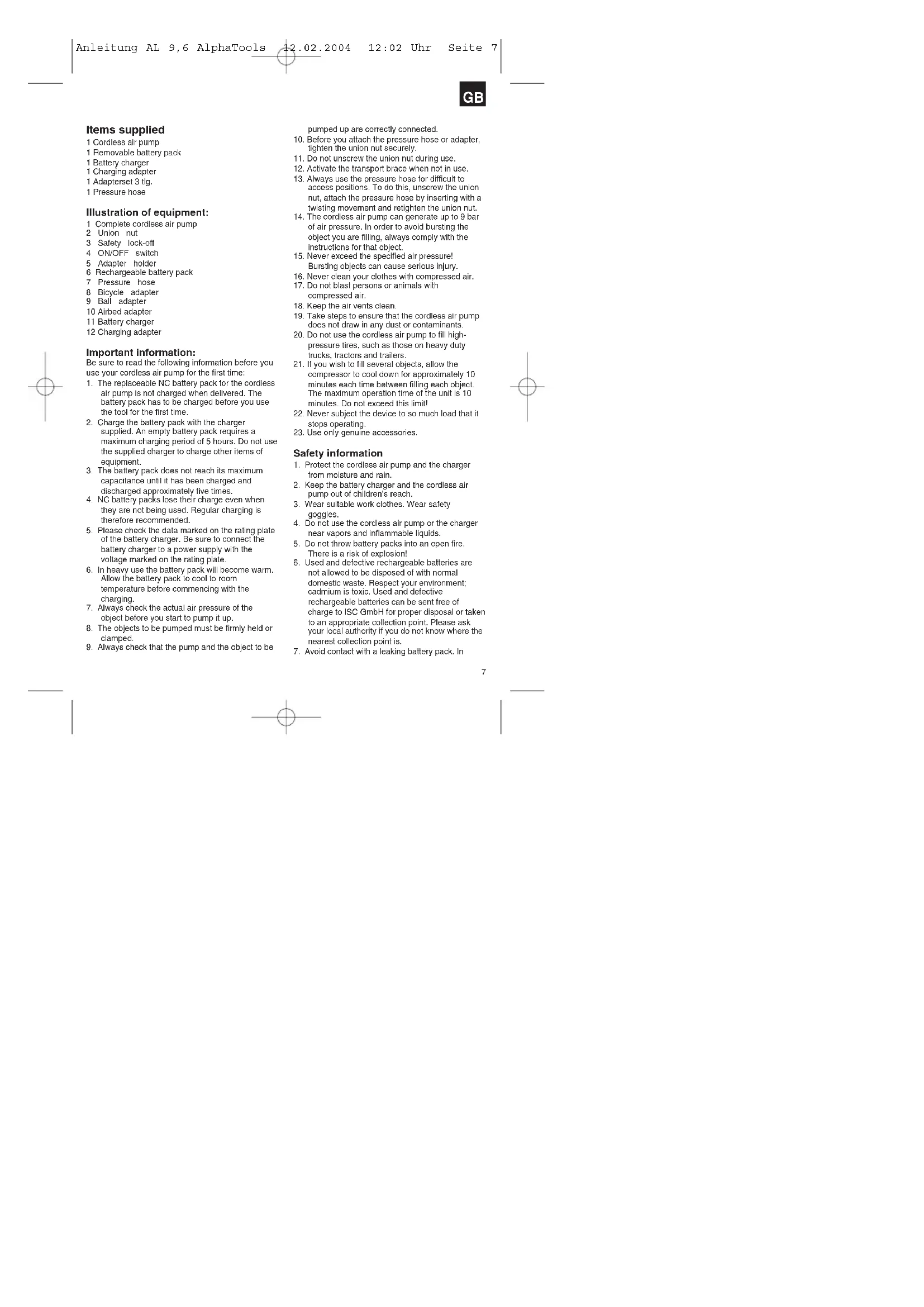

Lieferumfang:

1 Cordless air pump
1 Removable battery pack
1 Battery charger
1 Charging adapter
1 Adapterset 3 tlg.
1 Pressure hose

Illustration of equipment:

1 Complete cordless air pump
2 Union nut
3 Safety lock-off
4 ON/OFF switch
5 Adapter holder
6 Rechargeable battery pack
7 Pressure hose
8 Bicycle adapter
9 Ball adapter
10 Airbed adapter
11 Battery charger
12 Charging adapter

Important information:

Be sure to read the following information before you use your cordless air pump for the first time:

1. The replaceable NC battery pack for the cordless air pump is not charged when delivered. The battery pack has to be charged before you use the tool for the first time.
2. Charge the battery pack with the charger supplied. An empty battery pack requires a maximum charging period of 5 hours. Do not use the supplied charger to charge other items of equipment.
3. The battery pack does not reach its maximum capacitance until it has been charged and discharged approximately five times.
4. NC battery packs lose their charge even when they are not being used. Regular charging is therefore recommended.
5. Please check the data marked on the rating plate of the battery charger. Be sure to connect the battery charger to a power supply with the voltage marked on the rating plate.
6. In heavy use the battery pack will become warm. Allow the battery pack to cool to room temperature before commencing with the charging.
7. Always check the actual air pressure of the object before you start to pump it up.
8. The objects to be pumped must be firmly held or clamped.
9. Always check that the pump and the object to be

pumped up are correctly connected.

1. Before you attach the pressure hose or adapter, tighten the union nut securely.
2. Do not unscrew the union nut during use.
3. Activate the transport brace when not in use.
4. Always use the pressure hose for difficult to access positions. To do this, unscrew the union nut, attach the pressure hose by inserting with a twisting movement and retighten the union nut.
5. The cordless air pump can generate up to 9 bar of air pressure. In order to avoid bursting the object you are filling, always comply with the instructions for that object.
6. Never exceed the specified air pressure! Bursting objects can cause serious injury
7. Never clean your clothes with compressed air.
8. Do not blast persons or animals with
   compressed air.
9. Keep the air vents clean.
10. Take steps to ensure that the cordless air pump does not draw in any dust or contaminants.
11. Do not use the cordless air pump to fill high-pressure tires, such as those on heavy duty trucks, tractors and trailers.
12. If you wish to fill several objects, allow the compressor to cool down for approximately 10 minutes each time between filling each object. The maximum operation time of the unit is 10 minutes. Do not exceed this limit!
13. Never subject the device to so much load that it stops operating.
14. Use only genuine accessories.

Safety information

1. Protect the cordless air pump and the charger from moisture and rain.
2. Keep the battery charger and the cordless air pump out of children's reach.
3. Wear suitable work clothes. Wear safety goggles.
4. Do not use the cordless air pump or the charger near vapors and inflammable liquids.
5. Do not throw battery packs into an open fire. There is a risk of explosion!
6. Used and defective rechargeable batteries are not allowed to be disposed of with normal domestic waste. Respect your environment; cadmium is toxic. Used and defective rechargeable batteries can be sent free of charge to ISC GmbH for proper disposal or taken to an appropriate collection point. Please ask your local authority if you do not know where the nearest collection point is.
7. Avoid contact with a leaking battery pack. In

GB

case of accidental contact, wash the affected area of skin with soap and water. If battery acids gets in your eye, rinse out the eye with clear water for at least 10 minutes and seek a doctor's advice immediately.

1. Protect the battery charger and its cable from damage and sharp edges. Have damaged cables repaired without delay by a qualified electrician.
2. Check your tool for damage. Repairs may only be carried out by a qualified electrician.
3. Make sure that the contacts of the battery pack do not come into contact with other metallic objects such as nails or screws. There is a risk of short-circuiting!

Areas of application

This device is intended solely for pumping up vehicle tires, bicycle tires and blow-up leisure, sports and beach articles. It is not suitable for large-volume articles (e.g. rubber dinghies, large airbeds). It is not intended for industrial use.

Starting up:

Charging the NC battery pack

1. Before you remove or insert the battery, activate the transport brace (Pos. 3). To do this, slide the slide button for the transport brace to the left (lock is closed). Remove the battery pack (Pos. 6) from the handle, pressing the pushlock buttons (A) at the side to do so.
2. Check that your mains voltage is the same as that marked on the rating plate of the battery charger. Plug the battery charger (Pos. 11) in the plug socket and connect the charging cable to the charging adapter (Pos. 12). The green LED will illuminate to show that the mains power is connected to the charging adapter.
3. Plug the battery pack (Pos. 6) in the charging adapter (Pos. 12). The green LED and the red LED will illuminate simultaneously and the battery will start charging. An empty battery pack requires a maximum charging period of 5 hours. The temperature of the battery pack may rise slightly during the charging operation. This is normal.

Important! It does not switch off automatically when fully charged!

If the battery pack fails to charge, please check whether there is voltage at the socket-outlet whether there is good contact at the charging contacts of the battery station (pos. 12)

If the battery pack still fails to charge, please send ●the battery charger and charging adapter
●the battery pack
to our customer services department.

To ensure that the NC battery pack provides long service, you should take care to recharge it promptly. You must recharge the battery pack when you notice that the power of the cordless air pump drops.

Never fully discharge the battery pack. This will cause it to develop a defect!

ON/OFF switch

- Insert the charged battery in the handle until it locks into place. Deactivate the transport brace (Pos. 3). To do this, slide the slide button to its position on the right (lock is open).

●Switch the device on and off with the ON/OFF switch (Pos. 4).

Important! A force of over 60N exerted on the ON/OFF switch may cause the device to switch on in spite of the transport brace!

Pumping up:

Important! The in-built pressure manometer is not calibrated. After you have pumped up a tire, therefore, you will have to check the air pressure using a calibrated air gauge.

Pumping up vehicle tires

Attach the cordless air pump to the valve either directly or with the pressure hose (Pos. 7).

Pumping up bicycle tires

To pump up bicycle tires with conventional valves, screw the adapter (Pos. 8) onto the valve. Attach the cordless air pump to the adapter or screw the pressure hose onto the adapter, then pump up the bicycle tire. For bicycles with car valves, attach the cordless air pump to the valve either directly or with the pressure hose (Pos. 7).

Pumping up other objects

To pump up leisure, sports and beach articles, use the ball adapter (Pos. 9) or airbed adapter (Pos. 10). In doing so, take care to comply with the instructions for use of the blow-up object!

Care and maintenance

Always remove the rechargeable battery from the device before starting any maintenance or repair

GB

work. Store the device in a dry location at above freezing temperature. Do not expose the device to strong sunlight. Do not open the rechargeable battery / device.

Wherever possible, clean the surface with only a soft dry cloth – do not use aggressive solvents. If absolutely necessary, use a slightly damp rag to remove dirt.

Technical data:

Cordless air pump

Motor power supply: 9.6 V
Air pressure, max.: 9 bar
Delivery volume, max.: 10 l/min.
Weight with battery, approx.: 1.2 kg
LPA sound pressure level: 75 dB(A)
LWA sound power level: 88 dB(A)
Vibration: a_W	<2.5 m/s ^3

Battery charger:

Voltage: 230 V / 50 Hz

Charging voltage: 12 V DC

Charging current: 500 mA

Sound and vibration measurement values determined according to EN 50144-2-6.

@ Rechargeable batteries and cordless electric machines and tools contain materials that are potentially harmful to the environment. Never place any cordless electric machines or tools in your household refuse. When cordless electric machines or tools become defective or worn, remove the rechargeable batteries and return them to iSC GmbH Eschenstrasse 6, D-94405 Landau, Germany. If the rechargeable batteries cannot be removed, return the complete cordless machine or tool. You can then be sure that the equipment will be correctly

F

3 Indkoblingsspærring

4 Tænd/sluk-knap

5 Adapterholder

6 Akkúpack

7 Trykslange

8 Cykeladapter

9 Kugleadapter

10 Luftmadrasadapter

11 Ladeaggregat

12 Ladeadapter

●akumulatorski sklop.

GB EC Declaration of Conformity

The undersigned declares in the name of the company that the product is in compliance with the following guidelines and standards.

The product described in these instructions comes with a 5-year warranty borrowing default. The 5-year warranty period begins with the passing of risk or when the customer receives the product. For warranty claims to be accepted, the product has to receive the correct maintenance and be put to the proper use as described in the operating instructions. Your statutory rights of warranty are naturally unaffected during these 5 years. This warranty applies in Germany, or in the respective country of the manufacturer's main regional sales partner, as a supplement to local regulations. Please note the details for contacting the customer service center responsible for your region or the service address listed below.

① CERTIFICADO DE GARANTIA

Eschenstraße 6 - D-94405 Landau'Isar (Germany)

Info-Tel. [phone] • Telefax 0180-5 835 830

Technical changes subject to change

©CZ Poker Plus S.R.O.

Vypadova 1335

CZ-15300 Prahe 5 - Ra

Tel. + Fax [phone]

Technical & Commerce

1. Papastratou & Askl

GB 18545 Piräus

Tel [phone]. Fa

RJS Bermas

Altufvevskove shosse 2

BUS 127273 Moscow

Tel [phone]. Fax

LT Dirbita

Metalo str. 23

LT 2038 Vilnius

Tel [phone], Fax(

EST AS Baltoil

Boju. Haaslava vald

EE 62102 Tartumaa

TEI 07301710. Fax 0

(IAE)Halai Trading Co. LLC

POB 9282, Nakheel Rc

UAE Dubal

Tel./Fax [phone]

IR Alborz Abzar Co. Ltd.

No. 111. Bastan Passa

IR 11146 Teheran

Tel [phone], Fax

KZ I.B.G.

Belinskij-str. 102

KZ 486008 Chimkent

Tel [phone], R

BIH FIS d.o.o

EH 08/2003

D

The reprinting or reproduction by any other means, in whole or in part, of documentation and papers accompanying products is permitted only with the express consent of ISC GmbH.
